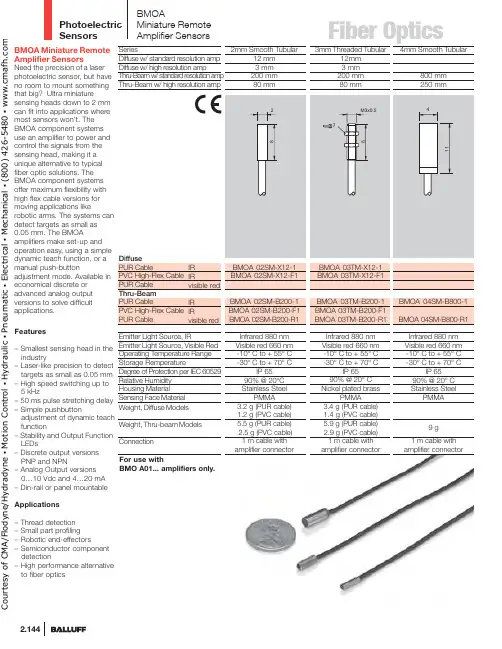

Photoelectric Sensors2.144BMOA Miniature Remote Amplifier SensorsNeed the precision of a laserphotoelectric sensor, but have no room to mount something that big? Ultra miniaturesensing heads down to 2 mmcan fit into applications wheremost sensors won’t. The BMOA component systems use an amplifier to power and control the signals from the sensing head, making it a unique alternative to typical fiber optic solutions. The BMOA component systems offer maximum flexibility with high flex cable versions for moving applications likerobotic arms. The systems can detect targets as small as 0.05 mm. The BMOAamplifiers make set-up and operation easy, using a simpledynamic teach function, or amanual push-button adjustment mode. Available in economical discrete or advanced analog outputversions to solve difficult applications.Features– Smallest sensing head in the industry– Laser-like precision to detect targets as small as 0.05 mm – High speed switching up to 5 kHz– 50 ms pulse stretching delay – Simple pushbuttonadjustment of dynamic teach function– Stability and Output Function LEDs– Discrete output versions PNP and NPN– Analog Output versions 0…10 Vdc and 4…20 mA – Din-rail or panel mountable Applications– Thread detection – Small part profiling – Robotic end-effectors– Semiconductor component detection– High performance alternative to fiber opticsBMOAMiniature Remote Amplifier SensorsBMO A01... amplifiers only.C o u r t e s y o f C M A /F l o d y n e /H y d r a d y n e ▪ M o t i o n C o n t r o l ▪ H y d r a u l i c ▪ P n e u m a t i c ▪ E l e c t r i c a l ▪ M e c h a n i c a l ▪ (800) 426-5480 ▪ w w w .c m a f h .c o m2.145t p76o amplifier connectoramplifier connectoramplifier connectorC o u r t e s y o f C M A /F l o d y n e /H y d r a d y n e ▪ M o t i o n C o n t r o l ▪ H y d r a u l i c ▪ P n e u m a t i c ▪ E l e c t r i c a l ▪ M e c h a n i c a l ▪ (800) 426-5480 ▪ w w w .c m a f h .c o mPhotoelectric Sensors2.146High SpeedBMO A01-I-PU-C-02BMO A01-I-NU-C-02SeriesDiscrete Output PNP Normally-open NPNNormally-open Analog Output 0...10 Vdc 4...20 mASupply VoltageVoltage Drop U d at I e Output Current (digital)Analog Output Type (Voltage)Analog Output Type (Current)Analog Output Load (voltage) min load Analog Output Load (current) Max Load Current Consumption I o (no load)Protections Response TimeSwitching FrequencyPulsed/Non-Pulsed Light Source Output FunctionOperating Temperature Range Degree of Protection per IEC 60529Sensitivity/Range Adjustment Power/Stability Indication Alarm Indication Output LEDHousing MaterialWeightConnection (to control system)10…30 Vdc< 2 V 100 mA 45 mAShort Circuit, Reverse Polarity100 µs 5 KHz Non-PulsedLight/Dark Selectable -10° C to +55° CIP 65Teach-in and ManualGreen LED Yellow LED ABS 55 g2 m PVC Cable ,3 x 26 AWGq w e rBMOAMiniature Remote Amplifier SensorsSensitivity settingAUT – the amplifier will determine the best setting for the application.MAN – this allows you to fine-tune the settings or manually adjust the sensor for difficult applications.Wiring DiagramsOutput GNDOutput GNDrC o u r t e s y o f C M A /F l o d y n e /H y d r a d y n e ▪ M o t i o n C o n t r o l ▪ H y d r a u l i c ▪ P n e u m a t i c ▪ E l e c t r i c a l ▪ M e c h a n i c a l ▪ (800) 426-5480 ▪ w w w .c m a f h .c o mFiber Optics/photoelectricObject Resolution for Diffuse Sensors42-2-4-6-8Y(mm)055M, 06TM & 66RMYMeasuring Arrangement:900a standard resolution amplifier.04SM, 05TM & 66RMthe beam at certain ranges.Sensing Distance for Diffuse Sensors0.8% 1.6% 3.1% 6.3% 12.5% 25% 50% 100%Absolute Mode (ABS)This mode offers the maximum accuracy for allapplications. The amplifier will offer 8 stages ofCourtesyofCMA/Flodyne/Hydradyne▪MotionControl▪Hydraulic▪Pneumatic▪Electrical▪Mechanical▪(8)426-548▪www.cmafh.co m。
光电传感器型号与参数【一览表】
光电传感器一般至少有9种以上传感模式，5种以上的检测范围，有三种封装尺寸，使用两个光源，并可以使用各种安装方式、输出与工作电压的组合购买。
这产生了令人困扰的种类繁多的候选传感器可能性，使人难以选择。
如果是选择光电传感器，首先就要了解光电传感器的主要参数，以下列出光电传感器的11个主要参数:
1、尺寸；
2、传感模式；
3、传感范围；
4、安装方式；
5、输出；
6、工作模式；
7、工作电压；
8、光源；
9、连接方式；
10、封装材料；
11、特殊功能包括：可处理高速和/或高温，逻辑控制，可计算机编程，网络兼容性。
光电传感器如何选择？
首要的是你需要的哪些参数，第一考虑的是你检测测物体，光电传感器分为对射型对应的是物体被测面尺寸，回归反射型对应的是物体被测面尺寸，光泽反射能力强弱，扩散反射型则对应的是物体被测面尺寸和被测物体颜色。
然而每一个类型的光电传感器检测方式又是不同的，对射型的就是投光器加上受光器，回归反射型是反射板加上投受光器，扩散反射型则是靠物体将投出的光线反射回受光器，固需要确认是否有背景物体。
他们对应的各自有着不同的检测距离，对射型的是投光器到受光器的距离，回归反射型就是反射板到投受光器的距离，扩散反射型的检测距离则是被测物体到投受光器的距离。
光电传感器的控制输出主要有晶体管输出和继电器接点输出。
安装连接方式基本上有两种类别导线引出型和接插件型，要注意的是接插件型配接插线需要确认直线性或L字型，导线长度。
光电传感器的测量内容
光电传感器的测量内容
光电传感器是一种将光信号转换为电信号的传感器，它可以测量多种物理量和参数，以下是一些常见的测量内容：
1. 光强度：光电传感器可以测量光的强度，通常用于光照度计、光度计等仪器中，用于测量环境中的光强。
2. 光通量：光通量是指单位时间内通过某一面积的光能量，光电传感器可以测量光通量，常用于光功率计等仪器中。
3. 光波长：一些光电传感器可以测量光的波长，常用于光谱仪等仪器中，用于分析光的成分和特性。
4. 距离和位置：通过测量光的传播时间或相位差，光电传感器可以测量物体的距离和位置，常用于工业自动化、机器人、汽车等领域。
5. 运动和速度：利用光的反射或遮挡原理，光电传感器可以检测物体的运动和速度，常用于安防监控、工业检测等领域。
6. 颜色和色彩：一些光电传感器可以识别光的颜色和色彩，常用于颜色分选机、色度计等仪器中。
7. 气体和液体成分：利用光的吸收或散射特性，光电传感器可以检测气体和液体中的成分，常用于环境监测、化学分析等领域。
这只是一些常见的光电传感器测量内容，实际上，根据具体的应用和传感器类型，还可以测量其他物理量和参数。
光电传感器具有高精度、快速响应、非接触测量等优点，在各个领域得到广泛应用。
光电传感器企业标准20140611
东南电梯股份有限公司1、范围本企业标准规定了ER-系列光电传感器的术语、符号、代号、型号规格分类、基本参数，结构和性能要求、试验方法、检验规则、包装和运输贮存等内容。
本企业标准适用于能对调制的红外光束遮光或反光，来检测物体的ER-系列光电式传感器（以下称光电开关）。
光电开关是全封闭式，并且有半导体开关元件，可连接额定电压直流额定电压不超过30V的工业控制回路使用的光电开关。
1.引用标准GB 156 额定电压GB 191 包装储运图示标志GB 1525 制图纸GB 4208 外壳防护等级的分类GB 4588.1-4588.2 印制板企业标准GB/T 3926.2工业过程测量和控制装置的电磁兼容性、静电放电要求GB/T 13926.3工业控制装置的电磁兼容性辐射电磁场的要求GB/T 13926.4工业控制装置的电磁兼容性、电快速瞬变脉冲群要求GB/T 14048.10《低压开关设备和控制设备第5-2部分控制电路电器和开关元接近开关》GB3836.1爆炸环境第一部分：设备通用要求GB3836.4 本质安全型“i”保护的设备GB3836.15 爆炸性气体环境用电气设备GB3836.18爆炸性环境、本质安全系统GB3836.20爆炸性环境设备保护级别（EPL）为Ga级的设备JB/T6475光电开关标准JB2759机电产品包装通用企业标准JB3284机电、电器产品运输、贮存基本环境条件及试验方法3．名词术语3.1光电开关根据投光器发出的光，在检测体上发生光亮增减，用光电变换元件组成的受光器，检测物体有无、大小的非接触式控制器件。
3.2反射式投光器发出的光，由检测体反射到受光器上光量的方式。
3.3对射式投光器发出的光，被检测体遮挡，检测受光器上光量的方式。
3.4反射器式投光器发出的光，由反射器反射后被检测体遮挡，检测受光器上光量的方式。
3.5亮动式因光量增加，通断输出的元件导通而动作的方式。
3.6暗动式因光量减少，通断输出的元件导通而动作的方式。
光电感应传感器产品参数说明说明书
> 25 mm
–35...+65 °C 130 mm 130 mm 155 mm 100 mm 100 mm 50 mm
/photoelectric
6Connectors 7Accessories oProduct
Overview
t Technical Reference
> 5 mm
–40...+60 °C 110 mm 110 mm 135 mm 70 mm 70 mm 30 mm
> 25 mm > 15 mm –35...+65 °C 130 mm 130 mm 155 mm 80 mm 80 mm 40 mm
M4-Threaded Flexible Tip 2×1 mm
10.5
15
Ø2.2
2xØ1.0
BFO D10-XA-HB-EAK-10-02 BFO D10-XA-RB-EAK-10-02 BFO D13-XB-RB-EAK-10-02 BFO D10-XA-GB-EAK-10-02 BFO D13-XA-JB-EAK-20-02
> 15 mm > 10 mm –55...+70 °C 50 mm 50 mm 75 mm 20 mm 20 mm 10 mm
> 15 mm
–55...+70 °C 50 mm 50 mm 75 mm 20 mm 20 mm 10 mm
> 5 mm
–40...+60 °C 60 mm 60 mm 85 mm 35 mm 35 mm 20 mm
> 15 mm >10 mm –35...+65 °C 50 mm 50 mm 75 mm 20 mm 20 mm 10 mm
光电探测器的性能参数
一、量子效 率
量子效率：是指每入射一个光子光电探 测器所释放的平均电子数。它与入射光 能量有关。其表达式为:
I /e P / h
式中，I是入射光产生的平均光电流大小，e是 电子电荷，P是入射到探测器上的光功率。
I/e为单位时间产生的电子数, P/hυ为单位时间入射的光子数。
对于理想的探测器，每入射一个光子则
R(λ)
光子探测器 热电探测器
0
λc
λ
图2 光电探测器的光谱响应曲线
四、频率响应度
频率响应度R(f)：响应度随入射光频率而变
化的性能参数。其表达式为：
R(
f
)
[1
R0
(2f
)2
]1/
2
式中R(f)为频率为f 时的响应度；R0为频率为
零时的响应度；为探测器的响应时间或称时 间常数,由材料和外电路决定。
Hale Waihona Puke RV( )
Vs () P( )
RI
()
Is () P()
调制盘
光源电源
手轮
光谱单色仪
电机
探测器
示波器 毫伏表
前置放大器
电源
带通 放大器
图1 光谱响应度测试装置
如果R(λ)是常数，
则称为无选择性探测器 (如光热探测器)。由于 许多光电探测器是基于 光电效应而工作的，因 此响应存在一个探测截 止波长λc。
五、噪声等效功率
噪声等效功率(NEP)是描述光电探测器探测能
力的参数。 定义：单位信噪比时的入射光功率。表达式为
NEP P Vs / Vn
NEP 越小，噪声越小，探测器探测能力就越强。
六、探测度D与归一化探测 度D*
光电传感器数据手册说明书
DatasheetMiniature self-contained photoelectric sensors in universal housing•Bright, visible red (640 nm) light source•Standard models available with 4-wire 2 m (6.5 ft) or 9 m (30 ft) cable or 3 or 4-wire 150 mm (6 in) pigtail with Pico-style M8 threaded connector•Solid-state, bipolar outputs: one current sourcing (PNP) and one current sinking (NPN) standard on 4-wire models•Single output solid-state PNP or NPN standard on Q3 models •Light Operate (LO) or Dark Operate (DO), depending on model•Models available with PFA chemical-resistant jacket (1200 psi washdown rated)for use in harsh environments•Compact 8 mm (0.31 in) housing mounts almost anywhere•Crosstalk avoidance circuitry for applications with multiple sensors•LED status indicators for Power ON, Output Overload, Signal Received, and Marginal Signal•Advanced ASIC technology makes sensor resistant to optical and electrical noise sourceStandard ModelChemical-ResistantModelWARNING:•Do not use this device for personnel protection•Using this device for personnel protection could result in serious injury or death.•This device does not include the self-checking redundant circuitry necessary to allow its use inpersonnel safety applications. A device failure or malfunction can cause either an energized (on) or de-energized (off) output condition.Chemical-Resistant ModelsWORLD-BEAM ® Q12 Series SensorOriginal Document 119223 Rev. M7 April 2020119223Standard Modelssuffix W/30 to the model number. For example, Q126E W/30.•To order the 150 mm (6 in) cable with a 4-pin M8/Pico-style (M8 threaded) QD model, add the suffix Q to the model number. For example, Q126EQ.•To order the 150 mm (6 in) cable with a 4-pin M12/Euro-style QD model, add the suffix Q5 to the model number. For example Q126EQ5.3Retroreflective range is specified using one model BRT-60X40C retroreflector. Actual sensing range may be more or less than specified, depending upon efficiency and reflective area of the retroreflector(s) used. - Tel: + 1 888 373 6767P/N 119223 Rev. MIndicator Features1 - Amber and green LEDs•Green on: power to sensor is on •Amber on: received signal•Amber flashing: marginal signalChemical-Resistant models: LEDs are visible through translucent PFA jacket. Rated to 1200 psi washdown.WiringEmitters have no connection to black and white.CAUTION: Observe proper ESD precautions (grounding) when connecting QD models.Emitters–+Bipolar Models, Light Operate–+PNP Models, Light OperateNPN Models, Light Operate–+Bipolar Models, Dark Operate–+PNP Models, Dark OperateNPN Models, Dark Operate–+Key1 = Brown2 = White3 = Blue4 = Black3-pin M8/Pico-style Male QD 4-pin M8/Pico-style Male QD 34-pin M12/Euro-style Male QDSpecificationsSupply Voltage and Current10 to 30 V dc (10% maximum ripple) at 20 mA maximum current Sensing Beam640 nm visible redSupply Protection CircuitryProtected against reverse polarity and transient voltagesOutput ConfigurationBipolar (1 NPN and 1 PNP) solid-state output or Single output (PNP or NPN), LO or DO, depending on model Repeatability125 microseconds Switching FrequencyOpposed Mode: 385 Hz LP/LV Mode: 715 Hz FF Mode: 590 HzP/N 119223 Rev. M - Tel: + 1 888 373 67673Output Protection CircuitryProtected against false pulse on power-up, short-circuit protectedOutput Response TimeOpposed Mode: 1.3 ms ON; 900 µs OFF LP/LV Mode: 700 µs ON/OFF FF Mode: 850 µs ON/OFFNOTE: 120 ms delay on power-up; outputs do not conduct during this time.IndicatorsOne Yellow and one Green LED (see Figure 1)ConstructionPolarized Retro Models: Thermoplastic elastomer housing with glass lens All Other Standard Models: Thermoplastic elastomer housing with polycarbonate lensChemical-Resistant Models: Housing encased in PFA jacket; cable encased in 3/16 in O.D. PFA tubing Output RatingsOFF-state leakage current:NPN: 10 µA PNP: 10 µAON-state saturation voltage:NPN: 2 V at 50 mA PNP: 2 V at 50 mAVibration and Mechanical ShockAll models meet MIL-STD-202F, Method 201A (Vibration: 10 Hz to 60 Hz maximum, 0.06 inch (1.52 mm) double amplitude, 10G maximumacceleration) requirements. Also meets IEC 60947-5-2 (Shock: 30G 11 ms duration, half sine wave) requirements.ConnectionsStandard Models: 2 m (6.5 ft) or 9 m (30 ft) attached PVC cable, or 150 mm (6 in) pigtail with M8 or M12 threaded connection, depending on the model orderedChemical-Resistant Models: 2 m (6.5 ft) cable encased in 3/16 in O.D. PFA tubing Environmental RatingStandard Models: IEC IP67Chemical-Resistant Models: IEC IP67 (NEMA6) and PW12 1200 psi washdown per NEMA ICS5, Annex F-2002ConditionsOperating Temperature: –20 °C to +55 °C (–4 °F to +131°F)Storage Temperature: –30 °C to +75 °C (–22 °F to +167 °F)95% at +50 °C maximum relative humidity (non-condensing)Certifications(Chemical-resistant models are not UR/UL approved.)Required Overcurrent ProtectionWARNING: Electrical connections must bemade by qualified personnel in accordance with local and national electrical codes and regulations.Overcurrent protection is required to be provided by end product application per the supplied table.Overcurrent protection may be provided with external fusing or via Current Limiting, Class 2 Power Supply.Supply wiring leads < 24 AWG shall not be spliced.For additional product support, go to .Dimensions15.0 mm 4.7 mm (0.19")Polarized RetroModelsM3 mounting screws included(0.31")12.4 mm (0.49")max. torque 0.9 Nm (8 in-lbf)Figure 1. Standard Models - Tel: + 1 888 373 6767P/N 119223 Rev. MMounting hardwarenot included2 m (6.5')* When mounting by running a screw throughboth flanges without support between the flanges,Figure 2. Chemical-Resistant ModelsPerformance Curves - Opposed ModePerformance Curves - Retroreflective ModePerformance is based on the use of a model BRT-60X40C retroreflector.P/N 119223 Rev. M - Tel: + 1 888 373 67675Performance Curves - Fixed-FieldFocus and spot sizes are typical. Performance based on use of 90% reflectance white test card.*AccessoriesCordsets - Tel: + 1 888 373 6767P/N 119223 Rev. MBracketsSMBQ12T•Right-angle bracket•20-ga. 300 series stainless steelHole center spacing: A to B = 7.6Hole size: A = 3.5 x 8.1, B=ø 3.2SMBQ12A•Adjustable right-anglebracket•20-ga. 300 series stainless steelHole center spacing: A to B = 7.6Hole size: A = 3.5 x 8.1, B=ø 3.2Sensor Status IndicatorsP/N 119223 Rev. M - Tel: + 1 888 373 67677AperturesOpposed-mode sensors (standard models only) may be fitted with apertures to narrow or shape the sensor’s effective beam to more closely match the size or profile of the objects being sensed. A common example is the use of “line” (or “slot”) type apertures to sense thread.Note: The use of apertures will reduce the sensing range (see table below).Banner Engineering Corp. Limited WarrantyBanner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following the date of shipment. Banner Engineering Corp. will repair or replace, free of charge, any product of its manufacture which, at the time it is returned to the factory, is found to have been defective during the warranty period. This warranty does not cover damage or liability for misuse, abuse, or the improper application or installation of the Banner product.THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE), AND WHETHER ARISING UNDER COURSE OF PERFORMANCE, COURSE OF DEALING OR TRADE USAGE.This Warranty is exclusive and limited to repair or, at the discretion of Banner Engineering Corp., replacement. IN NO EVENT SHALL BANNER ENGINEERING CORP. BE LIABLE TO BUYER OR ANY OTHER PERSON OR ENTITY FOR ANY EXTRA COSTS, EXPENSES, LOSSES, LOSS OF PROFITS, OR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES RESULTING FROM ANY PRODUCT DEFECT OR FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER ARISING IN CONTRACT OR WARRANTY, STATUTE, TORT, STRICT LIABILITY, NEGLIGENCE, OR OTHERWISE.Banner Engineering Corp. reserves the right to change, modify or improve the design of the product without assuming any obligations or liabilities relating to any product previously manufactured by Banner Engineering Corp. Any misuse, abuse, or improper application or installation of this product or use of the product for personal protection applications when the product is identified as not intended for such purposes will void the product warranty. Any modifications to this product without prior express approval by Banner Engineering Corp will void the product warranties. All specifications published in this document are subject to change; Banner reserves the right to modify product specifications or update documentation at any time. Specifications and product information in English supersede that which is provided in any other language. For the most recent version of any documentation, refer to:.For patent information, see /patents.FCC Part 15 and CAN ICES-3 (B)/NMB-3(B)This device complies with part 15 of the FCC Rules and CAN ICES-3 (B)/NMB-3(B). Operation is subject to the following two conditions:1.This device may not cause harmful interference, and2.This device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules and CAN ICES-3 (B)/NMB-3(B). These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:•Reorient or relocate the receiving antenna.•Increase the separation between the equipment and receiver.•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.•Consult the manufacturer.© Banner Engineering Corp. All rights reserved。
光电传感器的参数 -回复
光电传感器的参数-回复光电传感器的参数一直是电子行业中关注的焦点之一。
光电传感器是一种利用光电原理，将光信号转换为电信号的传感器。
适用于工业控制、自动化控制、光电测量及仪器仪表等领域。
下面我们将一步一步回答有关光电传感器参数的内容。
一、工作原理和分类光电传感器可分为发光器件和接收器件两个部分。
发光器件通过输入电流或电压激励，将电能转换为光能，发出光信号。
接收器件接收到光信号后，将光信号转换为电信号，通过电流或电压输出。
光电传感器根据工作原理可以分为光电二极管、光电三极管、光敏电阻、光功率计、光敏开关等多种类型。
不同类型的光电传感器具有不同的参数和应用范围，因此在选型时需要根据实际需求进行选择。
二、参数说明1. 光电传感器的响应波段：光电传感器的响应波段是指在一定电压或电流下，传感器对光信号的响应范围。
常见的光电传感器的响应波段有可见光波段、红外波段等。
2. 光电传感器的灵敏度：光电传感器的灵敏度是指传感器对光信号的敏感程度。
灵敏度越高，传感器对光信号的响应越快速、准确。
3. 光电传感器的动态范围：光电传感器的动态范围是指传感器能够检测到的最大和最小光强之间的范围。
动态范围越大，表示传感器对光信号的检测范围更广。
4. 光电传感器的分辨率：光电传感器的分辨率是指传感器能够分辨出的最小光强变化。
分辨率越高，说明传感器在检测光信号时具有更高的精确度。
5. 光电传感器的响应时间：光电传感器的响应时间是指传感器从接收到光信号到产生电信号的时间。
响应时间越短，说明传感器对光信号的响应速度更快。
6. 光电传感器的线性度：光电传感器的线性度是指传感器输出的电信号与输入光信号之间的线性关系。
线性度越高，传感器输出的电信号与输入光信号之间的关系越准确。
7. 光电传感器的环境适应能力：光电传感器的环境适应能力是指传感器在不同环境条件下的稳定性和可靠性。
主要考虑的因素有温度变化、湿度变化、电磁干扰等。
三、参数选择与应用光电传感器的参数选择需要根据实际应用需求进行综合考虑。
