PSPC是IMO关于新建船舶压载舱防护涂层性能标准

PSPC是IMO关于新建船舶压载舱防护涂层性能标准。

该标准包括涂料、涂层性能标准及造船涂装全过程质量控制要求两部分，要求海水压载舱防护涂层具有预期15年使用寿命，从防护涂层膜厚、涂装施工质量控制、防护涂层性能基本要求、涂层质量评定验收、涂层资格认可试验方法、设备等各环节进行全面控制。

该标准适用于2008年7月1日后签订建造合同、2009年1月1日开始建造及2012年交付使用的所有500吨以上船舶。

目前船舶压载舱涂层主要采用环氧类硬涂层涂装。

根据国外船舶涂料实验室的检测结果，厚膜环氧硬质涂层有良好的附着力和耐模拟摇摆试验舱加速试验性，PSCP将环氧压载舱涂料作为涂料类型加以规定。

相比我国标准，PSPC增加了冷凝试验、耐阴极保护性{HotT ag}、涂层柔韧性要求，且在涂层比重、附着力、与底漆配套等项目上作了更加细致的要求，尤其是耐盐雾、耐盐水、冷凝试验均要通过180天模拟舱试验严格检测。

将环氧压载舱涂料作为涂料类型加以规定，PSPC强制执行将对我国船舶制造成本、制造周期、资源消耗等带来重大影响，且涉及船舶业多方利益，船舶涂料供应商将承担更多责任和保证。

中国环氧树脂行业协会专家介绍表示，压载舱防护涂料在今后开发中，应首先满足附着力和耐模拟摇摆舱腐蚀试验要求，涂层应为硬干、致密状态。

针对PSPC对预处理钢板表面可溶性盐含量较严格的要求，准备压载舱涂料在不同表面盐含量时涂层抗起泡力的技术数据；目前环氧型压载舱涂层质地坚硬但脆性较大，应开发既符合附着力和耐腐蚀加速试验要求又具有一定耐冲击性的涂层。

据中国环氧树脂行业协会专家了解，一些船舶事故是由于压载舱腐蚀导致船体强度下降而造成，压载舱防护涂层是影响船舶安全运营的重要因素。

船舶压载舱保护涂料最大的威胁是在水下开裂，而这种开裂只有一种可能就是海水腐蚀，因此对压载舱进行防腐蚀涂装是非常重要的措施。

免受腐蚀困挠的压载舱能够保证船舶在海上安全行驶，延长船舶的使用寿命。

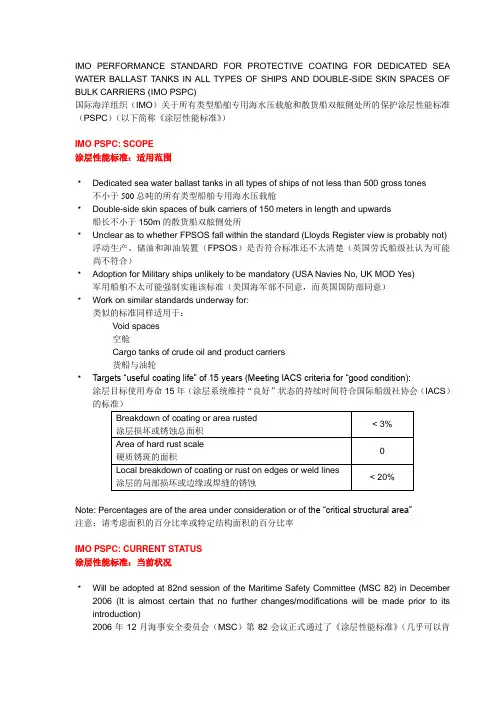

Re:PSPC标准(中英文）PERFORMANCE STANDARD FOR PROTECTIVE COATINGS FOR DEDICATED BALLAST TANKS IN ALL TYPES OF SHIPS AND DOUBLE-SIDE SKIN SPACES OF BULK CARRIERSCONTENTS1 Preface 32 Definitions 33 Application (SOLAS vs IACS) 44 General Principle for Inspection 55 Qualifications 65.1 Coating Inspectors 65.1.1 PSPC Requirements 65.1.2 Guidance 66 Coatings 76.1 Coating Systems 76.1.1 PSPC Requirements 76.1.2 Guidance 87 Primary Surface Preparation (PSP) 107.1 Blasting 107.1.1 PSPC Requirements 107.1.2 Guidance 107.1.3 Records 107.2 Shop Primer Application 117.2.1 PSPC Requirements 117.2.2 Guidance 117.2.3 Records 118 Assembly 128.1 Steel Surface Preparation 128.1.1 PSPC Requirements 128.1.2 Guidance 128.1.3 Record 128.2 Secondary Surface Preparation (SSP) 12 8.2.1 PSPC Requirements 128.2.2 Guidance 138.2.3 Records 148.3 Coating 148.3.1 PSPC Requirements 148.3.2 Guidance 158.3.3 Records 159 Others 169.1 Verification 169.1.1 PSPC Requirements 169.1.2 Guidance 179.2 Inspection 189.2.1 PSPC Requirements 189.2.2 Guidance 189.3 Annex 3 Dry Film Thickness Measurements 199.3.1 PSPC Requirements 199.3.2 Guidance 199.4 Example Reporting Forms 211 PrefaceThe purpose of this Guideline is to provide guidance for implementation of “Performance Standard for Protective Coatings for dedicated seawater ballast tanks in all types of ships and double-side skin spaces of bulk carriers (herei nafter referred to as “PSPC”)” referred in the amendments to regulations II-1/3-2 and XII/6 of the International Convention for the Safety of Life at Sea (SOLAS), 1974, as amended adopted by resolution MSC.216 (82).本指南旨在为进行MSC.216(82)会议通过的SOLAS第 II-1/3-2和 XII/6.条修正案中所引入的PSPC所要求的执行提供指导。

The terms used in this Guideline have the same meaning as those defined in PSPC.本指南中所引用的术语与PSPC中的定义相同。

These guidelines are developed based on the current available and approved types of paints and it isrecognised that new types of paint maybe developed in the future for which all these requirements maynot be appropriate. It is recognised in these guidelines but that any deviation from these requirements willbe specific to the paint being approved and form part of the testing and approved process to confirm theircompliance with the requirements of MSC.215(82) as amended.本指南是基于目前已被认可的涂料系统所提出的，这些要求对于将来开发出的新型涂料系统可能并不适用。

任何不是目前已被认可的涂料系统的其它涂料系统，需经检测试验认可，以证明该涂料系统符合MSC.215（82）提出的要求。

.2 DefinitionsFor the purpose of this Standard, the following definitions apply:下列定义适用于本标准：2.1 Ballast tanks are those as defined in the guidelines for the selection, application andmaintenance of corrosion preventions systems of dedicated seawater ballast tanks (resolution A.798(19) and the Guidelines on the enhanced program of inspections during surveys of bulk carriers and oil tankers (A.744(18), as amended)压载舱为A.798 (19) 和A.744(18) 决议所定义的那些压载舱。

2.2 Dew point is the temperature at which air is saturated with moisture.露点为空气所含潮气饱和时的温度。

2.3 DFT is dry film thickness.DFT 为干膜厚度。

2.4 Dust is loose particle matter present on a surface prepared for painting, arising from blast cleaning or other surface preparation processes, or resulting from the action of the environment.灰尘为呈现在准备涂漆表面上的松散的颗粒性物质，是由于喷射清理或其他表面处理时产生的，或由于环境作用产生的。

2.5 Edge grinding is the treatment of edge before secondary surface preparation.边缘打磨系指二次表面处理前对边缘的处理。

2.6 “GOOD” condition is the condition with minor spot rusting as defined in resolutionA.744(18).“良好”状况系指A.744 (18) 决议定义的有少量点锈的状况。

2.7 Hard coating is a coating that chemically converts during its curing process or a non convertible air drying coating which may be used for maintenance purposes. Can be either inorganic or organic.硬涂层系指在固化过程中发生化学变化的涂层或非化学变化、在空气中干燥的涂层。
