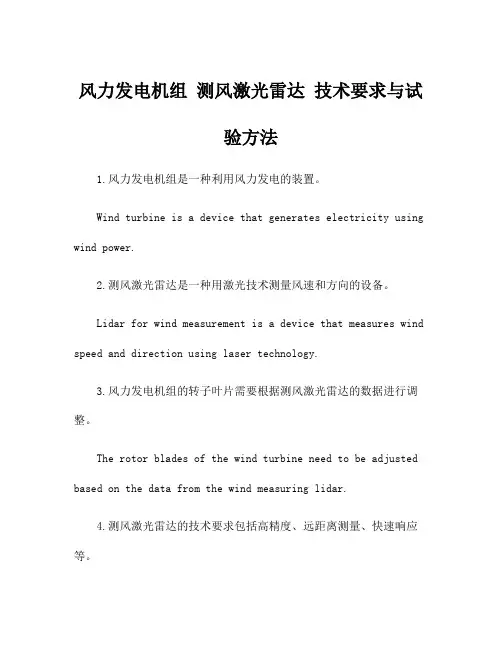

风力发电机组测风激光雷达技术要求与试验方法1.风力发电机组是一种利用风力发电的装置。
Wind turbine is a device that generates electricity using wind power.2.测风激光雷达是一种用激光技术测量风速和方向的设备。
Lidar for wind measurement is a device that measures wind speed and direction using laser technology.3.风力发电机组的转子叶片需要根据测风激光雷达的数据进行调整。
The rotor blades of the wind turbine need to be adjusted based on the data from the wind measuring lidar.4.测风激光雷达的技术要求包括高精度、远距离测量、快速响应等。
Technical requirements for wind measuring lidar include high precision, long-range measurement, and quick response.5.测风激光雷达需要经过严格的校准和测试，以确保准确性和可靠性。
Wind measuring lidar needs to undergo rigorouscalibration and testing to ensure accuracy and reliability.6.测风激光雷达的测试方法包括对比分析、场地实测等。
Testing methods for wind measuring lidar include comparative analysis and on-site measurements.7.风力发电机组的测风激光雷达需要定期维护和校准。
Wind turbine's wind measuring lidar needs regular maintenance and calibration.8.测风激光雷达的数据可以用于预测风力发电机组的发电量。
Design and testing of wind turbine blade

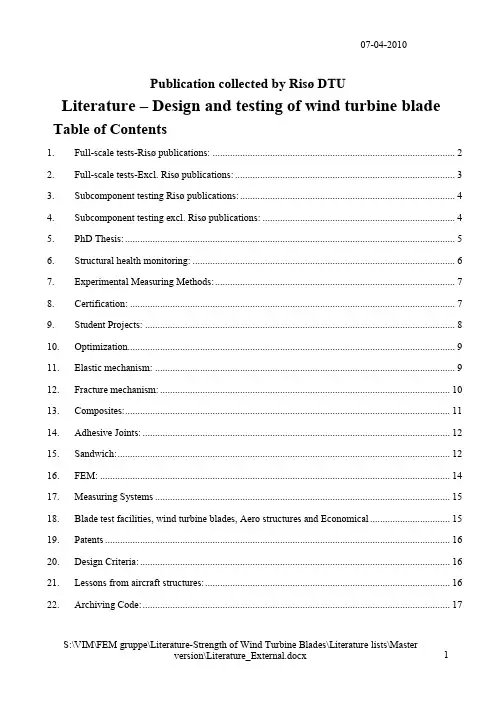

Publication collected by Risø DTULiterature – Design and testing of wind turbine blade Table of Contents1.Full-scale tests-Risø publications: (2)2.Full-scale tests-Excl. Risø publications: (3)3.Subcomponent testing Risø publications: (4)4.Subcomponent testing excl. Risø publications: (4)5.PhD Thesis: (5)6.Structural health monitoring: (6)7.Experimental Measuring Methods: (7)8.Certification: (7)9.Student Projects: (8)10.Optimization (9)11.Elastic mechanism: (9)12.Fracture mechanism: (10)posites: (11)14.Adhesive Joints: (12)15.Sandwich: (12)16.FEM: (14)17.Measuring Systems (15)18.Blade test facilities, wind turbine blades, Aero structures and Economical (15)19.Patents (16)20.Design Criteria: (16)21.Lessons from aircraft structures: (16)22.Archiving Code: (17)1.Full-scale tests-Risø publications:1.“Full Scale Test of SSP 34m blade, edgewise loading LTT. Data Report 1”M. Nielsen,F. M. Jensen, P. H. Nielsen, P. Berring, K. Martyniuk, A. Roczek, T. Sieradzan, V.Roudnitski, P. Kucio, R. Bitsche, P. Andreasen, T. Lukassen, Z. Andrlová, K. Branner, C.Bak, B. Kallesøe, M. McGugan, C. Bak. Risø-R-1718(EN). (January 2010). Code:R_E_z.2.“Investigating the impact of non-linear geometrical effects on wind turbine blades Part1: Current design status and future challenges in design optimization”, Find M. Jensen,Amit S. Puri 2, John P. Dear 2, Kim Branner 1, Andrew Morris, Journal paper (submittedWind Energy 2009). Code: P_E_L.3.“Investigation of structural behaviour due to bend-twist couplings in wind turbineblades”V.A.Fedorov, N.Dimitrov,C. Berggreen, S. Krenk, K. Branner, P. Berring(2009).Code: P_E_z.4.“The Brazier effect in Wind-Turbine Blades and its Influence on Design”. F.M. Jensen,P.M. Weaver, L.S. Cecchini, H. Stang, R.F. Nielsen. (Submitted Wind Energy 2009).Code: P_E_L5.“Full-scale Test of an SSP34m box girder 2 – Data Report”. F. M. Jensen, K. Branner, P.H. Nielsen, P. Berring, T. S. Antvorskov, M. Nielsen, J. H. Reffs, P. H. Jensen, M.McGugan. C. Skamris, F. Sørensen, R. S. Nielsen, J. H. Laursen, M. Klein, A. Morris, H.Stang, J. Wedel-Heinen, J. P. Dear, A. Puri, A. Fergusson Risø-R-1588(EN). (May2008). Code: R_E_L6.“Full-scale Test of an SSP34m box girder 1 – Data Report”. F. M. Jensen, K. Branner, P.H. Nielsen, P. Berring, T. S. Antvorskov, M. Nielsen, B. Lund, C. Jensen, J. H. Reffs, R.F. Nielsen; P. H. Jensen, M. McGugan, K. Borum, R. S. Hansen, C. Skamris, F.Sørensen, R. S. Nielsen, J. H. Laursen, M. Klein, A. Morris, A. Gwayne, H. Stang, J.Wedel-Heinen, J. P. Dear, A. Puri, A. Fergusson. Risø-R-1622(EN). (March 2008).Code: R_E_L7.“Full-scale testing and finite element simulation of a 34 metre long wind turbine blade”.F. M. Jensen, A. Morris. NAFEMS World Congress. (April 2007). Code: P_E_L8.“Torsional Performance of wind Turbine Blades – Part II: Numerical Validation”. K.Branner, P. Berring, C. Berggreen, H. W. Knudsen. (2007). Code: P_E_z9.“Torsional Performance of wind Turbine Blades – Part I: Experimental Investigation”. P.Berring, K. Branner, C. Berggreen, H. W. Knudsen. (2007). Code: P_E_L10.“On aspects of non-linear bending behaviour of a wind-turbine blade under full-scaletesting”. F. M. Jensen, P. M. Weaver, L.S. Cecchini, H. Stang. Abstract forCOMPTEST2006 conference in Porto. (April 2006). Code: P_E_L11.“On aspects of non-linear bending behaviour of a wind-turbine blade under full-scaletesting”. F. M. Jensen. Keynote presentation. NAFEMS-UK Seminar in UK, November 4 pages abstract. (2006). Code: P_E_L12.“Structural testing and numerical simulation of a 34m. Composite wind turbine blade”.F. M. Jensen, B.G. Falzon, J. Ankersen,H. Stang, Composite Structures 76. (2006).Code: P_H_L13.“Structural testing and numerical simulation of a 34m. Composite wind turbine blade”.F. M. Jensen, B.G. Falzon, J. Ankersen,H. Stang. ICCM15 Conference. (June 2005).Code: P_H_L14.”Improved design of large wind turbine blades of fibre composites (Phase2) – Summaryreport”. B.F. Sørensen, K. Branner, H. Stang, H.M. Jensen, E. Lund, T.K. Jacobsen, K.H.Halling. Risø-R-1526 (EN). (2005). Code: R_E_L15.“Full scale testing of wind turbine blade to failure – Flapwise loading”. E. R. Jørgensen,K. K. Borum, M. McGugan, C. L. Thomsen, F. M. Jensen, C. P. Debel, B. F. Sørensen Risø-R-1392(EN). (2004). Code: R_E_L16.”Improved design of large wind turbine blade of fibre composites based on studies ofscale effects (Phase 1) – Summary Report”. B.F. Sørensen, E. Jørgensen, C. P. Debel, F.M. Jensen, H. M. Jensen, T. K. Jacobsen, K. M. Halling. Risø-R-1390(EN). (2004).Code: R_E_L17.“Compression Strength of a Fibre Composite Main Spar in a Wind Turbine Blade”. F.M. Jensen. Risø-R-1393(EN). (June 2003). Code: R_E_L18.”K log af skade på vindmøllevinger”. G. Willumsen. Risø Nyt, 1. (2003.). Code: P_E_L19.“Modal A nalysis of wind turbine blades”. G. C. Larsen, M. H. Hansen, A. Baumgart, I.Carlén. Risø-R-1181(EN), Risø National Laboratory. Denmark. (2002). Code: R_E_L 20.“Kalibrering af Partiel l e sikkerhedsfaktorer for udmattelse af vindmøllerotorer”. C. J.Christensen., K. O. Ronold, M. Tøgersen Risø-R-1204(DA). (2000). Code: R_E_L 21.”Method to Predict Fatigue Liftimes of GRP Wind turbine Blades and Comparison withExperiments”. A.T. Echtermeyer. C. Kensche, P.Bach, M. Poppen, H. Lilholt, S.I.Andersen, P. Brøndsted. Det Norske Research AS (DNV), Deutsche Forschungsanstalt für Luft- und Raumfart (DLR). Netherland. (1996). Code: P_E_L2.Full-scale tests-Excl. Risø publications:1.“Necessity and Requirements of a Collaborative Effort to Develop a Large Wind TurbineBlade Test Facility in North America”. J. Cotrell, W. Musial, S. Hughes. TechnicalReport. (May 2006). Code: R_E_L2.“Structural Response Analysis of Vestas V52 Wind Turbine Blade” L. Overgaard, P.P.Camanho, E. Lund. CompTest2006 Composites Testing and Model Identification.Portugal, Abstract. (April 2006) Code: P_E_L3.“Structural Design Sensitivity Analysis and Optimization of Vestas V52 Wind TurbineBlade”. L. C. T. Overgaard, E. Lund. In: Proc. of the 6th World Congress on Structural and Multidisplinary Optimization, (June 2005) Code: P_E_L4.“On Structural Assessment of Failure Mechanisms and Instability Phenomena in the V52Wind Turbine Blade Static Test Performed within the EFP2003 Programme”. L. C. T Overgaard. Internal Report. (July 2005) Code: R_E_L5.“Static Test to Structural Collapse of a V52 Wind Turbine Blade, Part A: Assessment ofStructural Collapse”, L. Overgaard, E. Lund (2005). Code: P_T_z6.“Static Test to Structural Collapse of a V52 Wind Turbine Blade, Part B: Synthesisbetween Blade Response and Predictive Models”. L. Overgaard, E. Lund (2005)C. In Progress. Code: P_T_z7.“Full Scale Structural Experimental Investigation of an E-Glass/Epoxy Composite WindTurbine Blade”. C. Kong, Y. Sugiyama, J. Lee, C. Soutis. (October 2002) Code: P_E_L 3.Subcomponent testing Risø publications:1.“Investigating the impact of non-linear geometrical effects on wind turbine blade. Part 2:Experimental investigations of the interlaminar failure of load carrying laminates, A.S.Puri, F.M. Jensen, J. P. Dear, A.P. Morris, I. Palmer and J. Ankersen,In Production.Code: P_E_L2.“Stochastic models for strength of wind turbine blades using tests” H. Stensgaard, J.D.Sørensen. Aalborg University, Denmark and Risø National Laboratory. EWEC (2008) Code: P_E_L3.”Modelling Failure in Cross-Section of Wind Turbine Blade” K. Branner. Risø NationalLaboratory, NAFEMS-Seminar. Denmark (June 2006) Code: P_E_L4.“Buckling-driven delamination growth in composite laminates: Guideline for assessingthe threat posed by interlaminar matrix delamination” B. L. Karihaloo, H. Stang.Composites Science and Technology, (2006). Code: P_E_L5.“Finite Element Analysis of the Cross-section of Wind Turbine Blades; a Comparisonbetween Shell and 2D-Solid Models”. D.R. Pardo, K. Branner. Wind. Engineering,Volume 29, No. 1, (2005). Code: P_E_L4.Subcomponent testing excl. Risø publications:1.“Large scale buckling experiment and validation of predictive capabilities” L.Kühlmeier, O.T. Thomsen, E. Lund – Vestas Wind Systems Denmark. AalborgUniversity. Code: P_E_L2.“Postbuckling Analysis of a Wind Turbine Blade Substructure” T. M. Hermann,D.Mamarthupatti, J. E. Locke,(Director, Research and Development; Airbus Engineering).Faculty Fellow National Institute for Aviation Research. Wichita State University.(November 2005) Code: P_E_L3.“Nye fremskridt inden for afprøvning af designdetaljer”, LM Newsletter, (Februar 2005)Code: P_E_L4.”Development of Large CFRP Rotor Blade Components” P.A. Joosse, D.R.V. van Delft,A.M. van Wingerde, Ch. W. Kensche, J.F. Kooij, R.M. Van den Berg, D. Søndergaard, J.Korsgaard, F. Hagg. (January 2002) Code: R_H_L5.”Design, Structural testing, and cost effectiveness of sectional wind turbine blades” A.G. Dutton, C. Kildegaard, T. Dobbe, R. Bensoussan, C. Kensche, F. Hahn, D.R.V. vanDelft, G. D. de Winkel. (November 2000) Code: R_H_L6.“Computational structural Analysis and Testing”. R. Krüger, S. Rinderknecht, C. Hänsel,M. König. University of Stuttgart Germany (1996) Code: P_E_L7.“Integrated testing in reliable design of large wind turbine blades”. J. Korsgaard, T. K.Jacobsen. LM Glassfiber A/S, Denmark. Code: P_E_L8.“Subcompo nent Testing for Wind Turbine Blades” E. Stammes, A. González Canales,R.P. L Nijssen Code: R_E_L5.PhD Thesis:1.“Researching the Non-Linear Geometrical Effects Caused by Static Flap-Wise Loadingof a Wind Turbine Blade” A. Puri, PhD Thesis. Imperial College London, February 2010, In Progress. Code: R_E_L2.“Ultimate strength of a large wind turbine blade” F. M. Jensen. PhD Thesis. RisøNational Laboratory, Technical University of Denmark. (Submitted May 2008) Code: R_E_L3.“Interface fracture in composite materials and structures” R. C. Østergaard. PhD Thesis.DCAMM Special report No. S102 (November 2007) Code: B_H_F4.“Buckling of wind turbine rotor blades. Analysis, design and experimental validation” L.Kühlmeier. PhD-Thesis. Special Report No. 58 (November 2007) Code: B_H_F5.“Modelling of ECC materials using numerical formulations ba sed on plasticity” L. D.Nielsen. PhD Thesis. Department of civil engineering. DTU. Denmark (October 2007) Code: R_E_L6.“Thermoplastic Composite Wind Turbine Blades”. K. Van Rijswijk. PhD - Thesis (April2007) Code: B_E_L7.“Fatigue life prediction and stre ngth degradation of wind turbine rotor bladecomposites” R. P. L. Nijssen. Technical University Delft. PhD Thesis Code: R_E_L8.“The non-linear flexural response of thin-walled beams” L. S. Cecchini. PhD Thesis.University of Bristol, (2006) Code: R_E_L9.“In-plane compressive behaviour of stiffened thin-skinned composite panels with a stressconcentrator” M. Koundouros. PhD - Thesis (April 2005). Code: R_E_L10.“Impact Response and Delamination of Composite Plates”. R. Olsson. Royal Institute ofTechnology. PhD Thesis. Sweden, (April 1998) Code: R_H_F11.“Response Analysis of Dynamically Loaded Composite Panels”. H. J. Riber. PhD Thesis.(June 1997) Code: R_H_F12.“Capacity and Lifetime of Foam Core Sandwich Structures” K. Branner. PhD Thesis.Technical University of Denmark (1995). Code: R_E_F13.“Damage tolerance of foam core sandwich constructions”. D. Zenkert. PhD Thesis. Theroyal institute of technology Sweden (July 1990) Code: R_H_F6.Structural health monitoring:1.“Future persp ectives for design and testing of win d turbine blades”. J. Wedel-Heinen.Energy Report. Det Norske Veritas. (April 2008) Code: R_E_L.2.“Analysis of Wind Turbine Material using Digital Image Correlation”A. Puri, J. P.Dear, A. Morris, F. M. Jensen. EWEC Conference (2008) Code: P_E_L3.“Nonlinear System Identification for Damage Detection” C. R. Farrar, K. Worden, M.D. Todd, G. Park, J. Nichols, D.E. Adams, M. T. Bement, K. Farinholt. (November2007) Code: R_E_L4.“Fundamentals for remote condition monitoring of offshore wind turbine blades”. M.McGugan.DTU – Risø. (September 2007) Code: P_E_L5.“Damage detection in a stiffened curved plate by measuring differential strains”. A.Fernández-López, J.M. Menendez, A. Güemes. Universidad Politécnica de Madrid and Airbus España. (2007) Code: P_E_L6.“Stru ctural Health Monitoring of a rotor blade during statical load test”. L. Schubert,M. Küttner, B. Frankenstein, D. Hentschel. (2007) Code: P_E_L7.“Smart sensor system for structural condition monitoring of wind turbines”. M.J. Schulz,M.J. Sunderaresan, University of Cincinnati, Ohio and North Carolina A&T stateUniversity Greensboro. (April 2006) Code: R_E_L8.“Improving the Structural Testing of Wind Turbine Blades by Monitoring AcousticEmission”, M. McGugan, T. Bech, B. F. Sørensen, E. Jørgensen, O. J. D. Kristensen.Proceedings of the 4th International Workshop on Structural Health Monitoring. Stanford University. USA. (September 2003). Code: P_E_L9.“Fundamentals for remote structural health monitoring of wind turbine blades - apreproject”. B. F. Sørensen, L. Lading, P. Sendrup, M. McGugan, C. P. Debel, O. J. D.Kristensen, G. C. Larsen, A. M. Hansen, J. Rheinländer, J. Rusborg, J. D. Vestergaard, Risø-R-1336(EN) (2002) Code: R_E_L10.“Shearography inspections on panels from VTT”. J. Gustafsson. CSM MaterialteknikAB. SanNDI Inspection and Repair of sandwich Structures in Naval Ships. (2001) Code: P_E_L11.“Development of wind turbine rotor blade structural health monitoring techniques usingdigital image correlation”. A. Puri, A. Fergusson, J. Dear, A. Morris, F M. Jensen. 2007 British Wind Energy Association Conference. Abstract only. Code: P_E_L12.“Impedance-based on Health Monitoring of Composites”. B. L. Grisso, D. M. Peairs, D.J. Inman. Code: R_E_L13.“Guided elastic waves and their impact interaction in CFRP s tructures characterized by3D laser scanning vibrometry”. L. Schubert, M. Barth, T. Klesse, B. Köhler, B.Frankenstein. Fraunhofer Institute for Non-Destructive Testing. Germany. Code: P_E_L.14.“Comparison of the Three Different Approaches for Damage Detecti on in the Part of theComposite Wind Turbine Blade” M. Luczak, B. Peeters, W. Szkudlarek, L. Mevel, M.Döhler, W. Ostachowicz, K. Martynuik, K. Branner7.Experimental Measuring Methods:1.“Digital image correlation and finite element analysis of wind turbine blade structuralcomponents” A. Puri, A. Fergusson, J. Dear, A. Morris, F.M. Jensen. 2007 European Offshore Wind Energy Association Conference, Lindvig, K.ed, Estrel Convention centre, Berlin, Germany (December 2007), Paper AP3B.3. Code: P_E_L2.“Experimental techniques for improving life assessment and qualification of wind turbineblades”, A. Pielbalgs, 2008 European Wind Energy Conference, Bussels Expo, Belgium, March 2008. Code: P_E_L3.“Failure analysis of wind turbine material using non-destructive techn iques”, A. Puri, J.Dear, A. Morris and F.M. Jensen, SEM XI, International Congress and ExpositionExperimental and Applied Mechanics, K. Ramsay ed, Orlando, Florida, July 2008, paper29. Code: P_E_L4.“Non-destructive analysis of wind turbine blade structur al integrity”. A. Puri, I. Palmer,J.P. Dear, A. Morris, F. Jensen, M. McGugan, ASME Pressure Vessels and PipingConference 2009, L.H. Geraets, Y.W. Kwon, A.A. Dermenjan, eds, Prague, CzechRepublic, July 2009, PVP2009_77501. Code: P_E_L8.Certification:1.“Full Scale Testing of Blades. Now, and For the Future” J. K. Tadich and J. W-Heinen.European Wind Energy Conference (EWEC 2007) Code: R_E_L2.“A Comparison of Wind Turbine Aeroelastic Codes Used for Certification”. M.L. Buhl,A. Manjock. Reno, Nevada. (January 2006). Code: R_E_L3.“New guidance for the development of wind turbine blades”Josef Kryger Tadich, Jakob Wedel-Heinen, and Peter Petersen. Det Norske Veritas –Global Wind Energy conference. Denmark (2005) Code: P_H_L4.“Design and manufacture of wind turbine blades” DNV-OS-J102. Det Norske Veritas(October 2005) Code: P_E_L5.IEC 61400-1 Code: x_y_z6.“Wind turbine generator systems - Part 23. Full-scale structural testing of rotor bladesfor WTGSs”. IEC 61400-23 TS Ed. 1 Code: x_y_z7.”Materials Challenges in Present and Future Wind Energy” B. Hayman, J. Wedel-Heinen, P. Brøndsted, MRS Bulletin, Vol. 33, April 2008 Code: R_E_L9.Student Projects:1.“Optics measurement and numerical simulation of a wind turbine blade”W. Ma. Master Project. Technical University of Denmark - Risø National Laboratory, (July 2007) Code: B_E_L2.“Simulation of non-linear structural effects in wind turbine blades” B. Lund. MasterProject. Aalborg University (June 2007) Code: B_H_L3.“Resultat behandling fra fuldskalaforsøg”. T. S. Antvorskov. Final Project. Engineerschool in Copenhagen (December 2006) Code: B_H_L4.”Defects in FRP Panels and their influence on Compressive Strength” C. Jensen.Master’s t hesis. Technical University of Denmark and Risø National Laboratory.(February 2006) Code: R_E_L5.“Torsional performance of large wind turbine blades – experimental and numericalanalysis” P. Berring, H.W. Knudsen. Master‟s t hesis. Technical University of Denmark and Risø National Laboratory, (September 2006) Code: R_E_L6.“Application of Load Carrying Sandwich Elements in Wind Turbine Blades”, J.P.Schultz, J. F. Jensen. Master‟s t hesis. Technical University of Denmark and RisøNational Laboratory. (2005) Code: x_T_z7.“Finite Element Analysis of Wind Turbine Blade Sections” D. Pardo. Master thesis.Technical University of Denmark and Risø National Laboratory. (September 2004) Code: R_E_L8.“The Application of Aeroelastic Analysis Output Load Distributions to Finite ElementModels of Wind Turbine Blades” T. J. Knill. Master thesis. Technical University ofDenmark. (July 2004) – Revision B Code: R_E_L9.“Finite Elements for geometric non-linear analysis of composite laminates and sandwichstructures” L. R. Jensen, J. C. Rauhe, J. Stegmann. Master Thesis. Aalborg University.(2001). Code: R_E_L10.“Structural behaviour of trailing edge panels in an SSP34m wind turbine blade” Studentreport (Special course) A.Roczek, T.Sieradzan Technical University of Denmark and Risø National Laboratory. (February 2009) Code: R_E_L11.“Bestemmelse af den kritiske bulingslast på vingebjælker” Joan H. Reffs. Summerschool, FEM-course, 7, 5 ECTS. Technical University of Denmark and Risø National Laboratory (August 2008) Code: R_H_L12.“Buling i plader” Brian B. Rasmussen. Technical University of Denmark and RisøNational Laboratory (August 2008) Code: R_E_L13.“120m Future Generation Blade (FGB) Design for Manufacture Feasibility Study” P.C.Flower. Master thesis. Technical University of Denmark. (2009) Code: R_E_z14.“Optimization of Material Layup for Wind Turbine Blade Trailing Edge Panels” A.Roczek. Master thesis. Risø DTU National Laboratory for Sustainable Energy (2009) 15.“Weight cost efficiency of a new wind turbine blade concept” T. Sieradzan. Masterthesis. Risø DTU National Laboratory for Sustainable Energy (2009)10.O ptimization1.“Buckling Optimization of Laminated Hybrid Composite Shell Structures Using DiscreteMaterial Optimization”. E. Lund, L. Kühlmeier, J. Stegmann. In: Proc. WCSMO6 – 6th World Congress on Structural and multidisciplinary Optimization. Brazil (June 2005) Code: P_E_L2.“On Structural Optimization of Composite Shell Structures Using a Discrete ConstitutiveParameterization”. E. Lund, J. Stegmann, Wind Energy, Vol. 8. (2005)Code: P_E_L 3.“Discrete material optimization of General composite Shell Structures”. J. Stegmann, E.Lund. International Journal for Numerical methods in Engineering, Vol. 62, No. 14.(2005) Code: P_E_L4.“Discrete material optimization of Laminated Comp osite Shell Structures Using LocalStrain Criteria”. J. Stegmann, E. Lund.In: Proc. WCSMO6 – 6th World Congress on Structural and Multidisciplinary optimization. Brazil. (June 2005) Code: P_E_L5.“Nonlinear Topology Optimization of Layered Shell Structures.”Structural andMultidisciplinary Optimization, Vol. 29. J. Stegmann, E. Lund. (2005). Code: P_E_L 6.“Design Studies for Twist-Coupled Wind Turbine Blades”. J. Locke, U. Valencia (June2004) Code: R_E_L7.“Evaluation of Design Concepts for Adaptive Wind Turbine Blades”. D. Griffin. USA.(August 2002) Code: R_E_L8.“The Implementation of Braided Composite Materials in the Design of a Bend-TwistCoupled Blade”. J. Locke, I. C. Hidalgo (August 2002) Code: R_E_L9.“Implementation of bending-torsion coupling in the design of a wind turbine rotorblade”. W.C. de Goeij, M.J.L. van Tooren, A. Beukers. Netherlands. (1999) Code:P_E_L10.“Experimental, numerical and analytical results for bending and buckling of rectangularorthotropic plates” J.C. Roberts, G. Bao, G. J. White. (1999) Code: P_E_L11.“Optimization of Laminated Composite Structures Using. Delamination Criteria andAdaptive Models”(Slides.)L. S. Johansen, E. Lund. Code: P_E_L12.“Preliminary Design of Large Wind Turbine Blades Using Layout OptimizationTechniques” S. Joncas, M. Jan de Ruiter, F. van Keulen. Delft University of Technology, Delft, the Netherlands Code: P_E_L11.E lastic mechanism:1.”Buckling Analysis of Generally Laminated Cylindrical Shells. An Analytics Approach”.L. Kühlmeier, K. M. Halling, E. Lund, O. T. Thomsen. In: Proc. 17th Nordic Seminar on Computational Mechanics, (Eds. A. Eriksson, J. Månsson, G. Tibert) (2004) Code:P_E_L2.“Anticlastic effects and the transition from narrow to wide behaviour in orthotropicbeams” S. R. Swanson, Composite Structures 53 (2001) Code: P_E_L3.“BuckBlade.” Buckling Load Design Methods for Rotor Blades. …Programs for bucklingstrength prediction of rotor blades‟. C. Lindenburg (May 2001) Code: P_E_L4.“BuckBlade”. Buckling Load Design Methods for Rotor Blades. C. Lindenburg (May1999) Code: P_E_L5.“Thin-walled composite beams under bending, torsional and extensional loads”, R.Chandra, A. D. Stemple, I. Chopra, Journal of Aircraft, 27(7) (1990) Code: P_E_L6.“Direct Determination of Asymptotic Structural Postbuckling Beha viour by the FiniteElement Method” P. N. Poulsen, L. Damkilde. Denmark (1998) Code: R_E_L7.“Buck Blade”. T. Geiger. Report about buckling tests. (1998) Code: P_E_L8.“On t he flexure of thin cylindrical shells and other …thin‟ sections” Brazier, L.G. Late ofthe Royal Aircraft Establishment. Reports and Memoranda no1081 (M.49). (1926) Code: P_E_L9.“Buck Blade” Finite Element Buckling Analysis of Wind Turbine Blades. C.Lindenburg, T. Geiger, P. A. Joosse, B. Weisser. Netherland. Code: R_E_L10.“The Brazier effect in multi-bay aerofoil sections” Luca S. Cecchini, Paul M. WeaverUniversity of Bristol – UK Code: R_E_L11.“Application of load Carrying Sandwich Elements in Large Wind Turbine Blades”. J. F.Jensen, J. P. Schultz, C. Berggreen, K. Branner. Technical University of Denmark and Risø National Laboratory, Code: P_E_L12.“Postbuckling Analysis of a Wind Turbine Blade Substructure” T. M. Hermann, D.Mamarthupatti and J. E. Locke. 2005. Code: P_E_z12.F racture mechanism:1.“Damage Analysis of a Wind Turbine Blade” L. Ove rgaard, E. Lund. In: Proc. of theECCOMAS thematic Conference on Mechanical Response of Composites, Portugal,(September 2007) Code: P_E_L2.“Interdisciplinary Damage and Stability Analysis of a Wind Turbine Blade” L.Overgaard, E. Lund. In: Proc. of the 16th International Conference on CompositeMaterials, Japan. (July 2007) Code: P_E_L3.“Structural Instability Phenomena in Wind Turbine Blades”. L. Overgaard, E. Lund. 2ndPhD Seminar on Wind Energy in Europe, Risoe National Laboratory, Denmark (October 2006) Code: P_E_L4.“Computational fracture Mechanics for Composites State of the Art and Challenges” R.Krueger USA (June 2006) Code: R_H_L5.“Delamination growth in composite plates under compressive fatigue loads” S. Bennati,P.S. Valvo. Italy. (August 2005). Code: R_E_L6."Improved design of large wind turbine blade of fibre composites based on studies ofscale effects (Phase 1). Summary report". Sørensen, B. F., Jørgensen, E., Debel, C. P., Jensen, F. M., Jensen, H. M., Jacobsen, T. K., and Halling, K. Risø-R-1390(EN). (2004) Code: R_E_L7."A general mixed mode fracture mechanics test specimen: The DCB-specimen loadedwith uneven bending moments," Sørensen, B. F., Jørgensen, K., Jacobsen, T. K. and Østergaard, R. C. Report Risø-R-1394(EN), Risø National Laboratory. Denmark. (2003) Code: R_E_L8.“Accelerated Fatigue Testing og LM 19.1 Blades” Ole J.D. Kristensen. Risø-R-1358(EN)(April 2003) Code: R_E_L9.“Residual stress effects on the compressive strength of unidirectional fibre composites”H. M. Jensen. (Marts 2002) Code: P_E_L10.“Crack initiation and growth in brittle bonds”Henrik Myhre Jensen, (September 2003)Code: P_E_L11.“Buckling of Laminated Composite Plates and Shell Panels” W. Leissa (January 1985)Code: R_E_L12.”Generic Buckling Curves for Especially Orthotropic Rectangular Plates”. E.J. Brunelleand G. A. Oyibo. USA. (1982) Code: P_y_z13.“Simulation of delamination including fibre bridging using cohesive zone models” A. L.Hansen, E. Lund, B. F. Sørensen. ECCOMAS Thematic Conference on MechanicalResponse of Composites. (September 2007) Code: P_E_L14.“On the Effect of Curvature in Debonded Sandwich Panels Subjected to CompressiveLoading” R. Moslemian, C. Berggreen, K. Branner, L. A. Carlsson. 8th InternationalConference on Sandwich Structures (2008) Code: P_E_L15.“A Mixed Mode Constitutive Damage Model for Multi-scale Fracture Analysis ofComposite Structures” A. L. Hansen, E. Lund. XXII ICTAM August 2008, Adelaide, Australia. Code: P_E_L16.“Failure Investigation of Debonded Sandwich Columns: An Experimental and Numeric alStudy” R. Moslemian, C. Berggreen, L. A. Carlsson & F. Aviles. Code: R_E_L13.C omposites:1.“User‟s Guide to PreComp (Pre-Processor for Computing Composite BladeProperties)”. G.S. Bir. Technical Report (January 2006). Code: R_E_L.2.“Vacuum infused thermoplastic composites for wind turbines blades”. K. van Rijswijk,S. Joncas, O.J.A. Malek, H.E.N. Bersee and A. Beukers. (2006) Code: P_E_L3.“Composite materials for wind power turbine blades”. Povl Brønsted, Hans Lilholt, andAage Lystrup. Risø National Laboratory (Annu. Rev. Materials Res.2005) Code: R_E_L4.“Optimal use of carbon fibres in wind turbine blades”. Dayton A. Griffin. Global energyConcepts, LLC. (April 2004) Code: P_E_L5.“777 Empennage Certification Approach” A. Fawcett, J. Trostle, S. Ward. 11th edition.International Conference on Composite Materials(ICCM-11), Australia (July 1997) Code.P_E_L6.“Anisotropic laminates that resist warping during manufacture” Dr P. M. Weaver.University of Bristol. Code: P_E_L7.Evaluation of a Bamboo/Epoxy Composite as a Potential Material for Hybrid WindTurbine Blades”. P. Brøndsted, J. W. Holmes, B.F. Sørensen. Risø National Laboratory for Sustainable Energy, Technical University of Denmark. Code: P_E_L8.“Investigation of Structural Behaviour Due to Bend-twist Couplings in Wind TurbineBlades” V. A. Fedorov, N. Dimitrov, C. Berggreen, S. Krenk, K. Branner, P. Berring Code: P_E_L9.“Simulation of delamination including fibre bridging using cohesive zone models” A. L.Hansen, E. Lund, B. F. Sørensen. ECCOMAS Thematic Conference on MechanicalResponse of Composites. (September 2007) Code: P_E_L10.“A Hierarchical FE Approach for Simulation of Geometrical and Material InducedInstability of Composite Structures” A. L. Hansen, E. Lund, S. T. Pinho, K. Branner. 2nd ECCOMAS Thematic Conference on the Mechanical Response of Composites (April 2009) Code: P_E_L11.“A Mixed Mode Constitutive Damage Model for Multi-scale Fracture Analysis ofComposite Structures” A. L. Hansen, E. Lund. XXII ICTAM August 2008, Adelaide, Australia. Code: P_E_L12.“Wind Rotor Blade Materials Technology” P. Brøndsted, J. W. Holmes, B. F. Sørensen.European Sustainable Energy Review, Issue 2, 2008 Code: R_E_L13.“Rel iability of Wind Turbine Blades: An Overview of Materials Testing” J. W. Holmes,B. F. Sørensen and P. Brøndsted. Wind Power Shanghai 2007 (1-3 November 2007)Code: R_E_L14.A dhesive Joints:15.S andwich:1.“Investigating the impact of non-linear geometrical effects on wind turbine blade. Part3: Experimental and numerical investigations of the failure of shear we bs”, A.S. Puri,F.M. Jensen, J.P. Dear, P. Berring, R. Bitsche, K. Branner, M. McGugan, A.P. Morris.In Production. Code: P_E_L2.“Optimization of trailing edge sandwich panels for wind turbine blade” A. Roczek, K.Branner, F. M. Jensen, Wind Energy Division, Risø National Laboratory for sustainable。
海上风电型式认证和项目认证
Offshore Type and Project Certification海上风电型式认证和项目认证DNV / Royal Norwegian Consulate: Technical Workshop on Offshore Wind DNV/挪威领事馆：海上风电技术研讨会 /挪威领事馆：Dayton Griffin 20 June 2011Agenda 内容1. Type and Project Certification 型式认证和项目认证 2. Pre-certification 预认证 3. Geotechnical design 地基设计 4. Structural design 结构设计 5. Supplementary services to project certification 项目认证的追加服务Offshore Turbine and Project Certification 16 June 2011 © Det Norske Veritas AS. All rights reserved. 2Type and Project Certification 型式认证和项目认证Offshore Turbine and Project Certification 16 June 2011 © Det Norske Veritas AS. All rights reserved. 3Why Type and Project Certification 型式认证和项目认证的必要性What is certification 什么是认证- Independent verification by 3rd party to ensure compliance with applicable codes, standards, regulatory requirements第三方为确保与规范、标准、 第三方为确保与规范、标准、法规要求一致性和符合性所做 的独立审核Why certification为何需要认证- It is an important risk mitigation measure:认证是降低风险的重要方法之一 - Ensures wind turbine/project meets performance and safety standards 确保风机或者风电项目符合性能以及安全方面的要求 - Builds trust and confidence 增强互信以及信心 - Assures that the documentation is in order and complete 确保资料的有序以及完整Other reasons:其他原因- Legislation, insurance or financial requirement法律、 法律、保险以及商业要求- Request from the turbine supplier风机整机供应商要求Offshore Turbine and Project Certification 16 June 2011 © Det Norske Veritas AS. All rights reserved. 4Type Certification 型式认证A Wind Turbine Type 针对不同类型风机 Common design, materials and major components 设计评估，包括通用设计、 设计评估，包括通用设计、材料以及主要零部件 Common manufacturing process 通用生产过程评估 Selected design parameters and conditions 设计参数以及设计条件评估Project Certification 项目认证One or more specific Wind Turbines, including the Foundation 项目中一台或多台特定风机（含地基） 项目中一台或多台特定风机（含地基）的评估 Evaluation for the specific external conditions 特定外部条件的评估 At a specific installation site 特定场址评估Offshore Turbine and Project Certification 16 June 2011 © Det Norske Veritas AS. All rights reserved. 5Combining DNV competencesDNV的综合实力 的综合实力+=25+ years of Type Certification of wind turbines 超过25年的风机型式认 证经验Offshore Turbine and Project Certification 16 June 2011 © Det Norske Veritas AS. All rights reserved.40+ years of offshore oil & gas experience 超过40年的海上石油、 天然气平台经验Global leader in Certification of offshore wind projects 海上风电项目认证的全 球领导者6DANAK accreditation 获得DANAK认证授权 获得DANAK认证授权 DANAK认证Accreditation according to 依据以下标准获得授权 - ISO/IEC 17020 - ‘General requirements for the operation of bodies performing inspection’Type A inspection body for inspection of: A类检验机构 类检验机构Wind farms onshore according to IEC WT 01:2001 IEC System for Conformity Testing and Certification of Wind Turbines section 13.1 and one or more of the sections 13.2-13.6 根据IEC WT 01:2001 风电机组认证和 试验系统标准对陆上风场进行符合性测试 Wind farms onshore and offshore according to Statutory order no. 651 of 2008-06-26 from the Danish Energy Agency on a technical approval scheme for constructions, manufacture, installation, maintenance and service of Wind Turbines, section 6.根据2008-06-26丹麦能源部颁布的651法规， 对陆上和海上风场批准的风机建造、生产、安装、运营和服务进行检 验 Wind Farms Offshore according to one or more of the 6 phases in DNV's documents: Scope of Work for project Certification of Offshore Wind Farms of 2005-12-08: DNV-OS-J101 Design of Offshore Wind Turbine Structures of October 2007 and DNV-OS-J101, appendix M Project Certification of Offshore Wind Farms of June 2004. 根据DNV六步海上风场认证文件的一个或多个对海上风场进行检验Offshore Turbine and Project Certification 16 June 2011 © Det Norske Veritas AS. All rights reserved. 7Type Certification 型式认证Project Certification项目认证 项目认证Offshore Turbine and Project Certification 16 June 2011 © Det Norske Veritas AS. All rights reserved. 8Offshore Wind Farm Project 海上风电场项目Offshore Turbine and Project Certification 16 June 2011 © Det Norske Veritas AS. All rights reserved. 9Standards hierarchy 标准等级分类Rules and procedures 规则和程序- DNV-OS-J101; ‘Design of Offshore Wind Turbine Structures’ - IEC 61400-22; ‘IEC System for Conformity Testing and Certification of Wind Turbines’ - BEK 651; ‘Bekendtgørelse om teknisk godkendelsesording for …’ (in Danish)Design Requirements 设计要求DNV-OS-J101; ‘Design of Offshore Wind Turbine Structures’ IEC 61400-1; ‘Design Requirements’ IEC 61400-2; ‘Design Requirements for Small Wind Turbines’ IEC 61400-3; ‘Design Requirements for Offshore Wind Turbines’Design codes 设计标准\规范DNV-OS-J101; ‘Design of Offshore Wind Turbine Structures’ EN 1993-x; ‘Eurocode 3; Part x: …’ DNV-OS-J102; ‘Design and Manufacture of Wind Turbine Blades …’ …Offshore Turbine and Project Certification 16 June 2011 © Det Norske Veritas AS. All rights reserved. 10DNV-OSS-901Certification of Offshore Wind Farm Projects 海上风场项目认证 Presents the principles and procedures for DNV services with respect to certification of Offshore Wind Farm Projects. 提出了DNV海上风电场项目认证中的相关规范和流程。
低电压穿越(LVRT)要求及测试
由德国联邦政府颁布的第一部关于可再生能源发电(EEG) 和热电联产
(BHKW) 的联邦法律
Fixed balance for power generation using renewable energy resources Wind, Water,
Biomass and Biogas, Photovoltaic
Low-Voltage Ride Through (LVRT) Requirements and Testing
低电压穿越（LVRT）要求及测试
Dr.-Ing. Karl-Heinz Weck
Forschungsgemeinsc
haft für Elektrische
Anlagen
und
Stromwirtschaft e.V.
常规的过流保护不起作用
Protection during faults by voltage and frequency variation
故障期间根据电压和频率变化进行保护
Basic requirement in Grid Codes fast disconnection at system faults
UCTE 400 kV
G
Subtransmission
个别地区超过20% WT connection to sub-transmission
次输电网110/132 kV
and transmission frequent
Industry工业
风电机组常接入次输电网及输电网
Voltage and load-flow in
History of Grid Codes in Germany since 2003 2003年后德国并网导则发展历程
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
Inspection and Testing of Wind Turbine Rotor Blades
Ullrich Knopf, Global Project Manager, Wind Energy
Industrial Services SGS Germany GmbH
Email: ullrich.knopf@
Abstract: The wind turbine sector is growing quickly regarding the number and capacity of the already
installed wind turbines, as well as the capacity of newly produced and newly developed turbine technologies. Compared to other industrial products the wind power is lacking reliability for each single component.
A key component is the rotor blade. The greater the capacity the longer the blade gets.
An indication of lacking reliability for blades are the world wide occurring quality problems:
Delamination, dry spots, faulty struts, white cracks, chalking, lightning damage
There are two approaches to cope with the missing quality level:
- blade inspection
- blade testing
Different inspection types exist, like:
-Visual inspection (rope access or lift)
-Inspections supported by Infra-red equipment (thermography)
-Inspections supported by ultra sonic
-Vibration measurement on the drive train
-Condition monitoring
The blades have to be inspected not only visually but also by using new UT-inspection techniques and thermography. As the blades are an important component the need for new relievable inspection techniques is
very high. This can be presented by SGS based on inspections of more than 500 blades using the inspection techniques. Inspections on a periodical interval can assure the public safety as well as the safety and reliability of
the wind turbine.
The following facts are important and have to be considered:
•Detection of defects at an early stage
•Avoidance of consequential damages and unscheduled downtime
•Choosing individual and applied inspection techniques and inspection sequences
The other approach to improve the blade quality is the blade test. The common base is the IEC 61400-23 (Full
Scale Blade Type Testing (Static and Dynamic)) for type testing. But blade testing could also be part of the periodically quality check and could indicate the quality after change of manufacturing method or introduction
of new materials.
New ways of testing are discussed to shorten the test time and to have a test situation close to reality.
SGS will show the possibilities of improvement and their experience.
1/2
风机叶片的检验和测试
摘要：随着装机数量和容量的增多，风力发电机行业迅速发展，包括新生产和新开发的风机技术。
相比
较其他工业产品，风电产业中各个零部件缺乏足够的可靠性，特别是风机的关键部件叶片。
单机容量越
高，叶片越长。
而全球范围内出现的质量问题，如脱胶、气孔、支撑不良、内含物、分层、雷电破坏
等，都说明叶片缺乏可靠性。
有两种途径可以应对质量问题：
- 叶片检验
- 叶片测试
叶片检验的方法包括：
-目击检验（通过绳索和升降机）
-使用红外设备进行检验（差热分析）
-超声检验
-传动系统的震动测试
-状态监控
叶片检验不仅仅是目击检查，还包括超声探伤和差热分析。
由于叶片是风机的关键部件，所以对于新出
现的检验技术要求较高。
SGS拥有超过500支叶片的检验经验，可以提供借助上述手段进行叶片检验的
服务。
而且定期的叶片检验可以确保风机的安全性和可靠性。
以下情况应该着重考虑：
•早期的缺陷检查
•避免间接损坏和计划外停机
•选择有针对性的检验手段和检验次序
提高叶片质量的另一种途径为叶片测试。
通常按照标准IEC 61400-23（全尺寸叶片测试）进行试验。
但
是，叶片测试是定期进行质量检查的一部分，还可以用来表明调整制造工艺和引入新原材料后的叶片的
质量状况。
为缩短叶片测试周期和制定出接近真实使用状况的实验环境，一些新的测试方法正在被探讨。
SGS愿分
享方法改进的可能性和自己的经验总结。
2/2。
