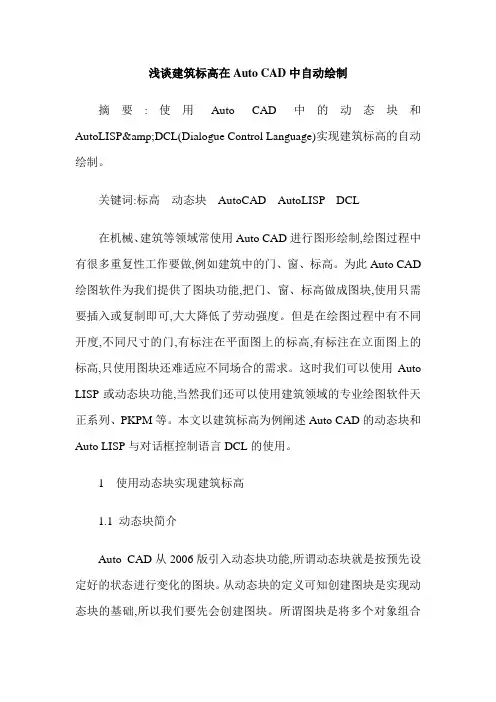

浅谈建筑标高在Auto CAD中自动绘制

浅谈建筑标高在Auto CAD中自动绘制摘要:使用Auto CAD中的动态块和AutoLISP&DCL(Dialogue Control Language)实现建筑标高的自动绘制。

关键词:标高动态块AutoCAD AutoLISP DCL在机械、建筑等领域常使用Auto CAD进行图形绘制,绘图过程中有很多重复性工作要做,例如建筑中的门、窗、标高。

为此Auto CAD 绘图软件为我们提供了图块功能,把门、窗、标高做成图块,使用只需要插入或复制即可,大大降低了劳动强度。

但是在绘图过程中有不同开度,不同尺寸的门,有标注在平面图上的标高,有标注在立面图上的标高,只使用图块还难适应不同场合的需求。

这时我们可以使用Auto LISP或动态块功能,当然我们还可以使用建筑领域的专业绘图软件天正系列、PKPM等。

本文以建筑标高为例阐述Auto CAD的动态块和Auto LISP与对话框控制语言DCL的使用。

1 使用动态块实现建筑标高1.1 动态块简介Auto CAD从2006版引入动态块功能,所谓动态块就是按预先设定好的状态进行变化的图块。

从动态块的定义可知创建图块是实现动态块的基础,所以我们要先会创建图块。

所谓图块是将多个对象组合起来形成单个对象的对象集合。

1.2 建筑标高根据《房屋建筑制图标准应用手册》[1],标高符号以直角等腰三角形表示,如图1。

其中图(a)为个体建筑物的标高符号,若标注位置不够可使用图(b)形式,图(c)为总平面室外地坪标高符号;图(d)、(e)为带高度引出线的标高。

1.3 实现步骤为了实现方便将图1中的(a)、(d)归为一组,(b)、(e)为一组,(c)单独一组或者将(c)整合到前两组中。

因为实现方法大概一致,我选择(b)、(e)这组表述。

具体分6个步骤完成动态块设计[2],第1步:在创建动态块之前规划动态块的内容。

第2步:绘制几何图形。

第3步:了解块元素如何共同作用。
