施耐德ATS22软启动器用户手册[1]
![施耐德ATS22软启动器用户手册[1]](https://img.taocdn.com/s3/m/d3d26d772a160b4e767f5acfa1c7aa00b52a9d99.png)
施耐德ATS22软启动器用户手册========================一、产品简介------------施耐德ATS22软启动器是一种用于控制三相异步电动机启动和停止的设备,它可以根据设定的参数,对电动机的电压进行平滑调节,从而实现电动机的柔和启动和停止,减少电网冲击和机械应力,提高设备的可靠性和寿命。
适用于额定功率为3至315千瓦的三相异步电动机。
内置了多种保护功能,如过载、过热、过流、短路、缺相、欠压、过压等。
支持多种控制方式,如本地控制、远程控制、串口通讯等。
支持多种工作模式,如标准模式、泵模式、扭矩控制模式等。
具有故障诊断功能,可以记录最近的四次故障信息,并提供故障代码和解决方法。
二、产品安装------------选择合适的安装位置,确保软启动器周围有足够的空间进行散热和维护。
按照软启动器的型号和电动机的额定电流,选择合适的电缆和接线方式。
按照软启动器上的接线图,将电源线、电动机线、控制线等正确地连接到软启动器上。
检查接线是否正确无误,无短路或接地故障。
通电后,检查软启动器上的显示屏是否正常工作,无故障提示。
三、产品参数------------ATS22软启动器有多种型号,其主要参数如下表所示:---型号 ---额定电流(A) ---额定功率(kW) ---尺寸(mm) -----------------------------------------------------------------ATS22D17S ---17 ---7.5 ---140x230x165 -------ATS22D32S ---32 ---15 ---140x230x165 -------ATS22D47S ---47 ---22 ---140x230x165 -------ATS22D62S ---62 ---30 ---140x230x165 -------ATS22D75S ---75 ---37 ---140x230x165 -------ATS22D88S ---88 ---45 ---140x230x165 -------ATS22C11S ---110 ---55 ---210x300x200 -------ATS22C14S ---140 ---75 ---210x300x200 -------ATS22C17S ---170 ---90 ---210x300x200 -------ATS22C21S ---210 ---110 ---210x300x200 -------ATS22C25S ---250 ---132 ---210x300x200 -------ATS22C32S ---320 ---160 ---210x300x200 -------ATS22C41S ---410 ---200 ---210x300x200 -------ATS22C48S ---480 ---250 ---210x300x200 -------ATS22C59S ---590 ---315 ---210x300x200 ----四、产品操作------------参数设置:通过液晶显示屏和按键,可以对软启动器的各种参数进行设置,如启动电压、启动时间、停止时间、工作模式、保护功能等。
22awg额定电流

22awg额定电流
【原创版】
目录
1.22awg 的含义
2.额定电流的定义
3.22awg 的额定电流
4.22awg 电线的用途
5.选择 22awg 电线的注意事项
正文
22awg 是一种表示电线规格的表示方法,其中"awg"是美国线规(American Wire Gauge)的缩写,它是一种用来表示电线直径的标准单位。
22awg 意味着这种电线的直径为 0.030 英寸,这是美国线规中的一种较小的规格。
额定电流是指电线可以安全承载的最大电流值。
超过这个值,电线可能会过热,导致损坏或者火灾等危险。
22awg 的额定电流通常为 15-20 安培,具体数值取决于电线的绝缘材料和敷设方式。
22awg 电线通常用于低电压、低功率的电子设备,如计算机、电视、电话等。
这种电线的细小规格使得它们可以轻松地穿过狭小的空间,安装在设备内部。
选择 22awg 电线时,需要注意以下几点:首先,要确保电线的额定电流大于或等于设备的电流需求。
其次,要根据电线的用途和敷设环境选择合适的绝缘材料。
第1页共1页。
施耐德ATS22软启动器使用说明

施耐德ATS22软启动器使用说明ATS22软起动器是由施耐德公司生产的一种电气设备,用于控制和保护三相异步电动机的启动。
本文将详细介绍ATS22软启动器的使用说明。
一、ATS22软启动器的特点:1.启动器具有良好的过载保护功能,可保护电动机和电器设备。
2.采用软启动技术,可实现电动机的平稳启动和停止。
3.启动器具有小型、易安装、操作简单的特点。
4.启动器具有先进的保护和监控功能,可确保电动机的安全运行。
二、ATS22软启动器的安装:1.在进行安装前,请确保设备和电源已经断开。
2.安装软启动器时,要保证启动器的散热良好,不要堵塞散热孔。
3.软启动器的安装位置应远离易燃易爆或尘埃大的场所,并且避免遭受直射阳光。
4.安装时,请确保该电气设备符合国家和地方的安全规范。
三、ATS22软启动器的操作:1.ATS22软启动器具有一键启动和停止的功能,操作非常简单。
2.对于连续启动和停止的情况,可以接通保持回路来实现一键连续启动和停止的功能。
3.在启动和停止过程中,请确保电源的稳定,以避免电动机受损。
4.在启动和停止之前,最好先观察和检查周围环境和电动机的运行状态,以确保安全。
四、ATS22软启动器的保护功能:1.过载保护:当电动机负载超过额定电流时,启动器会自动停止电动机,保护电动机和电器设备。
2.电流过高保护:当电动机负载过大或启动电流过高时,启动器可以检测到,并自动停止电动机。
3.过温保护:当电动机或启动器内部温度过高时,启动器会自动停止电动机,并发出警报信号。
4.短路保护:当电动机出现短路故障时,启动器会自动断开电源,避免故障扩大。
5.断相保护:当电动机供电的任何一相中断时,启动器会立即停止电动机。
五、ATS22软启动器的维护:1.定期清洁软启动器的散热孔,以确保良好的散热效果。
2.定期检查启动器的接线情况,确保电源和电动机的接线正常。
3.定期检查启动器的保护功能是否正常,如过载保护、过温保护等。
4.在启动器长时间不使用时,应将其存放在干燥的地方,避免受潮或损坏。
施耐德ATS22软启动器使用说明

施耐德ATS22软启动器使用说明一、硬件安装1.施耐德ATS22软启动器应固定在安装板上,并通过适当长度的导轨固定在控制柜内。
2.电源线、电机线和控制线需按照规定的接线方法进行接线,确保安全可靠。
3.在安装过程中,应注意避免强电线路与弱电线路的相互干扰,避免引起故障。
二、参数配置1.在使用之前,应先对施耐德ATS22软启动器的参数进行配置。
2.配置参数包括电压、电流、启动方式、停止方式等,根据实际需求进行设置。
3.可通过编程软件或面板按键对参数进行配置,参数设置后需保存。
三、启动与停止1.启动:在配置好参数后,按下启动键,软启动器会根据配置参数进行相应的启动过程。
2.停止:按下停止键即可停止电动机的转动。
3.在运行过程中,可以通过面板按键或远程控制进行启动和停止的操作。
四、维护与保养1.定期检查:定期检查施耐德ATS22软启动器的连接线路是否松动,检查电源线、电机线和控制线的接线是否正常。
2.清洁保养:定期对软启动器进行清洁保养,确保设备的可靠性。
3.注意事项:在维护保养过程中,需要切断电源,确保安全操作。
五、故障排除1.施耐德ATS22软启动器使用过程中可能出现故障,可根据显示屏上的故障代码和说明进行排除。
2.常见故障包括过载、过热、短路等,应按照指示进行处理,确保设备的正常运行。
施耐德ATS22软启动器的使用说明以上述内容为主进行详细介绍,通过硬件安装、参数配置、启动与停止、维护与保养以及故障排除等方面的说明,用户可以更好地了解和使用施耐德ATS22软启动器,确保设备的正常运行。
同时,用户在使用过程中应注意安全操作,保持设备的良好状态。

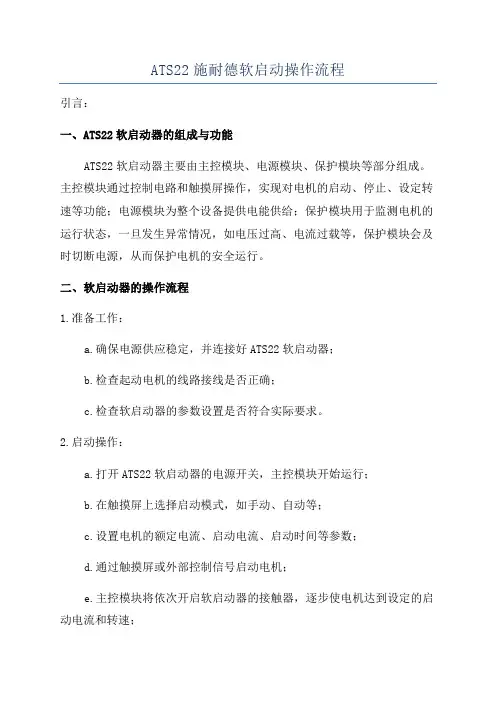

ATS22施耐德软启动操作流程
