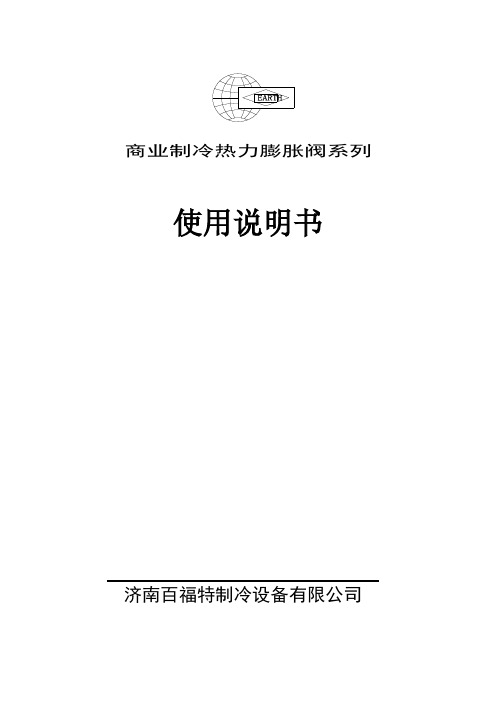

商业制冷热力膨胀阀系列使用说明书济南百福特制冷设备有限公司济南百福特制冷设备有限公司简明热力膨胀阀产品说明书编号0012006年2月本说明书是百福特公司整套说明书的精缩本,本说明书中所汇编的有关技术资料,重点介绍百福特公司热力膨胀阀系列产品的主要参数和规格.若您需要这方面进一步的技术资料,或者您需要整套样本,请与您就近的百福特公司的经销商或批发商联系。
说明：●如需百福特公司的个别产品资料，请与就近的百福特公司的经销部或批发商联系，或向总公司或网址索取，总公司地址：济南无影山北路100号浅水湾花园。
邮编：250031。
电话：86-0531-******** 85951555 传真：86-0531-******** 网址： ●本说明书为百福特公司版权所有，非经百福特公司同意,不准翻印.●本说明书所列的系列产品专供商业制冷和空调行业选用.产品简介：地球热力膨胀阀是专为制冷应用而设计。
适用于冷库、冷柜、冰淇淋机、制冷机及运输冷却装置等多种制冷设备。
主要分为TER(E)、TCL(E)、TI(E)三大系列。
热力膨胀阀用于调节器蒸发器中的液体制冷剂的供给量。
供给量是通过制冷剂的过热度进行控制的，因此，这种阀特别适用于干式蒸发器中制冷剂液体的供给,因为在干式蒸发器出口处的制冷剂过热度同蒸发器的负荷成比例关系.特点●蒸发温度范围大:-60℃～+50℃,可适用于冻结、冷藏和空气调节装置。
●可互换的流口组件：更易于库存/便于容量匹配/更好的维修服务●用于R22时，名义制冷量从0.5～1890KW(0.15～540TP)●可提供MOP(最大操作压力)限制功能保护压缩电机,防止由于过高的蒸发压力导致其损坏●防腐、防锈的不锈钢动力头可以选择的温包特定用途充注方式技术数据命名：TER （E） 5 H W阀系列外平衡阀流口号制冷剂代号充注代号内平衡（无）F-R12命名： TI （E） S H W 阀系列外平衡接头形式制冷剂代号充注代号内平衡（无）M:R134aH:R22S=R404a/R507 N:R407CTI系列可换芯式膨胀阀选型表TCL （E） 8 H W 系列名称外平衡公称制冷剂代号充注代号内平衡（无）制冷量F：R12H：R22R：R502感温包的充注.充注形式：⎪⎪⎩⎪⎪⎨⎧吸附充注交叉充注：不同工质气体充注液体充注 充注工质 ⎩⎨⎧不同于系统相同于系统 同种液体充注：要求温包内始终有液体存在，即保证膜片上方压力始终为保和压力。
SCALANCE XB004-1LD 6GK5004-1BF00-1AB2 10 100M 工业以太
/bilddb
● to website: CAx-Download-Manager
/cax
● to website: Industry Online Support
https://
EN 60079-0:2009, EN60079-15:2010, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X
certificate of suitability
● CCC / for hazardous zone according to GB standard Yes
standards, specifications, approvals / other
certificate of suitability
EN 61000-6-2, EN 61000-6-4
● C-Tick
Yes
● KC approval
Yes
further information / internet-Links
KFE
standards, specifications, approvals / CE
certificate of suitability / CE marking
Yes
standards, specifications, approvals / hazardous environments
standard / for hazardous zone
supply voltage, current consumption, power loss type of voltage / 1 / of the supply voltage ● supply voltage / 1 / rated value ● power loss [W] / 1 / rated value ● supply voltage / 1 / rated value ● consumed current / 1 / maximum ● type of electrical connection / 1 / for power supply ● product component / 1 / fusing at power supply input ● fuse protection type / 1 / at input for supply voltage type of voltage / 2 / of the supply voltage ● supply voltage / 2 / rated value
卡索金属检测机说明书
金屬檢測機 METAL SHARK® 型號 操作手冊 / 使用說明【中文】
項目：
項目名稱 訂單/項目編號 oc
METAL SHARK®
目錄
目錄 .................................................................................................... 1-2 1. 一般資料......................................................................................... 1-5
2.1. CE–質量符合聲明 ....................................................................... 2-6 2.2. 生產商的聲明 ............................................................................. 2-7 3. 應用及限制範圍................................................................................ 3-8 3.1. 正常使用 ................................................................................... 3-8 3.2. 錯誤使用 ................................................................................... 3-8 3.3. 如何行使擁有人責任的應有注意...................................................... 3-8 3.4. 操作人員的要求 .......................................................................... 3-9 3.5. 服務和維護人員的要求.................................................................. 3-9 4. 一般的安全指示...............................................................................4-10 4.1. 安全符號 ..................................................................................4-10 4.2. 一般的安全指示 .........................................................................4-10 4.3. 金屬檢測機的安全指示.................................................................4-11
吉佛兰电子设备产品介绍说明书
AUTOMATIONPOWER CONTROLSOLID STATE RELAYS, AND POWER CONTROLLERSENG C O D . 81141D - 03/20152Thanks to forty years of experience, Gefran is the world leader in the design and production of solutions for measuring, controlling, and driving industrial production processes .We have 14 branches in 12 countries and a network of over 80 worldwide distributors.For 40 years, Gefran has been designing and producing technologically advanced actuators and solid state relays to control resistive/inductive loads and infrared lamps used in modern temperature control systems.Our knowledge of the market transforms your needs into practical, high-quality answers.QUALITY AND TECHNOLOGYGefran components are a concentrate of technology , the result of constant research and of cooperation with major research centres .Thanks to its complete line of controllers and actuators , Gefran can be your sole provider of solutions for electrical heating control .Gefran’s know-how and experience guarantee continuous and practical solutions.SERVICESA team of Gefran experts works with the customer to select the ideal product for its application and to help install andconfiguredevices(***********************).Gefran offers a wide range of courses at different levels for the technical-commercial study of the Gefran product range as well as specific courses on demandIn addition to foreseeing the market’s application needs, Gefran forms partnerships with its customers to find the best way to optimise and boost the performance of various applications .Gefran products communicate with one another to provide integrated solutions, and can dialogue with devices by other companies thanks to compatibility with numerous fieldbuses.APPLICATIONSPLASTICS HEAT TREATMENTGLASSENERGYPAPERFOODSOFTWAREGF_eXpressConfiguration kit for Gefran instruments by means of PC (Windows environment).- A single software for all models- Easy configuration- Copy/paste, save recipe, trendfunctions- Rapid configuration of instruments- Saving and management of parameterrecipes- On-line trend and saving of historicaldata- Recovery of factory settings- Custom linearization- On-line user manual- Easy programming with custom messages- Easy graphics programming with setpointprogrammersIR SOLUTIONPRINTINGTEXTILEPLASTICS – BLOWINGWOODWORKING MACHINESPHOTOVOLTAICSAUTOMOTIVE Halogen - 2500°CShort Wave - 2200°C4SOLID STATE RELAYS, AND POWER CONTROLLERSGTF - GFWGTF and GTF-XTRAGTF is the new line of GEFRAN power controllers, designedto control all types of industrial electric heaters.Versatility, plus easy and guided configuration with GEFRAN(25,40A)(400, 600A)(400, 600A)GS (15... 120A)GD (40A)SOLID STATE RELAYS, AND POWER CONTROLLERSFIELDBUS*(25...60A)GTF(25...250A)GFWFIELDBUS*GFX4-IRFIELDBUS* (25... 120A)GT(25... 120A)(*) European Patent N° 2660843 8SOLID STATE RELAYS, AND POWER CONTROLLERS(*) European Patent N° 2660843 10SOLID STATE RELAYS, AND POWER CONTROLLERSnot availablex = (1pcs)SOLID STATE RELAYS, AND POWER CONTROLLERS(**) Valid formulas for Vline=Vload(***) For these applications it is recommanded to contact the Gefran specialistsnon disponibilex = (1pz)SOLID STATE RELAYS, AND POWER CONTROLLERS(**) Valid formulas for Vline=Vload(***) For these applications it is recommanded to contact the Gefran specialistsSPAINMEXICO TAIWAN INDIARUSSIABELGIUM UK TURKEYSINGAPOREGERMANYCHINA SWITZERLAND FRANCE USA BRAZILSOUTH AFRICAITALYDrive & Motion Control Unit Via Carducci, 2421040 GERENZANO (VA) ITALY Ph. +39 02967601Fax +39 029682653**********************Technical Assistance:*********************Customer Service*************************Ph. +39 02 96760500 Fax +39 02 96760278GEFRAN HEADQUARTER Via Sebina, 7425050 PROVAGLIO D’ISEO (BS) ITALY Ph. +39 03098881Fax +39 0309839063GEFRAN DEUTSCHLAND GmbH Philipp-Reis-Straße 9a D-63500 Seligenstadt Ph. +49 (0) 61828090Fax +49 (0) 6182809222******************SIEI AREG - GERMANY Gottlieb-Daimler Strasse 17/3D-74385 - Pleidelsheim Ph. +49 (0) 7144 897360Fax +49 (0) 7144 8973697****************SENSORMATE AGSteigweg 8,CH-8355 Aadorf, Switzerland Ph. +41(0)52-2421818 Fax +41(0)52-3661884http://www.sensormate.ch GEFRAN FRANCE SA4, rue Jean Desparmet - BP 823769355 LYON Cedex 08Ph. +33 (0) 478770300Fax +33 (0) 478770320********************GEFRAN BENELUX NV ENA 23 Zone 3, nr . 3910 Lammerdries-Zuid 14A B-2250 OLENPh. +32 (0) 14248181Fax +32 (0) 14248180**************GEFRAN UK Ltd Unit 7Brook Business Centre 54a Cowley Mill Road Uxbridge UB8 2FXPh. +44 (0) 8452 604555Fax +44 (0) 8452 604556 ***************.ukGEFRAN ESPAÑACalle Vic, números 109-11108160 - MONTMELÓ(BARCELONA)Ph. +34 934982643Fax +34 935721571**************************GEFRAN MIDDLE EAST ELEKTRIK VE ELEKTRONIK San. ve Tic. Ltd. Sti Yesilkoy Mah. AtaturkCad. No: 12/1 B1 Blok K:12 D: 389 Bakirkoy /Istanbul TURKIYEPh. +90212 465 91 21Fax +90212 465 91 22GEFRAN RUSSIA4 Lesnoy pereulok, 4B usiness center “White Stone” 125047, Moscow, Russia Tell: +7 (495) 225-86-20 Fax: +7 (495) 225-85-00GEFRAN SOUTH AFRICA Pty Ltd.Unit 10 North Precinet, West Bu-ildingTopaz Boulevard Montague Park, 7411, Cape Town Ph. +27 21 5525985 Fax +27 21 5525912GEFRAN SIEIDrives Technology Co., Ltd No. 1285, Beihe Road, Jiading District, Shanghai, China 201807Ph. +86 21 69169898Fax +86 21 69169333***************.cnGEFRAN INDIASurvey No: 182/1 KH, Bhukum, Paud road, Taluka – Mulshi,Pune - 411 042. MH, INDIA Phone No.:+91-20-39394400Fax No.: +91-20-39394401**********************GEFRAN TAIWANNo.141, Wenzhi Rd., Zhongli City, Taoyuan County 32054, Taiwan (R.O.C.)Ph. +886-3-4273697*********************.sg GEFRAN Inc.8 Lowell AvenueWINCHESTER - MA 01890Toll Free 1-888-888-4474Fax +1 (781) 7291468******************GEFRAN BRASILELETROELETRÔNICA Avenida Dr . Altino Arantes,377 Vila Clementino04042-032 SÂO PAULO - SP Ph. +55 (0) 1155851133Fax +55 (0) 1132974012********************.br。
美国阿图祖273阀头说明书 肇庆宇邦水处理公司
273過濾器/278軟化器操作/安裝說明一〃A utotrol 273過濾器■工作流量（閥體）工作流量@ 15psi (1.03bar) drop------------------------25.0gpm (5.7m³/h)反洗流量@ 25psi (1.72bar) drop------------------------25.0gpm (4.5m³/h)產水性能值-------------------------------------------- Cv = 6.5 (Kv=5.58)反洗流量性能值---------------------------------------Cv = 5.0 (Kv=5.78)■控制器模式942F機械式時間型――7天或12天反洗時間------------------------------------------------------8~30 分鐘快沖洗-----------------------------------------------------------9 分鐘962F流量型反洗時間------------------------------------------------------4~60 分鐘快沖洗--------------------------------------------------------2~19 分鐘流量計-----------------------------------------------1寸Autotrol渦輪式962FTC電子式時間型反洗時間------------------------------------------------------4~60 分鐘快沖洗--------------------------------------------------------2~19 分鐘定時啓動---------------------------------------------------一周任何時段■連接配件/尺寸罐螺紋牙---------------------------------------------------2-1/2寸＃8進水/出水----------------------------------------1-3/4寸-12UNC-2A，外牙排水----------------------------------------------------3/4寸NPT，外牙吸鹽----------------------------------------------------3/8寸NPT，外牙中心管外徑-----------------------------------------------1.05寸(27mm)中心管長度-----------------------------高出罐頂1/2±1/2寸（13mm±13mm）■設計規格/參數閥體------------------------=-----------------------------工程塑料NORYL橡膠材料-----------------------------------------------------適用於冷水重量（連控制器）---------------------------------------------4.5磅（2.0kg）變壓器輸出-----------------------------------------12VAC 400mA (4.6VA )變壓器輸入-------------------------------------115V 50/60Hz,230V 50/60Hz-----------------------------------100V 50/60Hz工作壓力----------------------------------------10~120psi (1.37~8.27bar)工作水溫---------------------------------------------------------1~38℃■附加選項旁通閥出入水套裝配件：銅管接件------------------------------------1-1/4寸,1寸,3/4寸,28mm,22mmCPVC接件，膠水連接--------------------------------------1寸,3/4寸,25mm 塑膠管美制或英制螺紋牙----------------------------- 1寸外牙,3/4寸外牙銅質管美制或英制螺紋牙------------------------------1寸外牙,3/4寸外牙二〃A utotrol 278軟水器■工作流量（閥體）工作流量@ 15psi (1.03bar) -----------------------------25.0gpm (5.7m³/h)反洗流量@ 25psi (1.72bar) drop-------------------------25.0gpm (4.5m³/h)產水量性能值------------------------------------------ Cv = 6.5 (Kv=5.58)反洗流量性能值----------------------------------------Cv = 4.0 (Kv=3.46)■控制器模式962流量型和962電子式時間型反洗時間------------------------------------------------------4~60 分鐘吸鹽時間-------------------------------------------------------自動計算慢沖洗--------------------------------------------------------7~125分鐘快沖洗---------------------------------------------------------2~19 分鐘流量計-----------------------------------------------1寸Autotrol 渦輪式■連接配件/尺寸罐螺紋牙----------------------------------------------------2-1/2寸＃8進水/出水-----------------------------------------1-3/4寸-12UNC-2A，外牙排水-----------------------------------------------------3/4寸NPT，外牙吸鹽-----------------------------------------------------3/8寸NPT，外牙中心管外徑------------------------------------------------1.05寸(27mm)中心管長度-------------------------------高出罐頂1/2±1/2寸（13mm±13mm）■設計規格/參數閥體------------------------------------------------------工程塑料NORYL橡膠材料-----------------------------------------------------適用於冷水重量（連控制器）------------------------------------------4.5磅（2.0kg）變壓器輸出------------------------------------------12VAC 400mA (4.6VA )變壓器輸入-------------------------------------115V 50/60Hz,230V 50/60Hz-----------------------------------100V 50/60Hz工作壓力----------------------------------------10~120psi (1.37~8.27bar)工作水溫---------------------------------------------------------1~38℃■附加選項旁通閥出入水套裝配件：銅管接件----------------------------------1-1/4寸,1寸,3/4寸,28mm,22mmCPVC接件，膠水連接--------------------------------------1寸,3/4寸,25mm塑膠管美制或英制螺紋牙----------------------------- 1寸外牙,3/4寸外牙銅質管美制或英制螺紋牙------------------------------1寸外牙,3/4寸外牙一〃設備定位：1〃過濾器或軟化器至排水的距離愈短愈好。
ul 2734标准
ul 2734标准
UL2734标准是美国的一个标准，主要针对便携式和移动式电源进行规范。
这个标准涵盖了配有电池、电化学电容器或电化学电容器模块的电源，这些电源通常有一个或多个输入和一个或多个输出。
该标准还适用于用于户外、临时户外或室内使用的大型移动电源。
此外，UL2734标准还规定了电源组的一些特定要求。
例如，电源组可以配备附加系统，如用于给轮胎或其他可充气物品充气的空气压缩机（无油箱型）、作为交通警告灯的灯或手电筒等，这些功能由内部电池供电。
该标准还规定了电源组选件的要求，如灯、电压表、内部空气压缩机组件、相关的仪表、逆变器、车辆适配器和内部电池等，以及这些选件与电源组集成在一起时对内部电池的充电。
值得注意的是，UL2734标准不包括用于电动汽车充电设备的充电功能的接线或电缆，也不包括UL2056的《移动电源调查大纲》中涵盖的移动电源。
以上内容仅供参考，如需更专业的信息，可以咨询UL2734标准的官方认证机构。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
SPEC NO:DSAA9171 APPROVED : J. Lu
REV NO: V.2 CHECKED :Allen Liu
DATE:DEC/12/2002 DRAWN: Y.H.LI
PAGE: 1 OF 4
元器件交易网
Selection Guide
P ar t N o . Dic e L en s Ty p e Iv (m c d ) @ 20 m A Min . KA-2734ESGC HIGH EFFICIENCY RED (GaAsP/GaP) SUPER BRIGHT GREEN (GaP) WATER CLEAR 7 7 Ty p . 30 30 V i ew i n g An g l e 2θ1/2 120°
SPEC NO:DSAA9171 APPROVED : J. Lu
REV NO: V.2 CHECKED :Allen Liu
DATE:DEC/12/2002 DRAWN: Y.H.LI
PAGE: 2 OF 4
元器件交易网
High Efficiency Red / Super Bright Green
Number of reflow process shall be less than 2 times and cooling process to normal temperature is required between first and second soldering process.
Recommended Soldering Pattern (Units : mm)
X 3.4mm SMT LED, 1.5mm HEIGHT ONLY. CHIPS CAN BE CONTROLLED SEPARATELY. FOR ALL SMT ASSEMBLY AND SOLDER
! SUITABLE
PROCESS.
! AVAILABLE ! IDEAL
FOR BACKLIGHTING. 1000PCS / REEL.
Note: 1. 1/10 Duty Cycle, 0.1ms Pulse Width.
H i g h E f f i c i en c y R ed 105 30 160 5
Su p er B r ig h t Gr een 105 25 140 5 -40°C To +85°C
Un its mW mA mA V
元器件交易网
2.7x3.4mm SURFACE MOUNT LED LAMP
KA-2734ESGC
HIGH EFFICIENCY RED SUPER BRIGHT GREEN
Features
! 2.7mm ! BOTH
Description
The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode. The Super Bright Green source color devices are made ON TAPE AND REEL. with Gallium Phosphide Greigh Efficiency Red Spectral Line Half-width Super Bright Green Capacitance Forward Voltage Reverse Current High Efficiency Red Super Bright Green High Efficiency Red Super Bright Green All
! PACKAGE:
Package Dimensions
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Lead spacing is measured where the lead emerge package. 4. Specifications are subject to change without notice.
Tape Specifications (Units : mm)
SPEC NO:DSAA9171 APPROVED : J. Lu
REV NO: V.2 CHECKED :Allen Liu
DATE:DEC/12/2002 DRAWN: Y.H.LI
PAGE: 4 OF 4
° Absolute Maximum Ratings at TA=25°C
P ar am et er Power dissipation DC Forward Current Peak Forward Current [1] Reverse Voltage Operating/Storage Temperature
Sy m b o l λpeak λD ∆λ1/2 C VF IR P ar am et er Peak Wavelength Dominate Wavelength D ev i c e High Efficiency Red Super Bright Green High Efficiency Red Super Bright Green Ty p . 627 565 625 568 45 30 15 15 2.0 2.2 2.5 2.5 10 Max . Un its nm nm nm pF V uA Tes t Co n d it io n s I F =20mA I F =20mA I F =20mA VF=0V;f=1MHz I F =20mA V R = 5V
Note: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at TA=25°C °
KA-2734ESGC
SPEC NO:DSAA9171 APPROVED : J. Lu
REV NO: V.2 CHECKED :Allen Liu
DATE:DEC/12/2002 DRAWN: Y.H.LI
PAGE: 3 OF 4
元器件交易网
KA-2734ESGC SMT Reflow Soldering Instruction
