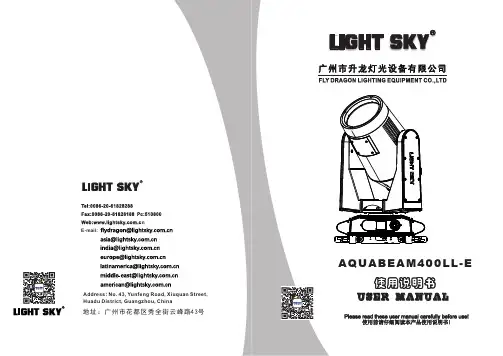

AQUABEAM400LL-E 使用说明书

Congratulations on choosing our company product! We thank you for your custom.◆Please note that this product, as all the others in the rich my company range, hasbeen designed and made with total quality to ensure excellent performance andbest meet your expectations and requirements.◆Carefully read this user manual in its entirety and keep it safe for future reference.It is essential to know the information and comply with the instructions given in thismanual to ensure the fitting is installed, used and serviced correctly and safely.◆My company disclaims all liability for damage to the fitting or to other property orpersons deriving from installation, use and maintenance that have not been carriedout in conformity with this user manual, which must always accompany the fitting.◆My company reserves the right to modify the characteristics stated in this usermanual at any time and without prior notice.感谢您选用我们公司的产品。
电子镇流器

电子镇流器目录摘要电子镇流器(Electricalballast),是镇流器的一种,是指使用电子技术驱动电光源,使之产生所需照明的电子设备。
与之对应的是电感式镇流器(或者镇流器)。
现代日光灯越来越多的使用电子镇流器,轻便小巧,甚至能够将电子镇流器与灯管等集成在一起,同时,电子镇流器通常能够兼具起辉器功能,故此又可省去单独的起辉器。
电子镇流器还能够具有更多功能,比如能够通过提高电流频率或者者电流波形(如变成方波)改善或者消除日光灯的闪烁现象;也可通过电源逆变过程使得日光灯能够使用直流电源。
电子镇流器-基本概述电子镇流器电子镇流器-基本分类DC 24V电子镇流器按安装模式可分为:(1)独立式(2)内装式(3)整体式按性能特点可分为:(1)普通型,0.6≥120%90%1.4~1.6高频化使之小型、轻、有节电功能;(2)高功率因数型H级,≥0.9≤30%≤18%1.7~2.1使用无源滤波与特殊保护;(3)高性能电子镇流器L级,≥0.95≤20%≤10%1.4~1.7有完善的特殊保护功能,电磁兼容;(4)高性价比电子镇流器L级,≥0.97≤10%≤5%1.4~1.7集成技术与恒功率电路设计,电压波动影响照度小;(5)可调光电子镇流器,≥0.96≤10%≤5%≤1.7使用集成技术与有源可变频率谐振技术。
电子镇流器-应用领域石英灯电子镇流器1、一拖一、一拖二灯箱专用电子镇流器是专门为户外灯箱,广告牌而设计的。
优势有下列几个方面:(1)使用安全绝缘性能高,防水防潮性能好,镇流器温升低,不可能影响灯箱布或者灯箱片因受热而变黄。
(2)方便:2、一拖一、一拖二普通型电子镇流器适用于各类普通照明场合灯具的安装与更换;电子镇流器-要紧优点电子镇流器电子镇流器-选用建议35W声光电子镇流器电子镇流器对提高照明系统能效与质量有明显优势,是新国际推荐应用的产品,也是未来进展的趋势。
(3)应选用高品质、低谐波的产品,不应单纯追求价廉,应满足使用的技术要求,考虑运行保护效果,并作综合比较。
电子镇流器产品说明书

4.镇流器到灯距离:≤2米
5.工作温度范围:-15℃~+50℃
6.开关次数:5000次以上
7.使用寿命:10000小时以上.
8.尺寸:长*宽*高= 175*40*25 mm
9.安装孔距:165mm(两孔)
二.产品描述:
1>输入特性
1、输入电压:198V~264V
2、输入频率:50Hz~60Hz
3、输入电流:150mA±10%
“孔明36.1Z-01/220-240”电子镇流器说明书
带荧光灯管TC-L&T8&3H 36W一支
窗体顶端
产品型号:
KMD36.1Z-01/220-240
产品产地:广ຫໍສະໝຸດ 省珠海市窗体顶端认证信息:
CCC
详细说明:
一.外观及特性:
1.整机外观:0.6mm.铁壳电镀漆,
2.整机重量:165g
3.本产品外壳颜色为白色
2.预热型启动.灯管寿命更长
3.提高功率因数至0.97节电30%以上。
4.无频闪,无蜂鸣声,视觉稳定,保护视力。
四.质量保证:厂方承诺三个月包换,一年保修。
五.注意事项:
1.未阅读并理解此说明书之前,请勿操作此电子镇流器。
2.此电子镇流器启动电压可能高至1千伏,而且可能会产生对人体和敏感仪器有害的电磁辐射。请留意这些潜在的危险及在操作期间不要接触任何导电物体。
4、功率因数:≥ 0.97
5、谐波分量:<20%
2>其他
1、开路保护:有
2、点火失败保护:有
4、灯失效保护:有
5、U-OUT=250V
6、认证标准:GB17743 , GB17625.1, GB19510.1 ,GB19510.4
镇流器说明书

高压钠灯智能调光型电子镇流器安装使用说明书 大明(FITBRIGHT )公司HPS 系列高压钠灯智能调光型电子镇流器,具有高功率因数,低谐波,恒功率输出,提高光效,性能稳定,以及具有防潮、异常状态保护功能等特点。
广泛应用于城市道路、施工现场、桥梁、铁路、隧道、商场、工厂、宾馆、机场码头、泛光照明等。
一、产品性能特点1、绿色照明,高效照明;2、低谐波(<8%),高功率因数(>0.99);3、输出端短路、断路保护功能;4、恒功率输出,相匹配的光源无频闪;5、智能调光电子镇流器会自动完成过程控制。
二、安装方法1、“输入”连接220V/50Hz 输入电源(棕色接火线,蓝色接零线,黄绿色接地),“输出”蓝色线接灯管脚外壁金属圈,棕色线接灯管脚中心点,若接反将会降低启动电压,有可能不能启动灯管。
2、安装固定镇流器时,防止端盖变形以降低其抗潮湿性能。
3、安装接线示意图:三、产品使用注意事项 1、镇流器应与标称功率的高压钠灯配套使用;2、镇流器工作时输出端(到灯端)瞬时电压有可能达到3kV ,在安装维护及更换灯泡时请切断电源;3、本镇流器可在指定的电压范围内长时间稳定工作,请勿尝试在超出此电压范围工作;4、本镇流器使用环境温度﹣25~55℃,在超出此范围的环境温度下工作可能对产品寿命造成损害,外壳最高工作温度TC 为80℃;5、因配套高压钠灯特性所致,点燃的灯泡在关闭或熄灭后,必须等灯泡足够冷却才能再次点亮,视不同功率的灯泡,可能需等待1~2分钟,镇流器将自动完成此过程的控制;6、为了不影响灯泡的正常工作,输出端应使用耐压大于600V 且符合安规的电源线,且长度不超过18米(线电容≤2nF );7、为避免触电,输入端地线应可靠接地。
输出端去灯管的两根线不允许与地短路,否则会损坏镇流器。
若需技术支持请与就近的供应商联系,请勿试图拆开产品自行维修。
合肥大明节能科技有限公司 白/棕黑/蓝n。
高压钠灯电子镇流器设计说明书

第4章高压钠灯电子镇流器设计实现4.1 原理框图高压钠灯(HPSL)电子镇流器电路方框图如图4-1所示。
图4-1 HPSL镇流器电路方框图4.2 实现电路根据图4-1,我们得到高压钠灯(HPSL)电子镇流器具体实现电路如图4-2所示。
图4-2 HPSL电子镇流器电路图下面对图4-2的各部分电路进行详细说明。
4.2.1 市电输入保护电路市电输入保护电路如图4-3所示。
图4-3 市电输入保护电路图中,FU为保险丝,在短路过流时起保护作用。
RT为负温度系数热敏电阻元件,用于抑制电源接通瞬间的浪涌电流冲击。
常温下RT呈高阻态,随着流过电流的增高,其温度也升高,而电阻值却下降,在负载电流达到稳定时,其阻值下降至最小,对电流产生的影响可忽略不计。
RV为压敏电阻,其阻值随电压的增高而急剧减小,可吸收诸如雷电等原因引起的电网瞬时高电压冲击。
因其耐受瞬时功率能力强,可长期工作。
正常状态下,RV接近开路,故对电路的影响可忽略。
本电路简单、低廉、有效。
4.2.2 EMI滤波器电磁干扰包括射频干扰(RFI)和各式各样的电磁脉冲干扰,它们的危害正受到愈来愈多的重视。
来自电网和电子镇流器逆变电路大功率高频振荡的射频传导干扰必须采用EMI滤波器加以隔离,以消除两者之间的互相干扰。
本电路采用双π型EMI滤波器,如图4-4所示。
其中,L1 = L2 , C1 = C2 ,C3 = C4 。
由于电感对射频干扰起阻流作用,而小容量电容则对射频干扰起近似短路作用,故EMI滤波器对射频传导干扰的抑制作用是明显的。
图4-4 双π型EMI滤波器电磁脉冲干扰在相线与中线间产生差模(对称模式)干扰,与地线无关, L1 、L2 对此干扰电流呈高阻抗;而在每条电源线与地线之间会产生共模(非对称模式)干扰, C3 、C4 对此干扰呈低阻抗,所以EMI滤波器对电磁干扰能有效抑制。
如果EMI滤波器的阻抗设计与干扰源的阻抗不匹配,则EMI滤波器还能将干扰源的干扰沿其进入的路径反射回去,这样EMI滤波器的滤波效果更佳。
200W电子镇流器说明书

200W电子镇流器说明书PowerPack 200W UHP-Driver Specification EUC 200P/00Features:For use with Philips UHP 200 1.3 mm lamps (short arc application)High power outputFlatter reduction by patented pulse operationStable light output over lamp life timePhilips Lighting Electronics and GearSpecification subject to change without Prior noticeContents1. GENERAL (3)2. QUICK REFERENCE DATE (3)3. ELECTRICAL (4)3.1. GENERAL (4)3.2 ELECTRICAL SPECIFICATION (5)3.3 ELECTRICAL CONNECTIONS (8)3.4 TIMING DIAGRAM FOR IGNITION (9)4. MECHANICAL DIMENSIONS (10)5. MECHANICAL AND ENVIRONMENTAL RELIABILITY TESTS (11)6. SYNCHRONISE OPTION (12)6.1 GENERAL (12)6.2 TIMING DIAGRAM (12)6.3. TIMING SPECIFICATION (13)7. MARKING AND PACKING (14)7.1. MARKING (14)7.2. PACKING (14)8. INSTRUCTION FOR USE (14)Appendix 1: Mechanical drawing of the connector (15)1. GENERALThe lamp driver is capable to drive a short-arc 200W Philips UHP- lamp and controls the lamp power within narrow margins. The lamp driver in combination with the lamp will guarantee a stable light output over the specified lamp lifetime. The lamp driver itself has no mains isolation so the lamp connections are not mains isolated. The lamp driver can be driven by (isolated) input signals. An (isolated) output signal (“Flag”) indicates if the lamp operates correctly.The lamp circuit has no cover.The driver features a built-in option for synchronisation of the lamp current transitions, for which the SCI input can be used as described in chapter 6Note that when this option is NOT used, care must be taken never to apply any pulsating or block-shaped signals on this input; only DC levels (low or high) are allowed!Unless otherwise stated the specified values are valid under nominal operating conditions and measured according fig 1. Thelamp has reached a nominal condition or is warm after it has been burning for at least 10 minutes. A lamp is cold after it is turned off for at least 1 hour.WARNING: Driver is only allowed to operate when lamp socket is inserted into driver socket!2. QUICK REFERENCE DATEOutput (lamp) Power200WLamp current frequency (free running)88 Hz.Lamp Ignition voltage25kV peak.Input voltage280-400V DC operating; 160-400V DC standby.EMC standards*EN 55022; DENTORI; FCC CFR 47 part 18.Safety standards*(c-)UL1492, (c-) UL1950, EN/IEC60065 (6th ed. / 7-’98) and EN/IEC60950 (3rd ed. / 4-‘99).Markings CSA, CE, ENECMax. ambient temp.55°C with forced airflow 1.5ms-1.Dimensions (l*b*h)150*60*32 mm* The lampdriver is designed to meet these standards in the application. It is not designed to meet the requirements for ‘limited current’.Manufactured in an ISO 9001 approved factoryAll values are measured with a circuit according fig 3.1This specification is valid for all the following drivers:Driver type Cable length130mm Cable length160mmCable length190mmCable length230mmCable length280mmCable length340mmEUC 200 P/009137 001 570*9137 001 571*9137 001 541*9137 001 532*9137 001 572*9137 001 565* * indicates a 2-digit brandname; default 05 (no brand).3. ELECTRICAL3.1. GENERALAll values are measured with a circuit connected as shown in fig 3.1.Fig 3.1: Driver connections to supply, control signals and lamp.3.2 ELECTRICAL SPECIFICATIONThe lampdriver is tested with a circuit according fig 3.1The values as listed below are valid for all driver types except when indicated otherwise.Description Symbol value CommentMin typ max Unit1INPUTS1Power input1.1Inputvoltage, operating Vpi280350400V DC, or DC with ripple 100 or120Hz1.2Inputvoltage, non-operating Vpi,no160-400V1.4Min. voltage for driver tostart-upVpi,su280--V Non-operating to operating.1.5Voltage dip time to restartimmediately Tlow--1Sec.(Note : Vpi during dip must be >100V)1.6Input voltage ripple Vrip--30Vpp for frequencies < 10kHz 1.7Input current IinLF rms input Current IinrmsFor frequencies < 10kHz-0.65-AHF rms input current Iinhf10kHz ≤frequencies<150kHz-300-mA1.10Input impedance for largecurrent (inrush current)Zin For currents > 10AR1-0.5-Ohm orientation valueL1-0.1-mH orientation valueC2-47-μF orientation value1.11Input power operating Pin220225235W1.12Input power in standby Pin,sta- 1.8-W@ Uin = 350V, Ta = 25°.2Control inputs (mains isolated)*/**By means of optocouplers acc. to VDE 0884.2.1Input current.*Id--20mA 2.2Forward voltage of LED Vf-1.1-V2.3Rise/fall time of inputcurrent -10-us Note; influences synchronisationdelays.2.4Time the input current mustbe applied to start operating Tsih300--ms Must also be applied beforesynchronisation signal.* Note: To provide optimum flexibility for application of control-voltages, the series resistors used at the inputs of the optocouplers are limited to 100 Ohm. The setmaker has to design the output resistance of their control signals in such a way that min. and max. values of input- (Id) and output (Ice,flag) current are not exceeded.** Note: It is allowed to operate the control input ONLY when the power input voltage is within thespecified operating range.Description Symbol Value CommentMin Typ max Unit2OUTPUTS1.1Lamp power Pla190200210W Over input voltage range, withstabilised lamp.1.2Peak voltage during ignition VoutpkBetween terminals--25kVBetween terminals andGND--14kV1.3Voltage during lampoperation After more than 3 sec in operatingBetween lamp terminals Vlamp--275VBetween lamp terminalsand neg. DC-input terminal(CB1)Voutter--275V2Control output*By means of optocouplers acc. toVDE 0884.2.1Output current*Ice,flagtransistor conducting-1-mA Lamp burning; Vce < 0.5Vtransistor open--100nA Lamp is off; Vce > 2 V2.2Output voltage Vce,flag--50V Note: power dissipation must bebelow 50 mW.2.3Time the signal must staystable for right indicationTflag0.5--SecDescription Symbol.Value CommentMin Typ max Unit3GENERAL1Description lamp start1.1Restart time Tstart-15 +-Sec.time between two startattempts1.2Hot restrike time Thot--60Sec.Time after the lamp isextinguished1.3Ignition time (HV present atlamp terminals)--3sec.For a cold and hot lamp.1.4If, as result of a voltage dip, the lamp extinguished, the lampdriver will do one start attempt as soonas the input voltage becomes Vin> 250Vdc and the SCI are still high.2Lampdriver losses Ploss-23-W3Weight Mdriver-260-gr.4Acoustical noise level-35dBa5Mean time to failure MTTFfirst 300h---FITs after 300h-3100-FITs When applied with specified airflow at 40°C.6Environment operational6.1Ambient temperature Tamb02555°C With airflow. *)6.2Airflow Qair- 1.5-m s-16.3Relative humidity Hop10-90%non condensing6.4Air pressure Pair600--HPa7Environment storage7.1Ambient temperature Tstore-25-85°C7.2Relative humidity Hst5-95%non condensing7.3Air pressure Pair290--HPaNote *) T o apply the driver in the final application, the following temperatures must be checked and should not be exceeded in worst-case application:Component Max. applicationtemp.Measuring point background Elcap C185 °C Safety vent LifetimeCoil L5110 °C Top / middle of windin gs UL-rec. of coilformer material.Igniter L790 °C Top of housing UL-rec. of coilformer material.Heatsink85° C Back side of heatsink undermiddle transistor.Thermal shutdown of driver4EMI & SAFETY ? The lampdriver is designed to meet these standards when mounted in the setSpecial care should be taken during ignition of the lamp in order to prevent the set electronics in the total application from malfunction.? The final approbation approval must be done in the application ? The driver must be fused (4AF) to meet the mentioned standards.1Radiation1.1EN 55022/CISPR22, FCC CFR 47 part 18.Radiation1.2EN 50082-1generic immunity standard2Safety standards 2.1EN/IEC 60950Information technology EU.2.2EN/IEC 60065Consumer application EU2.3(c-)UL 1492 / UL 6500Consumer application US (Canada)2.4(c-)UL 1410 / 1950Information technology US (Canada)3.3 ELECTRICAL CONNECTIONSName connectionCon-nector name Connector typepin configurationConnection to lampCBSMK high voltage connector SOCKET HOUSING101 CCT 093 01 (see appendix 1)(in application : checkproper fixing)pin 1pin 3Lamp LampPower input CB1JST: B 2P3-VH pin 1pin 3DC Input voltage GNDSCI & FlagCB2JST: SM05B-SRSS-TBpin 1pin 2pin 3pin 4pin 5Flag/TxD (coll.)Flag/TxD (emitter)Common+ (anodes)SCI/Sync (cath.)RxD (cath.)Remarks :The following connection diagram is advised for use when interfacing with the customer projector set:optocouplers (see item 1.2.1.and 1.2.2 on page 4) or receiving the signal from the optocoupler transistor output (see item 2.2.1 on page 5)Pin 5 will be used for future communication options; at this moment the connection to the customer interface can be omitted.3.4 TIMING DIAGRAM FOR IGNITIONSCI1mAFLAGYIGN. VOLT.NYLAMP BURNSNA B C D ESit. A-C : Driver behaviour without lamp (or lamp fails to ignite)Sit. A:On current transition (0 -> 10mA) on SCI-input. Driver starts one ignition cycle (1.0on -0.3off -1.7on sec). In case lamp does not burn, Flag-output stay non-conducting. No ignition attempts until nextcurrent transition (0 -> 10mA) on SCI-input. Remark: before any current transition (0 -> 10 mA) theSCI signal must be absent (0 mA) for at least 100ms.Sit. B:On current transition (0 -> 10mA) on SCI-input. Whenthis signal is given within 15 sec. of the last ignition cycle, the driver will wait 15 sec before starting a new ignition cycle, to prevent overheating of the ignitor circuit. (SCI signal (10mA) must be present for the ignition cycle to take place).Sit. C:Current transition (0 ->10mA) on SCI-input, SCI input signal has been absent for at least 15 sec.Driver starts an ignition cycle immediately.Sit. D,E : Driver behaviour with igniting/burning lampSit. D.Current transition (0 -> 10mA) on SCI-input, SCI input signal has been absent for at least 15 sec.Driver starts an ignition cycle immediately, lamp ignites (2x) and starts burning.. After approx. 1 sec.Flag output transistor starts conducting (1mA). Remark: when this signal is given within 15 sec. of the last ignition cycle, the driver will wait until 15 sec. before starting the ignition cycle, to preventoverheating of the ignitor circuit.Sit. E:When lamp burns an SCI current transition (10 -> 0 mA) transition causes the lamp to extinguish.Flag output transistor becomes non-conducting.Notes:For specification of “Flag” and “SCI” signal see items 1.2 (page 4) and 2.1 (page 5).This timing diagram is valid when DC-input voltage on CB1 stays within specified limits (280...400Vdc).?After power-dip the driver immediately stops, and must be re-ignited by applying the SCI-transition ?When during ignition the SCI-input becomes Low, the driver will finish the ignition cycle.If the lamp extinguishes due to internal protection circuitry (lower/upper limit of input- and/or lampvoltage exceeded,temperature of the driver too high) the Flag output becomes non-conducting.4. MECHANICAL DIMENSIONSAirflowDirection5. MECHANICAL AND ENVIRONMENTAL RELIABILITY TESTSType test Description Requirement1Mechanical Non-operating?The PCB must be mounted according the mountingprescription.After the tests the samples must conform to themeasured spec points.1Vibrations Number of directions 3 (XYZ)IEC60068-2-6Fc Frequency range10-55-10 HzNumber of sweeps 6 per axisAcceleration/ amplitude0.35 mmSweep 1 octave/min (Approx. 6 min per sweep) 2Shock Number of directions 6 (XYZ)IEC60068-2-27Ea Number of shocks 3 per directionPulse duration18 ms / half-sinusoidal shaped.Peak acceleration290 m/s23Drop Test Number of drops on 3 side and (inpacking) one angular point IEC60068-2-31Drop height810 mm2Environmental?The PCB must be mounted according to the mounting prescription.Nominal input voltage, during and after the tests.After the tests the samples must conform to themeasured spec points.1Operational Load 150W or 200W UHP lamp1.1Low air Air pressure 2 hours 600hPaIEC60068-2-13M Temperature5° to 35° C1.2Temp. cycling.Test time1000 hoursIEC60068-2-14 6 hours Cycle as follows:1h -10 to+60 °C Lampdriver operating1h at +60 °C Lampdriver operating1h at +60 °C Lampdriver off1h +60 to -10 °C Lampdriver off2h at -10 °C Lampdriver off1.3Damp heat cyclic Test time21 daysIEC60068-2-30Db24 hours Cycle as follows:12h at 40 C / RH 95%Lampdriver off1 h at 25 C / RH 95%Lampdriver operating11h at 25 C / RH 95%Lampdriver off 2Non-operational2.1Cold storage Temp-25 °CIEC60068-2-1Time240hRecondition time2h at 25 °C5 cycles2.2Temperature-shockIEC60068-2-14Na Cycle as follows Stabilisation 1 h at -20 °C => 1 h at 100 °C => 1h at -20°C =>...Temperature rise or fall within 30 sec to nexttemperatureTemp. change.Recondition time2h at 25 °C2.3Low air Air pressure 2 hours 250hPaIEC 68-2-13M Temperature5° to 35 °C6. SYNCHRONISE OPTION6.1 GENERALApplying a pulse signal to the SCI – input of the optocouplerwhen the lamp is burning, provides the possibility to control the lamp current transitions. The driver will synchronise the lamp current to the rising transitions of the SCI-input current (see “timing diagram”).Attention: This makes it possible that the half-period time Ta is not equal to the half period time Tb (see timing diagram).If Ta ≠ Tb the average DC current in the lamp can shorten the lamp-life dramatically.The average DC current in the lamp must be less than 1% measured over maximum 3 current periods. Lampcurrent synchronisation is optional. When no synchronisation signal is applied the driver will operate ata fixed frequency of 88Hz6.2 TIMING DIAGRAMSCI sync signalLED-6.3. TIMING SPECIFICATIONDescription Symbol Value Commentmin typ Max Unit1SCI Vinsci Start/Sync Control Input Input current Iinsciinput low--0.1mA lamp offinput high4-15mA Lamp on** Note: It is allowed to operate the SCI input ONLY when the power input voltage is within thespecified operating range.Description Symbol Value Comment2Lamp start / stop control Min Typ Max Unit1SCI control behaviour Scfrom low to high2--V/μs*from high to low2--V/μs*2Time the SCI signal must staystable to start / stopTsciinput low Tsil100--msec Lamp will extinguishinput high Tsih300--msec Lamp start cycle begins(signal must be applied beforesynchronisation)3Synchronisation signal on SCI With burning lamp. ** 1Repetition time T s 3.8-7.1msec Determines driver frequencySee Ch. 6: 4.1.2 ***2Time the signal must bepresent to let the lampdriversync.Tsync-4-TimesTsAfter ignition of the lamp***3Time SCI low T sil200--μsec4Time SCI high T sih200--μsec4Lampcurrent1Lamp current frequency1.1Free running Flc-88-Hz With DC signal on SCI.1.2Synchronised Flc70-132Hz With symmetrical input signal2DC lamp current Ta1+Ta2+Ta3Tb1+Tb2+Tb30.991 1.01Measured over 3 successivelamp current periods5Pulse signal on lampcurrent With burning lamp.1Pulse height Ip- 4.1-A at lampvoltages > 65V 2Pulse width Tp6--%Of half-period time Ta.3Rise time of the pulse Trp50-100μsec Time from nom. Ila to Ipulse.(measured at flc = 90 Hz.) 4Rise / Fall time Tf50-100μsec5Delay time SCI-signal to pulse T del-35-μsec Measured with slope:Ch. 6: 2.1 ** To comply with delay time: Chapter 6: 5.5** With DC-signal the driver will go to free running frequency: Chapter 6: 4.1.1***Depends on required lamp current frequency: Chapter 6: 4.1.27. MARKING AND PACKING7.1. MARKINGManufacturer type number, production date and serial nr. –identification.7.2. PACKING12 drivers in cardboard box.8. INSTRUCTION FOR USESafety distances-All components, except for the SELV control in-/outputs, are directly connected to primary power. This means that precautions for mounting and insulation of the driver must be taken. Note that during ignition voltages up to 1000V may occur on the PCB (with respect to “-“ terminal of power input connector CB1). -It is advised to use plastic mounting devices for fixing the driver.Conditions for use:-Supply voltage of 400 Vdc max. is floating at max. 250 Vrms with respect to earth reference.- A disconnect device has to be provided in the end-use equipment.- A suitable Electrical and Fire enclosure shall be provided in the end product. Creepage and clearance distances to high voltage parts and traces shall be evaluated in the end product. Special consideration shall be given to the distances from earthed mounting screws to hazard voltage traces on the lamp driver PWB.-These component have been evaluated for use in a 55°C ambient with a forced air cooling as follows: During the temperature test the lamp drivers were mounted in a wind tunnel with a forced air cooling witha mean air velocity of 1,5 m/s. The air flow was in the lengthdirection of the driver with the igniter coil atdownstream side-The model shall only be used with manufacturer specified lamp, Philips Type UHP 200W rated 200W, 85 V ± 15V.-During the ignition cycle the re-strike pulses are superimposed on a max. 800 Vpeak voltage between output leads and earth reference. In the end-use this value shall be taken into account when determining creepage and clearance distances.-In the end-use equipment the lamp supply leads and connector shall be routed, supported, clamped or secured in a manner that it is:* relieved from any strain on wire and connections.* prevented from loosening of wire connections and damage of conductor insulation.Warnings-Do not touch heatsink. Heatsink is connected to primary power.-Not for limited current use-SCI operation ONLY allowed when power input voltage is within specified range-Ignition/ lamp operation ONLY allowed when connector is properly connected to lamp-No safety implemented for wrong polarity of input connectorAppendix 1: Mechanical drawing of the connector.。
BERSN铂胜 高品质电子镇流器 说明书

BERSN铂胜 高品质电子镇流器使用说明书一、产品描述:1、用途本产品是与相应功率的气体放电灯(包括金卤灯和高压钠灯及低压钠灯等)配套使用电子镇流器,可以广泛应用于道路、广场、商场,车站、码头、工厂等场所。
2、本品具有如下特点:z高用电质量,省电节能。
z降低初装费用,节约运行开支。
z灯光稳定,提高照明质量。
z电压适应范围宽,适合我国国情。
z灯泡启动快,延长使用寿命。
z多项保护功能,安全可靠。
z体积小、重量轻、安装简单方便。
3、与电感镇流器相比具有如下优势:z克服了电感镇流器多消耗的20%以上的有功电能。
z克服了电感镇流器因功率因数低带来的60%以上的无功损耗(即线损)。
z克服了电感镇流器由于频闪引起的灯光不稳定给工作中眼部带来的刺激、疲劳z克服了电感镇流器产生的电磁传导干扰对电网环境的污染。
z克服了电感镇流器产生的交流嗡声对环境的污染。
z克服了有些触发器脉冲高压过高对灯泡及镇流器寿命的危害。
z克服了电感镇流器启动电流大于工作电流使灯泡寿命缩短的弊端。
z克服了灯开路,灯短路易损坏镇流器的弊病。
z克服了电感镇流器安装复杂,工作量过高的麻烦。
z克服了电感镇流器因功率因数低工作电流大。
z安装时使用线径要比使用本品大3-4倍造成的工程造价过高的负担。
电子镇流器安装使用说明书及注意事项B ERSN铂胜电子镇流器的安装与使用必须由具有相应资质的技术人员按相应标准进行操作,并请于安装前详细阅读《使用说明书》以及镇流器外壳上的安装示例。
对于本司所有产品在客户进行私自拆启之后本公司所有保修、保换自动失效,对此种情况下的任何机器故障及其引起的损失本公司概不负责。
一、请依照产品参数表确认本镇流器输入电源电压范围,请注意交流或直流产品的使用区别。
二、安装示意图请注意一定按下图接线方式进行安装,并确保各点的可靠连接。
以出线朝下竖直安装为宜,并请依照产品参数表确认镇流器输入电源范围。
□ 交流供电系列电子镇流器接线不分极性,输入端两根线接电源,输出端两根线接灯管,并将地线可靠接地,可使用0.5~0.75平方毫米塑料绞线(应同时满足安装规范要求)□ 直流供电系列电子镇流器接线请注意正负极性,输入端红线接正极,黑线接负极(如有接反请即更换保险丝),输出端两根接灯管,并将地线可靠接地。
- 1、下载文档前请自行甄别文档内容的完整性,平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益,请联系客服反馈,我们会尽快为您处理(人工客服工作时间:9:00-18:30)。
BERSN铂胜 高品质电子镇流器使用说明书
一、产品描述:
1、用途
本产品是与相应功率的气体放电灯(包括金卤灯和高压钠灯及低压钠灯等)配套使用电子镇流器,可以广泛应用于道路、广场、商场,车站、码头、工厂等场所。
2、本品具有如下特点:
z高用电质量,省电节能。
z降低初装费用,节约运行开支。
z灯光稳定,提高照明质量。
z电压适应范围宽,适合我国国情。
z灯泡启动快,延长使用寿命。
z多项保护功能,安全可靠。
z体积小、重量轻、安装简单方便。
3、与电感镇流器相比具有如下优势:
z克服了电感镇流器多消耗的20%以上的有功电能。
z克服了电感镇流器因功率因数低带来的60%以上的无功损耗(即线损)。
z克服了电感镇流器由于频闪引起的灯光不稳定给工作中眼部带来的刺激、疲劳
z克服了电感镇流器产生的电磁传导干扰对电网环境的污染。
z克服了电感镇流器产生的交流嗡声对环境的污染。
z克服了有些触发器脉冲高压过高对灯泡及镇流器寿命的危害。
z克服了电感镇流器启动电流大于工作电流使灯泡寿命缩短的弊端。
z克服了灯开路,灯短路易损坏镇流器的弊病。
z克服了电感镇流器安装复杂,工作量过高的麻烦。
z克服了电感镇流器因功率因数低工作电流大。
z安装时使用线径要比使用本品大3-4倍造成的工程造价过高的负担。
电子镇流器安装使用说明书及注意事项
B ERSN铂胜电子镇流器的安装与使用必须由具有相应资质的技术人员按相应标准进行
操作,并请于安装前详细阅读《使用说明书》以及镇流器外壳上的安装示例。
对于本司所有产品在客户进行私自拆启之后本公司所有保修、保换自动失效,对此种情况下的任何机器故障及其引起的损失本公司概不负责。
一、请依照产品参数表确认本镇流器输入电源电压范围,请注意交流或直流产品的使用区别。
二、安装示意图
请注意一定按下图接线方式进行安装,并确保各点的可靠连接。
以出线朝下竖直安装为宜,并请依照产品参数表确认镇流器输入电源范围。
□ 交流供电系列电子镇流器接线
不分极性,输入端两根线接电源,输出端两根线接灯管,并将地线可靠接地,可使用0.5~0.75平方毫米塑料绞线(应同时满足安装规范要求)
□ 直流供电系列电子镇流器接线
请注意正负极性,输入端红线接正极,黑线接负极(如有接反请即更换保险丝),输出端两根接灯管,并将地线可靠接地。
三、安装注意事项:
1、镇流器自身有触发功能,不能再配接触发器或使用内部有触发器的灯泡。
本镇流器工作
频率为高频,所以在输入、输出端不可接任何测试设备,否则将会永久烧毁测试设备及镇流器。
即镇流器的输出端只能连接光源,不能在输出端加任何测试仪器或设备(如开关或任何其它器件)。
输入线宜串入约为额定电流3-5倍的保险或自动开关。
输出线间及对地之间,启动时有上千伏电压,应保持良好的绝缘。
同时在安装维护时务必请切断电源.
2、镇流器到灯之间的连接请使用耐压>600V且符合安规要求的电源线,长度勿超过5m,引线
长度大于3m时,请不要使用并绕的电源线(并绕线电容过大可能影响灯泡的正常燃点)。
3、为保证光源达到最佳工作状态,使用的灯泡类型和功率,应与镇流器相匹配.
4、额定电压为110V60Hz的镇流器工作电压范围为:90V~130V;额定电压为220V50Hz的镇流
器工作电压范围为:170V~260V;直流12V产品工作电压范围为:10V~14V;直流24V产品工作电压范围为:20V~24V.请勿尝试在超过工作电压范围的情况下使用镇流器.
5、铂胜电子镇流器的外壳,具有散热功能,周围应留有适当的散热空间,外壳最高允许温
度80℃,储存温度-40- 90℃。
镇流器使用环境温度为:-25~50℃,在超出此温度范围内使用镇流器可能出现意想不到的结果,如灯泡不能正常启动、镇流器寿命缩短等.
6、因配套高压钠灯或金卤灯等气体放电灯特性所致,点燃的灯泡在关闭或熄灭后,必须等
灯泡足够冷却,才能再次点亮,视不同规格的灯泡,钠灯可能需等待1~2分钟,金卤灯可能需等待5~15分钟,镇流器将自动完成此过程的控制,无需人工干预;
四、电子镇流器出现的可能故障及解决方法
1.请一定注意按所示故障处理方法进行严格检查及操作以避免不必要的损失。
2.请注意无论在何种情况下均不要使用任何仪器仪表对镇流器的输出端进行测量。
3.请按照所示步骤进行以逐一排除故障。
对于任一步骤所存在的问题请及时更正改良。
4.请注意在以下任何步骤中如需要重新通电启动电镇时均要考虑到是否有3-5分种的时间
间隔以确保光源的冷却及电镇的重启。
5.请注意如经下述步骤认定镇流器有损坏,不能自行打开,应到供应商处更换或由供应商
返厂保修。
否则将失去保修资格。
可能故障及解决方法示意图:
故 障 解决方法
1、断开所有连接,如镇流器有保险丝,请检查保险丝。
2、更换同功率灯管进行测试。
如新灯管亮则表明灯管有问题,需要更
换灯管;
3、断开所有连接。
检查整个输入线路是否有接触不良及是否有额定的电压输入,电压范围是否正常;
4、检查镇流器输出端是否与灯座或灯头接触不良,检查灯头或灯座有无短路或接触不良(对镇流器输出端绝不可以加任何仪器仪表进行测试);
4、上述步骤完成后如问题仍未解决,请将所有电路连接好,通电,并
保持通电3-5分钟,看镇流器能否重新启动及是否启用了自动保护功能;
安装完毕后灯泡不能点亮或点亮后马上熄灭或灯光闪烁 5、用一只正常工作中的镇流器来更换被认为有问题的镇流器。
如
灯亮则表明原电子镇流器损坏。
如灯仍不亮请重复以上步骤进行检查;
注意 注意在以上过程中任何一次通电连接后均应间隔3-5分钟后才能再次通电,或通电后保持3-5分钟以让电子镇流器自动重启
1、检测环境温度,如环境温度过高,镇流器将处于超温自我保护状态;(镇流器安装环境温度超过70℃时可能发生)
2、更换灯泡,看是否可正常工作;
灯泡在长时间工作后熄灭 3、用一只正常工作的镇流器来代替并观察问题是否发生。
如问题未解
决请重复上述步骤。
如新电镇工作正常可判断为原电镇损坏
直流系列产品请特别注意:
当认为直流电子镇流器出现故障时请按上述示意图进行操作以排除故障。
同时请尝试以下方式:
a) 检查蓄电池输出电压是否稳定,电池电量是否充足。
b) 检查控制器输出电压是稳定,是否符合电子镇流器的工作电压要求。
c) 必要时可用蓄电池直接连接电子镇流器及灯管以排除其它器件出问题的可能性。
d) 应用低压钠灯光源时要注意其灯座(灯头)的可靠性。
何疑问请及时与铂胜公司技术部门进行沟通。
电话:0086-755-29890606
电邮:bersn@
网址:
深圳市铂胜光电有限公司。
