Cisco Nexus 3048 交换机
产品手册Cisco Nexus 3048 交换机产品概述Cisco Nexus® 3048 交换机（图 1）是一个线速千兆以太网架顶式 (ToR) 交换机，属于 Cisco Nexus 3000 系列交换机产品组合。
Cisco Nexus 3048，具有紧凑单机架单元 (1RU) 封装以及集成的第 2 层和第 3 层交换功能，是现有Cisco Nexus 系列交换机的补充。
此交换机运行业内领先的 Cisco® NXOS 软件操作系统，可为客户提供在全球成千上万数据中心广泛部署的强劲特性和功能。
Cisco Nexus 3048 是需要将千兆以太网 ToR 交换机通过本地交换透明地连接到上游 Cisco Nexus 交换机以在在其数据中心提供端到端 Cisco Nexus 交换矩阵的大数据客户的理想之选。
此交换机支持具有交流和直流电源输入的前向和后向气流方案。
图 1. Cisco Nexus 3048 交换机主要优点Cisco Nexus 3048 的主要优势如下：●线速第 2 层和第 3 层交换◦在一个紧凑的 1RU 封装交换机中，提供高达每秒 176 千兆 (Gbps) 和 132 mpps 的第 2 层和第 3 层交换●为端到端 Cisco Nexus 交换矩阵专门设计的强劲思科 NX-OS 操作系统◦与 Cisco Nexus 系列交换机透明集成以提供一致的端到端 Cisco Nexus 交换矩阵◦为实现恢复能力构建的模块化操作系统◦与 Cisco Data Center Network Manager (DCNM) 和 XML 管理工具集成●全面的功能集和针对下一代数据中心的创新◦Virtual PortChannel (vPC) 通过消除生成树协议提供第 2 层多路径，并支持充分利用对分带宽和简化第 2 层逻辑拓扑，而无需更改现有管理和部署模式。
◦加电自动调配 (POAP) 实现交换机的无触摸启动和配置，显著降低了调配时间。
Cisco Nexus 9200 平台交换机
产品手册Cisco Nexus 9200 平台交换机产品概述Cisco Nexus® 9200 平台是 Cisco Nexus 9000 系列交换机的最新成员。
Cisco Nexus 9200 平台由行业领先的超高密度固定配置数据中心交换机组成，具有线速第 2 层和第 3 层功能，可为企业应用、运营商托管和云计算环境提供支持。
此系列交换机外型紧凑，支持多种端口速度，可实现 1/10/25/40/50/100 Gbps 连接的灵活组合。
Nexus 9200 交换机采用广泛部署且行业领先的 Cisco® NX-OS 软件操作系统。
此交换机专为可编程的交换矩阵而设计，可为运营商和 IaaS/云提供商带来灵活性、移动性和可扩展性方面的优势，也能够为希望利用 DevOps 运营模式和工具集的客户提供具有自动化配置和管理功能的可编程网络。
型号表 1 汇总了 Cisco Nexus 9200 平台交换机的型号。
表 1.Cisco Nexus 9200 平台交换机*有关支持和端口配置的详细信息，请参阅表 2。
Cisco Nexus 92160YC-X 交换机（图 1）是一款单机架单元 (1RU) 交换机，带宽可达到 3.2 Tbps，吞吐量超过2.5 bpps。
92160YC-X 的 48 端口下行链路端口可配置为 1/10/25 Gbps 端口，从而为您提供部署灵活性和投资保护。
上行链路可以支持最多 4 个 100 Gbps 或最多 6 个 40 Gbps 端口，或 10、25、40 和 100 Gbps 的连接组合，从而为您提供灵活的迁移选项。
Cisco Nexus 92160YC-X 交换机让用户可以更好地了解其网络流量和遥感勘测数据。
有关所有支持的功能，请参阅此处提供的最新软件版本说明。
这个新功能不仅能帮助管理员改善网络操作，而且提供了丰富的数据资源来帮助改善网络基础设施，从而有效提高投资回报 (ROI)。
Cisco Nexus 9300 ACI 固定拓扑 spine 交换机产品简介说明书
Data SheetCisco Nexus 9300 ACI Fixed Spine SwitchesProduct OverviewIndustry shifts are redefining IT at all levels. On-premise IT consumption models are shifting to cloud-based services. IT as a Service (IaaS) is supplanted by applications as a service. Separate development and operations are moving toward integrated Development and Operations (DevOps). Device-centric management models are migrating to application-centric management.Business agility requires application agility, so IT teams need to provision applications in hours instead of months. Resources need to scale up (or down) in minutes, not hours. Traditional approaches take a siloed operational view, with no common operational model for the application, network, security, and cloud teams. A common operational model delivers application agility, simplified operations, assured performance, and scale.The Solution: An Application-Centric Approach to Managing Your InfrastructureCisco® Application Centric Infrastructure (ACI) is a holistic architecture with centralized automation and policy-based application profiles. The Cisco ACI fabric is designed from the foundation to support emerging industry demands while maintaining a migration path for architecture already in place. The fabric is designed to support the industry move to management automation, programmatic policy, and dynamic “workload-anywhere” models. The Cisco ACI fabric accomplishes this with a combination of hardware, policy-based control systems, and software closely coupled to provide advantages not possible in other models.The fabric consists of three major components: the Cisco Application Policy Infrastructure Controller (APIC), spine switches, and leaf switches. These three components handle both the application of network policy and the delivery of packets. Organizations can use the ACI-ready Cisco Nexus® 9000 Series Switches as spine or leaf switches to take full advantage of an automated, policy-based, systems management approach. The Cisco Nexus 9300 Series Switches include both spine and leaf switches. For detailed information, please refer here.Switch ModelsThe Cisco Nexus 9336PQ ACI Spine Switch is a 2-Rack-Unit (2RU) spine switch for Cisco ACI that supports2.88 Tbps of bandwidth and 2.3 billion packets per second (bpps) across 36 fixed 40 QSFP+ ports (Figure 1). Cisco Nexus 9300 platform leaf switches are Layer 2 and 3 nonblocking 10 and 40 Gigabit Ethernet switches with up to 2.56 Terabits per second (Tbps) of internal bandwidth.Figure 1.Cisco Nexus 9336PQ SwitchThe Cisco Nexus 9364C ACI Spine Switch is a 2-Rack-Unit (2RU) spine switch for Cisco ACI that supports 12.84 Tbps of bandwidth and 4.3 bpps across 64 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports(Figure 2). Breakout is not supported on ports 1 to 64. The last 16 ports marked in green support wire-rate MACsec encryption 1.Figure 2.Cisco Nexus 9364C SwitchThe Cisco Nexus 9332C is the smallest form-factor 1-Rack-Unit (1RU) spine switch for Cisco ACI that supports 6.4 Tbps of bandwidth and 2.3 bpps across 32 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports(Figure 3). Breakout is not supported on ports 1 to 32. The last 8 ports marked in green support wire-rate MACsec encryption 2.Figure 3.Cisco Nexus 9332C SwitchSpecificationsTable 1 lists the specifications for the Cisco Nexus 9336PQ switch. (Please check Cisco ACI software release notes for feature support information.)Table 1.Cisco Nexus 9300 ACI Spine Switch Specifications1Software is expected in a future release. Please check the latest software update here . 2Software is expected in a future release. Please check the latest software update .●USB: 2 ports●RS-232 serial console ports: 1●Management ports: 1 x10/100/1000BASE-TPower and Cooling ●Power: 1200W AC, 930W DCor 1200W HVAC/HVDC●Input voltage: 100 to 240V*AC or -40V to -72V DC(min-max), -48V to -60V DC(nominal)*Supports input voltage of100-120V for a max output of800W; 200-240V for a maxoutput of 1200W●Frequency: 50 to 60 Hz (AC)●Efficiency: 90% or greater(20 to 100% load)●RoHS compliance: Yes●Hot swappable: Yes●Port-side intake or port-sideexhale options●Typical power: 400W (AC)●Maximum power: 660W (AC)●Power: 1200W AC, 930W DC3 or 1200WHVAC/HVDC●Input voltage: 100 to 240V* AC or -40V to-72V DC (min-max), -48V to -60V DC(nominal)*Supports input voltage of 100-120V for amax output of 800W; 200-240V for a maxoutput of 1200W; PSU redundancy is notsupported when used in 100-120V●Frequency: 50 to 60 Hz (AC)●Efficiency: 90% or greater (20 to 100%load)●RoHS compliance: Yes●Hot swappable: Yes●Port-side intake or port-side exhaleoptions●Typical power: 429W (AC)●Maximum power: 1245W (AC)●Power: 1100W AC, 1100 DC or 1100WHVAC/HVDC●Input voltage: 100 to 240V* AC or -40V to -72V DC (min-max), -48V to -60V DC(nominal)*Supports input voltage of 100-120V for amax output of 800W; 200-240V for a maxoutput of 1200W●Frequency: 50 to 60 Hz (AC)●Efficiency: 90% or greater(20 to 100% load)●RoHS compliance: Yes●Hot swappable: Yes●Port-side intake or port-side exhale options●Typical power: 296W (AC)●Maximum power: 700W (AC)Environme ntal ●Physical (H x W x D): 3.5 x17.5 x 22.5 in. (8.9 x 44.5 x57.1 cm)●Weight: 34.4 lb●Operating temperature: 32 to104°F (0 to 40°C)●Nonoperating (storage)temperature: -40 to 158°F (-40to 70°C)●Humidity: 5 to 95%(noncondensing)●Altitude: 0 to 13,123 ft (0 to4000m)●Physical (H x W x D): 3.38 x 17.37 x22.27 in. (8.59 x 44.13 x 56.58 cm)●Weight: 36.9lb (16.74kg) with powersupplies and fans, 27.4 lb (12.43kg)without power supplies and fans●Operating temperature: 32 to 104°F (0 to40°C)●Nonoperating (storage) temperature: -40to 158°F(-40 to 70°C)●Humidity: 5 to 85% (noncondensing)●Altitude: 0 to 13,123 ft (0 to 4000m)●Physical (H x W x D): 1.7 x 17.3 x 22.9 in.(4.4 x 43.9 x 58.1 cm)●Weight: 25.1lb (11.4kg) with powersupplies and fans, 19 lb (8.6kg) withoutpower supplies and fans●Operating temperature: 32 to 104°F (0 to40°C)●Nonoperating (storage) temperature: -40 to158°F (-40 to 70°C)●Humidity: 5 to 85% (noncondensing)●Altitude: 0 to 13,123 ft (0 to 4000m)Acoustics ●Fan speed at 40%: 64.4 dBA●Fan speed at 70%: 79.6 dBA●Fan speed at 100%: 89.8 dBA ●Fan speed at 40%: 76.7 dBA●Fan speed at 70%: 88.7 dBA●Fan speed at 100%: 97.4 dBA●Fan speed at 50%: 76.4 dBA●Fan speed at 70%: 83.3 dBA●Fan speed at 100%: 92.1 dBAMTBF ●242,000 hours ●257,860 hours ●363,500 hours3 930W-DC PSU is supported in redundancy mode if 3.5W QSFP+ modules or Passive QSFP cables are used & the system is used in 40C ambient temp or less; for other optics or higher ambient temps, 930W-DC is suppor ted with 2 PSU’s innon-redundancy mode only.Cisco Nexus 9300 ACI Spine Switch Deployment ScenariosThe Nexus 9300 ACI spine switch along with Nexus 9300 leaf nodes enable an automated and policy driven ACI architecture. The Cisco Nexus 9300 ACI spine switch offers advanced scalability in the smallest spine switch form factor, and enables connectivity to up-to 64 Cisco Nexus 9300 leaf switches with its high port density of 64 40/100 GbE ports and 12.84 Tbps throughput. The degree of redundancy in leaf-and-spine architectures delivers increased availability with a high level of flexibility in workload placement (Figure 3).Figure 4. Cisco Nexus 9300 Platform in a Leaf-and-Spine ArchitectureSoftware RequirementsFor the latest software release information and recommendations, please refer to the product bulletin athttps:///go/aci and Cisco Feature Navigator.Regulatory Standards ComplianceTable 2 summarizes regulatory standards compliance for the Cisco Nexus 9300 Spine switch.Table 2. Regulatory Standards Compliance: Safety and EMCSupported Optics PluggableFor details on the optical modules available and the minimum software release required for each supported optical module, visithttps:///en/US/products/hw/modules/ps5455/products_device_support_tables_list.html. Ordering InformationTable 3 presents ordering information for the Cisco Nexus 9300 ACI Spine Switch.Table 3. Ordering InformationWarrantyThe Cisco Nexus 9300 switch has a 1-year limited hardware warranty. The warranty includes hardware replacement with a 10-day turnaround from receipt of a Return Materials Authorization (RMA).Service and SupportCisco offers a wide range of services to help accelerate your success in deploying and optimizing the Cisco Nexus 9300 switch in your data center. The innovative Cisco Services offerings are delivered through a unique combination of people, processes, tools, and partners and are focused on helping you increase operation efficiency and improve your data center network. Cisco Advanced Services uses an architecture-led approach to help you align your data center infrastructure with your business goals and achieve long-term value. Cisco SMARTnet®Service helps you resolve mission-critical problems with direct access at any time to Cisco network experts and award-winning resources.Cisco CapitalFlexible payment solutions to help you achieve your objectives.Cisco Capital makes it easier to get the right technology to achieve your objectives, enable business transformation and help you stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware, software, services and complementary third-party equipment in easy, predictable payments. Learn more.For More InformationFor more information on the Cisco Nexus 9000 Series and for latest software release information and recommendations, please visit https:///go/nexus9000.。
思科 Nexus 9800 系列交换机产品手册说明书
思科 Nexus 9800 系列交换机产品手册 思科公共Contents产品概述 (3)突出特点 (5)许可 (6)产品可持续性 (6)产品规格 (6)订购信息 (7)思科融资租赁 (8)思科 Nexus ® 9800 系列交换机在机箱中提供高密度 400G 解决方案，专为未来向高密度800G 和更高速度的过渡而设计。
产品概述思科 Nexus 9800 系列模块化交换机通过支持极高端口密度的 400 千兆以太网线卡的新机箱扩展了思科 Nexus 9000 系列产品组合。
数据中心不断发展，以支持下一代应用，例如推动数据中心内流量大幅增长的机器学习。
为了支持这种增长，数据中心运营商需要紧凑、高容量、高速且高效的交换机。
通过结合使用各种第一代线卡和交换矩阵模块，思科 Nexus 9800 系列机箱架构可以从 57 Tbps 扩展到 115 Tbps。
机箱中的每个线卡插槽均可支持提供 400GE 或 100GE 或 10/25/50GE 端口的线卡。
思科 Nexus 9800 系列机箱的设计是对上一代模块化机箱设计的重大改进，具有更好的配电和连接器、风扇和散热设计，使机箱将来能够扩展到更高的以太网速度线卡和交换矩阵模块。
这些设计原则允许使用下一代线卡和交换矩阵模块将总系统容量增加一倍，以与当前一代线卡相同的每个插槽的端口密度支持更高速度的端口（例如 800G）。
思科 Nexus 9800 系列交换机线卡和交换矩阵模块采用节能、高性能和高容量 ASIC 构建，支持动态流负载均衡、完全共享的片上数据包缓冲区以及小数据包的线速性能。
ASIC 提供这些功能，而不会影响功能和电源效率，并使思科Nexus 9800 系列交换机能够进行优化，以支持各种规模和规模的数据中心的高带宽应用。
此外，机箱架构支持双管理引擎控制平面冗余、最多八个交换矩阵模块的数据平面冗余、四个风扇托架的风扇托架冗余以及最多 12 个高效电源的电源冗余。
Cisco Nexus数据中心方案竞争分析
--内部培训
云计算业务部
思科Nexus数据中心交换机产品线简介
思科Nexus产品来自于2008年对Nuova Systems公司的收购，软件平台是NX-OS，独立 于Cisco原IOS平台，目前Nexuw产品线分为以下几个产品序列：
Nexus 7000 Series Switches 包含N7009、N7010和N7018三款产品，定位于数据中心核心，每槽位带宽550G，交换容量可扩展至17Tbps。 目前单槽位最高支持48个万兆接口，40/100G接口Ready。 N7K的板卡分为M和F两大系列，其中M系列定位为富特性板卡，F系列定位为高性能板卡。
（32端口万兆）
（48端口万兆）
单槽位包转发率
120Mpps（8口线速）480Mpps（32口线速）720Mpps（48口线速）
VLANs
16K
4K
4K
MAC表项
128K
16K
16K/chip
路由功能/IPv4
128K
No
32K
IPv6
64K
NO
16K
10G端口缓存（入/出方向） 96MB/80MB
10
总结：Cisco方案1劣势
N7K F2板卡是小Buffer板卡，整板只有 72MB共享缓存(H3C S12500是每个万兆端口 256MB缓存)，此板卡Cisco定位是数据中心 汇聚，不适合数据中心核心，如右图所示：
在同一个N7K机框内，F2和M/F1板卡不 能混插。若要混插，需使用VDC技术将 N7K虚拟化为多个逻辑设备，F2与M/F1处 于不同的VDC内，采用外接网线的方式进行 互通。这将增加网络配置管理的复杂度，跨 板转发带宽低。
Cisco Nexus 3048 交换机产品概述说明书

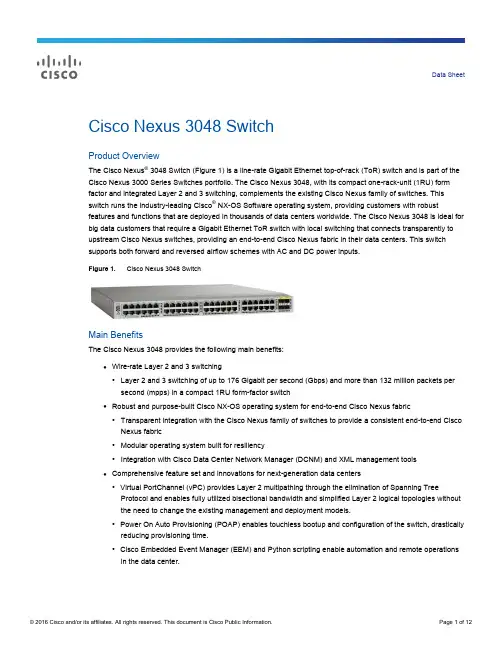

Data SheetCisco Nexus 3048 SwitchProduct OverviewThe Cisco Nexus® 3048 Switch (Figure 1) is a line-rate Gigabit Ethernet top-of-rack (ToR) switch and is part of the Cisco Nexus 3000 Series Switches portfolio. The Cisco Nexus 3048, with its compact one-rack-unit (1RU) form factor and integrated Layer 2 and 3 switching, complements the existing Cisco Nexus family of switches. This switch runs the industry-leading Cisco® NX-OS Software operating system, providing customers with robust features and functions that are deployed in thousands of data centers worldwide. The Cisco Nexus 3048 is ideal for big data customers that require a Gigabit Ethernet ToR switch with local switching that connects transparently to upstream Cisco Nexus switches, providing an end-to-end Cisco Nexus fabric in their data centers. This switch supports both forward and reversed airflow schemes with AC and DC power inputs.Figure 1. Cisco Nexus 3048 SwitchMain BenefitsThe Cisco Nexus 3048 provides the following main benefits:●Wire-rate Layer 2 and 3 switching◦Layer 2 and 3 switching of up to 176 Gigabit per second (Gbps) and more than 132 million packets per second (mpps) in a compact 1RU form-factor switch●Robust and purpose-built Cisco NX-OS operating system for end-to-end Cisco Nexus fabric◦Transparent integration with the Cisco Nexus family of switches to provide a consistent end-to-end Cisco Nexus fabric◦Modular operating system built for resiliency◦Integration with Cisco Data Center Network Manager (DCNM) and XML management tools●Comprehensive feature set and innovations for next-generation data centers◦Virtual PortChannel (vPC) provides Layer 2 multipathing through the elimination of Spanning Tree Protocol and enables fully utilized bisectional bandwidth and simplified Layer 2 logical topologies without the need to change the existing management and deployment models.◦Power On Auto Provisioning (POAP) enables touchless bootup and configuration of the switch, drastically reducing provisioning time.◦Cisco Embedded Event Manager (EEM) and Python scripting enable automation and remote operations in the data center.◦Advanced buffer monitoring reports real-time buffer utilization per port and per queue, which allows organizations to monitor traffic bursts and application traffic patterns.◦The 64-way equal-cost multipath (ECMP) routing enables Layer 3 fat tree designs and allows organizations to prevent network bottlenecks, increase resiliency, and add capacity with little networkdisruption.◦EtherAnalyzer is a built-in packet analyzer for monitoring and troubleshooting control-plane traffic and is based on the popular Wireshark open source network protocol analyzer.◦Precision Time Protocol (PTP; IEEE 1588) provides accurate clock synchronization and improved data correlation with network captures and system events.◦Full Layer 3 unicast and multicast routing protocol suites are supported, including Border Gateway Protocol (BGP), Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol(EIGRP), Routing Information Protocol Version 2 (RIPv2), Protocol Independent Multicast sparse mode (PIM-SM), Source-Specific Multicast (SSM), and Multicast Source Discovery Protocol (MSDP).●Network traffic monitoring with Cisco Nexus Data Broker◦Build simple, scalable and cost-effective network tap or Cisco Switched Port Analyzer (SPAN) aggregation for network traffic monitoring and analysis.Configuration●48 fixed 10/100/1000-Mbps Ethernet ports● 4 fixed Enhanced Small Form-Factor Pluggable (SFP+) ports●Locator LED●Dual redundant power supplies●Fan tray with redundant fans●Two 10/100/1000-Mbps management ports*●One RS-232 serial console port●One USB port●Locator LED and buttonSupport for both forward (port-side exhaust) and reversed (port-side intake) airflow schemes is available.Transceiver and Cabling OptionsFor uplink connectivity, the Cisco Nexus 3048 supports SFP+ direct-attach 10 Gigabit Ethernet copper, an innovative solution that integrates transceivers with Twinax cables into an energy-efficient and low-cost solution. For longer cable runs, multimode and single-mode optical SFP+ transceivers are supported. Table 1 lists the supported 10 Gigabit Ethernet transceiver options.Table 1. Cisco Nexus 3048 10 Gigabit Transceiver Support Matrix1* Only one Management port is enabled and active with no plan to enable both.For more information about the transceiver types, see/en/US/products/hw/modules/ps5455/prod_module_series_home.html.Cisco NX-OS Software OverviewCisco NX-OS is a data center-class operating system built with modularity, resiliency, and serviceability at its foundation. Cisco NX-OS helps ensure continuous availability and sets the standard for mission-critical data center environments. The self-healing and highly modular design of Cisco NX-OS makes zero-impact operations a reality and enables exceptional operation flexibility.Focused on the requirements of the data center, Cisco NX-OS provides a robust and comprehensive feature set that meets the networking requirements of present and future data centers. With an XML interface and a command-line interface (CLI) like that of Cisco IOS® Software, Cisco NX-OS provides state-of-the-art implementations of relevant networking standards as well as a variety of true data center-class Cisco innovations.Cisco NX-OS Software BenefitsTable 2 summarizes the benefits that Cisco NX-OS offers.Table 2. Benefits of Cisco NX-OS SoftwareCisco NX-OS Software Packages for Cisco Nexus 3048The Cisco NX-OS Software package for the Cisco Nexus 3048 offers flexibility and a comprehensive feature set along with consistency with Cisco Nexus access switches. The default system software has a comprehensive Layer 2 feature set with extensive security and management features. To enable Layer 3 IP unicast and multicast routing functions, additional licenses need to be installed. Table 3 lists the software licensing details.Table 3. Cisco NX-OS Software Package in the Cisco Nexus 3048* The Base license (N3K-C3048-BAS1K9) is required to take advantage of LAN Enterprise license (N3K-C3048-LAN1K9) features. Table 5 later in this document provides a complete feature list.Cisco Data Center Network ManagerThe Cisco Nexus 3048 is supported in Cisco DCNM. Cisco DCNM is designed for hardware platforms enabled for Cisco NX-OS, which consist of the Cisco Nexus Family of products. Cisco DCNM is a Cisco management solution that increases overall data center infrastructure uptime and reliability, hence improving business continuity. Focused on the management requirements of the data center network, Cisco DCNM provides a robust framework and comprehensive feature set that meets the routing, switching, and storage administration needs of present and future data centers. In particular, Cisco DCNM automates the provisioning process, proactively monitors the LAN by detecting performance degradation, secures the network, and streamlines the diagnosis of dysfunctional network elements.Cisco Nexus Data BrokerThe Cisco Nexus 3048 Switch with Cisco Nexus Data Broker can be used to build a scalable and cost-effective traffic monitoring infrastructure using network taps and SPAN. This approach replaces the traditional purpose-built matrix switches with one or more OpenFlow-enabled Cisco Nexus switches. You can interconnect these switches to build a scalable tap or SPAN aggregation infrastructure. You also can combine tap and SPAN sources to bring the copy of the production traffic to this tap or SPAN aggregation infrastructure. In addition, you can distribute these sources and traffic monitoring and analysis tools across multiple Cisco Nexus switches. For more details, visit /go/nexusdatabroker.Product SpecificationsTable 4 lists the specifications for the Cisco Nexus 3048, Table 5 lists software features, and Table 6 lists management standards and support.Table 4. Specifications* Please refer to Cisco Nexus 3000 Series Verified Scalability Guide for scalability numbers validated for specific software releases: /en/US/products/ps11541/products_installation_and_configuration_guides_list.html.Table 5. Software Features●HSRP and VRRP●ACL: Routed ACL with Layer 3 and 4 options to match ingress and egress ACLs●VRF: VRF-lite (IP VPN), VRF-aware unicast (BGP, OSPF, and RIP), and VRF-aware multicast●uRPF with ACL; strict and loose modes●Jumbo frame support (up to 9216 bytes)Multicast Multicast: PIM-SM Version 2 and SSMBootstrap router (BSR), Automatic Rendezvous Point (Auto-RP), and Static RPMSDP and Anycast-RPInternet Group Management Protocol (IGMP) Versions 2, and 3Quality of service (QoS) Layer 2 IEEE 802.1p (class of service [CoS])8 hardware queues per portPer-port QoS configurationCoS trustPort-based CoS assignmentModular QoS CLI (MQC) complianceACL-based QoS classification (Layers 2, 3, and 4)MQC CoS markingDifferentiated services code point (DSCP) markingWeighted Random Early Detection (WRED)CoS-based egress queuingEgress strict-priority queuingEgress port-based scheduling: Weighted Round-Robin (WRR)Explicit Congestion Notification (ECN)Security ●Ingress ACLs (standard and extended) on Ethernet●Standard and extended Layer 3 to 4 ACLs: IPv4, Internet Control Message Protocol (ICMP), TCP, UserDatagram Protocol (UDP), etc.●VLAN-based ACLs (VACLs)●Port-based ACLs (PACLs)●Named ACLs●ACLs on virtual terminals (vtys)●DHCP snooping with Option 82●Port number in DHCP Option 82●DHCP relay●Dynamic Address Resolution Protocol (ARP) inspection●CoPPCisco Nexus Data Broker ●Topology support for tap and SPAN aggregation●Support for QinQ to tag input source tap and SPAN ports●Traffic load balancing to multiple monitoring tools●Traffic filtering based on Layer 1 through Layer 4 header information●Traffic replication and forwarding to multiple monitoring tools●Robust RBAC●Northbound Representational State Transfer (REST) API for all programmability support Management ●Switch management using 10/100/1000-Mbps management or console ports●CLI-based console to provide detailed out-of-band management●In-band switch management●Locator and beacon LEDs●Port-based locator and beacon LEDs●Configuration rollback●SSHv2●Telnet●AAA●AAA with RBAC●RADIUS●TACACS+●SyslogTable 6. Management and Standards Support Description SpecificationMIB support Generic MIBs●SNMPv2-SMI●CISCO-SMI●SNMPv2-TM●SNMPv2-TC●IANA-ADDRESS-FAMILY-NUMBERS-MIB●IANAifType-MIB●IANAiprouteprotocol-MIB●HCNUM-TC●CISCO-TC●SNMPv2-MIB●SNMP-COMMUNITY-MIB●SNMP-FRAMEWORK-MIB●SNMP-NOTIFICATION-MIB●SNMP-TARGET-MIB●SNMP-USER-BASED-SM-MIB●SNMP-VIEW-BASED-ACM-MIB●CISCO-SNMP-VACM-EXT-MIBEthernet MIBs●CISCO-VLAN-MEMBERSHIP-MIB●LLDP-MIB●IP-MULTICAST-MIBConfiguration MIBs●ENTITY-MIB●IF-MIB●CISCO-ENTITY-EXT-MIB●CISCO-ENTITY-FRU-CONTROL-MIB●CISCO-ENTITY-SENSOR-MIB●CISCO-SYSTEM-MIB●CISCO-SYSTEM-EXT-MIB Monitoring MIBs●NOTIFICATION-LOG-MIB●CISCO-SYSLOG-EXT-MIB●CISCO-PROCESS-MIB●RMON-MIB●CISCO-RMON-CONFIG-MIB●CISCO-HC-ALARM-MIBSecurity MIBs●CISCO-AAA-SERVER-MIB●CISCO-AAA-SERVER-EXT-MIB ●CISCO-COMMON-ROLES-MIB●CISCO-COMMON-MGMT-MIB●CISCO-SECURE-SHELL-MIB Miscellaneous MIBs●CISCO-LICENSE-MGR-MIB●CISCO-FEATURE-CONTROL-MIB ●CISCO-CDP-MIB●CISCO-RF-MIBLayer 3 and Routing MIBs●UDP-MIB●TCP-MIB●OSPF-MIB●BGP4-MIB●CISCO-HSRP-MIB●CISCO-IP-IF-MIB●CISCO-IF-EXTENSION-MIB●CISCO-NTP-MIB●CISCO-IMAGE-MIB●CISCO-IMAGE-UPGRADE-MIBStandards ●IEEE 802.1D: Spanning Tree Protocol●IEEE 802.1p: CoS Prioritization●IEEE 802.1Q: VLAN Tagging●IEEE 802.1s: Multiple VLAN Instances of Spanning Tree Protocol●IEEE 802.1w: Rapid Reconfiguration of Spanning Tree Protocol●IEEE 802.3z: Gigabit Ethernet●IEEE 802.3ad: Link Aggregation Control Protocol (LACP)●IEEE 802.3ae: 10 Gigabit Ethernet●IEEE 802.1ab: LLDP●IEEE 1588-2008: Precision Time Protocol (Boundary Clock)RFC BGP●RFC 1997: BGP Communities Attribute●RFC 2385: Protection of BGP Sessions with the TCP MD5 Signature Option●RFC 2439: BGP Route Flap Damping●RFC 2519: A Framework for Inter-Domain Route Aggregation●RFC 2545: Use of BGPv4 Multiprotocol Extensions●RFC 2858: Multiprotocol Extensions for BGPv4●RFC 3065: Autonomous System Confederations for BGP●RFC 3392: Capabilities Advertisement with BGPv4●RFC 4271: BGPv4●RFC 4273: BGPv4 MIB: Definitions of Managed Objects for BGPv4●RFC 4456: BGP Route Reflection●RFC 4486: Subcodes for BGP Cease Notification Message●RFC 4724: Graceful Restart Mechanism for BGP●RFC 4893: BGP Support for Four-Octet AS Number SpaceOSPF●RFC 2328: OSPF Version 2●8431RFC 3101: OSPF Not-So-Stubby-Area (NSSA) Option●RFC 3137: OSPF Stub Router Advertisement●RFC 3509: Alternative Implementations of OSPF Area Border Routers●RFC 3623: Graceful OSPF Restart●RFC 4750: OSPF Version 2 MIBRIP●RFC 1724: RIPv2 MIB Extension●RFC 2082: RIPv2 MD5 Authentication●RFC 2453: RIP Version 2●IP Services●RFC 768: User Datagram Protocol (UDP)●RFC 783: Trivial File Transfer Protocol (TFTP)●RFC 791: IP●RFC 792: Internet Control Message Protocol (ICMP)●RFC 793: TCP●RFC 826: ARP●RFC 854: Telnet●RFC 959: FTP●RFC 1027: Proxy ARP●RFC 1305: Network Time Protocol (NTP) Version 3●RFC 1519: Classless Interdomain Routing (CIDR)●RFC 1542: BootP Relay●RFC 1591: Domain Name System (DNS) ClientSoftware RequirementsCisco Nexus 3000 Series Switches are supported by Cisco NX-OS Software Release 5.0 and later. Cisco NX-OS interoperates with any networking OS, including Cisco IOS Software, that conforms to the networking standards mentioned in this data sheet.Regulatory Standards ComplianceTable 7 summarizes regulatory standards compliance for the Cisco Nexus 3000 Series.Table 7. Regulatory Standards Compliance: Safety and EMCOrdering InformationTable 8 provides ordering information for the Cisco Nexus 3048. Table 8. Ordering InformationService and SupportCisco offers a wide range of services to help accelerate your success in deploying and optimizing the Cisco Nexus 3000 Series in your data center. The innovative Cisco Services offerings are delivered through a uniquecombination of people, processes, tools, and partners and are focused on helping you increase operation efficiency and improve your data center network. Cisco Advanced Services uses an architecture-led approach to help you align your data center infrastructure with your business goals and achieve long-term value. Cisco SMARTnet ® Service helps you resolve mission-critical problems with direct access at any time to Cisco network experts and award-winning resources. With this service, you can take advantage of the Cisco Smart Call Home service capability, which offers proactive diagnostics and real-time alerts on your Cisco Nexus 3000 Series Switches. Spanning the entire network lifecycle, Cisco Services helps increase investment protection, optimize network operations, support migration operations, and strengthen your IT expertise.For More InformationFor more information, please visit /go/nexus3000. For information about Cisco Nexus Data Broker, please visit /go/nexusdatabroker .Printed in USA C78-685363-0706/16。
