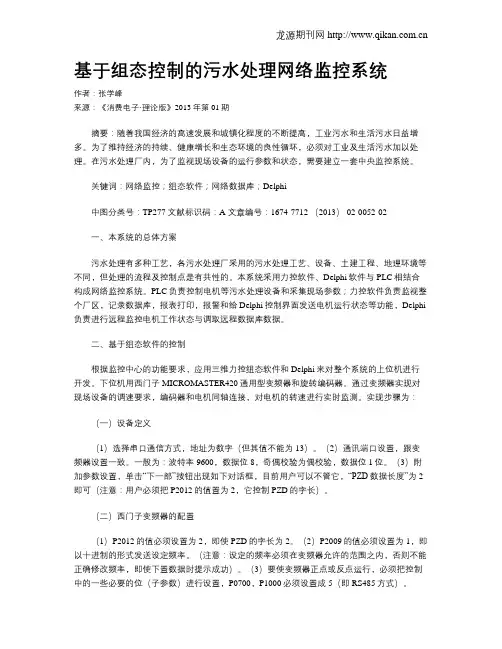

基于组态控制的污水处理网络监控系统
基于组态控制的污水处理网络监控系统作者：张学峰来源：《消费电子·理论版》2013年第01期摘要：随着我国经济的高速发展和城镇化程度的不断提高，工业污水和生活污水日益增多。
为了维持经济的持续、健康增长和生态环境的良性循环，必须对工业及生活污水加以处理。
在污水处理厂内，为了监视现场设备的运行参数和状态，需要建立一套中央监控系统。
关键词：网络监控；组态软件；网络数据库；Delphi中图分类号：TP277 文献标识码：A 文章编号：1674-7712 （2013） 02-0052-02一、本系统的总体方案污水处理有多种工艺，各污水处理厂采用的污水处理工艺、设备、土建工程、地理环境等不同，但处理的流程及控制点是有共性的。
本系统采用力控软件、Delphi软件与PLC相结合构成网络监控系统。
PLC负责控制电机等污水处理设备和采集现场参数；力控软件负责监视整个厂区，记录数据库，报表打印，报警和给Delphi控制界面发送电机运行状态等功能，Delphi 负责进行远程监控电机工作状态与调取远程数据库数据。
二、基于组态软件的控制根据监控中心的功能要求，应用三维力控组态软件和Delphi来对整个系统的上位机进行开发。
下位机用西门子MICROMASTER420通用型变频器和旋转编码器。
通过变频器实现对现场设备的调速要求，编码器和电机同轴连接，对电机的转速进行实时监测。
实现步骤为：（一）设备定义（1）选择串口通信方式，地址为数字（但其值不能为13）。
（2）通讯端口设置，跟变频器设置一致。
一般为：波特率9600，数据位8，奇偶校验为偶校验，数据位1位。
（3）附加参数设置，单击“下一部”按钮出现如下对话框，目前用户可以不管它，“PZD数据长度”为2即可（注意：用户必须把P2012的值置为2，它控制PZD的字长）。
（二）西门子变频器的配置（1）P2012的值必须设置为2，即使PZD的字长为2。
（2）P2009的值必须设置为1，即以十进制的形式发送设定频率。
基于plc的污水处理控制系统设计(论文)
