1.DR-01说明书

合集下载

闪电匣机器人· 型号:FBBDR1 用户手册说明书

闪电匣机器人· 型号:FBBDR1 用户手册说明书

型号:FBBDR1用户手册V1.0闪电匣机器人·用户手册User Manual目录中文简体EnglishPUDU ROBOTICS格和资讯仅供参考,如果内容更新,恕不另行通知。

除非有特殊规定,本说明书仅作为使用指导,所作陈述均不构成任何形式的担保。

PUDU ROBOTICS运行过程中请勿拉拽或推动机器人,如需推动或者搬运机器人请先按下急停开关让其暂停。

禁止遮挡机器人元器件或放置超过装载空间的物品,否则可能导致机器人行走不正常或定位丢失。

禁止拍打设备或用力按压敲击屏幕,否则易造成设备损坏禁止机器人超载运行,禁止承放任何可燃固、气、液体等违禁物品;不允许配送高温和汤水类物品,以免对机器和行人造成损伤。

禁止在机器开机运行状态下做维护工作。

使用前请先将环境中地面各种线材收起,避免主机运行时拖拽。

请将地面尖锐物体(如装修废料、玻璃、铁钉等)清除,以免对机器底盘造成伤害。

为保证安全建议将机器人速度调整至0.8m/s及以下,禁止在机器人前方嬉戏打闹以避免不必要的伤害,机器人有自动避障功能,但存在识别盲区,故严禁在机器人高速行驶期间突然阻挡机器人,否则可能引发安全事故。

禁止配送未封装的饮料或液体,禁止配送高温液体。

机器人最佳通行宽度应大于80cm,长通道需要宽度大于1m流畅性最佳,宽度大于2m通道可设置两台机器人对向会车行驶(具体宽度由技术人员根据实际场景评估)。

机器人设计最大爬坡角度为度不应小于最小通行宽度80cm,侧翻角度不允许超过PUDU ROBOTICS1.3电源与用电须知机器人剩余电量小于20%,请及时充电,长时间低电量运行可能会缩短电池使用寿命;若长时间不使用机器人,请及时将产品断电以保护机器电池;务必使用原厂专配的可充电电池与充电设备,严禁使用非原厂充电器对机器人充电;按照充电器铭牌标识的电源电压为机器人充电;机器人电池故障,需联系厂家更换电池,严禁非专业人士操作;请勿将机器放置于易燃易爆物体附近充电;机器人存放及充电位置请保持干燥、常温,严禁将机器以及充电器放置于高温区域(>40℃),严禁机器以及充电器进水;严禁充电器与外物碰撞,造成充电器损坏;收到机器人报警,请立即断开充电设备需要在阶梯边沿,下坡的入口等有机器人跌落风险的地方增加栅栏或者其他阻挡防护地面高度20~26cm 之间有纯黑色(如踢脚线)、镜面(如墙面)、全透明(如落地玻璃窗)的物件,可能干扰机器人雷达反射,造成机器人行走异常,可能需要对场地进行一定的改造(如粘贴贴纸)。

GRDR-1 软化阀安装、使用、维护手册说明书

GRDR-1 软化阀安装、使用、维护手册说明书

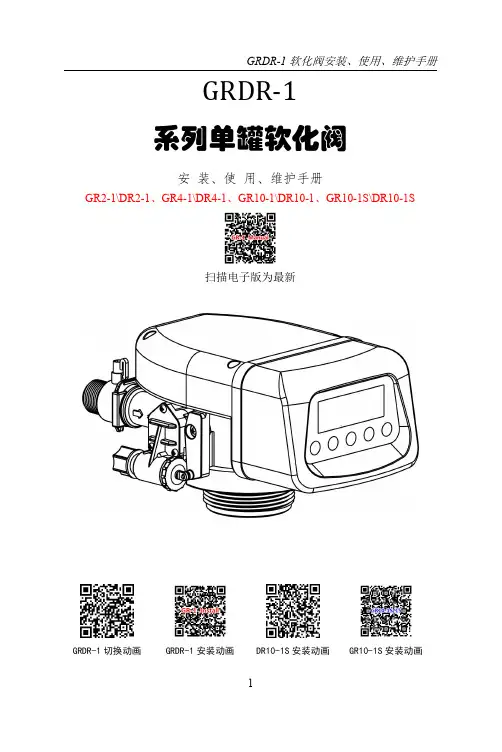

1GRDR-1系列单罐软化阀安装、使用、维护手册GR2-1\DR2-1、GR4-1\DR4-1、GR10-1\DR10-1、GR10-1S\DR10-1S扫描电子版为最新GRDR-1切换动画GRDR-1安装动画DR10-1S 安装动画GR10-1S 安装动画2一、操作面板ⅠLCD 液晶显示控制器前面板各种操作显示说明图1:LCD 面板说明流量模式“”显示界面当前工位:再生到慢洗S:0125:设定再生用水量,由进水流量计计量,通过射流器的水量相当于8—10%浓度的盐水;D:0125:递减状态,递减到零切换到下一工位(清洗工位);00.00t/h ;当前每小时进水量;00000.0t :阀体累计进水量。

当前工位:清洗和补水S:0100:设定清洗用水量,由进水流量计计量;D:0100:递减状态,递减到零切换到下一工位(软化工位);00.00t/h ;当前每小时进水量;00000.0t :阀体累计进水量。

3时间模式“”显示界面操作按扭::手动转位;:参数设定;:移位;:加1A 、开锁”和“已开。

B 、闭锁:设备无任何操作3分钟后,自动闭锁。

C 、模式切换:开锁状态下,操作按扭在时间模式“”和流量模式“”之间进行切换。

D 、手动转位:开锁状态下,按此按钮多路阀切换到下一工位。

E 、参数设定:开锁状态下,按此按钮屏幕出现参数设定界面,确认和退出。

:数字移位G、:数字加1当前工位:再生当前工位:清洗当前工位:软化按照性能参数和原水硬度的计算方法,分别设定再生、清洗、软化水量。

背光时间:为控制器无操作后按所设定时间屏幕背光自动熄灭,主阀检测到进水流量信号时自动点亮。

输出模式:继电器输出模式包括0、1、2、3、4参见后续说明。

再生次数:所设数字为表示每个周期执行再生、清洗的次数。

中英文切换:设定0或1,屏显文字分别为中文或英文。

延时再生:需对时钟设定和校验,北京时间24小时制,H为小时,M为分钟,S为秒。

默认99表示不执行延时再生,如果设定01H—30M—02D当软化工位结束后等待到凌晨1:30再生,02D表示2天再生一次。

多合一驱动器规格说明书

多合一驱动器规格说明书

多合一驱动器规格说明书匯出日期:2023-05-10修改日期:2023-01-31•••••••••• 1.2.3.4.5.6.7.8.9.10.11.12.13.1.2.型号定义(Definition of Multi-axis Servo Drive)规格(Specification)通用规格(General Spec.)一般规格(Spec.)外型尺寸(External Dimensions)硬体安装与配线(Installation and Wiring Instructions)// 通用规格(General Spec.)// 一般规格(Spec.)// 外型尺寸(External Dimensions)// 硬体安装与配线(Installation and Wiring Instructions)版本号(CF 版本)编修日期编修内容Excel 档作者审查核准v.442022-6-27將所有表格置換成CF 格式新增S08-SMD34E2550-00新增S08-SMD34E2550-04新增S08-SMD34E3575-00新增S08-SMD34E3575-04新增S08-SMD34E50150-00新增S08-SMD34E50150-04新增S08-SMD33C2575-00新增S08-SMD33C35100-00新增S08-SMD22C20-00新增S08-SMD23C20-00新增S08-SMD24C20-00將部分不具有鋰電池盒的上代驅動器移至下架區--鄧乃維v1.82022-5-19新增SMH-20/20-50-M 三合一驅動器修正驅動器重量业务选型-多合一驱动器_v1.8.xlsx 劉任翔文件目录文件履历文件目录文件履历1.2.1.2.版本号(CF 版本)编修日期编修内容Excel 档作者审查核准v1.72020-11-20新增34D 五回授口版本驅動器將34C 移至接單生產區业务选型-多合一驱动器_v1.7.xlsx 黃揚程v1.62020/04/24改版大四合一34B 成34C 新增大四合一34D 业务选型-多合一驱动器_v1.6.xlsx 李宇雙v1.52020/01/02導入SAP 料號业务选型-多合一驱动器_v1.5.xlsx 李宇雙v1.42019/12/30更新規格,修改回生電阻;新增最大搭配規格业务选型-多合一驱动器_v1.4.xlsx 李宇雙v1.32019/11/13修改功率、額定、尖峰電流业务选型-多合一驱动器_v1.3.xlsx 李宇雙v1.22019/01/23新增品名敘述业务选型-多合一驱动器_v1.2.xlsx 楊娟v1.12018/12/0533B 及34B 上線,修改驅動器規格與外型尺寸业务选型-多合一驱动器_v1.1.xlsx 楊娟V1.02018/09/19新增新代多合一驱动器之规格与外型尺寸、建议搭配扩充卡/扩充模组等选型资讯业务选型-多合一驱动器_v1.0.xlsx刘思伶1.••1 型号定义(Definition of Multi-axis Servo Drive) 1st 2nd 3rd 4th 項目Item SMD50/50/50150XL定義Definition系列號 SeriesSMD series (220V )SMH series (380V )各軸向模塊電流 [A] Axial Module Current 50:模塊電流Module Current 50 A主軸模塊電流[A]Axial Module Current 150:模塊電流Module Current 150 A外型尺寸 Dimension2.a.i.ii.iii.iv.1.2.v.vi.b.2 规格(Specification)2.1 通用规格(General Spec.)控制方式 Control Method: 3-phase full wave rectification, SVPWM -VVVF control PC 通讯介面 PC Interface : USB控制器串列通讯介面 Controller Serial Communication : M3输入输出讯号 I/O Signal :数位输入Digital Input: 4 ports 数位输出Digital Output: 2 ports冷却方式 Cooling Method : 风扇冷却 Fan cooling 鋰電池 Battery: 標配 Y2.2 一般规格(Spec.)註:*最大搭配規格: 超過本表最大搭配軸向電機規格,請選配外置回生電阻。

珠峰ACI变频器说明书

珠峰ACI变频器说明书
键控制区。显示区提供参数设定规划模式及显示不同的运转状态。按键控制区为 使用者与变频器沟通介面。
LED 指示区
ACI-04A
显示变频器目前的运转状态,
可显示运转、停止、点动、正
转、反转
FWD
可调电位器
上/下键
用于修改资料及参数项目
正转/反转键
FWD REV
点动运转键
JOG
SEQ
REV
RUN
STOP
PRGM FUNC RESET DATA
●注意事项: ◇应在发生电涌电压的磁线圈两端连接电涌吸收器,以此来消除电涌电压可能 对变频器控制电路和外围设备误动作。 ◇控制电路连接线应尽量远离主电路和外部顺序控制的电路。如控制电路联机 必须穿越主回路和其它控制线时,应成垂直交叉走线。 ◇电路联机较长时,应使用双绞屏蔽线。
3)控制端子示意图:(详细说明见表 3-3)
一 产品简介
1、拆箱时的检查 本机在出厂前均作严格的包装处理,但考虑运输过程中的各种因素,装配
前请特别注意以下事项,如有异常,请通知本产品经销商或本公司相关人员。 ◇ 搬运中是否损坏或变形。 ◇ 包装拆开时是否有 ACI 系列变频器一台及使用说明书一本。 ◇ 所订购规格是否与铭牌相符合(使用电压等级及 KVA 数)。 ◇ 内部装配的零件,配线及电路板是否异常。 ◇ 各端子是否紧锁,机器内是否有异物存在。 ◇ 附加配件的有无。 ◇ 合格证及保修卡的有无。 2、铭牌说明:
显示参数内容
按 PRGM RESET
不储存资料回到操作模式
d 01
按 FUNC DATA
-End-
13
四 试运行
本章提供 DLT 变频器运行所需相关的程序,包含常用的控制方式所需要的设 定值,可迅速完成正确的运转设定。

U2520DRB 用户手册说明书

U2520DRB 用户手册说明书

Simplified Service Manual–U2520DRBVersion: 01Date:2021/08/23Content Index1. General Safety Instructions (3)1.1 SAFETY: General Safety (3)1.2 SAFETY: General Power Safety (5)2. Exploded view diagram with list of items (6)3. Wiring connectivity diagram (7)4. Disassembly and Assembly Procedures (8)4.1 Disassembly SOP (8)4.2 Assembly SOP (12)5. Trouble shooting instructions (16)1. General Safety InstructionsUse the following safety guidelines to help ensure your own personal safety and to help protect your equipment and working environment from potential damage.NOTE: In this section, equipment refers to monitors.IMPORTANT NOTICE FOR USE IN HEALTHCARE ENVIRONMENTS:Dell products are not medical devices and are not listed under UL or IEC 60601 (or equivalent). As a result, they must not be used within 6 feet of a patient or in a manner that directly or indirectly contacts a patient1.1 SAFETY: General SafetyWARNING: To prevent the spread of fire, keep candles or other open flames away from this product at all times.When setting up the equipment for use:⏹Place the equipment on a hard, level surface. Leave 10.2 cm (4 in) minimum of clearance onall vented sides of the computer to permit the airflow required for proper ventilation.⏹Restricting airflow can damage the computer or cause a fire.⏹Do not stack equipment or place equipment so close together that it is subject torecalculated or preheated air.⏹NOTE: Review the weight limits referenced in your computer documentation before placinga monitor or other devices on top of your computer.⏹Ensure that nothing rests on your equipment's cables and that the cables are not locatedwhere they can be stepped on or tripped over.⏹Ensure that all cables are connected to the appropriate connectors. Some connectors havea similar appearance and may be easily confused (for example, do not plug a telephonecable into the network connector).⏹Do not place your equipment in a closed-in wall unit or on a bed, sofa, or rug.⏹Keep your device away from radiators and heat sources.⏹Keep your equipment away from extremely hot or cold temperatures to ensure that it is usedwithin the specified operating range.⏹Do not push any objects into the air vents or openings of your equipment. Doing so cancause fire or electric shock by shorting out interior components.⏹Avoid placing loose papers underneath your device. Do not place your device in a closed-inwall unit, or on a soft, fabric surface such as a bed, sofa, carpet, or a rug.When operating your equipment:⏹Do not use your equipment in a wet environment, for example, near a bath tub, sink, orswimming pool or in a wet basement.⏹Do not use AC powered equipment during an electrical storm. Battery powered devices maybe used if all cables have been disconnected.⏹Do not spill food or liquids on your equipment.⏹Before you clean your equipment, disconnect it from the electrical outlet. Clean your devicewith a soft cloth dampened with water. Do not use liquids or aerosol cleaners, which maycontain flammable substances.⏹Clean the monitor display with a soft, clean cloth and water. Apply the water to the cloth,then stroke the cloth across the display in one direction, moving from the top of the displayto the bottom. Remove moisture from the display quickly and keep the display dry.⏹Long-term exposure to moisture can damage the display. Do not use a commercial windowcleaner to clean your display.⏹If your equipment does not operate normally - in particular, if there are any unusual soundsor smells coming from it - unplug it immediately and contact an authorized dealer or servicecenter.Protecting Against Electrostatic DischargeElectrostatic discharge (ESD) events can harm electronic components inside your equipment. Under certain conditions, ESD may build up on your body or an object, such as a peripheral, and then discharge into another object, such as your computer. To prevent ESD damage, you should discharge static electricity from your body before you interact with any of your equipment’s internal electronic components, such as a memory module. You can protect against ESD by touching a metal grounded object (such as an unpainted metal surface on your computer’s I/O panel) before you interact with anything electronic. When connecting a peripheral (including handheld digital assistants) to your equipment, you should always ground both yourself and the peripheral before connecting it. In addition, as you work inside the equipment, periodically discharge any static charge your body may have accumulated.You can also take the following steps to prevent damage from electrostatic discharge:⏹When unpacking a static-sensitive component from its shipping carton, do not remove thecomponent from the antistatic packing material until you are ready to install the component.Just before un wrapping the antistatic package, be sure to discharge static electricity fromyour body.⏹When transporting a sensitive component, first place it in an antistatic container orpackaging.⏹Handle all electrostatic sensitive components in a static-safe area. If possible, use antistaticfloor pads and work bench pads.1.2 SAFETY: General Power SafetyObserve the following guidelines when connecting your equipment to a power source:⏹Check the voltage rating before you connect the equipment to an electrical outlet to ensurethat the required voltage and frequency match the available power source.⏹Do not plug the equipment power cables into an electrical outlet if the power cable isdamaged⏹Norway and Sweden: If this product is provided with a 3-prong power cable, connect thepower cable to a grounded electrical outlet only.⏹If you use an extension power cable, ensure that the total ampere rating of the productsplugged in to the extension power cable does not exceed the ampere rating of the extension cable.⏹If you must use an extension cable or power strip, ensure the extension cable or power stripis connected to a wall power outlet and not to another extension cable or power strip. Theextension cable or power strip must be designed for grounded plugs and plugged into agrounded wall outlet.⏹If you are using a multiple-outlet power strip, use caution when plugging the power cable intothe power strip. Some power strips may allow you to insert a plug incorrectly. Incorrectinsertion of the power plug could result in permanent damage to your equipment, as well asrisk of electric shock and/or fire. Ensure that the ground prong of the power plug is insertedinto the mating ground contact of the power strip.⏹Be sure to grasp the plug, not the cable, when disconnecting equipment from an electricsocket.If your equipment uses an AC adapter:⏹Use only the Dell provided AC adapter approved for use with this device. Use of another ACadapter may cause a fire or explosion.⏹NOTE: Refer to your system rating label for information on the proper adapter modelapproved for use with your device.⏹Place the AC adapter in a ventilated area, such as a desk top or on the floor, when you useit to run the computer or to charge the battery. Do not cover the AC adapter with papers orother items that will reduce cooling; also, do not use the AC adapter inside a carrying case.⏹The AC adapter may become hot during normal operation of your computer. Use care whenhandling the adapter during or immediately after operation.⏹It is recommended that you lay the adapter on the floor or desk so that the green light isvisible. This will alert you if the adapter should accidentally go off due to external effects. Iffor any reason the green light goes off, disconnect the AC power cord from the wall for aperiod of ten seconds, and then reconnect the power cord.⏹Japan Only: Use only the Dell-provided AC power cable with the AC adapter. Use of anyother power cable may damage the device or AC adapter or may present risk of fire orelectric shock.2. Exploded view diagram with list of itemsItem DescriptionQ'ty Item DescriptionQ'ty1 Panel 1 16 PCBA LED DRV BD 12 ASSY MF 1 17 PCBA SENSOR BD1 3 BTN PWR 1 18 WIRE AC+3/3P1 4 SCRW TP-B FPH M2*2.4L ZN 4 19 #MYLAR PWR BD 1 5 PCBA CTRL BD 1 20 #ASSY SHD MAIN 1 6 MYLAR CTRL BD 1 21 #PCBA USB BD 1 7 SCRW TP-B FPH M2*4L B-ZN 3 22 #ASSY RC 1 8 SCRW MACH FLATM3*0.5P*4.5L ZN 11 23 #SCRW M FPH M4*10L ZN NYL 1 9 BOSS PANEL 1 24 #ASSY CLMN 1 10 SCRW TP-S W/FLM3*9.3L(S3.8)ZN 1 25 #ASSY BASE 1 11 SCRW T FPH M3*6L DELTA-PT NI 3 26 Power cable 1 12 SCRW TP-S FPH M3*5.5(7/1.5)NI 3 27 DisplayPort cable 1 13 SCRW PH INT/TOO M3*9TP-S C-ZN 1 28 USB Type-C cable 1 14 PCBA I/F BD 1 29 USB Type-C to Type-A cable115PCBA SPS BD 112987 654310111213141516212019181711222324252729283. Wiring connectivity diagramFFC 2 Wire 2Wire 1 FFC 1 Wire 3FFC 3Wire 6 Wire 4Wire 54. Disassembly and Assembly Procedures4.1 Disassembly SOPPreparation before disassemble 1. Clean the room for disassemble 2. Identify the area for monitor3. Check the position that the monitors be placed and the quantity of the monitor; prepare the area for material flow; according to the actual condition plan the disassemble layout4. Prepare the implement, equipment, material as bellow: 1) Working table2) Philips-head screwdriver 3) Glove4) Cleaning cloth 5) ESD protection Item Picture Operation Tool Notes1To remove the stand: 1. Place the monitoron a soft cloth or cushion.2. Press and hold thestand release button.3. Lift the stand up andaway from the monitor.21. Unlock 4 screws on Rear Cover2. Disassemble Rear Cover from middle frameNotice thedisassembly order:1) Disassemble thetop side2) Disassemble theLeft/Right sidePhilips-head screwdriver Torsion of Rear Cover screw: 11±1Kg3) Disassemble thebottom side4) Disassemble RearCover from middleframe.31. Remove the tapewhich fixed USBFFC cable and USBwire on panel2. Remove USB FFCcable and USB wirefrom I/F BD41. Remove Sensor BD wire from I/F BD and Sensor BD2. Remove Control BDwire from I/F BD51. Remove 4 black tapes from Panel2. Remove long andshort backlight wire from LED Driver BD61. Unlock screws onMiddle Frame a. FHP screws*2 (See Green mark)Philips-head screwdriverTorsion of FPH screw 3.5-4.0kg71.Tear off the yellowtape from Paneland disassembleLVDS cable fromPanel2. Take off MainSHD from Panel8 1. Take off Mylar fromSPS BD2. Unlock 9 PCBAscrews3. Disassemble LEDDriver BD, I/F BDand SPS BD fromMain SHD4. Remove all cablesand tapes from LEDDriver BD, I/F BDand SPS BDPhilips-headscrewdriverTorsion ofPCBA screw:8.5±0.5KgTorsion ofGroundingscrew:6.5±0.5Kg4.2 Assembly SOPPreparation before assemble 1. Clean the room for work 2. Identify the area for material3. Prepare the implement, equipment, material as bellow: 1) Working table2) Philips-head screwdriver 3) Glove4) Cleaning cloth 5) ESD protectionItem Picture OperationTools Notes 11. Insert SPS BD wire to SPS BD2. Insert AC wire to SPS BD3. Assemble SPS BD to Main SHD4. Insert LVDS cable to I/F BD andpaste 1 yellow tape to fix it5. Insert LED Driver BD wire to I/F BD6. Insert SPS BD wire to I/F BD7. Assemble I/F BD to Main SHD8. Insert LED Driver BD wire to LED Driver BD9. Assemble LED Driver BD to Main SHD10. Lock 9 PCBA screws to fix PCBAon Main SHD11. Assemble Mylar on SPS BDPhilips-headscrewdriverTorsion of PCBA screw:8.5±0.5KgTorsion of Grounding screw: 6.5±0.5Kg21. Insert LVDS cable to panel andpaste 1 yellow tape to fix it2. Place Main SHD on Panel and fixit with Middle Frame by 2 FPH screws (See Green mark)Philips-headscrewdriverTorsion of FPH screw: 3.5-4.0kg31. Insert long and short backlightwire to LED Driver BD2. Paste 4 black tapes to fixbacklight wire on Panel3. Insert Control BD wire to I/F BD4. Insert Sensor BD wire to I/F BD 41. Insert USB FFC cable and USBwire to I/F BD2. Paste 1 tape to fix USB FFCcable and USB wire on panel3. Assemble Rear Cover with panel51.Lock 4 Rear Cover screws Philips-headscrewdriverTorsion ofRear Coverscrew:11±1Kg6Assemble the Stand:a. Insert the stand base blocksfully into the stand slotb. Lift the screw handle and turnthe screw clockwisec. After fully tightening thescrew, fold the screw handleflat within the recess.7Attach the Stand assembly to the Monitor:a. Fit the two tabs on the upperpart of the stand to the grooveon the back of the monitorb. Press the stand down till itsnaps into place.5. Trouble shooting instructions。

DR 系列 数据记录仪(温度巡回检测仪) 说明书

DR 系列 数据记录仪(温度巡回检测仪) 说明书

DR 系列数据记录仪(温度巡回检测仪)数据记录仪(温度巡回检测仪,以下简称数据记录仪),是一种输入温度、直流电压等模拟信号,在规定的时间间隔进行数据记录的巡回检测记录仪。

数据记录仪分成一体式和分离式二种,其中一体式有30点、20点、15点三种测定点数;分离式有主体和端子箱组成,主体箱装有把手可携带,也可用于嵌装。

最大测量点数可达210点,共有5个种类。

广泛应用于工业炉温度分布、电子产品特性试验、气象观察、发动机测试、公害测定管理、原子能材料试验、全自动校正装置、测量研究和试验等。

·带有8种或9种测定量程30点及15点的数据记录仪带有8种测定量程,其中热电偶5种(S、K、J、E、T),直流电压3种(±20mV 、±50mV、±5V)。

20点的记录仪除上述8种测定量程外,还带有Pt100测温电阻,共计9种测定量程。

在分离式记录仪中,有用于5种测定量程(输入点数为30点)用于9种测定量程(输入点数为20点)的端子箱,均能与主体相连接。

·能分成8组进行记录能把测定的点数最多分成8组同时进行测量。

(能任意分组,例如第一组是K热电偶,第2组是±20mV量程……等等)。

·高精度热电偶的线性化是采用数字线性化方式,能达到高精度。

·数字键的设定方式及其设定的确认分组设定,量程设定,时间间隔(打印周期)设定等均由数字键操作,设定方法简单方便,此外,通过按动“列表打印”键,能把设定的内容全部打印出来。

·偏差运算功能能把对应于第一组第一点的温度差和电压差直接打印出来,在测量温度分布时,十分有效。

·报警打印功能用数字键输入温度,直流电压等的设定值,打印时,如果数值偏离设定值,就会在打印出测定数据的同时,打印出H 或L的标记。

使用这个功能就容易判断合格或不合格。

·携带及嵌装二用仪表装有把手,在移动使用场合,十分方便。

珠峰ACI变频器说明书

珠峰ACI变频器说明书

5
●各功能初始化值
端子记号
RA-RC RB-RC MI1-DCM MI2-DCM MI3-DCM
REV-DCM
端子功能说明
多功能指示信号输出接点 多功能指示信号输出接点 多功能输入选择一 多功能输入选择二 多功能输入选择三
反转/停止
FWD-DCM
RST-DCM EF-DCM DFM-DCM TRG-DCM MO1-MCM MO2-MCM +10V-ACM AVI-ACM ACI-ACM AFM-ACM SG+ - SG+EV-DCM
垂直安装
接线孔
进风 ●注意事项:
◇变频器必须竖直安装。 ◇环境温度为-10℃~+40℃。 ◇环境相对湿度不大于 90%,且无水珠凝结现象。
3
◇不受阳光直射、无水滴、蒸汽、灰尘及油性灰尘的场所。 ◇无腐蚀、易燃性气体、易燃性液体的场所。 ◇无金属微粒或金属粉末的场所。 ◇无振动、电磁干扰的场所。 2、配线 1)主回路的连接
●FWD 及 REV 的指示灯 LED 显示指示:以下运作操作说明
输出频率 RUN FWD
REV
正转
反转
11
3、键盘操作说明 当上电后,键盘面板显示 ACI 品牌,3 秒钟后显示设定频率,如下所示。
若此时压下 键,变频器频率指令会依出厂设定值 50Hz 运转。 若压下 键可停止运行。
●设定频率指令,可依下列步骤: 频率指令改变可在“STOP”或“RUN”模式
显示参数内容
按 PRGM RESET
不储存资料回到操作模式
d 01
按 FUNC DATA
-End-
13
四 试运行
本章提供 DLT 变频器运行所需相关的程序,包含常用的控制方式所需要的设 定值,可迅速完成正确的运转设定。

智能电子式压力传感器说明书

智能电子式压力传感器说明书

36智能电子式压力传感器说明书IP68模拟量输出RM-PA1140/50-PA41-CN-V1.147面板控制与显示功能特征Output 1滞后功能/N.O.(Hno)滞后功能/N.C.(Hnc)视窗功能/N.O.(Fno)视窗功能/N.C.(Fnc)Output 2模拟输出4~20 mA(I)模拟输出0~10 V(U)从压力传感器 探测到系统当前的压力,显示系统当前压力(bar ;Psi;kgf;MPa),同时根据设置输出状态,产生两个输出信号。

滞后作用如果系统压力与预设的差不多,那么滞后现象保持在输出平稳的状态。

当系统压力增大的时候,输出端能够达到打开开关的点(SP1);当系统压力再一次减小时,输出端能够达到关闭开关的点(rP1)。

滞后调整的方法:首先打开开关的点确定好,然后根据不同的要求再重新确定。

压力 通过视窗的作用能监测到明确的可以被接受的值。

当系统在开(SP1) 和关 (rP1) 之间变化时,输出接通 (视窗作用/常开) 或不接通 (视窗作用/常闭)。

通过 SP1 和 rP1的不同可以设定视窗的宽度。

SP1为上限值,rP1为下限值。

Psp rPt滞后Hno Hnc视窗功能101049运行模式(正常工作模式)·当外部提供电压时,装置为工作模式,根据它所设置的参数来监控和开关输出。

·模拟信号的输出值与系统压力有关。

·数码管显示表明当前系统的压力,红色二极管发光表示晶体管输出时开关的状态。

()·MODE/ENTER MODE/E 键键显示模式显示参数和设置参数值当很快按下“”键时,装置为参数值可读的显示模式,装置内部的进程和输出仍然为工作模式。

·每按一下“NTER”,就会出现一个参数名称。

·当快速按“LEARN/SET”时,对应的参数值显示5秒,5秒以后装置回到工作模式。

设置模式(参数值的设定)选择确定一个参数值后(显示模式),装置就会经过一个设置模式,一直按着“LEARN/SET”键直到显示的参数值改变, 装置的内部仍为工作模式。

  1. 1、下载文档前请自行甄别文档内容的完整性,平台不提供额外的编辑、内容补充、找答案等附加服务。
  2. 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
  3. 3、如文档侵犯您的权益,请联系客服反馈,我们会尽快为您处理(人工客服工作时间:9:00-18:30)。

目录
一、简介---------------------------------------------3
二、技术参数---------------------------------------3
三、结构介绍---------------------------------------4
结构简图---------------------------------------5
结构原理图------------------------ -----------6
椭圆度测量附件装配图----------------------7
四、安装及使用操作------------------------------8
五、仪器的维护-----------------------------------10
六、可选附件介绍--------------------------------11
感谢购买我公司的产品,本公司将为用户提供及时周到的服务,欢迎提出宝贵意见和建议。

欢迎登陆我公司网站,了解我们的产品和所能为您提供的理化检测仪器、计量器具和服务。

对产品的改进和进一步完善,是我们一贯的追求,本说明书中产品的改动,恕不再另行通知。

一、简介
DR-01型圆球直径、椭圆度测量仪,采用比较法检测球体的直径偏差和球面的椭圆度等误差。

最突出的特点是测量精确、灵敏;操作简便、快捷。

该检测手段投资小,并且可根据用户的需要配置高、中、低精度及不同量程的检测表头以适应不同的检测需要。

广泛应用于钢球、轴承制造和使用行业的钢球检定、分选及其它行业相似结构的研究分析。

二、技术参数
1.球形体直径测量范围:-----------3~50毫米
2.测量仪表分度值:----------------0.002毫米
----------------0.001毫米
--------------0.0005毫米
--------------0.0002毫米
3.外形尺寸:-------------280×260×355毫米
4.重量:-----------------------14公斤 标准配套的测量仪表分度值为0.001毫米,示值范围为±0.03毫米。

三、结构介绍
DR-01型圆球直径、椭圆度测量仪由底座部件、支架部件两部分组成。

为了保证仪器的稳定和测量的准确,底座(10)和支架(2)主体均采用铸铁材料制成。

使用本仪器增加的专用附件后,可用于测量棱体的棱面圆度误差。

各零部件名称及安装位置见本章图1、图2、图3,图号和对应名称列于下表:
仪器底座(10)上部装有紧固螺栓(24),用于支撑和紧固支架(2),通过操作锁紧手轮(9),可根据测量需要的角度进行调整。

支架两端各有一个相互同轴的安装孔,上孔安装测量仪表(1),下孔安装附件组的套筒(28)。

图1:结构简图
支架侧面设计有侧支架(14),且在支架的中部和侧支架的端部,也各有一个用于安装测量组件的安装孔,其轴线垂直于支架两端孔的轴线,并相交,以保证测量的准确性和稳定性。

顶尖(3、18、20)主要用于测量圆球、圆轴等零件,托叉主要用于测量球体的棱面度。

需要监测异型零件时,可选购或自制专用附件。

图2:结构原理图
●注意保护安装孔不受外力损坏,并保持清洁;
●支架不可受冲击或重力挤压;
●测量仪表极易受损,注意轻拿轻放!
图3:椭圆度测量附件装配图
四、安装及使用操作
本仪器是采用比较法进行测量的,在测量前必须首先选好经过检定且标定有测量值的标准钢球。

(一)仪器的调整
1、按照被测件直径,松开紧定旋钮11、1
2、21和锁紧螺钉5,让内部压块松动,调整定位套28、4、17到各近似被测钢球半径的位置,然后将松开的旋钮和螺钉11、12、21、5紧固好,松开锁紧螺母16、6和锁紧螺帽27。

2、放上标准圆球,装上测量仪1转动调整手轮30,使仪表的指针指在0位置上,紧好紧定旋钮11。

再转动手轮7、15,使调整手轮30与测量仪表1所带触头处于钢球最大直径处。

3、拧紧锁紧螺母6、16和锁紧螺帽27使各微调测量杆稳固可靠。

4、最后微调仪表指针使之指向标准圆球的标称值上。

如果仪器倾斜度不能适应测量要求时,可松开锁紧手轮9,放松紧固螺栓24调整测量支架2的倾斜度后,紧固之。

(二)、测量钢球棱面度时仪器的调整
首先换下顶尖18和20再选出适用于被测尺寸的的托叉25,把选好的托叉25装在芯轴34前端,并用夹紧套31紧固好。

其它调整方法与测钢球直径和椭圆度相同。

(三)、仪器的使用
1、取下标准圆球,放上待测圆球19。

2、当芯轴34的前端装顶尖20时,转动钢球一周以上,同时检视仪表1,其最大值和最小值,即钢球的最大和最小直径。

其最大值和最小值之差,即为钢球的椭圆度。

3、撤掉顶尖20换上托叉25时,仪表1的指示变动差。

即为被测件的棱面度。

注:测量时转动钢球着力应均匀平稳,否则会影响测量值。

测量零件的数量较多,时间较长,中间应经常以标准件核对仪器,以免造成误差。

(四)、当仪器指示值不稳定时,检查并纠正下列各点
1、检查各套筒及仪表是否可靠紧固。

2、检查各调整测量杆上锁紧螺母(螺帽)
的紧定情况。

3、检查顶尖或托叉的精度和磨损情况,若磨损严重或损坏,要及时调换。

五维护与保养
1、仪器在较长时间不使用时,所有的加工面,包括发蓝件及镀铬件,应在清洗、干燥后涂上防锈剂,保存在干燥、无腐蚀性介质的室内。

2、搬运(或包装)仪器前,必须紧固好所有的可调螺钉和部件,防止松动。

3、仪器开始使用时,首先检查仪器的完好情况,点验附件的齐全。

使用前必须用汽油清洗,用软布擦干,另涂少量稀薄的润滑油。

4、仪器在下列情况下正常使用:
(1)周围无明显粉尘和腐蚀性气体。

(2)室内温度保持在20℃±10℃。

(3)应放置在牢固平稳、无振动的台案上进行操作。

5、仪器在调整使用和搬运时,严禁锤打、撞碰和不正常的拆卸扳动。

6、经常检查各紧固件和测头的紧固情况、触头的磨损情况,及时纠正或调换。

7、每日清理仪器各部分,并为各滑动面涂少量稀的薄润滑油。

8、仪器暂时不使用时,应为各工作面、滑动面和所带附件涂上防锈油脂,防止腐蚀。

六易损件、选配附件及示意图
(特殊用途附件均未列入)
图4、易损件:顶尖(尖形)
DR-01—18
图5、选配件:顶尖(锁紧尖形)
DR-01—18A
图6、选配件:顶尖(平头形)
DR-01—18B 图7、选配件:顶尖(球头形)
DR-01—18C
图8、易损件:托叉90°
DR-01—25
图9、易损件:托叉120°DR-01—25B
图10、选配件:托叉90°
图11、选配件:托叉90°
DR-01—25E
DR-01—25D
图11、选配件:托叉120°
DR-01—25C
我公司备有各种特殊监测用途的托叉、顶尖及夹紧套,如果测量时需要,可随时联系其他未列入的特殊形状、尺寸的附件。
