For a pixel p at (x, y) , there are 4 horizontal and vertical neighbors: (x+1,y), (x-1,y), (x,y+1), (x,y-1), and 4 diagonal neighbors of p (x+1,y+1),(x+1,y-1),(x-1,y+1,(x-1,y-1), (ND(p)) This set of pixels , N8(p), is called the 8-neighbors of p.
– If (x0,y0) =(xn, yn) , the path is a closed path.
• Define 4-, 8-, or m-paths (see example above)
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
Region
Let R be a subset of pixels in an image. • Region: if R is a connected set. • Two regions, Ri and Rj are said to be adjacent if their union forms a connected set. • Regions that are not adjacent are said to be disjoint • 4- and 8-adjacency are considered when referring to regions
Connect
• Let S represent a subset of pixels in an image. • Two pixels p and q are said to be connected in S
– if there exists a path between them consisting entirely of pixels in S.
0 0 0 0 0 0
0 1 1 1 1 0
0 1 1 1 1 0
0 0 0 1 1 0
0 0 0 0 0 0
Boundary(cont’)
• The preceding definition is referred to as the inner border of the region to distinguish it from its outer border, which is the corresponding border in the background. • Such algorithm usually are formulated to follow the outer boundary in order to guarantee that the result will form a closed path.
Example of adjacency
Suppose V={1}
Ambiguity
(a)
(c)
Figure 2. (a) Arrangement of pixels; (b) pixels that are 8-adjacent (shown as dashed) to the center pixel; (c ) m-adjacency.
Adjacency
Let V be the set of gray-level values • 4-adjacency. – Two pixels p and q with gray-level values from V are 4-adjacency if q is in the set N4(p) • 8-adjacency. – Two pixels p and q with values from V are 8adjacency if q is in the set N8(p)
p p
Figure1. diagram of N4(p) and N8(p)
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
Connectivity
• Connectivity between pixels:
– To simplify concept (regions and boundaries)
• Two pixels may be 4-neighbors • But they are said to be connected only if they have the same value.
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
0
1 1 1
0 0
0 0
Digital Image Processing, 2nd ed.
Region (cont.)
• Suppose that an image contains K disjoint regions, Rk, k=1,2,…,K, none of which touches the image border. • Let Ru denote the union of all the K regions and let (Ru)c denote its complement.
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
Example of region
1 1 1
1 1
1
1 1
© 2009 Lianxi Yuan
1 1
Figure 3. Two regions (of 1s) that are adjacent if 8-adjecency is used
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
Example 1 of boundary
The point circled is not a member of border of the 1valued region if 4-connectivity is used between the region and its background.
– Be a sequence of distinct pixels with coordinates
• (x0,y0), (x1, y1), … (xn,yn) – where (x0, y0)= (x, y) ; (xn, yn)=(s, t) – Pixel (xi, yi) and (xi-1,yi-1) are adjacent for i in [1,n] – n is the length of the path
– All the points in Ru is called the foreground of the image – All the points in (Ru)c are called the background of the image
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
Figure 4. The circled point is part of the boundary of the 1valued pixels only if 8-adjecency between the region and background is used
© 2009 Lianxi Yuan
Boundary
• The boundary (border, contour) of a region R is the set of points that are adjacent to points in the complement of R. • The border of a region is the set of pixels in the region that have at least one background neighbor (another definition).
Digital Image Processing, 2nd ed.
Chapter Two
Some Basic Relationship Between Pixels
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
Path (curve)
• A path from pixel p with coordinate (x, y) to pixel q with coordinate (s, t)
• to Eliminate the ambiguities that arise when 8-adjacency is used
A intersection B (A∩B)
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
Neighbors of a el
Suppose an image f(x,y), and use lowercase letters to represent a pixel. For any pixel p at (x, y) , there are 4 horizontal and vertical neighbors: ( x, y 1),( x, y 1),( x 1, y),( x 1, y) This set of pixels denoted by N4(p) , is called the 4neighbors of p. The four diagonal neighbors of p , ND(p), have coordinates:
– If (x0,y0) =(xn, yn) , the path is a closed path.
• Define 4-, 8-, or m-paths (see example above)
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
Region
Let R be a subset of pixels in an image. • Region: if R is a connected set. • Two regions, Ri and Rj are said to be adjacent if their union forms a connected set. • Regions that are not adjacent are said to be disjoint • 4- and 8-adjacency are considered when referring to regions
Connect
• Let S represent a subset of pixels in an image. • Two pixels p and q are said to be connected in S
– if there exists a path between them consisting entirely of pixels in S.
0 0 0 0 0 0
0 1 1 1 1 0
0 1 1 1 1 0
0 0 0 1 1 0
0 0 0 0 0 0
Boundary(cont’)
• The preceding definition is referred to as the inner border of the region to distinguish it from its outer border, which is the corresponding border in the background. • Such algorithm usually are formulated to follow the outer boundary in order to guarantee that the result will form a closed path.
Example of adjacency
Suppose V={1}
Ambiguity
(a)
(c)
Figure 2. (a) Arrangement of pixels; (b) pixels that are 8-adjacent (shown as dashed) to the center pixel; (c ) m-adjacency.
Adjacency
Let V be the set of gray-level values • 4-adjacency. – Two pixels p and q with gray-level values from V are 4-adjacency if q is in the set N4(p) • 8-adjacency. – Two pixels p and q with values from V are 8adjacency if q is in the set N8(p)
p p
Figure1. diagram of N4(p) and N8(p)
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
Connectivity
• Connectivity between pixels:
– To simplify concept (regions and boundaries)
• Two pixels may be 4-neighbors • But they are said to be connected only if they have the same value.
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
0
1 1 1
0 0
0 0
Digital Image Processing, 2nd ed.
Region (cont.)
• Suppose that an image contains K disjoint regions, Rk, k=1,2,…,K, none of which touches the image border. • Let Ru denote the union of all the K regions and let (Ru)c denote its complement.
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
Example of region
1 1 1
1 1
1
1 1
© 2009 Lianxi Yuan
1 1
Figure 3. Two regions (of 1s) that are adjacent if 8-adjecency is used
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
Example 1 of boundary
The point circled is not a member of border of the 1valued region if 4-connectivity is used between the region and its background.
– Be a sequence of distinct pixels with coordinates
• (x0,y0), (x1, y1), … (xn,yn) – where (x0, y0)= (x, y) ; (xn, yn)=(s, t) – Pixel (xi, yi) and (xi-1,yi-1) are adjacent for i in [1,n] – n is the length of the path
– All the points in Ru is called the foreground of the image – All the points in (Ru)c are called the background of the image
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
Figure 4. The circled point is part of the boundary of the 1valued pixels only if 8-adjecency between the region and background is used
© 2009 Lianxi Yuan
Boundary
• The boundary (border, contour) of a region R is the set of points that are adjacent to points in the complement of R. • The border of a region is the set of pixels in the region that have at least one background neighbor (another definition).
Digital Image Processing, 2nd ed.
Chapter Two
Some Basic Relationship Between Pixels
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
Path (curve)
• A path from pixel p with coordinate (x, y) to pixel q with coordinate (s, t)
• to Eliminate the ambiguities that arise when 8-adjacency is used
A intersection B (A∩B)
© 2009 Lianxi Yuan
Digital Image Processing, 2nd ed.
Neighbors of a el
Suppose an image f(x,y), and use lowercase letters to represent a pixel. For any pixel p at (x, y) , there are 4 horizontal and vertical neighbors: ( x, y 1),( x, y 1),( x 1, y),( x 1, y) This set of pixels denoted by N4(p) , is called the 4neighbors of p. The four diagonal neighbors of p , ND(p), have coordinates:
合集下载

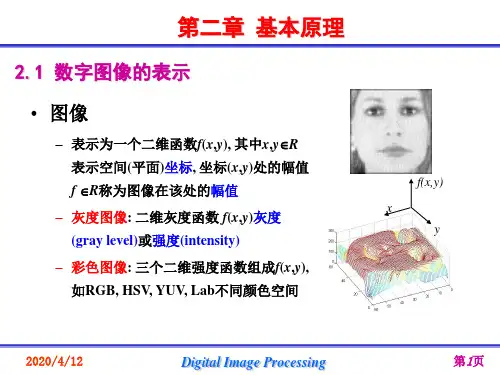

数字图像处理 第2章
2020/4/12
Digital Image Processing
第12页
2.4 保存图像
• imwirte函数可以将图像写到磁盘上，语法： • imwrite(f,’filename’)，filename中包含的字符串必须是
一种可识别的文件格式扩展名（见表2.1）。下面的命 令可将图像h写为TIFF格式，且名为xray。 >>imwrite(f,’xray’,’tif’)或者
>> [M,N]=size(I);
>> whos I
Name Size
Bytes Class
I 256x256
65536 uint8 array
Grand total is 65536 elements using 65536 bytes
2020/4/12
Digital Image Processing
图像取样: 图像空 间离散化, 确定图 像空间分辨率
图像量化:图像幅 度离散化, 确定图 像幅度分辨率
图像编码: 用较少 的bit表示量化后的 图像(JPEG)
Digital Image Processing
第3页
图像取样和量化
数字图像的质量很大程度上取决于取样和量化过程中所用 的取样数和灰度级, 图像内容是确定这两个参数的重要因素
2020/4/12
Digital Image Processing
第4页
数字图像用MN维矩阵表示 M和N分别表示图像行、列的取样点数(确定空间分辨率) 灰度级总数为L(确定灰度分辨率) 起始位置为f(0,0), 灰度级范围为[0, L-1] M、N和L通常取2的整数次幂, 如果L=2k, 则该图是k比特图
数字图像处理冈萨雷斯英文ChapterEng数字图像基础
第2页/共56页
10 10 16 28 13952536212425165539865576295081244057368976549650053326765972859436447663972399679278
Visual Perception: Human Eye
(Picture from Microsoft Encarta 2000)
第3页/共56页
Cross Section of the Human Eye
第4页/共56页
(Images from Rafael C. Gonzalez and Richard E. Wood, Digital Image Processing, 2nd Edition.
Visual Perception: Human Eye (cont.)
I = {(x,a(x)): x X, a(x) F} where X and F are a point set and value set, respectively. w An element of the image, (x,a(x)) is called a pixel where
- x is called the pixel location and - a(x) is the pixel value at the location x
x
Origin
y
Image “After snow storm” f(x,y)
w An image: a multidimensional function of spatial coordinates. w Spatial coordinate: (x,y) for 2D case such as photograph,
10 10 16 28 13952536212425165539865576295081244057368976549650053326765972859436447663972399679278
Visual Perception: Human Eye
(Picture from Microsoft Encarta 2000)
第3页/共56页
Cross Section of the Human Eye
第4页/共56页
(Images from Rafael C. Gonzalez and Richard E. Wood, Digital Image Processing, 2nd Edition.
Visual Perception: Human Eye (cont.)
I = {(x,a(x)): x X, a(x) F} where X and F are a point set and value set, respectively. w An element of the image, (x,a(x)) is called a pixel where
- x is called the pixel location and - a(x) is the pixel value at the location x
x
Origin
y
Image “After snow storm” f(x,y)
w An image: a multidimensional function of spatial coordinates. w Spatial coordinate: (x,y) for 2D case such as photograph,
数字信号处理课件 Chapter 2
➢In some applications, a discrete-time sequence {x[n]} may be generated by periodically sampling a continuous-time signal xa(t) at uniform(统一的) intervals(间隔) of time
➢Reciprocal(倒数) of sampling interval T,
denoted as FT , is called the sampling frequency(抽样频率):
FT=1/T
6
§2.1.1 Time-Domain Representation
➢Unit of sampling frequency is cycles per second, or hertz (Hz), if T is in seconds
3
etc.
§2.1.1 Time-Domain Representation
➢Graphical(图形的) representation of a discrete-time signal with real-valued samples is as shown below:
4
§2.1.1 Time-Domain Representation
8
§2.1.1 Time-Domain Representation
➢Example - {x[n]}={cos0.25n} is a real sequence {y[n]}={ej0.3n} is a
complex sequence
➢We can write
{y[n]}={cos0.3n + jsin0.3n}
➢Reciprocal(倒数) of sampling interval T,
denoted as FT , is called the sampling frequency(抽样频率):
FT=1/T
6
§2.1.1 Time-Domain Representation
➢Unit of sampling frequency is cycles per second, or hertz (Hz), if T is in seconds
3
etc.
§2.1.1 Time-Domain Representation
➢Graphical(图形的) representation of a discrete-time signal with real-valued samples is as shown below:
4
§2.1.1 Time-Domain Representation
8
§2.1.1 Time-Domain Representation
➢Example - {x[n]}={cos0.25n} is a real sequence {y[n]}={ej0.3n} is a
complex sequence
➢We can write
{y[n]}={cos0.3n + jsin0.3n}
数字图像处理课件 ch2

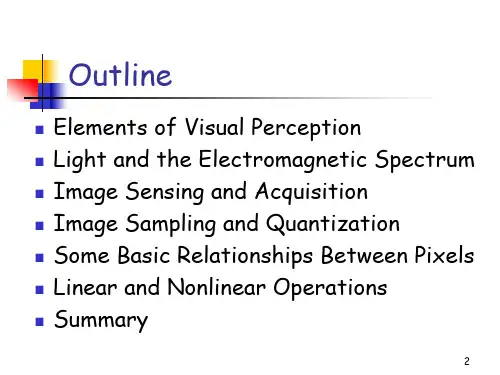

n Why do we need to understand visual perception?
