刮蜡器说明书1
电动剃须刀清洁器使用说明书
电动剃须刀清洁器使用说明书尊敬的顾客：感谢您购买我们的电动剃须刀清洁器。
为了确保您正确地使用该产品，我们特别为您编写了这份使用说明书，请仔细阅读并按照说明进行操作。
1. 产品概述电动剃须刀清洁器是一款专为电动剃须刀设计的清洁设备，采用先进的清洁技术，能够快速有效地清洁剃须刀刀头，并延长刀头使用寿命。
2. 使用前准备在首次使用之前，请确保已将电动剃须刀正确连接到清洁器上，并将清洁器适配器插入电源插座。
在使用过程中，请保持清洁器与电动剃须刀保持干燥，避免水分或其他液体进入清洁器内部。
3. 清洁模式选择电动剃须刀清洁器提供两种清洁模式供您选择：标准清洁模式和深度清洁模式。
标准清洁模式适用于日常清洁，而深度清洁模式适用于长时间未进行清洁的剃须刀。
4. 清洁程序步骤1：在将电动剃须刀放入清洁器之前，请确保将剃须刀的刀头以及剃须刀刀身清洁干净，去除杂质和残留的须发。
步骤2：将剃须刀正确放置到清洁器的底座中，确保剃须刀与底座完全接触。
步骤3：根据您的需求选择清洁模式，按下清洁按钮启动清洁程序。
步骤4：清洁过程中，请不要移动或震动剃须刀和清洁器，以确保清洁效果最佳。
步骤5：清洁完成后，从底座中取出电动剃须刀，并将其置于通风处晾干。
5. 常见问题与解决办法问题1：清洁器无法启动。
解决办法：请检查是否已正确插入适配器并接通电源。
问题2：清洁效果不佳。
解决办法：请检查刀头是否清洁干净，确保刀头没有残留须发。
问题3：清洁器发出异常声音。
解决办法：请停止使用并联系售后服务。
6. 注意事项1) 请勿将清洁器置于潮湿或水池附近，避免发生电器短路或其他安全事故。
2) 请勿使用清洁剂等化学物品来清洁清洁器，以免损坏设备。
3) 请将清洁器放置在儿童无法触及的地方，以免发生意外。
感谢您阅读本使用说明书，希望以上内容能够帮助您正确、安全地使用电动剃须刀清洁器。
如果您有任何疑问或需要额外的支持，请联系我们的客户服务团队，我们将竭诚为您提供帮助。
Philips 电动刮刀用户手册说明书
SW3700English 6简体中文 19IntroductionCongratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at/welcome .Please read this user manual, as it contains information about the features of this shaver as well as some tips to make shaving easier and more enjoyable.General description (Fig. 1)1Protective cap2Shaving unit3Shaving unit release button4On/off button5Charging light6Socket for small plug7Trimmer8Trimmer release slide switch9Supply unit10Small plugImportant safety informationRead this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.Danger-Keep the supply unit dry.6EnglishWarning-To charge the battery, only use the detachable supply unit (HQ850) provided with the appliance.-The supply unit contains a transformer. Do not cut off the supply unit to replace it with another plug, as this causes a hazardous situation.-This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.-Always unplug the shaver before you clean it under the tap.-Always check the appliance before you use it.Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.-Do not open the appliance to replace the rechargeable battery.Caution -Never immerse the cleaning system or the charging stand in water and do not rinse it under the tap.-Never immerse the shaver in water. Do not use the shaver in the bath or in the shower.-Never use water hotter than 60°C to rinse the shaver.-Only use this appliance for its intended purpose as shown in the user manual.-For hygienic reasons, the appliance should only be used by one person.7English-Never use compressed air, scouring pads,abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean theappliance.-If your shaver comes with a cleaning system,always use the original Philips cleaning fluid (cartridge or bottle, depending on the type of cleaning system).-Always place the cleaning system on a stable,level and horizontal surface to prevent leakage.-If your cleaning system uses a cleaning cartridge, always make sure the cartridge compartment is closed before you use the cleaning system to clean or charge the shaver.-When the cleaning system is ready for use, do not move it to prevent leakage of cleaning fluid.-Water may drip from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.-Do not use the supply unit in or near wallsockets that contain an electric air freshener to prevent irreparable damage to the supply unit.Electromagnetic fields (EMF)-This Philips appliance complies with allapplicable standards and regulations regarding exposure to electromagnetic fields.General-This shaver can be safely cleaned under the tap.-The supply unit is suitable for mains voltages ranging from 100 to 240 volts.-The supply unit transforms 100-240 volts to a safe low voltage of less than 24 volts.8EnglishChargingCharge the shaver before you use it for the firsttime and when the display indicates that thebattery is almost empty.Charging takes approx. 8 hours. A fully chargedshaver has a shaving time of up to 40 minutes.Note: You cannot use the shaver while it ischarging.Note: Depending on your shaving/styling behaviorand beard type, the operating time may vary overtime.Charging with the supply unit1Make sure the shaver is switched off.2Put the small plug in the shaver and put thesupply unit in the wall socket.-The charging light on the shaver indicates thecharging status (see 'Charge indications').3After charging, remove the supply unit from thewall socket and pull the small plug out of theshaver.Charge indicationsWhen the battery is almost empty, the charging light starts to flash red.When you switch off the shaver, the charging light continues to flash red for a few seconds.9EnglishWhen the shaver is charging, the charging light flashes green.When the battery is fully charged, the charging light lights up green continuously.Note: After approx. 30 minutes, the charging light goes out to save energy.rinsed under running tap water.-Use this shaver for its intended household use as described in this manual.-For hygienic reasons, the shaver should only be used by one person.-Trimming is easier when the skin and hair are dry.Note: This shaver can only be used without a cord.Skin adaptation period Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard needtime to adapt to any new shaving system. To allow your skin to adapt to this new appliance, we advise you to shave regularly (at least 3 times a week) and exclusively with this appliance for a period of 3weeks.For the best results on skin comfort, pre-trim your beard if you have not shaved for 3 days or longer.When you press the on/off button for the very first time, the charging light flashes in an irregular pattern.Charge the shaver before use.1To switch the shaver on or off, press the on/off button once.1Switch the shaver on.2Move the shaving heads over your skin in both straight and circular movements to catch all hairs growing in different directions. Exertgentle pressure for a close comfortable shave.Note: Do not press too hard, this can cause skin irritation.3Switch off and clean the shaver after each use.4Put the protective cap on the shaver to protect shaving heads.11EnglishUsing the trimmerYou can use the trimmer to groom your sideburns and moustache.1Push the trimmer release slide switch downwards to open the trimmer.2Switch the shaver on.3Hold the trimmer perpendicular to the skin and move it downwards while exerting gentle pressure.4Switch off and clean the trimmer after each use.5Close the trimmer (‘click’).-Regular cleaning guarantees better shaving results.-Never clean, remove or replace the shaving unit while the shaver is switched on.-Do not apply pressure to shaving head combs.-Do not touch shaving heads with hard objects as this may dent or damage the precision-made slotted combs.-Do not use abrasives, scourers or aggressive liquids such as gasoline or acetone to clean the shaver.12EnglishCleaning the shaver under the tapClean the shaver after every shave for optimal2Rinse the shaving unit under a warm tap.3Press the unit release button to open the shaving unit.4Rinse the shaving unit and hair chamber undera warm tap.5Carefully shake off excess water and let the shaver air dry.6Close the shaving unit.Clean the trimmer after each use.1Switch the shaver off.13English2Push the trimmer release slide switch down to open the trimmer.3Switch the shaver on and rinse the trimmer under the tap.4Switch the shaver off after cleaning.5Carefully shake off excess water and let the trimmer air dry.6Close the trimmer (‘click’).Tip: For optimal performance, lubricate the teeth of the attachment with a drop of sewing machine oil regularly.For maximum shaving performance, we advise you to replace the shaving heads every two years.Replace damaged shaving heads immediately.Always replace the shaving heads with original Philips shaving heads.1Switch the shaver off and disconnect it from the wall socket.Press the shaving unit release button to open the shaving unit. Pull the shaving unit off the shaver.14EnglishPut the protective cap on the shaver to preventdamage.Note: Always let the shaver dry completely beforestoring.To buy accessories or spare parts, visit/service or go to yourPhilips dealer. You can also contact the PhilipsConsumer Care Center in your country (see theinternational warranty leaflet for contact details).The following accessories and spare parts areavailable:-SH30 Philips Shaving Heads.-HQ110 Philips shaving head cleaning spray Recycling-Do not throw away the product with the normalhousehold waste at the end of its life, but handit in at an official collection point for recycling.By doing this, you help to preserve theenvironment.-This product contains a built-in rechargeablebattery which shall not be disposed of withnormal household waste. We strongly adviseyou to take your product to an official collectionpoint or a Philips service centre to have aprofessional remove the rechargeable battery.-Follow your country’s rules for the separatecollection of electrical and electronic productsand rechargeable batteries. Correct disposalhelps prevent negative consequences for theenvironment and human health.16EnglishRemoving the rechargeable batteryshaver or in the hair chamber. If so, remove them.2Remove the outer panels of the shaver with a screwdriver or other tool. If necessary, alsoremove additional screws and/or parts until you see the printed circuit board with therechargeable battery.3Remove the rechargeable battery.Warranty and supportIf you need information or support, please visit /support or read theinternational warranty leaflet.Warranty restrictionsThe shaving heads (cutters and guards) are not covered by the terms of the international warranty because they are subject to wear.TroubleshootingThis chapter summarizes the most commonproblems you could encounter with the appliance.If you are unable to solve the problem with the information below, visit/support17Englishfor a list of frequently asked questions or contact the Consumer Care Center in your country.Problem Possible cause Solution The appliance do es not shave as well as it used to.The shaving heads are damaged or worn.Replace the shaving heads.Long hairs obstruct the shaving heads.Clean the shaving heads one by one.You have not inserted the shaving heads properly.Make sure that the projections of the shaving heads fit exactly into the recesses.The appliance does not work when I press the on/off button.The rechargeable battery is empty.Recharge the battery.The temperature of the appliance is too high. In this case,the appliance does not work.As soon as thetemperature of the appliance has dropped sufficiently, you can switchon the appliance again.18English介绍感谢您的惠顾，欢迎光临飞利浦！ 为了让您能充分享受飞利浦提供的支持，请在 /welcome 上注册您的产品。
通井刮削一体工具说明书
通井刮削一体化工具使用说明书Xxx地址：XXX电话：XXX一、概述近年来，随着采油厂进入开采后期，作业井井次逐年增加，修井作业费用逐年上升。
通井工序和刮削工序是两趟独立完成的工序，一般配套使用（先通井再刮削），并且这两种工序在绝大多数措施井以及部分维护性作业井中使用较多。
我公司生产的通井刮削一体化工具可以将原来的两趟工序变成一趟来完成，这样既节约作业费用，又可以缩短占井周期。
二、主要参数及技术性能1、总长度：15502、公称直径：1183、工具耐压：35Mpa4、刮削启动压力：10～20Mpa5、投入钢球直径：406、上、下部螺纹：2 7/8TBG7、排量：4～12L/s8、刀片伸出最大外径：130排量为参考数据，可根据现场情况合理选择排量。
三、结构及工作原理3.1结构本一体工具主要有通井、试压、刮削三大功能。
其外部结构由通井筒体、刮削刀片组成，内部主要由上下接头、活塞、锁紧等结构组成。
在工具筒体上装有6片可在活塞槽内滑动的刮削刀片及弹簧，投球后密封中心通孔，活塞下行推升刮削刀片伸出，同时推动锁套前行与筒体锁死，活塞不再相对运动，活塞下行后液体可从其旁孔进入中心通道。
刮削刀片均开有槽，能轴向滑动及径向伸缩，其特殊的刀齿具有良好的刮削功能。
图：通井刮削一体化工具3.2工作原理通井：工具与钻杆或油管连接，下入井内进行通井作业，刮削刀片卡入活塞槽内，活塞内孔通畅，不能下行，刀片外径小于筒体直径，可正反循环洗井。
试压：投入钢球，打压至所需压力并稳压，以试验油管压力。
刮削：根据施工要求，投球后打压至10-20MPa，剪切销钉剪断，活塞下行，刮削片在弹簧作用下外伸，锁套在活塞的推动下进入本体内齿处，完全撑开锁套，活塞不再轴向移动，刮削进行。
上下刮削：刮削片被弹簧撑开后，管柱上下刮削，套管内径逐渐增大。
刮削刀刃是螺旋形的，上下刮削时内外两刃轮流工作。
右旋及上下往复刮削：在刮削井段内，可边右旋钻具，边上提或下放，无论向上或向下的旋转刮削，刀片所受的刮削阻力方向是一致的，没有旋松工具接头螺纹的力矩，这种刮削方式是安全可靠的。
5、通井、刮削、刮蜡解析
３）下入管柱 缓慢下入管柱，速度控制在 １０～２０ｍ／ｍｉｎ，下到距人 工井底１００ｍ时，下放速度不能 超过５～１０ｍ／ｍｉｎ，当通到 人工井底悬重下降１０～２０ｋＮ 时，连探三次，误差小于０．５ｍ 为人工井底深度。
常规作业工序 通井、刮蜡、刮削
４）管柱遇阻后的处理措施 如果通井规遇阻起出后，应当下入铅模 进一步通井检查，以确定井下套管变形或落 物情况。下铅模打印时要控制下管柱的速度， 接近遇阻点１０ｍ时下放速度不应超过５～ １０ｍ／ｍｉｎ。 遇阻后管柱悬重下降１５～３０ｋＮ， 特殊情况最大不得超过５０ｋＮ，加压打印 一次后即可起出管柱。
常规作业工序 通井、刮蜡、刮削
（２）如果管柱遇阻，不要顿击硬下， 当管柱悬重下降２０～３０ｋＮ时应停 止下管柱。开泵循环，然后顺管柱螺纹 旋转方向转动管柱缓慢下放，反复活动 管柱到悬重正常再继续下管柱。 （３）管柱下到设计刮削深度后，打入 井筒容积１．２～１．５倍的热水彻底 清除井筒杂物。
常规作业工序 通井、刮蜡、刮削
（２）对于有特殊要求的通 井操作，可以根据施工设计 的要求确定通井规的尺寸， 但其最大外径应该小于井内 套管柱中内径最小的套管内 径６ｍｍ。
常规作业工序 通井、刮蜡、刮削
２．通井程序及技术要求 １）组配管柱 按施工设计管柱图组配管柱，选择 的通径规直径要比套管内径小６～８ｍ ｍ，长度为５００～２０００ｍｍ。也 可以先选小直径的通井规通井，通过之 后，再选大直径的通井规。 ２）下井管柱的结构 自上而下为：油管（钻杆）、通井规。
常规作业工序 通井、刮蜡、刮削
３．刮削程序及技术要求 （１）下管柱要平稳，要控制下入速度为２ ０～３０ｍ／ｍｉｎ，下到距设计要求刮削 井段以上５０ｍ时，下放管柱的速度控制在 ５～１０ｍ／ｍｉｎ。在设计刮削井段以上 ２ｍ开泵循环，循环正常后，一边顺管柱螺 纹旋转方向转动管柱，一边缓慢下放管柱， 然后再上提管柱反复多次刮削，直到管柱下 放时悬重正常为止。

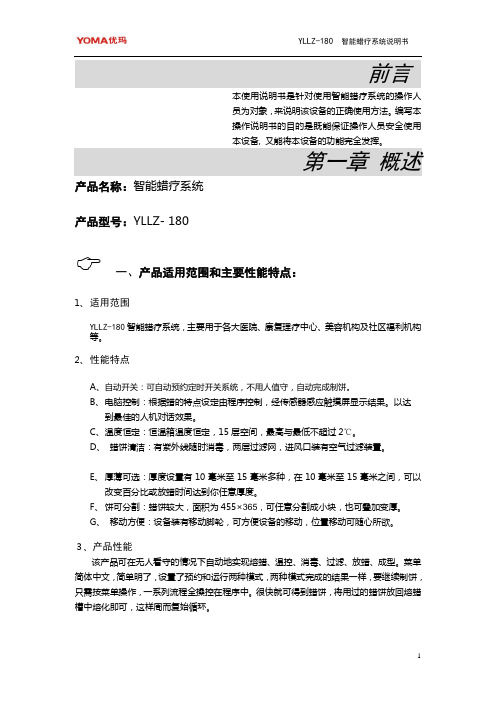

YLLZ-180 智能蜡疗系统说明书(2013.02.22)资料
前言本使用说明书是针对使用智能蜡疗系统的操作人员为对象，来说明该设备的正确使用方法。
编写本操作说明书的目的是既能保证操作人员安全使用本设备, 又能将本设备的功能完全发挥。
第一章概述产品名称：智能蜡疗系统产品型号：YLLZ- 180一、产品适用范围和主要性能特点：1、适用范围YLLZ-180智能蜡疗系统，主要用于各大医院、康复理疗中心、美容机构及社区福利机构等。
2、性能特点A、自动开关：可自动预约定时开关系统，不用人值守，自动完成制饼。
B、电脑控制：根据蜡的特点设定由程序控制，经传感器感应触摸屏显示结果。
以达到最佳的人机对话效果。
C、温度恒定：恒温箱温度恒定，15层空间，最高与最低不超过2℃。
D、蜡饼清洁：有紫外线随时消毒，两层过滤网，进风口装有空气过滤装臵。
E、厚薄可选：厚度设臵有10毫米至15毫米多种，在10毫米至15毫米之间，可以改变百分比或放蜡时间达到你任意厚度。
F、饼可分割：蜡饼较大，面积为455×365，可任意分割成小块，也可叠加变厚。
G、移动方便：设备装有移动脚轮，可方便设备的移动，位臵移动可随心所欲。
３、产品性能该产品可在无人看守的情况下自动地实现熔蜡、温控、消毒、过滤、放蜡、成型。
菜单简体中文，简单明了，设臵了预约和运行两种模式，两种模式完成的结果一样，要继续制饼，只需按菜单操作，一系列流程全操控在程序中。
很快就可得到蜡饼，将用过的蜡饼放回熔蜡槽中熔化即可，这样周而复始循环。
三、结构介绍1、熔蜡槽、2、恒温室、3、过滤网、4、紫外线灯、5、照明灯、6、操作面板、7、总电源开关、8、搁条、9、吸风口、10、出蜡嘴第二章 操作方法一、操作步骤①②③④⑤ ⑩⑨⑧⑦⑥向熔蜡槽放蜡。
第一步：向熔蜡槽放入56～58号的全精炼石蜡。
否则需调整设备工作参数。
在使用过程中，可以随时添加石蜡。
开关第二步：合上开关，将开关指向“ON”。
这时显示屏出现主菜单监控画面。
第三步：选择工作模式。
工作模式有二种：“预约”工作模式、“运行”工作模式。
40英寸拔藜刮藜刮草器说明书
REV120910YTL3110140” TOW-BEHIND DE-THATCHERInstruction & AssemblySAVE THESE INSTRUCTIONS FOR FUTURE REFERENCETable of ContentsGeneral Warnings and Rules (2)Controls and Features Identification (4)Component & Hardware .................................................................................... 5, 6 Assembly Instructions ........................................................................................ 7, 8 Operation Instructions.. (9)Maintenance (9)Parts Drawing & Parts List (10)Limited Warranty (11)12GENERAL WARNINGSREAD and UNDERSTAND this manual completely before using 40” De-Thatcher.Operator must read and understand all safety and warning information, operating instructions, maintenance and storage instructions before operating this equipment. Failure to properly operate and maintain thede-thatcher could result in serious injury to the operator or bystanders.Operation Warnings● Do not at any time carry passengers, sit or stand on the de-thatcher. ● Do not allow children to play on, stand upon or climb on the de-thatcher.● Always inspect the equipment before using to assure it is in good working condition. ● Replace or repair damaged or worn parts immediately.● Always check and tighten hardware and assembled parts before operation. ● Do not exceed equipment maximum tray load capacity of 70lb. ● Avoid large holes and ditches when operating the equipment. ● Be careful when operating the de-thatcher on steep grades (hill).● ALWAYS operate at reduce speed in rough terrain, along creeks, ditches and on hillsides. ● Do not operate close to creeks, ditches and public highways.● To avoid personal injury and/or equipment damage DO NOT EXCEED 5MPH . ● Always use caution when loading and unloading extra weight on the tray. ● Only tow with recommended vehicles (Lawn/Garden Tractors and ATVs). ● Always refer to the vehicle owner’s manual for proper towing. ● De-thatcher is not designed to be used with zero-turn mowers.●Always secure and lock de-thatcher to the vehicle hitch before operating. .Crush and Cut Hazards● Always keep hands and feet clear from moving parts while operating the equipment. ● Always clear and keep work area clean when operating.● Always wear safety gear, eye protection, gloves and work boots when operating the equipment.WARNINGThe warnings, cautions, and instructions outlined in this instruction manual cannot cover all possible conditions or situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product and must be supplied by the operator.PROP 65 WARNINGThis product contains chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm.Assembly Is RequiredThis product requires assembly before use. See “Assembly” section for instructions. Because of the weight and/or size of the 40” de-thatcher, it is recommended that another adult be present to assist with the assembly. INSPECT ALL COMPONENTS closely upon receipt to make sure no components are missing or damaged.3.Hazard Signal Word DefinitionsABOUT YOUR 40” TOW-BEHIND DE-THATCHERThis 40” Tow-behind de-thatcher has a roughed steel construction and is designed to remove dead grass, matted thatch, debris and large clippings. The 40” Tow-behind de-thatcher features a fully enclosed weight tray to increase the penetration depth. Never exceed the tray’s rated loaded capacity of 70lbs when operating the de-thatcher.Technical specifications on the 40” de-thatcher are provided in the “Specifications” section of this manual.DANGERWARNINGCAUTIONCAUTION used without the safety alert symbolindicates a potentially hazardous situation which, if not avoided, may result in property damage.CAUTION4Read this owner’s manual before operating the equipment. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference.1) De-thatcher Tray – Do not exceed maximum load capacity 70lb. 2) Lift Handle – Positions tines up or down. 3) Tines – Removes debris from the ground.4) Hitch – Pin-type design use only with approve vehicles. 5) Tires / Wheel – All terrain for easy maneuvering.1 25DE-THATCHER COMPONENT PARTS AND ASSEMBLYTake all parts out of the shipping crate and inspect components to ensure there are no missing pieces beforestarting to assemble the de-thatcher, follow the steps below.. CAUTIONRead and follow all instructions for assembly and operation. Failure to properly assemble this equipment could result in serious injury to the user or bystanders, or cause equipment damage .Ref# Description Qty Ref#Description Qty1 Tine Shield 1 6 Lift Plate 1 2Spring Tines 10 7 Hitch Bracket 2 3 Lift Handle 1 8 Hitch Mount Arms 2 4 Axle Bracket1 9 Spring Alignment Wires2 5Wheels26Ref# DescriptionQtyRef#Description QtyA Shoulder Bolt2 H Hex Nut M8 14 B Hex Bolt M8x50 2 I Hex Lock Nut M8 19 C Hex Bolt M8x30 2 J Hex Lock Nut M10 2 D Hex Bolt M8x20 15 K Lock Washer φ8 14 E Carriage Bolt M8x2514 L Big Flat Washer φ810 F Hitch Pin φ10 1 MAngle Bracket 4 G Hair Cotter Pin φ3 1 N Hitch Arm Mounting Bracket3FIGURE 1 2. Turn the tine shield upside down. See figure 2. FIGURE 2LIFT PLATEM8X20HEX BOLT M8 HEX LOCK NUT HITCH ARM MOUNT BRACKET M8 HEXLOCK NUT ANGLE BRACKETM8X20 HEX BOLT ANGLE BRACKETFIGURE 410. Tighten the bolts and nuts assembled in step 8. WASHER M8HEXNUT CARRIAGE BOLTM8 HEX LOCK NUT M8X20HEX BOLTHITCH MOUNT ARMSM8 HEX LOCK NUTФ3 HAIR COTTER PINHITCHBRACKET M8X30HEX BOLT M8X50HEX BOLT Ф10 HITCH PIN8FIGURE 6 13. Fasten ten spring tines to the square holes in FIGURE 7 AXLE BRACKET M8X20 HEX BOLT M8 HEX LOCK NUTLOCK NUT SHOULDER BOLT M8 HEX NUT Ф8 LOCK WASHER Ф8 BIG FLAT WASHER SPRING TINE M8X25CARRIAGE BOLT FIGURE 8 FIGURE 9 SPRING ALIGN WIRE GRIP LIFT HANDLE M8X25 CARRIAGE BOLT M8X20HEX BOLT M8 HEX LOCK NUT Ø 8 LOCK WASHERM8 HEX NUT9FIGURE 10CARRIAGE BOLT & HEX NUT HITCH MOUNTARMS FIGURE 11 MAINTENANCEPart NoDesc QtyPart NoDesc Qty1 Hitch Arm Mount Bracket 3 13 Hex Lock Nut M102 2 Hitch Bracket 2 14 Big Flat Washer Ø 8 103 Spring Tine10 15 Hex Bolt M8x20 15 4 Spring Alignment Wire 2 16 Lock Washer Ø 8 14 5 Wheel 2 17 Hex Nut M814 6 Tine Shield (40") 1 18 Hex Lock Nut M8 19 7 Hitch Mount Arm 2 19 Carriage Bolt M8x25 14 8 Lift Plat 1 20 Handle Grip 1 9 Axle Bracket 1 21 Hex Bolt M8x50 2 10 Lift Handle 1 22 Hex Bolt M8x30 2 11 Shoulder Bolt 2 23 Hitch Pin M8 (Flat Head) 1 12Angle Bracket424Hair Cotter Pin Ø31PART DRAWING AND PARTS LISTWarrantyFor one year from the date of purchase YTL International will replace for the original purchaser, or repair the plug aerator. The warranty will not apply to any unit which was not assembled correctly, misused, overloaded or which has been used or operated contrary to our instructions, or which has been repaired or altered by anyone other than an authorized representative.Warranty ExclusionsThis warranty does not cover cosmetic defects such as paint, decals or wear items such as tires. This warranty will not cover failures or problems due to acts of God, or events or forces beyond the control of the manufacturer.Normal Wear ExclusionThe aerator needs periodic service to perform well. This warranty does not cover repair when normal use has exhausted the life of a part or the equipment as a whole.Installation, Use and Maintenance ExclusionThis warranty will not apply to parts and/or labor if the aerator has been misused, neglected, involved in an accident, abused, loaded beyond its limits, modified or assembled incorrectly. Normal maintenance is not covered under this warranty.Limits of Implied Warranty and Consequential Damage ExclusionYTL International disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyone from using this aerator. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR.An exchange unit will be subject to the original warranty. The length of the warranty governing the exchanged unit will have the date as the purchase date of the original unit. This warranty gives you certain legal rights which may change from state to state. Your state may also have other rights you may be entitled to that are not listed within this warranty.Contact InformationYTL International17517 Fabrica Way, Suite JCerritos, CA 90703Phone: (888) 723-6534Phone: (562) 404-8016Fax: (562) 404-8013。
菲利普（Philips）Series 7000 电动刮头器说明书
Shaver series 7000SkinGlide RingsGentlePrecisionPRO BladesCleansing brush & beard stylerS7530/24Smooth glide, sensitive shavePhilips’ no 1 on sensitive skin*The Philips series 7000 protects against the key signs of skin irritation. SkinGliderings with anti-friction coating enable the shaver to glide effortlessly across yourface. Its blades cut close and protect skin, even with 3-day stubble.Designed for maximum skin comfortSkinGlide rings with anti-friction coating for smooth glide5 direction flex heads follow contours with less pressureAquatec gives you a comfortable dry or refreshing wet shaveA close and smooth shaveBlades protect skin and cut close even with 3-day stubbleEasy to useIntuitive display with 3-level battery indicator50 minutes of cordless shavingShaver can be rinsed clean under the tapComes with a 2-year guaranteeGet the most out of your shaverBeard styler with 5 settings for styling and pre-trimmingCleansing brush for deep, gentle cleansing & less irritationHighlightsSkinGlide ringsExperience a more comfortable shave with anti-friction SkinGlide rings coated with microspheres. Thousands of tiny glass-like rounded spheres reduce friction and surface resistance between the shaver and the skin.This gives the shaver a smooth, easy glide and helps protect against skin irritation.GentlePrecision PRO bladesOur updated cutting system has skin protection technology, designed to only cut hair not skin.V shaped blades guide the skin away from the blades for a close smooth shave - even on 3-day stubble.5-direction Dynamic Flex HeadsOur shaver heads flex easily in 5 directions,gently following all the contours of the face and neck. Less pressure is needed to shave closely and skin stress is minimized.Aquatec Wet & DryAdapt your shave routine to your needs. With the Aquatec Wet & Dry, you can go for a comfortable dry shave or a refreshing wet shave. You can shave with gel or foam even under the shower.3 level battery indicatorThe shaver's intuitive display shows relevant information, enabling you to get the bestperformance out of your shaver: 3-level battery indicator - cleaning indicator - battery low indicator - replacement head indicator - travel lock indicator50 minutes of cordless shavingThe energy-efficient, powerful lithium-Ion battery system gives you two convenient options: Charge it for an hour for up to 50minutes of shaving time, or a quick charge for one full shave. All Shaver series 7000 models are designed to operate only in cordless mode to ensure safety in wet environments.Fully washable shaverSimply open the shaver head to rinse itthoroughly under the tap.iF DESIGN AWARD 2016Shaver series 7000iF DESIGN AWARD 2016Philips Green LogoPhilips Green Products can reduce costs,energy consumption and CO2 emissions. How?They offer a significant environmentalimprovement in one or more of the Philips Green Focal Areas – Energy efficiency,Packaging, Hazardous substances, Weight,Recycling and disposal and Lifetime reliability.Red Dot Award 2016: WinnerShaver series 7000Red Dot Award 2016:WinnerSpecificationsShaving PerformanceSkinComfort: SkinGlide Rings, SkinProtection System, AquaTec Wet & DryShaving system: GentlePrecisionPRO Blades Contour following: 5-direction DynamicFlex HeadsAccessoriesSmartClick: Beard styler, Deep facial cleansing brushPouch: Travel pouchPowerRun time: 50 min / 17 shavesCharging: 1 hour full charge, Quick charge 5 min for 1 shave Battery Type: Lithium-ionAutomatic voltage: 100-240 VMax power consumption: 5.4 WStand-by power: 0.15 WEase of useDisplay: 3 level battery indicator, Battery lowindicator, Cleaning indicator, Replace shavingheads indicator, Travel lock indicatorWet & Dry: Wet and dry useCleaning: Fully washableOperation: Cordless use, Unplug before useDesignHandle: Ergonomic grip & handlingFrame color: SilverFront color: White mattService2-year guaranteeReplacement head: Replace every 2 yrs withSH70Cleansing brush head SH560: Replace every3-6 months* Philips' no.1 on sensitive skin - compared to other Philipsshavers* 91% of subjects experienced less skin irritation whenshaving with Philips S7000 with cleansing brush -tested in UK among dissatisfied blade users© 2019 Koninklijke Philips N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.Issue date 2019‑08‑01 Version: 8.5.1。
电动剃毛器使用说明书
电动剃毛器使用说明书使用电动剃毛器前，请仔细阅读以下使用说明，以确保正确使用并获得最佳剃毛效果。
1. 剃毛器概述电动剃毛器是一种方便、快捷的个人护理工具，适用于男女剃除多余体毛的需求。
本款剃毛器采用先进的刀片技术和高效的电动驱动系统，旨在提供舒适、无刺激的剃毛体验。
2. 准备工作在使用电动剃毛器之前，请确保您已经按照以下步骤完成准备工作：- 洗净要剃除的部位，并确保皮肤干燥。
- 确保剃毛器的刀头干净，并在使用前进行消毒，以防细菌感染。
- 为剃毛器充电，以确保足够的电量供使用。
3. 使用步骤请按照以下步骤正确使用电动剃毛器：步骤一：打开电源开关，确保剃毛器已经充电或连接电源。
步骤二：将剃毛器的刀头轻轻接触皮肤，以适当的角度和轻柔的动作顺着毛发生长方向移动。
步骤三：在剃毛过程中，请保持剃毛器的刀头与皮肤充分贴近，但不要过度施力，以避免皮肤刺激。
步骤四：剃毛完成后，关闭电源开关，并清洁刀头。
4. 清洁和维护为了保证电动剃毛器的持久和卫生使用，请按照以下清洁和维护指南进行操作：- 在每次使用后，使用清水或刷子清洁刀头，并确保刀头完全干燥。
- 定期更换刀头，以保持剃毛器的最佳剃毛效果。
- 在不适用时，存放在干燥清洁的环境中，避免阳光直射和水分。
5. 注意事项使用电动剃毛器需要注意以下事项：- 请避免在受伤、发炎或敏感的皮肤上使用剃毛器。
- 不要与水一起使用剃毛器，以避免发生电击事故。
- 剃毛器仅供个人使用，请不要与他人共用，以防交叉感染。
- 请将剃毛器放在儿童无法触及的地方。
以上就是电动剃毛器的使用说明书的详细内容，请仔细阅读并按照说明进行正确使用。
如有任何疑问或问题，请随时联系我们的客服部门。
谢谢选择我们的产品，祝您享受愉快的剃毛体验！。
菲利普Series 7000 电动刮头器说明书
S7886/50shave, advanced skin protectionwith SkinIQ TechnologyThe Philips Series 7000 glides smoothly over your skin, while cutting each hairclose - even on 3-day beards. Equipped with advanced SkinIQ technology, theshaver senses, adapts and guides on the correct motion, for better skin protection.A close shavePowerful performance in every passEngineered for precision and cutting efficiencyA djusts to your facial contour for optimal skin contactSkinIQ technologyReduces friction on skin to minimize irritationA djusts to your beard for effortless shavingEnhanced shaving experience with appGuides you to an improved technique with fewer passesFor a convenient shaveDeep cleaning in just 1 minute for hygienic shavingShave wet, dry and even under the showerPrecision trimmer integrated in the handleSustainabilityConvenient chargingHighlightsNano SkinGlidecoatingA protective coating lies between the shaver heads and your skin . Made of up to 250.000micro -tech beads per square centimetre ,improves gliding on skin by up to 30%***, to minimize irritation .SteelPrecisionbladesWith up to 90.000 cutting actions per minute ,the SteelPrecision blades shave close , cutting more hair per stroke *. The 45 high -performance blades are self -sharpening and made in Europe .Motion ControlsensorMotion -sensing technology tracks how you shave and guides you to a more e fficienttechnique . A fter just three shaves , the majority of men achieved a better shaving technique for fewer passes ****.Personalization viaappPerfect your shave by pairing your shaver with the Philips GroomTribe app . Shave by shave ,track the progress of your skin , personalize your shave and master your technique for a shave that 's as close as it is kind to skin .Power A daptsensorThe intelligent facial -hair sensor reads hair density 250 times per second . The technology dynamically auto -adapts cutting power for an e ffortless and gentle shave .360-D FlexingheadsFully flexible heads turn 360° to follow your facial contours . Experience optimal skincontact for a thorough and comfortable shave .Hair -Guide PrecisionheadsThe new shape of the shaving heads is engineered for precision . The surface isenhanced with hair guiding channels , designed to move hair into an e ffective cutting position .Cable -free Quick CleanPodPowerful cleaning pod thoroughly cleans and lubricates your shaver in just 1 minute , keeping it performing at its best for longer . The pod is 10x more e ffective than cleaning with water **.It is the world 's smallest cleaning pod , so you can store it easily and use it anywhere .Wet &DryA dapt your shaving routine to your needs . With Wet & Dry , you can go for a comfortable dry shave or a refreshing wet shave . You can shave with gel or foam even under the shower .SpecificationsA ccessoriesQuick Clean Pod: Yes, 1 cartridge included Integrated pop-up trimmerTravel and storage: Travel caseUSB-A cable included: Power adapter not includedSoftwareA pp: GroomTribe, Connects via Bluetooth®Smartphone compatibility: iPhone andA ndroid™ devicesPowerA utomatic voltage: 5 VCharging: 1 hour full charge, 5 min quick charge Battery type: Li-ion Run time: 60 minutesStand-by power: 0.04 WMax power consumption: 9 WDesignColor: Ink BlackHandle: Rubber gripShaving heads: A ngularService2-year warrantyReplacement head SH71: Replace every 2 yrswith SH71Shaving PerformanceShaving system: SteelPrecision bladesContour following: 360-D Flexing headsSkinIQ technology: Nano SkinGlide Coating,Motion Control sensor, Power A dapt sensorEase of useCharging: USB-A (A dapter not included)Wet & Dry: Wet and dry useCleaning: One-touch open, Fully washableDisplay: LED display, Battery level indicator,Motion control indicator, Travel lock* compared to non-coated material* *Tested versus Philips Series 3000.* **Based on Philips Series S7000 and GroomTribe appusers in 2019* ***comparing shaving debris after using cleaning fluid vs.water in the cartridge© 2023 Koninklijke Philips N.V.A ll Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.Issue date 2023‑10‑22 Version: 11.11.1E A N: 87 20689 00866 2 。
剃毛器使用说明书
剃毛器使用说明书欢迎您选择并购买我们的剃毛器！为了确保您能够正确、方便地使用剃毛器，我们特别编写了这份使用说明书。
请您仔细阅读本说明书，并按照指导进行操作，以确保使用过程安全有效。
一、产品特点1. 高效剃毛：本剃毛器采用高速旋转刀片和强劲动力设计，能够快速有效地剪短、剃净不同部位的毛发。
2. 多功能设计：本剃毛器配备不同规格、形状的剃头，适用于脸部、身体、腋下、腿部等不同部位的剃毛需求。
3. 充电便捷：本剃毛器采用可充电电池设计，充电时长为2小时，可连续使用45分钟。
无需频繁更换电池，使用更加便捷。
二、使用方式1. 充电：将充电线连接到剃毛器底部的充电孔上，插头连接到电源上。
充电过程中，指示灯将变为红色，充满电时指示灯将变为绿色。
2. 剃毛头选择：根据需要选择合适的剃毛头，根据不同部位和长度要求使用不同规格的剃毛头。
3. 开机：长按剃毛器上的开关按钮3秒钟，剃毛器将启动并开始工作。
4. 使用：将剃毛器轻轻平放在需要剃毛的部位上，以适当的压力和顺时针方向刮动，即可将毛发剃净。
5. 清理：使用完毕后，关闭剃毛器电源，将剃毛头轻轻取下，用清水冲洗干净，然后晾干。
三、注意事项1. 请确保剃毛器充电前已经完全关机，避免在充电过程中使用剃毛器。
2. 使用时，请确保剃毛器和剃毛部位都是干燥的，不得将剃毛器进水或在湿润的环境中使用。
3. 使用过程中如有刺痛或不适，请立即停止使用，并咨询专业人士的建议。
4. 长时间未使用，请及时充电保持电池寿命。
5. 使用后，请将剃毛器放在儿童无法触及的地方，以免发生意外。
四、常见问题解决1. 剃毛器工作时发出噪音：正常使用剃毛器时，会发出一定的工作声音，无需担心。
2. 剃毛效果不理想：请先确保剃毛头干净锐利，如果问题仍存在，请尝试更换剃毛头，并进行适当调整。
3. 充不了电或充电时间较长：请确保充电线连接牢固，并检查电源是否正常工作，如问题仍然存在，请联系售后服务。
感谢您选择使用我们的剃毛器！如有任何其他问题或需求，请随时与我们联系。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
TYGL-58井口抽油杆刮蜡器
使用说明书
扬州天业石油机械有限公司
TYGL-58井口抽油杆刮蜡器使用说明书
一、用途
井口抽油杆刮蜡器是用于修井作业起升抽油杆时，刮去抽油杆表面所结蜡质和其它
过其上的刮刀体和刮刀片抱合抽油杆并随抽油杆在底座内任意方向浮动，保证二刮刀片始终抱住抽油杆，随着抽油杆的提升，刮刀片刮掉抽油杆上的结蜡和其它胶结物。
当上提到抽油杆接头和扶正器时，接头和扶正器就推动刮刀体克服片簧弹力向外翻转使其通过。
当接头和扶正器通过后，刮刀体在片簧弹力作用下复位，继续抱合抽油杆刮蜡，当提升到不同规格尺寸的抽油杆时，对应抽油杆尺寸，通过刀片转动孔对称转动二刮刀片，使碰销进入限位孔，实现不更换刮刀片能对不同规格的抽油杆进行连续刮蜡。
改变片簧数量可调节刮刀体对抽油杆的抱紧力大小，平片簧上固定有胶皮，可刮去抽油杆上的部分原油，同时能挡住刮刀片刮下的蜡质掉到油管柱中，并引导刮刀片刮下的蜡质从排蜡孔中排出。
四、性能特点
1、浮动体上的刮刀体及刮刀片抱合抽油杆并随抽油杆的摆动而在底座中浮动，保证二刮刀片始终抱住抽油杆，随着抽油杆的提升进行自动刮蜡。
2、刮刀片设计为圆形多直径刀口，只需将刮刀片转动一定的角度，而无需更换刮刀片就可进行不同直径的抽油杆连续刮蜡。
3、刮刀体及刮刀片抱合抽油杆产生的刮蜡力，可通过改变片簧数量来调节刮刀体对抽油杆的抱紧力大小，以满足不同结蜡硬度的要求。
四、技术参数
1、规格型号：TYGL—58
2、刀片规格：DP7、DP8
2、适用抽油杆直径：
DP7：16 mm、19 mm、22 mm
DP8：19 mm、22 mm、25 mm
3、钢体最小通径：Ф58 mm
4、单刀体片簧数量：2-4
5、刮刀体抱紧力：≥20Kg
6、连接卡箍头规格：2 1/2"
6、外形尺寸：Ф250×268
7、重量：15Kg
五、操作要点
1、使用前，应检查刮刀片规格是否抽油杆杆柱直径吻合，刮刀片及刀刃、簧片、销轴、螺钉等另部件是否齐全完好。
2、安装前，将二刮刀片刀刃转动到与抽油杆尺寸相同的位置。
3、安装时，用专用杆件将二刮刀体向外张开，将抽油杆从刮蜡器中心穿过，将刮蜡器底座与井口用卡箍紧固连接。
4、提升抽油杆时，二刮刀片在片簧弹力的作用下，抱合抽油杆并随抽油杆的摆动而随浮动体在底座中自由浮动，若浮动不灵活，有卡滞现象时，应及时检查原因，予以排除。
5、当起升到不同规格直径的抽油杆时，同时转动二刮刀体内的刀片，转动方向见刮刀体上的钢印记号，并使碰销进入刀片限位孔，使其刀口直径与抽油杆直径相吻合。
6、抽油杆结蜡较严重时，可适当降低抽油杆提升速度，以提高刮蜡效果。
六、注意事项
1、当结蜡较硬刮刀片不能完全抱合抽油杆刮蜡时，或片簧弹力减小时，应及时更换片簧或增加片簧数量。
2、正常工作时，可只用一个排蜡孔，当刮下蜡质较多或排蜡不畅时，可同时打开二个排蜡孔，并及时清理排蜡孔，保证排蜡孔的畅通。
3、作业过程中，必须用吊卡卡住抽油杆放置在刮蜡器上，严禁将抽油杆接头直接压在刮蜡器刀体及刀片上。
4、每次用完后，应清理刮蜡器内腔及外部的原油、蜡质及其它污染物，并在销轴等活动部位涂润滑脂。
