鹏博士智能摄像机使用说明-安卓-IOS通用版版
选择”摄像机设 置” ～”wifi设置”-wifi
此界面会显示您 身边所有的无线 网络，请选择可 用的网络。
设备添加
例如，我身边可用 的无线网络是 “360-wifi-360”。
输入无线网络“360-wifi360”的密码，然后点击 确定。
网络后出现” √”，表示网 络已经选择，如果密码输 入正确，会在10秒后听到” 网络配置成功”的语音提示。
2
3.录像设置：设备中插入SD卡后，支持录像功能。或者是只对有物体经过时 录像，或者是一直录像，直到SD卡存储满了。
3
注1：本设备支持全天录像和移动侦测录像两种方式，移动侦测录像为只在监 控画面由变化时，才会录像。但是请注意，全天录像和移动侦测录像功能互 斥。 注2：只要插入存储卡，即使录像期间摄像机断网，也可以自动离线录像，并 保存在存储卡上。内存满后，新视频自动覆盖老视频。
账户注册
App首页介绍
1.登录时，要输入的用户名，为注册手机号码。 1 2 2.登录时，要输入的密码，为注册所设密码。 3.忘记密码：点击此项，输入注册账号，系统 会将用户密码发送到注册手机号所在手机上。 4.立即注册：点击进入用户账户注册页面
3
4
账户注册
账户注册页面 1.使用手机号码进行账户注册，填写真实有效 手机号码。
设备添加
通过无线配置方式添加设备
看到此界面时，请回到手机 桌面，依次打开设置～无线 局域网，找到与您的摄像头 对应的IPC-H开头的网络， 点击进行添加，初次添加密 码为12345678。
如红框内所示，连接的网络 以IPC-H开头，后面的数字 不同。
连接上IPC-H 的网络后， 回到左图所 示界面，并 点击”局域网 搜索”
1 2
2.为您的账户设置一个密码，8-16位，数字、 字母均可。
3
3.点击”发送验证码”后，在您填写的手机号码” 信息”中找到验证码，并填写到此处。 完成以上三个步骤后，点击进行注册页面跳 转
1
设备添加
2
3
1.点击后跳转至下一界面 2.点击后跳转至下跳转界 面相同
设备使用
简单设置菜单调取
1
2
3
1. 点击向左的箭头，可以调取 简易设置页面。
2. 点击向右的箭头，可以收回简 易设置页面 3. 点击此图标，可以修改摄像头 设备密码，对设备进行加密，放 置他人私自添加
注：第一个图标为”重新 添加设备”功能，若添加 设备后长时间无法从离线 状态转为在线，请点击此 按钮，可以加快转为在线 状态速度。
智能摄像头使用说明
注册使用前说明-安卓版
1.每个产品附赠一张8G内存卡，请先将内存卡插入卡槽中。面对摄像机时，打开其 右侧’耳朵盖’，即可看到内存卡卡槽。 2.初次添加摄像头时，在将摄像头插电后，请等待1分钟，然后按住摄像头背面圆 形”RESET”键，直到听到”设备重置”提示音后松手。 3.账户注册需使用真实有效手机号码。 4.添加摄像头完成后，可以在设置选项中查看并修改摄像头的设备密码。此密码用 于防止他人私自添加您的摄像头，从而窥探您的隐私。默认设备密码为12345678， 请您添加产品后，立即修改此密码。若其他人想要添加您的摄像头时，如果您允 许，请将您修改的设备密码告知于他。 5.第一位添加摄像头的用户，须采用”无线配置”方式添加。第二位及以后用户，须 采用”绑定设备”方式添加。 6.设备添加时，需要使用无线网络，请确保您身边有可用的无线网络。
注：图标”7”中，如图示状态时，松开双向对讲按钮，可以实现监听模式， 即此时在摄像头端发出声音，可以在手机端听到，反之不行。
设备使用
屏幕全屏与退出全屏
1 2
3
4
5
2.点击进行监控画面和设备参数设置。 1.点击’1’处所示图标，进 入全屏。 3.监控画面拍照。 4.长按实现对讲功能 5.双向对讲/单向通话/监听模式功能切换。
1
2.点击此图标，可以查看移动侦测报警记录。 3.点击此图标，可以进行设备参数详细设置。
4.点击此图标，对当前镜头内的图像进行截屏。
2 7 3
5.点击此图标，查看步骤’4’中截到的画面。
6.点击此图标，可以实现手机app端和摄像头硬件端的双向对讲，即任何一 方都可说话，另一方也都能听到。
4 6
5
7.点击此图标，可以实现手机app端和摄像头硬件端的单向对讲，即只能 app端说话，摄像头端收听，反之不行。
点击左图编码，等待界面 跳转。（设备不同，编码 不同）
设备添加
在此界面，显示摄像 机信息已经获取，此 时在密码栏中输入设 备添加密码，默认为 12345678，然后点击 ”添加”，手机与摄像 头之间”直连”成功。
1
点击”1”处所示空白区 域，如下操作可以把 已经直连的摄像头加 入互联网。
点击红框内”设置”按钮。
设备使用
视频设置参数详细设置
1.对比度：用于调节显示画面舒适度的参数 2.亮度：调节不同的数值，获得合适的屏幕亮度。 3.饱和度：调节显示画面质量的参数 4.锐度：调节显示画面清晰度的参数 5.画面镜像：显示画面左右翻转。 6.夜视优化：摄像头支持夜视功能，但是夜视不如白天时候清晰。开启此功 能，让夜视画面显得好一些。 7.分辨率：图像质量参数，可以调节画面质量是标清、高清还是超清。从标 清到超清，单位时间内耗费流量递增，因此越来越需要好的信号。 8.时间同步：手机上有一个时间，智能摄像头本身有一个时间，点击此项功 能，两个时间统一，且以手机上的时间为准。 9.恢复设置：恢复到出厂设置。
设备使用
设备设置参数详细设置
1.修改密码：第一个人添加了此设备后，其他人再次想要添加的时候，除了输对 wifi密码，还需要输入一个连接设备的暗号密码，这个暗号，就是此处的这个设备 码。此码可以修改。
1
2.事件设置：打开此选项，当有物体从摄像头前经过时，系统会侦测到，并 且以告警信息形式推送到手机上，供用户查阅，会记录侦测到的时间。
设备使用
简单设置菜单调取 1.当设备显示离线时，点击进行重新连接。
1 2 3
2.点击进行简单参数设置，如右图。 可以设置他人添加此设备的允许密 码，改变设备的名称。 3.点击可以删除当前设备。
设备在线状态下，点击显示 界面任意一处，直接进入使 用界面
设备使用
功能按钮含意解释
1.点击此图标，可以使显示界面最大化。
智能视频监控系统SmartPSS使用说明书
2.1 安装SmartPSS............................................................................................................................................ - 2 2.2 卸载SmartPSS............................................................................................................................................ - 6 -
I
网络视频监控系统 SmartPSS 使用说明书
目录
目录
前言 ..................................................................................................................................................... I
1 概述 ............................................................................................................................................ - 1 -
博世视频监控管理系统软件说明书
u 一流的博世CCTV 设备和UL 防盗面板集成u 确保连续操作的最高恢复能力u借助报警优先级和可选的用户组分发功能，出色地处理报警u 先进的智能视频分析(IVA)和取证搜索u通过RTSP 、HTTP 、JPEG 、ONVIF Profile S 支持第三方摄像机Bosch Video Management System 是一款独特的企业级IP 视频安防解决方案，可以跨任何 IP 网络提供无缝的数字视频、音频及数据管理。
它提供了最好的 VMS 来与博世CCTV 设备配套，以便充分利用博世摄像机和录像解决方案的独特功能。
另外，它还提供了用于集成其他系统和制造商的接口和标准。
系统带有独特的嵌入式恢复能力。
即使管理服务器和录像服务器同时发生故障，系统也可保持操作和运行。
先进的智能视频分析和无与伦比的录像技术（可利用单台服务器管理多达 2000 台摄像机）可显著降低总拥有成本。
Bosch Video Management System 提供非常灵活的系统设计：•专业版：单站点系统1 到 2000 台即装即用型摄像机。
只有此系统支持 BIS-BVMS 连接。
•Enterprise System ：支持跨不同时区的地铁、机场和其他大型工业设施的多站点需求。
支持跨不同法人实体的可控监控。
每个用户组可以在 10 个子系统中监控多达 10,000 台摄像机，从而总共可以监控200,000 台摄像机。
每个用户组有多达 30 个子系统，每个子系统的摄像机不到100 台，可允许每个操作员同时访问多达 30 台Management Server 计算机。
Bosch Video Management System 安装在 Microsoft Windows 操作系统上。
我们推荐使用 Bosch 工作站和服务器。
它们经过了全面的测试和优化，非常适合运行 Bosch Video Management System 。
除博世 ST 标准销售条款和条件外，博世软件维护协议(Bosch Software Maintenance Agreement) 是保持您的VMS 始终最新的最佳选择。
Bosch Video Management System 操作手册说明书
4 在工具栏上单击
。
或 4 按 F1 键获取任意程序窗口或对话框的帮助信息。
查找信息
您可通过数种方法在联机帮助中查找信息。
要在联机帮助中查找信息： 1. 在 帮助 菜单上，单击 帮助。 2. 如果未显示左窗格，请单击显示按钮。 3. 在帮助窗口中执行下列操作：
单击：
操作：
目录
显示联机帮助目录。 单击各章节以显示链接至相关主题的页面，然后单击每个 页面以在右窗格中显示相应的主题内容。
允许您选择所需的图像窗格数。
显示图像窗格。 允许排列图像窗格。 显示摄像机、地图、图像、文档（HTML 文件）。
显示系统生成的所有报警。 允许您接受或清除报警，或者通过向维护人员发送电子邮件 等方式启动工作流。
2013.07 | V1 | Operator Client
操作手册
Bosch Sicherheitssysteme GmbH
Management Server 选项卡不可见。
允许您控制 PTZ 摄像机。
云台控制窗口
11 逻辑树窗口
显示您的用户组有权访问的设备。 允许您选择适当的设备 以将其分配至某一图像窗格。
允许您根据需要组织逻辑树的设备。
收藏夹树窗口
书签窗口
允许管理书签。
显示站点地图。 允许拖动地图以显示此地图的某一特定部
索引 搜索
搜索特定的字词，或从索引关键字列表中进行选择。 双击关键字可以在右窗格 中显示相应的主题。
在主题内容中查找字词。 在文本字段中输入字词，按 ENTER 键，然后从主题列 表中选择您需要的主题。
用户界面上的文本采用粗体格式。 4 箭头表示您可以单击带下划线的文本，或单击应用程序中的项目。
PBOX系列一体化便携式无线视频监控前端用户手册
目录
目录
PBOX 系列一体化便携式无线视频监控前端用户手册
1 产品简介............................................................. 1
1.1 功能概述............................................................ 1 1.2 设备型号............................................................ 2 1.3 设备外观............................................................ 2 1.4 技术指标............................................................ 4
HD2 HD4 HD6 HD8设备
3 G基 站
苏州科达科技有限公司
PBOX PBOX
PBOX
声明
苏州科达科技有限公司 版权所有，保留一切权利 未经本公司明确书面许可，不得以任何形式或通过任何电子或机械方式，复制或传播本文档的任 何部分用于任何用途。在法律上，复制包括翻译为其它语言或转换为其它格式。 我们尽最大努力来保证本手册信息的正确性。KEDACOM 不对其中的印刷或书写错误负责。本文 信息如有更改，恕不另行通知。获取最新信息请登录 。
2 安装环境............................................................. 7
2.1 安全信息............................................................ 7 2.2 环境指标............................................................ 7 2.3 设备维护............................................................ 7
Bosch Security Systems 软件手册 AM18-Q0635说明书
Bosch Security Systems
软件手册
目录 | zh 5
37 37 37 37 37 37 38 39 39 39 39 39 39 39 39 39 40 40 40 41 41 41
42 42 42 42 42 42 42 42 42 42 43 44 45 45
AM18-Q0635 | v5.6 | 2013.01
摄像机浏览器界面
NIN-832 FW5.7
zh 软件手册
摄像机浏览器界面
目录
1 1.1 1.2 1.2.1 1.3
浏览器连接 系统要求 建立连接 摄像机中的密码保护 受保护的网络
2
系统概述
2.1
实况页面
2.2
录像
2.3
设置
3 3.1 3.1.1 3.1.2 3.1.3 3.1.4 3.1.5 3.1.6 3.1.7 3.1.8 3.1.9 3.1.10 3.1.11 3.2 3.2.1 3.2.2 3.2.3 3.2.4
设置
Bosch Security Systems
软件手册
目录 | zh 3
12 12 13 13 13
14 14 14 14
15 15 15 16 17 18 19 20 20 20 20 20 21 22 22 23 23 24
26 26 27
AM18-Q0635 | v5.6 | 2013.01
网络 网络访问 自动 IP 分配 IP V4 地址 IP V6 地址 DNS 服务器地址 视频传输 TCP 速率控制 HTTP 浏览器端口 HTTPS 浏览器端口 RCP+ 端口 1756 Telnet 支持 接口模式 ETH 网络 MSS [ 字节 ] iSCSI MSS [ 字节 ] 网络 MTU [ 字节 ] 启用 DynDNS 提供商 主机名称 用户名 密码 立即强制注册 通知邮件 状态 高级 SNMP
bosch安全 FLEXIDOME IP内部4000 HD安全摄像头说明书

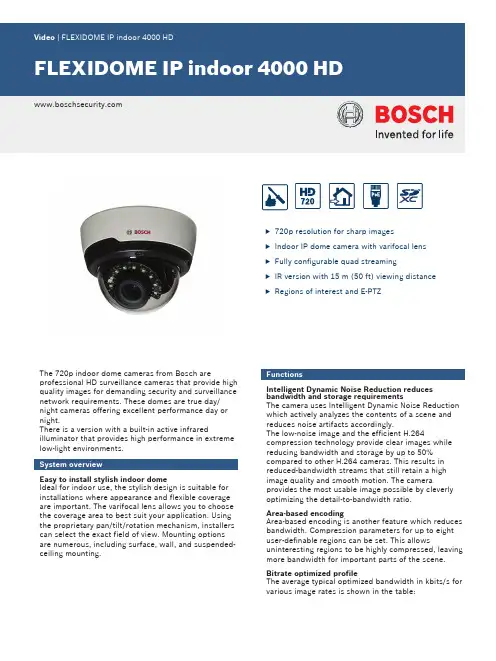

u720p resolution for sharp imagesu Indoor IP dome camera with varifocal lensu Fully configurable quad streamingu IR version with 15 m (50 ft) viewing distanceu Regions of interest and E-PTZThe 720p indoor dome cameras from Bosch areprofessional HD surveillance cameras that provide highquality images for demanding security and surveillancenetwork requirements. These domes are true day/night cameras offering excellent performance day ornight.There is a version with a built-in active infraredilluminator that provides high performance in extremelow-light environments.System overviewEasy to install stylish indoor domeIdeal for indoor use, the stylish design is suitable forinstallations where appearance and flexible coverageare important. The varifocal lens allows you to choosethe coverage area to best suit your application. Usingthe proprietary pan/tilt/rotation mechanism, installerscan select the exact field of view. Mounting optionsare numerous, including surface, wall, and suspended-ceiling mounting.FunctionsIntelligent Dynamic Noise Reduction reducesbandwidth and storage requirementsThe camera uses Intelligent Dynamic Noise Reductionwhich actively analyzes the contents of a scene andreduces noise artifacts accordingly.The low-noise image and the efficient H.264compression technology provide clear images whilereducing bandwidth and storage by up to 50%compared to other H.264 cameras. This results inreduced-bandwidth streams that still retain a highimage quality and smooth motion. The cameraprovides the most usable image possible by cleverlyoptimizing the detail-to-bandwidth ratio.Area-based encodingArea-based encoding is another feature which reducesbandwidth. Compression parameters for up to eightuser-definable regions can be set. This allowsuninteresting regions to be highly compressed, leavingmore bandwidth for important parts of the scene.Bitrate optimized profileThe average typical optimized bandwidth in kbits/s forvarious image rates is shown in the table:Multiple streamsThe innovative multi-streaming feature delivers various H.264 streams together with an M‑JPEG stream. These streams facilitate bandwidth-efficient viewing and recording as well as integration with third-party video management systems.Depending on the resolution and frame rate selected for the first stream, the second stream provides a copy of the first stream or a lower resolution stream.The third stream uses the I-frames of the first stream for recording; the fourth stream shows a JPEG image at a maximum of 10 Mbit/s.Regions of interest and E-PTZRegions of Interest (ROI) can be user defined. The remote E-PTZ (Electronic Pan, Tilt and Zoom) controls allow you to select specific areas of the parent image. These regions produce separate streams for remote viewing and recording. These streams, together with the main stream, allow the operator to separately monitor the most interesting part of a scene while still retaining situational awareness.Built-in microphone, two-way audio and audio alarm The camera has a built-in microphone to allow operators to listen in on the monitored area. Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Audio detection can be used to generate an alarm if needed.If required by local laws, the microphone can be permanently blocked via a secure license key. Tamper and motion detectionA wide range of configuration options is available for alarms signaling camera tampering. A built-in algorithm for detecting movement in the video can also be used for alarm signaling.Storage managementRecording management can be controlled by the Bosch Video Recording Manager (VRM) or the camera can use iSCSI targets directly without any recording software.Edge recordingThe MicroSD card slot supports up to 2 TB of storage capacity. A microSD card can be used for local alarm recording. Pre-alarm recording in RAM reduces recording bandwidth on the network, or — if microSD card recording is used — extends the effective life of the storage medium.Cloud-based servicesThe camera supports time-based or alarm-based JPEG posting to four different accounts. These accounts can address FTP servers or cloud-based storage facilities (for example, Dropbox). Video clips or JPEG images can also be exported to these accounts.Alarms can be set up to trigger an e-mail or SMS notification so you are always aware of abnormal events.Easy installationPower for the camera can be supplied via a Power-over-Ethernet compliant network cable connection. With this configuration, only a single cable connection is required to view, power, and control the camera. Using PoE makes installation easier and more cost-effective, as cameras do not require a local power source.The camera can also be supplied with power from+12 VDC power supplies.For trouble-free network cabling, the camera supports Auto-MDIX which allows the use of straight or cross-over cables.True day/night switchingThe camera incorporates mechanical filter technology for vivid daytime color and exceptional night-time imaging while maintaining sharp focus under all lighting conditions.Hybrid modeAn analog video output enables the camera to operate in hybrid mode. This mode provides simultaneous high resolution HD video streaming and an analog video output via an SMB connector. The hybrid functionality offers an easy migration path from legacy CCTV to a modern IP-based system.Access securityPassword protection with three levels and 802.1x authentication is supported. To secure Web browser access, use HTTPS with a SSL certificate stored in the camera. The video and audio communication channels can be independently AES encrypted with 128-bit keys by installing the optional encryption site license. Complete viewing softwareThere are many ways to access the camera’s features: using a web browser, with the Bosch Video Management System, with the free-of-chargeBosch Video Client or Video Security Client, with the video security mobile app, or via third-party software. Video security AppThe Bosch video security mobile App has been developed to enable Anywhere access to HD surveillance images allowing you to view live images from any location. The App is designed to give you complete control of all your cameras, from panning and tilting to zoom and focus functions. It’s like taking your control room with you.This App, together with the separately available Bosch transcoder, will allow you to fully utilize our dynamictranscoding features so you can play back images even over low-bandwidth connections.System integrationThe camera conforms to the ONVIF Profile S specification. Compliance with this standard guarantees interoperability between network video products regardless of manufacturer.Third-party integrators can easily access the internal feature set of the camera for integration into large projects. Visit the Bosch Integration Partner Program (IPP) website () for more information.HD standardsComplies with the SMPTE 296M-2001 Standard in:–Resolution: 1280x720–Scan: Progressive–Color representation: complies with ITU-R BT.709–Aspect ratio: 16:9–Frame rate: 25 and 30 frames/sDimensions mm (inch)•Camera•Screw kit•Installation documentation Technical specificationsSensitivity – (3200K, reflectivity 89%, F1.5, 30IRE)Ordering informationFLEXIDOME IP indoor 4000 HDProfessional IP dome camera for HD indoor surveillance. Varifocal 3.3 to 10 mm f1.5 lens; IDNR; day/night; H.264 quad-streaming; cloud services; motion/tamper/audio detection; microphone; 720p Order number NIN-41012-V3FLEXIDOME IP indoor 4000 IRProfessional IP dome camera for HD indoor surveillance. Varifocal 3.3 to 10 mm f1.5 lens; IDNR; day/night; H.264 quad-streaming; cloud services; motion/tamper/audio detection; microphone; 720p; infraredOrder number NII-41012-V3AccessoriesNDA-LWMT-DOME Dome Wall MountSturdy wall L-shaped bracket for dome cameras Order number NDA-LWMT-DOMENDA-ADTVEZ-DOME Dome Adapter BracketAdapter bracket (used together with appropriate wall or pipe mount, or surface mount box)Order number NDA-ADTVEZ-DOMEVEZ-A2-WW Wall MountWall mount (Ø145/149 mm) for dome cameras (use together with appropriate dome adapter bracket); whiteOrder number VEZ-A2-WWVEZ-A2-PW Pipe MountPendant pipe mount (Ø145/149 mm) for dome cameras (use together with appropriate dome adapter bracket); whiteOrder number VEZ-A2-PWLTC 9213/01 Pole Mount AdapterFlexible pole mount adapter for camera mounts (use together with the appropriate wall mount bracket). Max. 9 kg (20 lb); 3 to 15 inch diameter pole; stainless steel strapsOrder number LTC 9213/01NDA-FMT-DOME In-ceiling mountIn-ceiling flush mounting kit for dome cameras(Ø157 mm)Order number NDA-FMT-DOMENDA-ADT4S-MINDOME 4S Surface Mount BoxSurface mount box (Ø145 mm / Ø5.71 in) for domecameras (use together with the appropriate domeadapter bracket).Order number NDA-ADT4S-MINDOMEMonitor/DVR Cable SMB 0.3M0.3 m (1 ft) analog cable, SMB (female) to BNC(female) to connect camera to coaxial cableOrder number NBN-MCSMB-03MMonitor/DVR Cable SMB 3.0M3 m (9 ft) analog cable, SMB (female) to BNC (male)to connect camera to monitor or DVROrder number NBN-MCSMB-30MNPD-5001-POE Midspan PoE InjectorPower-over-Ethernet midspan injector for use with PoEenabled cameras; 15.4 W, 1-portOrder number NPD-5001-POENPD-5004-POE Midspan PoE InjectorPower-over-Ethernet midspan injectors for use withPoE enabled cameras; 15.4 W, 4-portsOrder number NPD-5004-POERepresented by:North America:Europe, Middle East, Africa:Asia-Pacific:China:Latin America and Caribbean:Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, New York, 14450, USA Phone: +1 800 289 0096 Fax: +1 585 223 9180***********************.com Bosch Security Systems B.V.P.O. Box 800025617 BA Eindhoven, The NetherlandsPhone: + 31 40 2577 284Fax: +31 40 2577 330******************************Robert Bosch (SEA) Pte Ltd, SecuritySystems11 Bishan Street 21Singapore 573943Phone: +65 6571 2808Fax: +65 6571 2699*****************************Bosch (Shanghai) Security Systems Ltd.203 Building, No. 333 Fuquan RoadNorth IBPChangning District, Shanghai200335 ChinaPhone +86 21 22181111Fax: +86 21 22182398Robert Bosch Ltda Security Systems DivisionVia Anhanguera, Km 98CEP 13065-900Campinas, Sao Paulo, BrazilPhone: +55 19 2103 2860Fax: +55 19 2103 2862*****************************© Bosch Security Systems 2016 | Data subject to change without notice 188****7691|en,V8,30.May2016。
