道康宁硅油参数(英文)
DC-193道康宁水溶性硅油
广 州 诗 பைடு நூலகம் 化 工 提供参考
特性： 用量少 和多种化妆品成分相容 形成密集、稳定的泡沫 发用定型产品树脂增塑剂 乳化剂
优点： 1.使头发更加丝滑、柔软 2.护肤用品保湿剂及润肤剂
应用： 可用于多种个人护理品中，包括:喷发胶和其它免洗护发产品，，洗发香波，护肤乳液，
剃须膏等 储存与有效期：
当在 11°C ( 52°F)以下储存时，道康宁 193C 硅油将变浑浊并凝固成柔软蜡状。由于有机 硅乙二醇共聚物的特点，加热又可融化成液体，重复凝固/熔解多次不会影响产品性能。在 25°C (77°F)或以下温度时，原密封包装，产品自生产之日起有效期为 30 个月。 包装：200kg/桶

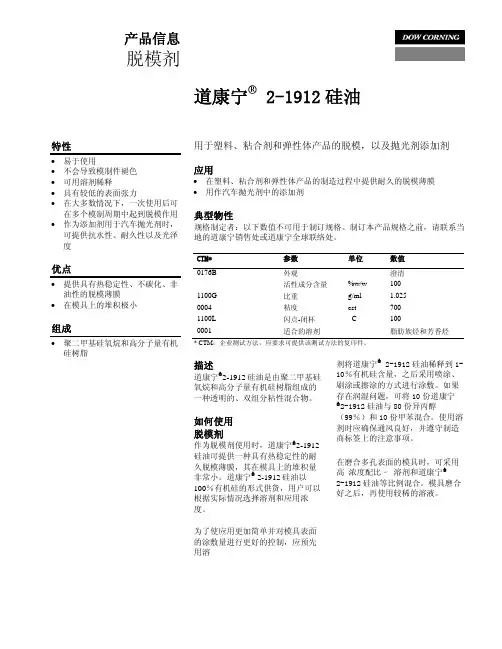

道康宁2-1912
脱模剂
道康宁® 2-1912 硅油
特性
易于使用 不会导致模制件褪色 可用溶剂稀释 具有较低的表面张力 在大多数情况下，一次使用后可
在多个模制周期中起到脱模作用 作为添加剂用于汽车抛光剂时，
可提供抗水性、耐久性以及光泽 度
优点
提供具有热稳定性、不碳化、非 油性的脱模薄膜
使用须知
本资料不包括所需的产品安全使用 信息。使用前，请阅读安全使用所 需的产品说明书和产品安全资料、 容器标签以及身体和健康危害资 料。安全数据表可向当地的道康宁 销售代表索取。
操作注意事项
产品使用前，产品安全数据表可在 当地道康宁办事处取得。
注意：本资料不包括安全使用本产 品所需的安全信息。使用前，请阅 读产品及其产品安全数据表及包装 标签，以获取有关产品的安全使 用、危害身体及健康的资料。
虽然并非关键因素，但热固化有助 于提高脱模效果和脱模薄膜的耐久 性。建议在 93-204℃ (200-400℉）温度下对模具进行加 热，持续 5-10 分钟。
抛光剂添加剂
作为汽车抛光剂中的一种成分，道 康宁®2-1912 硅油可提供良好的光 泽度、抗水性、耐洗涤剂性以及耐 久性，同时保持良好的易于使用和 擦除特性。硅油与大多数油包水或 水包油系统相容。加入少量氨基有 机硅（如道康宁®536 硅油）或与各 种有机蜡复配使用，可以提高其耐 久性。 道康宁®2-1912 硅油在汽车抛光剂 中的使用量为 1-5％（重量百分 数）。本产品在具体抛光剂配方中 的最佳用量应由最终用户确定。
健和环境信息
为帮助客户安全使用产品，道康宁 公司在各地区设立了严格的产品服 务组织，并有一组产品安全和规章 规范符合（PS&RC）专家来服务客 户。
道康宁BY16-880羧基硅油
储存与有效性
当存储在原装未开封容器中且存储 温度不超过 30°C （86°F）时， 本产品自生产之日起使用寿命为 9 个月。
包装
本产品包装为 180kg。
若道康宁违反该保证，您所能获得 的唯一补偿，仅限于退还购货价款 或替换不符合保证的任何产品。
道康宁特别声明，不作任何其他明 示或暗示对特定目的适用性或适销 性的保证。
道康宁声明不对任何间接或附带性 的损害负责。
全心助您创未来。™
2010 年 5 月 17 日 文件编号.：22-1863-40
基于诚实信用的前提下，此处提供 的信息应被认为是准确无误的。然 而，由于使用本公司产品的条件和 方法非我们所能控制，本信息不能 取代客户为确保我们的产品安全、 有效、并完全满足于特定的最终用 途，而进行的测试。我们所提供的 使用建议，不得被视为侵犯任何专 利权的原因。
道康宁的唯一保证是，我们的产品 满足发货时的销售规格。
使用限制
本产品未被测试或陈述为适用于医 用或药用。
健康和环境信息
为帮助客户安全使用产品，道康宁 公司在各地区设立了严格的产品服 务组织，并有一组产品安全和规章
规范符合（PS&RC）专家来服务客 户。
有关详情，请访问我们的官方网站 ，或咨询您当地 的道康宁代表。
有限保证信息—请仔细阅读
参数 外观 粘度 折射率 COOH
单位 cSt %
数值 浅稻草色/清澈 2500 1.408 1.3
描述
道康宁® BY16-880 是一种羧基功能 聚二甲基硅氧烷，容易形成微乳 液。
道康宁乳化硅油（DC1785,DC1491,DC7137）
道康宁乳化硅油（DC1785,DC1491,DC7137）
DC1785
道康宁1785乳液是含60%的小粒径高分子量聚二甲基硅氧烷醇阴离子乳液。
道康宁1785乳液是一种极好的调理添加剂，应用于二合一香波中可以改善干、湿梳理性同时亦可增加头发光泽，并给头发一种柔软的感觉。
应用于二合一沐浴露，可让皮肤更加柔橄，不干燥并且提供丝般感受。
本乳液对泡沫的数量仅有徽小的形响并且不影响泡沫性质。
道康宁1785乳液是水分散型的，易于使用。
适合在45°C以下添加，以降低乳液发生不稳定现象的风险。
推荐用量为2-4%。
包装规格：200KG/桶
DC1491
DC-1491是大粒径高分子乳化硅油，具特强的调理性能，可改善干湿发梳理性，保护受损头发，提供头发滑顺及丝绸般触感，防止头发分叉打结，亦可滋润皮肤，赋予丝绸般触感，洗后不紧绷。
明显的湿梳性调理性。
常用于二合一香波、润丝、护发素、二合一沐浴露
建议用量：2-4%
包装规格：200KG/桶
DC7137
大颗粒乳化高分子硅油DC-7137，大粒径,易破乳,保护头发避免受损，用于香波中提供特强调理性，改善干湿梳理性，保护头发，避免受损，增加光泽，使头发柔软，用于护发素中可增强光亮度和梳理性，用于浴液及护肤产品中，使皮肤柔嫩不干燥。
60%非离子型大粒径硅氧烷乳化物，具特强的调理性能，可改善干湿发梳理性，保护受损头发，提供头发滑顺及丝绸般触感，防止头发分叉打结，亦可滋润皮肤，赋予丝绸般触感，洗后不紧绷。
常用于二合一香波、润丝、护发素、二合一沐浴露
包装规格：200KG/桶。
道康宁二甲基硅油5000~6000cs
道康宁的唯一保证，是产品满足发 货时的销售规格。
若道康宁违反该保证，您所能获得 的唯一补偿，仅限于退还购货价款 或替换不符合保证的任何产品。
道康宁特别声明，不作任何其他明 示或暗示对特定目的适用性或适销 性的保证。
道康宁声明，不对任何间接或附带 性的损害负任何赔偿责任。
XIAMETER® PMX-200 硅油，5,000-60,000 cSt Ref. No. 95-517A-40
–
7.4
高 高 高 差 差
60,000 cSt
0.976 1.4036
5 >326 (>620)
微量 -23 (-9) -41 (-42)
21.5 0.23 -1.6
0.61 0.00096
–
7.4
高 高 高 差 差
1 熔点温度是典型值，可能会因为分子分布而发生一定的改变（特别是 50 cSt）。如果熔点对于您的应用非常关键，则应对几个批次进行全面评估。 2 由于冷却速度不同，此试验方法所得到的流点可能低于这些硅油熔化的温度。 3Fedors 方法：R.F. Fedors，聚合物工程与科学，1974 年 2 月。
在 25°C (77°F)时的粘度稳定性
粘度温度系数
膨胀系数
cc/cc/°C
50°C (122°F) 时的热导率 溶解度参数 3
g cal/cm·sec·°C
典型溶剂中的溶解度
氯化溶剂
芳烃熔剂
脂肪族溶剂
无水酒精
水
5,000 cSt
完全透明 0.975 1.403 –
>321 (>610) – –
-50 (-58) 21.4 – –
0.61 0.00096 0.00038
PMX-200硅油(英文)
XIAMETER® PMX-200 Silicone Fluid, 50-1,000 CS INCI Name: DimethiconeColorless, clear polydimethylsiloxane fluidFEATURES∙Ease of application and rubout∙Ease of buffing∙Enhances color∙High water repellency∙High compressibility∙High shearability without breakdown∙High spreadability and compatibility∙Low environmental hazard∙Low fire hazard∙Low reactivity and vapor pressure ∙Low surface energy∙Good heat stability∙Essentially odorless, tasteless and nontoxic∙Soluble in a wide range of solventsBENEFITSFor personal care applications∙Skin protection∙Imparts soft, velvety skin feel∙Spreads easily on both skin and hair∙De-soaping (prevents foaming during rubout)For industrial applications∙High dielectric strength∙High damping action∙Oxidation-, chemical- and weather-resistant COMPOSITION∙Polydimethylsiloxane polymers ∙Chemical composition(CH3)3SiO[SiO(CH3)2]nSi(CH3)3APPLICATIONS∙Active ingredient in a variety of automotive, furniture, metal and specialty polishes in paste, emulsion and solvent-based polishes and aerosols ∙Various applications including cosmetic ingredient, elastomer and plastics lubricant, electrical insulating fluid, foam preventive or breaker,mechanical fluid, mold release agent, surface active agent, and solvent-based finishing and fat liquoring of leatherDESCRIPTIONXIAMETER® PMX-200 SiliconeFluid, 50-1,000 CS is apolydimethylsiloxane polymermanufactured to yield essentially linearpolymers in a wide range of averagekinematic viscosities.The viscosities generally used informulating polishes are between 100and 30,000 cSt. To obtain optimumresults, in terms of ease of applicationand depth of gloss, it is preferable touse a blend of a low-viscosity fluid anda high-viscosity fluid (e.g. 3 partsXIAMETER® PMX-200 Silicone Fluid100 cSt and 1 part XIAMETER®PMX-200 Silicone Fluid 12,500 cSt).The low-viscosity silicone fluid acts asa lubricant to make polish applicationand rubout easier, whereas the high-viscosity silicone fluid produces agreater depth of gloss. Since thesepolymers are inherently water-repellent, they will cause water to beadup on a treated surface rather thanpenetrate the polish film.HOW TO USEXIAMETER® PMX-200 SiliconeFluid, 50-1,000 CS is highly soluble inorganic solvents such as aliphatic andaromatic hydrocarbons, and thehalocarbon propellants used inaerosols. The fluid is easily emulsifiedin water with standard emulsifiers andnormal emulsification techniques.XIAMETER® PMX-200 SiliconeFluid, 50-1,000 CS is insoluble inwater and many organic products.Additive quantities as small as 0.1%may suffice where XIAMETER®PMX-200 Silicone Fluid, 50-1,000 CSis to be used as a surface agent or forde-soaping creams and lotions.However, 1-10% is needed forapplications such as hand creams andlotions to form a more uniform filmand effective barrier.PRODUCT SAFETYINFORMATIONXIAMETER® PMX-200 SiliconeFluid, 50-1,000 CS may causetemporary eye discomfort.PRODUCT SAFETYINFORMATION REQUIRED FORSAFE USE IS NOT INCLUDED INTHIS DOCUMENT. BEFOREHANDLING, READ PRODUCT ANDMATERIAL SAFETY DATASHEETS AND CONTAINERLABELS FOR SAFE USE,PHYSICAL, ENVIRONMENTAL,AND HEALTH HAZARDINFORMATION. THE MATERIALSAFETY DATA SHEET ISAVAILABLE ON THE XIAMETERWEBSITE AT.TYPICAL PROPERTIESSpecification Writers: These values are not intended for use in preparing specifications. Please contact your local XIAMETER ® sales representative prior to writing specifications on this product.TestUnitResult50 cSt100 cSt200 cSt300 cStAppearance Crystal clear Crystal clear Crystal clear Crystal clear Specific Gravity at 25°C (77°F) 0.960 0.964 0.967 0.968 Refractive Index at 25°C (77°F) 1.4022 1.4030 1.4032 1.4034 Color, APHA 5 5 5 5 Flash Point, Open Cup °C (°F) 318 (605) >326 (>620) >326 (>620) >326 (>620) Acid Number, BCP trace trace trace traceMelt Point °C (°F)1,2-41 (-42) -28 (-18) -27 (-17) -26 (-15) Pour Point °C (°F) -70 (-94) -65 (-85) -65 (-85) -65 (-85) Surface Tension at 25°C (77°F) dynes/cm 20.8 20.9 21.0 21.1 Volatile Content, at 150°C (302°F) percent 0.3 0.02 0.07 0.09 Viscosity Temperature Coefficient 0.59 0.60 0.60 0.60 Coefficient of Expansion cc/cc/°C 0.00104 0.00096 0.00096 0.00096 Thermal Conductivity at 50°C (122°F) g cal/cm·sec·°C - 0.00037 - 0.00038 Solubility Parameter 3 7.3 7.4 7.4 7.4 Solubility in Typical Solvents Chlorinated Solvents High High High High Aromatic Solvents High High High High Aliphatic Solvents High High High High Dry Alcohols Poor Poor Poor Poor Water Poor Poor Poor Poor Fluorinated Propellants High High High High Dielectric Strength at 25°C (77°F) volts/mil 400 400 400 400 Volume Resistivity at 25°C (77°F) ohm-cm 1.0x1015 1.0x1015 1.0x1015 1.0x1015 350 cSt 500 cSt 1,000 cStAppearance Crystal clear Crystal clear Crystal clearSpecific Gravity at 25°C (77°F) 0.969 0.970 0.970 Refractive Index at 25°C (77°F) 1.4034 1.4035 1.4035 Color, APHA 5 5 5 Flash Point, Open Cup °C (°F) >326 (>620) >326 (>620) >326 (>620) Acid Number, BCP trace trace TraceMelt Point °C (°F)1,2-26 (-15) -25 (-13) -25 (-13)Pour Point °C (°F) -50 (-58) -50 (-58) -50 (-58) Surface Tension at 25°C (77°F) dynes/cm 21.1 21.2 21.2 Volatile Content, at 150°C (302°F) percent 0.15 0.11 0.11 Viscosity Temperature Coefficient 0.60 0.61 0.61 Coefficient of Expansion cc/cc/°C 0.00096 0.00096 0.00096 Thermal Conductivity at 50°C (122°F) g cal/cm·sec·°C - 0.00038 0.00038Solubility Parameter 37.4 7.4 7.4Solubility in Typical Solvents Chlorinated Solvents High High High Aromatic Solvents High High High Aliphatic Solvents High High High Dry Alcohols Poor Poor Poor Water Poor Poor Poor Fluorinated Propellants High High High Dielectric Strength at 25°C (77°F) volts/mil 400 400 400Volume Resistivity at 25°C (77°F) ohm-cm 1.0x1015 1.0x1015 1.0x10151The melt point temperature is a typical value and may vary somewhat due to molecular distribution (especially 50 cSt). If the melting point is critical toyour application, then several lots should be thoroughly evaluated. 2Due to different rates of cooling, this test method may yield pour points lower than the temperature at which these fluids would melt. 3Fedors Method: R.F. Fedors, Polymer Engineering and Science, Feb. 1974.USABLE LIFE AND STORAGEWhen stored at or below 25°C (77°F) in the original unopened containers, this product has a usable life of 36 months from the date of production. LIMITATIONSThis product is neither tested nor represented as suitable for medical or pharmaceutical uses. Not intended for human injection. Not intended for food use. HEALTH AND ENVIRONMENTALINFORMATIONTo support customers in their product safety needs,Dow Corning has an extensive Product Stewardship organization and a team of Product Safety and Regulatory Compliance (PS&RC) specialists available in each area.For further information, please see our website, , or consult your local Xiameter representative.LIMITED WARRANTY INFORMATION – PLEASE READ CAREFULLYThe information contained herein is offered in good faith and is believed to be accurate. However, because conditions and methods of use of our products are beyond our control, this information should not be used in substitution for customer’s tests to ensure that our products are safe, effective, and fully satisfactory for the intended end use. Suggestions of use shall not be taken as inducements to infringe any patent.Dow Corning’s sole warranty is that our products will meet the sales specifications in effect at the time of shipment. Your exclusive remedy for breach of such warranty is limited to refund of purchase price or replacement of any product shown to be other than as warranted. DOW CORNING SPECIFICALLY DISCLAIMS ANY OTHER EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY.DOW CORNING DISCLAIMS LIABILITY FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES.。
道康宁密封圈润滑脂应用参数
·低挥发性
·抗湿汽
·热氧化安定性和化学稳定性
·符合军标MIL-S-8660C
·工作温度-55－200ºC
·无臭味
·与金属、陶瓷、橡胶、塑料、密封胶相容
物理／化学数据
颜色
浅灰透明
未工作锥入度
mm/10
220
工作锥入度，最大
mm/10
310
分油量，200ºC，24小时，最大
%
6
挥发，200ºC，24小时，最大
%
2
工作温度
ºC
-55－200
熔点
ºC
无
密度，25ºC
g/ml
1
电学性质
介电常数
100hz3Biblioteka 1100khz3.1
损耗因子
100hz
0.0025
100khz
0.0025
介电常数，1.27mm
kv/mm
16
体积电阻，23ºC
ohm.cm
1.1×1015
耐电弧
秒
120
保质期，年
5
使用方法
清洁表面，用刷子、注射枪或自动润滑装置添加，也可用于集中润滑系统
道康宁密封润滑脂Dow corning4有机硅润滑脂
品牌；道康宁。
产品；Dow corning4
经销；铭翔润滑油。
类型；有机硅复合物。
应用；用于防湿汽的密封件，如气杀轧、自动化海洋导航系统和火花塞的连接件，电子打印系统的分离连接部件，也用于电子组装机和终端；
用于密封、润滑，如按键、电池终端、橡胶密封、开关/橡胶/塑料O型圈中金属/塑料中金属/橡胶连接的组装润滑剂。
包装
管装：150g
桶装：3.6kg,18.1kg
美国道康宁挥发性硅油(DC345,PMX-0345)
原装道康宁PMX-0345（DC345）环硅氧烷混合物
INCI名称：DC-345环戊硅氧烷和环己硅氧烷
产品性质：
1、令皮肤有柔软丝质感觉
2、解粘性
3、改善涂布性能
4、清爽，非油腻性肤感
技术指标：
外观：无色透明液体
比重：0.957
折光：1.398
沸点：217℃
凝固点：<-50℃
闪点，闭杯：77℃
粘度：6Cs
环四硅氧烷（D4）含量：<1.0%
表面张力，达因：20.8/cm
DC345（PMX-0345）是由多种环状聚有机硅氧烷混合物组成，具有适当挥发性的有机硅聚合物，与许多化妆品组份有着很高的相溶性，
质感轻盈、清爽、不油腻,可改善配方、改善触感，且无长久性残留，是化妆品配方常用的理想原料。
广泛应用：
1、个人护理品的基油成分，铺展性良好，易涂抹，润滑并具有独特的挥发性。
2、止汗剂、去味剂、喷发胶、洗面奶、护肤霜、乳液等护理用品、沐浴油、晒黑剂、剃须用品、彩妆品、指甲油。
3、也可以用作粉类彩妆、香水、科隆香水及剃须膏的添加物。
4、用于条状物产品时，产品具有适宜的铺展性和挥发性。
注意事项：
1.产品应贮存在干净，密闭的容器中，避免接触酸，碱及混入其它杂质，不要接触明火。
2.产品按非危险品贮存运输。
3.产品的有效贮存期办三年，超过贮存期后应复检，合格可使用。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
Information About Dow Corning® Brand Thermally Conductive Materials
Thermally Conductive Materials
Long-term, reliable protection of sensitive circuits and components is important in many of today’s delicate and demanding electronic applications. With the increase in processing power and the trend toward smaller, more compact electronic modules, the need for thermal management is growing. Dow Corning’s family of thermally conductive materials provides excellent thermal management options. Thermally conductive silicones function as heat transfer media, durable dielectric insulation, barriers against environmental contaminants and as stress-relieving shock and vibration absorbers over a wide temperature and humidity range.
PRODUCT INFORMATION – THERMALLY CONDUCTIVE ADHESIVES
Dow Corning® Brand Product
Description
Thermally Conductive Adhesives
SE4420 Thermally Conductive Adhesive
Good heat transfer is dependent on a good interface between the heat producing device and the heat transfer media. Silicones have a low surface tension that enables them to wet most surfaces, which can lower the thermal contact resistance between the substrate and the material.
Thermally Conductive Compounds
Type Non-curing; thermally conductive silicone pastes
Special Properties High thermal conductivity; low bleed; high-temperature stability
Special Properties Room-temperature or fast thermal cure; variety of thermal conductivities; resist humidity and other harsh environments; good dielectric properties; self-priming adhesion; low stress
Thermally Conductive Adhesives
Type Noncorrosive, one-part, moisture-cure RTV and one- or twopart heat-cure silicone elastomers
Physical Form Nonflowing and flowable options; cure to flexible elastomers
In addition to sustaining their physical and electrical properties over a broad range of operating conditions, silicones are resistant to ozone and ultraviolet degradation and have good chemical stability. Dow Corning’s line of thermal management materials includes adhesives, encapsulants, compounds and gels.
Special Properties Constant cure rate, regardless of sectional thickness or degree of confinement; no post-cure required
Potential Uses Potting of high-voltage transformers and sensors; assembly of substrates to heat sinks; gap fill material between heat sources and heat sinks
Potential Uses Heat sink or base plate attach; potting power supplies
Thermally Conductive Encapsulants
Type Two-part silicone elastomers
Physical Form Flowable liquid; cures to flexible elastomer
Special Properties Heat accelerable; wide operating temperatures; cure to lowmodulus materials
Potential Uses Gap fill material; potting of electronic modules; base materials for thermally conductive gel sheet
SE4450 Thermally Conductive Adhesive
1-4173 Thermally Conductive Adhesive
1-4174 Thermally Conductive Adhesive
Q1-9226 Thermally Conductive Adhesive
3-1818 Thermally Conductive Adhesive
One-part moisture cure
SE4422 Thermally Conductive Adhesive
One-part moisture cure
Features
Flowable with moderate thermal conductivity; fast tack-free High viscosity with moderate thermal conductivity; UL heat cure and primerless adhesion to common substrates used in the electronics industry; contains 7-mil (178 micron) glass beads for bond line control Rapid heat cure; long pot life; excellent flow; self-priming; UL 94 V-1 rating Good flowability
Two-part; gray; 1:1 Two-part; gray; 1:1; medium viscosity; heat cure Two-part; gray One-part; gray
Flowable with good thermal conductivity and controlled volatility (D4-D10 < 0.002); fast tack-free Moderate thermal conductivity; UL 94 V-0 rating; controlled volatility (D4-D10 0.003); fast tack-free Long pot life; rapid heat cure; self-priming
Materials for Pad Manufacturing
Type Two-part heat-cure materials
Special Properties Soft, good thermal conductivity, low viscosity
Potential Uses Base material for thermally conductive pads
Potential Uses Gap fill materials between heat sources and heat sinks
Thermally Conductive Gels
Type Two-part heat-cure gels
Physical Form 1:1 mix ratio; low viscosity
Moderate thermal conductivity; controlled volatility
High thermal conductivity
Rapid heat cure; high thermal conductivity
