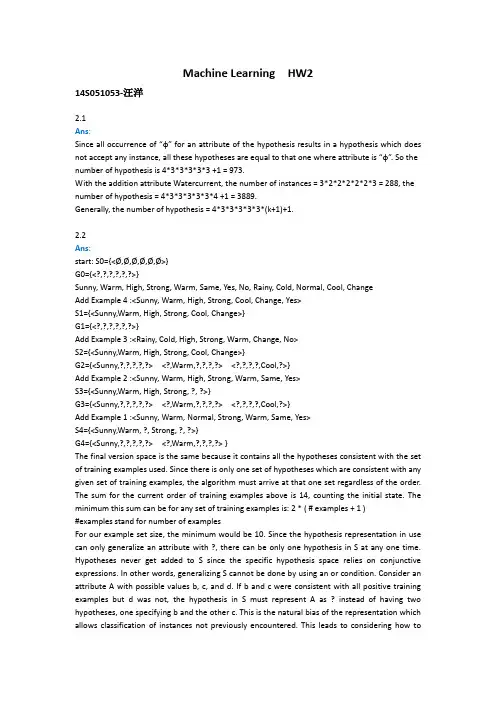

机器学习第二章作业答案
Machine Learning HW214S051053-汪洋2.1Ans:Since all occurrence of “φ” for an attribute of the hypothesis results in a hypothesis which does not accept any instance, all these hypotheses are equal to that one where attribute is “φ”. So the number of hypothesis is 4*3*3*3*3*3 +1 = 973.With the addition attribute Watercurrent, the number of instances = 3*2*2*2*2*2*3 = 288, the number of hypothesis = 4*3*3*3*3*3*4 +1 = 3889.Generally, the number of hypothesis = 4*3*3*3*3*3*(k+1)+1.2.2Ans:start: S0={<Ø,Ø,Ø,Ø,Ø,Ø>}G0={<?,?,?,?,?,?>}Sunny, Warm, High, Strong, Warm, Same, Yes, No, Rainy, Cold, Normal, Cool, ChangeAdd Example 4 :<Sunny, Warm, High, Strong, Cool, Change, Yes>S1={<Sunny,Warm, High, Strong, Cool, Change>}G1={<?,?,?,?,?,?>}Add Example 3 :<Rainy, Cold, High, Strong, Warm, Change, No>S2={<Sunny,Warm, High, Strong, Cool, Change>}G2={<Sunny,?,?,?,?,?> <?,Warm,?,?,?,?> <?,?,?,?,Cool,?>}Add Example 2 :<Sunny, Warm, High, Strong, Warm, Same, Yes>S3={<Sunny,Warm, High, Strong, ?, ?>}G3={<Sunny,?,?,?,?,?> <?,Warm,?,?,?,?> <?,?,?,?,Cool,?>}Add Example 1 :<Sunny, Warm, Normal, Strong, Warm, Same, Yes>S4={<Sunny,Warm, ?, Strong, ?, ?>}G4={<Sunny,?,?,?,?,?> <?,Warm,?,?,?,?> }The final version space is the same because it contains all the hypotheses consistent with the set of training examples used. Since there is only one set of hypotheses which are consistent with any given set of training examples, the algorithm must arrive at that one set regardless of the order. The sum for the current order of training examples above is 14, counting the initial state. The minimum this sum can be for any set of training examples is: 2 * ( # examples + 1 )#examples stand for number of examplesFor our example set size, the minimum would be 10. Since the hypothesis representation in use can only generalize an attribute with ?, there can be only one hypothesis in S at any one time. Hypotheses never get added to S since the specific hypothesis space relies on conjunctive expressions. In other words, generalizing S cannot be done by using an or condition. Consider an attribute A with possible values b, c, and d. If b and c were consistent with all positive training examples but d was not, the hypothesis in S must represent A as ? instead of having two hypotheses, one specifying b and the other c. This is the natural bias of the representation which allows classification of instances not previously encountered. This leads to considering how tominimize G. The only time hypotheses are added to G is when a negative example is presented, as stated in the algorithm 1. Therefore, a general strategy would be to present all positive training examples before negative training examples.Following this strategy, we arrive at a sum of 11. 11 is the minimum for this set of training examples since in the final state G contains 2 hypotheses, one more than the absolute minimum calculated above.2.4Ans:(a) The S boundary is: S = (4,6,3,5) as 46,35≤≤≤≤. As is shown in the bellow graph1.x y(b) The G boundary is: G = (3,8,2,7) as 38,27x y≤≤≤≤. As is shown in the bellow graph1.(c) Suggest a query guaranteed to reduce the size of the version space, regardless of how thetrainer classifies it. Eg: (7,6)Suggest one that will not. Eg: (5,4)(d) The smallest number of training examples. 4pointsThe four points as following: (3,2,+) (5,9,+) (2,1,-) (6,10,-)Graph12.5Ans:(a)Step1: S0 {<(Q Q Q Q ), (Q Q Q Q)>} G0 {<(? ? ? ?), (? ? ? ?)>}Step2: S1 {<(male brown tall US), (female black short US)> G1 {<(? ? ? ?), (? ? ? ?)>}Step3: S2 {<(male brown ? ?), (female black short US)> G2 {<(? ? ? ?), (? ? ? ?)>}Step4: S3 {<(male brown ? ?), (female black short US)> G3 {<(male ? ? ?), (? ? ? ?)>，<? ? ? ?>,<? ? ? US>}Step5: S4 {<(male brown ? ?), (female ? short ?)> G4 {<(male ? ? ?), (? ? ? ?)>}(b) Suppose that each attribute in the hypothesis can be taken for two values. So the number ofhypotheses consistent with the subject for example is （2*2*2*2）*（2*2*2*2）= 25628=(c) The shortest sequence should be 8. So25628=We set the If there is only one training sample, then the hypothesis space is 256training sample for each of the attributes, so that each of the hypothesis space is halved. After the 8 training, it can converge to a single correct hypothesis.<female,blanck,short,Portuguese>,<female,blonde,tall,Indian><male,brown,short,Portuguese>,<female,blonde,tall,Indian><male,blanck,tall,Portuguese>,<female,blonde,tall,Indian><male,blanck,short,US>,<female,blonde,tall,Indian><male,blanck,short,Portuguese>,<male,blonde,tall,Indian><male,blanck,short,Portuguese>,<female,black,tall,Indian><male,blanck,short,Portuguese>,<female,blonde,short,Indian><male,blanck,short,Portuguese>,<female,blonde,tall,US>(d) To express all of the concepts in the language, we need to expand the hypothesis space, so that every possible hypothesis is included, so that the space is far greater than 256, and so can not get the final convergence, because every one of the training sample, the vote without any effect, so there is no way to see the sample classification. So there is no optimal query sequence.2.6Proof:Every member ofVS satisfies the right-hand side of expression.,H DLet h be an arbitrary member ofVS, then h is consistent with all training examples in D.H D,Assuming h does not satisfy the right-hand side of the expression, it means (s S)(g G)(g h s)(s S)(g G)(g h)(h s)⌝∃∈∃∈≥≥=⌝∃∈∃∈≥∧≥.Hence, there does not exist g from G so that g is more general or equal to h or there does not exist s from S so that h is more general or equal to s. If the former holds, it leads to an inconsistence according to the definition of G. If the later holds, it leads to an inconsistence according to the definition of S. Therefore, h satisfies the right-hand side of the expression.Notes: since we assume the expression is not fulfilled, this can be only be if S or G is empty, which can only be in the case of any inconsistent training examples, such as noise or the concept target is not member of H.。
Wien2K编译方法
Wien2K编译方法：以root用户登陆1.准备intel安装intel编译器和mkl库1.拷贝所有安装文件到opt目录2.解压缩相应的文件,有icc和ifort以及mkl的安装文件。
3.开始安装icc:进入解压后的目录,运行install。
4.除去询问激活方式步骤时选择”以后激活”外,其余全部采用默认安装5.同样的步骤安装ifort和mkl.如果询问是否覆盖时,选择是6.安装完成后,将准备好的licenses文件拷贝到/opt/intel/compiler2 安装pgi编译器(可选)cd /softtar xzvf pgi-workstation-complete-x64-901.tar.gzcd Setuptar xzvf pgilinux-901.tar.gz./install...选择安装路径安装单机版...cd ../Cracktar xjvf pgi_9.0-1_linux64.tar.bz2cp pgi_9.0-1_linux64_patcher 安装目录cd 安装目录./pgi_9.0-1_linux64_patchercd /soft/Crack/license.dat 安装目录vi ~/.bashrc 加入下面内容#--- for pgi9.01PATH=/opt/pgi/9.01/linux86-64/9.0/bin:$PATHexport PA THMANPATH=$MANPATH:/opt/pgi/9.01/linux86-64/9.0/manexport MANPATHLM_LICENSE_FILE=/opt/pgi/9.01/license.datexport LM_LICENSE_FILELD_LIBRARY_PATH=/opt/pgi/9.01/linux86-64/9.0-1/libso:$LD_LIBRARY_PATHexport LD_LIBRARY_PA TH保存退出后重新登录或者source ~/.bashrc3 安装mpich因为wien2k采用intel编译器，这里采用intel编译器来编译mpichtar xzvf mpich-1.2.7p.tar.gzcd mpich-1.2.7pexport CC=iccexport CXX=icpcexport FC=ifortexport F90=ifort./configure --with-device=ch_p4 --prefix=/opt/mpich/intel –rsh=ssh –cc=icc –c++=icpc –fc=ifort –f90=ifortmakemake install设置环境变量:vi ~/.bashrc#--- for mpichMPI=/opt/mpich/intelexport MPIPATH=$PATH:$MPI/binexport PA THMPI_LIB=$MPI/libMPI_INCLUDE=$MPI/includeexport MPI_LIBexport MPI_INCLUDE重新登陆用户或者source ~/.bashrc后再编译下面的.注意：以后如果用普通用户最好将此加入普通用户的.bashrc中。
ZEISS Otus 1.4 85 说明书
ZEISS Otus 1.4/85Technische Daten/Technical SpecificationsBrennweite/Focal length85 mm Blendenbereich/Aperture rangef/1.4 – f/16 Linsen / Gruppen/Lens elements / Groups 11 / 9Fokussierbereich/Focusing range0,8 m (31.50’’) - ∞ Arbeitsabstand/Free working distance0,65 m (25.59’’) - ∞ Bildfeld*/Angular field* (diag. / horiz. / vert.) 28.24° / 23.71° / 15.97° Bildkreisdurchmesser/Diameter of image field 43 mm (1.69″)Anlagemaß/Flange focal distanceZF.2: 46,50 mm (1.83″) ZE: 44,00 mm (1.73″)Objektfeld bei Naheinstellung* Coverage at close range (MOD)*278,85 mm x 185,61 mm (10.97‘‘ x 7.31‘‘) Abbildungsmaßstab bei Naheinstellung Image ratio at MOD1 : 7.7 Filterdurchmesser/Filter threadM86 x 1.00 Lage der Eintrittspupille (vor der Bildebene)Entrance pupil position ( in front of image plane) 90 mm (3.54’’) Drehwinkel des Fokussierrings (inf – MOD) Rotation angle of focusing ring (inf – MOD) 261 °Durchmesser max./Diameter max.ZF.2: 101 mm (3.98‘‘) ZE: 101 mm (3.98‘‘) Durchmesser des Fokussierrings Diameter of focusing ringZF.2: 92 mm (3.62‘‘) ZE: 92 mm (3.62‘‘) Länge (ohne Objektivdeckel)/Length (without lens caps) ZF.2: 122 mm (4.80‘‘) ZE: 124 mm (4.88‘‘) Länge (mit Objektivdeckeln)/Length (with lens caps) ZF.2: 138 mm (5.43‘‘) ZE: 141 mm (5.55‘‘) Gewicht/WeightZF.2: 1140g (2.51 lbs) ZE: 1200g (2.64 lbs)* bezugnehmend auf das 24x36mm Format/referring to 36 mm formatSonderglas / Special glas Asphären / Aspheric surfaceZEISS Otus 1.4/85Relative Beleuchtungsstärke/Relative Illuminance E [%]Die relative Beleuchtungsstärke zeigt die Abnahmeder Bildhelligkeit von der Mitte des Bildes zu denEcken. Angabe in Prozent.The relative illumination shows in percent thedecrease in image brightness from the imagecenter to edge.__ Blendenzahl: k = 1,4 / f-number = 1.4--- Blendenzahl: k = 4,0 / f-number = 4.0… Blendenzahl: k = 3,9 / f-number = 3.9Relative Verzeichnung/Relative DistortionV [%]Die Relative Verzeichnung zeigt die Abweichungder aktuellen von der idealen Bildhöhe.The relative distortion shows in percent thedeviation of the actual from the ideal imageheight.Angaben für unendlich.Data for infinity.ZEISS Otus 1.4/85MTF ChartsUnendlich / InfinityBlendenzahl: k = 1,4 / f-number = 1.4__ Sagittal … TangentialBlendenzahl: k = 4 / f-number = 4.0__ Sagittal … TangentialModulationsübertragung MTF als Funktion der Bildhöhe (u’) und Spaltorientierung. Weißes Licht. Ortsfrequenzen R=10, 20 und 40 Perioden/mm. // Modulation transfer MTF as a function of the image height (u´) and slit orientation. White light. Spatial frequencies R=10, 20 and 40 cycles/mm.ZEISS Otus 1.4/85MTF ChartsNaheinstellung / Short focusBlendenzahl: k = 1,4 / f-number = 1.4__ Sagittal … TangentialBlendenzahl: k = 4 / f-number = 4.0__ Sagittal … TangentialModulationsübertragung MTF als Funktion der Bildhöhe (u’) und Spaltorientierung. Weißes Licht. Ortsfrequenzen R=10, 20 und 40 Perioden/mm. // Modulation transfer MTF as a function of the image height (u´) and slit orientation. White light. Spatial frequencies R=10, 20 and 40 cycles/mm.ZEISS Otus 1.4/8504/17 · Änderungen vorbehalten/Subject to change.Carl Zeiss AG · /photoSchärfentiefe/Depth of Field (DOF)*Engravedf/1.4 f/2 f/2.8 f/4 f/5.6 f/8 f/11 f/16 INF 157 inf. 139 inf. 92 inf. 61 inf. 42 inf. 29 inf. 21 inf. 14.2 inf. 15 m 13.7 16.6 13.6 17.9 12.9 19.1 12.1 21 m 11.225 9.97 35 8.81 66 7.39 inf. 7 m 6.71 7.31 6.68 7.56 6.53 7.76 6.32 8.09 6.05 8.58 5.70 9.43 5.31 10.8 4.77 14.2 4 m 3.90 4.09 3.90 4.17 3.85 4.23 3.78 4.32 3.68 4.45 3.55 4.66 3.40 4.96 3.18 5.54 3 m 2.95 3.05 2.94 3.09 2.92 3.12 2.88 3.17 2.82 3.24 2.75 3.35 2.66 3.49 2.53 3.76 2.5 m 2.46 2.53 2.46 2.56 2.44 2.58 2.42 2.62 2.38 2.66 2.33 2.73 2.27 2.82 2.17 2.99 2 m 1.97 2.02 1.98 2.04 1.97 2.05 1.95 2.07 1.93 2.10 1.89 2.14 1.85 2.19 1.79 2.29 1.7 m 1.68 1.71 1.68 1.73 1.68 1.74 1.66 1.75 1.65 1.77 1.62 1.80 1.60 1.83 1.55 1.90 1.5 m 1.48 1.51 1.49 1.52 1.48 1.53 1.47 1.54 1.46 1.55 1.44 1.57 1.42 1.60 1.39 1.65 1.2 m 1.19 1.21 1.19 1.21 1.19 1.22 1.18 1.22 1.18 1.23 1.17 1.24 1.15 1.26 1.13 1.28 1 m 0.99 1.00 1.00 1.00 0.99 1.01 0.99 1.01 0.99 1.02 0.98 1.03 0.97 1.04 0.96 1.05 0.9 m 0.890.900.900.910.890.910.890.910.890.910.880.920.880.930.870.94* Schärfentiefetabelle für das 24x36mm Format, Zerstreuungskreis 0.033mm (D/1500), gerundet auf 0.01m //Depth-of-field table for sensor format 24x36mm, circle of confusion 0.033mm (D/1500), rounded to 0.01m。
02 ASSAB Equivalents (Chinese)
一胜百钢种及美,日及德国的钢材标准
Standards
SS W/Nr. ASSAB UDDEHOLM Sweden Germany 760 UHB 11 1650/1672 1.173 DF2/3 Arne 2140 1.251 Calmax Calmax 1.2358 … XW 5 Sverker 3 2312 (1.2436) XW 10 Rigor 2260 1.2363 XW 41/42 Sverker 21 2310 1.2379 ASSAB 88 Sleipner … … … … 1.2738 618 718HH Impax HH … 1.2738 Corrax Corrax … … Holdax Holdax … 1.2312 Ramax S Ramax S … … Stavax ESR* Stavax ESR* 2314 (1.2083) Alvar 14 Alvar 14 … 1.2714 Dievar* Dievar* … … Hotvar* Hotvar* … … 8407 2M Orvar 2M 2242 1.2344 8407 Supreme* Orvar Supreme* 2242 1.2344 QRO 90 Supreme* QRO 90 Supreme* … … Vidar Supreme* Vidar Supreme* 1.2343 ASP 23** Vanadis 23** 1.3344 2725 ASP 30/60** Vanadis 30/60** 2726/2727 (1.3207)/ 1.3241 Elmax** Elmax** … … Vanadis 4/6/10** Vanadis 4/6/10** … … * ESR = 电渣重熔 ** 粉未冶金(PM). 电渣加热(ESH) 牌号
超全的SQL语句练习题
)edargcs.cs(gva=edargcs_gva,em ans.s,ons.s tceles �码代现实--
绩成均平其及名姓生学的程课格及不�门两含�上以门二有出列 .2 )ons.s=ons.cs dna
'明李'=rehcaetc.c dna onc.c=onc.cs erehw c,cs morf * tceles (stsixe ton erehw �码代现实--
)别性人责负,名姓人责负,号工职人责负,称名,号编(人责负团社 WEIV TAERC)2 ;))号工职(工职 SECNEREFER)号工职(YEK NGIEROF 3C NIARTSNOC ,)号编,号工职(YEK YRAMIRP 3C TNIARTSNOC ,ATAD 期日加参
别性,名姓,人责负,称名,号编 TCELES SA
绩成�称名程课�级班�名姓�号学的生学出查�2�
。句语 lqs 出写�上础基的库据数此在�3 �键主合复是个这�称名程课�di 程课�程课 号学�生学 。段字键主的表各出指�2 。图 r-e 的系关种这出画�1 示表图 r-e 用有没�注 di 程课�习学
�绩成�di 程课�号学�习学
�称名程课�di 程课�程课
95 dna 55 neewteb ten erehw retupmoc etadpu tneduts esu 分 06 为整调绩成的科该学同的间之 95-55 在绩成络网机算计把�绩成的学同新更、9 csed hsalf yb redro tneduts esu 学同位 5 的好最绩成 hsalF 出输、8 0=2%mun erehw 06=ten tes
08 dna 07 neewteb 绩成 dna di 程课.绩成=di 程课.程课 dna 号学.绩成
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
一。
已知X和Y都是取值于{0,1}的二进制随机变量，P(X=0)=p。
还已知P(X=Y|X)= 。
求概率P(Y=1)，熵H(X),H(Y),H(Y|X)以及互信息I(X;Y)。
假设 给定，p可变，求能使I(X;Y)最大的p。
答：
P(Y=1)=P(Y=1,X=1)+P(Y=1,X=0)
=P(Y=1|X=1)P(X=1)+P(Y=1|X=0)P(X=0)
=(1− )(1−p)+ p=1− −p+2 p
H(X)=−p log p−(1−p)log(1−p)
记µ=P(Y=1)=1− −p+2 p，则
H(Y)=−µlogµ−(1−µ)log(1−µ)=h2(µ)
H(Y|X)=−
1
a=0
1
b=0
P(Y=b,X=a)log P(Y=b|X=a)
=−
1
a=0
1
b=0
P(X=a)P(Y=b|X=a)log P(Y=b|X=a)
=
1
a=0
P(X=a)
b∈{a,¯a}
−P(Y=b|X=a)log P(Y=b|X=a)
=
1
a=0
P(X=a)h2( )=h2( )
I(Y;X)=H(Y)−H(Y|X)=h2(µ)−h2( )=h2(1−p− +2 p)−h2( )
今 是固定的，欲I(Y;X)最大化，必须h2(1−p− +2 p)最大。
二元的熵在等
概时最大，故此必须µ=1−p− +2 p=1
2，1
2
− =p(1−2 )，p=12−
1−2
=1
2。
二。
若{X i}是平稳二进制马氏序列，P(X i=1)=1
2，P(X i=X i−1|X i−1)=
0.9。
将{X i}两两组为一组，映射到{Y k},即(X1,X2)映射为Y1，(X3,X4)映射为Y2，……。
Y取值于{0,1,2,3}。
从(X2i−1,X2i)映射到Y i的规则是(0,0)→0, (0,1)→1，(1,1)→2，(1,0)→3。
求Y的概率分布并对Y进行Huffman编码。
答：
P(Y=0)=P(X2=0,X1=0)=P(X2=0|X1=0)P(X1=0)=0.9/2=0.45 P(Y=1)=P(X2=1,X1=0)=P(X2=1|X1=0)P(X1=0)=0.1/2=0.05 P(Y=2)=P(X2=1,X1=1)=P(X2=1|X1=1)P(X1=1)=0.9/2=0.45 P(Y=3)=P(X2=0,X1=1)=P(X2=0|X1=1)P(X1=1)=0.9/2=0.05如图所示，Huffman编码结果是（可以有其他答案）
0→(0)1→(110)2→(10)3→(111)
1
Figure1:Huffman编码
Y的熵是H(Y)=−2×0.45log20.45−2×0.05log20.05≈−1.47bit，Huffman编码结果的平均长度是¯N=1×0.45+2×0.45+3×(0.05+0.05)=1.65bit，效率是H(X)
¯N
≈89%。
三。
若八进制信源{X1,···,X L}(L非常大)的H∞(X)=0.3Det。
采用最好的压缩技术将{X1,···,X L}映射为独立等概的十进制序列{Y1,···,Y M}，问M最少是多少才能保证无失真复原出原序列？如果不采用任何压缩技术，M至少需要多少？如果只是把每个X i单独映射为一个十进制数字，M是多少？
答：信源总的熵是0.3L Det，1Det需要用1位十进制数，因此压缩后需要M= 0.3L位十进制数。
如果不压缩，则信源的全部可能状态数是8L=10lg8L≈100.9L，即需要0.9L位十进制数。
如果是逐符号映射，每个8进制符号需要1位十进制数，总共需要L位。
四。
称球问题。
一个YES/NO问题可以使我们获得1bit的信息，就是说，把全部可能结果等分为2后，可以排除一半结果。
假如我们构造一个三选一的问题，
则这个答案可以获得的信息量是log
3(3)T rt=log23bit(这里Trt是杜撰的单
位)。
假设有12个小球，其中11个重量相同，另有一个重量偏大或者偏小。
我们不确定第几号球异常，也不确定它是偏重还是偏轻。
一把天平能给出三个答案：左大右小，左小右大，左右相同。
问：(1)原问题的熵是多少bit？(2)用天平测量的话，至少需要多少次才能测出结果？(2)如果天平只有两种结果（谁大谁小，没有平衡），最小需要称几次？
答：问题中的不确定性包括，异常球的编号，熵是log
212bit；是偏重还是偏
轻，熵是1bit。
这两个不确定性相互独立，所以问题的总熵是H=log
212+1≈
4.585bits。
折合到以3为低的对数，是2.89Trt。
因此，如果天平能给出三种结果，则至少需要称3次；如果天平只能给出2种结果，至少需要称5次。
2。
