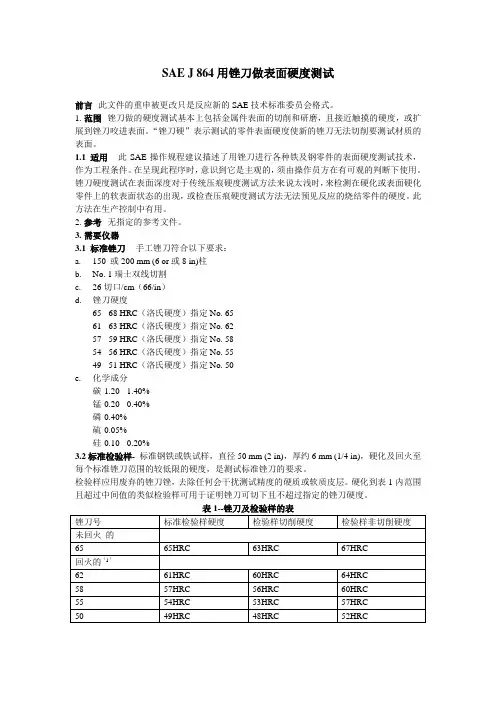

SAE J 864用锉刀做表面硬度测试

SAE J 864用锉刀做表面硬度测试前言--此文件的重申被更改只是反应新的SAE技术标准委员会格式。
1.范围--锉刀做的硬度测试基本上包括金属件表面的切削和研磨,且接近触摸的硬度,或扩展到锉刀咬进表面。
“锉刀硬”表示测试的零件表面硬度使新的锉刀无法切削要测试材质的表面。
1.1 适用-- 此SAE操作规程建议描述了用锉刀进行各种铁及钢零件的表面硬度测试技术,作为工程条件。
在呈现此程序时,意识到它是主观的,须由操作员方在有可观的判断下使用。
锉刀硬度测试在表面深度对于传统压痕硬度测试方法来说太浅时,来检测在硬化或表面硬化零件上的软表面状态的出现,或检查压痕硬度测试方法无法预见反应的烧结零件的硬度。
此方法在生产控制中有用。
2.参考--无指定的参考文件。
3.需要仪器3.1 标准锉刀-- 手工锉刀符合以下要求:a.150 或200 mm (6 or或8 in)柱b.No. 1瑞士双线切割c.26切口/cm(66/in)d.锉刀硬度65 - 68 HRC(洛氏硬度)指定No. 6561 - 63 HRC(洛氏硬度)指定No. 6257 - 59 HRC(洛氏硬度)指定No. 5854 - 56 HRC(洛氏硬度)指定No. 5549 - 51 HRC(洛氏硬度)指定No. 50e.化学成分碳-1.20 - 1.40%锰-0.20 - 0.40%磷-0.40%硫-0.05%硅-0.10 - 0.20%3.2标准检验样-标准钢铁或铁试样,直径50 mm (2 in),厚约6 mm (1/4 in),硬化及回火至每个标准锉刀范围的较低限的硬度,是测试标准锉刀的要求。
检验样应用废弃的锉刀锉,去除任何会干扰测试精度的硬质或软质皮层。
硬化到表1内范围且超过中间值的类似检验样可用于证明锉刀可切下且不超过指定的锉刀硬度。
1)用低于65HRC的回火的锉刀不太精确,因此,操作者须对零件做进一步判断,因为锉刀硬度减小。
锉刀测试由测试锉刀通过检验样6 mm (1/4 in)厚表面进行。
