荆门电抗器reactor -上海昌日电抗器-厂家直供各类电抗器
荆门电抗器-上海昌日电抗器-电抗器厂家直供上海昌日电子科技有限公司专业生产变频器周边配套元件输入电抗器，输出电抗器，直流电抗器，低压补偿柜串联电抗器，高压补偿柜CKSC高压串联电抗器。
公司常规产品都有现货，公司与各个专线物流签订协议，保证安全快捷到达您手中。
电抗器厂家直销价格优惠！输入电抗器输入电器器英文名称Input AC reactor 变频器的输入端安装JXL输入电抗器，一方面是为了减小谐波电流发射，另一方面可以提高变频器抗浪涌干扰的特性。
变频器的整流电路相当于一个谐波电压源。
我们知道，电压源当负载阻抗大时，输出电流会小。
因此，在变频器的电源输入端安装电抗器能够减小谐波电流的发射。
输出电抗器输出电抗器英文名称Output reactor ，当变频器输出到电机的电缆长度大于产品规定值时，应加输出电抗器来补偿电机长电缆运行时的耦合电容的充放电影响，避免变频器过流。
变频器输出端增加输出电抗器的作用是为了增加变频器到电动机的导线距离，输出电抗器可以有效抑制变频器的IGBT开关时产生的瞬间高电压，减少此电压对电缆绝缘和电机的不良影响。
直流电抗器直流电抗器英文名称 DC Reactors 直流电抗器接在变频系统的直流整流环节与逆变环节之间，主要用途是将叠加在直流电流上的交流分量限定在某一规定值,保持整流电流连续，减小电流脉冲值,使逆变环节运行更稳定及改善变频器的功率因数串联电抗器串联电抗器LV-Series Reactors 低压串联电抗器适用于无功补偿系统中的电容器前端，抑制电网中的谐波，保护电容器的正常使用CKSG串联电抗器并联在电网中,低频时呈现容性,主要起到无功补偿功能;高频时,电网呈现感性,从而抑制谐波起动保护电容器的作用。
高压串联电抗器高压串联电抗器HV-Series Reactors 与并联电容器相串联，具有补偿电网无功功率、提高功率因数、抑制谐波电流、限制合闸涌流等功能，高压串联电抗器适用于电力系统、电力化铁道、冶金、石化等较高防火要求、电磁干扰要求和安装空间有限的城网变电站、地下变电站和微机控制变电站等场所荆门电抗器作用1-1，荆门电抗器-输入电抗器（Input AC reactor）作用■减少对电网的低次谐波污染，提高功率因数■限制变流器换相时电网侧的压降■限制晶闸管导通时电流上升率di/dt和电压上升率du/dt■对并联变流器解耦，改善电源电压的波形■减少浪涌电流和电压对变流器的冲击，提高变频系统可靠性和使用寿命1-2荆门电抗器-输出电抗器（Output reactor ）作用1、降低工频暂态过电压，这是利用变频器专用出线电抗器的空载或轻负荷线路上的电容效应来实现的；2、改善长输电线路上的电压分布；3、缓解变频器输出端的三相不平衡现象，减轻线路上的能量损失；使轻负荷时线路中的无功功率尽可能就地平衡，防止无功功率不合理流动；4、降低高压母线上工频稳态电压，便于发电机同期并列；5、防止发电机带长线路可能出现的自励磁谐振现象。
1-3荆门电抗器-直流电抗器-DC Reactors作用因为脉动的直流输出电压中所包含的谐波分量，在逆变时将产生不必要的损耗和发热，谐波中的负序分量则产生反向力矩，而且当晶闸管深控时，若脉动的直流输出电压的瞬时值低于电动机的反电势，将使电流不连续。
整流电路的脉波数总是有限的，且在输出的直流电压中总是有纹波的，这种纹波往往有害，需要由平波电抗器加以抑制，平波电抗器用于整流以后的直流回路中，经平波电抗器后输出的直流接近于理想直流。
1-4，荆门电抗器-串联电抗器LV-Series Reactors作用接入串联电抗器，电容器电压升高系数- K=1 d 1如K= 6% 1.06 10.06 1≈-d =即运行电压升高6%，工作电流也随之大约6%。
运行经验认为，装有串联电抗器的电容器容量占2/3及以上时，则不会产生谐波谐振，能有效地吸收电网谐波，改善系统的电压波形，提高系统的功率因数，并能有效地抑制合闸涌流及操作过电压，有效地保护了电容器荆门电抗器-各类电抗器型号叁，举例说明CKSG-1.5/0.48-6详细说明CK:代表系列型号,以它作为产品型号的开头是为了让客户更好的区电抗器功能，CK代表串联电抗器，BK并联电抗器QK 启动电抗器S:代表相数，这里的S表示三相电抗器，用于补偿柜共补。
,还有D 代表单相电抗器，用于补偿柜分补。
G: 代表冷却方式空气冷却C代表环氧浇筑系列1.5: 代表电抗器的容量，容量选择范围0.3-30KVAR，如果对电抗器容量不了解，可致电详询。
0.48:指的是电容器电压，这里的单位是KV，1KV以下的电压为低压，3-10KV以上的电抗器称高压电抗器，也有被称为高压电抗器。
6:指的是电抗率，常用的电抗率有5%，6%，7%，12%，14%荆门电抗器-昌日变频器电抗器型号（输入电抗器，输出电抗器）JXL-口A/口%电压降（V)额定电流(A)输入电抗器CXL-口A/口%电压降（V)额定电流(A)输出电抗器荆门电抗器-串联电抗器型号意义CK S G-1.5 /0.48 -6电抗率电容电压（KV）电抗器容量1.5（KVAR)干式冷却方式S代表三相D代表单相串联电抗器（Reactor)荆门电抗器-高压串联电抗器CKSC-48/10-6型号代表意义CK S C- 48/ 10-6额定电抗率系统额定电压10KV额定容量48KV AR环氧浇铸型三相串联电抗器荆门电抗器-举例CKSC-48/10-6型号说明CK:代表系列型号,以它作为产品型号的开头是为了让客户更好的区分电抗器的功能，这里的CK代表串联电抗器，BK并联电抗器QK 启动电抗器LK滤波电抗器XK代表限流电抗器S:代表相数，这里的S表示三相电抗器，用于补偿柜共补。
,还有D代表单相电抗器，用于补偿柜分补。
C: 代表C代表环氧浇筑系列G代表干式绕制48: 代表电抗器的容量，容量选择范围3-400KVAR，如果对电抗器容量不了解，可致电详询。
10:指的是电容器电压，这里的单位是KV，电压等级分为3KV，6KV，10KV，12KV电抗器称高压电抗器，也有被称为高压串联电抗器。
6:指的是电抗率6%，常用的电抗率有5%，6%，7%，12%，14%荆门电抗器-变频器输入电抗器性能与技术参数荆门电抗器-变频器输入，输出电抗器性能特点：铁芯采用优质硅钢片，芯柱经多个气隙分成均匀小块，气隙采用高温高强度粘接胶将芯柱的每个小段与上、下铁轭紧密粘接起来，铁芯端面采用高品质防锈漆喷涂工艺，解决了电抗器铁芯表面生锈问题。
在运行中大大减小了噪音和振动。
电抗器均采用真空浸漆工艺，经高温热烘固化。
线圈有良好的绝缘性能，整体机械强度高，防潮性能好线圈采用F、H级绝缘系统，大大提高了长期运行的可靠性。
温升低，损耗小，成本低，综合利用率高。
体积小，重量轻，占用空间小，便于安装。
荆门电抗器-变频器输入，输出电抗器技术参数1、额定工作电压：380V/50Hz或660V/50Hz2、额定工作电流：5A至1600A@40℃3、抗电强度：铁芯－绕组3500VAC/50Hz/10mA/10s无飞弧击穿4、绝缘电阻：1000VDC绝缘阻值≥100MV5、电抗器噪音：小于65dB6、防护等级：IP007、绝缘等级：F级以上8、产品执行标准：IEC289:1987电抗器GB10229-88电抗器(eqv IEC289:1987)JB9644-1999半导体电气传动用电抗器荆门电抗器-串联电抗器性能参数1.串联电抗器可用于400V、660V系统。
2.串联电抗率的种类：1%、6%、7%，12%3.额定绝缘水平3kV/min。
4.CKSG电抗器各部位的温升限值：铁芯不超过85K，电圈温升不超过95K。
5.CKSG电抗器噪声不大于45dB6.电抗器能在工频加谐波电流不大于1.35倍额定电流下长期运行。
7.电抗值线性度：在1.8倍额定电流下的电抗值与额定电流下的电抗值之比不低于0.95。
8.三相电抗器的任意两相电抗值之差不大于±3%。
9.串联电抗器耐温等级H级（180℃）以上。
荆门电抗器-串联电抗器结构特点1.该CKSG系列电抗器分为三相和单相两种，均为铁心干式。
2.荆门电抗器-串联电抗器铁芯采用优质低损耗进口冷轧取向硅钢片，芯柱由多个气隙分成均匀小段，气隙用环氧层压玻璃布板作间隔，保证电抗气隙在运行过程中不发生变化。
3.荆门电抗器-串联电抗器采用H级或C级漆包扁铜线绕制，排列紧密且均匀，外表不包绝缘层，具有极佳的美感且有较好的散热性能。
4.荆门电抗器-串联电抗器的线圈和铁芯组装成一体后经过预烘→真空浸漆→热烘固化这一工艺流程，采用H级浸渍漆，使电抗器的线圈和铁芯牢固地结合在一起，不但大大减小了运行时的噪音，而且具有极高的耐热等级，可确保电抗器在高温下亦能安全地无噪音地运行。
5.荆门电抗器-CKSG电抗器芯柱部分紧固件采用无磁性材料，确保电抗器具有较高的品质因数和较低的温升，确保具有较好的滤波效果。
6.CKSG串联电抗器外露部件均采取了防腐蚀处理，引出端子采用冷压铜管端子。
7.该CKSG电抗器与国内同类产品相比具有体积小、重量轻、外观美等优点，可与国外知名品牌相媲美。
荆门电抗器-高压串联电抗器性能与技术参数电抗器执行标准：JB5346-1998 串联电抗器标准GB10229-88 电抗器JB3837-2010 型号编制依据JB9644-1999 半导体电气传动用电抗1 系统电压6kV、10kV、10.5kV、11kV。
2 电抗率选择1%、4.5%、5%、6%、7%、12%、14%3 绝缘等级F级4 实验耐压42000V5 电抗器噪音电抗器噪声：≤45dB6 过载能力≤1.35倍下连续运行7 三相不平衡度电抗器相与相之间不平横度不大于±3%，8 电感量误差控制在+3%以内9 海拔高度不超过2000米。
10 运行环境温度-25℃～＋45℃，11 相对湿度相对湿度不超过90％。
12 周围环境无有害气体，无易燃易爆物品，良好的通风。
上海昌日我公司是专业生产电抗器的厂家，电抗器有变频器输入电抗器，输出电抗器，直流电抗器。
补偿柜CKSG串联电抗器，电容专用串联电抗器，高压串联电抗器，电抗器系列种类齐全，订做非标电抗器产品。
荆门电抗器-高压串联电抗器结构特点1 荆门电抗器-串联电抗器气隙不改变荆门电抗器其铁芯材料采用的是优质的进口硅钢片，芯柱被多个气隙分成均匀的小段。
气隙的隔绝介质采用的是环氧布板，这样就能够保证气隙在长期运行中不发生变化。
2 荆门电抗器串联电抗器铁芯的端面处理铁芯的端面采用了优质的硅钢片端面胶，它的粘合力非常强，能够使硅钢片紧紧地粘结一起，不仅有效地减小了运行时的噪音，并且防潮防尘性能也十分优异。

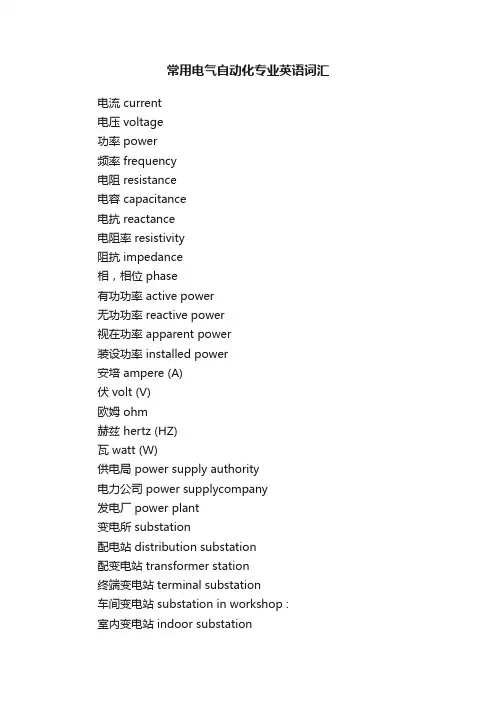

常用电气自动化专业英语词汇
常用电气自动化专业英语词汇电流 current电压 voltage功率 power频率 frequency电阻 resistance电容 capacitance电抗 reactance电阻率 resistivity阻抗 impedance相，相位 phase有功功率 active power无功功率 reactive power视在功率 apparent power装设功率 installed power安培 ampere (A)伏 volt (V)欧姆 ohm赫兹 hertz (HZ)瓦 watt (W)供电局 power supply authority电力公司 power supplycompany发电厂 power plant变电所 substation配电站 distribution substation配变电站 transformer station终端变电站 terminal substation车间变电站 substation in workshop :室内变电站 indoor substation自动变电站 automatic substation成套变电站 unit substation高压室 H.T room低压室 L.T room变压器室 transformer room变压器平台 transformer platform柴油发电机室 diesel generator room 控制室 control room蓄电池室 battery room维修间 maintenance room值班室 duty room休息室 rest room电容器室 condenser room充电室 battery --charging room室外储油罐 outdoor oil tank地下油罐 underground oiltank日用油箱 day tank负荷 load一类负荷 first-class load二类负荷 second-class load三类负荷 third-class load照明负荷 lighting load动力负荷 power load电阻负荷 resistance load电抗负荷 reactive load冲击负荷 shock load空载 non -load有载 on-load满载 full -load过载 over -load不平衡负荷 unbalanced load平衡负荷 balanced load额定负载 nominal load负荷计算 load circulation功率因数 power factor同时使用系数 diversity factor需要系数法 demand factor method利用系数法 utilization factor method二项式法 binomial method无功功率补偿 reactive powercompensation自然功率因数 natural power factor补偿后功率因数 power factorafter compensating 高压补偿 compensating inH.T side低压补偿 compensating in L.T side负荷率 load rate补偿容量 compensating capacity设备装设容量 installed capacity备用容量 standby capacity额定容量 rated capacity视在容量 apparent capacity计算容量 calculated capacity短路容量 short circuit capacity负荷计算表 load calculation table电压 voltage高压 high tension(H.T)低压 low tension (L.T)冲击电压 impulse voltage临界电压 critical voltage残余电压 residual voltage击穿电压 breakdown voltage供电电压 supply voltage照明电压 lighting voltage工作电压 working voltage额定电压 rated voltage相电压 phase voltage线电压 line voltage过压 over--voltage欠压 under--voltage电压降 voltage drop电压损失 voltage loss电压偏移 voltage deviation电压波动 voltage variation电压标准 voltage standard电压等级 voltage class电压调整率 voltage regulation rate电流 current交流 alternating current (A.C)直流 direct current (D.C)短路电流 short--circuit短路点 short circuitpoint三相短路电流 three-phase short-circuit current 两相短路电流 two-phase short-circuit current 单相短路电流 single--phase short-circuit current 短路电阻 short-circuit resistance短路电压 short-circuit voltage短路电抗 short-circuit reactance短路容量 short-circuit capacity短路稳定性 short-circuit stability短路冲击电流 short-circuitimpulse current热效应 thermal effect稳定短路电流 steady stateshort-circuit current切断电流 cut-off current整定电流 setting current动作电流 action current额定电流 rated current,nominal current熔体电流 melt current熔丝电流 fuse current故障电流 fault current极限电流 limiting current过电流 over--current有效值 virtual value,effective value电源，供电方式 power andsupply system工作电源 working powersource操作电源 operating powersource备用电源 standby source应急电源 emergency source常用电源 normal source供电电压 supply voltage双回路供电 two-feeder supply两个独立电源 two independentpower supply放射式 radial system单回路放射式 one-circuitradial system双回路放射式 two-circuitradial system有公用备用干线的放射式radial systemwith public standby main line树干式 trunk system单回路树干式 one-circuittrunk system单侧供电双回路树干式 two-circuittrunk system with one-side power supply双侧供电单回路树干式 one-circuit trunk system with two-sidepowersupply双侧供电双回路树干式 two-circuittrunk system with two-side power supply环式 ring system链式 chain system变压器—干线式 transformer-main line systemTN系统 TNsystemTN—S系统 TN-S systemTN—C 系统 TN-C systemTN—C—S系统 TN-C-S systemTT 系统 TTsystem单相二线制 1-phase 2-wire system三相四线制 3-phase 4-wire system三相五线制 3-phase 5-wire system保护线 protective earth (PE)中性线（N线） neutral分列运行 independent operation并列运行 parallel operation无载运行 non-load operation变压器 transformer三相变压器 three-phase transformer油浸变压器 oil-immersed transformer自冷变压器 self-cooling transformer铜线变压器 copper-coil transformer铝线变压器 aluminum-coil transformer有载调压的变压器 on-loadregulating transformer可调变压器 variable transformer全封闭的变压器 fully-enclosed transformer干式变压器 dry transformer单相变压器 single-phase transformer防雷变压器 lightning-proof transformer环氧浇注变压器 epoxy-resin filled transformer电力变压器 power transformer低损耗变压器 low losstransformer照明变压器 lighting transformer控制变压器 control transformer三相油浸自冷式铝线低损耗有调压电力变压器3-phase oil-immersed self-cooling andlow-loss aluminum-coil powertransformer变压器系数 transformer factor调压器 voltage regulator稳压器 stabilizer减压器 reducer整流器 rectifier限流器 current limiter不停电电源 uninterrupted power supply (UPS)变阻器 rheostat电阻器 resister自动功率调整器 automatic powerregulator电压互感器 voltage transformer电流互感器 current transformer降压变压器 step-down transformer自动调压器 automatic regulator高频变压器 high-frequency transformer降压器 step-down transformer升压器 step-up transformer编号 code型号 type用途 function二次接线图号 secondarywiring drawing No.外形尺寸 overall dimension一次主要设备 preliminary main equipment辅助设备 auxiliary equipment进线 incoming line出线 outgoing line规格 specification数量 quantity高压电器 H.T equipment高压配电柜 H.T distribution cabinet高压开关柜 H.T switchgear手车式高压开关柜 draw—out type H.T switchgear户内交流金属铠装移动式开关柜indoor A.C armored movable switchgear高压无功功率补偿装置H.T reactive power compensator高压静电电容器柜H.T electrostatic capacitor cabinet大功率并联电容无功功率补偿high power parallel capacitor reactive powercompensating 高压断路器H.T circuit breaker少油断路器 minimum oil circuit breaker油断路器 oil circuitbreaker真空断路器 vacuum circuit breaker空气断路器 air circuit breaker六氟化硫断路器 sulfurhexaflouride breaker (SF6 breaker)户内式 indoor (type)户外式 outdoor (type)电磁式 electromagnetic产气式 aerogenic高压接触器 H.T contactor高压真空接触器 H.T vacuumcontactor高压负荷开关 H.T loadswitch高压隔离开关 H.T isolator操动机构 control mechanism手动操动机构 hand controlmechanism电磁操动机构 magnetic control mechanism弹簧储能操动机构(energystoring) spring operating mechanism电动操动机构 motor drivedoperating mechanism高压熔断器 H.T fuse跌落式熔断器 drop—out fuse高压电抗器 H.T reactor串联电抗器 series reactor高压互感器 H.T transformer移相电容器 phase—shift capacitor低压配电装置 L.T distributordevice低压配电屏 L.T distribution panel低压无功功率补偿装置 L.T reactive power compensator抽屉式低压配电屏 drawable L.Tdistribution panel电动机控制中心 motor controlcenter (MCC)固定式低压配电屏 fixed L.Tdistribution panel低压静电电容器屏 L.Telectrostatic capacitor panel出线屏 outgoing panel进线屏 incoming panel联络屏 connection panel计量屏 measurement panel动力馈电屏 power feeder panel照明馈电屏 lighting feeder panel控制柜 control cabinet配电箱 distribution cabinet总配电箱 generaldistribution box动力配电箱 power distribution box照明配电箱 lighting distribution box插座箱 socket box电度表箱 kilowatt-hour meter box非标准控制箱，柜，台non-standard control box, cabinet, desk电源切换箱 power change-over box开关 switch总开关 master switch主开关 main switch刀开关 knife switch负荷开关 load switch开启式开关 open switch封闭式开关 closed switch组合开关 combination switch自动空气断路器 automatic airbreaker框架式 skeleton type塑料外壳式断路器 moulded casecircuit breaker (MCCB)行程开关 position switch微动开关 microswitch万能转换开关 universal switch分级转换开关 stepping switch换相开关 phase converter防爆开关 explosion proof switch漏电保护开关 leakage protection switch三向开关 three—way switch轻载开关 underload switch压力开关 pressure switch单刀双掷开关 single-poledouble throw switch接触器 contactor交流接触器 A.C contactor直流接触器 D.C contactor消弧接触器 arc extinction contactor起动器 starter电磁起动器 electromagnetic starter磁力起动器 magnetic starter自动空气式星三角起动器 automatic airstar-delta starter 减压起动器 voltage reducing starter起动控制箱 starting controler低压熔断器 L.T fuse螺旋式熔断器 screw fuse快速熔断器 quick fuse瓷插式熔断器 plug-in fuse继电器 relay电流继电器 current relay电压继电器 voltage relay过电流继电器 over-current relay信号继电器 signal relay时间继电器 timing relay中间继电器 intermediate relay漏电继电器 leakage relay欠压继电器 under-voltage relay绝缘监视继合器 insulation detection relay交流电度表 A.C kilowatt hour meter单相电度表 single-phase kilowatt hour meter三相电度表 three-phasekilowatt hour meter无功电度表 reactivekilovolt ampere-hour meter无功功率表 reactive power meter有功功率表 active power meter电流表 ammeter, current meter电压表 voltmeter万用电表 universal meter绝缘检查电压表 insulationcheck voltage meter 功率因数表 power factor meter多相电度表 polyphase meter电力定量器电机 electrical machine同步的 synchronous异步的 asynchronous电动机 motor发电机 generator转子 rotor定子 stator柴油发电机（组） dieselgenerator (set)电动发电机（组） motor generator(set)感应电动机 induction motor鼠笼式感应电动机 squirrel cageinduction motor 绕线式电动机 wound-rotor induction motor滑环式电动机 slip-ring motor起动电动机 starting motor; actuating motor自激电动机 motor with self excitation同步器 synchronizer励磁机 exciter伺服电动机 service motor插接装置 plug device插头 plug螺口插座 screw socket卡口插座 bayonet socket插座 socket; outlet单相二极插头 1-phase 2-poleplug三相插头 3-phase plug单相插座 single phase socket三相四极插座 3-phase 4-polesocket接线柱 binding post接头 adapter接线板 terminal block接线盒 terminal box;junction box接线箱 connection box;junction box 线路及安装 line and installation线，线路 line andcircuit高压线路 H.T line输电线路 transmission line电源进线 incoming line出线 outgoing line馈线 feeder供电干线 main supplyline; supply main 低压线路 L.T line电力干线 main power line照明干线 main lighting line支线 branch line电力支线 power branchline照明支线 lighting branchline封闭式母线 enclosed bus--bar接插式母线 plug-in bus--bar接地母线 earth line中性线，零线 neutral应急照明线 emergency lighting line联络线 liaison line滑触线 trolley line埋地线 underground line明线 open wire暗线 concealed wire明线布线 open wiring暗线布线 concealed wiring通信线路 communication line 架空线路 overhead line架空干线 overhead main电缆线路 cable line电缆沟 cable trench电缆桥架 cable bridge电缆托架 cable tray电缆槽 cable duct墙式电缆槽 wall duct导线 conductor andcable裸导线 bare conductor铝线 aluminum conductor铜芯线 copper core cable电缆 cable馈电电缆 feed cable电力电缆 power cable照明电缆 lighting cable通信电缆 communication cable 控制电缆 control cable信号电缆 signal cable实心电缆 solid cable同轴电缆 coaxial cable单芯电缆 single-core cable双股电缆 paired cable高压电缆 H.T cable低压电缆 L.T cable绝缘电缆 insulated cable屏蔽电缆 shielded cable护套电缆 sheathed cable铜芯电缆 copper corecable铠装电缆 armored cable铅包电缆 lead-covered cable油浸电缆 oil-immersed cable漆包电缆 lacquer-cover cable纸绝缘电缆 paper-insulated cable橡皮绝缘电缆 rubber-insulated cable塑料绝缘电缆 plastic-insulate cable绕扎电缆 wrapped cable聚乙烯 polyethylene, polythene聚氯乙烯绝缘电缆 polyvinylchloride (PVC) cable交联聚乙烯绝缘电缆 x-linked polyethylene (XLPE) cable乙烯绝缘软性电缆 vinyl cabtyre cable阻燃铜芯塑料绝缘电线flame retardant copper core plasticinsulated wire交联聚乙烯绝缘钢带铠装聚氯乙烯护套电力电缆x—linked polythene insulated steel tapearmored PVC sheathed power cable韧性橡皮绝缘电缆 tough-rubbersheathed cable地下电缆 ground cable架空电缆 overhead cable软电缆 flexible cable电缆隧道 cable tunnel电缆隧道口 cable tunnel exit电缆井 cable pit电缆人孔 cable manhole电缆夹 cable cleat电缆分线箱 cable junction box 电缆箱，分线盒 cable cabinet电缆接线头 cable plug电缆终端盒，电缆接头电缆吊架，电缆吊杆 cable hanger 电缆桥架 cable bridge埋深 buried depth安装 installation安装高度 installation height电杆长度 pole length线间距离 distance between lines 跨度 span弧垂 sag交叉点 crossing point架空引出 over-head leading out 落地安装 installed onground嵌装在墙上 built in wall挂墙安装 suspended onwall明装 surface mounted嵌装 flush mounted暗装 conceal mounted架空引入 over-head leading-in 敷设 laying明敷 exposed laying暗敷 concealed laying埋地敷设 led underground 由……引来 (led) from引至 (led) to直埋 buried directlyunderground穿钢管敷设 laid in steelconduit引上 led-up引下 led--down沿……敷设 run along沿墙 along wall沿梁 along beam跨柱 across column弯曲半径 bending radius抽头 tap-off电缆终端头 cable termination joint试验，维护 test, maintenance试车 test run,commission整定 setting修理 repair验收 acceptance故障 fault停电 power cut,power failure校正 correct停机 stop定期检修 periodic maintenance继电保护 relaying保护 protection保护配置 protection disposition电流速断保护 current quick-breaking protection 过电流保护 over-current protection纵联差动保护 tandem differential protection过载保护 over-load protection距离保护 distance protection功率方向保护 directional power protection 继电器 relay逆流继电器 reverse-current relay阻抗继电器 impedance relay低周率继电器 low frequencyrelay重合闸继电器 reclosing relay定向继电器 directional relay瞬动继电器 instantaneous relay辅助继电器 auxiliary relay差周率继电器 difference frequency relay 极化继电器 polarized relay合闸位置继电器 closing position relay整定 setting整定值 set value整定范围 setting range时限 time lag反时限 inverse time定时限 definite time定时反时限 definite inverse time变时限 dependent time死区 dead zone保护范围 protection range动作 action动作时间 action time,actuating time动作范围 action range延时 delay切换 switchover瞬时动作 instantaneous action复位 reset直流操作 D.C operation交流操作 A.C operation操作电压 control voltage合闸 switch on跳闸 trip off接通 switch-in, close-up备用电源自动投入automaticswitch-on of standby power supply自动重合闸 automatic reclosing脱扣线圈 tripping coil电流脱扣，串联脱扣 series tripping电压脱扣，并联脱扣 shunt tripping起动 start停止 stop按钮 push button断开，切断 break, cut off直接起动 direct starting延时速断 delay quickbreaking保护跳闸 protecting tripping防跳 tripping prevent跳闸指示灯 trippingindicating lamp合闸回路 closing circuit超温报警 overtemperature alarming防雷，接地 lightningprotection and earthing雷击 lightning stroke雷害 lightning disturbance雷电闪络 lightning flash over雷电过电，雷涌 lightning surge直击雷 direct stroke侧击雷 side stroke感应雷 induction stroke雷暴 thunderstorm雷电日 thunder day雷电日数 number oflightning days雷电或然率 lightning probability触电 electric shock静电感应 electrostatic induction放电 electric discharge间隙 gap电火花 spark电弧 arc漏电 leakage漏电路径 leakage path避雷装置 lightning protector避雷针 lightning rod,lightning conductor避雷带 lightning belt避雷网 lightning-protection net避雷针支架 lightning rodsupport避雷针基础 lightning rodbase避雷器 arrester球形避雷 spherical arrester管式避雷 tubular arrester阀式避雷器 auto-valve arrester角式避雷器 horn arrester多隙避雷器 multigap arrester金属氧化物避雷器 metal-oxide arrester铅避雷器 aluminum arrester氧化膜避雷器 oxide filmarrester磁吹避雷器 magnetic blow-out arrester磁吹阀式避雷器 magneticblow-out valve type arrester 防雷工程 lightning protection engineering均压网 voltagebalancing net保护和接地 protection and earthing保护范围 protection range保护高度 protection height保护半径 protection radius保护角 protection angle防雷分类 classificationof lightning protection 一类防雷区 first classprotection接地 earthing接地电阻 earth resistance接地电阻表 earth tester防雷接地 earthing forlightning protection人工接地 artificial earthing工作接地 working earthing保护接地 protective earthing保护地 protective earth信号地 signal earth重复接地 re-earthing中性点接地 neutral point earthing屏蔽接地 shielding earthing接地系统 earthing system接地故障 earth fault暗接地线 concealed earth line暗检测点 concealed checkpoint接地装置 earthing device接地开关 earthing switch接地火花避雷器 earthing arrester接地母线 earth bus接地线 earth conductor接地极 earth electrode引下线 led-down conductor断接卡 disconnector接地干线 ground bus垂直接地极 vertical electrode水平接地极 horizontal electrode降阻剂 resistance reducer利用主筋作引下线mainreinforcing bar used as down-led conductor利用铁爬梯作引下线 iron ladderused as down-led conductor 接地线引入处 entrance ofearth wire自然接地体 natural grounding基础接地体 foundation grounding接零保护 neutral protection保护接零 protective neutralization接零干线 neutral main利用电线管作零线 conduit used asneutral line零线，接地线 neutral line(conductor)零线，中性线 neutral line(conductor)带电金属外壳 currentcarrying metallic case不带电金属外壳 non-currentcarrying metallic case材料 material金属 metal镀锌 zinc plating ,galvanization镀铂 platinum plating镀钠 cadmium plating镀铬 chromium plating镀镍 nickel plating镀锡 tin plating镀锌板 galvanized sheet镀锌层 zinc coat镀锌钢板 galvanized steel plate 镀锌扁钢 galvanized flatsteel镀锌角钢 galvanized angle steel 镀锌圆钢 galvanizedround steel 镀锌钢管 galvanized steel pipe 镀锌槽钢 galvanizedchannel steel 硬塑料管 hard plastic pipe绝缘材料 insulating materials绝缘包布 insulating tape填充 filling填料 filler, fillingmaterial电缆膏 cable compound绝缘膏 insulating compound膏 compound漆 lacquer, paint清漆 varnish搪瓷 enamel; porcelain enamel 沥青 bitumen; asphalt云母 mica环氧树脂 epoxy resin腊 wax石膏 gypsum石棉asbestos电木，酚醛塑料 bakelite玻璃纤维 glass fiber橡皮 rubber辅件 auxiliaries支架 support电缆夹具 cable cleal电缆接头 cable spice电缆套 cable box电缆铠装 cable armouring接地螺栓 earthing bolt百叶窗 louvres隔板 closure, partition隔热板 heat shield法兰，垫圈 flange镀锌螺母 galvanized nut螺钉 screw, nail螺栓 bolt垫块 bearer垫木 skid垫片 gasket, spacer垫圈 washer; (ring )gasket吊钩 hanging hook轨 rail照明 lighting人工照明 artificial lighting工作照明 working lighting直接照明 direct lighting间接照明 indirect lighting局部照明 local lighting;spot lighting 移动照明 portable lighting应急照明 emergency lighting疏散照明 egress lighting值班照明 duty lighting警卫照明 guard lighting障碍照明 obstacle lighting正常照明 normal lighting舞台照明 stage lighting走道照明 corridor lighting盘面照明 dial lighting楼梯照明 staircase lighting剧场照明 theater lighting室内照明 indoor lighting室外照明 outdoor lighting道路照明 road lighting广场照明 plaza lighting街道照明 street lighting照明方式 lighting pattern一般照明 general lighting辅助照明 supplementary lighting 大面积照明 area lighting大面积泛光照明 area flood lighting 逆光照明 back lighting漫散照明 diffuse lighting橱窗照明 shop windowlighting。
电气英文翻译
电气英文翻译2011-02-06三绕组变压器:three-columntransformerThrClnTrans双绕组变压器:double-columntransformerDblClmnTrans电容器:Capacitor并联电容器:shuntcapacitor电抗器:Reactor母线:Busbar输电线:TransmissionLine发电厂:powerplant断路器:Breaker刀闸(隔脱离关):Isolator分接头:tap电动机:motor有功:activepower无功:reactivepower电流:current容量:capacity 电压:voltage档位:tapposition有功损耗:reactiveloss无功损耗:activeloss功率因数:power-factor防护等级:IPcode重量(毛重):GROSSWT(净重):NETWT额定电压:ratedvoltage额定电流:ratedcurrent功率:power功角:power-angle电压等级:voltagegrade空载损耗:no-loadloss铁损:ironloss铜损:copperloss空载电流:no-loadcurrent阻抗:impedance正序阻抗:positivesequenceimpedance负序阻抗:negativesequenceimpedance零序阻抗:zerosequenceimpedance电阻:resistor电抗:reactance电导:conductance电纳:susceptance无功负载:reactiveload或QLoad有功负载:activeloadPLoad遥测:YC(telemetering)遥信:YX励磁电流(转子电流):magnetizingcurrent常用的电气专业英语词汇inductionmachine感应式电机horseshoemagnet马蹄形磁铁magneticfield磁场eddycurrent涡电流right-handrule右手定则left-handrule左手定则slip转差率inductionmotor感应电动机rotatingmagneticfield旋转磁场winding绕组stator定子rotor转子inducedcurrent感生电流time-phase时间相位excitingvoltage励磁电压solt槽lamination叠片laminatedcore叠片铁芯short-circuitingring短路环squirrelcage鼠笼rotorcore转子铁芯cast-aluminumrotor铸铝转子bronze青铜horsepower马力random-wound散绕insulation绝缘acmotor交流环电动机endring端环alloy合金coilwinding 线圈绕组form-wound模绕performancecharacteristic工作特性frequency频率revolutionsperminute转/分motoring电动机驱动generating发电per-unitvalue标么值breakdowntorque极限转矩breakawayforce起步阻力overhauling检查修理wind-drivengenerator风动发电机revolutionspersecond转/秒numberofpoles极数speed-torquecurve转速力矩特性曲线plugging反向制动synchronousspeed同步转速percentage百分数locked-rotortorque锁定转子转矩full-loadtorque满载转矩primemover原动机inrushcurrent涌流magnetizingreacance磁化电抗line-to-neutral线与中性点间的staorwinding定子绕组leakagereactance漏磁电抗no-load空载fullload满载Polyphase多相(的)iron-loss铁损compleximpedance复数阻抗rotorresistance转子电阻leakageflux漏磁通locked-rotor锁定转子choppercircuit斩波电路separatelyexcited他励compounded复励dcmotor 直流电动机demachine直流电机speedregulation速率调节shunt并励series 串励armaturecircuit电枢电路opticalfiber光纤interoffice局间的waveguide波导波导管bandwidth带宽lightemittingdiode发光二极管silica 硅石二氧化硅regeneration再生,后反馈放大coaxial共轴的,同轴的high-performance高性能的carrier载波mature成熟的SingleSideBand(SSB)单边带couplingcapacitor结合电容propagate传导传播modulator调制器demodulator解调器linetrap限波器shunt分路器AmplitudeModulation(AM 调幅FrequencyShiftKeying(FSK)移频键控tuner调协器attenuate衰减incident入射的two-wayconfiguration二线制generatorvoltage发电机电压dcgenerator直流发电机polyphaserectifier多相整流器boost增压timeconstant时间常数forwardtransferfunction正向通报函数errorsignal 误差信号regulator调节器stabilizingtransformer稳定变压器timedelay延时directaxistransienttimeconstant直轴瞬变时间常数transientresponse 瞬态响应solidstate固体buck赔偿operationalcalculus算符演算gain增益pole极点feedbacksignal反馈信号dynamicresponse动态响应voltagecontrolsystem电压节制体系mismatch掉配errordetector误差检测器excitationsystem励磁体系fieldcurrent励磁电流transistor晶体管high-gain高增益boost-buck升压去磁feedbacksystem反馈体系feedbackloop反馈回路automaticVoltageregulator(AVR)自动电压调解器referenceVoltage基准电压magneticamplifier磁放大器amplidyne微场扩流发电机self-exciting自励的limiter限幅器manualcontrol手动节制blockdiagram方框图linearzone线性区potentialtransformer电压互感器stabilizationnetwork稳定网络stabilizer稳定器air-gapflux气隙磁通saturationeffect饱以及效应saturationcurve饱以及曲线fluxlinkage磁链perunitvalue标么值shuntfield并励磁场magneticcircuit磁路load-saturationcurve负载饱以及曲线air-gapline气隙磁化线polyphaserectifier多相整流器circuitcomponents电路元件circuitparameters电路参数electricaldevice电气设备electricenergy电能primarycell原生干电池energyconverter电能转换器conductor导体heatingappliance电热器direct-current直流timeinvariant时不变的self-inductor自感mutual-inductor互感thedielectric电媒质storagebattery 蓄干电池e.m.f=electromotiveforce电动势Loopsystem环网体系Demagnetization退磁,去磁Distributionsystem配电体系Relaypanel继电器屏Tripcircuit跳闸电路Tertiarywinding第三绕组Switchboard配电盘,开关屏Eddycurrent涡电流Instrumenttransducer测量互感器Copperloss铜损Oil-impregnatedpaper油浸纸绝缘Ironloss铁损Bareconductor裸导线Leakageflux漏磁通Reclosing重合闸Autotransformer自耦变压器Distributiondispatchcenter配电调度中间Zerosequencecurrent零序电流Pulverizer磨煤机Series(shunt)compensation串(并)联赔偿Drum汽包,炉筒Restriking电弧重燃Superheater过热器Automaticoscillograph自动录波仪Peak-load峰荷Tidalcurrent潮流Primegridsubstation主网变电站Tripcoil 跳闸线圈Reactivepower`无功功率Synchronouscondenser同步调相机Activepower有功功率Mainandtransferbusbar单母线带旁路Shuntreactor并联电抗器Feeder馈电线Blackout断电、停电Skineffect集肤效应Extra-highvoltage(EHV)超高压Potentialstress电位应力(电场强度)Ultra-highvoltage(UHV)特高压Capacitorbank电容器组Domesticload平易近用电crusher碎煤机Reservecapacity备用容量pulverizer磨煤机Fossil-firedpowerplant火电厂baghouse集尘室Combustionturbine燃气轮船上的发动机Stationary(moving)blade固定(可动)叶片Right-of-way线路走廊Shaft 转轴Rectifier整流器Kinetic(potential)energy动(势)能Inductive(Capacitive)电感的(电容的)Pumpedstoragepowerstation抽水蓄能电站Reactance(impedance)电抗(阻抗)Synchronouscondenser同步调相机Reactor电抗器Light(boiling)-waterreactor轻(沸)水反应堆Reactive电抗的,无功的Stator(rotor)定(转)子Phasedisplacement(shift)相移Armature 电枢Surge冲击,过电压Salient-pole凸极Retainingring护环Slipring滑环Carbonbrush炭刷Arcsuppressioncoil消弧线圈Short-circuitratio短路比Primary(backup)relaying主(后备)继电保护Induction感应Phaseshifter移相器Autotransformer自藕变压器Powerlinecarrier(PLC)电力线载波(器)Bushing套管Linetrap线路限波器Turn(turnratio)匝(匝比,变比)Uninterruptiblepowersupply不间断电源Powerfactor功率因数Spotpowerprice实时电价Tap分接头Time-of-use(tariff)分时(电价)Recoveryvoltage恢复电压XLPE(CrossLinkedPolyethylene)交联聚乙烯(电缆)Arcreignition电弧重燃Rms(rootmeansquare)均方根值Operationmechanism操动机构RF(radiofrequency)射频Pneumatic(hydraulic)气动(液压)Rpm(revolutionperminute)转/分Nameplate铭牌LAN(localareanetwork)局域网Independentpoleoperation分相操作LED(lightemittingdiode)发光二极管Malfunction掉灵Single(dual,ring)bus单(双,环形)母线Shieldwire避雷线IC(integratedcircuit)集成电路Creepdistance爬电距离FFT(fastFouriertransform)快速傅立叶变换Siliconrubber硅橡胶Telemeter 遥测Compositeinsulator合成绝缘子Loadshedding甩负荷Converter(inverter)换流器(逆变器)Lateral支线Bustiebreaker母联断路器Power-flowcurrent工频续流Protectiverelaying继电保护sparkover放电Transferswitching倒闸操作Siliconcarbide碳化硅Outgoing(incoming)line 出(进)线Zincoxide氧化锌PhaseLead(lag)相位超前(滞后)Withstandtest耐压试验Staticvarcompensation(SVC)静止无功赔偿Dispatcher调度员FlexibleACtransmissionsystem(FACTS)灵活交流输电体系Supervisorycontrolanddataacquisition(SCADA)监控与数据采集EMC(electromagneticcompatibility)电磁兼容ISO(internationalstandardizationorganization)国际标准化组织GIS(gasinsulatedsubstation,geographicinformationsystem)气体绝缘变电站,地理信息体系IEC(internationalElectrotechnicalCommission)国际电工(技术)委员会IEEE(InstituteofElectricalandElectronicEngineers)电气与电子工程师学会(美)IEE(InstitutionofElectricalEngineers)电气工程师学会(英)scale刻度,量程calibrate校准rated额定的terminal接线端子fuse保险丝,熔丝humidity湿度resonance谐振,共振moisture潮湿,湿气analytical解析的operationamplifier运算放大器numerical数字的amplitudemodulation(AM)调幅frequency-domain频域frequencymodulation(FM)调频time-domain时域binary二进制operationamplifier运算放大器octal八进制activefilter有源滤波器decimal十进制passivefilter无源滤波器hexadecimal十六进制generator 发电机gasinsulatedsubstationGIS气体绝缘变电站turbogenerator汽轮发电机neutralpoint中性点hydrogenerator水轮发电机movingcontact动触头hydraulicturbine水轮船上的发动机fixedcontact静触头steamturbine汽轮船上的发动机arc-extinguishingchamber灭弧室dynamo直流发电机straycapacitance杂散电容motor电动机strayinductance杂散电感stator 定子spheregap球隙rotor转子bushingtapgroundingwire套管末屏接地线powertransformer电力变压器electrostaticvoltmeter静电电压表variabletransformer调压变压器ammeter电流表tapedtransformer多级变压器groundingcapacitance对地电容stepup(down)transformer升(降)压变压器voltagedivider分压器circuitbreakerCB断路器surgeimpedance波阻抗deadtankoilcircuitbreaker多油断路器Scheringbridge西林电桥livetankoilcircuitbreaker少油断路器Rogowskicoil罗可夫斯基线圈vacuumcircuitbreaker真空断路器oscilloscope示波器sulphurhexafluoridebreakerSF6断路器peakvoltmeter峰值电压表potentialtransformerPT电压互感器conductor导线currenttransformerCT 电流互感器cascadetransformer串级变压器disconnector隔脱离关couplingcapacitor耦合电容earthingswitch接地开关testobject被试品synchronousgenerator同步发电机detectionimpedance检测阻抗asynchronousmachine异步电机substation变电站Insulator绝缘子hydropowerstation水动力发电站lightningarrester避雷器thermalpowerstation火力发电站metaloxidearresterMOA氧化锌避雷器nuclearpowerstation核电站busbar母线oil-filledpowercable充油电力电缆overheadline架空线mixeddivider(阻容)混合分压器transmissionline传输线XLPEcable交链聚乙烯电缆(coaxial)cable(同轴)电缆relay继电器ironcore铁芯tunedcircuit调协电路winding绕组suspensioninsulator悬式绝缘子bushing套管porcelaininsulator瓷陶绝缘子front(tail)resistance波头(尾)电阻glassinsulator玻璃绝缘子inverterstation换流站flashcounter雷电统计器charging(damping)resistor充电(阻尼)电阻steel-reinforcedaluminumconductor钢芯铝绞线tank箱体pointplanegap针板间隙earth(ground)wire接地线excitingwinding激磁绕组gradingring均压环triggerelectrode触发电极highvoltageengineering高电压工程glowdischarge辉光放电harmonic谐波highvoltagetestingtechnology高电压试验技术Powerelectronics电力电子Automaticcontrol自动节制Principlesofelectriccircuits电路原理Digitalsignalprocessing数字信号处理powersystem电力体系impulsecurrent冲击电流powernetwork电力网络impulseflashover冲击闪络insulation绝缘inhomogenousfield不均匀场overvoltage过电压insulationcoordination绝缘配合aging老化internaldischarge内部放电alternatingcurrent交流电lightningstroke雷电波ACtransmissionsystem交流输电体系lightningovervoltage雷电过电压arcdischarge电弧放电lossangle(媒质)损耗角attachmentcoefficient附着系数magneticfield磁场attenuationfactor衰减系数meanfreepath平均自由行程anode(cathode)阳极(阴极)meanmolecularvelocity平均分子速率breakdown(电)击穿negativeions负离子bubblebreakdown气泡儿击穿non-destructivetesting非破坏性试验cathoderayoscilloscope阴极射线示波器non-uniformfield不均匀场cavity空穴,腔partialdischarge局部放电corona电晕peakreversevoltage反向峰值电压compositeinsulation组合绝缘photoelectricemission光电发射criticalbreakdownvoltage临界击穿电压photon光量子Discharge放电phase-to-phasevoltage线电压Dielectric电媒质,绝缘体polarityeffect极性效应dielectricconstant媒质常数powercapacitor电力电容dielectricloss媒质损耗quasi-uniformfield稍不均匀场directcurrent直流电radiointerference无线干扰dividerratio分压器分压比ratingofequipment设备额定值grounding接地routingtesting常规试验electricfield电场residualcapacitance残余电容electrochemicaldeterioration电化学腐化shielding屏蔽electronavalanche电子崩shortcircuittesting短路试验electronegativegas电负性气体spacecharge空间电荷epoxyresin环氧树脂streamerbreakdown流注击穿expulsiongap灭弧间隙surfacebreakdown外貌击穿fieldstrength场强sustaineddischarge自持放电fieldstress电场力switchingovervoltage操作过电压fielddistortion场畸变thermalbreakdown热击穿fieldgradient场梯度treeing树梢放电fieldemission场致发射uniformfield均匀场flashover闪络wavefront(tail)波头(尾)gaseousinsulation气体绝缘withstandvoltage耐受电压Primemover原动机Powerfactor功率因数Torque力矩Distributionautomationsystem配电网自动化体系Servomechanism伺服体系Automaticmeterreading自动抄表Boiler锅炉Armature电枢Internalcombustionengine内燃机Brush电刷Deenergize断电Commutator换向器Undergroundcable地下电缆Counteremf 反电势历史上的今天:电气专业英语一览英文全称缩写中文【A-G】2011-02-06。
电气装置安装工程高压电器施工及验收规范GB50147-2010
金属封闭开关设备，简称GIS。
2．0．5复合电器
HGIS，hybrid GIS
复合电器（HGIS)是简化的GIS,不含敞开式汇流母线等。
2．0．6伸缩节 flex section
用于GIS、HGIS相邻二个外壳间相接部分的连接，用来吸收
热伸缩及不均匀下沉等引起的位移，且具有波纹管等型式的弹性
接头。
2．0．7运输单元 transportaFra bibliotekion unit
3、绝缘部件、专用材料、专用小型工器具及备品、备 件等应置 于干燥的室内保管。
4、罐式断路器的套管应水平放置。 5、瓷件应妥善安置，不得倾倒、互相碰撞或遭受外界 的危害。 6、对于非充气元件的保管应结合安装进度以及保管时 间、环境做好防护措施。
4六氟化硫断路器
4．2六氟化硫断路器的安装与调整
4．2．1六氟化硫断路器的基础或支架的安装，应符合产品技术文 件要求，并应符合下列规定： 1混凝土强度应达到设备安装要求。 2基础的中心距离及高度的偏差不应大于10mm。 3预留孔或预埋件中心线偏差不应大于基础预埋件 上端应高出混凝土表面1mm〜10mm。 4预埋螺栓中心线的偏差不应大于2mm。 4．2．2六氟化硫断路器安装前应进行下列检查：
1总则
1总则
1总则
1总则
1总则
1总则
1总则
1总则
2术语
2．0．1高压断路器 high-voltage breaker
它不仅可以切断或闭合高压电路中的空载电流和负荷电流， 而且
当系统发生故障时，通过继电保护装置的作用，切断过负荷电 流
和短路电流。它具有相当完善的灰弧结构和足够的断流能力。 又
3．0．4设备及器材应符合国家现行技术标准的规定，同

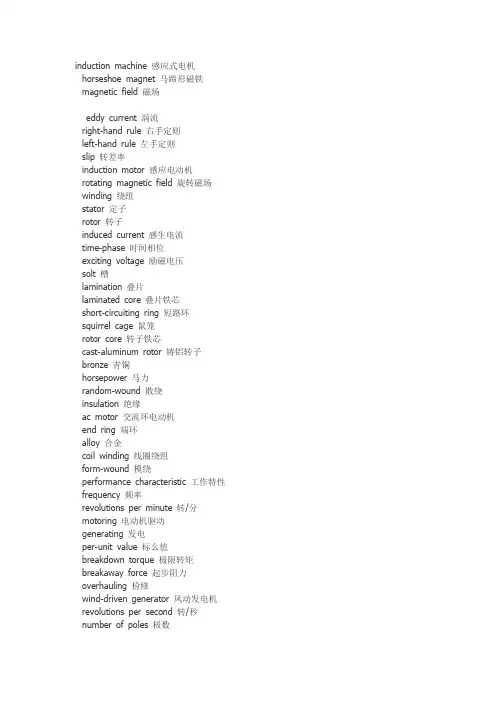

电气专业英语词汇
