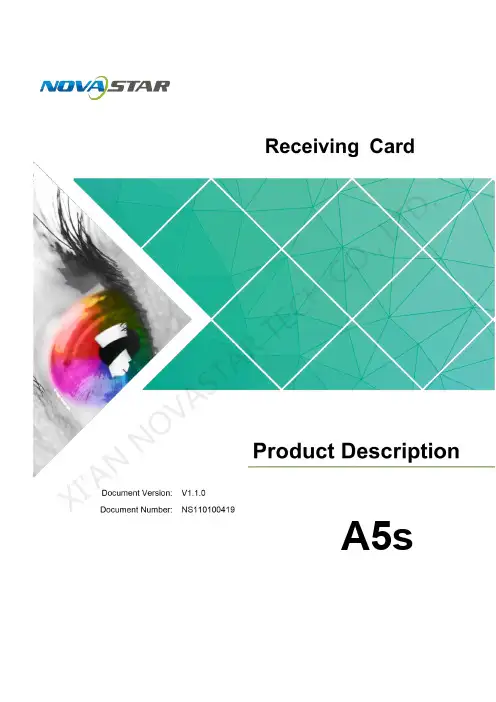

诺瓦科技LED显示屏接收卡厂家A5s产品说明书
A5sCopyright © 2018 Xi’an NovaStar Tech Co., Ltd. All Rights Reserved.No part of this document may be copied, reproduced, extracted or transmitted in any form or by any means without the prior written consent of Xi’an NovaStar Tech Co., Ltd.Change HistoryChange HistoryTrademarkis a trademark of Xi’an NovaStar Tech Co., Ltd.StatementYou are welc o me to use the product of Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). This document is intended to help you understand and use the product. For accuracy and reliability, NovaStar may make improvements and/or changes to this document at any time and without notice. Any problem in use or any good suggestion, please contact us through ways provided in the document. We will do our utmost to solve the problems and adopt the suggestions after evaluation as soon as possible.www.novastar.tech ContentsContents 1Safety (1)1.1 Storage and Transport Safety ......................................................................................................................11.2 Installation and Use Safety ..........................................................................................................................12Overview (2)3Characteristics (3)3.1 Improvement in Display Effect .....................................................................................................................33.2 Improvement inMaintainability (3)3.3 Improvement in Hardware Reliability ...........................................................................................................43.4 Improvement in Software Reliability ............................................................................................................54Hardware Structure (6)4.1 Appearance ..................................................................................................................................................64.2 Dimensions ..................................................................................................................................................64.3 Indicator .......................................................................................................................................................74.4 Definition of the Data Interface (Top) ...........................................................................................................84.4.1 32-Group Parallel Data Interface ..............................................................................................................84.4.2 64-Group Serial Data Interface ................................................................................................................114.4.3 Reference Design for Expandable Interfaces .........................................................................................145Software Structure (16)6Typical Networking (17)7Specifications (18)A Acronyms and Abbreviations (19)B Terms (20)XI'ANNOVASTAR 1 Safety1Safety This chapter illustrates the safety of the A5s receiving card to ensure products’ storage, transport, packing and application safety. Safety description is applicable to all personnel that contact or use the products. Pay attention to following points: ●Read throughout the description. ●Save the whole description. ● Be complied with the whole description.1.1 Storage and Transport Safety●Pay attention to dust and water prevention. ●Avoid long-term direct sunlight. ●Do not place the products at the position near fire and heat. ●Do not place the products in an area containing explosive materials. ●Do not place the products in strong electromagnetic environment. ●Place the products at a stable position to prevent damage or personal injury caused by dropping. ● Save the packing box and materials which will come in handy if you ever have toship your products. For maximum protection, repack your product as it was originally packed at the factory.1.2 Installation and Use Safety ●Only trained professionals may install the products. ●Do not insert and unplug (power cord plug) when the power is on. ●Ensure the safe grounding of the device. ●Always wear an anti-static wrist band and insulating gloves. ● Do not place the products in an area having more or strong shake.NOVASTARTECHCO., LTD. ●Perform dust removing regularly. ●Do not maintain the products without authorization but contact NovaStar as soon as possible. ● Replace spare parts only with the same parts supplied by NovaStar.www.novastar.tech12 Overview2Overview A5s is a high-end receiving card developed by NovaStar, featuring small size and large loading capacity with the single card loading capacity up to 320×256 (PWM IC) pixels. A5s supports pixel level brightness and chroma calibration, which removes color difference effectively and improves display consistency of LED images. In addition, it also supports image rotation in 90° increments, creating richer images and improving visual experiences. Software and hardware designs of the A5s concern the user deployment as well as operating and maintenance scenarios, enabling easier deployment, more stable operating and more efficient maintenance. Advanced hardware design: ●Small size and thinner thickness save space for increasingly narrower cabinet space and smaller spacing between lamps. ●Use high-density connector which is resistant to dust and vibration and features high stability and high reliability. ● Assembly network transformer features simple design and improved magnetic compatibility, helping user’s products to successfully pass the EMC authentication.Useful software design: ● Support for LVDS transmission (customized function)Product Description 3 Characteristics●Support for smart module (customized function)●Support for auto module calibration●Support for Mapping function●Support for pre-stored image setting of the receiving card●Support for module Flash management●Support for monitoring of temperature, power supply voltage●Support for monitoring of Ethernet cable communication status (customizedfunction)●Support for 5-pin LCD module●Support for image rotating in 90° incrementsProduct DescriptionProduct Description 3 CharacteristicsProduct Description 4 Hardware StructureProduct Description 3 Characteristics3.4Improvement in Software ReliabilityXI'ANA5s Receiving Card Product Description4 Hardware StructureBoard thickness is not greater than 2.0mm, and the total thickness (board thickness +thickness of both front panel and back panel) is not greater than 7.5mm.Unit of the dimension chart is “mm”. Ground connection is enabled for location hole (GND).4Hardware Structure4.1AppearanceProduct images provided in this file are for reference only , and the actual products shall prevail.Models of the high-density receptacle and plug used by A5s are shown in T able 4-1 . Table 4-1 Model of high-density connector4.2 DimensionsNOVASTARTECHCO.,LTD.Product Description 4Hardware Structure4.3 Indicator The receiving card works normally, Ethernet cable connection is normal, while no video source input is available.LTD.4.4 Definition of the Data Interface (Top) 4.4.1 32-Group Parallel Data InterfaceNC 23 24 NCNote 2. RGB data groups must be used in group.Note 3. Operating indicator that meets low level is valid.Note 4. OE_RED, OE_GREEN and OE_BLUE are display enabled pins. In case thatOE_RGB are not controlled separately, OE_RED signal is applied. When PWM chip is used, GCLK signal is enabled. Note 5. RFU1–18 are the reserved extended function interfaces. Please refer to4.4.2 64- Group Serial Data Interface XI'ANNOVASTARTECHCO.,LTD.“4.4.3 Reference Design for Expandable Interfaces”.Gigabit Ethernet portTECHCO.,Note 7. Operating indicator that meets low level is valid.Note 8. OE_RED, OE_GREEN and OE_BLUE are display enabled pins. In case thatOE_RGB are not controlled separately, OE_RED is applied. While PWMchip is used, GCLK signal is enabled.Note 9. RFU1–18 are the reserved extended function interfaces. Please refer to“4.4.3 Reference Design for Expandable Interfaces ”.RFU8 and RFU10 are signal multiplexing expandable interfaces for which the interfaces of either Recommended Smart Module Interface or Recommended Module Flash Interface can be selected at a time.LTD.CO.,TECHNOVASTARXI'AN5 Software Structure5Software StructureProgram download method:Visit w ww.novastar.tec h a nd choose D ownload > F irmware . On the F irmware section, choose the desired program package to download.XI'ANNOVASTARTECHCO.,LTD.6 Typical Networking6Typical NetworkingA5s is applied to LED display synchronous system which is generally composed of the LED display, HUB board, receiving card, video controller and controller peripheral. The receiving card is connected to the display over a HUB board.Synchronous system requires connecting a c omputer to display the computer’s images and texts on the LED screen. Structure of the synchronous system is asshown in the following figure.XI'ANNOVASTARTECHCO.,LTD.XI'ANficationsA Acronyms and AbbreviationsAAcronyms and AbbreviationsEEMC Electromagnetic Compatibility FFPGA Field - P rogrammable Gate A rray LLED Light E mitting Diode MMCU Microcontroller UnitRRCFGReceiving Card ConfigurationXI'ANNOVASTARTECHCO.,LTD.B Term sBT ermsCalibration coefficient Calibration system generates a group of values for each LED lamp, includinginformation about brightness and chroma. After display calibration, the calibrationvalues of each lamp are just the calibration coefficient.Smart moduleThe smart module is composed of Flash and MCU.The Flash could store calibration coefficients and module information. MCU could communicate with the receiving card to realize monitoring over temperature, voltage and wiring communication status, as well as LED error detection. The smart module could make monitoring unit smaller, requiring no independentmonitoring card and saving cabinet space. MappingAfter the Mapping function is enabled on NovaLCT, the target cabinet will display the cabinet number and Ethernet port information, and the user could get the receiving card’s location and wiring route.Error detectionPerform status detection for each LED lamp. If the LED lamp fails, the user could notify in a timely manner upon monitoring system.XI'ANNOVASTARTECHCO.,LTD.。

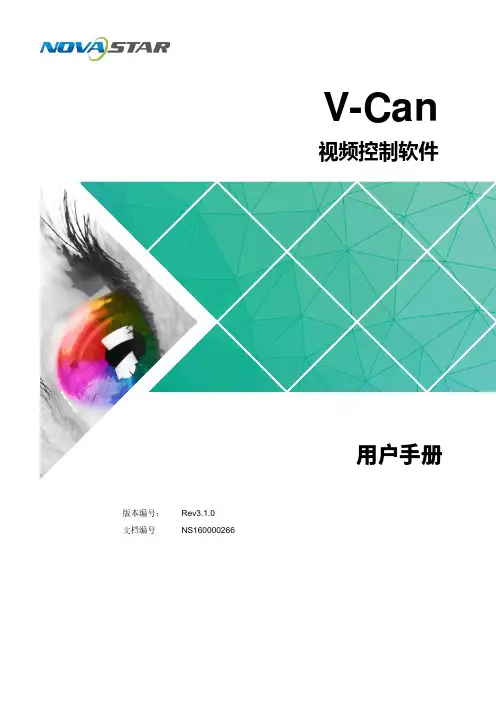

诺瓦科技LED视频控制软件V-Can使用手册
V-Can视频控制软件版本编号： Rev3.1.0 文档编号NS160000266用户手册西安诺瓦电子科技有限公司版权所有 ©2018 西安诺瓦电子科技有限公司。
保留一切权利。
非经本公司书面许可，任何单位和个人不得擅自摘抄、复制本文档内容的部分或全部，并不得以任何形式传播。
商标声明是诺瓦科技的注册商标。
声明欢迎您选用西安诺瓦电子科技有限公司（以下简称诺瓦科技）的产品，如果本文档为您了解和使用产品带来帮助和便利，我们深感欣慰。
我们在编写文档时力求精确可靠，随时可能对内容进行修改或变更，恕不另行通知。
如果您在使用中遇到任何问题，或者有好的建议，请按照文档提供的联系方式联系我们。
对您在使用中遇到的问题，我们会尽力给予支持，对您提出的建议，我们衷心感谢并会尽快评估采纳。
网址： i西安诺瓦电子科技有限公司目 录1 概述 .................................................................................................................................................. 1 2 软件安装 (2)2.1 软件获取 ...................................................................................................................................................... 2 2.2 软件安装 ...................................................................................................................................................... 2 2.3 软件运行 ...................................................................................................................................................... 2 2.4 界面介绍 (3)3 功能介绍 (5)3.1 系统 ............................................................................................................................................................. 5 3.1.1 重连 .......................................................................................................................................................... 5 3.1.2 刷新 .......................................................................................................................................................... 6 3.1.3 固件升级 ................................................................................................................................................... 6 3.1.4 自测试 ...................................................................................................................................................... 7 3.1.5 恢复出厂 ................................................................................................................................................... 8 3.1.6 网络设置 ................................................................................................................................................... 8 3.1.7 语言选择 ................................................................................................................................................... 9 3.2 配置 ............................................................................................................................................................. 9 3.2.1 输入设置 . (10)3.2.1.1 输入设置 .............................................................................................................................................. 10 3.2.1.2 输入画质 ............................................................................................................................................... 11 3.2.2 输出设置 ................................................................................................................................................. 13 3.2.2.1 输出设置 .............................................................................................................................................. 13 3.2.2.2 输出画质 .............................................................................................................................................. 14 3.2.3 模式切换 ................................................................................................................................................. 15 3.2.4 拼接 ........................................................................................................................................................ 16 3.2.5 添加窗口 ................................................................................................................................................. 17 3.2.6 设置窗口属性 ......................................................................................................................................... 18 3.2.7 配置场景信息 ......................................................................................................................................... 22 3.2.8 特效 ........................................................................................................................................................ 23 3.2.8.1 切源特效 .............................................................................................................................................. 23 3.2.8.2 Take 特效 ............................................................................................................................................. 23 3.2.9 特效速度 . (24)西安诺瓦电子科技有限公司3.2.10 场景播放 ............................................................................................................................................... 24 3.2.11 同步模式 ............................................................................................................................................... 26 3.2.12 AUX ....................................................................................................................................................... 26 3.3 OSD ........................................................................................................................................................... 27 3.3.1 J6和N6的OSD 添加 ............................................................................................................................. 27 3.3.2 其他设备OSD 添加 .. (29)西安诺瓦电子科技有限公司使用手册1 概述1概述V-Can 是一款视频处理器的智能控制平台，支持J6、N6等视频处理器和VX5s 、VX6s 等二合一视频控制器。

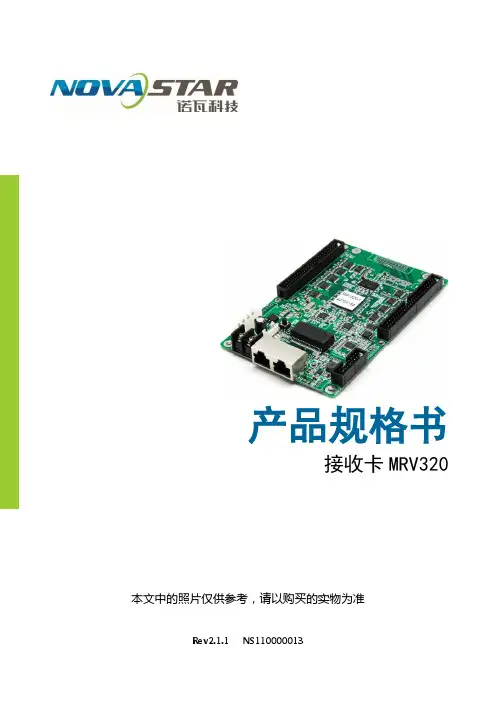

诺瓦科技LED显示屏接收卡MRV320规格书
NC 8
技 G10 10 科 U9 12 子 R9 14
7 E2 9 U20 11 R20 13 G19
NC 8 G20 10 U19 12 R19 14
15 U8
电G8 16
15 U18
G18 16
17 R8
瓦 U7 18
17 R18
U17 18
19 G7
诺 21 U6 安 23 R6 西 25 G5
2 4 6 8
1
有3 技5 科7
GND GND GND Data64
VCC 2 VCC 4 DCTRL2 6 Data63 8
9 Data30
子 Data29 10
9 Data62
Data61 10
11 Data28
电 Data27 12
11 Data61
Data60 12
13 15 17 19
Data26
39 D1
C1 40
39 D2
C2 40
41 B1
A1 42
41 B2
A2 42
43 LAT1
DCLK1 44
43 LAT2
DCLK2 44
45 OE1
GND 46
45 OE2
GND 46
47 VCC
GND 48
47 VCC
GND 48
Байду номын сангаас
49 VCC
GND 50
49 VCC
GND 50
型号表
2 LED +/3.3V
3 PWR_LED -
4 KEY +
5 KEY -/GND
为满足客户的不同需求，诺瓦提供细分型号的产品，其中标准产品有现货，其
诺瓦科技LED显示屏接收卡MRV200规格书英文版
SpecificationsReceiving Card MRV200Product images provided in this file are for reference only , and the actual products shall prevail.Rev2.1.1NS110100089XI 'AN NOVA S TAR T E C H C O .,L T D.OverviewNova M3 MRV200 is the mini-version of Nova M3 receiving card. It has small size and powerful functions. It retains all the functions and features of MRV300 receiving card and is more suitable to LED curtain and die-cast aluminum cabinet.Features1) Single card outputs 16-group of RGBR 'data;2) Single card outputs 20-group of RGB data; 3) Single card outputs 64-group of serial data; 4) Single card supported resolution 256x226; 5) Configuration file readback; 6) Temperature monitoring.7) Ethernet cable communication status detection; 8) Power supply voltage detection; 9) Pixel-by-pixel brightness and chromaticity calibration. Brightnessand chromaticity calibration coefficients for each LED; 10) Pre-store picture setting; 11) Comply with EU RoHs standard; 12) Comply with EU CE-EMC standard.XI 'A N N O V A S T A R T E C H C O .,L T D.Output Interface DefinitionUnder all the three different working modes of it, three 26P interfaces can output different data, and only one common program and software is required. No customized program is necessary. Interfaces are defined as follows:1) 16-group data mode （With virtual output ）Supporting 16-group of RGBR 'parallel data, defined as follows:Virtual red signal of the eighth group of data is exported as E signal of decoded signal under 32-scanning working mode.XI 'AN NOVA S TAR T E C HCO .,L T D.2) 20-group parallel data modeSupporting 20 sets of parallel data, defined as follows:I 'AN T E C HCO .,L T D.3)64-group serial data modeSupporting 64 sets of serial data, defined as follows:X I'A NN OV AS TA RT EC HC O.,L TD.Under serial mode, there are 64 data cables totally. Each cable can drive one LED bar independently.In case of horizontal LED bar, the default is, Data1 drives the first row from the top, and Data64 drives the 64th row. (front view)In case of vertical LED bar, the default is, Data1 drives the first column of from the left, and Data64 drives the 64th column. (front view).4) Special interface for light series or color screenDimensions Board thickness is not greater than 2mm, and the total thickness (board thickness + thickness of both front panel and back panel) is not greater than 18mm.Unit: mm.XI 'A N N OV A S T A R T C HCO .,L T D.AppearanceNote: Product images provided in this file are for reference only, and the actual products shall prevail.J2 definition （Connector interface of the network ports ）J9 definition （Indicator light Socket ） SpecificationsI 'A N L T D.Specific Model ListTo meet the needs of different customers, Nova provides more specificmodels of the products, including standard products in stock. Othermodels need to be customized.AppendixSerial data decoding circuit：X I'A NN OV AS TA RT EC HC O.,L T。
诺瓦科技LED透明屏接收卡TR100规格书产品说明书
接收卡规格书产品版本：V1.0.0文档编号：NS120000328接收卡TR100规格书www.novastar-l 更新记录V1.0.0i接收卡TR100规格书www.novastar-l ed.c n目录1概述 (1)2产品特性 (2)2.1提升显示效果 (2)2.2提升可维护性 (2)2.3提升硬件可靠性 (3)2.4提升软件可靠性 (3)3接口定义 (4)3.1 32组并行数据接口 (4)3.2扩展功能参考设计 (7)4外观 (8)5尺寸 (9)6产品规格 (10)接收卡TR100规格书www.novastar-l ed.c n1概述TR100是诺瓦科技推出的新一代接收卡，单卡带载384×384像素。
TR100支持1.0/2.3（S AA）同轴接口，使系统的连接和数据传输更加可靠。
支持SerDes技术，具有低延迟特性。
同时，T R100支持18B it+灰度输出，有效处理LED显示屏因亮度降低带来的灰度损失问题，使图像更细腻。
接收卡TR100规格书规格书备注2.RGB 数据组必须成组使用。
备注3.运行指示灯为低电平有效。
备注4.OE_RED、OE_GREEN、OE_BLUE 为显示使能引脚。
OE_RGB 不分开控制时，使用OE_RED。
当使用PWM 芯片时，为GCLK 信号。
备注5.RFU1～18 是预留扩展功能接口，详细信息请参见“3.2 扩展功能参考设计”。
规格书www.novastar-l ed.c n4外观本文中的产品照片仅供参考，实际出厂产品安装散热片，请以实际购买到的产品为准。
TR100使用的高密度接插件的母座（R eceptacle）型号如表4-1所示。
公座（P LUG）型号可以根据实际需求选择。
4-1规格书www.novastar-l ed.c n5尺寸（单位：m m）。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
MRV316
接收卡
版本 编号： V1.0.0 文档编号 ：
NS 110000374
产品说明书
版权所有©2017西安诺瓦电子科技有限公司。
保留一切权利。
非经本公司书面许可，任何单位和个人不得擅自摘抄、复制本文档内容的部分或全部，并不得以任何形式传播。
商标声明
是诺瓦科技的注册商标。
声明
欢迎您选用西安诺瓦电子科技有限公司（以下简称诺瓦科技）的产品，如果本文档为您了解和使用产品带来帮助和便利，我们深感欣慰。
我们在编写文档时力求精确可靠，随时可能对内容进行修改或变更，恕不另行通知。
如果您在使用中遇到任何问题，或者有好的建议，请按照文档提供的联系方式联系我们。
对您在使用中遇到的问题，我们会尽力给予支持，对您提出的建议，我们衷心感谢并会尽快评估采纳。
产品说明书更新记录
更新记录
产品说明书目录
目录
更新记录 (ii)
1安全说明 (1)
2概述 (2)
3产品特性 (3)
4硬件结构 (4)
4.1外观 (4)
4.2尺寸图 (5)
4.3指示灯说明 (5)
4.4数据接口定义 (6)
5软件结构 (7)
6典型组网 (8)
7产品规格 (10)
产品说明书1安全说明
1安全说明本章介绍接收卡MRV316的安全说明，目的是保证产品的存储、运输、安装和使用安
全。
安全说明适用于所有接触和使用产品的人员。
首先请注意以下几点：
●请阅读所有说明。
●请保留所有说明。
●请遵循所有说明。
存储和运输安全
●请注意防尘防水。
●请避免阳光长时间直射。
●请勿靠近热源和火源。
●请勿放置在易爆气体环境中。
●请勿放置在强电磁环境中。
●请将产品放在稳固的位置，以防坠落造成产品损坏或人身伤害。
●请保存包装箱和包装材料。
存储和运输产品时可以使用。
为了最大程度地保护设
备，请将产品按照出厂时的原始包装重新包好。
安装和使用安全
●只有通过培训的专业人员才可以安装产品。
●禁止带电插拔。
●请确保箱体安全接地。
●请佩戴防静电护腕，穿戴绝缘手套。
●请勿将产品安装在震动多或强的环境中。
●请定期除尘。
●请勿擅自维修产品，您可以随时联系诺瓦科技。
●请使用诺瓦科技的同款产品进行备件更换。
产品说明书2概述
2概述
MRV316是诺瓦推出的新款接收卡，单卡带载512×256像素。
MRV316支持逐点亮色度校正，有效消除色差，显著提升LED画面显示的一致性，给
用户带来更加细腻的画面。
MRV316的硬件设计和软件设计充分考虑用户部署、系统运行和维护时的场景，使部
署更容易，运行更稳定、维护更高效。
硬件设计：
●集成16个标准HUB75接口，免接HUB板。
●采用千兆网口，可以连接PC端。
软件设计：
●支持逐点亮色度校正。
●支持接收卡预存画面设置。
●支持温度、电压、网线通讯和视频源信号状态检测。
●支持5P in液晶模块。
MRV316
接收卡MRV316
4
产品说明书硬件结构
4硬件结构
4.1外观Array
本文中的产品照片仅供参考，请以实际购买到的产品为准。
MRV316
硬件结构
接收卡MRV316
产品说明书硬件结构
MRV316
硬件结构
产品说明书5软件结构
5软件结构
MRV316出厂固件包括MCU程序和FPGA程序。
程序包下载方法：
请访问www.novastar-led.c n，选择“下载中心> 软件及资料”。
在“接收卡”区域中
单击“程序软件”，进入下载列表并获取所需程序包。
6典型组网
MRV316应用于LED显示屏同步系统。
同步系统一般由LED显示屏、接收卡、L ED 显示屏控制器（可选）和控制器外设等组成。
接收卡通过HUB接口连接显示屏。
同步系统需要连接计算机工作，将计算机上的图像文字显示在LED大屏幕上。
同步系统的架构如下图所示。
发送卡模式
图6-1
图6-2无发送卡模式
产品说明书。
