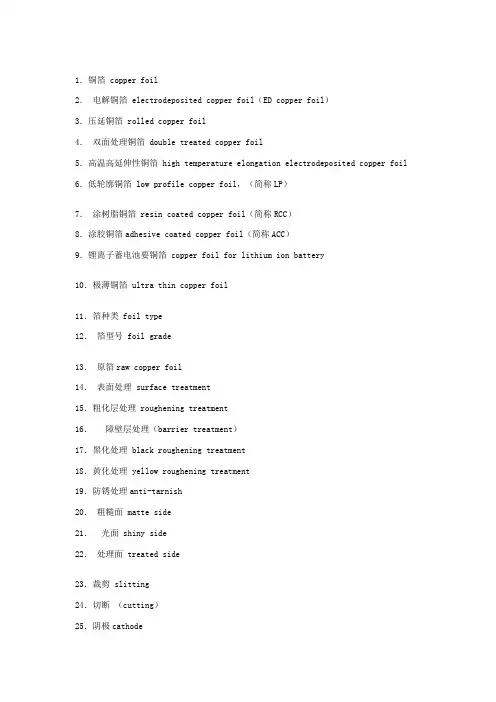

1．铜箔 copper foil2．电解铜箔 electrodeposited copper foil（ED copper foil）3．压延铜箔 rolled copper foil4．双面处理铜箔 double treated copper foil5．高温高延伸性铜箔 high temperature elongation electrodeposited copper foil 6．低轮廓铜箔 low profile copper foil，（简称LP）7．涂树脂铜箔 resin coated copper foil（简称RCC）8．涂胶铜箔adhesive coated copper foil（简称ACC）9．锂离子蓄电池要铜箔 copper foil for lithium ion battery10．极薄铜箔 ultra thin copper foil11．箔种类 foil type12．箔型号 foil grade13．原箔raw copper foil14．表面处理 surface treatment15．粗化层处理 roughening treatment16．障壁层处理（barrier treatment）17．黑化处理 black roughening treatment18．黄化处理 yellow roughening treatment19．防锈处理anti-tarnish20．粗糙面 matte side21．光面 shiny side22．处理面 treated side23．裁剪 slitting24．切断（cutting）25．阴极cathode26．阳极 anode27．电流密度 current density28．电解槽electro forming cell29．尺寸稳定的阳极 dimensional stable anode （DSA）30．抗拉强度 tensile strength31．延伸率 elongation33．剥离强度 peel strength34．基板材料 base material35．层压板 laminate36．覆铜箔层压板 copper clad laminate （CCL）37．单面覆铜箔层压板 single- sided copper clad laminate38．双面覆铜箔层压板 copper clad laminate39．内层芯材 core material40．半固化片（预浸材料）prepreg （PP）41．预浸粘结片 preimpregnated bonding sheet42．酚醛纸基覆铜板 phenolic cellulose paper copper clad laminate43．环氧玻纤布基覆铜板 epoxide woven glass fabric copper clad laminate 44．复合基覆铜板 composite copper clad laminate45．薄型覆铜板thin copper clad laminate46．超薄型覆铜板 ultra thin copper clad laminate47．印制电路板 printed circuit board （PCB）。
ASTMB33-2000电气用镀锡软的或退火的铜丝的标准规范
以下附件為ASTM B33 美國行業標准 對各種規格的導體做出相應要求!如延伸!敬請關注: 电线电缆专业网裡面又你需要的電纜專業資料.shall be determined by the wrapping and immersion test in accordance with6.5.5.6Joints—Necessary joints in the completed wire and in the wire and rods prior tofinal drawing shall be made in accordance with the best commercial practice.5.7Finish—The coating shall consist of a smooth continu-ous layer,firmly adherent to the surface of the copper.The wire shall be free of all imperfections not consistent with the best commercial practice.6.Test Methods6.1Tensile Strength and Elongation(Explanatory Note 5)—No test for tensile strength shall be required.The elonga-tion of wire whose nominal diameter is larger than0.0808in.(2.052mm)in diameter shall be determined as the permanent increase in length,expressed in percent of the original length, due to the breaking of the wire in tension,measured between gage marks placed originally10in.(254mm)apart upon the test specimen.The elongation of wire whose nominal diameter is0.0808in.and under may be determined as described above or by measurements made between the jaws of the testing machine.When the latter method is used,the zero length shall be the distance between the jaws at the start of the tension test and be as near10in.as practicable and thefinal length shall be the distance between the jaws at the time of rupture.The fracture shall be between gage marks in the case of specimens so marked or between the jaws of the testing machine and not closer than1in.(25.4mm)to either gage mark or either jaw.6.2Resistivity(Expanatory Note4)—The electrical resistiv-ity of the material shall be determined in accordance with Test Method B193.The purchaser may accept certification that the wire was drawn from rod stock meeting the international standard for annealed copper instead of resistivity tests on the finished wire.6.3Dimensional Measurements—Dimensional measure-ments shall be made with a micrometre caliper equipped with a vernier graduated in0.0001in.(0.0025mm).Measurements shall be made on at least three places on each unit selected for this test.If accessible,one measurement shall be taken on each end and one near the middle.The average of the three measurements shall determine compliance with the require-ments.6.4Continuity of Coating:6.4.1Specimens:6.4.1.1Length of Specimens—Test specimens shall have a length of about6in.(152mm).They shall be tagged or marked to correspond with the coil,spool,or reel from which they were cut.6.4.1.2Treatment of Specimens—The specimens shall be thoroughly cleaned by immersion in a suitable organic solvent such as benzene,ether,or trichloroethylene for at least3min; then removed and wiped dry with a clean,soft cloth(Caution-see Explanatory Note5).The specimens thus cleaned shall be kept wrapped in a clean,dry cloth until tested.That part of theTABLE1Tensile Requirements Diameter Area at20°Cin.mm cmil in.2mm2Elongation in10in. (250mm), %max0.460011.6840211600.000.166190107.219330 0.409610.4038167772.160.13176885.011430 0.36489.2659133079.040.10452067.432130 0.32498.2525105560.010.08290753.4880300.28937.348283694.490.06573342.408625 0.2576 6.543066357.760.05211733.624025 0.2294 5.826852624.360.04133126.665225 0.2043 5.189241738.490.03278121.1492250.1819 4.620333087.610.02598716.765725 0.1620 4.114826244.000.02061213.298025 0.1443 3.665220822.490.01635410.550925 0.1285 3.263916512.250.0129698.366925 0.1144 2.905813087.360.01027879 6.631525 0.1019 2.588310383.610.00815527 5.261520 0.0907 2.30388226.490.00646107 4.168420 0.0808 2.05236528.640.00512758 3.3081200.0720 1.82885184.000.00407150 2.626820 0.0641 1.62814108.810.00322705 2.082020 0.0571 1.45033260.410.00256072 1.652120 0.0508 1.29032580.640.00202683 1.307620 0.0453 1.15062052.090.00161171 1.039820 0.0403 1.02361624.090.001275560.822920 0.03590.91191288.810.001012230.653020 0.03200.81281024.000.000804250.5189200.02850.7239812.250.000637940.411620 0.02530.6426640.090.000502730.324320 0.02260.5740510.760.000401150.258820 0.02010.5105404.010.000317310.204715 0.01790.4547320.410.000251650.162415 0.01590.4039252.810.000198560.128115 0.01420.3607201.640.000158370.102215 0.01260.3200158.760.000124690.0804150.01130.2870127.690.000100290.064715 0.01000.2540100.000.000078540.050710 0.00890.226179.210.000062210.040110 0.00800.203264.000.000050270.032410 0.00710.180350.410.000039590.025510 0.00630.160039.690.000031170.020110 0.00560.142231.360.000024630.015910 0.00500.127025.000.000019630.0127100.00450.114320.250.000015900.010310 0.00400.101616.000.000012570.008110 0.00350.088912.250.000009620.006210 0.00310.07879.610.000007550.004910TABLE2Electrical Resistivity RequirementsNominal Diameter Resistivity at20°C in.mm V·lb/mile2V·g/m2 0.460to0.290,incl11.7to7.4,incl896.150.15695 Under0.290to0.103,incl Under7.4to2.6,incl900.770.15776 Under0.103to0.0201,incl Under2.6to0.51,incl910.150.15940 Under0.0201to0.0111incl Under0.51to0.28,incl929.520.16279 Under0.0111to0.0030,incl Under0.28to0.076,incl939.510.16454TABLE3Permissible Variations in Diamter Nominal Diameter of WirePermissible Variations in Diameterin.mm in.mm plus minus plus minus Under0.0100Under0.250.00030.000100.00760.0025 0.0100and over0.25and over3%1%3%1%specimen to be immersed in the test solution shall not be handled.Care shall be taken to avoid abrasion by the cut ends.6.4.2Special Solutions Required:6.4.2.1Hydrochloric Acid Solution(HCl)(sp gr1.088)—Commercial HCl(sp gr1.12)shall be diluted with distilled water to a specific gravity of1.088measured at15.6°C(60°F).A portion of HCl solution having a volume of180mL shall be considered to be exhausted when the number of test specimens prescribed in Table4of a size as indicated in6.4.3have been immersed in it for two cycles.6.4.2.2Sodium Polysulfide Solution(sp gr 1.142)(Ex-planatory Note7)—A concentrated solution shall be made by dissolving sodium sulfide cp crystals in distilled water until the solution is saturated at about21°C(70°F),and adding sufficient flowers of sulfur(in excess of250g/L of solution)to provide complete saturation,as shown by the presence in the solution of an excess of sulfur after the solution has been allowed to stand for at least24h.The test solution shall be made by diluting a portion of the concentrated solution with distilled water to a specific gravity of1.142at15.6°C(60°F).The sodium polysulfide test solution should have sufficient strength to blacken thoroughly a piece of clean untinned copper wire in 5s.A portion of the test solution used for testing samples shall not be considered to be exhausted until it fails to blacken a piece of clean copper as described above.6.4.3Procedure:6.4.3.1Immersion of Specimens—Immerse a length of at least41⁄2in.(114mm)from each of the clean specimens,in accordance with the following cycles,in test solutions main-tained at a temperature between15.6and21°C(60and70°F): (1)Immerse the specimen for1min in the HCl solution described in 6.4.2,wash,and wipe dry;(2)immerse the specimen for30s in the sodium polysulfide solution described in6.4.2,wash,and wipe dry;(3)immerse the specimen for1 min in the HCl solution,wash,and dry;(4)immerse the specimen for30s in the sodium polysulfide solution,wash,and wipe dry.6.4.3.2Washing Specimens—After each immersion,imme-diately wash the specimens thoroughly in clean water and wipe dry with a clean,soft cloth.6.4.3.3Examination of Specimens—After immersion and washing,examine the specimens to ascertain if copper exposed through openings in the tin coating has been blackened by action of the sodium polysulfide.The specimens shall be considered to have failed if,by such blackening,exposed copper is revealed.No attention shall be paid to blackening within0.5in.(12.7mm)of the cut end.A grayish brown appearance of the coating shall not constitute failure.6.5Adherence of Coating:6.5.1Specimens:6.5.1.1Length of Specimens—Test specimens shall be ap-proximately12in.(305mm)in length and shall be tagged or marked to correspond with the coil,spool,or reel from which they are cut.6.5.1.2Treatment of Specimens—The specimens shall be thoroughly cleaned,if required,by immersion in a suitable organic solvent such as benzene,ether,or trichloroethylene for at least3min,then removed and dried(Caution-see Explana-tory Note6).The specimens thus cleaned shall be kept wrapped in a clean dry cloth until tested.That part of the specimens to be immersed in the test solution shall not be handled.Care shall be taken to avoid abrasion of the surface to be subjected to test.Wire of sizes0.005in.(0.13mm)and smaller may be cleaned after wrapping around the mandrel.6.5.2Procedure:6.5.2.1Wrapping—Slowly wrap the test specimen in a suitable manner in an open helix around a polished mandrel having rounded ends and a diameter not to exceed four times the nominal diameter of the specimen.Take care not to stretch the specimen during the wrapping operation.The spacing of the consecutive turns shall be approximately equal to the diameter of the wire.For sizes0.021in.(0.53mm)and smaller, not more than six helical turns shall be used for the test,and for wire larger than0.021in.,not more than three turns shall be used.6.5.2.2Immersion Test—Remove the helically wrapped portion of the test specimen from the mandrel and immerse completely in the sodium polysulfide solution(see6.4.2)for30 s at the temperature prescribed in6.4.3.On removal from the sodium polysulfide solution,immediately rinse the specimen in clean water and remove the excess by shaking.6.5.2.3Examination of Specimens—Examine visually the outer peripheral surface of the helically wrapped portion of the specimen.For wires0.021in.(0.53mm)and smaller,a magnification not greater than three times may be used.Any cracking or parting of the coating in this area shown by blackening of the copper shall be cause for rejection.A grayish brown appearance of the coating after immersion shall not constitute failure.6.6Finish—Surface-finish inspection shall be made with the unaided eye(normal spectacles excepted).7.Inspection7.1General(Explanatory Note8and Note9)—Unless otherwise specified in the contract or purchaser order,the manufacturer shall be responsible for the performance of all inspection and test requirements specified.7.1.1All inspections and tests shall be made at the place of manufacture unless otherwise especially agreed upon between the manufacturer and the purchaser at the time of purchase.7.1.2The manufacturer shall afford the inspector represent-ing the purchaser all reasonable manufacturer’s facilities to satisfy him that the material is being furnished in accordance with this specification.7.1.3Unless otherwise agreed upon between the purchaser and the manufacturer,conformance of the wire to the various requirements listed in Section5shall be determined on samplesTABLE4Limiting Number of Test Specimens for Coating TestsNominal Diameter,in.Maximum Number of Specimens to be Tested for2Cycles in180mL of Acid Solution0.460to0.141,incl2 Under0.141to0.0851,incl4 Under0.0851to0.0501,incl6 Under0.0501to0.0381,incl10 Under0.0381to0.0301,incl12 Under0.0301to0.0030,incl14taken from each lot of wire presented for acceptance.7.1.4The manufacturer shall,if requested prior to inspec-tion,certify that all wire in the lot was made under suchconditions that the product as a whole conforms to therequirements of this specification as determined by regularlymade and recorded tests.7.2Definitions Applicable to Inspection :7.2.1lot (Explanatory Note 8)—any amount of wire of onetype and size presented for acceptance at one time,suchamount,however,not to exceed 25000lb (11350kg).7.2.2sample —a quantity of production units (coils reels,etc.)selected at random from the lot for the purpose ofdetermining conformance of the lot to the requirements of thisspecification.7.2.3specimen —a length of wire removed for test purposesfrom any individual production unit of the sample.7.3Sample Size (Explanatory Note 9)—The number ofproduction units in a sample shall be as follows:7.3.1For elongation and resistivity determinations,thesample shall consist of four production units.For continuityand adherence of coating tests,the sample shall consist of eightproduction units.From each unit,one test specimen of suffi-cient length shall be removed for the performance of therequired tests.7.3.2For dimensional measurements,the sample shall con-sist of a quantity of production units shown in Table 5underthe heading “First Sample.”7.3.3For surface-finish inspection and for packaging in-spection (when specified by the purchaser at the time of placingthe order)the sample shall consist of a quantity of productionunits shown in Table 6.8.Conformance Criteria (Explanatory Note 9)8.1Any lot of wire,the samples of which comply with theconformance criteria of this section,shall be considered ascomplying to the requirements of Section 5.Individual pro-duction units that fail to meet one or more of the requirementsshall be rejected.Failure of a sample group from a lot to meetone or more of the following criteria shall constitute cause forrejection of the lot.The conformance criteria for each of theprescribed properties given in Section 5are as follows:8.1.1Elongation —The lot shall be considered conformingif the average elongation of the four specimens is not less thanthe appropriate elongation value in Table 1plus 2.8%;however,any individual production unit,the specimen fromwhich has an elongation less than the appropriate elongationvalue in Table 1,shall be rejected.8.1.1.1The lot shall be considered to have failed to meet the elongation conformance criterion if the average of the four specimens is less than the elongation in Table 1plus 2.8%and the elongation of any of the individual specimens is less than the value in Table 1.8.1.1.2If the average of the four specimens is less than the elongation in Table 1plus 2.8%and the elongation of each of the individual specimens is equal to or more than the value in Table 1,six additional specimens from six production units other than the four originally sampled shall be tested.The lot shall be considered conforming if the elongation of each of the ten specimens is not less than the appropriate elongation value in Table 1,and the average of the ten specimens is not less than that value plus 2.8%.The lot shall be considered to have failed to meet the elongation requirement if any of the ten specimens is less than the appropriate elongation value in Table 1or if the average of the ten specimens is less than that value plus 2.8%.8.1.2Resistivity —The electrical resistivity of each of the four specimens shall conform to the requirements of 5.2.Failure to meet these requirements shall constitute failure to meet the resistivity conformance criterion.8.1.3Dimensions —The dimensions of the first sample (Table 5)shall conform to the requirements of 5.3.If there are no failures,the lot conforms to this requirement.If there are failures,but the number of these does not exceed the allowable defect number c 2(Table 5)for the respective number of units in the sample,a second sample equal to n 2shall be taken and the total defects of the n 1plus n 2units shall not exceed the allowable defect number,c 2.Failure to meet this requirement shall constitute failure to meet the dimensional conformance criterion.8.1.4Continuity of Coating —The continuity of the coating of each of the eight specimens shall conform to the require-ments of 5.4.Failure of more than two specimens shall constitute failure to meet the continuity criterion.If not moreTABLE 5Sampling for Dimensional MeasurementsNumber of Units in Lot First SampleSecond Sample Number of Units inSample,n 1Allowable Number of Defects in First Sample,c 1.Number of Units in Sample,n 2n 1plus n 2Allowable Number of Defects in Both Samples,c 21to 14,incl all0.........15to 50,incl 140.........51to 100,incl 19023421101to 200,incl 24046702201to 400,incl 290761053401to 800,incl 3301121454Over 8003401161504TABLE 6Sampling for Surface Finish and Packaging Inspection Number of Units in Lot Number of Units in Sample,n Allowable Number of Defective Units,c 1to 30,incl all 031to 50,incl 30051to 100,incl 370101to 200,incl 400201to 300,incl 702301to 500,incl 1002501to 800,incl 1303Over 8001554than two specimens fail to meet the continuity criterion,eightadditional specimens from the lot shall be tested,all of whichshall conform to the continuity criterion.However,any indi-vidual production unit,the specimen from which failed to meetthe continuity criterion,shall be rejected.8.1.5Adherence of Coating —The adherence of the coatingof each of the eight specimens shall conform to the require-ments of 5.5.Failure of more than two specimens shallconstitute failure to meet the adherence criterion.If not morethan two specimens fail to meet the adherence criterion,eightadditional specimens from the lot shall be tested,all of whichshall conform to the adherence criterion.However,any indi-vidual production unit,the specimen from which failed to meetthe adherence criterion,shall be rejected.8.1.6Surface Finish —The surface finish of the samplestaken in accordance with Table 6shall conform to the require-ments of 5.7.The number of units in the sample showingsurface defects not consistent with commercial practice shallnot exceed the allowable defect number c ,in Table 6.Failureto meet this requirement shall constitute failure to meet thesurface-finish conformance criterion.8.1.7Packaging —Conformance to the packaging require-ments specified by the purchaser shall be determined in accordance with Table 6.The number of units in the sample showing nonconformance to the requirement shall not exceed the allowable defect number,c ,in Table 6.Failure to meet this requirement shall constitute failure to meet the packaging conformance criterion.9.Density (Explanatory Note 10)9.1For the purpose of calculating linear densities,cross sections,etc.,the density of the copper shall be taken as 8.89g/cm 3(0.32117lb/in.3)at 20°C.10.Packaging and Shipping 10.1Package sizes shall be agreed upon by the manufac-turer and the purchaser in the placing of individual orders.10.2The tinned wire shall be protected against damage in ordinary handling and shipping.11.Keywords 11.1tinned annealed copper wire;tinned copper electrical wire;tinned soft copper wireEXPLANATORY NOTESN OTE 1—It is necessary that the coating of tin on the wire becontinuous.The test in the sodium polysulfide is for the purpose ofdetermining whether or not the wire carries a continuous envelope of puretin.The thickness of the tin coating is necessarily varied.Under the sameconditions of tinning,the coating on all sizes of wire,excepting on finewire,is approximately the same.The coating on fine wire is in generalrelatively heavier than that on coarse wire.It is not,therefore,correct toapply a larger number of cycles in the test on coarse wire than is appliedto fine wire.It is probable that one cycle of the dip test would be sufficientto discover defects in tinned wire,but in order to make certain that nopartially covered spots may escape attention,provision has been made fortwo cycles.It has been found that the tin coating on copper wire consistsof two parts,an envelope of pure tin on the outside,with an intermediatelayer of copper-tin alloy.This tin alloy,as well as the amount of tinpresent,has an effect on the resistivity of the wire.Since the relativeamount of tin coating and alloy is greater on the small wire than it is onthe coarser wire,the resistivity of the wire increases as the size decreases.This also accounts for the decrease in elongation due to tinning soft wire.N OTE 2—The values of the wire diameters in Table 1are given to thenearest 0.0001in.and correspond to the standard sizes given in Specifi-cation B 258.The use of gage numbers to specify wire sizes is notrecognized in this specification because of the possibility of confusion.Anexcellent discussion of wire gages and related subjects is contained in NBSHandbook 100of the National Bureau of Standards.N OTE 3—Other tests than those provided in this specification have beenconsidered at various times,such as twist tests,wrap tests,etc.It is theopinion of the committee that twist tests on soft wire serve no usefulpurpose and that wrap tests,other than that provided for in 6.5,which is a test for adhesion,are likewise undesirable and inconclusive as to results and significance.N OTE 4—“Resistivity”is used in place of “percentage conductivity.”The value of 0.15328V ·g/m 2at 20°C is the international standard for the resistivity of annealed copper equal to 100%conductivity.This term means that a wire 1m in length and weighing 1g would have a resistance of 0.15328V .This is equivalent to a resistivity value of 875.20V ·lb/mile 2,which signifies the resistance of a wire 1mile in length weighing 1lb.It is also equivalent,for example,to 1.7241µV /cm of length of a bar 1cm 2in cross section.A complete discussion of this subject is contained in NBS Handbook 100of the National Bureau of Standards.The presence of tin and of copper-tin alloy in the coating of the wire increases the resistance of the finished wire as mentioned in Note 1.Relationships that may be useful in connection with the values of resistivity prescribed in this specification are as shown in Table 7,each column containing equivalent expressions at 20°C.N OTE 5—In general,tested values of tensile strength are increased and tested values of elongation are reduced with increase of speed of the moving head of the testing machine in the tension testing of copper wire.In the case of tests on soft or annealed copper wire,however,the effects of speed of testing are not pronounced.Tests of soft wire made at speeds of moving head,which under no-load conditions are not greater than 12in./min,do not alter the final results of tensile strength and elongation determinations to any practical extent.N OTE 6—Caution:Consideration should be given to toxicity and flammability when selecting solvent cleaners.N OTE 7—It is important that the polysulfide solution be of propercomposition and strength at the time of test.A solution that is not saturatedTABLE 7Resistivity ValuesConductivity at 20°C,%100.0097.6697.1696.1694.1693.15V ·lb/mile 2875.20896.15900.77910.15929.52939.51V ·g/m 20.153280.156940.157750.159400.162790.16454V ·cmil/ft10.37110.61910.67410.78511.01511.133V ·mm 2/m0.0172410.0176540.017745.0179300.0183120.018508µV ·in.0.678790.695040.698630.705900.720920.78267µV ·cm 1.7241 1.7654 1.7754 1.7930 1.83121.8508with sulfur or that has been made from decomposed sodium sulfidecrystals may give a false indication of failure.Therefore,the requirementthat the solution be tested by observing its blackening effect on a brightcopper wire is significant.Significant also is the requirement that thesolution be saturated with sulfur by allowing the solution to stand at least24h after preparation.Attention is called also to the necessity for the useof sodium sulfide that has not deteriorated through exposure to air;and ifexposure has occurred,the crystals should be tested for purity.The“Standard Reagents Tests”of the American Chemical Society are useful inthis connection.N OTE 8—A lot should comprise material taken from a product regularlymeeting the requirements of this specification.Inspection of individuallots of less than 5000lb of wire cannot be justified economically.Forsmall lots of 5000lb or less,the purchaser may agree to the manufactur-er’s regular inspection of the product as a whole,as evidence of acceptability of such small lots.N OTE 9—Cumulative results secured on the product of a single manu-facturer,indicating continued conformance to the criteria,are necessary to ensure an over-all product meeting the requirements of this specification.The sample sizes and conformance criteria given for the various charac-teristics are applicable only to lots produced under these conditions.N OTE 10—The value of density of copper is in accordance with the International Annealed Copper Standard.The corresponding value at 0°C is 8.90g/cm 3(0.32150lb/in.3).In calculations involving density it must be borne in mind that the apparent density of coated wire is not a constant but a variable function of wire diameters.The smaller the diameter,the greater the percentage of coating present and hence the greater departure from the density of copper.The American Society for Testing and Materials takes no position respecting the validity of any patent rights asserted in connection with any item mentioned in this ers of this standard are expressly advised that determination of the validity of any such patent rights,and the risk of infringement of such rights,are entirely their own responsibility.This standard is subject to revision at any time by the responsible technical committee and must be reviewed every five years and if not revised,either reapproved or withdrawn.Your comments are invited either for revision of this standard or for additional standards and should be addressed to ASTM Headquarters.Your comments will receive careful consideration at a meeting of the responsible technical committee,which you may attend.If you feel that your comments have not received a fair hearing you should make your views known to the ASTM Committee on Standards,at the address shown below.This standard is copyrighted by ASTM,100Barr Harbor Drive,PO Box C700,West Conshohocken,PA 19428-2959,United States.Individual reprints (single or multiple copies)of this standard may be obtained by contacting ASTM at the above address or at 610-832-9585(phone),610-832-9555(fax),or service@ (e-mail);or through the ASTM website().。
眼镜英语相关专业术语
Temple 脚丝Plating 电镀Printing 印字Lase 镭射Spectacle frames 眼镜架Sunglasses 太阳眼镜Sports spectacles 运动眼镜kid's eyewear 儿童眼镜Reading glasses 老花镜Contact lens 隐形眼镜Glass optical lenses 玻璃镜片Plastic optical lenses 塑胶镜片Sunglasses lenses, sun clips 太阳镜片、镜夹Progressive lenses 渐进多焦点镜片Photochromic lenses 变色镜片Othro k lenses 角膜矫形接确镜片Optical blanks 镜片毛胚Accessories for contact lens 隐形眼镜附件Spectacle spare parts and accessories 眼镜零件及配件Components of frames 镜架组件Spectacle cases accessories 眼镜盒及附件Eyecare products and solution for lenses and contace lenses 眼睛护理产品及隐形眼镜洁液Spectacle cases accessories 眼镜盒及其它配件Lens demisting cloths and solutions 镜片除雾喷剂及清洁布Spectacle assembling adjusting tools 眼镜加工、装配、调较工具Visual test equipment 验眼设备Edger 磨边机Eyeglasses and frame making machinery 眼镜架制造机械Lens manufacturing and processing machinery 镜片造机械及加工机械Contact lens processing machinery 隐形眼镜加工机械Lathe 车床Coating machine 镀膜机Coating materials 镀膜原料Electroplating equipment, welding machine 电镀机械、焊接机械Price labeling, stamp printing and screen printing mahcinery 标签机、移印机、丝网印刷Ultrasonic cleaning equipment 超声波清洁仪器Ophthalmic products 眼科用品Concentrates for ultrasonic cleaning 超声波清洁剂Lens grinding and polishing filtration systems 镜片研磨及抛光过滤系统Optical processing equipmentand materials 光学加工设备及原料Measurement instrucments for optical elements and systems 光学用品及系统之测量仪器Store and workshop fitting and furniture 眼镜店及工场设备及家具Moulds for ophthalmic lenses 镜片模具Raw materials for frames 眼镜原料Raw materials for lenses 镜片原料Lens abrasive and polishing materials 打磨镜片原料Electroplating,welding materials 电镀、焊接原材料Opto-laser equipment and instruments 激光科技设备和仪器光学仪器类slit illumination 裂隙灯diopter 屈光度sphere 球镜cylinder 柱镜prism 棱镜magnification 放大倍率diameter 直径dimensions 尺寸light spot 光斑fixation lamp 固视灯led 发光二极管filter 滤色片lensmeter 焦度计metal rim 金属圈PD meter 瞳距仪Pupil Distance 瞳距Vertex Distance 顶点距Chart 视标View tester 验光仪Cutting device 切割刀Pattern maker 制模机Cutting needle 划针Layout blocker 中心仪Hand edger 手动磨边机Lens groover 开槽机Polisher 抛光机Polishing stick 抛光膏Drilling machine 钻孔机Bench drilling machine 台式钻孔机Drill bit 钻头Lock opener 锁开Milling cutting 铣刀Fuse 保险丝Handle 手柄Center locator 中心定位器Drill chuck 钻夹头Dial 刻度盘Frame heater（warmer）烘架机Heating coil 发热丝Ultrasonic cleaner 清洗机Combined table 验光组合台Optometry box 验光盘Grinding wheel 砂轮Trial lens set 验光镜片箱Refractometer 验光仪Chart projector 投影仪Keratometer 角膜曲率仪Welding machine 焊接机Spray cleaning machine 喷淋清洗机材料配件类Monel 锰料Stainless Steel 不锈钢pure Titanium 纯钛Titanium Alloy 钛合金B-Ti B钛Elongation 伸长率Tensile strenghth 抗拉强度high nickel copper alloy 高镍合金nickelfree alloy 无镍合金nicklfree stainless steel 无镍不锈钢annealing temperture 退火温度percent 含量density 密度melting point 熔点solidus 固相点cylinding grinding wheels 筒形砂轮flaring cup wheels 碗形砂轮diamod plain wheels 平形砂轮grinding ccoolant 切削液lens coating liquid 护镜液polishing powder 抛光粉polishing liquid 抛光液polishing wheel 抛光轮plating case 电镀盒plastic case 塑料盒alumium oxide case 氧化铝盒rocket screwdrivers 六角螺丝刀mini ring wrenches/nutdrivers 微型戒指扳手radian apparatus 弧度表thickness apparatus 厚度表adhesive tape 粘片calipers 量具nut driver 套筒files set 锉刀drill bits 钻咀screwdrivers blades 螺丝刀头镜片类hard resin lens 树脂镜片round-top bifocal lens 圆顶双关镜片flat-top bifocal lens 平顶双光镜片aspheric hard resin lens 非球面树脂镜片Non-coated lens 基片（NC）hard coated lens 加硬镜片（HC）Hard Multi-coated 加硬加膜片（HMC）Hard Multi-coated,EMI Defending Coating 加硬加膜防辐射片（HMC+EMI）RX Lens-High Index 高散光片color shade 色差deformation 变形shrinkage 缩水light transmission 透光率de-lamination 分裂脱层abbe value 阿贝数raw material 原材料catalysis 催化作用polymerization 聚合作用tinted lens 染色镜片photochromic lens 变色镜片spherical 球面的眼镜展词汇Machinery, tools and equipment for opticalworkshopsMachinery, tools and equipment for frames andlenses industryStore and workshop furniture and fittingsSample cases and displaysParts and eyeglassesSpecial treatmentsRaw materialsData processing systems for opticsTrade-technical and scientific pressOptical Show and ExhibitionsOthers eyewear-related production typesSport gogglesGogglesEyeglass cases and accessoriesMicroscopes-binoculars-barometeresand magnifying glasses and lensesOptical and ophthalmological lensesContact lensesSunglass lensesLenses for the sport activitiesAccessories and solutions for lenses Frames, Lenses AccessoriesSpectacle framesSunglassesSports GlassesKids eyewearReading glassesContact lensAccessories for contact lensSpectacle spare parts and accessoriesGlass optical lensesPolyresin lensSunglass lenses, sun-clipsEyecare products and solution for lenses and contact lens Progressive lensesPhotochromic lensesUncut Optical Lensoptical BlanksSpectacle Cases AccessoriesMolds For Ophthalmic LensesOthro K LensesPlastic Optical LensesVisual test equipmentEyeglasses and frame making machineryLens Manufacturing machineryContact lens processing machineryLens production and processing machineryLatheCoating machineVacuum coating materialsElectroplating equipment, welding machinePrice labeling, stamp printing and screen printing machinery Plastic Processing MachineryRaw materials for framesRaw materials for lensesLens abrasive and polishing materialsUltrasonic cleaning equipmentConcentrates for ultrasonic cleaningLens grinding, polishing and filtration systemsOptical processing equipment and materialsMeasuring Instruments For Optical Elements And Systems Lens Cleaning and demisting cloths and solutionsStore and workshop fittings and furnitureComponents for metal-frames; brazing materials Spectacle assembling adjusting toolsEdgerElectroplating, welding materialsOpto-Laser Equipment and Instruments OphthalmologyInstruments for optometry and ophthalmology Ophthalmic productsTechnical scientific publications and services AssociationsExhibition ConferencesOthers ( please specify )Glass optical lensesSunglass lenses, sun-clipsPlastic Optical Lenses专业术语Nose bridge 鼻中Tip 脚套Temple 脚丝Plating 电镀Printing 印字Lase 镭射PATTERN模片Spectacle frames 眼镜架Sunglasses 太阳眼镜Sports spectacles 运动眼镜kid's eyewear 儿童眼镜Reading glasses 老花镜Contact lens 隐形眼镜Glass optical lenses 玻璃镜片Plastic optical lenses 塑胶镜片Sunglasses lenses, sun clips 太阳镜片、镜夹Progressive lenses 渐进多焦点镜片Photochromic lenses 变色镜片Othro k lenses 角膜矫形接确镜片Optical blanks 镜片毛胚Accessories for contact lens 隐形眼镜附件Spectacle spare parts and accessories 眼镜零件及配件Components of frames 镜架组件Spectacle cases accessories 眼镜盒及附件Eyecare products and solution for lenses and contace lenses 眼睛护理产品及隐形眼镜洁液Spectacle cases accessories 眼镜盒及其它配件Lens demisting cloths and solutions 镜片除雾喷剂及清洁布Spectacle assembling adjusting tools 眼镜加工、装配、调较工具Visual test equipment 验眼设备Edger 磨边机Eyeglasses and frame making machinery 眼镜架制造机械Lens manufacturing and processing machinery 镜片造机械及加工机械Contact lens processing machinery 隐形眼镜加工机械Lathe 车床Coating machine 镀膜机Coating materials 镀膜原料Electroplating equipment, welding machine 电镀机械、焊接机械Price labeling, stamp printing and screen printing mahcinery 标签机、移印机、丝网印刷Ultrasonic cleaning equipment 超声波清洁仪器Ophthalmic products 眼科用品Concentrates for ultrasonic cleaning 超声波清洁剂Lens grinding and polishing filtration systems 镜片研磨及抛光过滤系统Optical processing equipmentand materials 光学加工设备及原料Measurement instrucments for optical elements and systems 光学用品及系统之测量仪器Store and workshop fitting and furniture 眼镜店及工场设备及家具Moulds for ophthalmic lenses 镜片模具Raw materials for frames 眼镜原料Raw materials for lenses 镜片原料Lens abrasive and polishing materials 打磨镜片原料Electroplating, welding materials 电镀、焊接原材料Opto-laser equipment and instruments 激光科技设备和仪器部件镜框：FRAME铰链：HINGE弹簧脚链：SPRING HINGE一体弹簧脚：MONO SPRING HINGE脚套：TIP鼻托（xx）：NOSE PARDS鼻须（酒杯）：NOSE ARM镜脚：TEMPLE电镀：PLATE全框：FULL FRAME半框：HALF FRAME无框：RIMELESS金属框：METAL FRAME塑胶框：PLASTIC FRAMExxxx：BRIDGE眼镜行业专业术语2 Night Driving Optics夜間護目鏡(夜視鏡) Laser Protection Opticsxx激光護目鏡Amber Opticsxx護目鏡(xx鏡) Computer Optics電腦護目鏡Correction PD-Vision Optics視力xxReading Eyewear老花鏡Sun-TelescopexxxxTop Sun-Drive Opticsxx護目鏡(xx鏡)Sports Fishing Optics運動休閒多功能護目鏡(偏光鏡) Welding Optics焊接用護目鏡Industrial Safety Optics工業用(家庭用)護目鏡AC 壓克力非球面老花鏡片Acrylic Aspheric Reading LensesPC 聚碳酸樹脂非球面老花鏡片Polycarbonate Aspheric Reading Lenses AC壓克力雙光老花鏡片Acrylic Bifocal Reading LensesPC雙光老花鏡片PC Bifocal Reading LensesAC 壓克力近視鏡片Acrylic Myopia LensesPC 近視鏡片PC Myopia LensesAC 漸進多焦點鏡片Acrylic Progressive Reading lenses 多層膜電鍍鏡片Anti-Reflection Coating/Water PC平光鏡片PC No Diopter Round Lenses眼镜行业专业术语2Night Driving Optics夜間護目鏡(夜視鏡)Laser Protection Opticsxx激光護目鏡Amber Opticsxx護目鏡(xx鏡)Computer Optics電腦護目鏡Correction PD-Vision Optics視力xxReading Eyewear老花鏡Sun-TelescopexxxxTop Sun-Drive Opticsxx護目鏡(xx鏡)Sports Fishing Optics運動休閒多功能護目鏡(偏光鏡) Welding Optics焊接用護目鏡Industrial Safety Optics工業用(家庭用)護目鏡AC 壓克力非球面老花鏡片Acrylic Aspheric Reading LensesPC 聚碳酸樹脂非球面老花鏡片Polycarbonate Aspheric Reading Lenses AC壓克力雙光老花鏡片Acrylic Bifocal Reading LensesPC雙光老花鏡片PC Bifocal Reading LensesAC 壓克力近視鏡片Acrylic Myopia LensesPC 近視鏡片PC Myopia LensesAC 漸進多焦點鏡片Acrylic Progressive Reading lenses 多層膜電鍍鏡片Anti-Reflection Coating/Water PC平光鏡片PC No Diopter Round Lenses眼光配镜配眼镜Filling a pre****ion眼镜架frames圆形眼镜架round frames椭圆形眼镜架oval frames长方形眼镜架rectangular frames 验光师optometrist验眼报告prescription镜片刮花scratch隐型眼镜contact lens实色solid color双色喷漆two-tone painted帽仔镜LENTE CULAR 简称LENTE 是专为白内障患者术后视力矫正设计,非球面设计,减少厚度和视物变形,视野清晰自然,佩戴舒适。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
Analytical Procedure for Elongation Measurement for Copper / Nickel foils by Elongation Tester
By:Davidep66 Equipment / Reagent needed:
1. Elongation Tester
2. Lightbox
3. Drying Oven (0-150°C)
4. Double-bladed shear
5. Vernier micrometer
Elongation Analysis:
Copper foils:
1. Check the foil sample to find any pinholes using a lightbox. Test strips should be cut to avoid pinholes which cause premature fracture and consequently, low elongation values.
2. Bake the foil at 125 °C for 5 hours, and allow to cool down to room temperature.
3. Cut test strips 0.5 inch wide using a double-bladed shear. The shear being used is Model JDC-
50 from Thwing-Albert as referenced in both IPC-TM-650 and ASTM E 345-93 standard.
4. Measure the thickness of the test strips to the nearest 0.0001 inch at five places in the central
two-inch region of the strip using a vernier micrometer as per ASTM E 345-93. (The use of a micrometer gives better thickness accuracy than weighing a sample, measuring its dimensions and assuming a standard density).
5. Place the test strip in the tensile test machine using an initial jaw spacing of 2.0 inches and a
travel rate of 0.2 inch/minute.
6. Calculate the tensile strength and percent elongation from the dimensions of the strip and
the data from the tensile test machine.
Nickel foils:
1.Repeat the procedures above, but Step 2 is skipped.
Remarks:
1. Nickel foils must be prepared under normal working conditions (e.g. concentration of every bath compositions & additives, temperature, current density, pH, agitation) as stated in Technical Bulletin.
2. The optimum thickness for tensile testing of nickel foils is ranged between 0.0008 and 0.001 inch (20 to 25 microns). Too thick nickel foils should be avoided.
3. Pinholes and thin spots in the Nickel foils would cause premature fracture of the strips and led to lower tensile test values. Pinholes and thin spots can be verified by a light box (Unfortunately, it is very difficult to plate foils in this thickness range that are free of pinholes.。
