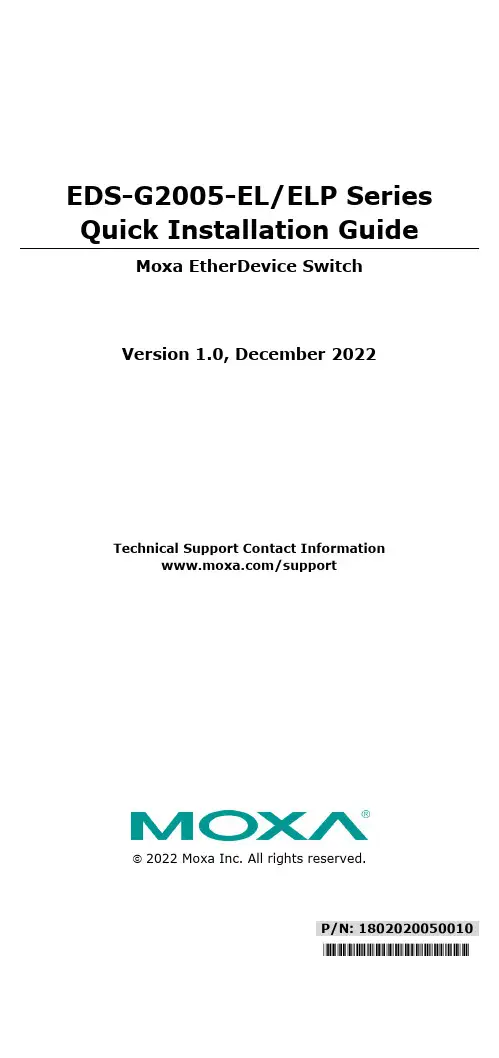

Moxa EDS-G2005-EL ELP系列快速安装指南说明书
P/N: 1802020050010 *1802020050010*EDS-G2005-EL/ELP Series Quick Installation GuideMoxa EtherDevice SwitchVersion 1.0, December 2022Technical Support Contact Information/support2022 Moxa Inc. All rights reserved.OverviewThe EDS-G2005-EL/ELP Series has a 5-port combination to simplify network expansion. There are two housing types available for the user to select depending on the requirements of their application. The ELP has a plastic housing and the EL has a metal housing. The compact switches provide a cost-effective solution for your industrial Ethernet connection requirements.The EDS-G2005-EL/ELP Series provides 12/24/48 VDC power input, and the switches are available with a standard operating temperature range from -10 to 60°C. The switches are rugged enough to operate reliably in harsh industrial environments.To provide greater versatility for use with applications from different industries, the EDS-G2005-EL/ELP Series also allows users to enable or disable broadcast storm protection (BSP), Quality of Service (QoS) function via the DIP switches on the top panel.The EDS-G2005-EL/ELP switches can be easily installed with DIN-rail mounting as well as distribution boxes. The DIN-rail mounting capability with LED indicators ensure that the plug-and-play EDS-G2005-EL/ELP switches are reliable and easy to use.NOTE Throughout this Quick Installation Guide, we use EDS as an abbreviation for Moxa EtherDevice Switch:EDS = Moxa EtherDevice SwitchPackage ChecklistYour EDS is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance.•Moxa EtherDevice™ Switch•Quick installation guide (printed)•Warranty cardFeaturesHigh Performance Network Switching Technology•10/100/1000BaseT(X) auto-negotiation speed, full/half duplex mode, auto MDI/MDI-X connection.•IEEE 802.3 for 10BaseT.•IEEE 802.3u for 100BaseT(X).•IEEE 802.3ab for 1000BaseT(X).•IEEE 802.3x for flow control.•IEEE 802.1p for Quality of Service (QoS) traffic prioritized function. •Store-and-forward switching process type.Industrial-grade Reliability•Broadcast storm protection to prevent network devices from crashing.Rugged Design•Operating temperature range from -10 to 60°C, or extended Operating temperature from -40 to 75°C for “T” models. •Rugged high-strength case.•DIN-rail or wall mounting ability.Panel Layout of EDS-G2005-EL/EDS-G2005-ELP1.Chassis ground screw2.Terminal block for power input3.DIP switch4.Power LED5.10/100/1000BaseT(X) Port6.10/100/1000BaseT(X) Port LED7.Port number8.Model nameMounting Dimensions EDS-G2005-EL SeriesEDS-G2005-ELP SeriesDIN-rail MountingWhen shipped, the DIN-rail mounting kit is fixed to the back panel of the EDS. Mount the EDS on the corrosion-free mounting rail that adheres to the EN 60715 standard.Suggested Installation MethodSTEP 1:Insert the upper lip of the DIN-rail kit into the mounting rail.STEP 2:Press the device towards themounting rail until it snaps intoplace. Alternatively, you can usea screwdriver to attach to thebottom of the DIN-rail kit and pulldown.Suggested Removal MethodSTEP 1:Pull down the latch on the DIN-rail kit with a flat-headscrewdriver.STEP 2:Slightly pull the device forwardand lift up to remove it from themounting rail.Please use a flat-head screwdriverwith a head size of between 4 and 6mm for proper installation orremoval.WARNING1.The installation and the safety of any system incorporatingthe equipment is the responsibility of the assembler of the system.2.This is an open type module and should be installed in asafety enclosure with mechanical rigidity and anappropriate IP rating.Wall Mounting (optional)For some applications, you will find it convenient to mount EDS on the wall, as illustrated below.There are two options for installation: The first option is to hook the EDS DIN-rail latch on the opening of the wall mount kit (see picture above) and then mount the wall-mount kit on the wall with screws. (The other option is to perform these two steps in the other order.) The heads of the screws should be less than 6.0 mm in diameter, and the shafts should be less than 3.5 mm in diameter, as shown in the figure at the right.NOTE Before tightening screws into the wall, make sure the screwhead and shank size are suitable by inserting the screw into one of the keyhole-shaped apertures of the Wall Mounting Plates.Do not screw the screws in all the way—leave about 2 mm to allowroom for sliding the wall mount panel between the wall and the screws. Once the screws are fixed in the wall, insert the two screw heads through the large parts of the keyhole-shaped apertures, and then slide EDS downwards, as indicated. Tighten the two screws for added stability.WARNINGExternal parts are hot. Take necessary precautions if it is necessary to touch.Wiring RequirementsYou should also pay attention to the following items:•Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point.NOTE: Do not run signal or communications wiring and powerwiring in the same wire conduit. To avoid interference, wires with different signal characteristics should be routed separately.•You can use the type of signal transmitted through a wire to determine which wires should be kept separate. The rule of thumb is that wiring that shares similar electrical characteristics can bebundled together.•Keep input wiring and output wiring separated.•It is strongly advised that you label wiring to all devices in the system when necessary.Grounding Moxa EtherDevice SwitchGrounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices.A 4 mm2 conductor must be used when a connection to the external grounding screw is utilized.NOTE When using shielded cables to connect two Ethernet devices, a ground loop may occur if the shielding on the cables generatesan additional grounding connection path. This can cause groundcurrent to flow through to the Ethernet ports and damage thedevices. Therefore, STP cables must only be connected to theground at one end.Wiring the Power InputThe top two contacts and the bottom two contacts of the 2 or 3 contact terminal block connector on the EDS’s top panel are used for the EDS’s two DC inputs. Top and front views of one of the terminal block connectors are shown here.STEP 1:Insert the negative/positive DC wires into the V-/V+ terminals.STEP 2:To keep the DC wires from pulling loose, use a small flat-blade screwdriver to tighten the wire-clamp screws on the front of the terminal block connector.STEP 3:Insert the plastic terminal block connector prongs into the terminalblock receptor, which is located on the EDS’s top panel.NOTE The power source comes from secondary circuits. These circuits are separated from mains circuits by a transformer in which theprimary windings are separated from the secondary windingsby reinforced installation, double installation, or a screenconnected to the protective conductor terminal.Communication ConnectionsThe EDS-G2005-EL/ELP models have 10/100/1000BaseT(X) Ethernet ports.10/100/1000BaseT(X) Ethernet Port ConnectionThe 10/100/1000BaseT(X) ports located on the EDS’s front panel are used to connect to Ethernet-enabled devices.Below we show pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports, and also show cable wiring diagrams for straight-through and cross-over Ethernet cables.10/100Base T(x) RJ45 PinoutsMDI Port Pinouts MDI-X Port Pinouts 8-pin RJ45Pin Signal1 Tx+2 Tx-3 Rx+ 6 Rx- Pin Signal1 Rx+2 Rx-3 Tx+ 6 Tx-1000BaseT(x) RJ45 Pinouts Pin MDIMDI-X1 BI_DA+ BI_DB+2 BI_DA- BI_DB-3 BI_DB+ BI_DA+4 BI_DC+ BI_DD+5 BI_DC- BI_DD-6 BI_DB- BI_DA-7 BI_DD+ BI_DC+8 BI_DD- BI_DC-RJ45 (8-pin) to RJ45 (8-pin) Straight-through Cable WiringRJ45 (8-pin) to RJ45 (8-pin) Cross-over Cable WiringDIP Switch SettingsDIP Switch SettingDescriptionQuality of Service (QoS)ONEnable the Quality of Service to handle packet priorities in four WRR queues. QoS priority mapping matrix in each queue QoS 3bit priority 7, 6 5, 4 3, 2 1, 0 Queues 3 2 1 0 WRR 8 4 2 1OFFDisable the Quality of Service.Broadcast Storm Protection (BSP) ON Enables broadcast storm protection (at a maximum of 2048 broadcast packets per second) for each Ethernet port.OFFDisables the broadcast storm protection.LED IndicatorsThe front panel of the Moxa EtherDevice Switch contains several LED indicators. The function of each LED is described in the table below. LED Color State DescriptionPWR(P) Amber OnPower is being supplied to power inputPWR.OffPower is not being supplied to power inputPWR.10M/100M AmberOnWhen the port is active and links on at10/100 Mbps.BlinkingWhen the port’s data is being transmittedat 10/100 Mbps.Off When the port is inactive or link down.1000M GreenOnWhen the port is active and links on at1000 Mbps.BlinkingWhen the port’s data is being transmittedat 1000 Mbps.Off When the port is inactive or link down.Auto MDI/MDI-X ConnectionThe Auto MDI/MDI-X function allows users to connect the EDS’s10/100/1000BaseT(X) ports to any kind of Ethernet device, without paying attention to the type of Ethernet cable being used for the connection. This means that you can use either a straight-through cable or cross-over cable to connect the EDS to Ethernet devices.Triple Speed Functionality and SwitchingThe EDS’s 10/100/1000 Mbps RJ45 switch port auto negotiates with the connected device for the fastest data transmission rate supported by both devices. The EDS is a plug-and-play device, so software configuration is not required at installation or during maintenance.The half/full duplex mode for the RJ45 switched ports is user dependent and changes (by auto-negotiation) to full or half duplex, depending on which transmission speed is supported by the attached device. Switching, Filtering, and ForwardingEach time a packet arrives at one of the switched ports, a decision is made to either filter or forward the packet. Packets with source and destination addresses belonging to the same port segment will be filtered, constraining those packets to one port, and relieving the rest of the network from the need to process them. A packet with a destination address on another port segment will be forwarded to the appropriate port, and will not be sent to the other ports where it is not needed. Packets that are used in maintaining the operation of the network (such as the occasional multi-cast packet) are forwarded to all ports except the incoming port. The EDS operates in the store-and-forward switching mode, which eliminates bad packets and enables peak performance to be achieved when there is heavy traffic on the network.Address LearningThe Moxa EDS has an address table that can hold up to 4,000 node addresses, which makes it suitable for use with large networks. The address tables are self-learning, so that as nodes are added or removed, or moved from one segment to another, EDS automatically keeps up with new node locations. An address-aging algorithm causes the least-used addresses to be deleted in favor of newer, more frequently used addresses. To reset the address buffer, power down the unit and then power it back up.Auto-Negotiation and Speed SensingThe EDS’s RJ45 Ethernet ports independently support auto-negotiation for transmission speeds of 10 Mbps, 100 Mbps, and 1000 Mbps, with operation according to the IEEE802.3 standard. This means that some nodes could be operating at 10 Mbps, while at the same time, other nodes are operating at 100 Mbps or 1000 Mbps.When an RJ45 cable is connected, auto-negotiation takes place, and then each time a LINK is enabled. The EDS advertises its capability for using 10 Mbps, 100 Mbps, or 1000 Mbps, transmission speeds, with the device at the other end of the cable expected to advertise similarly. Depending on what type of device is connected, this will result in agreement to operate at a speed of 10 Mbps, 100 Mbps, or 1000 Mbps. If an EDS’s RJ45 Ethernet port is connected to a non-negotiating device, it will default to 10 Mbps speed and half-duplex mode, as required by the IEEE802.3 standard.SpecificationsTechnologyStandards IEEE 802.3 for 10BaseT,IEEE 802.3u for 100BaseT(X),IEEE 802.3ab for 1000BaseT(X),IEEE 802.1p for Class of ServiceFlow Control IEEE 802.3x flow control, back pressure flowcontrolInterfaceRJ45 Ports 10/100/1000BaseT(X) auto negotiation speed LED Indicators PWR, 10M/100M/1000MDIP Switch QoS, Broadcast Storm Protection (BSP)Switch PropertiesMAC Table Size 4 KPacket Buffer Size 1.5 MbitsProcessing Type Store and ForwardPowerInput Voltage 12-48 VDC inputsEDS-G2005-EL/ELP: 0.21 AInput Current(max.)Connection Removable 2-contact terminal block for EL Series;Removable 3-contact terminal block for ELP SeriesPresentOverload CurrentProtectionReverse PolarityProtectionPresentMechanicalCasing Metal housing for EL Series; plastic housing for ELPSeriesDimensions (W x H x D) EDS-G2005-EL:18 81 65 mm (0.7 3.192.56 in)EDS-G2005-ELP:19 81 65 mm (0.74 3.19 2.56 in) Weight EDS-G2005-ELP: 56 g (0.12 lb)EDS-G2005-EL: 105 g (0.23 lb)Installation DIN-rail, Wall Mounting (optional kit) Environmental LimitsNote: For indoor use only.OperatingTemperature-10 to 60°C (32 to 140°F)-40 to 75°C (-40 to 167°F) (only available for the –T models in the -EL Series)StorageTemperature-40 to 85°C (-40 to 185°F)Ambient RelativeHumidity5 to 95% (non-condensing)Regulatory ApprovalsSafety UL 61010-2-201, EN 62368-1(LVD)EMC EN 55022/24, EN 61000-6-2/6-4EMI FCC Part 15B, CISPR 32 (EN 55032) Class AEMS CISPR 35 (EN 55035)EN 61000-4-2 (ESD)EN 61000-4-3 (RS)EN 61000-4-4 (EFT)EN 61000-4-5 (Surge)EN 61000-4-6 (CS)EN 61000-4-8 (PFMF)Shock IEC60068-2-27Free Fall IEC60068-2-32Vibration IEC60068-2-6Warranty 5 yearsNOTE •This device is intended for use indoor and at altitudes up to 2000 meters.•Suitable for installation in a pollution degree 2environment.•Clean the device with a soft dry or wet cloth.•For any repair or maintenance needs, please contact us.•Moxa Inc.No. 1111, Heping Rd., Bade Dist., Taoyuan City 334004,Taiwan +886-3-2737575Hot Surface Label.Functional earth terminal.。
08- 网管AMS 5520常用操作手册
25
按实际需要可以过滤出需要查看的告警。 若要对告警进行设置,可以在”管理界面-配置”下的告警子选项进行设置:
如:”正在自动下载 ONT 软件”的告警:
26
可以设置为不上报告警,仅转储文件:
在对象细节里,将该告警事件日志筛选器设置为”转储到文件”即可。 AMS 客户端还可以通过声（蜂鸣音或设定的 WAV 格式的声音）、光（弹出框）的形式来提示新 告警的到来。 下图的告警界面中，当“ ”为突出时（见红圈），为声音通知功能禁用，此时当有新的告 警到来，客户端不会发出蜂鸣音来提示：
选中 ONT (Provisioned)，然后右键，选择“创建”-“EPON ONT”
13
然后输入 ONT 标识，如该 PON 口下第一个 ONT 即输入“5”：
点击“next”下一步,选择新上报的 MAC 地址
14
往下拉菜单，管理状态设置为“解锁”然后点击“完成” ： 然后点击新创建的 ont 图标，在左侧树状图里选择 logical link（Master）右键创建 EPON LLUNI
30
如，想给 ONU 对象细节-常规里增加中文பைடு நூலகம்述，并显示在拓扑树上，方法如下： 在客户端最上方的 窗口 菜单栏： 选择 “显示视图”，然后点击 “other”，在出来的列表中选择“custom fields”：
31
此时 ，ONU 对象细节后出现“custon fields”的选项：
点击新增按钮：
28
点击禁用冻结按钮“ ”，可以同时禁用上述声音、可视告警通知。
在声音通知功能启用的情况下，客户端也可以通过如下设置，按新告警级别，发出各种提示音。 登入 AMS GUI，选择“窗口”->“Preferences”，
莫克A V2201系列极小型x86嵌入式计算机产品说明书
P/N: 1802022010015 *1802022010015*V2201 SeriesQuick Installation GuideVersion 3.3, April 2023Technical Support Contact Information/support2023 Moxa Inc. All rights reserved.OverviewThe Moxa V2201 Series ultra-compact x86 embedded computer is based on the Intel® Atom™ E3800 Series processor, features the most reliable I/O design to maximize connectivity, and supports dual wireless modules, making it suitable for a diverse range of communication applications. The computer’s thermal design ensures reliable system operation in temperatures ranging from -40 to 85°C, and wireless operation in temperatures ranging from -40 to 70°C with a special purpose Moxa wireless module installed. The V2201 Series supports Proactive Monitoring function for device I/O status monitoring and alerts, system temperature monitoring and alerts, and system power management. Closely monitoring the system status makes it easier to recover from errors and provides the most reliable platform for your applications.Package ChecklistBefore installing the V2201, verify that the package contains the following items:•V2201 embedded computer•Terminal block to power jack converter•Wall mounting kit•Quick installation guide (printed)•Warranty cardNOTE Notify your sales representative if any of the above items are missing or damaged.V2201 Panel LayoutThe following figures show the panel layouts of the V2201-W models. In the “non -W” models, the five antenna connectors will not be installed during production.Front PanelRight PanelLeft PanelLED IndicatorsThe following table describes the LED indicators located on the front panel of the V2201.LED Name Status Function Power Green Power is on and computer is functioning normally.Off Power is offUser Defined Red Event has occurred Off No alert mSATA Yellow Blinking: Data is being transmittedOff Not connected / No data transmissionSD Card Yellow Blinking: Data is being transmittedOff Not connected / No data transmissionWireless 1 Green Steady On: Link is OnBlinking: Data is being transmittedOff Not connectedWireless 2 Green Steady On: Link is OnBlinking: Data is being transmittedOff Not connectedLAN 1 Yellow Steady On: 1000 Mbps Ethernet linkBlinking: Data is being transmittedGreen Steady On: 100 Mbps Ethernet linkBlinking: Data is being transmittedLED Name Status FunctionOff 10 Mbps Ethernet link or LAN is not connectedLAN 2 Yellow Steady On: 1000 Mbps Ethernet linkBlinking: Data is being transmittedGreen Steady On: 100 Mbps Ethernet linkBlinking: Data is being transmittedOff10 Mbps Ethernet link or LAN is not connectedTx 1 Green Blinking: Data is being transmittedOff Not connectedTx 2 Green Blinking: Data is being transmittedOff Not connectedRx 1 Yellow Blinking: Data is being transmittedOff Not connectedRx 2 Yellow Blinking: Data is being transmittedOff Not connectedNOTE The Mini PCIe card’s LED behavior depends on the moduleInstalling the Wireless ModulesThe V2201 has two Mini PCIe sockets on the rear panel. One socket only supports USB signals using the MC9090, MC7354, or MC7354 Mini PCIe cards. The other socket supports standard USB and PCIe signals.STEP1: Loosen the four screws located at the middle of the rear panel and open the cover.STEP 2: Insert the wireless module card at an angle.STEP 3: Push the wireless module card down and fasten it with the two screws included with the product.The V2201 has the following two Mini PCIe sockets.Socket 1: USB signal, for 3G/LTE Mini PCIe card (Sierra Wireless MC9090, MC7304, or MC7354). NOTE: The cellular card heat sink is installed in socket 1. Socket 2: Standard USB + PCIe signals, for Wi-Fi Mini PCIe card (SparkLAN WPEA-252NI).STEP 4: Connect the corresponding wireless module cards to connectors of the Mini PCIe sockets.The following five connectors are available:No. 1 & No. 3:For the Wi-Fi Mini PCIe card No. 2 & No. 4:For the 3G/LTE Mini PCIe card No. 5:For the GPS moduleSTEP 5: Replace the rear cover.You can also purchase and install external antennas from Moxa. Contact a Moxa sales representative for information.After installing the wireless modules and wireless external antennas, the computer should appear as follows:Installing the V2201DIN-rail MountingThe DK-DC50131 die-cast metal kit (shipped only with V2201-E4-W-T-LX; to be purchased separately for all other models), enables easy and robust installation of the V2201. Use the six M4*6L FMS screwsincluded to attach the DIN-rail mounting kit to the side panel of theV2201.Installation:STEP 1:Insert the upper lip of the DIN rail intothe DIN-rail mounting kit.STEP 2:Press the V2201 towards the DIN railuntil it snaps into place.Removal:STEP 1:Pull down the latch on themounting kit with a screwdriver.STEP 2 & 3:Use the screwdriver to pry theV2201 slightly forward away fromthe DIN rail, and then lift theV2201 upwards to remove it fromthe DIN rail.STEP 4:Press the recessed button on the spring-loaded bracket to lock it into position untilthe next time you need to install theV2201 on to a DIN rail.Wall or Cabinet MountingThe V2201 computers (with the exclusion of the V2201-E4-W-T-LX model) come with two metal brackets for attaching to a wall or the inside of a cabinet. Four screws (Phillips truss headed, M3*6L, and nickel plated with Nylok®) are included in the kit.Step 1:Use two screws for eachbracket and attach the bracketto the rear of the V2201.Step 2:Use two screws on each side toattach the V2201 to a wall orcabinet.The product package does notinclude the four screws requiredfor attaching the wall-mountingkit to the wall or cabinet; theyneed to be purchasedseparately. We recommendusing standard M3*5L screws.Connector DescriptionPower ConnectorConnect the 9 to 36 VDC LPS or Class 2 power line to the V2201’s terminal block. If the power is supplied properly, the Power LED will light up. The OS is ready when the Ready LED glows a solid green.Grounding the V2201Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the grounding screw (M4) to the grounding surface prior to connecting the power.SG:The Shielded Ground (sometimes calledProtected Ground) contact is the right most oneon the 3-pin power terminal block connector when viewed from the angle shown here.Connect the SG wire to an appropriate grounded metal surface.HDMI OutputsThe V2201 comes with a type A HDMI female connector on the front panel to connect an HDMI monitor.The screw hole above the HDMI connector is used to attach a custom lock to the HDMI connector; a custom lock is needed since the shape of different HDMI connectors are not the same. Please contact a Moxa sales representative for details. Before Attaching the LockAfter Attaching the LockEthernet PortsThe 10/100/1000 Mbps Ethernet ports use RJ45 connectors.Pin 10/100 Mbps 1000 Mbps1 ETx+ TRD(0)+2 ETx- TRD(0)-3 ERx+ TRD(1)+4 – TRD(2)+5 – TRD(2)-6 ERx- TRD(1)-7 – TRD(3)+8 – TRD(3)-Serial PortsThe serial ports use DB9 connectors. Each port can be configured by software for RS-232, RS-422, or RS-485. The pin assignments for the ports are shown in the following table:Pin RS-232 RS-422 RS-485(4-wire)RS-485(2-wire)1 DCD TxDA(-) TxDA(-) –2 RxD TxDB(+) TxDB(+) –3 TxD RxDB(+) RxDB(+) DataB(+)4 DTR RxDA(-) RxDA(-) DataA(-)5 GND GND GND GND6 DSR – – –7 RTS – – –8 CTS – – –SD SlotThe V2201 has an SD slot for storage expansion. The SD slot allows users to plug in an SD 3.0 standard SD card. To install an SD card, gently remove the outer cover from the left, and then insert the SD card into the slot.Mini SIM SlotThe V2201 has a Mini SIM slot for 3G/LTE wireless Internet connections. To install a Mini SIM card, gently remove the outer cover from the left, and insert the card into the slot.USB HostsThe V2201 has 1 USB 3.0 and 2 USB 2.0 Type-A connectors. 2 USB 2.0 ports are located on the front panel, and 1 USB 3.0 port is on the right panel. The port supports keyboard and mouse and can also be used to connect a Flash drive for storing additional data.Audio InterfaceThe audio output of the V2201 is combined with the HDMI connector.DI/DOThe V2201 comes with four digital inputs and four digital outputs on a 2 x 5 terminal block.Reset ButtonPress the “Reset Button” on the left side panel of the V2201 to reboot the system automatically. Real-time ClockThe V2201’s real-time clock is powered by a lithium battery. Westrongly recommend that you do not replace the lithium battery without help from a qualified Moxa support engineer. If you need to change the battery, contact the Moxa RMA service team.Powering on the V2201To power on the V2201, connect the “terminal block to power jack converter” to the V2201’s DC terminal block (located on the sidepanel), and then connect the 9 to 36 VDC power adapter. The computer is automatically switched on once the power adapter is plugged in. If it does not, press the Power Button to turn on the computer. Note that the Shielded Ground wire should be connected to the top pin of the terminal block. It takes about 30 seconds for the system to boot up. Once the system is ready, the Power LED will light up.Connecting the V2201 to a PCPower on the V2201 computer after connecting a monitor, keyboard, and mouse, and verifying that the power source is ready. Once the operating system boots up, the first step is to configure the Ethernet interface. The factory default settings for the V2201’s LANs are shown below (W7E uses DHCP):Default IP AddressNetmaskLAN 1 192.168.3.127 255.255.255.0 LAN 2 192.168.4.127255.255.255.0- 11 - Configuring the Ethernet Interface Linux OSIf you use the console cable to configure network settings for the first time, use the following commands to edit the interfaces file:#ifdown –a //Disable LAN1~LAN2 interface first, before you reconfigure the LAN settings. LAN1 = eth0, LAN2 = eth1// #vi /etc/network/interfaces //check the LAN interface first//After the boot setting of the LAN interface has been modified, use the following commands to immediately activate the LAN settings: #sync; ifup –a W7E OSSTEP 1: Go to Start → Control Panel → Network and Internet → Viewnetwork status and tasks → Change adapter setting.STEP 2: In the Local Area Connection Properties screen, click InternetProtocol (TCP/IP) and then select Properties. Select InternetProtocol Version 4, and then click Properties.STEP 3: Click OK after inputting the proper IP address and netmask.NOTERefer to the V2201 user’s manuals for additional configuration information.。
APAX5520CE控制器在船舶油水分离器中的应用
ｏ ｆｓ ｙ ｓ ｔ ｅ ｍ ｆ ｕ ｎ ｃ ｔ ｉ ｏ ｎ ， ｃ ｏ ｎ ｔ ｒ ｏ ｌ ｐ ｒ ｏ ｇ ｒ ｅ ｓ ｓ ， ｓ ｏ ｆ ｗａ ｔ ｒ ｅ ａ ｎ ｄ ｈ ａ ｒ ｄ ｗ ａ ｒ ｅ ａ ｒ ｅ ｉ ｎ ｔ ｒ ｏ ｄ ｕ ｃ ｅ ｄ ．
Ｋｅ ｙ ｗｏ ｒ ｄ ｓ ： ｐｒ ｏ ｇ ｒ ａ ｍｍａ ｂ ｌ ｅ ａ ｕ ｔ ｏ ｍａ ｔ ｉ ｃ ｃ ｏ ｎ ｔ ｒ ｏ ｌ ｌ ｅ ｒ ， ‘ ｏ ｉ ｌ － ｗａ ｔ ｅ ｒ ｓ ｅ ｐａ ｒ ａ ｔ ｏ ｒ ｕ ｎ ｉ ｔ ， ‘ ａ ｕ ｔ ｏ ｍａ ｔ ｉ ｃ ｃ ｏ ｎ ｔ ｒ ｏ ｌ
除 问题 ，设 计 出一 种结 构紧 凑 、安 全 可靠 、具有 较 高智 能化 和 自动 化水 平 的新型 自动 吹 除控 制系 统 。介绍 了系 统功 能 、控制 流程 、软 硬件 结构 等方 面 的设计 与技 术实现 。 关键 词 ：可 编程 自动 化控 制器 中 图分 类号 ：Ｔ Ｐ ２ ７ ３ 油 水分 离器 自动控 制 文章编 号 ：１ ０ ０ ３ ． ４ ８ ６ ２（ ２ ０ １ ３ ）０ ６ ． ０ ０ ３ ３ ． ０ ３
统 ）。
１ 自动 吹除系 统控 制功 能与 流程 设计
１ ． １ 自动 吹 除 系统 控 制 功 能设 计 自动 吹 除系 统 为 可 长 时连 续 工 作 的机 电一 体
化 控 制 系统 ，用 于 对 空压 机 的 四级 油 水 分 离 器 进
离后 的蒸汽冷凝水 与滑 油混合形 成的乳液状 油水
ｃ ｏ ｎ ｔ ｒ ｏ ｌ ｐ ｒ ｏ ｇ ｒ ｅ ｓ ｓ ，ｓ ｏ ｆ ｔ ｗａ ｒ ｅ ａ ｎ ｄ ｈ ａ ｒ ｄ ｗ ａ ｒ ｅ ，ａ ｎ ｅ ｗ ａ ｕ ｔ ｏ ｍａ ｔ ｉ ｃ ｂ ｌ ｏ ｗ ｏ ｆ ｆ ｃ ｏ ｎ ｔ ｒ ｏ ｌ ｌ ｅ ｄ ｓ ｙ ｓ ｔ ｅ ｍ ｗ ｉ ｔ ｈ ｓ ｔ ｒ ｕ ｃ ｔ ｕ ｒ ａ ｌ ｃ ｏ ｍ ｐ ａ ｃ ｔ ， ｓ ａ ｆ ｅ ｃ ｒ ｅ ｄ ｉ ｂ ｉ ｌ ｉ ｔ ｙ ａ ｎ ｄ ｕ ｐ ｐ ｅ ｒ ｉ ｎ ｔ ｅ ｌ ｌ ｅ ｃ ｔ ｕ ａ ｌ ｉ ｚ ｅ ｉ ｓ ｄ ｅ ｓ ｉ ｇ ｎ ｅ ｄ ｂ ｙ ｕ ｓ ｉ ｎ ｇ ｔ ｈ ｅ ｉ ｎ ｄ ｕ ｓ ｔ ｒ ｉ ａ ｌ ｃ ｏ ｎ ｔ ｒ ｏ ｌ ｍｏ ｄ ｕ ｌ ｅ ｏ ｆ ｔ ｈ ｅ
CISCO 5520防火墙配置实例word资料12页
CISCO 5520防火墙配置实例本人在项目中已经两次接触到思科5500系列防火墙的配置应用了，根据项目的需求不同，详细的配置也不一样，因此汇总了一个通用版本的思科5500系列防火墙的配置，不详之处，请各位大虾给予指点，谢谢！CD-ASA5520# show run: Saved:ASA Version 7.2(2)!hostname CD-ASA5520 //给防火墙命名domain-namedefault.domain.invalid //定义工作域enable password 9jNfZuG3TC5tCVH0 encrypted // 进入特权模式的密码namesdns-guard!interface GigabitEthernet0/0 //内网接口：full //接口作工模式：全双工，半双，自适应nameif inside //为端口命名：内部接口insidesecurity-level 100 //设置安全级别 0~100 值越大越安全ip address 192.168.1.1 255.255.255.0 //设置本端口的IP地址!interface GigabitEthernet0/1 //外网接口nameif outside //为外部端口命名：外部接口outsidesecurity-level 0ip address 202.98.131.122 255.255.255.0 //IP地址配置!interface GigabitEthernet0/2nameif dmzsecurity-level 50ip address 192.168.2.1 255.255.255.0!interface GigabitEthernet0/3no nameifno security-levelno ip address!interface Management0/0 //防火墙管理地址shutdownno nameifno security-levelno ip address!passwd 2KFQnbNIdI.2KYOU encryptedftp mode passiveclock timezone CST 8dns server-group DefaultDNSdomain-name default.domain.invalidaccess-list outside_permit extended permit tcp any interface outside eq 3389//访问控制列表access-list outside_permit extended permit tcp any interface outside range 30000 30010//允许外部任何用户可以访问outside 接口的30000-30010的端口。
XAP-C系列迷你总线系统产品简介说明书
XAP BuawayIt all began in 1911...I t was 1911 when a young entrepreneur named Joseph Eaton decided to invest in a new idea in transportation — the first gear-driven truck axle. And though we have grown considerably, both organically and by uniting some of the world's most respected names in our industry, we remain dedicated to the spirit of innovation and ideas that inspired him more than 100 years ago.Product19351940194519501955196019651970197519801985199019952000presentPower distribution bus Victory bus duct Standard plug-in Low impedance bus Life line Unibus High frequency bus Cutler-Hammer BV bus Current limiting bus Electric utility busDC busway100 ampere busway Low impedance plug-in Cutler-Hammer Unibus H5000 feeder H5000 plug-in Cutler-Hammer CP2Pow-R-Way Pow-R-Way II Cutler-Hammer CP3Cutler-Hammer CP4Pow-R-Way IIIStandard Plug-InHigh FrequencyTypical Pow-R-Way Plug-In Straight LengthTypical Pow-R-Way II Plug-In Straight LengthXAP Series buswayEATONWe make what matters work.Today, the world runs on critical infrastructure and technology. Planes. Hospitals. Factories. Data centers. Vehicles. The electrical grid. These are things people depend on every day. And the companies behind them depend on us to help solve some of the toughest power management challenges on the planet. At Eaton, we’re dedicated to improving people’s lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable.XAP-C series Compact Busway Adaptable busway systems for virtually any application，400-6300AWe are a power management company made up of approximately 85,000 employees, doing business in more than 175 countries. Our energy-efficient products and services help our customers effectively manage electrical, hydraulic and mechanical power more reliably, efficiently, safely and sustainably. By giving people tools to use power more efficiently. Helping companies do business more sustainably. And by encouraging each and every employee at Eaton to think differently about our business, our communities and the positive impact we can have on the world.Eaton’s XAP series busway is the obvious choice when searching for a combination of technical performance and attractive design. Constant development of the range for over years has not only ensured economical and reliable solutions;XAP busway has evolved into an unsurpassed range able to adapt to virtually any installation.XAP busway is an integral part of the product offering from Eaton. Complementing Eaton’s range of low voltage distribution equipment to a complete selection of fused switchgear, circuit breaker systems, motor control gear and OEM products.XAP busway system is thoroughly tested and comply fully with IEC 61439-6 . The range extends from 400 - 6300 A.The straightforward and highly styled design makes XAP busway easy to both install and use truly the system with style!German Trumpf laser cutting and Trupunch ensures ±0.1mmaccurancy for sheet-metal parts.01Temperature rise system allows max 6300A, which ensures product performance to reach design expectation.01Canadian Accurpress, German Behringer,Italian Euromac and Ameppessta sheet-metal system enables parts to achieve International high quality lever.Application of Panasonic automatic welding, laser welding and automatic riveting technology highly improves production efficiency.0203Application of dust simulation tank and water spray platform give product superior IP protection degree performance at the research stage.02Perform strict quality control on IQC,IPQC and OQC to secure product "Zero defection" upon ex-factory.03Advanced 3D engineering software, integrated with product features, quickly optimise the busway layout, offers first-best arrangement to the project.01MES system precisely record all the process data and makes all the manufacturing data trackable.01Intelligent superpanel technology brings power to distribution system and provide customer with reliable power supply solution.02Intelligent factory data platform fully monitors the factory operation efficiency by statistic and analys of all the data related with manuafcturing, quality and safety.02By right of Eaton "Pow-R-Bridge joint package" technology, we innovatively made orientation design to prevent "false and over connection" , which fully guarantees reliable contact and stable electricity power transmission.Exclusive IHD (Integral heat dissipation design) technology, in combination with T shaped heat dissipation fin, more wide and closer, total heat dissipation performance is 20% superiorcomparing with traditional design.XAP-C busway is available with I ntelligent monitor system and operation platform, it provides on-time data to customer and secures the electricity safety.Eaton busway housing adopts lightweight ToughRail Technology ®,which can withstand 20J impact without any deformation (I K10) and pass 2400h salt fog test.With exquisite workmanship, Eaton busway all contact sides has abandoned traditional "point to line " contact, and improves to "side to side", which greatly enhances the product I P protectiondegree.Br a nd-n e w d r a i n i n g h o l e d e s i g n , eliminates " cisterns effect".Bracket arm is applicable for theinstallation of the busway along the wall.End tap box, to protect connection between busway and equipment, outline standard dimension:L=1000mm,W=800~1000mm,H=500mmAngle steel hanger, applicable for 3200A-4000A busway horizont al installation.Middle fixation hanger, when the floor is 4 meters high, or equipped with plug in box, need to add fixation hanger to secure the busway installation in the vertical riser.Harness cord suspension hanger, applicable for 400-2500A busway horizontal installation.Spring hanger, for the application of busway penetration on the floor.XAP-C busway is widely used in the 3P3W, 3P4W and 3P5W system.XAP-C series compact busway Technique dataXAP-C series compact busway System selectionXAP-C busway length definitionBusway and functional unit length is calculated from the joint centerline, for the feeder, minimum length is 400mm, standard length is 3000mm.Plug in type busway, minimum length is 720mm, standard length is 3000mm, busway can be equipped with five plug in openings on each side, plug in opening dimension is marked as follows3L+50%GE3L+100%N3L+100%N+50%PE3L+200%N+50%GE3L+200%N+50%PESingle deck buswayPhysical dataDouble decks buswayTripartite decks buswayJointNote: Joint double-headed bolt torque value is 68±7 NmＬ ｖｅｒｔｉｃａｌ ｅｌｂｏｗＺ ｈｏｒｉｚｏｎｔａｌ ｏｆｆｓｅｔＴｅｅ ｈｏｒｉｚｏｎｔａｌ ｏｆｆｓｅｔＴｅｅ ｖｅｒｔｉｃａｌ ｏｆｆｓｅｔYZFunctional unit standard dimensionＬ ｓｐｅｃｉａｌ ｈｏｒｉｚｏｎｔａｌ ｅｌｂｏｗＬ ｓｐｅｃｉａｌ ｖｅｒｔｉｃａｌ ｅｌｂｏｗ Note: Reducer is also available to be equipped with fuse or MCCB, contact the factory for details.Note: Expansion joint has adjustment distance of ±40mm, when the linear distance is 60m, need to include one set of expansion joint.Note: End cover is the terminal part of the busway layout to protect the busway system.①②①②③⑤⑥④⑦⑧WHLPlug in box distributes electricity power from the busway to the load, and provides over load protection for the branch unit.Plug in boxProduct features·Plug in box enclosure is made of cold-rolled steel with compact structure and high strength.·Door panel comes with piano hinge with easy operation.·Plug in box is equipped with fixiation hook,to prevent accidental pull out with load.·Plug in box bottom is assembled with guide plate to guarantee correct phase during the installation.·Both T type plug jaw and busway opening stab has silver plating on the surface, which reduces the contact resistance.Product spec·Plug in box includes six standard specification, they can be equipped with fuse , MCCB or any other protection component;·MCCB can be 3 or 4 pole, with option of shunt trip,fire alarm, leakage protection and electrical operation,etc.Plug in box outline standard dimensionNote: Above dimension indicates standard, for special design, pls contact our engineer.XAP-C series compact busway Flanged endGEPENote: All the data above indicates standard, for special design, contact our engineer.XAP-C series compact busway Production selectionXAP/-T-Ｐｌｕｇ ｉｎ ｂｏｘ ｃｏｄｅCConnection between busway and switchgearConnection between XAP-C series busway and low voltage switchgear includes flanged end busway, extending bar and end tap box.Based upon low volatge switchgear outgoing arrangement, we will make customized design and guide instruction to optimise the electricity safety.Connection between busway and transformerConnection between XAP-C series busway and transformer includes flanged end busway, extending bar ,flexible link and end tap box.Flexible link is used to absorb vibration during transformer operation.End tap box is used to protect the connection unit to secure the reliable safety.XAP-C series Compact busway Connection with equipmentNOTE:。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
Modsim eVC程序 eVC程序 Modsim
ModbusTCPClient Test-(2)
向Server写数据
ModSim
ModbusTCPClient小结
了解Modbus TCP Client建立过程 了解Modbus TCP Client主要API接口 了解Client如何与Server交互数据
ModbusTCPServer Test-(2)
在Server中设置中间变量到Modbus地址，由Client读取
Client IP(Host PC)
Modbus Address=函数中起始值+1
ModbusTCPServer Test-(3)
Modbus Client Write Data to Server
测试过程参见APAX-5570 VC编程相关说明
•应用程序实现之一 —SCHEDULE功能实现
SCHEDULE
create cyclic schedule tasks with different time periods create normal schedules with fire once, minutely, hourly, daily, weekly, monthly, and yearly scheduled tasks
编译并下载运行文件
Utility显示
eVC程序显示
Local IO—DI：APAX-5040
Project
Local IO—DI：APAX-5040
编译，下载执行文件
Local IO—DO：APAX-5046
Project
Local IO—DO：APAX-5046
编译，下载程序运行
eVC程序运行
Client on APAX-5570
ModbusRTUServer Test-(2)
Modbus Client Write Data to RTUServer APAX-5520 Server COM1 APAX-5570 Client COM2
ModbusRTUServer 小结
了解Modbus RTU Server建立过程 了解Modbus RTU Server主要API接口 了解如何为数据分配Modbus地址 了解Server如何读取Client数据 比较ModbusRTUServer与ModbusTCPServer异同
APAX-5520 eVC++编程
研华自动化 eAutomation
Local IO Modbus BackupSys Other
SCHEDULE MATH ……
CPU- APAX-5520: XScale Grade CPU CPU- APAX-5520KW：软逻辑PLC
XScale PXA270 520 MHz 64 MB SDRAM 512 KB battery backup RAM Windows CE .NET-Flash中，不在CF里 For I/O modules: 支持eVC++和.NET编程 VS .NET class library & eVC++ API (APAX-5520CE) KW MultiProg & ProConOS (APAX-5520KW) 2 x LAN (10/100 Mbps) 1 x RS-485 VGA display and USB port Internal CF card 插槽用于数据存储 -可支持到1G，出厂时不配CF卡
Modbus API—I
Modbus API—II
Modbus API—III
Mobus-TCP Server—flow
Calling flow Working flow
ModbusTCPServer Ex.
ModbusTCPServer Test –(1)
关闭ProConOS，以释放502端口
ห้องสมุดไป่ตู้
eVC++例程
头文件 库文件和动态链接库
Local IO例程
Backup例程 SDK
库文件概述-I
库文件概述-II
•应用程序实现之一 —Local IO
本节内容包括
AI模块数据读取实现—APAX-5017 AO模块数据输出实现—APAX-5028 DIO模块数据读写实现—APAX-5040(DI)/5046(DO) 练习
•ModbusTcpClient: The sample program “ModbusTcpClient” is used to create a MODBUS-TCP client. •ModbusTcpServer: The sample program “ModbusTcpServer” is used to create a MODBUS-TCP server. •ModbusRtuClient: The sample program “ModbusRtuClient” is used to create a MODBUS-RTU client. •ModbusRtuServer: The sample program “ModbusRtuServer” is used to create a MODBUS-RTU server
运行程序
Backup
主控制器
Backup system test
将主控制器断电，然后再加电
Backup system test
再将当前主控制器断电
Backup小结
理解APAX-5520 Backup的含义 了解实现APAX-5520 Backup的条件和过程
•应用程序实现之一 —MATH功能实现
Mathematic examples
encode data to Base64 format, and decode Base64 format data back to original data
compress and decompress data generate CRC-16, PNG-CRC, and Checksum encrypt and decrypt data
ModbusRTUClient Ex.
ModbusRTUClient Test-(1)
读取Server端数据 APAX-5570 Server(ModSim) COM2 APAX-5520 RTU Client COM1
Modbus Server
Modbus Client
ModbusRTUClient Test-(2)
IO模块在Modbus Server中的Address
IO模块在Modbus Server测试—DO
SlotID=4
APAX-5520 Server
StartAddr=4*64+1
PC Client
Utility
IO模块在Modbus Server测试—AO
SlotID=2 APAX-5520 Server
•应用程序实现之一 —Backup功能实现
CPU Backup Function
•两个APAX-5520控制器的ID号由其在 APAX-5002底板上的位置自动决定 •当两个控制器在不同APAX-5002上 时，必须在不同位置 •当系统分散配置时，所有模块必须同 时供电 •Backup功能需要软件设置来配合使用 •必须有IO模块存在
IO模块ID定义
ADSDIO库文件主要API
主要数据结构
Local IO—AI：APAX-5017
Project
Local IO—AI：APAX-5017
编译，通过DiaganyWhere或U盘下载执行文件
Local IO—AO：APAX-5028
Project
Local IO—AO：APAX-5028
StartAddr=2*32+1 PC Client
Utility Display
IO模块在Modbus Server测试—AI
StartAddr=1*32+1 SlotID=1
PC Client
Server:Utility
Modbus小结
了解APAX-5520实现Modbus功能的过程 根据提供的API实现各种Modbus通讯过程
Utility显示结果
小结&练习
总结Local IO程序实现方法
•应用程序实现之一 —Modbus 协议实现
本节主要内容
Modbus TCP Server Modbus TCP Client Modbus RTU Server Modbus RTU Client 练习
Modbus Example/XPe
ModbusRTUServer Ex.
ModbusRTUServer Test-(1)
在Server中设置中间变量到Modbus地址，由Client读取 APAX-5520 Server COM1(RS-485) APAX-5570 Client COM2(RS-485)
APAX-5520 Server
Modbus Server—Local IO Address
提供了范例为Local IO分配Modbus地址
Modbus预留空间如下： DIO：64个Coils地址,Start Address: SlotID*64+1 AIO：32个Registers地址,Start Address:SlotID*32+1 CNT：32个Registers地址,Start Address:SlotID*32+1
测试过程参见APAX-5570 VC编程相关说明
Thank You
Backup system test
设置两台APAX-5520 (1)两个APAX-5520必须在APAX-5002底座上，可在同一底座，或在 不同底座的不同位置上 (2)必须至少存在一个IO模块 (3)在 Utility中Enable Backup功能
