C1-3K专业版_使用手册
感谢您使用山特产品！ 请严格遵守本手册中和机器上的所有警告及操作说明并妥善保 管本手册。
在没有阅读完所有的安全说明和操作说明以前， 请 不要操作 UPS。
严 正 声 明监管码声明为了切实保障您的用电安全，帮助您购买到真正的山特 UPS，请注意以下事项： 1. 认准山特注册商标： 、 2. 山特电子（深圳）有限公司在中国从未以任何形式授权委托其它公司生产 UPS； 、 3. 山特所有产品机身上均贴有 “ 电子监管码 ”（ “电子监管码”是国家质检总局为打击假货 推行的一种产品身份识别码） ； 4. 消费者可以通过以下途径对产品电子监管码进行查验， 并可通过 “中国产品质量电子监管 网”平台进 行投诉 、举报。
查询方式： 网站查询：登陆 （中国产品质量电子监管网） ，输入监管码进行查 询 。
电话查询：9 5 0 0 1 1 1 1 （未开通地区可拨打 1 1 4 ） ； 短信查询：将监管码发送至 1 0 6 6 9 5 0 0 1 1 1 1 （移动、联通均可） ； 如有疑问，可以拨打电话 95001111 或登陆 点击“消费者通道”进 行举报投诉。
版权声明山特公司致力于技术创新，不断提供更好的产品和服务满足客户需求， 对产品设计、 技术规 格的更新，恕不另行通知。
产品以实物为准。
请到山特网站下载最新版的产品说明书。
版权所有 ©2007-2008 山特电子（深圳）有限公司安 全 注 意 事 项操作安全1.在使用本产品前，请仔细阅读“安全注意事项” ，以确保正确和安全的使用。
并请妥善 保存说明书。
2.操作时， 请注意所有警示标记， 并按要求进行操作。
3.避免在阳光直接照射、雨淋或在潮湿的环境使用本设备。
4.本设备不能安装在靠近热源区域， 或有电暖炉、 热炉等类似的设备附近。
5.放置 UPS时， 在其四周要留有安全距离， 保证通风,安装时， 请参照说明书。
6.清洁时，请使用干燥的物品进行擦拭。
7.若遇火警， 请正确使用干粉灭火器进行灭火,若使用液体灭火器会有触电危险。
电气安全1.上电前，请确认已正确接地，并检查接线和电池极性的连接正确。
2.当UPS需要移动或重新接线时， 应将交流输入电源断开， 并保证UPS完全停机， 否则输出端 仍可能带电，有触电的危险。
3.请使用山特指定的附加装置和附件。
4.为了符合 EMC 的要求，UPS 的输出线长度应在 10 米以内。
电池安全1.电池的寿命随环境温度的升高而缩短。
定期更换电池可保证 UPS 工作正常，并保证足够的 后备时间。
2.蓄电池维护只能由具备蓄电池专业知识的人员来进行。
3.更换蓄电池，必须使用相同类型和型号的蓄电池，且数量必须相同。
4.蓄电池存在电击危险和短路电流危险,为避免触电伤人事故， 在更换电池时， 请遵守下列警 告： A.不要佩带手表、 戒指或类似金属物体 ； B.使用绝缘的工具 ； C.穿戴橡胶鞋和手套 ； D.不能将金属工具或类似的金属零件放在电池上 ； E.在拆电池连接端子前，必须先断开连接在电池上的负载。
5.请不要将蓄电池暴露于火中，以免引起爆炸，危及人身安全。
6.非专业人士请勿打开或损毁蓄电池， 因为电池中的电解液含有强酸等危险物质， 会对皮肤和 眼睛都会造成伤害。
如果不小心接触到电解液， 应立即用大量的清水进行清洗， 并去医院检 查。
7.请不要将电池正负极短路，会导致电击或着火。
使用保养1.使用环境及保存方法对本产品的使用寿命及可靠性有一定影响， 因此， 请注意避免在下列 工作环境中使用： ● 超出技术指标规定（温度 0-40℃，相对湿度 20-90%）的高、低温和潮湿场所； ● 有振动、易受撞的场所； ● 有金属性粉尘、腐蚀性物质、盐份和可燃性气体的场所。
2.如果长时间放置不使用，必须将 UPS（不带电池）存放在干燥的环境中，存贮温度范围: － 25-55℃。
UPS 开机之前，必须先让环境温度回暖至 0℃以上，并维持一段时间。
目第一章 1.1 1.2 1.3 第二章 2.1 2.2 2.3 2.4 2.5 2.6 第三章 3.1 3.2 3.3 3.4 第四章 第五章 5.1 5.2 第六章 介绍 前视图 后视图 产品规格 安装 拆包检查 接线 长效机型外接电池接线 连接到计算机接口 智能卡选件的安装 紧急关机 EPO 操作 控制面板 LCD 显示屏 开机 关机 电池维护 异常处理 如何判断 UPS 运行异常 异常处理表 保证录01 02 02 04 05 05 05 07 07 08 10 11 11 11 12 14 15 16 16 17 18第一章介绍城堡(专业版)系列 UPS 是一种双转换在线式，单相输入，单相输出的不间断电源 设备。
产品具有高效率和高可靠性， 为您的设备提供可靠、 优质的交流电源。
城堡(专 业版)系列 1～3kVA UPS 体积小巧， 方便客户使用， 特别适合金融、 电信、 政府、 交 通、制造、教育等用户的基础设备。
本手册适用于城堡(专业版)系列产品， 城堡(专业版)系列UPS按照机器中电池部 分的不同配置，可分为标准型和长效型（外箱型号有 S 字样）两大类,标准型和长 效型又各自按功率分：1kVA、2kVA 和 3kVA。
按照机器型号共有以下几种：C1K (专业版), C1KS(专业版), C2K(专业版), C2KS(专业版), C3K(专业版), C3KS(专业 版),以下简称 ： C1K, C1KS, C2K, C2KS, C3K, C3KS。
1.1 前视图CASTLEC AS TLEC1K(S)前面板C2K(S)/C3K(S)前面板1第一章介绍1.2 后视图1 2 5 6 7 8 3 4 3 4 C1K后面板 9 1 2 5 6 7 8C1KS后面板2 15 62 15 6778 3 4 98 3 4C2K后面板C2KS后面板2第一章介绍2 15 6 72 15 6 7 8108103 493 4C3K后面板C3KS后面板① 计算机接口 ② 紧急关机 ③ 过流保护装置 ④ 输入 ⑤ 智能插槽 ⑥ 通讯网络浪涌保护插座 ⑦ 主输出插座 ⑧ 副输出插座 ⑨ 外接电池插座（仅长效机型） ⑩ 输出端子排（仅城堡专业版 3KVA 机型）3第一章介绍1.3 产品规格型号 额定容量 输入方式 额定电压 电压范围 频率 功率因数 旁路电压 输出方式 电压 功率因数 输出 频率 输出 过载能力 转换时间 负载峰值比 电池组电压 电池容量×数量 后备时间（25℃） 电池充电时间 环境温度 环境湿度 环境 海拔高度 存储温度 静电放电抗扰性（ESD） 辐射电磁场抗扰性（RS） EMC 快速瞬 变电 脉冲 群 抗扰 性 （EFT） 浪涌抗扰性（Surge） 尺寸（宽*高*深） （mm） 重量（标/长） （Kg） 安规标准 行业标准 市电模式 电池模式 C1K C1KS 1kVA/800W 单相接地 220VAC 115-300VAC 50Hz 0.98 C2K C2KS 2kVA/1600W C3K C3KS 3kVA/2400W输入80VAC×(1±5%)～285VAC×(1±5%) 单相接地 220VAC±2% 0.8 1.输入频率在 46- 54 Hz 时，输出和输入保持一致 2.输入频率小于 46Hz 或大于 54Hz 时输出频率锁定为 50Hz电池50 ± 0.2 Hz 负载≥108%±5% 47s 后转旁路并报警 负载≥150%±5% 25s 后转旁路并报警 负载≥200%±5% 300ms 后转旁路并报警 0ms （市电?电池） <4ms（市电? 旁路） 3:1 36V DC 72VDC 96VDC 12V DC×3 12VDC×6 12VDC×8 满载≥5 分钟 (标准型) 5 小时充至 90% （标准型） 取决于外接电池组容量（长效型） 0-40℃ 20-90%（无冷凝） 小于 1000m 不降额，大于 1000m 每升高 100m 降额 1% -25-55℃ IEC61000-4-2 LEVEL4 IEC61000-4-3 LEVEL3 IEC61000-4-4 LEVEL4 IEC61000-4-5 LEVEL4 145*220*355 190*318*383 12.5/6.5 24/10.3 GB4943-2001，IEC62040-1 EN62040，YD- T 1095-2000 190*318*433 29.5/11.54拆包检查12. 1.拆开UPS 包装，目测机器外观，检查其是否在运输中有碰撞损坏。
2.对照下表检查随机附件是否齐全。
3. 如发现运输损坏现象或随机附件缺少，请立即联系经销商。
接线22. 1.连接交流电源请使用有过流保护装置的插座，注意插座容量，1KV A 、2KV A 、3KV A 分别为10A 、16A 、端接市电插座即可。
2.设备的连接注意：UPS 输出插座具有优先级，可将负载分级切断，保证市电断电时，重要设备的长时间供电，所以请将您的重要设备接至“主输出插座”。
城堡专业版3KV A 除了使用插座输出外，还可以通过输出端子排与设备相连，其接线步骤如下：这种连接必须由专业人员操作（端子排 1.将端子排盖板取下；2.采用2.1mm 2的线材进行配线；3.配线完毕后，请检查连接的线材是否牢固；4.将端子排盖板装回箱体。
输出无分级切断功能）。
电池连接线，该线一端为插头用以连接UPS ，另一端为开放式三根线用以连接电池组。
电池连接程序非常重要，若未按照程序进行，可能会有电击危险，所以请严格按照下列步骤进行：1.先串连电池组确保合适的电池电压, 城堡(专业版) 1KV A 为36VDC, 城堡(专业版) 2KV A 为72VDC, 城堡(专业版) 3KV A 为96VDC 。
2.电池连接线先接电池端，红线接电池正极“+”，黑线接电池负极“-”，黄绿双色线接保护地。
切不可先接UPS 端，否则会有电击危险。
3. 将电池连接线插头接到UPS 后面板上的外接电池插座，完成UPS 的连接，UPS 长效机型外接电池接线32.连接到计算机接口42.计算机接口：通过通讯电缆连接UPS 与监控设备。
1.将RS232通讯电缆连接到计算机的串行口。
2.将RS232通讯电缆另一端与UPS 的计算机接口相连。
开始对电池组充电。
UPS 上智能卡选件的安装52.智能插槽可A.注意：USB+RS232卡上USB接口信号优先级高于RS232接口，请选择其中一种接口与用户监控设备连接。
山特C1K-3K

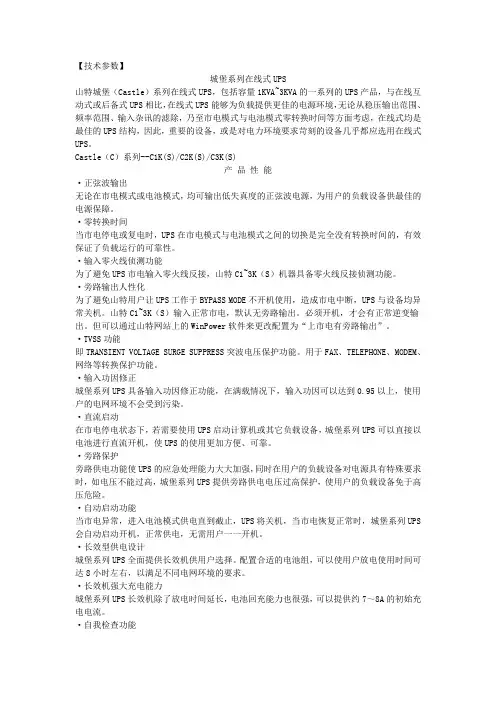

【技术参数】城堡系列在线式UPS山特城堡（Castle）系列在线式UPS，包括容量1KVA~3KVA的一系列的UPS产品，与在线互动式或后备式UPS相比，在线式UPS能够为负载提供更佳的电源环境，无论从稳压输出范围、频率范围、输入杂讯的滤除，乃至市电模式与电池模式零转换时间等方面考虑，在线式均是最佳的UPS结构，因此，重要的设备，或是对电力环境要求苛刻的设备几乎都应选用在线式UPS。
