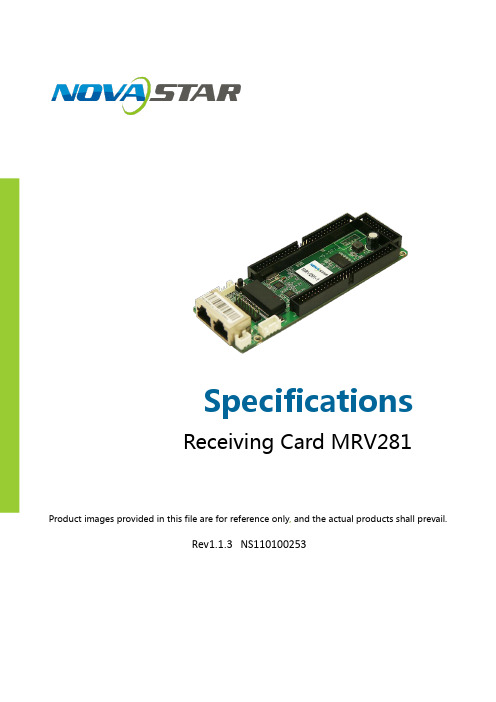

诺瓦科技大屏高清全彩LED接收卡MRV281参考使用说明书
Overview
Nova M3 MRV281 is a model of Nova receiving card. It has the interface of MOM (Memory on Module).
Features
1) Single card outputs 24-group of data; 2) Single card outputs 64-group of serial data; 3) Single card supports resolution 360×256; 4) MOM management, MOM can store calibration coefficient and the LED module information; 5) Configuration file readback; 6) Temperature monitoring; 7) Ethernet cable communication status detection; 8) Power supply voltage detection; 9) Pixel-by-pixel brightness and chromaticity calibration; 10) Pre-store picture setting; 11) Comply with RoHS standard; 12) Comply with EU CE-EMC Class A standard.
DATA43 DATA45 DATA47 NULL VCC A4 OE4 CLK4 E4 DATA49 DATA51 DATA52 DATA54 DATA56 GND DATA59 DATA61 DATA63 NULL VCC
22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60
诺瓦科技透明LED屏接收卡MRV220-1规格书
产品规格书
接收卡 MRV220-1
本文中的照片仅供参考，请以购买的实物为准
Rev2.1.4 NS110000246
功能特性
MRV220-1是诺瓦M3系列28组数据小接收卡。
具有以下特性：
1)单卡输出RGB数据24组；
2)单卡输出RGB数据28组；
3)单卡输出串行数据64组；
4)单卡带载像素为256×226；
5)支持配置文件回读；
6)支持温度监控；
7)支持网线通讯状态检测；
8)支持供电电压检测；
9)支持逐点亮色度校正；
10)符合欧盟RoHs标准；
11)符合欧盟CE-EMC CLass A标准。
接口定义
控制系统有2种工作模式,每种模式的2个60P输出不同数据，每个60P还可
以分成2个30P，接口定义如下:
1)24组并行数据模式
支持24组RGB并行数据，定义如下：
技术参数
附录
串行译码电路：。

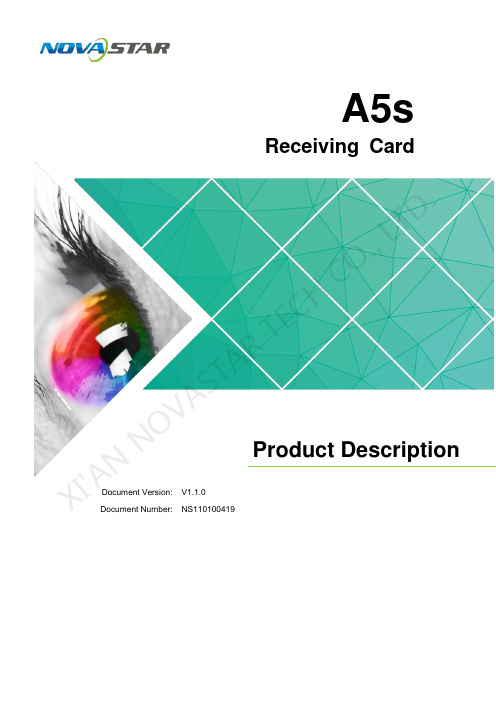

诺瓦科技LED显示屏接收卡A5s产品说明书英文版
A5sReceiving CardProduct DescriptionDocument Version: V1.1.0Document Number: NS110100419XI 'AN N OVA S T AR T EC HCO .,L T D.Copyright ©2018 Xi’an NovaStar Tech Co., Ltd. All Rights Reserved.No part of this document may be copied, reproduced, extracted or transmitted in any form or by any means without the prior written consent of Xi’an NovaStar Tech Co., Ltd.Trademarkis a trademark of Xi’an NovaStar Tech Co., Ltd.StatementYou are welc ome to use the product of Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). This document is intended to help you understand and use the product. For accuracy and reliability, NovaStar may make improvements and/or changes to this document at any time and without notice. Any problem in use or any good suggestion, please contact us through ways provided in the document. We will do our utmost to solve the problems and adopt the suggestions after evaluation as soon as possible.X I'A NN OV AS TA RT EC HC O.,LT D.Product Description Change HistoryChange HistoryX I'A NN OV AS TA RT EProduct DescriptionContentsContents1 Safety (1)1.1 Storage and Transport Safety ...................................................................................................................... 1 1.2 Installation and Use Safety .. (1)2 Overview ......................................................................................................................................... 2 3 Characteristics .. (3)3.1 Improvement in Display Effect ..................................................................................................................... 3 3.2 Improvement in Maintainability .................................................................................................................... 3 3.3 Improvement in Hardware Reliability ........................................................................................................... 4 3.4 Improvement in Software Reliability (5)4 Hardware Structure (6)4.1 Appearance .................................................................................................................................................. 6 4.2 Dimensions .................................................................................................................................................. 6 4.3 Indicator ....................................................................................................................................................... 7 4.4 Definition of the Data Interface (Top) ........................................................................................................... 8 4.4.1 32-Group Parallel Data Interface .............................................................................................................. 8 4.4.2 64-Group Serial Data Interface ................................................................................................................ 11 4.4.3 Reference Design for Expandable Interfaces .. (14)5 Software Structure ...................................................................................................................... 16 6 Typical Networking .................................................................................................................... 17 7 Specifications ............................................................................................................................... 18 A Acronyms and Abbreviations .................................................................................................. 19 B Terms .. (20)XI 'AN NOVA S T AR T EC HCO .,L T D.www.novastar.tech11SafetyThis chapter illustrates the safety of the A5s receiving card to ensure products’storage, transport, packing and application safety. Safety description is applicable to all personnel that contact or use the products. Pay attention to following points:● Read throughout the description. ● Save the whole description.●Be complied with the whole description.1.1 Storage and Transport Safety● Pay attention to dust and water prevention. ● Avoid long-term direct sunlight.● Do not place the products at the position near fire and heat. ● Do not place the products in an area containing explosive materials. ● Do not place the products in strong electromagnetic environment.● Place the products at a stable position to prevent damage or personal injury caused by dropping.●Save the packing box and materials which will come in handy if you ever have to ship your products. For maximum protection, repack your product as it was originally packed at the factory.1.2 Installation and Use Safety● Only trained professionals may install the products.● Do not insert and unplug (power cord plug) when the power is on. ● Ensure the safe grounding of the device.● Always wear an anti-static wrist band and insulating gloves. ● Do not place the products in an area having more or strong shake. ● Perform dust removing regularly.● Do not maintain the products without authorization but contact NovaStar as soonas possible.●Replace spare parts only with the same parts supplied by NovaStar.XI 'AN N OVA S T AR T EC HCO .,L T D.2OverviewA5s is a high-end receiving card developed by NovaStar, featuring small size and large loading capacity with the single card loading capacity up to 320×256 (PWM IC) pixels.A5s supports pixel level brightness and chroma calibration, which removes color difference effectively and improves display consistency of LED images. In addition, it also supports image rotation in 90° increments, creating richer images and improving visual experiences.Software and hardware designs of the A5s concern the user deployment as well as operating and maintenance scenarios, enabling easier deployment, more stable operating and more efficient maintenance.Advanced hardware design:● Small size and thinner thickness save space for increasingly narrower cabinet space and smaller spacing between lamps.● Use high-density connector which is resistant to dust and vibration and features high stability and high reliability.●Assembly network transformer features simple design and improved magnetic compatibility, helping user’s products to successfully pass the EMC authentication.Useful software design:● Support for LVDS transmission (customized function) ● Support for smart module (customized function) ● Support for auto module calibration ● Support for Mapping function● Support for pre-stored image setting of the receiving card ● Support for module Flash management● Support for monitoring of temperature, power supply voltage● Support for monitoring of Ethernet cable communication status (customizedfunction)● Support for 5-pin LCD module●Support for image rotating in 90° incrementsXI 'AN N OVA S T AR T EC HCO .,L T D.Product Description3 Characteristics3Characteristics3.1 Improvement in Display Effect3.2 Improvement in MaintainabilityXI 'A D.3.3 Improvement in Hardware ReliabilityX I'A3.4 Improvement in Software ReliabilityX I'A NNProduct Description4 Hardware Structure4Hardware Structure4.1 AppearanceProduct images provided in this file are for reference only , and the actual products shall prevail.Models of the high-density receptacle and plug used by A5s are shown in Table 4-1.Table 4-1 Model of high-density connector4.2 DimensionsBoard thickness is not greater than 2.0mm, and the total thickness (board thickness + thickness of both front panel and back panel) is not greater than 7.5mm.Unit of the dimension chart is “mm”. Ground connection is enabled for location hole (GND).XI 'AOVA S T AR T EC HCO .,L T D.4.3 IndicatorX I'A.,LT D.4.4 Definition of the Data Interface (Top)4.4.1 32-Group Parallel Data InterfaceN N OVA S T AR T EC HCO .,L T D.Note 1. Voltage ranging from 3.3V to 5.5V is recommended for input power (VCC). Note 2. RGB data groups must be used in group. Note 3. Operating indicator that meets low level is valid.Note 4. OE_RED, OE_GREEN and OE_BLUE are display enabled pins. In case thatOE_RGB are not controlled separately, OE_RED signal is applied. When PWM chip is used, GCLK signal is enabled. Note 5. RFU1–18 are the reserved extended function interfaces. Please refer to“4.4.3 Reference Design for Expandable Interfaces ”.4.4.2 64-Group Serial Data InterfaceJH1 XI 'AN N OVA S T AR T EC HCO .,L T D.Note 6. Voltage ranging from 3.3V to 5.5V is recommended for input power (VCC). Note 7. Operating indicator that meets low level is valid.Note 8. OE_RED, OE_GREEN and OE_BLUE are display enabled pins. In case thatOE_RGB are not controlled separately, OE_RED is applied. While PWM chip is used, GCLK signal is enabled. Note 9. RFU1–18 are the reserved extended function interfaces. Please refer to“4.4.3 Reference Design for Expandable Interfaces ”.4.4.3 Reference Design for Expandable InterfacesC HCO .,L TDescription:RFU8 and RFU10 are signal multiplexing expandable interfaces for which the interfaces of either Recommended Smart Module Interface or Recommended Module Flash Interface can be selected at a time.X I'A NN OV AS TA RT EC HC O.,LT D.5 Software StructureProgram download method:Visit www.novastar.tech and choose Download > Firmware. On the Firmware section, choose the desired program package to download.X I'A NN OV AS TA RT EC HC O.,LT D.Product Description 6 Typical Networking6 Typical NetworkingA5s is applied to LED display synchronous system which is generally composed ofthe LED display, HUB board, receiving card, video controller and controller peripheral.The receiving card is connected to the display over a HUB board.Synchronous system requires connecting a computer to display the computer’simages and texts on the LED screen. Structure of the synchronous system is asshown in the following figure.X I'A NN OV AS TA RT EC HC O.,LT D.Product Description 7 Specifications7 SpecificationsAX I'Product Description A Acronyms and AbbreviationsA Acronyms and AbbreviationsEEMC Electromagnetic CompatibilityFFPGA Field-Programmable Gate ArrayLLED Light Emitting DiodeMMCU Microcontroller UnitRRCFG Receiving Card ConfigurationX I'A NN OV AS TA RT EC HC O.,LT D.Product Description B TermsB TermsCalibration coefficientCalibration system generates a group of values for each LED lamp, includinginformation about brightness and chroma. After display calibration, the calibrationvalues of each lamp are just the calibration coefficient.Smart moduleThe smart module is composed of Flash and MCU.The Flash could store calibration coefficients and module information. MCU couldcommunicate with the receiving card to realize monitoring over temperature,voltage and wiring communication status, as well as LED error detection.The smart module could make monitoring unit smaller, requiring no independentmonitoring card and saving cabinet space.MappingAfter the Mapping function is enabled on NovaLCT, the target cabinet will displaythe cabinet number and Ethernet port information, and the user could get thereceiving card’s location and wiring route.Error detectionPerform status detection for each LED lamp. If the LED lamp fails, the user couldnotify in a timely manner upon monitoring system.X I'A NN OV AS TA RT EC HC O.,LT D.。
诺瓦科技LED显示屏接收卡B4s产品说明书
有限
1.1 存储和运输安全
技
请注意防尘防水。
科
子 请避免阳光长时间直射。
请勿靠近热源和火源。
电 请勿放置在易爆气体环境中。
请勿放置在强电磁环境中。
请将产品放在稳固的位置，以防坠落造成产品损坏或人身伤害。
瓦 请保存包装箱和包装材料。存储和运输产品时可以使用。为了最大程度地保护设 诺备，请将产品按照出厂时的原始包装重新包好。
5
B4s 接收卡 产品说明书
表4-1 高密度接插件型号
类型
品牌
Receptacle
Amphenol FCI
PLUG
Amphenol FCI
物料编码 10140609-041802LF 10140607-041802LF
4 硬件结构
4.2 尺寸图
板卡厚度不大于 2.0mm，总厚度（板卡厚度+正反面器件厚度）不大于 7.5mm。 尺寸图单位为 mm。定位孔已连接信号地（GND）。
4.4.2 32 组串行数据接口................................................................................................................................................ 10
1.1 存储和运输安全 ......................................................................................................................................................... 1 1.2 安装和使用安全 ......................................................................................................................................................... 1
诺瓦科技LED显示屏接收卡MRV200规格书英文版
SpecificationsReceiving Card MRV200Product images provided in this file are for reference only , and the actual products shall prevail.Rev2.1.1NS110100089XI 'AN NOVA S TAR T E C H C O .,L T D.OverviewNova M3 MRV200 is the mini-version of Nova M3 receiving card. It has small size and powerful functions. It retains all the functions and features of MRV300 receiving card and is more suitable to LED curtain and die-cast aluminum cabinet.Features1) Single card outputs 16-group of RGBR 'data;2) Single card outputs 20-group of RGB data; 3) Single card outputs 64-group of serial data; 4) Single card supported resolution 256x226; 5) Configuration file readback; 6) Temperature monitoring.7) Ethernet cable communication status detection; 8) Power supply voltage detection; 9) Pixel-by-pixel brightness and chromaticity calibration. Brightnessand chromaticity calibration coefficients for each LED; 10) Pre-store picture setting; 11) Comply with EU RoHs standard; 12) Comply with EU CE-EMC standard.XI 'A N N O V A S T A R T E C H C O .,L T D.Output Interface DefinitionUnder all the three different working modes of it, three 26P interfaces can output different data, and only one common program and software is required. No customized program is necessary. Interfaces are defined as follows:1) 16-group data mode （With virtual output ）Supporting 16-group of RGBR 'parallel data, defined as follows:Virtual red signal of the eighth group of data is exported as E signal of decoded signal under 32-scanning working mode.XI 'AN NOVA S TAR T E C HCO .,L T D.2) 20-group parallel data modeSupporting 20 sets of parallel data, defined as follows:I 'AN T E C HCO .,L T D.3)64-group serial data modeSupporting 64 sets of serial data, defined as follows:X I'A NN OV AS TA RT EC HC O.,L TD.Under serial mode, there are 64 data cables totally. Each cable can drive one LED bar independently.In case of horizontal LED bar, the default is, Data1 drives the first row from the top, and Data64 drives the 64th row. (front view)In case of vertical LED bar, the default is, Data1 drives the first column of from the left, and Data64 drives the 64th column. (front view).4) Special interface for light series or color screenDimensions Board thickness is not greater than 2mm, and the total thickness (board thickness + thickness of both front panel and back panel) is not greater than 18mm.Unit: mm.XI 'A N N OV A S T A R T C HCO .,L T D.AppearanceNote: Product images provided in this file are for reference only, and the actual products shall prevail.J2 definition （Connector interface of the network ports ）J9 definition （Indicator light Socket ） SpecificationsI 'A N L T D.Specific Model ListTo meet the needs of different customers, Nova provides more specificmodels of the products, including standard products in stock. Othermodels need to be customized.AppendixSerial data decoding circuit：X I'A NN OV AS TA RT EC HC O.,L T。
诺瓦操作说明
2.1. 播放方案的组成播放方案对应保存为后缀plym的文件，由多个常规时段组成，此外，也可包含一个或多个插播时段。
常规时段和插播时段均由一个或多个节目页组成，每个节目页又由一个或多个窗口组成。
窗口可分为通用窗口、时钟窗口、走马灯窗口、计时窗、天气预报窗和视频设备窗。
通用窗口可添加一个或多个不同种类的媒体。
播放方案的组成如下图示例。
图2-1 播放方案组成示例常规时段可指定播放日期、一周有效播放天数、一天内有效播放时段的播放段。
例如：常规播放段“段1”，从2012/6/23到2012/6/30，星期一、三、五，每天8:00至12:00播放，如下图。
图2-2常规播放段“段1”定时插播段在指定日期范围内的有效天内，指定时间点开始播放指定次数或时长的播放段；例如：定时插播段“插播段2”，从2012/6/23到2012/6/30，星期一、三、五，每天8:30开始播放10分钟，如下图所示。
图2-3 定时插播段“插播段2”周期插播段在指定的日期范围、指定的有效天内、指定的时间段内，每隔一定时间播放指定次数或时长的播放段；例如：周期插播段“插播段3”，从2012/6/23到2012/6/30，星期一、三、五，12:00至18:00，每隔30分钟播放1次，如下图所示。
✧节目页计算机显示器屏幕上映射到LED显示屏的区域，用以实现可视的媒体数据（如视频、图像、字幕等）在LED显示屏上的显示播放。
可划分为多个显示区域，每个显示区域对应一个窗口。
●全局节目页：时段播放过程中，一直播放的节目页，可包含多个窗口。
全局节目页的播放窗口在播放时位于其它常规节目页的窗口前面。
在实际应用中，如果需要使用多种窗口布局的常规节目页，但又希望在固定位置一直显示时钟、天气预报、走马灯等媒体，可将该媒体编辑到全局节目页中；●常规节目页：常规节目页可包含多个窗口，每个常规节目页可有不同的窗口布局。
同一个播放时段可包含多个常规节目页。
多个常规节目页按从上到下的方式循环播放。
诺瓦科技LED显示屏接收卡TR100规格书
在高可靠性应用环境中，支持单 HUB 板同时插两张 TR100 接收卡。如果主用接收卡发生故障，备用接收卡会及时承接业
技 务，保障显示屏正常工作。 科 支持同时连接两个电源，检测两个电源的工作状态是否正常。 子 用于提升业务和连接的可靠性，具体如下：
支持热备份
电设备冗余备份：连接接收卡的设备通过主备冗余机制增加业务 的可靠性。在某个时间，只有主用设备处于运行状态。当主用
V1.0.0
4
接收卡 TR100 规格书
JH1
NC
23
24
NC
GND
25
26
GND
/
G17
27
28
R17
/
/
R18
29
30
B17
/
备注 2
/ /
B18
31
32
G18
G19
33
34
R19
/ /
备注 2
/
R20
35
36
B19
/
/
B20
37
38
G20
/
GND
39
40
科 RFU6
RFU8
子 RFU10
RFU12
电 RFU14
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
G32 GND RFU3 RFU5 RFU7 RFU9 RFU11 RFU13
/
/
/
/ /
备注 5
/
/
备注 5
/ /
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
MRV316
接收卡
版本 编号： V1.0.0 文档编号 ：
NS 110000374
产品说明书
版权所有©2017西安诺瓦电子科技有限公司。
保留一切权利。
非经本公司书面许可，任何单位和个人不得擅自摘抄、复制本文档内容的部分或全部，并不得以任何形式传播。
商标声明
声明
欢迎您选用西安诺瓦电子科技有限公司（以下简称诺瓦科技）的产品，如果本文档为您了解和使用产品带来帮助和便利，我们深感欣慰。
我们在编写文档时力求精确可靠，随时可能对内容进行修改或变更，恕不另行通知。
如果您在使用中遇到任何问题，或者有好的建议，请按照文档提供的联系方式联系我们。
对您在使用
中遇到的问题，我们会尽力给予支持，对您提出的建议，我们衷心感谢并会尽快评估采纳。
产品说明书更新记录
更新记录
产品说明书目录
目录
更新记录 (ii)
1安全说明 (1)
2概述 (2)
3产品特性 (3)
4硬件结构 (4)
4.1外观 (4)
4.2尺寸图 (5)
4.3指示灯说明 (5)
4.4数据接口定义 (6)
5软件结构 (7)
6典型组网 (8)
7产品规格 (10)
产品说明书1安全说明
1安全说明本章介绍接收卡MRV316的安全说明，目的是保证产品的存储、运输、安装和使用安
全。
安全说明适用于所有接触和使用产品的人员。
首先请注意以下几点：
●请阅读所有说明。
●请保留所有说明。
●请遵循所有说明。
存储和运输安全
●请注意防尘防水。
●请避免阳光长时间直射。
●请勿靠近热源和火源。
●请勿放置在易爆气体环境中。
●请勿放置在强电磁环境中。
●请将产品放在稳固的位置，以防坠落造成产品损坏或人身伤害。
●请保存包装箱和包装材料。
存储和运输产品时可以使用。
为了最大程度地保护设
备，请将产品按照出厂时的原始包装重新包好。
安装和使用安全
●只有通过培训的专业人员才可以安装产品。
●禁止带电插拔。
●请确保箱体安全接地。
●请佩戴防静电护腕，穿戴绝缘手套。
●请勿将产品安装在震动多或强的环境中。
●请定期除尘。
●请勿擅自维修产品，您可以随时联系诺瓦科技。
●请使用诺瓦科技的同款产品进行备件更换。
产品说明书2概述
2概述
MRV316是诺瓦推出的新款接收卡，单卡带载512×256像素。
MRV316支持逐点亮色度校正，有效消除色差，显著提升LED画面显示的一致性，给
用户带来更加细腻的画面。
MRV316的硬件设计和软件设计充分考虑用户部署、系统运行和维护时的场景，使部
署更容易，运行更稳定、维护更高效。
硬件设计：
●集成16个标准HUB75接口，免接HUB板。
●采用千兆网口，可以连接PC端。
软件设计：
●支持逐点亮色度校正。
●支持接收卡预存画面设置。
●支持温度、电压、网线通讯和视频源信号状态检测。
●支持5P in液晶模块。
MRV316
接收卡 MRV316
产品说明书
硬件结构
4
4
硬件结构
4.1 外观
本文中的产品照片仅供参考，请以实际购买到的产品为准。
MRV316
硬件结构
5
接收卡MRV316
产品说明书硬件结构
6
产品说明书5软件结构
5软件结构
MRV316出厂固件包括MCU程序和FPGA程序。
程序包下载方法：
请访问www.novastar-led.c n，选择“下载中心> 软件及资料”。
在“接收卡”区域中
单击“程序软件”，进入下载列表并获取所需程序包。
6典型组网
MRV316应用于LED显示屏同步系统。
同步系统一般由LED显示屏、接收卡、L ED 显示屏控制器（可选）和控制器外设等组成。
接收卡通过HUB接口连接显示屏。
同步系统需要连接计算机工作，将计算机上的图像文字显示在LED大屏幕上。
同步系统的架构如下图所示。
图6-1发送卡模式
图6-2无发送卡模式
产品说明书。
