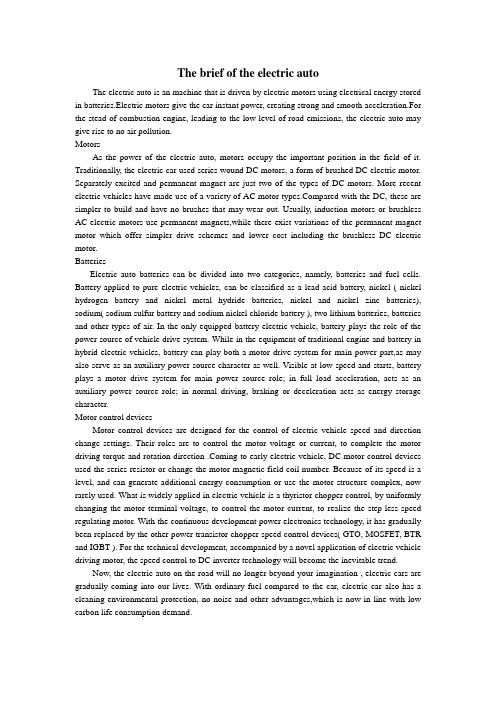

The brief of the electric autoThe electric auto is an machine that is driven by electric motors using electrical energy stored in batteries.Electric motors give the car instant power, creating strong and smooth acceleration.For the stead of combustion engine, leading to the low level of road emissions, the electric auto may give rise to no air pollution.MotorsAs the power of the electric auto, motors occupy the important position in the field of it. Traditionally, the electric car used series wound DC motors, a form of brushed DC electric motor. Separately excited and permanent magnet are just two of the types of DC motors. More recent electric vehicles have made use of a variety of AC motor pared with the DC, these are simpler to build and have no brushes that may wear out. Usually, induction motors or brushless AC electric motors use permanent magnets,while there exist variations of the permanent magnet motor which offer simpler drive schemes and lower cost including the brushless DC electric motor.BatteriesElectric auto batteries can be divided into two categories, namely, batteries and fuel cells. Battery applied to pure electric vehicles, can be classified as a lead-acid battery, nickel ( nickel hydrogen battery and nickel metal hydride batteries, nickel and nickel zinc batteries), sodium( sodium sulfur battery and sodium nickel chloride battery ), two lithium batteries, batteries and other types of air. In the only equipped battery electric vehicle, battery plays the role of the power source of vehicle drive system. While in the equipment of traditional engine and battery in hybrid electric vehicles, battery can play both a motor drive system for main power part,as may also serve as an auxiliary power source character as well. Visible at low speed and starts, battery plays a motor drive system for main power source role; in full load acceleration, acts as an auxiliary power source role; in normal driving, braking or deceleration acts as energy storage character.Motor control devicesMotor control devices are designed for the control of electric vehicle speed and direction change settings. Their roles are to control the motor voltage or current, to complete the motor driving torque and rotation direction .Coming to early electric vehicle, DC motor control devices used the series resistor or change the motor magnetic field coil number. Because of its speed is a level, and can generate additional energy consumption or use the motor structure complex, now rarely used. What is widely applied in electric vehicle is a thyristor chopper control, by uniformly changing the motor terminal voltage, to control the motor current, to realize the step-less speed regulating motor. With the continuous development power electronics technology, it has gradually been replaced by the other power transistor chopper speed control devices( GTO, MOSFET, BTR and IGBT ). For the technical development, accompanied by a novel application of electric vehicle driving motor, the speed control to DC inverter technology will become the inevitable trend.Now, the electric auto on the road will no longer beyond your imagination , electric cars are gradually coming into our lives. With ordinary fuel compared to the car, electric car also has a cleaning environmental protection, no noise and other advantages,which is now in line with low carbon life consumption demand.。

毕业设计论文外文文献翻译汽车专业汽修点火系统中英文对照

毕业设计论文外文文献翻译汽车专业汽修点火系统中英文对照

Ignition SystemThe purpose of the ignition system is to create a spark that will ignite the fuel-air mixture in the cylinder of an engine. It must do this at exactly the right instant and do it at the rate of up to several thousand times per minute for each cylinder in the engine. If the timing of that spark is off by a small fraction of a second, the engine will run poorly or not run at all.The ignition system sends an extremely high voltage to the spark plug in each cylinder when the piston is at the top of its compression stroke. The tip of each spark plug contains a gap that the voltage must jump across in order to reach ground. That is where the spark occurs.The voltage that is available to the spark plug is somewhere between 20,000 volts and 50,000 volts or better. The job of the ignition system is to produce that high voltage from a 12 volt source and get it to each cylinder in a specific order, at exactly the right time.The ignition system has two tasks to perform. First, it must create a voltage high enough (20,000+) to across the gap of a spark plug, thus creating a spark strong enough to ignite the air/fuel mixture for combustion. Second, it must control the timing of that the spark so it occurs at the exact right time and send it to the correct cylinder.The ignition system is divided into two sections, the primary circuit and the secondary circuit. The low voltage primary circuit operates at battery voltage (12 to 14.5 volts) and is responsible for generating the signal to fire the spark plug at the exact right time and sending that signal to the ignition coil. The ignition coil is the component that converts the 12 volt signal into the high 20,000+ volt charge. Once the voltage is stepped up, it goes to the secondary circuit which then directs the charge to the correct spark plug at the right time.The BasicsBefore we begin this discussion, let’’s talk a bit about electricity in general. I know that this is Before we begin this discussion, letbasic stuff, but there was a time that you didn’’t know about this and there are people who need basic stuff, but there was a time that you didnto know the basics so that they could make sense of what follows.All automobiles work on DC (Direct Current). This means that current move in one direction, form the positive battery terminal to the negative battery terminal. In the case of the automobile, the negative battery terminal is connected by a heavy cable directly to the body and the engine block of the vehicle. The body and any metal component in contact with it is called the ground. This means that a circuit that needs to send current back to the negative side of the battery can be connected to any part of the vehicle’’s metal body or the metal engine block.be connected to any part of the vehicleA good example to see how this works is the headlight circuit. The headlight circuit consists of a wire that goes from the positive battery terminal to the headlight switch. Another wire goes from the headlight switch to one of two terminals on the headlight bulb. Finally, a third wire goes from a second terminal on the bulb to the metal body of car. When you switch the headlight on, you are connecting the wire from the battery with the wire to the headlamps allowing battery current to go directly to the headlamp bulbs. Electricity passes through the filaments inside the bulb, then out the other wire to the metal body. From there, the current goes back to the negative terminal of the battery completing the circuit. Once the current is flowing through this circuit, the filament inside the headlamp gets hot and glows brightly. Let there be light.Now, back to the ignition system, the basic principle of the electrical spark ignition system has not changed for over 75 years. What has changed is the method by which the spark is created and how it is distribute.Currently, there are three distinct types of ignition system. The mechanical ignition systemwas used prior to 1975. It was mechanical and electrical and used no electronics. By understanding these early system, it will be easier to understand the new electronic andcomputer controlled ignition system, so don’’t skip over it. The electronic ignition system started computer controlled ignition system, so donfinding its way to production vehicles during the early 70s and became popular when better control and improved reliability became important with the advent of emission controls. Finally, the distributor less ignition system became available in the mid 80s. This system was always computer controlled and contained no moving parts, so reliability was greatly improved. Most of these systems required no maintenance except replacing the spark plugs at intervals from 60,000 to over 100,000 miles.Let’’s take a detailed look at each system and see how they work.LetThe Mechanical Ignition SystemThe distributor is the nerve center of the mechanical ignition system and has two tasks to perform. First, it is responsible for triggering coil to generate a spark at the precise instant that it is required (which varies depending how fast the engine is turning and how much load it is under). Second, the distributor is responsible for directing that spark to the proper cylinder (which is why it is called a distributor).The circuit that powers the ignition system is simple and straight forward. When you insert the key in the ignition switch and turn the key to the Run position, you are sending current from the battery through a wire directly to the positive (+) side of the ignition coil. Inside the coil is a series of copper windings that loop around the coil over a hundred times before exiting out the negative (-) side of the coil. From there, a wire takes this current over to the distributor and is connected to a special on/off switch, called the points. When the points are closed, this current goes directly to ground. When current flows from the ignition switch, through the windings in the coil, then to ground, it builds a strong magnetic field inside the coil.The points are made up of a fixed contact point that is fastened to a plate inside the distributor, and a movable contact point mounted on the end of a spring loaded arm. The movable point rides on a 4, 6, or 8 lobe cam (depending on the number of cylinder in the engine) that is mounted on a rotating shaft inside the distributor. This distributor cam rotates in time with the engine, making one complete revolution for every two revolutions of the engine. As it rotates, the cam pushes the points open and closed. Every time the points open, the flow of current is interrupted through the coil, thereby collapsing the magnetic field and releasing a high voltage surge through the secondary coil windings. This voltage surge goes out the top of the coil and through the high-tension coil wire.Now, we have the voltage necessary to fire the spark plug, but we still have to get it to the correct cylinder. The coil wire goes from the coil directly to the distributor cap. Under the cap is a rotor that is mounted on top of the rotating shaft. The rotor has a metal strip on the top that is in constant contact with the center terminal of the distributor cap. It receives the high voltage surge from the coil wire and sends it to the other end of the rotor which rotates past each spark plug terminal inside the cap. As the rotor turns on the shaft, it sends the voltage to the correct spark plug wire, which in turn sends it to the spark plug. The voltage enters the spark plug at the terminal at the top and travels down the core until it reaches the tip. It then jumps across the tip of the spark plug, creating a spark suitable to ignite the fuel-air mixture inside that cylinder. The description I just provided is the simplified version, but should be helpful to visualize the process, but we left out a few things that make up this type of ignition system. For instance, we didn’’t talk about the condenser that is connected to the point, nor did we talk about the system didnto advance the timing. Let’’s take a look at each section and explore it in more detail.to advance the timing. LetThe Ignition SwitchThere are two separate circuits that go from the ignition switch to the coil. One circuit runs through a resistor in order to step down the voltage about 15% in order to protect the points from premature wear. The other circuit sends full battery voltage to the coil. The only time this circuit is used is during cranking. Since the starter draws a considerable amount of current to crank the engine, additional voltage is needed to power the coil. So when the key is turned to the spring-loaded start position, full battery voltage is used. As soon as the engine is running, the driver releases the key to the run position which directs current through the primary resistor to the coil.On some vehicles, the primary resistor is mounted on the firewall and is easy to replace if it fails. On other vehicles, most notably vehicles manufactured by GM, the primary resister is a special resister wire and is bundled in the wiring harness with other wires, making it more difficult to replace, but also more durable.The DistributorWhen you remove the distributor cap from the top of the distributor, you will see the points and condenser. The condenser is a simple capacitor that can store a small amount of current. When the points begin to open the current, flowing through the points looks for an alternative path to ground. If the condenser were not there, it would try to jump across the gap of the point as they begin to open. If this were allowed to happen, the points would quickly burn up and you would hear heavy static on the car radio. To prevent this, the condenser acts like a path to ground. It really is not, but by the time the condenser is saturated, the points are too far apart for the small amount of voltage to jump across the wide point gap. Since the arcing across the opening points is eliminated, the points last longer and there is no static on the radio from point arcing.The points require periodic adjustments in order to keep the engine running at peek efficiency. This is because there is a rubbing block on the points that is in contact with the cam and this rubbing block wears out over time changing he point gap. There are two ways that the points can be measured to see if they need an adjustment. One way is by measuring the gap between the open points when the rubbing block is on the high point of the cam. The other way is by measuring the dwell electrically. The dwell is the amount, in degrees of cam rotation that the points stay closed.On some vehicles, points are adjusted with the engine off and the distributor cap removed. A mechanic will loosen the fixed point and move it slightly, then retighten it in the correct position using a feeler gauge to measure the gap. On other vehicles, most notably GM cars, there is a window in the distributor where a mechanic can insert a tool and adjust the points using a dwell meter while the engine is running. Measuring dwell is much more accurate than setting the points with a feeler gauge.Points have a life expectancy of about 10,000 miles at which time have to be replaced. This is done during a routine major tune up, points, condenser, and the spark plugs are replaced, the timing is set and the carburetor is adjusted. In some cases, to keep the engine running efficiently, a minor tune up would be performed at 5,000 mile increments to adjust the point and reset the timing.Ignition CoilThe ignition coil is nothing more that an electrical transformer. It contains both primary and secondary winding circuit. The coil primary winding contains 100 to 150 turns of heavy copper wire. This wire must be insulated so that the voltage does not jump from loop to loop, shortingit out. If this happened, it could not create the primary magnetic field that is required. The primary circuit wire goes into the coil through the positive terminal, loops around the primary windings, then exits through the negative terminal.The coil secondary winding circuit contains 15,000 to 30,000 turns of fine copper wire, which also must be insulated from each other. The secondary windings sit inside the loops of the primary windings. To further increase the coils magnetic field the windings are wrapped around a soft iron core. To withstand the heat of the current flow, the coil is filled with oil which helps keep it cool.The ignition coil is the heart of the ignition system. As current flows through the coil a strong magnetic field is build up. When the current is shut off, the collapse of this magnetic field to the secondary windings induces a high voltage which is released through the large center terminal. This voltage is then directed to the spark plugs through the distributor.Ignition Timing The timing is set by loosening a hold-down screw and rotating the body of the distributor. Since the spark is triggered at the exact instant that the points begin to open, rotating the distributor body (which the point are mounted on) will change the relationship between the position and the position of the distributor cam, which is on the shaft that is geared to the engine rotation.While setting the initial or base timing is important, for an engine to run properly, the timing needs to change depending on the speed of the engine and the load that it is under. If we can move the plate that the points are mounted on, or we could change the position of the distributor cam in relation to the gear that drives it, we can alter the timing dynamically to suit the needs of the engine.Ignition Wires These cables are designed to handle 20,000 to more than 50,000 volts, enough voltage to toss you across the room if you were to be exposed to it. The job of the spark plug wires is to get that enormous power to the spark plug without leaking out. Spark plug wires have to endure the heat of a running engine as well as the extreme changes in the weather. In order to do their job, spark plug wires are fairly thick, with most of that thickness devoted to insulation with a very thin conductor running down the center. Eventually, the insulation will succumb to the elements and the heat of the engine and begins to harden, crack, dry out, or otherwise break down. When that happens, they will not be able to deliver the necessary voltage to the spark plug and a misfire will occur. That is what is meant by “Not running on all cylinders cylinders””. To correct this problem, the spark plug wires would have to be replaced.Spark plug wires are routed around the engine very carefully. Plastic clips are often used to keep the wires separated so that they do not touch together. This is not always necessary, especially when the wires are new, but as they age, they can begin to leak and crossfire on damp days causing hard starting or a rough running engine.Spark plug wires go from the distributor cap to the spark plugs in a very specific order. This is called the is called the ““firing order firing order”” and is part of the engine design. Each spark plug must only fire at the end of the compression stroke. Each cylinder has a compression stroke at a different time, so it is important for the individual spark plug wire to be routed to the correct cylinder.For instance, a popular V8 engine firing order is 1, 8, 4, 3, 6, 5, 7, 2. The cylinders are numbered from the front to the rear with cylinder #1 on the front-left of the engine. So the cylinders on the left side of the engine are numbered 1, 3, 5, 7while the right side are numbered 2, 4, 6, 8. On some engine, the right bank is 1, 2, 3, 4 while the left bank is 5, 6, 7, 8. A repairmanual will tell you the correct firing order and cylinder layout for a particular engine.The next thing we need to know is what direction the distributor is rotating in, clockwise or counter-clockwise, and which terminal on the distributor caps that #1 cylinder is located. Once we have this information, we can begin routing the spark plug wires.If the wires are installed incorrectly, the engine may backfire, or at the very least, not run on all cylinders. It is very important that the wires are installed correctly.Spark PlugsThe ignition system system’’s sole reason for being is to service the spark plug. It must provide sufficient voltage to jump the gap at the tip of the spark plug and do it at the exact right time, reliably on the order of thousands of times per minute for each spark plug in the engine.The modern spark plug is designed to last many thousands of miles before it requires replacement. These electrical wonders come in many configurations and heat ranges to work properly in a given engine. The heat range of a spark plug dictates whether it will be hot enough to burn off any residue that collects on the tip, but not so hot that it will cause pre-ignition in the engine. Pre-ignition is caused when a spark plug is so hot, that it begins to glow and ignite the fuel-air mixture prematurely, before the spark. Most spark plugs contain a resistor to suppress radio interference. The gap on a spark plug is also important and must be set before the spark plug is installed in the engine. If the gap is too wide, there may not be enough voltage to jump the gap, causing a misfire. If the gap is too small, the spark may be inadequate to ignite a lean fuel-air mixture also causing a misfire.The Electronic Ignition SystemThis section will describe the main differences between the early point & condenser systems and the newer electronic systems. If you are not familiar with the way an ignition system works in general, I strongly recommend that you first read the previous section The Mechanical Ignition System.In the electronic ignition system, the points and condenser were replaced by electronics. On these systems, there were several methods used to replace the points and condenser in order to trigger the coil to fire. One method used a metal wheel with teeth, usually one for each cylinder. This is called an armature. A magnetic pickup coil senses when a tooth passes and sends a signal to the control module to fire the coil.Other systems used an electric eye with a shutter wheel to send a signal to the electronics that it was time to trigger the coil to fire. These systems still need to have the initial timing adjusted by rotating the distributor housing.The advantage of this system, aside from the fact that it is maintenance free, is that the control module can handle much higher primary voltage than the mechanical point. V control module can handle much higher primary voltage than the mechanical point. Voltage can oltage can even be stepped up before sending it to the coil, so the coil can create a much hotter spark, on the order of 50,000 volts that is common with the mechanical systems. These systems only have a single wire from the ignition switch to the coil since a primary resistor is not longer needed. On some vehicles, this control module was mounted inside the distributor where the points used to be mounted. On other designs, the control module was mounted outside the distributor with external wiring to connect it to the pickup coil. On many General Motors engines, the control module was inside the distributor and the coil was mounted on top of the distributor for a one piece unitized ignition system. GM called it high energy ignition or HEI for short.The higher voltages that these systems provided allow the use of a much wider gap on the spark plugs for a longer, fatter spark. This larger sparks also allowed a leaner mixture for betterfuel economy and still insure a smooth running engine.The early electronic systems had limited or no computing power, so timing still a centrifugal and vacuum advance built into the distributor.On some of the later systems, the inside of the distributor is empty and all triggering is performed by a sensor that watches a notched wheel connected to either the crankshaft or the camshaft. These devices are called crankshaft position sensor or camshaft position sensor. In these systems, the job of the distributor is solely to distribute the spark to the correct cylinder through the distributor cap and rotor. The computer handles the timing and any timing advance necessary for the smooth running of the engine.The Distributor Ignition SystemNewer automobiles have evolved from a mechanical system (distributor) to a completely solid state electronic system with no moving parts. These systems are completely controlled by the on-board computer. In place of the distributor, there are multiple coils that each serves one or two spark plugs. A typical 6 cylinder engine has 3 coils that are mounted together in a coil pack””. A spark plug wire comes out of each side of the individual coil and goes to the “packappropriate spark plug. The coil fires both spark plugs at the same time. One spark plug fires on the compression stroke igniting the fuel-air mixture to produce power while the other spark plug fires on the exhaust stroke and does nothing. On some vehicles, there is an individual coil for each cylinder mounted directly on top of the spark plug. This design completely eliminates the high tension spark plug wires for even better reliability. Most of these systems use spark plugs that are designed to last over 100,000 miles, which cuts down on maintenance costs.参考文献:[1] 王欲进,张红伟汽车专业英语[M]. 北京:北京大学出版社,中国林业出版社,2007.8,55—67点火系统点火系统的作用是产生点燃发动机气缸里可燃混合物的火花。

汽车电气设备英文

汽车电气设备英文
动力转向(EPS)
Electronic Power Steering
Electronic device
制动力分配系统(EBD)
Electronic Brake force Distribution
悬架控制(TEMS)
Toyota Electronic Modulated Suspension
Electronic device
巡航控制 -CCS
Cruise Control System 雷达防撞
radar collision 倒车警报
backup buzzer
Electronic device
防盗系统
anti-theft system
驻车定位系统( PTS )
Parking Tracking System
防抱死制动系统(ABS)
点火控制/电子点火提前
ESA Electronic Sparke
怠速控制( ISC)
idle speed control
排放控制(EGR)
Exhaust Gas Recycling 排气再循环
Electronic device
自动变速器(ECT)
Electronic Controlled Transmission
灯 light
Electrical device
音响 stereo system speaker
点火系统 ignition system
Electrical device
起动机 starter
雨刮 windscreen wiper
Electrical device
仪表盘 meter panel
Anti-lock Braking

毕业设计论文外文文献翻译汽车专业发动机概述中英文对照[管理资料]

毕业设计论文外文文献翻译汽车专业发动机概述中英文对照[管理资料]

General comments of automobile engineEngine is the source of far, automotive engines are all powered by heat except for a few of automotives drived by automotive engines are called internal combustion engines because fuel burns inside the engine .The engine converts the burning fuel’s thermal energy to mechanical energy.By Cooling Systems Liquid-cooled engines and air-cooled engines are being used .Liquid-cooled engines are the most common in the diesel industry .By Fuel System Gasoline diesel and propane fuel systems are currently used in a wide variety of engines .By Ignition Method Gas engines use the spark (electrical)ignition diesel engines use the heat fro BDC to TDC ;it varies with cylinder bore size ,length of piston stroke ,and numb system injection .The calory of diesel engine come from the fuel emblazed by the compressed diesel engine’compression ration is much bigger than the gas sufficient calory is from the fuel burned by the pressed air.By valve Arrangement Four types of valve arrangements have been used in gasoline and diesel engines .Of the four types (L, T ,F ,and I heads ),the I head is commonly used on diesel engines .By Cylinder Arrangement Engine block configuration or cylinder arrangement depends on cylinder block design .Cylinders may be arranged in a straight line one behind the other .The most common in-line designs are the four-and six-cylinder engines .The V type of cylinder arrangement uses two banks of cylinders arranged in a 60°to 90°V design .The most common examples are those with two banks of three to eight cylinders each .The opposed engine uses two banks of cylinders opposite each other with the crankshaft in between .Engine’classificationAccording to the differences of the piston’movement, the piston intenal combusition engine will be classified reciprocating intenal combusition engine and rotary piston intenal combusition we will introduce working principle diagram of reciprocating internal combustion engine.Except for the wankel rotary ,engine ,all production automotive engines are the reciprocating ,or piston ,design . Reciprocating means “up and down “ or “back and forth“ .It is this up-and-down action of a piston in a cylinder that gives the reciprocating engine its name .Almost all engines of this type are built upon a cylinder block ,or engine block .The block is an iron or aluminum casting that contains the engine cylinders .The top of the block is covered with the cylinder head ,which forms the combustion chambers .The bottom of the block is covered with an oil pan ,or oil sump .A major exception to this type of engine on struction is the air-cooled V olkwagen engine .It is representative of the horizontally opposed air-cooled engines used by Porsche ,Chevrolet (Corvair ) ,and some other automobile manufacturers in years past .Power is produced by the inline motion of a piston in a cylinder .However ,this linear motion must be changed to rotating motion to turn the wheels of a car or truck .The piston is attached to the top of a connecting rod by a pin ,,called a piston pin or connecting rod transmits the up-and –down motion of the piston to the crankshaft ,which changes it to rotating motion .The connecting rod is mounted on the crankshaft with large bearings called rod bearings .Similar bearings , called main bearings ,are used to mount the crankshaft in the block.The crankshaft changes the reciprocating motion of the pistons to rotating motion .The combustible mixture of gasoline and air enters the cylinders through valves .Automotive engines use poppet valves .The valves can be in the cylinder head or in the block .The opening and closing of the valves is controlled by a camshaft .Lobes on the camshaft push the valves open as the camshaft rotates .A spring closes each valve when the lobe is not holding it open .The most common arrangements of engine cylinders and valves are discussed later .The basic single-cylinder engine consists of a cylinder (engine block ),a movable piston inside this cylinder ,a connecting rod attached at the top end to the piston and at the bottom to the offset portion of a crankshaft ,a camshaft to operate the two valves (intake and exhaust ), and a cylinder head .A flywheel is attached to one end of the crankshaft .The other end of the crankshaft has a gear to drive the camshaft gear .The camshaft gear is twice as large as the crankshaft gear .This drives the camshaft at half the speed of the crankshaft on four-stroke-cycle engines ,the crankshaft and camshaft run at the same speed .Energy ConversionThe internal combustion diesel engine is a device used to convert the chemical energy of the fuel into heat energy and then convert this heat energy into usable mechanical energy .This is achieved by combining the appropriate amounts of air andfuel and burning them in an enclosed cylinder at a controlled rate .A movable piston in the cylinder is forced down by the expanding gases of combustion .The movable piston in cylinder is connected to the top of a connecting rod .The bottom of the connected rod is attached to the offset portion is transferred to the crankshaft ,As the piston is forced down ,this offset portion of a crankshaft ,to rotate .The reciprocating (back and forth or up and down )movement of the piston is converted to rotary (turning )motion of the crankshaft ,which supplies the power to drive the vehicle .In general an average air-fuel ratio for good combustion is about 15parts of air to 1 part of fuel by weight .However ,the diesel engine always takes in a full charge of air (since there is no throttle plate in most systems ) ,but only a small part of this air is used at low or idle engine speeds .Air consists of about 20 percent oxygen while the remaining 80 percent is mostly nitrogen .This means that ,for every gallon of fuel burned ,the oxygen in 9,000 to 10,000gallons of air is required .Four-Stroke CycleGasoline by itself will not burn ,it must be mixed with oxygen (air ) .This burning is called combustion and is a way of releasing the energy stored in the air-fuel mixture .To do any useful work in an engine ,the air-fuel mixture must be compressed and burned in a sealed chamber .Here the combustion energy can work on the movable piston to produce mechanical energy .The combustion chamber must be sealed as tightly as possible for efficient engine operation .Any leakage from the combustion chamber allows part of the combustion energy to dissipate without adding to the mechanical energy developed by the piston movement .The 4-stroke engine is also called the Otto cycle engine ,in honor of the German engineer ,Dr. Nikolaus Otto ,who first applied the principle in 1876 .In the 4-stroke engine ,four strokes of the piston in the cylinder are required to complete one full operating cycle :two strokes up and two strokes down .Each stroke is named after the action it performs-intake ,compression ,power ,and exhaust :1、Intake Stroke As the piston moves down ,the vaporized ,mixture of fuel ;and air enters the cylinder past the open intake valve .2、Compression Stroke The piston returns up ,the intake valve closes ,the mixture is compressed within the combustion chamber ,and ignited by a spark .3、Power Stroke The expanding gases of combustion force the piston down in the cylinder .The exhaust valve opens near the bottom of the stroke .4、Exhaust Stroke The piston moves back up with the exhaust valve open ,and the burned gases are pushed out to prepare for the next intake stroke .The intake valve usually opens just before the top of the exhaust stroke .This 4-stroke cycle is continuously repeated in every cylinder as long as the engine remains running .Two-Stroke-CycleThe two-stroke-cycle diesel engine completes all four events:intake,compression, power ,and exhaust. in one revolution of the crankshaft or two strokes of the piston .A series of ports or openings is arranged around the cylinder in such a position that the ports are open when the piston is at the bottom of its stroke .A blower forces air into the cylinder through the open ports .expelling all remaining exhaust gases past the open exhaust valves and filling the cylinder with air .This is called scavenging .As the piston moves up ,the exhaust valves close and the piston covers the ports .The air trapped above the piston is compressed ton covers the ports .The air trapped above the piston is compressed since the exhaust valve is closed .Just before the piston reaches top dead center ,the required amount of fuel is injected into the cylinder .The heat generated by compressing the air ignites the fuel almost immediately .Combustion continues until the fuel injected has been burned .The pressure resulting from combustion forces the piston downward on the power stroke .When the piston is approximately falfway down ,the exhaust valves are opened ,allowing the exhaust gases to escape .Further downward movement uncovers the inlet ports ,causing fresh air to enter the cylinder and expel the exhaust gases .The entire procedure is then repeated ,as the engine continues to run .The differences of the two intenal combustion engineIt could be assumed that a two-cycle engine with the same number of cylinders ,the same displacement ,compression ratio ,and speed as a four-cycle engine would have twice the power since it has twice as many power .However ,this is not the case ,since both the power and compression strokes are shortened to allow scavenging to take place .Thetwo-cycle engine also requires a blower ,which takes engine power to drive .About 160 degrees out of each 360 degrees of crankshaft rotation are required for exhaust gas expulsion and fresh air intake (scavenging )in a two-cycle engine .About 415 degrees of each 720 degrees of crankshaft rotation in a four-cycle engine are required forintake and exhaust .These figures indicate that about % of crank rotation is used for the power producing events in the two-cycle engine ,while about 59% of crank rotation is used for these purposes in the four-cycle engine .Friction losses are consequently greater in the four-cycle engine .Heat losses ,however ,are greater in the two-cycle engine though both the exhaust and the cooling systems .In spite of these differences ,both engine types enjoy prominent use worldwide .Engine constructionCylinder Block:The cylinder block is cast in one piece. Usually, this is the largest and the most complicated single piece of metal in the automobile.The cylinder block is a complicated casting made of gray iron (cast iron ) or aluminum. It contains the cylinders and the water jackets that surround them. To make the cylinder block, a sand form called a mold is made. Then molten metal is poured into the mold. When the metal has cooled the sand mold is broken up and removed. This leaves the tough cylinder-block casting. The casting. The casting is then cleaned and machined to make the finished block.Cylinder blocks for diesel engines are very similar to those for spark-ignition engines. The basic difference is that the diesel-engine cylinder block is heavier and stronger. This is because of the higher pressures developed in the diesel-engine cylinders.Several engines have aluminum cylinder blocks. Aluminum is relatively light metal, weighing much less than cast iron. also ,aluminum conducts heat more rapidly than cast soft to use as cylinder wall material. It wears too rapidly. Therefore, aluminum cylinder blocks must have cast-iron cylinder liners or be cast from an aluminum alloy that has silicon particles in it.Some manufactures make an aluminum cylinder block that does not have cylinder liners, or sleeves. Instead ,the aluminum is loaded with silicon particles. Silicon is a very hard material. After the cylinder block is cast, the cylinders are honed. Then they are treated with a chemical that etches eats away, the surface aluminum. This leaves only the silicon particles exposed. the piston and rings slide on the silicon with minimum wear. Piston:The piston converts the potential energy of the fuel into the kinetic energy that turns the crankshaft. The piston is a cylindrical shaped hollow part that moves up and down inside the engine’s cylinder. It has grooves around its perimeter near the top where thering are placed. The piston fits snugly in the cylinder. It has grooves around its perimeter near the top where the rings are placed. The piston fits snugly in the cylinder. The pistons ate used to ensure a snug “air tight” fit.The piston in your engine’s cylinder are similar to your legs when you ride a bicycle. Think of your legs as pistons; they go up and down on the pedals, providing power. Pedals are like the connecting rods; they are “attached”to your legs. The pedals are attached to the bicycle crank which is like the crank shaft, because it turns the wheels.To reverse this, the pistons (legs) are attached to the connecting rods ( pedals ) which are attached to the crankshaft (the bicycle rank). The power from the combustion in the cylinders powers the from the combustion rods to turn the crankshaft. Connecting rod:The connecting rod shown in is made of forged high strength steel. It transmits force and motion from the piston to the crank pin on the crankshaft. A steel piston pin, or “wrist pin”, connects the small end of the connecting rod. Some rods have a lock bolt in the small end. As the piston moves up and down in the cylinder, the pin rocks back and forth in the hole, or bore, in the piston. The big end of the connecting rod is attached to a crank pin by a rod bearing cap.Connecting rod and rod-bearing caps are assembled during manufacture. Then the hold for the bearing is bored with the cap in place. This is called line-bring. It make each rod and its cap a matched set. Usually, the same number is stamped on the rod and cap. This prevents the caps setting mixed during engine service. If the caps are mixed, the bearing bore will not be round. An engine assembled with the rod bearing caps switched will probably lock the crankshaft. If the crankshaft turns, the bearing will probably have improper clearance and early bearing failure will result.Another reason for keeping the cap and rod matched is to prevent engine unbalance and unwanted vibration. All connecting rods in an engine must be as light as possible. But they must all weigh the same. If one rod is heavier than the other, the engine will vibrate. This could damage the engine.Crankshaft:The crankshaft then main rotating member, or shaft, in the engine. It has crank-pins, to which the connecting rod from the pistons are attached. During the power strokes, the connecting rods force the crank-pins and therefore the crankshaft to rotate. The reciprocating motion of the pistons is changed to rotary motion as the crankshaft spins. This rotary motion is transmitted through the power train to the car wheels.The crankshaft is a strong, one-piece casting, or forging, or heat-treated alloy steel. It must be strong to take the downward force of power strokes without excessive bending. It must be balanced so the engine will run without excessive vibration.Engine DisplacementThe frequently used engine specifications are engine displacement and compression ratio .Displacement and compression ration are related to each other ,as we will learn in the following paragraphs .By Displacement Engine displacement is the amount of air displaced by the piston when it moves fro .The electrical ignition system causes a spark across the spark plug electrodes in the cylinder at the end of the compression stroke ,which ignites the vaporized fuel and air mixture .m compressing the air to ignite the fuel when it is injected into the cylinder at the end of the compression ratios are much higher than gasoline engine compression ratios ,sufficient heat is generated by compressing the air to ignite the fuer of cylinders .engines are classified as low ,medium ,high ,and super high speed .Commonly used to indicate engine size ,this specification is really a measurement of cylinder volume ..The number of cylinders is a factor in determining displacement ,but the arrangement of the cylinders or valves is not .Engine displacement is calculated by multiplying the number of cylinders in the engine by the total engine displacement is the volume displaced by all the pistons .The displacement of one cylinder is the space through which the piston’s top surfa ce moves as it travels from the bottom of its stroke (bottom dead center )to the top of its stroke (top dead center ).It is the volume displaced by the cylinder by one piston stroke .Piston displacement can be calculated as follows :the bore (cylinder Diameter )by gives you the radius of the bore .the radius (multiply it by itself ).the square of the radius by (pi orπ)to find the area of the cylinder cross section .the area of the cylinder cross section by the length of the stroke .You now know the piston displacement for one cylinder .Multiply this by the number of cylinders to determine the total engine displaceme`nt .The formula for the complete procedure reads :R2*π*stroke* cylinders =displacementCompression RatioThis specification compares the total cylinder volume to the volume of only the combustion cylinder volume may seem to be the same as piston displacement ,but it is not .Total cylinder volume .The combustion chamber volume with the piston at top dead center is often called the clearance volume .Compression ratio is the total volume of a cylinder divided by its clearance volume .If the clearance volume is one-eighth of the total cylinder volume ,the compression ratio is 8 (8to1).The formula is as follows :olumeClearancev e Totalvolum =Compression ratio. In theory ,the higher the compression ratio ,the greater the efficiency of the engine ,and the more power an engine will develop from a given quantity of fuel .The reason for this is that combustion takes place faster because the fuel molecules are more tightly packed and the flame of combustion travels more rapidly .But there are practical limits to how high a compression ratio can be .Because of the unavailability of high octane fuel ,most gasolineburning engines are restricted to a compression ratio no greater than to this high ,however ,create high combustion chamber temperatures .This in turn creates oxides of nitrogen (NOx) ,a primary air pollutant .In the early 1970s ,compression ratios were lowered to around 8 to permit the use of lower octane low-lead or unleaded fuel ,and to reduce NOx formation .Advances in electronic engine control in the 1980s have allowed engineers to raise compression ratios to the 9and 10 to 1 range for optimum performance and economy发动机概述发动机是汽车的动力源。

汽车专业英语

汽车专业英语

Both engines are called heat engines;the burning fuel generates heat which causes the gas inside the cylinder to increase its pressure and supply power to rotate a shaft connected to the power train两个引擎被称为热力发动机;燃烧的燃料产生的热量,这将导致气体在汽缸内,以增加其压力和供给功率来旋转连接到所述动力传动系的一个轴the electrical system supplies lighting and driving power for the automobile. The electrical system of a modern automobile is composed of four main circuits and a number of branch circuits. The four main circuits are the generating circuit, starting circuit, the ignition circuit and the lighting circuit电气系统提供照明和驱动功率的汽车。

现代汽车的电子系统是由四个主电路和若干分支电路。

四个主要电路是产生电路,起动电路,点火电路和照明电路the automobile is designed to travel on roads.the typical automobile has just an internal combustion engine that operates by burning its fuel inside the engine and makes the automobile move.So an engine is the heart of an antomobile汽车的设计是用来在路上行驶的,典型的汽车所用的是燃料在发动机内部燃烧的内燃机来使汽车移动。
