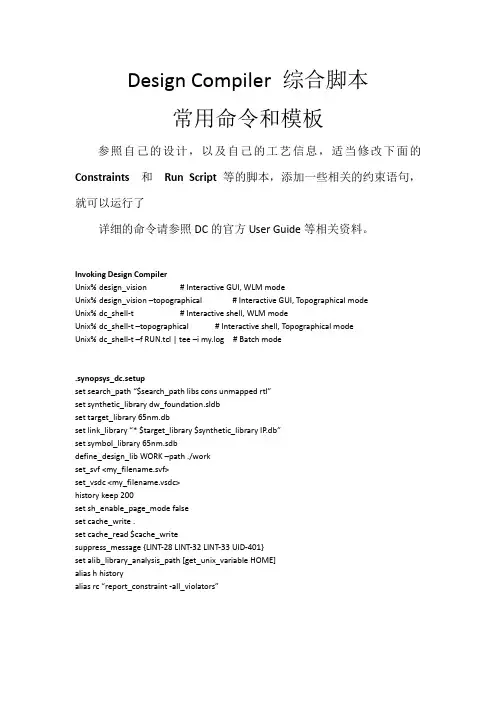

DC脚本说明

下面对usb_dma模块的DC脚本进行说明。

set search_path "./rtl" 设置搜索路径，即寻找库的路径。

source ./script/lib_link.path source是把script 下的lib_link.path文件链接到此处，设置链接路径，文件里面是综合用到的的库的路径。

source ./script/dont_use.tcl dont_use.tcl文件是综合时不希望用到的元件的信息，如RS触发器和JK触发器等，与做APR的人员商量得到，目的是使用合适的器件，提高流片成功率。

read_verilog 读入代码。

读入代码的时候要先读入子模块的代码，最后读入顶层。

Link 报告链接信息，若有些库或者代码没找到会报错。

check_design 检查design中的悬空管脚、短接等情况。

主要关注其中的没有输入驱动（no_drivers）、loop和tied to的情况。

set_wire_load_model 选择连线负载模型，由工艺库中的连线模型得到。

命令区别于set_wire_load_mode，mode一共有三种，分别是top、enclosed、segmented三种。

set compile_segmap_propagate_constants false 把输入端接固定电平的触发器当做固定电平而不看作触发器处理。

set uload 设置标准负载，具体为哪一个，由后面的决定。

一般选择与非门的输出引脚。

set_load [expr 10*$uload] [all_outputs] 给所有的输出端设置负载，负载值为标准负载的10倍。

set_driving_cell 设置输入驱动，一般选择反相器。

set_fix_multiple_port_nets -feedthroughs -outputs -constants -buffer –constants 给所有纯组合逻辑的路径（输入到输出都是组合逻辑）的输出端加buffer，以增强驱动能力。
