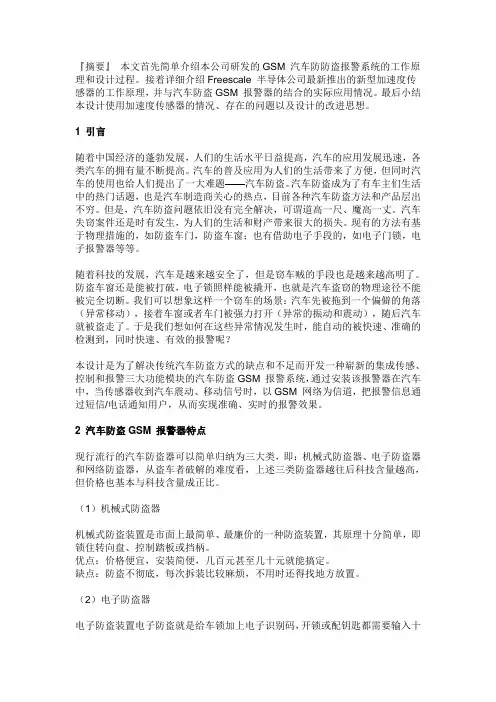

汽车防盗GSM报警系统设计
『摘要』本文首先简单介绍本公司研发的GSM 汽车防防盗报警系统的工作原理和设计过程。
接着详细介绍Freescale 半导体公司最新推出的新型加速度传感器的工作原理，并与汽车防盗GSM 报警器的结合的实际应用情况。
最后小结本设计使用加速度传感器的情况、存在的问题以及设计的改进思想。
1 引言随着中国经济的蓬勃发展，人们的生活水平日益提高，汽车的应用发展迅速，各类汽车的拥有量不断提高。
汽车的普及应用为人们的生活带来了方便，但同时汽车的使用也给人们提出了一大难题——汽车防盗。
汽车防盗成为了有车主们生活中的热门话题，也是汽车制造商关心的热点，目前各种汽车防盗方法和产品层出不穷。
但是，汽车防盗问题依旧没有完全解决，可谓道高一尺、魔高一丈。
汽车失窃案件还是时有发生，为人们的生活和财产带来很大的损失。
现有的方法有基于物理措施的，如防盗车门，防盗车窗；也有借助电子手段的，如电子门锁，电子报警器等等。
随着科技的发展，汽车是越来越安全了，但是窃车贼的手段也是越来越高明了。
防盗车窗还是能被打破，电子锁照样能被撬开，也就是汽车盗窃的物理途径不能被完全切断。
我们可以想象这样一个窃车的场景：汽车先被拖到一个偏僻的角落（异常移动），接着车窗或者车门被强力打开（异常的振动和震动），随后汽车就被盗走了。
于是我们想如何在这些异常情况发生时，能自动的被快速、准确的检测到，同时快速、有效的报警呢？本设计是为了解决传统汽车防盗方式的缺点和不足而开发一种崭新的集成传感、控制和报警三大功能模块的汽车防盗GSM 报警系统，通过安装该报警器在汽车中，当传感器收到汽车震动、移动信号时，以GSM 网络为信道，把报警信息通过短信/电话通知用户，从而实现准确、实时的报警效果。
2 汽车防盗GSM 报警器特点现行流行的汽车防盗器可以简单归纳为三大类，即：机械式防盗器、电子防盗器和网络防盗器，从盗车者破解的难度看，上述三类防盗器越往后科技含量越高，但价格也基本与科技含量成正比。
基于GSM网络的汽车远程监控防盗报警系统设计与实现
基于GSM网络的汽车远程监控防盗报警系统设计与实现金永威;韩韧;朱霜霜
【期刊名称】《软件导刊》
【年(卷),期】2016(015)004
【摘要】将GSM网络引入汽车报警系统,进行远程监控。
汽车被盗时,能以短信方式发送报警信号,并且切断汽车电路和油路。
硬件设计包括单片机控制系统电路、传感器电路、GSM通讯接口电路等;软件设计包括GSM短信息业务和系统软件工作流程等。
当传感器检测到振动或有人入侵时,系统触发,单片机控制继电器切断电路油路、GSM模块将报警信息发送给车主手机。
使用结果表明,该汽车远程防盗报警系统具有报警范围大、成本低、灵活性好、可靠性高等优点。
【总页数】4页(P92-95)
【作者】金永威;韩韧;朱霜霜
【作者单位】上海理工大学光电信息与计算机工程学院上海200093
【正文语种】中文
【中图分类】TP319
【相关文献】
1.基于GSM网络短消息的汽车防盗报警系统设计 [J], 高放;杜云;冯建武;张苏英
2.基于GSM网络与单片机控制的汽车防盗报警系统研究 [J], 程玲;张江山
3.基于GSM网络的汽车防盗报警系统设计 [J], 樊振方;彭爱华;周健;周金鹏
4.基于GSM网络的远程汽车防盗报警系统 [J], 高军;吴亚萍
5.基于GSM网络的汽车远程监控防盗报警系统设计与实现 [J], 金永威;韩韧;朱霜霜
因版权原因，仅展示原文概要，查看原文内容请购买。
基于GSM网络及RFID技术的汽车防盗系统设计
基于GSM网络及RFID技术的汽车防盗系统设计
基于GSM网络及RFID技术的汽车防盗系统设计
基于射频识别技术RFID及GSM网络共同构建的新型汽车防盗报警系统,通过校验Mifare 1射频卡的.UID及数据来识别车主身份,利用SMS短信或者通话控制,来实现汽车的远程监控,从硬件和软件上解决了传统汽车防盗报警系统报警范围小、安全系数低的缺点,具有广泛的应用前景及扩展空间.
作者：吴振陆付学尧 WU Zhen-lu FU Xue-yao 作者单位：广东海洋大学信息学院,广东湛江,524088 刊名：装备制造技术英文刊名： EQUIPMENT MANUFACTURING TECHNOLOGY 年，卷(期)：2010 ""(5) 分类号： U463.6 关键词： RFID GSM网络汽车防盗系统无线模块。
基于GSM的汽车防盗系统设计
基于GSM的汽车防盗系统设计
齐学红
【期刊名称】《传感器世界》
【年(卷),期】2013(019)008
【摘要】依托全球移动通信系统(GSM)技术,设计基于GSM网络与微处理器控制的汽车远程防盗报警系统,实现了汽车安全状况的实时监控、报警信号的动态采集分析和防盗功能的闭锁远程控制等功能.由芯片STM32F103构成控制系统,EM310构成短信收发模块；振动传感器、角度传感器、人体感应模块实现信息采集；通过控制模块、语音模块、继电器、步进电机及LCD1602等实现自动采集、传输、控制和显示功能.
【总页数】5页(P14-18)
【作者】齐学红
【作者单位】淮安信息职业技术学院江苏淮安223003
【正文语种】中文
【中图分类】TN99
【相关文献】
1.基于GSM网络短消息功能的汽车防盗系统设计 [J], 张程;徐晓冰;黄超
2.基于CAN+GSM平台的汽车防盗报警系统设计 [J], 刘小兵
3.基于RFID和GSM的汽车防盗报警系统设计 [J], 王素青;许根源
4.基于GSM和GPS的汽车防盗系统设计 [J], 陈利娜
5.基于STC89C51单片机和GSM的汽车防盗系统设计 [J], 郑乾;李馥安;武超;池严曹;李宏义;周远林;张诗荟
因版权原因，仅展示原文概要，查看原文内容请购买。
基于GPSGSM汽车防盗系统设计

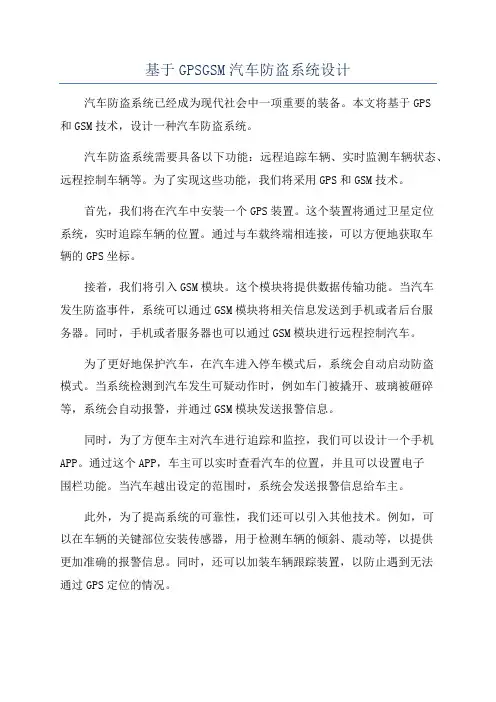

基于GPSGSM汽车防盗系统设计汽车防盗系统已经成为现代社会中一项重要的装备。
