一:介绍
1. 范围
2. 概况
3. 参考文件
二:RADIO FREQUENCY 测试
1. 介绍
2. 测试环境
3. 测试项目
Output power
Power Control
Initial Carrier Frequency
Carrier Frequency Drift
Modulation Characteristic
Single Slot Sensitivity
Multi Slots Sensitivity
Maximum Input Level
三:蓝牙耳机功能测试
1. 耗电量
2. 充电、充电连接、显示
3. 频率调整
4. 配对
5. 音频连接
6. 仿真音频
7. 兼容性
8. 通话距离
9. 外观结构
四:附件功能测试
1. 火牛高压
2. 火牛输出电压
3. SPK功能
4. MIC功能
五:运行条件
一:介绍
1. 范围
此文件概括说明所有蓝牙产品的初步测试计划
2. 概况
~项目主要描述射频测试,三项主要描述耳机实际使用功能测试,四项主要描述耳机附件的功能测试
3. 参考文件
[1]Bluetooth: Specification of the Bluetooth System, Volume 2: Core
(Controller )
[2]Bluetooth: Specification of the Bluetooth System, Volume 3: Core (Host )
[3]Bluetooth: Specification of the Bluetooth System, Volume 2: Core (Controller
[4]Bluetooth: Specification of the Bluetooth System, Volume 3: Core (Host
[5]Bluetooth: Headset Profile
[6]Bluetooth: Core System Package : RF Test Suite Structure (TSS) /Test
Purpose(TP)
[7]Bluetooth: Core System Package : Baseband Test Suite Structure (TSS) /Test
Purpose(TP)
[8]Bluetooth: Core System Package : LM Test Suite Structure (TSS) /Test
Purpose(TP)
[9]Bluetooth: Core System Package : General Access Profile Test Suite
Structure (TSS) /Test Purpose(TP)
[10]Bluetooth: Headset Profile Specification Test Suite Structure (TSS)
/Test Purpose(TP)
[11]CSR: BlueCore2-Audio Datasheet

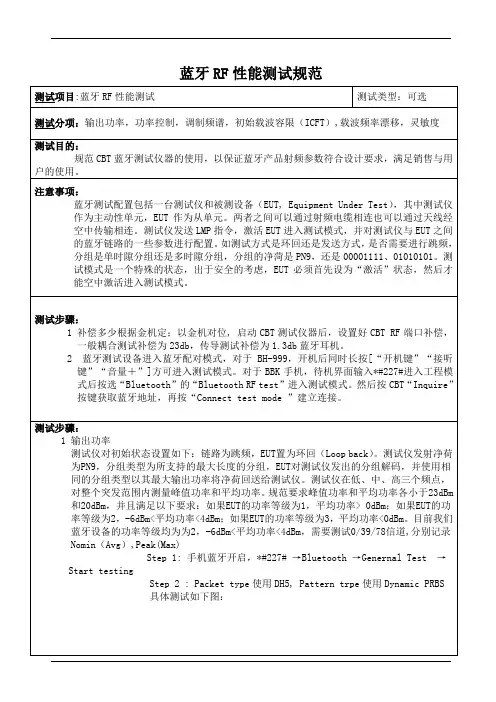

二:RADIO FREQUENCY TEST
1. 介绍
这一个测试是确定蓝牙耳机的射频 (发射器和接收器) 基本功能是否符合或超过蓝牙标准要求
2. 测试环境
Bluetooth Tester-- Anritsu MT8852A/MT8852B or other
DUT(Device Under Test)- Linnking Bluetooth
3. 测试项目
Output power
DUT 初始设置:
DUT用loop back测试模式
使用跳频
测试程序及标准
MT8850A 传输一个标准的数据包(DH5 , DH1,DH3 或Longest )给DUT. 此DUT 环向后将数据传送给Bluetooth tester ,MT8850A 测量其功率. 这一个测试
Item Definition
Description
Parameter
1
Hopping On
2Hopping test mode Defined on Low, Medium and High
3Number of packets10
4Test type Loop back
5Packet type Longest
6Channel frequency Low= 2402 MHz Medium= 2441 MHz High= 2480 MHz
Item Definition
Description
Bluetooth Parameter( class 1)
1Test average max< 4 dBm 2Test average min> -6 dBm 3Test peak power< 23 dBm 4Average Power0 ? 3dBm DUT 初始设置:
DUT用loop back测试模式
使用跳频
Item Definition
Description
Parameter
1
Hopping On
2Hopping test mode Defined on Low, Medium and High
3Number of packets14
4Test type Loop back
5Packet type DH1
6Channel frequency Low= 2402 MHz Medium= 2441 MHz High= 2480 MHz
Item Definition
Description Bluetooth Parameter
1Max Power Step <= dB
2Min Power Step >= dB
Initial Carrier Frequency
DUT 初始设置:
DUT用loop back测试模式
使用跳频
Item Definition
Description
Parameter
1
Hopping On
