耐高温胶水、固化剂TDS
环氧树脂胶技术参考资料TDS
环氧树脂胶技术参考资料1.概述本产品是非溶剂型高强度单组份环氧树脂产品，具有低线膨胀系数及耐高温、抗冲击，耐震动，粘接强度高、硬度可调整等特性。
本产品是一款高强度型的单组份环氧树脂胶粘剂，广泛应用于各类电子元器件、电工电器、机电五金、磁性元件、光电产品、汽配组件等之粘接固定.2.特性♦单组份，使用方便♦低温快速固化♦用于摄像模组，电机，背光镜头，变压器等粘接或芯片封装♦极好的存储稳定性3.性能参数(7021)固化前性能检测项目单位数值基础原料/环氧树脂颜色/黑色粘度@25℃mPa.s 4000l~10000密度@25℃g/cm3 1.45-1.55触变指数/ 4.0固化时间℃/H 120℃/1.~1.5H储存期限@ 25℃月 4固化后性能检测项目单位参考标准数值邵氏硬度邵氏 D ASTM D2240 75~85剪切强度Mpa ASTM D790 17介电强度KV/mm ASTM 149 15使用温度范围 C -40~180热膨胀系数alpha 2 / 5×10-6吸水性（85%RH，85℃，96h）% / 1.0表面电阻率ΩGB/T 1692-2008 2.0×1016体积电阻率Ω·cm GB/T 1692-2008 2.0×1015注意：应保证充裕时间让粘接部位达到设定固化温度，具体固化条件视具体应用而定。
4.主要用途推荐用于电机马达、电路元器件、电感线圈、高低频变压器的铁芯骨架或磁芯的粘接固定。
5.包装30ml支（胶管）,1kg罐6.存储本产品的理想贮存条件是在-20--15℃下将未开口的产品密封冷藏在干燥的地方，在该存储条件下保质期2个月。
为避免污染原装产品，不得将任何用过的产品倒回原包装内。
7.注意事项♦产品从仓库中取出后，应先在室温下解冻至少2-4小时后再开封使用；♦请在室温下使用，防止高温；♦使用时避免直接接触，应使用手套等保护设备，若接触到皮肤，应立即洗涤；♦充分保障工作场所空气流通顺畅；♦有关本产品的安全注意事项，请查阅材料的安全数据资料（MSDS）。
耐高温胶水800度
耐高温胶水800度耐高温胶水800度胶水是一种广泛应用于工业和家庭的粘合剂，用于固定和连接各种材料。
在许多情况下，胶水需要承受高温环境下的使用，这就要求胶水具备良好的耐高温性能。
本文介绍的耐高温胶水可以承受高达800度的温度，具备出色的粘结性能和耐热性，因此在工业和机械领域被广泛使用。
耐高温胶水800度是一种特殊的胶水，经过专门的配方和工艺制作而成。
其主要成分包括特殊的聚合物材料、高温耐受的填充剂和添加剂。
这些材料相互配合，形成了胶水的基本结构，使其具备耐高温性能。
与普通胶水相比，耐高温胶水的分解温度更高，粘结强度更好，能够长时间承受高温环境的使用。
耐高温胶水800度的主要应用领域包括汽车制造业、航空航天、电子电器、船舶制造、玻璃工业等。
汽车制造业中，耐高温胶水被广泛用于发动机和排气系统的固定，能够在高温条件下保持材料之间的粘接强度。
在航空航天领域，耐高温胶水被用于固定航空发动机的零部件，以及航天器的结构件，确保其在高温环境中的稳定性和安全性。
在电子电器行业，耐高温胶水用于固定电路板和散热器，提供保护和散热。
在船舶制造和玻璃工业中，耐高温胶水被用于玻璃接缝和隔热材料的粘合。
耐高温胶水800度具有许多优点。
首先，其耐高温性能能够满足各种高温环境下的使用需求，确保胶水在高温下不会分解或失去粘结能力。
其次，耐高温胶水具有良好的耐化学性，能够在酸碱等腐蚀性物质的作用下保持稳定性。
此外，耐高温胶水的黏度适中，易于施工和操作，能够达到理想的粘结效果。
在使用耐高温胶水800度时，需要注意一些事项。
首先，确保施工环境通风良好，避免吸入胶水挥发的有害气体。
其次，应遵守施工工艺要求，按照胶水的使用说明进行操作。
对于特殊材料的粘接，建议进行实验确认其粘接效果。
此外，应储存胶水在阴凉干燥的地方，并避免阳光直射，以防止质量受损。
综上所述，耐高温胶水800度是一种在高温环境下具备良好粘结能力的特殊胶水。
它的应用范围广泛，能够满足各种工业和机械领域的需求。

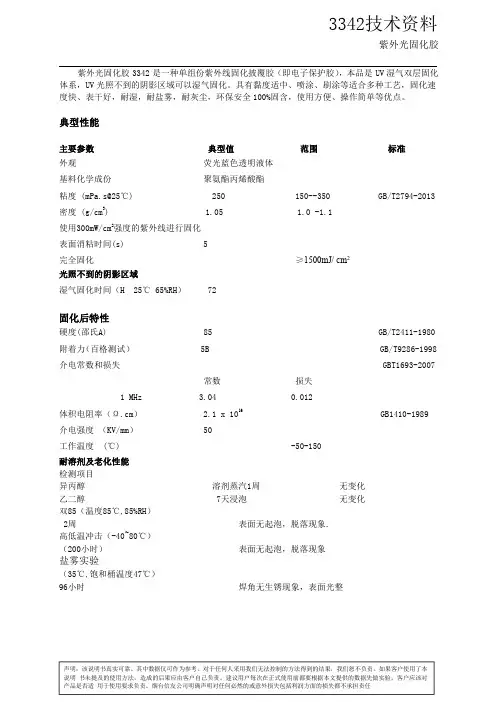

聚氨酯丙烯酸酯紫外光固化胶TDS
不要将取出后的胶液倒回原包装，以防污染原液。工作场所应通风良好，或强制通风。 请远离儿童存放。 若不慎沾到皮肤上，请马上用肥皂水清洗。 若不慎沾到眼睛上，请先用大量的水清洗，然后就医。 详细内容请参阅本品的 MSDS。
包装
7518101-1L/桶 7518102-5L/桶 7518103-20L/桶
储存
在 8-28℃下，密封于干燥避光处密封保存。保质期为 6 个月。
声明：该说明书真实可靠。其中数据仅可作为参考。对于任何人采用我们无法控制的方法得到的结果，我们恕不负责。如果客户使用了本 说明 书未提及的使用方法，造成的后果应由客户自己负责。建议用户每次在正式使用前都要根据本文提供的数据先做实验。客户应该对 产品是否适 用于使用要求负责。烟台信友公司明确声明对任何必然的或意外损失包括利润方面的损失都不承担责任
典型性能
主要参数 外观
典型值 荧光蓝色透明液体
基料化学成份
聚氨酯丙烯酸酯
粘度 (mPa.s@25℃)
250
密度 (g/cm3)
1.05
使用300mW/cm2强度的紫外线进行固化
表面消粘时间(s)
5
完全固化 光照不到的阴影区域
湿气固化时间（H 25℃ 65%RH） 72
范围
150--350 1.0 -1.1
盐雾实验
（35℃,饱和桶温度47℃） 96小时
85 5B
常数 3.04
2.1 x 1016 50
损失 0.012
-50-150
GB/T2411-1980 GB/T9286-1998 GBT1693-2007
GB1410-198化
表面无起泡，脱落现象.
表面无起泡，脱落现象

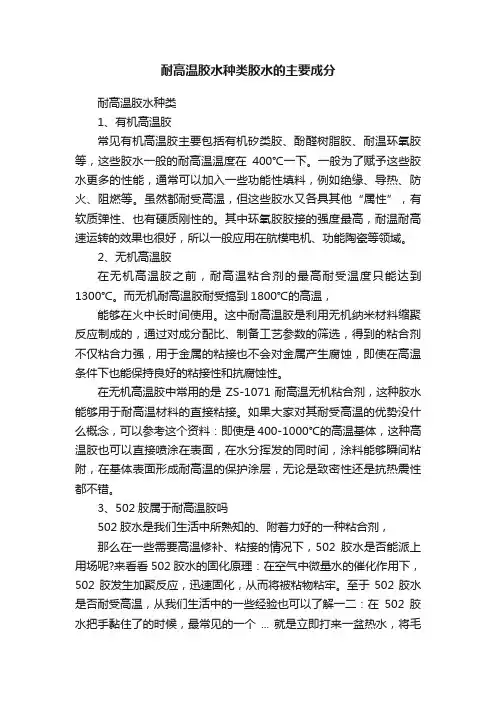

耐高温胶水种类胶水的主要成分
耐高温胶水种类胶水的主要成分耐高温胶水种类1、有机高温胶常见有机高温胶主要包括有机矽类胶、酚醛树脂胶、耐温环氧胶等，这些胶水一般的耐高温温度在400℃一下。
一般为了赋予这些胶水更多的性能，通常可以加入一些功能性填料，例如绝缘、导热、防火、阻燃等。
虽然都耐受高温，但这些胶水又各具其他“属性”，有软质弹性、也有硬质刚性的。
其中环氧胶胶接的强度最高，耐温耐高速运转的效果也很好，所以一般应用在航模电机、功能陶瓷等领域。
2、无机高温胶在无机高温胶之前，耐高温粘合剂的最高耐受温度只能达到1300℃。
而无机耐高温胶耐受搞到1800℃的高温，能够在火中长时间使用。
这中耐高温胶是利用无机纳米材料缩聚反应制成的，通过对成分配比、制备工艺参数的筛选，得到的粘合剂不仅粘合力强，用于金属的粘接也不会对金属产生腐蚀，即使在高温条件下也能保持良好的粘接性和抗腐蚀性。
在无机高温胶中常用的是ZS-1071耐高温无机粘合剂，这种胶水能够用于耐高温材料的直接粘接。
如果大家对其耐受高温的优势没什么概念，可以参考这个资料：即使是400-1000℃的高温基体，这种高温胶也可以直接喷涂在表面，在水分挥发的同时间，涂料能够瞬间粘附，在基体表面形成耐高温的保护涂层，无论是致密性还是抗热震性都不错。
3、502胶属于耐高温胶吗502胶水是我们生活中所熟知的、附着力好的一种粘合剂，那么在一些需要高温修补、粘接的情况下，502胶水是否能派上用场呢?来看看502胶水的固化原理：在空气中微量水的催化作用下，502胶发生加聚反应，迅速固化，从而将被粘物粘牢。
至于502胶水是否耐受高温，从我们生活中的一些经验也可以了解一二：在502胶水把手黏住了的时候，最常见的一个 ... 就是立即打来一盆热水，将毛巾打湿敷十几分钟，胶水就可以软化。
由此看来，502胶水并不耐受高温，所以502胶水的使用说明中也会有“25度以下储存”的字样。
胶水的主要成分1、丙烯酸酯胶a-氰基丙烯酸酯瞬干胶、厌氧胶、丙烯酸结构胶、乙基丙烯酸酯胶粘剂、环氧丙烯酸酯胶、其它丙烯酸酯胶2、复合型结构胶金属结构胶、聚合物结构胶、光敏密封结构胶、其它复合型结构胶3、热固性高分子胶环氧树脂胶、聚氨酯（PU)胶、氨基树脂胶、酚醛树脂胶、丙烯酸树脂胶、呋喃树脂胶、间苯二酚-甲醛树脂胶、二甲苯-甲醛树脂胶、不饱和聚酯胶、复合型树脂胶、聚酰亚胺胶、脲醛树脂胶、其它高分子胶4、密封胶粘剂室温硫化矽橡胶、环氧树脂密封胶、聚氨酯密封胶、不饱和聚酯类、丙烯酸酯类、密封腻子、氯丁橡胶类密封胶、弹性体密封胶、液体密封垫料、聚硫橡胶密封胶、其它密封胶5、热熔胶热熔胶条、胶粒、胶粉、EVA热熔胶、橡胶热熔胶、聚丙烯、聚酯、聚酰胺、聚胺酯热熔胶、苯乙烯类热熔胶、新型热熔胶、聚乙烯及乙烯共聚物热熔胶、其他热熔胶6、水基胶粘剂丙烯酸乳液、醋酸乙烯基乳液、聚乙烯醇缩醛胶、乳液胶、其它水基胶7、压敏胶胶粘带、无溶剂压敏胶、溶剂压敏胶、固化压敏胶、橡胶压敏胶、丙烯酸酯压敏胶、其它压敏胶8、溶剂型胶树脂溶液胶、橡胶溶液胶、其它溶剂胶9、无机胶粘剂热熔无机胶、自然干无机胶、化学反应无机胶、水硬无机胶、其它无机胶10、胶粘剂固体高分子胶、溶液高分子胶、乳液高分子胶、单体高分子胶、其它热塑性高分子胶11、天然胶粘剂蛋白质胶、碳水化合物胶粘剂、其他天然胶12、橡胶粘合剂矽橡胶粘合剂、氯丁橡胶粘合剂、丁腈橡胶粘合剂、改性天然橡胶粘合剂、氯磺化聚乙烯粘合剂、聚硫橡胶粘合剂羧基橡胶粘合剂、聚异丁烯、丁基橡胶粘合剂、其它橡胶粘合剂13、耐高温胶有机矽胶、无机胶、高温模具树脂胶、金属高温粘合剂、其它耐高温胶14、聚合物胶粘剂丁腈聚合物胶、聚硫橡胶粘合剂、聚氯乙烯胶粘剂、聚丁二烯胶、过氯乙烯胶粘剂、其它聚合物胶15、修补剂金属修补剂、高温修补剂、紧急修补剂、耐磨修补剂、耐腐蚀修补剂、塑胶修补剂、其它修补剂16、其它胶粘剂导电胶、紫外线胶、塑胶粘合剂、耐酸堿胶、耐低温胶、应变胶、水下胶粘剂、真空胶、点焊胶、医用胶、纸品用胶、导磁胶、防磁胶、防火胶、防淬火胶、防淬裂胶、动物胶、植物胶、矿物胶、食品级胶粘剂、其它胶水。
胶水TDS名词解释
胶粘剂资料中TDS常见术语介绍胶粘剂的的专业技术资料中常常会出现很多的的专业术语，现向大家介绍一下(TDS)常见术语的意思：1,粘度viscosity：量度流体内部阻止流动的阻力Water=1Cps（水）Honey=8,000–10,00 0Cps(蜂蜜)。
2,触变性thixotropy：流体由于受力运动（例如搅拌）而引起粘度变化但静置能复原的质. 3,表观密度Specific Gravity：一给定体积的物质相对于相同体积的水的密度。
4,硬度Durometer Hardness：胶水的硬度高低通常用肖氏硬度（Shore）来表示，硬度高的通常用Shore DXX表示，Shore A和 Shore D也可以换算的，ShoreD30相当于S hore A80，肖氏硬度的测试方法：用肖氏硬度计插入被测材料，表盘上的指针通过弹簧与一个刺针相连，用针刺入被测物表面，表盘上所显示的数值即为硬度值。
5,抗张强度（Tension Strength）6,剪切强度（Shear Strength）7,剥离强度（Peer Strength）8,压缩强度（Compression Strength）9,劈裂强度（Cleavage Strength）Thermal Properties：10,热膨胀系数（CTE）：单位为in/in-F时表示：每一英寸长度物体在温度每变化一华氏度时，其长度变化的英寸量。
单位为ppm/°C时表示温度每变化1°C材料长度变化的百分率。
11,玻璃转化温度（Tg）：玻璃转化温度是聚合物的特有属性，当环境温度高于Tg时聚合物成橡胶（塑）态，柔软而有弹性；当环境温度低于Tg时聚合物成玻璃态。
硬而缺乏弹性。
12,介电强度（Dielectric Strength）：单位为伏特/密耳或千伏/毫米，一个绝缘物体最高能承受的最高电压。
如果超过这个值，那么就会出现击穿。
13,介电常数（Dielectric Constant）：介质在外加电场时会产生感应电荷而削弱电场，原外加电场（真空中）与最终介质中电场比值即为介电常数（permeability），又称诱电率。
3M胶水规格说明书TDS
3M胶⽔规格说明书TDS3M ? Scotch-Weld ? Structural AdhesivesLoad-bearing formulations for metals,rubber, glass and more.As an alternative to mechanical or fusion fastening, the reasons for Scotch-Weld Adhesives are many: greater design latitude, cleaner lines, material sub-stitution, less machining, lighter weight, more dura-bility, and often less cost.To meet application and end-use requirements you can select from one-part heat-curing epoxies, and two-part room-temperature curing epoxies, acrylics and urethanes. There are formulations for bonding steel, aluminum, copper, low surface energy plas-tics, rubber, glass, wood, masonry and more.Whatever properties you need–durable adhesion, flexibility, creep resistance, heat and environmental resistance, void-filling —you’ll likely find a Scotch-Weld product to meet your requirements and expectations.3M has long been recognized as a pioneer in struc -tural strength adhesives. But to meet end use perfor -mance requirements doesn’t just mean providing the right chemical formula. Which is why 3M also develops dispensing systems to facilitate production in low and high volume assembly. Many two-part 3M formulations are available in Duo-Pak cartridges for dispensing with a manual or pneumatic 3M ?EPX ? Applicator.Aircraft entry steps – Brush-applied 2-part Bicycle frame assembly – 3M ? Sco tch-Weld ? Bonding magnets to steel rotor –Bonds 3M ? Sco tch-Weld ? Adhesive 2216 B/A provides a Epoxy Adhesive DP-420 bonds steel couplings made with 2-part 3M ? Sco tch-Weld ? Epoxytough, flexible bond between honeycomb and the into aluminum tubing of the frame. Couplings are Adhesive DP-460 cure at room temperature and framework in entry step panels of commuter air-threaded for easy assembly and disassembly. The reach 4500 psi in overlap shear strength. Void-fill-craft.toughened epoxy bonds for the long run in ing properties secure loose fitting surfaces.high stress areas.Ellsworth Adhesives 1-800-888-0698Product Information: 3M? Scotch-Weld?Adhesives in Duo-Pak CartridgesWe are on the web@ /doc/d89c2de49b89680203d8250d.html Product Information: 3M ?Scotch-Weld ?Two-Part StructuralProduct Information: 3M ? Scotch-Weld ?Adhesives in Duo-Pak Cartridges (cont.) Average Overlap Mix Approximate Approximate T-Peel PSI Ratio Viscosity Worklife At 75°F Product(Volume) 75°F (24°C) At 75°F (24°C) -67°F 75°F 180°F 250°F (Color)FeaturesB:A (CPS) (24°C) PIW (-55°C) (24°C) (82°C) (121°C)DP-8005 ? Structurally bonds polyolefins without 10:127,5002.5-3 Min.16–2000340– Off-White, surface preparation ? Excellent Black environmental resistance ? 2-3 hourhandling strengthD u o -P a k C a r t r i d g e sSizes 35ml 250mlGal Pail DrumAverage Overlap Shear StrengthMix Approximate Approximate T-Peel PSI Ratio Viscosity WorklifeAt 75°FProduct (Volume) 75°F (24°C) At 75°F (24°C) -67°F 75°F180°F 250°F(Color) FeaturesB:A (CPS) (24°C) PIW (-55°C) (24°C) (82°C) (121°C) 1751 B/A ? Long worklife adhesive ? Rigid epoxy 3:2700,00045 Min.414002000500300Gray8-12 hrs. handling strengthExcellent void filler and machinable for many "Body Solder" applications 1838 B/ALong worklife adhesive Rigid epoxy 4:5 400,000 60 Min. 4 1500 3000 500 300Green8-12 hrs. handling strength Meets MIL-A-23941AExcellent Environmental Resistance 1838 B/A Long worklife adhesive Rigid epoxy 6:5 250,000 60 Min. 5 1500 3000 500 300Tanof B/A 1838 Green Adhesive1838-L B/A ? Long worklife adhesive ? Rigid epoxy 1:1 10,000 60 Min. 5 2000 3000 400 200Translucent ? 8-12 hrs. handling strengthTranslucent, low viscosity version of 1838 B/A Green Adhesive 2158 B/A Long worklife adhesive Rigid epoxy 1:1 375,000 120 Min. 4 1700 2000 400 300Gray ? 8-12 hrs. handling strength ? General purpose product2216 B/A ? Long worklife adhesive? Flexible epoxy 2:3 80,000 90 Min. 25 2000 2500 400 200Gray8-12 hrs. handling strengthCan bond plastic, metal and other dissimilar materials2216 B/A ? Long worklife adhesive? Flexible epoxy 2:3 350,000 90 Min. 252000 2500 400 200Tan ? 8-12 hrs. handling strengthNon sag2216 B/A ? Long worklife adhesive? Flexible epoxy 1:1 10,000 120 Min. 25 3000 2000 200 100Translucent ? 16-20 hrs. handling strengthTranslucent versionof 2216 B/A Gray Adhesive 3501 B/A ? Fast cure adhesive ? Rigid epoxy 1:1 500,000 7 Min. 5 1500 2400 300 200 Gray20-30 minutes handling strengththat can bond metal, wood, most plastics and masonry products 3532 B/A ? Fast cure adhesive1:1 30,000 7 Min. 25 2500 2000 300 150Brown20-30 min. handling strength Semi-rigid urethaneRapid cure for flexible bonds of many plastics, wood, and rubber 3535 B/A Very fast cure adhesive1:1 30,000 3 Min. 25 2500 2000 300 150Off-White15-20 min. handling strength Semi-rigid urethane Faster setting version of 3532 B/A Adhesive 3549 B/A Long worklife adhesive 1:1 30,000 60 Min. 25 2500 2000 300 150Brown2-4 hrs. handling strength Semi-rigid urethane Longer worklife version of 3532 B/A AdhesiveT w o -P a r t U r e t h a n e A d h e s i v e sT w o -P a r t E p o x y A d h e s i v e sSizes 2oz, Pt Qt, Gal Pail 2oz, Pt, Qt Gal, PailQt, Pail2oz, Pt, Qt Gal, Pail2oz, Pt, Qt Gal, Pail Pail2oz, Pt, Qt Gal, Pail Pail2oz, Pt, Qt Gal, Pail2oz, Pt Gal2oz, Pt Pail2oz, Pt2oz, Pt PailS h ear Strengt h8-12 hrs. handling strength Tan version Tan version of 2216 B/A Gray Adhesive Rapid room temperature curing material Ellsworth Adhesives 1-800-888-0698 Product Information: 3M? Scotch-Weld? One-Part Epoxy Adhesives; Metal PrimersWe are on the web@ /doc/d89c2de49b89680203d8250d.html3M? Scotch-Weld? Electronic Grade Epoxy AdhesivesHigh-performance specifically for demanding electronics applications.For assembly of sophisticated electronics where outgassing and corrosion of adhesive bonds are a concern, Scotch-Weld Electronic Grade (EG) epoxies are the advanced alternative to mechanical fasteners and lower-grade adhesives. These 2-part epoxies produce far lower contamination levels of ionic and outgassing impurities than typical epoxy adhesives. Chloride content is lower than standard industrial counterparts.Targeted dispensing is easy with the3M? EPX? Applicator System. Duo-Pak cartridges with long shelf life are stored at room temperature for added convenience in many oper-ations.17Component rigidization –3M? Scotch-Weld? Voice coil assembly – Controlled flow ofEpoxy Adhesive DP-125EG reaches handling 3M? Scotch-Weld? Epoxy Adhesive DP-460EG strength within 3 hours at room temperature. provides a clear, targeted application in bonding Stabilizes board components with 1500 psi the coil into the head gimble assembly.shear strength and 20 piw.Ellsworth Adhesives 1-800-888-06983M? Scotch-Weld? Film AdhesivesFilm adhesives for the best combination of fatigue resistance and highest performance.Film adhesives can be formulated with the highest performance level of all structural strength adhesives available. Scotch-WeldFilm Adhesives offer the best combinationof shear and peel strength, plus shock and fatigue resistance. They also provideseveral other advantages:Uniform adhesive thicknessthroughout joints for an even, securebond line.Adhesive confined to immediatebonding area for a clean operationand less waste.Simple application for fast assembly.Stability for extended usability andshelf life.Precise fit – Available in various thicknesses Simultaneously seal and bond – In metal-and widths, 3M? Scotch-Weld? Film Adhesive to-metal lamination 3M? Scotch-Weld? Film can be die-cut into shapes to facilitate bonding of Adhesives bond with up to 4800 psi shear complex parts. strength and provide a barrier against water,fuels, and oil.We are on the web@ /doc/d89c2de49b89680203d8250d.html3M? Pronto? Instant AdhesivesFast bonding with the rightcombination of strength, curetime and viscosity.For speed and performance, you’ll likely find a product in this line with precisely the right combination of bond strength, cure time and viscosity.These one-part cyanoacrylate adhesives rapidly reach handling strength at room tem-perature without a catalyst. On many applica-tions, bonds reach handling strength in 5–10seconds and 80% of full strength in an hour.A single drop per square inch can bond manyplastics, rubber, metal and more with tensilestrength up to 5000 PSI.Depending on the specific formulation, youhave the following features: resistance tofuels, lubricating oils and other chemicals from-40°F to 200°F (-40°C to 93°C); gap filling;extended cure rates for repositionability; highpeel and impact strength; conformance toMIL-Spec A-46050C.With 3M? Pronto? Instant Adhesives appli-cation is easy from their own containers orthrough intermediate manual dispensers or auto-mated systems. Curing requires no expensiveequipment or fixturing.A single drop of 3M? Pronto? Instant To bond a flexible PVC mat into a high 3M? Pronto? Instant Adhesive CA-8 is an Adhesive quickly bonds many plastics, rubber, impact polystyrene turntable, 3M? Pronto? Instant excellent multi-purpose product for use in a variety metal and more. Adhesive CA-40H provides high viscosity and a of assembly applications. slower set time to meet handling requirements.Architectural pottery – For repair of fiber-3M? Pronto? Instant Adhesive CA-40 works Veneer and wood repair – 3M? Pronto? glass/ concrete cast pottery, 3M? Pronto? Instant on many problem surfaces where other adhesives Instant Adhesive CA-40H is a high viscosity Adhesive CA-50 Gel bonds with high tensile and may fail, such as bonding EPDM rubber. liquid for void filing between veneer and core. A shear strength. Non-sagging formulation applies light spray of 3M? Pronto? Surface Activator over neatly when bonding curved surfaces. the adhesive before assembly accelerates curingspeed.Product Information: 3M? Pronto? Instant AdhesivesEllsworth Adhesives“Your One- Stop Shop”Adhesive & chemical products from allthe top manufacturersDispensing equipment-manual to fully automaticComplete tech support (inside and out) An outside sales staff that is very willing to serve (most are degreed engineers) Custom packaging to your specification We are easy to reach:in person-check the location nearestyou on the phone -1-800-888-0698over the internet @/doc/d89c2de49b89680203d8250d.html Have an application problem? CallEllsworth Adhesives at 1-800-888-0698We are on the web@ /doc/d89c2de49b89680203d8250d.html3M? Jet-Weld? Thermoset Adhesive SystemHot melt speed and structuralstrength performance in thepalm of your hand.This single system combines many production benefits typical of hot melt adhesives and bond performance usually associated with 2-part structural adhesives.Fast initial set can help you reduce costs. Fast handling strength helps eliminate or minimize fixturing and speed assembly.One-component, moisture-curingformulation eliminates metering, mixing and curing equipment. And 100% solids give you a low-VOC adhe-sive system with no drying equipment and no attack on plastics.With the long bonding range and initial repositionability, assembly of complex parts is easier. Bond lines are thin, flexible and tough for improved part fit, appearance and rugged performance.Combine this versatility with the applicator's portability, and you have a system that can adapt readily to many of your production requirements.The 3M? Jet-Weld? II Applicator and moisture-curing urethane adhesives put a powerful production capability in your assembly operation. Bond strength approaches the high end of the performance range, exceeding many con-ventional hot melts and PVA (polyvinyl acetate) adhesives. Bond wood, plastics, rubber, dissimilar materials, plasti-cized vinyls, and more.Decorator tables – 3M?Jet-Weld?Adhesive Trade show booths –3M?Jet-Weld?Adhesive Speaker assemblies – Flexible, tough bond performs multiple tasks including V-groove bonds extruded aluminum bracket to laminate lines of 3M?Jet-Weld? Adhesive holdbonding at the table joints. covering of honeycomb panel. Bracket is for dissimilar materials and multiple components. hanging graphics.High performance gliding windows – With Bent wood furniture – With 100% solids 3M? Wood furniture – 3M? Jet-Weld? Adhesive is fast handling strength, 3M?Jet-Weld?Adhesive Jet-Weld?Adhesive, a manufacturer holds the aes-easily applied as a bead for bonding wood helps speed the bonding of interior wood trim thetic contours of unique bentwood furniture. furniture and cabinet components. Fastto the vinyl sash. handling strength helps speed production. Ellsworth Adhesives 1-800-888-0698Product Information: 3M? Jet-Weld?Adhesives1 234Job-matched tips –1) Threaded cap for sealing tip after use.2) Extension tip for improved sight linein hard-to-reach areas.3) .062" tip for low flow applications.4) .125" tip for high flow applications. .090" tip standard on 3M?Jet-Weld?II Applicator. Container sizes to meet your production volume – ? 10 fl.oz. cartridges 2k foil packsGallon pail5 gallon pail55 gallon drumWe are on the web@ /doc/d89c2de49b89680203d8250d.html3M Light Cure AdhesivesSelect UV curing versions for thin films and coatings, and bonding heat-sensitive substrates. For curing through thicker sections, visible light formulations cure to depths of 2" to almost 4".For visible light, the 3M Curing Light VL1 (at right) is a compact and convenient hand tool for spot curing.Wire tacking – To reduce processing time, Potting – All 3M ?Light Cure Adhesives feature 3M ? Light Cure Adhesives cure on demand superior depth of cure for potting applications.with exposure to UV or visible light.Precision bonding, potting, encap-sulation, tacking, andmore at the speed of light.With cure speeds generally less than 5 seconds, you can raise the speed limit for many electronics assem-bly applications. These specialized acrylate formula-tions cure on demand when exposed to UV or visible light. And for precision targeting and placement, each adhesive in the line is available in 3, 5, 10, and 30ml EFD ?-compatible syringes.Use with manual, semi-automatic, or fully automatic dispensing systems to meet your production require-ments for encapsulation, potting, fixturing, wire tacking, sealing, conformal coating, and lens bonding.Ellsworth Adhesives 1-800-888-06983M ? Fastbond ? and Scotch-Grip ? Contact AdhesivesA tradition of 40 years and the performance you’ll want for a long time to come.This line offers a wide range of choices for con-tact adhesive applications. Select from bonding ranges, strengths, solids content, and solvent or water-based formulations to meet requirements for bonding laminate, foam, and more. In the line, you’ll find the water-basedpioneer 3M ? Fastbond ? Contact Adhesive 30 NF – proven for almost 40 years in cabinet shops and still in compliance with current and current-ly proposed air quality regulations. Plus, there’s the latest innovation – 3M ? Fastbond ? Contact Adhesive 2000-NF with handling speed exceed-ing most solvent-based systems and up to 350 psi in overlap shear.The Fastbond Water-Based StoryWhile competition pressures you to improve productivity, regulatorylegislation demands that you move toward more environmentally-responsible tech-nologies. Some local and regional regula -tions have made traditional solvent-based contact adhesives virtually obsolete. Fastbond is the 3M trademark on a contin-ually growing line of water-based adhesives that are helping many industries meet the challenge right now and aim for the fore-seeable future. By replacing solvent-based adhesives, compliance is getting easier in Tabletop lamination – With 3M ? Fastbond ?Foam fabrication –In compound cushion more and more applications.Contact Adhesive 2000-NF, you get three times the cov-assembly, high tack 3M ? Fastbond ? Foam erage of a typical solvent-based system. For produc-Adhesive 100 holds curves in seconds. Lighter tion speed, you go from spray to trim in seconds.density foam is adhered around the higher density core with a smooth rounded edge.Buy only the quantity you need – Depending on the specific 3M ? Fastbond ? Adhesive, you can select quart or gallon jugsfor convenient handling, or 5-gallon pails and 55-gallon drums for largebulk dispensing.Upholstered household furniture – 3M ? Fastbond ? Foam Adhesive 100 quickly bonds substrates throughout chairs and couches. Bond foam to foam and fiber fill, foam to wood, fiber fill to fabric, and more. Cabinet assembly – 3M ? Fastbond ? Contact Adhesive 30-NF is a formulation proven in shops for four decades. Combines open time of up to 4 hours with high immediate bond strength. Apply with roller, brush, or spray gun.Marine carpeting – In bonding carpet to fiberglass flooring and steps, 3M ? Fastbond ?Contact Adhesive 2000-NF helps withstand the foot traffic and moisture in boat cabins.Product Information: 3M ? Fastbond ? Contact Adhesives, Water-BasedProduct Information: 3M ? Scotch-Grip ? Contact Adhesives************************************/minuteseparationrate.*********************************/minuteseparationrate.Note: 3M ? Hi-Strength 90 Adhesive, a Note: Flash Point (closed cup) in all Fastbond Adhesives: None. popular 3M aerosol adhesive, is now also available in bulk form.We are on the web@/doc/d89c2de49b89680203d8250d.html3M ? Fastbond ? and Scotch-Grip ?AdhesivesInnovative answers toa wide variety of non-struc-tural bonding challenges.3M ? Scotch-Grip ? Adhesives are industrial tools designed to provide innovative answers to a wide variety of non-structural bonding problems.Some formulations are tailored to specific types of applications such as Scotch-Grip Plastic Adhesives. These high strength, fast drying elastomers bond polycarbonate, vinyl, and many other plastics to themselves and materials such as wood or metal. With Scotch-Grip Rubber and Gasket Adhesives you can easily bond neoprene, EPDM, and many more.Other Scotch-Grip Adhesives are multi-purpose and used worldwide in hundreds of different product assembly operations. If you’re looking for a reliable non-structural adhesive, you’re likely to find just what you need in the Scotch-Grip Adhesives line backed with more than 50 years of 3M adhesives research and engineering.Containers to meet your production requirements – Depending on the specific 3M ? Scotch-Grip ? Adhesive, you can select drums, cans, pails, or handy tubes.These collapsible tubes are self-containedlightweight applicators to give you “take-it-to-the-job” convenience for multi-station or low volume assembly and field repairs.Pinball machine refurbishing – 3M ? Scotch-Grip ? Plastic Adhesive 4693H bonds and seals decorative translucent plastic inserts into the underside of the playing surface. Up to 60 minutebonding range with contact bond properties.Light fixture assembly – To prevent moisture Chemical drum gasket – With excellent penetration, a pressure flow gun applies 3M ?resistance to fuel and oil, 3M ? Scotch-Grip ?Scotch-Grip ? Rubber and Gasket Adhesive to bond a Rubber and Gasket Adhesive 847 bonds and seals rubber gasket into a commercial light fixture cover.drum gaskets in place. Very low VOC formulation.Display board – 3M ? Scotch-Grip ? Plastic Adhesive 1099 bonds wood flooring samples to a plastic display board with overlap shear strength ofmore than 385 psi. Very low VOC formulation.Washing machine repair – 3M ? Scotch-Grip ? Rubber and Gasket Adhesive 1300 bonds with high immediate strength and seals the doughnut ring seal in the outer tub. Bond line resists up to 300°F (149°C).Sporting goods – In bonding plastic feathers and nocks onto arrow shafts, fast-tacking 3M ?Scotch-Grip ? Plastic Adhesive 4475 dries quickly to a firm bond. Resists plasticizers, water, and heat up 200°F (93°C). Product Information: 3M? Scotch-Grip? Plastic AdhesivesEllsworth Adhesives 1-800-888-0698Product Information: 3M Insulation and Light DutyAdhesivesHVAC duct insulation – Easy and economicalto apply, 3M? Fastbond? Insulation Adhesive 49 is asingle-component water-based pressure sensitiveformulation with instant tack to speed assembly. We are on the web@ /doc/d89c2de49b89680203d8250d.htmlNote: 3M? Super 77? Adhesive, a popular aerosol adhesive, is now available in bulk form for high vol-ume applications on many light-weight materials.3M Sealant TechnologiesSolutions for the elements from windows to ductwork.Air, water, dirt, fuel, cold, heat – keeping these or other elements in or out is a challenge in applications as varied as windows and doors, truck lap seams, HVAC ductwork, vinyl siding, and livestock troughs. With 3M ? Scotch-Seal ? and Weatherban ? Sealants, you have a wide selection of solutions based on more than 50 years of development and innovation. Meeting your volume requirements – Depending on the formulation, 3M sealants are To meet your requirements, you’ll find formulations available in caulking cartridges, collapsible from acrylic to polyurethane, and forms from self-applicator tubes, pails, drums, or rolls. liquids to tapes.Ductwork – 3M ? Scotch-Seal ? Duct Sealer 900 fills gaps and cures quickly to a firm rubbery seal on medium and high pressure ductwork for heat-ing, ventilating, and air conditioning.Product Information: 3M ? Scotch-Seal ? and Weatherban ? SealantsProduct Information: 3M Aerosol AdhesivesProduct Information: 3M ? Hi-Strength 90 and Super 77?Adhesives in Bulk3M’s most popular aerosol adhesives are now available in bulk form. The following char-acteristics of interest to higher volume users supplement the chart above.We are on the web@/doc/d89c2de49b89680203d8250d.html 3M ? Shipping-Mate ? Aerosols for PackagingThe convenient system to help your package do its full job.A package performs three functions –containment, protection, and communication. The Shipping-Mate aerosol family can help you save time and effort for the full job. For containment in shipping and handling, rely on Shipping- Mate case sealing adhesive for neat, clean bonds with carton- tearing strength. For protection, you have fewer worries with Shipping-Mate palletizingadhesive stabilizing coated cartons or bags. For communica -tions, Shipping-Mate labeling adhesive bonds to even difficult sur- faces, and Shipping-Mate Box Re-nu covers unwanted printing to provide a new looking surface.3M aerosol chemicals contain no methylene chloride, chlorofluo -rocarbons (CFCs), or 1,1,1-trichlorethane (methyl chloroform).3M ? Shipping-Mate ? Case Sealing Adhesive3M ? Shipping-Mate ? Labeling Adhesive – 3M ? Shipping-Mate ? Box Re-nu Coating – – Helps save time and money if you fill miscellaneous Clear spray adhesive permanently bonds labels to To save the cost of new corrugated cartons, this orders, have cartons that come unglued, fill by hand, many problem surfaces such as glass, rubber, or easy- to-use aerosol covers most printing and or open and close for inspection. Quick drying to metal where other adhesives or gummed labels labels with permanent tan color for carton reuse. keep pace with your operation. may fail. Moisture-resistant formulation. Quick drying and long lasting.N/R = Not recommended AdhD T.M. C-700: 1/8" birch veneer bonded to 1/8" birch AdhD T.M. C-483; 500 g load for 1 hr. at noted temp. N/A = Not applicableveneer.All container sizes 24-fl. oz. except Box Re-nu AdhD T.M. C-449. Coating.Ellsworth Adhesives 1-800-888-0698。
耐高温胶粘剂 300度
耐高温胶粘剂300度耐高温胶粘剂是一种特殊的胶粘剂，可以在高温环境下保持其黏性和粘接力。
它是许多行业中必不可少的一种材料，用于各种高温工艺和环境中的粘接和封装。
本文将详细介绍耐高温胶粘剂的特性、应用领域以及优缺点。
1. 耐高温胶粘剂的特性耐高温胶粘剂有着以下几个主要特性：1.1 高温稳定性：耐高温胶粘剂可以在高温环境下维持其黏性和粘接力，即使在长时间的高温加热下也不会出现失效的情况。
1.2 耐化学品腐蚀性：耐高温胶粘剂具有出色的耐化学品腐蚀性，能够抵抗酸、碱、有机溶剂等对其产生的腐蚀和侵蚀，保持稳定的性能。
1.3 耐老化性：耐高温胶粘剂具有较高的耐老化性能，能够长时间保持其黏性和粘接力，不会因时间的流逝而降低。
1.4 较好的粘接力：耐高温胶粘剂能够在高温环境下达到较强的粘接力，能够连接各种材料，如金属、塑料、玻璃等，使其在高温环境下保持稳定。
2. 耐高温胶粘剂的应用领域耐高温胶粘剂广泛应用于以下几个领域：2.1 电子电气行业：耐高温胶粘剂可以用于电子电气产品的封装和粘接，如半导体器件、电路板、电子元器件等。
它能够提供对温度变化的稳定性和对震动和冲击的防护，确保电子电气设备在高温环境下正常工作。
2.2 汽车行业：耐高温胶粘剂可用于汽车制造中的各个环节，如发动机组件、排气系统、传动系统等。
它能够承受汽车引擎高温环境下的振动和压力，确保零部件的粘接稳固和密封性。
2.3 航空航天行业：耐高温胶粘剂在航空航天领域中扮演着重要的角色。
它可以应用于航天器的制造和维修中，用于粘接各种复杂的材料，如航天器的外壳、导航仪器等。
它还可以在极端高温下提供良好的粘接效果，确保航天器在极端环境下的安全运行。
2.4 化工行业：耐高温胶粘剂可以用于化工行业中各种高温工艺的粘接和密封，如石油化工设备、高温反应器、高温管道等。
它能够抵抗化学物质的侵蚀和高温环境的挑战，保持设备的完整性和稳定性。
3. 耐高温胶粘剂的优缺点耐高温胶粘剂具有以下优点：3.1 良好的耐高温性能：耐高温胶粘剂能够在高温环境下保持其黏性和粘接力，确保粘接部位的稳定性和可靠性。
胶水tds说明书
胶水tds说明书胶水TDS（Technical Data Sheet）说明书是对胶水产品的详细介绍和技术参数的文档。
本文将从胶水的成分、性能特点、使用方法以及安全注意事项等方面进行介绍。
一、胶水的成分胶水通常由以下几类成分组成：基体树脂、添加剂、填料和溶剂。
基体树脂是胶水的主要成分，常见的有丙烯酸酯、聚氨酯、环氧树脂等。
添加剂可以改善胶水的黏附性、流动性等性能，常见的有固化剂、稳定剂等。
填料可以增加胶水的粘度和强度，常见的有硅酸盐、碳酸钙等。
溶剂则用于调节胶水的粘度和干燥速度，常见的有丙酮、甲苯等。
二、胶水的性能特点1. 黏附性：胶水具有良好的黏附性，能够将不同材料粘合在一起。
2. 强度：胶水能够提供一定的强度，使粘合的材料具有一定的抗拉、抗剪和抗剥离能力。
3. 耐候性：胶水具有一定的耐候性，能够在不同环境条件下保持稳定的性能。
4. 耐温性：胶水能够在一定温度范围内保持稳定的性能，一些特殊胶水甚至具有耐高温或耐低温的特点。
5. 耐化学性：胶水对一些化学物质具有一定的耐受性，能够在接触一些化学物质时仍然保持良好的性能。
三、胶水的使用方法1. 表面处理：在使用胶水之前，需要将粘合表面进行处理，确保表面干净、干燥、光滑。
可以使用去油剂、砂纸等工具进行处理。
2. 胶水的涂布：将胶水均匀地涂布在粘合表面上，可以使用刷子、滚筒等工具进行涂布。
3. 压合：将需要粘合的材料紧密地压合在一起，确保胶水能够充分接触到粘合表面，并保持一定的压力，促使胶水快速固化。
4. 固化时间：胶水在涂布后需要一定的时间进行固化，具体时间根据胶水的种类和环境条件而定。
四、安全注意事项1. 使用胶水时，应保持通风良好的工作环境，避免吸入胶水挥发出的有害气体。
2. 避免胶水接触皮肤和眼睛，如不慎接触，请立即用清水冲洗，并寻求医生帮助。
3. 使用胶水时应避免接触明火，以免引起火灾。
4. 存放胶水时，应密封保存在阴凉、干燥的地方，远离火源和高温。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
耐高温胶水/固化剂
1613系室温或低温固化型环氧树脂胶，固化物表面平整、光亮、硬度
高、绝缘性能好，广泛用于各类电容器、变压器、发生器、电源模快、灯饰及
其它电子零件的绝缘、固定、防潮、灌封及用于保密之遮封，耐温高达
280℃。
一、性状：
环氧树脂1613A 固化剂1613B 颜色黑色，白色，透明等透明，赤褐色
粘度25℃ 2500-3000CPS 150-200CPS
比重g/ml 1.4-1.5 1.05
保存期 6个月 6个月
闪燃点＞155℃ ＞150℃
二、混合比例： A ：B = 2 ：1（重量比）或者其他比例
三、可使用时间：25℃×40-60分钟（mass100g）
四、固化条件：60℃-65℃×2-4小时或100-120℃/10-15分钟
五、初干时间：25℃×6-8小时硬化时间：25℃×24-48小时
六、固化特性：
抗拉强度 kg/cm2 16—18
耐电压 kv/mm 20—22
抗压强度 kg/cm2 18—22
表面电阻 ohm 1.2×1016
体积电阻 ohm-cm 1.1×101
收缩率 % 0.35-0.55
硬度 SHORE D 80-85
吸水率%(25℃×24HRS) ＜0.03
耐热温度℃ 250-280
七、操作注意事项
1、要灌注密封的部位需保持干燥、清洁，工作场所需保持通风；
2、操作时，须按标准重量比配比，混合并搅拌均匀。
搅拌时注意搅拌四周与底部，都须均匀混合。
本品混合后会逐渐固化，其粘稠度也会逐渐上升；
3、混合在一起的胶量越多，其反应就越快，固化速度也会越快，请注意控制一次配胶的量，因为由于反应加快，其可使用的时间也会缩短；在大量使用前，请先小量试用，掌握产品的使用技巧，以免差错。
4、有极少数人长时间接触胶液会产生轻度皮肤过敏，有轻度痒痛，建议使用时戴防护手套，粘到皮肤上请用丙酮或酒精擦去，并使用清洁剂清洗干净。
5、混合后材料尽早使用完毕，以免反应胶稠而损失，固化过程中请及时清洁使用器具，以免胶水凝固在器具上；未使用完之原料应密封储存，并注意远离火源及潮湿场所。
