FANUC维修超程故障报警表
fanuc维修超程故障报警表1.510号报警。
报警信息: “Over travel:+X axis”,超程:+X轴。
报警说明:X轴正方向超过设定的软件限位。
2.511号报警报警信息: “Over travel:-X axis”,超程:-X轴。
报警说明:X轴负方向超过设定的软件限位。
3.512号报警报警信息: “Over travel:+X axis”,超程:+X轴。
报警说明:X轴正方向超过设定的第二软件限位。
4.513号报警报警信息: “Over travel:-X axis”,超程: -X轴。
报警说明:X轴负方向超过设定的第二软件限位。
5.514号报警报警信息: “Over travel:+X axis”,超程:+X轴。
报警说明:X轴正方向超过设定的0T硬限位位置(仅用于M系列)。
6.515号报警报警信息: “Over travel:-X axis”,超程:-X轴。
报警说明:X轴负方向超过设定的0T硬限位位置(仅用于M系列)。
7.520号报警报警信息: “Over travel:+Y (Z) axis”,超程:+Y(Z)轴。
报警说明:Y轴(M系统)或Z轴(T系列)正方向超过设定的软件限位。
8.521号报警报警信息: “Over travel:-Y (Z) axis”,超程:-Y(Z)轴。
报警说明:Y轴(M系统)或Z轴(T系列)负方向超过设定的软件限位。
9.522号报警报警信息: “Over travel:+Y(Z)axis”,超程:+Y(Z)轴。
报警说明: Y轴(M系统)或Z轴(T系列)正方向超过设定的第二软件限位。
10.523号报警报警信息: “Over travel:-Y(Z) axis”,超程:-Y(Z)轴。
报警说明: Y轴(M系统)或Z轴(T系列)负方向超过设定的第二软件限位。
11.524号报警报警信息: “Over travel:+Y(Z) axis”,超程:+Y(Z)轴。
报警说明:Y轴(M系统)或Z轴(T系列)正方向超过设定的0T硬限位位置(仅用于M系列)。
津上FANUC加工中心VA3报警一览表格模板
内容：在正面门打开的情况下，按了循环启动键。
处理：请把正面门关上再按循环启动按钮PS：或者K参数K4.60改1开着门也可以按启动按钮内容：在左侧门打开的情况下，按了循环启动键。
处理：请把左侧门关上再按循环启动按钮PS：或者K参数K4.70改1开着门也可以按启动按钮内容：气压不足，空压低下处理:调节气压阀，增加气泵PS：维修时，K参数K4.40改1可屏蔽此报警，但不能执行换刀指令内容：水箱切削液液位过低处理:1.添加切削液，加到水箱水位2/3以上2.如果还是报警，请调节水箱上面的液位感应灯3.K参数K4.50改1可屏蔽此报警内容：油路压力不足处理:1.检查用油是否太快，油管接头是否漏油检查导轨油加油时间的频率是是否正常(比如：一周添加一次)2.在没有漏油，加油频率正常的情况下K参数K13.20改1可屏蔽此报警内容：导轨油油箱液位不足处理:请添加导轨油PS：机床维修时K参数K4.30改1可屏蔽此报警注意：正常加工时严禁屏蔽此参数，长时间屏蔽后会造成丝杆，轴承，线轨磨损加快很多。
PS：一般不会出现这个报警。
PS：出现这个报警，一般是水泵的热敏开关损坏，可对调开关做测试PS：机床电柜右下角有两个电池盒，一个是脉冲编码器电池，一个是NC装置电池更换电池请把机床各轴回原点后再进行更换，防止机械原点丢失。
PS：出现M编码循环超时报警，它的意思是执行了这个指令，机床没有动作1.G01倍率开关在0的位置的时候，有些时候会出现这个报警。
2.一个程序段不能出现3个以上的M指令内容：刀库位置异常W轴机械坐标位置不对0°18°36°54°72°90°108°126°144°162°198°216°234°252°180°270°288°306°324°342°PS：刀库轴W轴位置只会在这20个位置上才算是正常的处理：手动旋转刀库，手动正转几下，手动反转几下，或者按刀库回零都可以PS：如果刀库旋转按了没有反应，可以先把急停拍了，再按准备按钮，再旋转刀库试试PS:w轴坐标与以上坐标相差2°以上的时候，如果手动旋转刀库没反应，可以修改K 参数K40.10改1按手轮*100，再按四轴，再看W轴机械坐标，手轮摇到上记20个坐标都可以消除2022报警。

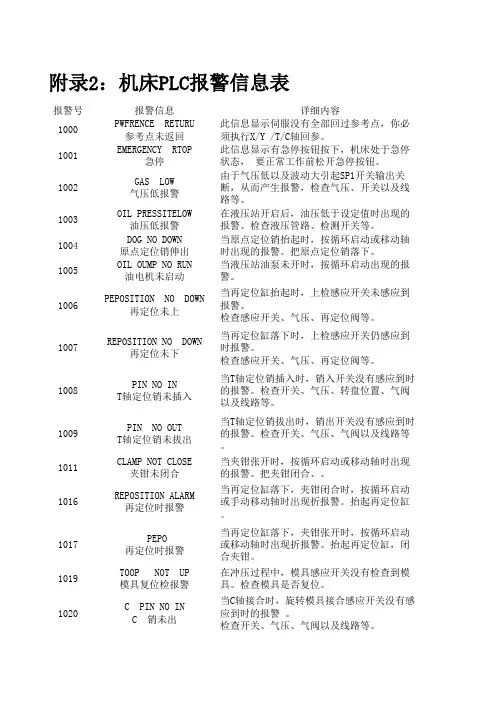

机床PLC报警信息表
当再定位缸落下，夹钳闭合时，按循环启动 或手动移动轴时出现折报警。抬起再定位缸 。
当再定位缸落下，夹钳张开时，按循环启动 或移动轴时出现折报警。抬起再定位缸，闭 合夹钳。
在冲压过程中，模具感应开关没有检查到模 具。检查模具是否复位。
当C轴接合时，旋转模具接合感应开关没有感 应到时的报警 。 检查开关、气压、气阀以及线路等。
PEPOSITION NO DOWN 再定位未上
REPOSITION NO DOWN 再定位未下
PIN NO IN T轴定位销未插入
PIN NO OUT T轴定位销未拔出
CLAMP NOT CLOSE 夹钳未闭合
REPOSITION ALARM 再定位时报警
PEPO 再定位时报警
TOOP NOT UP 模具复位检报警
C PIN NO IN C 销未出
详细内容 此信息显示伺服没有全部回过参考点，你必 须执行X/Y /T/C轴回参。 此信息显示有急停按钮按下，机床处于急停 状态， 要正常工作前松开急停按钮。 由于气压低以及波动大引起SP1开关输出关 断，从而产生报警，检查气压、开关以及线 路等。 在液压站开启后，油压低于设定值时出现的 报警。检查液压管路、检测开关等。 当原点定位销抬起时，按循环启动或移动轴 时出现的报警。把原点定位销落下。 当液压站油泵未开时，按循环启动出现的报 警。
PUNCH LOCK 冲压锁定
当按“PUNCH LOCK"按钮时出现此信息，机床 运行程序时只有轴运动没有冲压，即冲压锁 定。
2002
SCRAP DKKR NO CLOSE 妆废料门关闭开关没有感应到时的报警。检
废料门未关闭

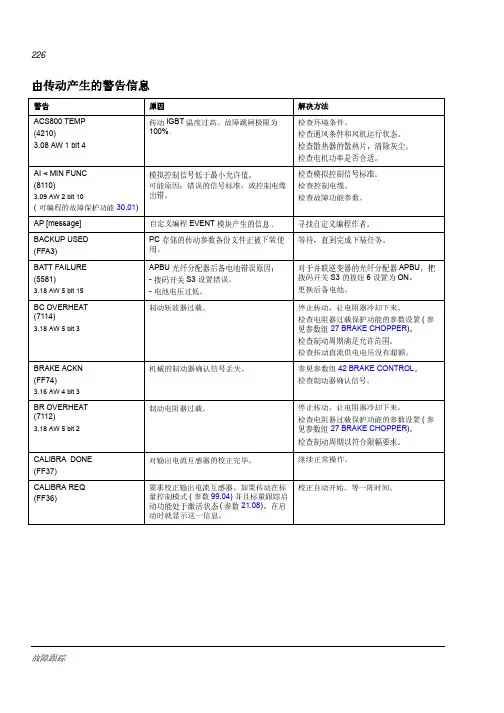

ACS 变频器故障报警列表
APBU
S3
6
ON
( 27 BRAKE CHOPPER)
42 BRAKE CONTROL
( 27 BRAKE CHOPPER)
COMM MODULE (7510)
3.08 AW 1 bit 12
( 30.19)
30.18,
227
- 51 COMM MODULE DATA ( )
- 52 STANDARD MODBUS (
3.05 FW 1 bit 3
ACS TEMP xx y (4210)
3.05 FW 1 bit 3 and 4.01
IGBT 100%
xx (1...12)
y (U, V, W)
AI < MIN FUNC (8110)
3.06 FW 2 bit 10
(
AP [message]
BACKUP ERROR (FFA2)
3.17 FW 5 bit 3
IGBT(s)
BR WIRING (7111)
3.17 FW 5 bit 1
( 27 BRAKE CHOPPER)
42 BRAKE CONTROL
( 27 BRAKE CHOPPER)
"+D150"
234
CHOKE OTEMP (FF82)
COMM MODULE (7510)
AINT R8i
(
)
CH1
CH1(
) I/O
(IGBT 3ABD00015407)
(
)
237
MOTOR TEMP
(
(4310)
3.05 FW 1 bit 6
( … 30.09)
30.04

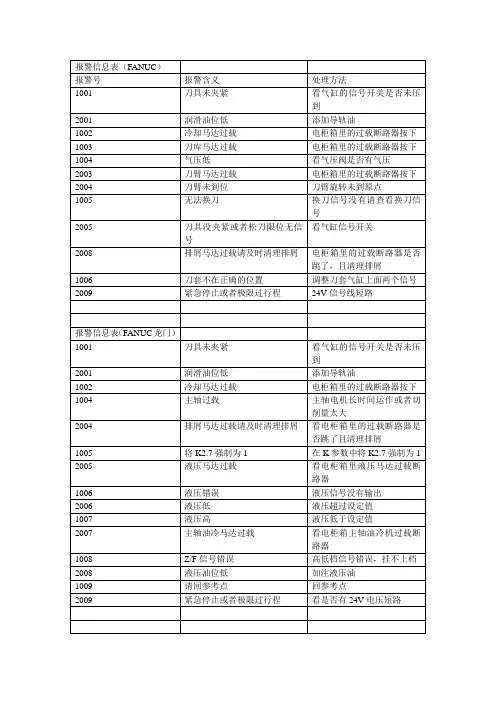

报警信息表
报警信息表（FANUC）
报警号报警含义处理方法
1001 刀具未夹紧看气缸的信号开关是否未压
到
2001 润滑油位低添加导轨油
1002 冷却马达过载电柜箱里的过载断路器按下1003 刀库马达过载电柜箱里的过载断路器按下1004 气压低看气压阀是否有气压
2003 刀臂马达过载电柜箱里的过载断路器按下2004 刀臂未到位刀臂旋转未到原点
1005 无法换刀换刀信号没有请查看换刀信
号
2005 刀具没夹紧或者松刀限位无信
看气缸信号开关
号
2008 排屑马达过载请及时清理排屑电柜箱里的过载断路器是否
跳了，且清理排屑
1006 刀套不在正确的位置调整刀套气缸上面两个信号2009 紧急停止或者极限过行程24V信号线短路
报警信息表（FANUC龙门）
1001 刀具未夹紧看气缸的信号开关是否未压
到
2001 润滑油位低添加导轨油
1002 冷却马达过载电柜箱里的过载断路器按下1004 主轴过载主轴电机长时间运作或者切
削量太大
2004 排屑马达过载请及时清理排屑看电柜箱里的过载断路器是
否跳了且清理排屑
1005 将K2.7强制为1 在K参数中将K2.7强制为1 2005 液压马达过载看电柜箱里液压马达过载断
路器
1006 液压错误液压信号没有输出
2006 液压低液压超过设定值
1007 液压高液压低于设定值
2007 主轴油冷马达过载看电柜箱主轴油冷机过载断
路器
1008 Z/F信号错误高低档信号错误，挂不上档2008 液压油位低加注液压油
1009 请回参考点回参考点
2009 紧急停止或者极限过行程看是否有24V电压短路
三菱报警表。
法拉克系统报警表
1000 X LIMIT EMG.STOP X 轴硬限位急停 1001 Y LIMIT EMG.STOP Y 轴硬限位急停 1002 Z LIMIT EMG.STOP Z 轴硬限位急停 1003 OP.PANET EMG.HAS BEEN PUSHED 操作面板急停被按下 1004 MPG.BOXEMG.HAS BEEN PUSHED 手轮急停被按下 1005 MPG.PANEL.HAS BEEN PUSHED 刀库急停被按下 1006 CHIP conv.emg.hasbeen PUSHED 排屑器急停被按下 1007 A-P-OFF ENAB BY CABI.OR OPEN 自动断电，电柜门开 1013 SP H/L SPEED FUNC=>K5.0 SET ERR 主轴高低速功能 K5.0 设定错 误 1014 CONFIRM.OF SPDL HEAD COVER. 主轴板合未盖好 1015 POWER OFF->POWER ON 开机关机 1100 ATC INVERTER OVERLOAD 1104 PLEAS WARM UP FIRST!! 请先热机 1106 Z NOT AT IST REF.POS Z 不在第一参考点 1107 PRESS 'NC-START' TO CONTINUE 按循环启动继续 1108 NO CONFIRM.OF POT UP 刀套上升未确定 1109 NO CONFIRM.OF POT DOWN 刀套下降未确定 1110 POT UP&DOWN BOTH ON. 刀套上下均未检测到 1117 NO CONFIRM.OF TOOL CLAMP 刀具夹紧未确认 1118 NO CONFIRM.OF TOOL UNCLAMP 刀具松开未确认 1119 TOOL CLAMP/UNCLAMP LS.BOTH ON 刀具松开加紧信号异常 1120 TOOL BROKEN 道具破损 1121 MAG.NOT INPOSITION 刀库位置异常 1122 MAG.ROTATE TIME OUT 刀库旋转时间超时 1124 during T CYCLE.POWER DROP DOWN T 指令时断电 1125 during M6 CYCLE.POWER DROP DOWN 换刀断电(请同时按下两个键： 停止键和消除 RESET 键) 1126 ILLEAGL T-CMP.T-CMD>MAX.T-NO 错误的 T 代码 1127 SPDL NOT ORIENT 主轴未定向 1128 AXES NOT AT ATC POS 轴不在换刀位置 1129 ARM SEN.DETECT ERR.PLS CHK.CIRCUIT.换刀臂位置检测出错 1132 the TOOL IS NOT REGISTERED 刀具未注册 1133 NO FREE POCKET FOR SPDL TOOL 没有空刀套 1134 CLR TASK BY 'RST+FEED HD'=>2SEC 按 RST+FEED HD2 秒清除 1136 SP.TL-NO(DO)&TYPE(D50)NOT MATCH.未标明主轴刀具号合类 型 1137 ARM1&2DATA ERR.CHK D6&D8 刀臂 1 号和 2 号资料错查
