关于ABB保护器(CM-MPS)说明 (2)
关于ABB断相与相序保护器（）动作的分析报告大功率三相异步电动机的启动对电网的冲击，主要表现在有限的配电容量下，电流大幅增加，配电系统阻抗上的压降增大，导致负载端电压下降，轻则导致电动机不能正常启动，重则危及所在配电网的正常运行。
为避免电动机在较低的电压下工作，一般的大功率电机都设有电压保护（包括过压、欠压、逆缺相、不平衡等保护功能）。
1 CM断相与相序保护器在目前的离心机启动柜中（星三角启动柜及降压启动柜），使用的是ABB断相与相序保护器（如图1），主要用于监视三相电源系统的参数，如相序、缺相、过欠压和不平衡。
1-R/T：黄色LED继电器状态指示（计时状态） 2、3-F1、F2：红色LED，故障信息4-动作延时整定 5-过压保护定值整定 6-欠压保护定值整定7-相不平衡保护定值整定 8-DIP功能选择/标记牌图1 CM2保护整定、动作及指示（见表1、图2）表1 CM保护定值的整定及动作指示1-ON(动作延时，复位瞬时)2-OFF(相序监测功能开启)图2 DIP拨码开关的整定缺相及相序保护缺相及相序保护在保护动作条件满足时，将会瞬时动作，无延时功能。
若要取消相序保护功能，可将DIP拨码开关2至于ON位置，即在无相序保护要求的场合（如三相加热器等）可取消相序保护；对于有转向规定的电动机，则需将DIP拨码开关2至于OFF位置，开启相序保护功能。
3启动及运行过程中常见保护动作及处理方法故障指示故障类型处理方法（建议）备注F1常亮过压保护动作检查过压整定值是否整定合理，如果整定得过低，则可能出现上电时报过压保护。
若保护定值整定无误且保护瞬时动作，可检查DIP拨码开关1是否在ON位置（动作延时），或延时时间是否整定动作过程中可观察R/T指示灯是否闪烁，若动作时无闪烁，则未设定延时（或延时t v=0s），反之有延时；或打。
关于ABB保护器(CM-MPS)说明

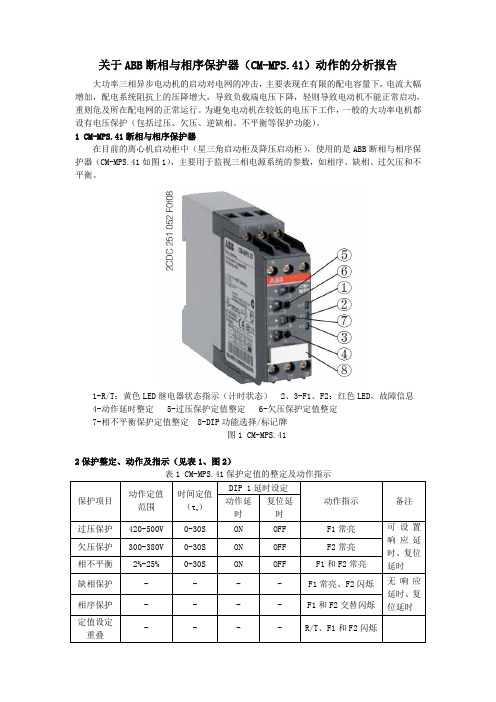

关于ABB 断相与相序保护器（CM-MPS.41）动作的分析报告大功率三相异步电动机的启动对电网的冲击，主要表现在有限的配电容量下，电流大幅增加，配电系统阻抗上的压降增大，导致负载端电压下降，轻则导致电动机不能正常启动，重则危及所在配电网的正常运行。
为避免电动机在较低的电压下工作，一般的大功率电机都设有电压保护（包括过压、欠压、逆缺相、不平衡等保护功能）。
1 CM-MPS.41断相与相序保护器在目前的离心机启动柜中（星三角启动柜及降压启动柜），使用的是ABB 断相与相序保护器（CM-MPS.41如图1），主要用于监视三相电源系统的参数，如相序、缺相、过欠压和不平衡。
1-R/T ：黄色LED 继电器状态指示（计时状态） 2、3-F1、F2：红色LED ，故障信息 4-动作延时整定 5-过压保护定值整定 6-欠压保护定值整定 7-相不平衡保护定值整定 8-DIP 功能选择/标记牌图1 CM-MPS.412保护整定、动作及指示（见表1、图2）保护项目 动作定值范围 时间定值（t v ） DIP 1延时设定 动作指示 备注 动作延时 复位延时 过压保护 420-500V 0-30S ON OFF F1常亮 可设置响应延时、复位延时欠压保护 300-380V 0-30S ON OFF F2常亮 相不平衡 2%-25% 0-30S ON OFF F1和F2常亮缺相保护 - - - - F1常亮、F2闪烁 无响应延时、复位延时 相序保护 - - - - F1和F2交替闪烁 定值设定重叠----R/T 、F1和F2闪烁1-ON(动作延时，复位瞬时)2-OFF(相序监测功能开启)图2 DIP拨码开关的整定2.3缺相及相序保护缺相及相序保护在保护动作条件满足时，将会瞬时动作，无延时功能。
若要取消相序保护功能，可将DIP拨码开关2至于ON位置，即在无相序保护要求的场合（如三相加热器等）可取消相序保护；对于有转向规定的电动机，则需将DIP拨码开关2至于OFF位置，开启相序保护功能。
