菲普森空气能热水器控制面板说明书
空气能通用单系统热水机功能说明书V1.1（120210）资料
空气能通用单系统热水机功能说明书V1.1（120210）资料单系统商用热泵热水机功能说明书一、概述本控制器适用于三相商用机控制，控制器由主板和线控器组成。
二、性能指标：1﹑使用条件□运行电压：AC220±10％□运行环境温度：-20～+60℃□储存温度：-30～+85℃□湿度要求：30～95％RH2﹑温度控制及测量精度：1℃3﹑控制器符合□GB4706．1-1988《家用和类似用途电器的安全第一部分：通用要求》□GB4706．32-1996《家用和类似用途电器的安全热泵﹑空调器和除湿机的特殊要求》□GB18430．2-2001《蒸汽压缩机循环冷水（热泵）机组户用和类似用途的冷水（热泵）机组》□抗干扰度符合GB4343．2-1999□印刷电路板符合GB4588．1和GB4588．2的规定4﹑负载能力□压缩机、换向阀、喷液阀、辅电、曲轴箱继电器负载能力：5A/250VAC□循环泵、进水泵、回水阀、风机高风、低风继电器负载能力：10A/250VAC 三、主要特点及功能1）具有自动制热功能2）具有记忆功能四、线控器控制面板△开/关键：在关机状态下按此键则开机，在开机状态下按此键则关机；△模式键：运行模式选择（“参数设定”模式/“查询”模式/“运行”模式），进入“参数设定”模式后60秒内无按键操作，则自动退回“运行”模式；进入“查询”模式后无论有无按键操作都不自动退出，只有按“模式”键重新选择模式。
△确认键：进入参数设定模式后，按“上升/下降”键先选至需设定的机组代号上，按一次此键对此机组选定，此时被选定的机组代号闪烁，然后再按“上升/下降”键选择需重新设定的参数代码，按一次此键对此代码选定，被选定参数代码闪烁(左边两数码)，按“上升/下降”键调整设定参数(右边两数码)，设定好按此键确认并退出对此代码的设定。
△上升/下降键：用此键调整设定温度，在开机状态下初始温度显示50℃，每按一次温度上升或下降 1 度，温度设定范围为20℃-55℃，如按住上升键 4 秒不放，设定温度可以上升至60℃。
空气能热水器使用说明书
空气源热泵热水器原理由生活中的常识中我们可以知道，热水可以自己慢慢向空气中放热，冷却成凉水，这表明热量可以从温度高的物体——热水自动的传递到温度低的物体——空气。
那么可不可以将这个过程反过来进行，将温度较低的空气中的能量向热水中转移呢？热力学第二定律指出：不可能把热从低温物体传到高温物体而不引起其他变化。
这就是说，热量能自发的从高温物体传向低温物体，而不能自发地从低温物体传向高温物体。
但这并不是说热量就不能从低温物体传向高温物体，就向水泵能够使水从低处流向高处一样，热泵通过消耗一部分电能，也能够使热量从低温物体传到高温物体。
空气源热泵热水器就是根据这样一个原理来工作的，通过消耗少量的电能驱动压缩机，使制冷剂吸收空气里的热量来加热生活用热水的，其制热效果比传统热水器高出3倍，而消耗的电能仅为普通热水器的三分之一，并能从根本上杜绝了漏电、一氧化碳中毒的危险热泵热水器的工作过程如下：如上图所示，压缩机通过消耗一部分电能，将低温低压的制冷剂气体压缩成高温高压的气体，高温高压的气体在冷凝器中放出热量将水加热，自己温度被降低，经过膨胀阀节流降压后，变成低温低压的气液混合物，在蒸发器中制冷剂吸收其他介质（如空气、井水）中的热量，变成低温低压的气体，然后再被压缩机吸收，压缩成高温高压的气体加热热水。
与其他形式的热水器相比，热泵热水器主要有安全、节能、环保的特点。
安全性：传统热水器以燃气、电和太阳能为主，三分天下，燃气热水器安全性较差，燃烧不充分和水压不稳定易造成燃气中毒和烫伤事件，电热水器的漏电隐患和住宅接地不良也对消费者的生命安全造成严重威胁，太阳能热水器储水式的特点决定了其在晴天时，水温可能很高，造成烫伤，阴雨天的电辅助加热却留下安全隐患，与以上热水器不同，热泵热水器制热过程是通过压缩机排出的高温高压制冷剂气体加热水罐中的水，电主要用于压缩机，制热后的气体通过外盘式的盘管与搪瓷水罐中的水交换热量，水电完全分离，这样，既不存在漏电隐患，省去了防漏电的烦恼，也避免了电加热管表面温度高，易结垢并影响加热效率的弊端，真正作到绝对安全。
空气能热水器维修手册(2012年版)
供水管返回冷水
电路板故障 机器未启动
水箱水不热
水箱温度传感器坏
加热时间不够 用水量大于产水量 氟利昂有泄漏
供水电磁阀故障
水箱水供 不下
时控开关故障
供水软管吸扁
Er2 为系统低压故障 显示故障 代码
Er3 为排气温度过高
线圈已通电，阀芯打不开 电路板冷水补充输出点无 输出
膜片上平衡孔堵塞 膜片破损 压力弹簧压力不够 膜片老化 水位开关或水位线断路 中间继电器常开触点烧死 供水止回阀坏，或关闭不严 供水未装止回阀 电路板坏或输出继电器烧死
一、电气故障
故障现象
电源指示灯 不亮
面板无显示
相序继电器不通 （单项无此项）
变压器无输出
电路板与手操器 故障
无“制热”显示
面板有显示 机器不启动
水温已烧好
电路板与手操器 故障
电路板不输出
交流接触器不通
水泵、风机 启动，压缩 机不启动
压缩机故障
热过载继电器坏 压缩机电容坏 （单项机）
压缩机启动 风机不启动
重新插好
按氟利昂泄露处理方法处理 调整膨胀阀或更换 清洗冷凝器 给压缩机加冷冻油或更换压缩机
更换传感器
Er12-Er16 故障
对应 C1-C5 温度传感器短路 对应 C1-C5 温度传感器断路 电路板温度通道坏
更换温度传感器 把断点接好或更换温度传感器 更换电路板
空气能热水器
更换交流接触器
更换压缩机 待压缩机冷却后看能否启动， 启不源自就更换压缩机更换热过载继电器
更换电容
更换传感器
更换传感器
正常现象不用处理
更换电容 更换风机或重绕线圈 加润滑油或更换轴承 送自来水到补水阀或加加压泵 更换线圈
乐盼空气能热水器控制面板说明书
乐盼空气能热水器控制面板说明书一、控制面板概述乐盼空气能热水器的控制面板是该产品的核心部件之一，它通过操作控制器来实现对热水器的各项功能的控制和调节。
本说明书将详细介绍控制面板的功能按键、显示屏等部分，以及如何正确操作控制面板。
二、主要功能按键介绍1. 开关机按键：用于开启或关闭热水器的电源，长按该按键可实现强制关机。
2. 模式选择按键：通过该按键可以选择热水器的工作模式，如常温模式、节能模式等。
3. 温度调节按键：用于调节热水器的出水温度，通过“上”、“下”按键可以逐级调节。
4. 定时开关按键：通过该按键可以设置热水器的定时开关机时间，实现自动化控制。
5. 一键排气按键：用于热水器内部气体的排放，保证热水器正常运行。
三、显示屏界面介绍1. 温度显示：显示热水器当前的出水温度，确保用户能够清晰了解热水的温度。
2. 模式显示：显示当前热水器的工作模式，用户可以根据需要选择不同的模式。
3. 定时开关显示：显示热水器的定时开关机时间，用户可以根据需要进行设置。
四、使用说明1. 开启热水器：按下开关机按键，热水器即可开始工作。
待显示屏上显示出当前温度后，即可使用热水。
2. 模式选择：按下模式选择按键，通过显示屏上的指示灯来切换不同的工作模式。
用户可以根据不同的季节和需求选择不同的模式，以达到节能和舒适的效果。
3. 温度调节：按下温度调节按键，通过显示屏上的指示灯来增加或减少出水温度。
用户可以根据需要调节出水温度，以满足不同的洗浴需求。
4. 定时开关设置：按下定时开关按键，通过显示屏上的指示灯来设置热水器的定时开关时间。
用户可以根据需要预先设定好开关机时间，热水器将按照设定的时间自动开关机，方便用户的使用。
5. 一键排气：按下一键排气按键，热水器将自动进行内部气体的排放，以确保热水器正常运行。
五、注意事项1. 在使用控制面板之前，请仔细阅读本说明书，并确保按照说明正确操作。
2. 请勿随意拆卸或更换控制面板，以免影响热水器的正常工作。
空气能热水器使用说明书
空气能热水器使用说明书空气能热水器是将饮用水加热至高温度的一款设备。
本文档将为您提供空气能热水器的使用说明，帮助您更好地了解和使用空气能热水器。
1. 安装1.1 地点选择安装地点应在通风、干燥处，不致有暴雨、台风、洪水等灾害威胁的地方。
另外，请确保安装地面平整、牢固、不要有倾斜。
同时，设备周围应该空出足够的空间以便日后的维护和保养操作。
1.2 钻孔选择合适位置后，需要对墙壁进行钻孔操作。
在此之前，请确认好水管的位置和长度，敲打或者钻孔时，请注意避开水管位置，以免损坏水管。
1.3 固定支架选取合适的固定支架，注意选取固定螺丝与设备的配合块，这样可以确保设备固定稳定。
设备固定螺丝需要使用干净的环保螺丝。
2. 操作与使用2.1 开机安装完成后，按下设备的电源开关，可以听到启动音。
在冬天或者寒冷季节，设备在启动时会产生雾气，请不要惊慌，这是正常现象。
同时，在设备启动过程中，请不要向设备放置任何外界物品。
2.2 读取数字屏幕设备屏幕能够实时反馈热水器的状态和信息。
数字屏幕会显示实时的水温、设备运行状态等信息等信息。
当屏幕上出现告警信息时，需要及时维修。
请阅读设备说明书，以了解各个告警信息的定义和解决方法。
在设备操作过程中，保持屏幕干净整洁。
2.3 设置水温设置水温需要通过设备的控制面板实现。
我们可以通过控制面板将设备的水温设置到合适的温度。
设备默认温度为50℃，此温度能够满足一般生活所需。
对于特殊用途，请参照设备使用说明书进行设置。
当设备出现温度不够的状况时，我们可以通过微调设备调整水温。
请不要将热水器调整至过高的温度，过高的温度可能会导致烫伤或者其他安全问题。
2.4 使用热水当设备已经正常启动后，我们可以通过打开水龙头开始使用热水了。
请注意，初次开启水龙头时，需要排水一段时间。
在设备顺利运行过程中，我们需要定期清洗设备，以保证设备的正常运行。
当设备运行时间较长时，累积的灰尘和水垢可能会影响设备的效能。
2.5 关机当您需要关闭电源时，可以通过按下关机按钮完成关机操作。

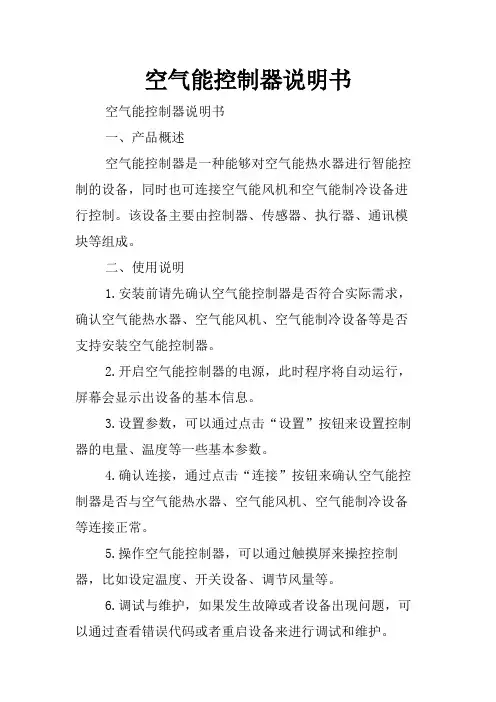

空气能控制器说明书
空气能控制器说明书空气能控制器说明书一、产品概述空气能控制器是一种能够对空气能热水器进行智能控制的设备，同时也可连接空气能风机和空气能制冷设备进行控制。
该设备主要由控制器、传感器、执行器、通讯模块等组成。
二、使用说明1.安装前请先确认空气能控制器是否符合实际需求，确认空气能热水器、空气能风机、空气能制冷设备等是否支持安装空气能控制器。
2.开启空气能控制器的电源，此时程序将自动运行，屏幕会显示出设备的基本信息。
3.设置参数，可以通过点击“设置”按钮来设置控制器的电量、温度等一些基本参数。
4.确认连接，通过点击“连接”按钮来确认空气能控制器是否与空气能热水器、空气能风机、空气能制冷设备等连接正常。
5.操作空气能控制器，可以通过触摸屏来操控控制器，比如设定温度、开关设备、调节风量等。
6.调试与维护，如果发生故障或者设备出现问题，可以通过查看错误代码或者重启设备来进行调试和维护。
三、注意事项1.在使用空气能控制器的过程中，请保证电源的正常工作，不要与其他电器或水源接触。
2.在操作控制器之前，请先确认设备的安装情况，确保设备连接正确，否则会造成设备问题。
3.在移动空气能风机或空气能制冷设备时，要小心慢动，避免设备受到损害。
4.在设备故障或出现问题时，请及时与维修人员取得联系，不要擅自进行拆卸或更换设备。
5.在长期未使用控制器时，应对设备进行定期维护，检查设备的连接和运行情况，确保设备正常工作。
四、总结空气能控制器是一种非常实用的家庭设备，它可以帮助我们智能化地管理住宅内的温度和湿度，同时也可以实现空气能风机和空气能制冷设备的控制。
使用空气能控制器时，请务必严格按照说明书进行操作，做到安全、准确、科学。
空气源热泵热水系统的简易操作指南
欢迎阅读空气源热泵热水系统的简易操作指南一、热水系统的水温设置? 加热设备（可视作热交换器或热储水箱）出水口的水温，一般的设置温度为不低于55℃ 。
热水保温水箱的温度一般的设置温度为不低于50℃。
为了降低能耗，热水系统可根据实际使用需要和季节情况做调节：冬季温度一般设置为50~55℃；夏季温度设置为43~45℃。
电加热自动温度控制器设置温度上限温度为45℃，下限温度为38℃,就是在水温低于38℃时电加热自动投入时，当水温达到45℃电加热器自动切断，冬天打 1 23广州金号空气源热泵 --（简易操作说明）(一).操作面板(二△开如按住上升键10秒不放，设定温度可以上升至60℃。
注：进入查询状态，左边两数码显示序号，右边两数码显示温度及故障代码，具体显示如下：清华同方空气源热泵--（简易操作指南）一、控制面板定义：上电后，面板上的数码管显示以及发光二极管指示灯全亮,表明面板所有提示正常。
二、功能键的操作说明1、查看主模块一、二级菜单参数：连续按“选项”键，模块号位显示“1”，表示[功能1]，按确认键“”，进入[功能1]，按“选项”键，选择1或选择2，按“”进入一级或二级菜单显示，按“选项”键逐个查看“0-F””键，显示“”，再按“”进入一级菜单参数范围详见附表一。
待参数设定后按“”键将3、读出/修改本机密码连续按“选项”键，模块号位显示“4”，表示[功能4]，按确认键“”，进入[功能4]，提示“4 111”，表示密码为“111””数据增加，“””键写入。
注：任何时候按键停留时间>30S，主机会自动退出查键过程。
4、硬故障的按键解除在热泵机组出现靶流、低压频繁、排气频繁、高压故障后，可以不重新上电，而通过按键的方法来重新启动该系统。
当人工排除这些故障后，连续按三次“”键，当数码管出现“- - - - -”””⑴⑵恒热空气源热泵--（简易操作指南）一、操作与使用1、热泵机组上电，线控器液晶屏初始化后，显示各参数如下：?? 时钟：00：00，?? 模式：自动，?? T5：水箱温度，此时水箱没水，显示温度与环境一样，?? 在线机组数：并联机组总数，?? 水位：空2、时钟设定：设置到当时北京时间按3????4、???? 水位设定范围：50%，75%，100%，水位显示如下：5、循环水温设定?? 用来设定水箱保温进入温度条件，按压循环水温设定键后才能通过增加，减少按键设定。
空气源热水器英文说明书
Thank you for your using air source water heater seriesproducts. Please read instruction book before use and keepit for future reference. Please record the machine model and serial number on the warranty card.Adaptive Model Number: JN-100L、150L、200L、300L.Catalog1.Cautions-----------------------------------------------------2. Performance and Features---------------------------------3. Performance Parameter------------------------------------4. Operation Instructions------------------------------------- 5. Product Structure-------------------------------------------6. Outdoor Circuit Diagram----------------------------------7. Care and Maintenance-------------------------------------8. Simple Trouble Self-examination------------------------9. Warranty card------------------------------------------------1. CautionsThanks for your purchasing our products, please note thefollowing points:a. Read this instruction book carefully before installation!b. It shall be installed follow the rule of National Wiring Rule;c. Power socket shall be triplex receptacle with safe ground wireand match with the machine plug. The content shall no less than 2times of machine rated current. The socket shall be near the machine and in the place of plug reached.d. It shall use special branch circuit that 2 times more than maximum rated current. The wire shall match to the maximum v alue of customer use. The circuit shall hold suitable all-pole disconnection protector (1.5-2 times more than rated current.e. The display board shall be installed in the shade dry place.f. Keep the water tank full before the power socket is connected atthe first time. Please do not close the water valve at the time ofnormal use or it will not make the water outlet.g. Do not set over heated water as you would like to. As the watertemperature reach to the 55℃. You should mix the cool water withhot water for being scalded (especially old man and children);h. Do not install and move the machine by yourself. All works shallbe done by professional install workers.i. As the trouble made by customers, the company will not be responsible for it.2. Performance and FeaturesAir source water heater is usually used in the places of family house, bathing spot and hotel. The main advantages as follows:Energy Conservation Compare with general water heater, it holdslowest operation costs. It is lower than electrical solar waterheater in the whole year.Environment Protection Free from contamination. It use newtype refrigerant that zero emission onto ozonosphere. Besidesthat, it does not make any excreta.All-weather Does not be influenced by bad weather such asovercast and rainy and snow. It could normal be used among -10℃～43℃. It works effectively in dry and wet places withIntelligent defrost system.Reliable Quality Use well known best quality special compressor, food grade stainless steel tank. It could be usedfor more than 15 years under normal use.Safety Real completely separated water from electricity;Convenient Easy installation and smaller floor space. It could be installed in a suitable places and content the requirement of customers.3. Performance ParameterNote: Heat water compensation speed is tested in the conditionof 20℃ Wet-bulb temperature, 20℃inlet water temperature, 55℃leaving water temperature. This list parameter is for referenceonly. Detail parameter is subject to the machine brand.4. Operation Instructionsa. Temperature Display: the controller shows the water temperature in the tank. Press “▼”, it will show the outside temperature.b. ON/OFF: Press “⊙” to ON/OFF machine. As in the conditionsof ON, it shows “heat”, “heat insulation”, “defrosting”.It shows “OFF” while the machine is power off. Whenever thecondition is, it always shows the present time and present temperature.c. Temperature Setting: Press “S” and get into the temperature setting condition. As it shows the “ceiling temperature”, press “▲” or “▼” to change the value (press “▲” to raise 1℃, press “▼” to fall down 1℃; hold “▲” or “▼” for more than 0.5 second, it will raise and fall down quickly). Press “S” again and the floor temperature setting method follows ceiling temperature. As setting finished, press “▲” once again to go back from setting condition. It will begin to work as the temperature lower than thefloor temperature or higher than ceiling temperature and make thewater temperature between “floor temperature”and “ceilingtemperature”d. Time setting: press “”, the hour part will be shining,press “▲” or “▼” to adjust the hour part; press “” again Model No. JN-100L-30W JN-150L-30W JN-200L-40W JN-300L-40W Tank Volume(L) 100 150 200 300HeatSpeed(L/h)75 75 95 95Max LeavingWater Temp (℃)60℃Power 220V/50HzRated InputPower (W)940 1280 1280 2000Tank BearingPressure0.6MpaTemp Range(℃) -10 ℃～ 43 ℃Tank Weight(kg)26 36 46 65Tank Out Size ￠480×1074 ￠480×1514 ￠570×1300 ￠570×1835 Machine Weight(kg)27 36 36 45Machine OutSize790*255*540 790*255*540 790*255*540 790*255*540 Suited People 1~3 2~4 2~4 Above 4to adjust the minutes part, press “▲” once again to finish.e. Operating Mode Setting: Press “M” and shift “Automatic” to “Economic”. Under the “Automatic” model, it will control the water temperature according to the pre-setting. Under the “Economic”model, only make the water hot in the pre set time.f. Work Period under Economic Model Setting: hold the “” for2 seconds and set three heat period as screen shows. (“”is used for switch the project, “▲” or “▼” is used for value change). If you do not need so many setting period, you couldmake the start time and finish time on “00:00”. If the start timeis later than finish time, it will consider that the finished timeis on the next day. For example: if you set the one of the periodon “22:00” to “03:30”, the machine will consider the period is start from 22:00 and finish in 3:30 next day.5. Product Structure6. Outdoor Circuit Diagram(Fig 1)＊Note: Non-professionals are not allowed to change!＊7. Care and MaintenanceFor long time work, there is some dust on heat interchangeraluminum foil. It shall be brushed with water regularly or itwould have effect on heat absorption. As there are great amount of dust, please let professionals clean.Check the connect end is leak or not regularly. Please contactthe professionals to repair it if it is leak.Check the wire is plug, socket and wire is well connected or notregularly.As the machine has some informal noise, you should power off itand contact the professionals.Healthy SymptomThe symptom as follows does not mean something had happened to the machine:a.For the compressor’s defective function, the machine does not start for 3 minutes.b. There is some condensed water discharged from the outdoor machine.c. Some noise in the machine. As the machine worked, there is some bicker or sizzle noise. It is a normal noise from refrigerant.d. For safety valves’ pressure relieve function, the valve will discharge some water to relieve as the water tank get overpressure.Fault Display Fault CauseShow “OPE”Open circuit on water tank test line or outsidemachine test lineShow “ SHR”Short circuit on water tank test line or outsidemachine test lineShow “Drop”Communication failures between display paneland outside control boardShow“leakage”Machine electric leakageAlarm on failures defrosting During the settled time, machine temperature could not reach to the settled defrosting temperature.Alarm on hightemperatureThe temperature is 10℃ higher than ceiling.8. Simple Trouble Self-examination Symptom Fault Cause SolutionCompressor does not workMain power does notbe connectedCheck up on bothincoming line and airswitchThe control panel doesnot openPress the “ON” key Fault code ondrive-by-wirecontrollerCheck follows the codetableCan not reach to the setting temperature forlong timeheating.Dust on heatinterchanger, theambient temperatureis too cold,refrigerant isdischargedClean the heatinterchanger; improvethe environment; checkon leakage point,supplement somerefrigerantNo words on the display panel Main power does notbe connectedCheck on incoming lineand air switch Poor contact onsignal wireCheck on signal wire andfittingsCan not make hot Four-way valve or Replace four-way valvewater and themain machineblows hot windfour-way valve loop isbrokenor four-way valve loopWiring harness islooseKeep the line beconnectedFan can not workEither fan orcapacitance is brokenReplace fan orcapacitanceWiring harness islooseKeep the line beconnectedBig noise asthe machine workFrame screw loose screw down screwSome copper pipestouched each other inthe machineCheck on the copperpipesNote: 1. The test or disconnect failure will be solved as both testand communication are recovered.2. The high temperature alarm will be discharged as the watertemperature drop to the normal.3. There are some ways to solve the problem of defrostingfailure as followeda) The outdoor machine temperature is higher than defrostingstart temperature.b) Press “⊙” key to close the machine.9. Warranty cardWarranty card(Please send affiliated card to us and reserve the originalcard)In order to keep our service promise and release customers from worries, we will establish customer info file in our company computer system.Please complete the warranty card and send our the affiliatedcard in one monthIf the original card or purchasing proof is missing, you couldlook up your customer info file and get some related service.a.Products InfoPurchase date Purchase PlaceModel. No. Factory NumberPurchase priceb. Customer InfoName JobZip Code Phone NumberAddressNote: please tear out this part and send it to us as follow requirement (copy here of is invalid)Please fill this warranty card and send us the affiliated card as soon as possible.Please fill this warranty card and send us the affiliated card as soon as possible.Zip Code:AddressAfter service DepartmentWarranty card (Reserve the original card)To shops: this warranty card is a clear proof for customers.The sales should write down the warranty card for customersand give it to customers.To customers: free repair during warranty period. Customersshould keep the card. Please note that maybe there are someconditions about exchange parts or goods.ProductsName FactoryNumberNO：Type No.Guaranteetime From Month Year in oneyear is validPurchasing dateDateMonthYearStorenameTel Address Zip.Customer Name TelProductsName FactoryNumberNO：Type No.Guaranteetime From Month Year in oneyear is validPurchasing dateDateMonthYearStorenameTel Address Zip. CustomerNameTel Address Zip.GuaranteeCard Problem & Date RepairfeesPart you exchanged: ChargingMethodfree/notfree Repair Method: RepairPeopleAddress Zip.GuaranteeCard Problem & Date RepairfeesPart you exchanged: ChargingMethodfree/notfree Repair Method: RepairPeopleThank you for your using air source water heater series products. Please read instruction book before use and keepit for future reference.Adaptive Model Number: JN-100L、150L、200L、300L.Catalog1. Installation Instructions …………………………………a. Main Machine Installation Siteb. Main Machine Installation Stepsc. Temperature Hold Box Sited. Temperature Hold Box Installation Stepse. Heat Connecting Hose Installationf. Leakage Checking on Connecting Hostg. Connections of Circuitsh. Test Runningg. Remove air source1. Installation Instructionsa. Main Machine Installation Site(1) As the main machine was installed on the wall or roof, the place they installed shall be made of solid brick, concrete or other strength place. The main install place shall load more than 300kg/m2.Keep it upright and level.(2) The install face shall made of wood or metal that has enoughfirm.(3) The space between main machine and obstacles shall not smaller than the space showed in (Figure 1)(4)If you install the canopy, please note that it shall not blockheat absorption and dissipation of the main machine(5) The space between main machine and water tank will not longerthan 2.5m (there are some l ength limitation on main connection host).b. Main Machine Installation Steps(1)Direct installation(With customer permission, ensure that there is no leak in expanded hole)(a) Mapping the space between the outside installation holes. Markthe pre-installed place.(b)Dig 4 M12.5 holes by impact drivers(c)Fix the outside machine by M8 steel setscrew.Thank you for your using air source water heater series products. Please read instruction book before use and keep it for future reference.Adaptive Model Number: JN-100L、150L、200L、300L.Catalog1. Installation Instructions …………………………………a. Main Machine Installation Siteb. Main Machine Installation Stepsc. Temperature Hold Box Sited. Temperature Hold Box Installation Stepse. Heat Connecting Hose Installationf. Leakage Checking on Connecting Hostg. Connections of Circuitsh. Test Runningg. Remove air source1. Installation Instructionsa. Main Machine Installation Site(1) As the main machine was installed on the wall or roof, the place they installed shall be made of solid brick, concrete or other strength place. The main install place shall load more than 300kg/m2. Keep it upright and level.(2) The install face shall made o f wood or metal that has enough firm.(3) The space between main machine and obstacles shall not smallerthan the space showed in (Figure 1)(4)If you install the canopy, please note that it shall not blockheat absorption and dissipation of the main machine(5) The space between main machine and water tank will not longerthan 2.5m (there are some l ength limitation on main connection host).b. Main Machine Installation Steps(1)Direct installation(With customer permission, ensure that there is no leak in expanded hole)(a) Mapping the space between the outside installation holes. Markthe pre-installed place.(b) Dig 4 M12.5 holes by impact drivers(c) Fix the outside machine by M8 steel setscrew.Note During Direct installation:It shall be permitted by customersIt will not be leak from the expanded holeNote the discharge of condense water(2) Use A-frame to fixa) Make sure the frame position according to the outside machine base holeb) Dig 4 ￠14.5 holes by impact driversc) fix the frame with 4 M10×150 setscrew. Semmetry installation of framed) Fix the outside machine with 4 M8 hexagon nipples.(3) Dig ￠70 host hole between water storage tank and outside machine group. Outside hole shall be slopes downward a little (as Figure 2shows) and wear it coat on the wall hole.（Fig 2）c. Temperature Hold Box Site：1）The tank shall be installed 2.5m far from main machine. It couldbe installed on outdoor balcony, roof and also be installed indoor.2) The water storage tank shall be installed with the method of floorstand. Install place shall be firm and could load 500kg/m 2 . If thefloor is not flat enough, it shall be installed with hang wall.3) The storage shall be pre-addressed tap-water pipe and hot waterpipe interface, and set a valve on water inlet.d. Temperature Hold Box Installation Steps1) Please install the safety relief valve in the place of water inletoutside connecting steel wire. (Note: point to the water tank),the other end of safety relief valve is connect with water tap pipe,make storage tank connect with hot water pipe. Do follow with (Fig3)（Fig 3）2) Open water tap inlet valve. Open any hot water tap in hot waterpipe. Fill it till the water overflowed. Close the hot water tap andtest it to ensure it is not leak.※ Note: keep it full of water. Keep the water inlet open.e. Heat Connecting Hose Installation1) Keep all connecting hose, control wire, twin core test wire andrelief valve plastic belted by plastic keep warm belt and keep themgo through ￠70 tube hole.2) Screw off the end socket nut of tank connecting hose.3) Get out the end socket plug screw, make the connect interface screwto the tank taps (firstly keep the copper hose aim to interface andthen lock the screw.)Do as Fig 4 shows.（Fig 4）4) Put plastic hose over pressure relief opening of safety reliefvalve. Connect the control wire with display panel. Dig two relateddeep holes and fix the display panel with setscrew5) Unscrewing the end socket nut of disconnecting valve and triplevalve. Screw the connecting hose to disconnecting valve and triplevalve. Tight them. Fig 5Fig 5f. Leakage Checking on Connecting Host:1) Ensure the pipe is corrected connected.2) Unscrew the cooper cap of two disconnecting valve and threedisconnecting valve. Get off pour opening cap from three waydisconnecting valve.3) Turn 1/2 round of two way valve with counter-clockwise by innerhexagon spanner.4) Coat the connecting host interface and water tank interface suds and check both of them are bladdery or not. If there are, tight them.5) Make inner hexagon spanner thrust against pour opening’s valve core. After 10 seconds “sizzle”, stop thrust for one minutes. Doit again for three time till the air become cool.6) Turn and open the disconnecting valve and three way valve corewith counter-clockwise by inner hexagon spanner. And then tight all caps.Warning: heating system should not contain air in order to keep itnormal working.Note: Do not let any thing go into the connecting hose. Keep thehose warm and keep the cooper hose without broken!!!g. Connections of Circuits1) The air source Water Heater outdoor machine shall be installedfollows the national wiring rule.2) Unscrew the screw of outdoor machine cover board3) Connect the temperature probe connector with outdoor machine twin core connector. Connect the display board connector with triple core connector.4) Connect the plug cord with leakage protection (show as Fig 4) h. Test Running1. As you are sure to install as above said in correct way, plug in. The pilot lamp shall be light under power is given. If it does notlight, press “reset” till it light.2. As the power is given, the intelligent controller will show youthe time and temperature at that moment. As it shows “OFF”, please press “ON/OFF”, it will show the one of conditions of “heating”, “heat preservation”, “defrosting”. If the water temperature is lower than the start temperature, it will show “heating”.3. As the compressor does 3 minutes delay device, you will feel thethree-way valve tube will be felt warm and warm.4. as the system is well worked, the water temperature will raisestep by step. The machine is well installed.g. Remove air source1. Make the two way disconnect valve will be closed round table clock wise by inner hexagon spanner.2. Be in advanced condition by a series of password as in common work condition.3. Begin to sort the liquid by select the “F98” with “▲” or “▼”.After air machine had running for one minute, close the three wayvalve.4. Exit by press “S” of “End” by “▲” or “▼”, uninstall the power and heating connecting tube and move the outdoor machine andwater tank.＊ Note: Non-professionals are not allowed to dismount! ＊。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
菲普森空气能热水器控制面板说明书
篇一：
菲普森空气能热水器控制面板说明书
菲普森空气能热水器是一款高效、节能、环保的热水器，其控制面板是用户操作的重要工具。
以下是菲普森空气能热水器控制面板的说明书:
1. 开机操作
按下“开/关”按钮，电源指示灯亮起，表示控制面板已开机。
此时，用户可以查看水温、水箱水量等信息。
2. 温度调节
根据需要，用户可以调节水温。
具体操作是，按下“温度”按钮，数字显示屏会显示当前水温。
然后，用户可以根据需要选择温度，再按下“确认”按钮即可。
3. 模式调节
根据需要，用户可以调节热水器的模式。
具体操作是，按下“模式”按钮，数字显示屏会显示当前模式。
然后，用户可以根据需要选择模式，再按下“确认”按钮即可。
4. 水泵操作
如果需要开启或关闭水泵，用户可以按下“水泵”按钮。
具体操作是，按下“水泵”按钮，水泵指示灯亮起，表示水泵已开启;再按下“水泵”按钮，水泵指示灯熄灭，表示水泵已关闭。
5. 报警操作
如果热水器出现异常情况，用户可以按下“报警”按钮。
具体操作是，按下
“报警”按钮，蜂鸣器响起，表示热水器出现异常情况，需要及时采取措施。
6. 故障查询
如果用户发现热水器出现故障，可以按下“故障”按钮，数字显示屏会显示当前故障信息。
用户可以查看故障信息，了解故障原因，及时采取措施修复。
菲普森空气能热水器控制面板操作简单、使用方便，用户可以仔细阅读说明书，了解具体操作方法，以便更好地使用热水器。
篇二：
菲普森空气能热水器控制面板说明书
菲普森空气能热水器是一款高效、环保、节能的热水器，其控制面板是一个重要的组成部分。
以下是菲普森空气能热水器控制面板的说明书:
1. 开机操作
按下“开/关”按钮，电源指示灯亮起，表示控制面板已开机。
此时，可以查看当前的水温、水箱容量等信息。
2. 温度调节
根据需要，可以按下“温度调节”按钮，选择所需的水温。
温度调节范围为35°C 至 55°C，每按一次按钮上升或下降 1°C。
当需要洗澡时，可以按下“设置”按钮，将水温设置到所需的温度。
3. 模式调节
根据需要，可以按下“模式调节”按钮，选择所需的运行模式。
包括“常规模式”、“快速模式”、“睡眠模式”等。
在常规模式下，热水器会根据水温和用水需求自动调整运行时间;在快速模式下，热水器会在用水前几分钟启动，以满足用水需求;在睡眠模式下，热水器会在夜间低速运行，以保持水温稳定。
4. 故障排除
如果控制面板出现故障，可以按下“复位”按钮进行故障排除。
如果故障仍然存在，请联系菲普森客服进行维修。
5. 安全提示
菲普森空气能热水器是一款安全高效的热水器，但是在使用中仍然需要注意安全问题。
在使用期间，应避免将手伸入水箱或热水器内部，以免受伤。
同时，应避免将热水器安装在潮湿的环境中，以确保热水器的安全使用。
以上是菲普森空气能热水器控制面板的说明书，如果有任何疑问，请随时联系菲普森客服。
