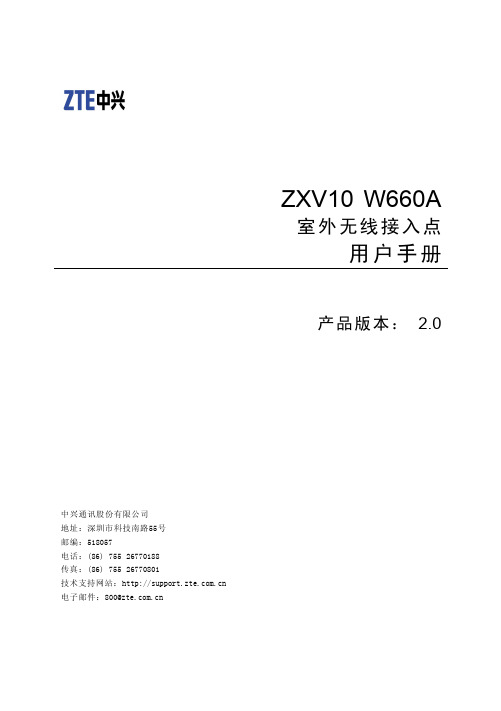

ZXV10 W660A (V2.0)室外WIFI覆盖设备用户使用手册

品时，请拔去电源线。
服务请勿自行拆卸本产品或打开机体外壳，请勿试图自行维修本产品，这将会导致您的产品失去保修权益。当本产品出现下列问题时，请及时与您的服务商联系。 l 电源线或电源插头损坏。 l 有液体落入本产品内。 l 被雨水或其它液体浸泡。 l 依照操作指示使用，却无法正常运行。
1
l 遭摔落，重击导致机壳坏损。 l 本产品的运行指示出现异常。
2.1 产品简介 ........................................... 3 2.2 典型应用 ........................................... 3 2.3 接口说明 ........................................... 3 3 产品安装 ........................................... 5 3.1 安装需求 ........................................... 5 3.2 硬件安装 ........................................... 5 3.3 计算机设置 ......................................... 10
6.1.1 设置宽带连接（胖） ............................ 17 6.1.2 设置宽带连接（瘦） ............................ 18 6.2 WLAN设置 ........................................... 21 6.2.1 设置基本信息 .................................. 21 6.2.2 设置SSID ........................................ 22 6.2.3 设置安全信息 .................................. 24 6.2.4 设置流量限制 .................................. 28 6.2.5 设置访问控制列表 .............................. 29 6.2.6 查看关联设备 .................................. 30 6.2.7 扫描接入点 .................................... 30 6.2.8 设置WMM ......................................... 32 6.2.9 设置防攻击测试 ................................ 33 6.3 地址管理 ........................................... 34 6.3.1 管理地址 ...................................... 34 6.3.2 管理IPv6地址 .................................. 35 6.4 设置静态路由 ....................................... 36 6.5 使能IPv6 .............................................. 37 7 安全设置 ...........................................38 7.1 设置防火墙 ......................................... 38 7.2 设置MAC过滤 ........................................ 39 8 应用设置 ...........................................41 8.1 QoS设置 ............................................ 41 8.1.1 设置QoS基本信息 ............................... 41 8.1.2 设置分类规则 .................................. 42 8.1.3 设置拥塞管理 .................................. 45 8.2 设置时间管理 ....................................... 45

GSM数字基站拉远产品用户手册D版VP2(近端RA,远端RB)

目录缩写 (4)安全要求 (5)1、概述 (6)1.1系统简介 (6)1.2应用介绍 (7)1.3GSM数字基站拉远系统分类 (8)1.4产品特点 (8)2、安装和连接 (9)2.1近端单元安装 (9)2.2远端单元安装 (9)2.3近端单元的连接 (12)2.4远端单元的连接 (14)2.5一近端单元拖多个远端单元的连接 (16)3、试运行设置 (17)3.1远端单元加电 (17)3.2近端单元加电 (17)3.3指示灯说明 (17)3.4系统设置 (17)4、模块功能描述 (18)4.1主要模块描述 (18)4.2近端单元内部模块图 (19)4.3远端单元内部模块图 (20)4.4原理框图 (21)5、LMT安装与操作 (22)5.1硬件要求 (22)5.2操作说明 (22)5.2.1操作准备 (22)5.2.2启动程序 (22)5.2.3菜单操作 (24)5.2.4访问菜单 (25)5.3系统设置 (39)5.3.1 LMT 连接 (39)5.3.2 近端单元参数设置 (39)5.3.3 主从机初始化连接 (41)5.3.4 远端单元参数设置 (43)5.4链路增益设置 (47)6、故障处理 (49)6.1维护与维修注意事项 (49)6.2紧急情况处理 (49)6.3故障处理流程 (50)7、附录一：技术指标 (51)缩写本手册中用到的缩写AC 交流电ACPR 邻信抑制比AGC 自动增益控制ALC 自动电平控制BS 基站BTS 基站CDMA 码分多址CPU 中央处理器CW 连续波DC 直流电DCS 数字蜂窝系统EMC 电磁兼容性CDMA 全球移动通信系统，俗称“全球通”HW 硬件LED 发光二极管IF 中频LNA 低噪声放大器MODEM 调制解调器MS 移动台MTBF 平均故障间隔时间MTTR 平均修复时间OMT 操作维护终端OP 光纤PA 功率放大器PHS 个人手持电话系统，俗称“小灵通”PLL 锁相环Repeater 直放站RX 施主端RF 射频SAGEM 法国萨基姆SUNWA VE 三维通信TDMA 时分多址TX 重发端UPS 不间断电源VCO 压控振荡器WCDMA 宽带码分多址安全要求对SUNWA VE GSM数字基站拉远系统进行安装、操作和维护，必须遵守以下安全事项：1. GSM数字基站拉远系统主要用来解决机房选址困难，通过传输、放大施主扇区的信号至覆盖区内的移动台；同时接收覆盖区内移动台信号，并放大和传输至施主扇区，实现GSM基站的射频拉远功能，GSM数字基站拉远系统仅作为此用途使用。

福禄克 Fluke v3000 FC 无线交流电压模块用户手册说明书

i
3000 FC
用户手册
无线电设置 ..................................................................................................................... 与 Fluke Connect 应用程序配对 ................................................................................ 与无线测试工具配对.................................................................................................. 断开无线电 ................................................................................................................ 基本测量 ........................................................................................................................ 交流和直流电压测量.................................................................................................. 伏特/赫兹比 ............................................................................................................... 电阻测量 ................................................................................................................... 电容测量 ................................................................................................................... 通断性测试 ................................................................................................................ 交流或直流电流测量.................................................................................................. 二极管测试 ................................................................................................................ 频率测量 ................................................................................................................... 维护 ............................................................................................................................... 一般维护 ................................................................................................................... 保险丝测试 ................................................................................................................ 电池和保险丝更换 ..................................................................................................... 维修和零件 ..................................................................................................................... 技术指标 ........................................................................................................................ 交流电压 ................................................................................................................... 直流电压、通断性、电阻、二极管测试和电容 .......................................................... 交流和直流电流 ......................................................................................................... 频率........................................................................................................................... 频率计数器灵敏度 ..................................................................................................... 输入特性 ................................................................................................................... MIN MAX 计数 .......................................................................................................... 13 14 14 17 17 17 19 20 21 22 23 25 27 29 29 29 30 33 36 38 39 40 40 41 42 42

ZXSDR R8841 C804 CDMA远端射频单元8841型技术手册

修订历史
Revision No. R1.0
Revision Date 2008/04/30
Revision Reason 第一次发布
资料编号：sjzl20081122 发布日期：2008/04/30
目录
1 产品概述 ................................................... 1-1 1.1 ZTE分布式基站解决方案 .......................................................................1-1 1.2 RRU在网络中的位置.............................................................................1-3 1.3 产品功能................................................................................................1-3 1.4 产品特点................................................................................................1-5 1.5 外观.......................................................................................................1-5 1.6 基本原理................................................................................................1-6 1.6.1 系统架构 ......................................................................................1-6 1.6.2 信号流程 ......................................................................................1-7 1.7 对外接口................................................................................................1-7 1.8 安装使用场景 ........................................................................................1-9 1.9 基带-射频接口组网 ............................................................................. 1-12 1.10 操作维护系统 ..................................................................................... 1-13 1.11 技术指标 ............................................................................................ 1-13 1.11.1 工程指标 .................................................................................. 1-13 1.11.2 性能指标 .................................................................................. 1-14 1.12 遵循标准 ............................................................................................ 1-15

三遥馈线自动化终端用户手册说明书

三遥馈线自动化终端用户手册\本手册适用于以下型号的产品DFL821_F30江苏德菲勒智能科技有限公司2018江苏德菲勒智能科技有限公司。

有限担保：江苏德菲勒智能科技有限公司保证您所定购的每台FTU测控单元在正常使用和维护的情况下，自收到之日起一年内不会出现故障。

在担保时间内，江苏德菲勒智能科技有限公司有选择的采用快捷的方式免费为用户维修或更换损坏的单元；如果设备出现故障，用户可以将损坏的单元以任何方式运送至我公司，或者由我公司安排维修人员到现场维修。

江苏德菲勒智能科技有限公司的联系地址：地址：扬州市邗江区高新区新大楼主楼9楼918室对于用户在使用或不当使用该产品而造成的损失（包括，但不限于，直接的、间接的或附带的），江苏德菲勒智能科技有限公司不承担任何责任。

江苏德菲勒智能科技有限公司的责任是经过江苏德菲勒智能科技有限公司的检测和判断，对损坏的FTU测控单元修理或更换损坏的部分。

尊敬的用户：为了您和设备的安全，在安装及使用本装置前，请认真阅读本说明书。

请妥善保存本说明书，以备查阅。

由于本产品技术不断更新，因此而引起的产品功能和性能的改变不包含在本说明书内，敬请谅解。

如果在安装及使用中遇到问题请与江苏德菲勒智能科技有限公司联系。

本说明书的解释权归江苏德菲勒智能科技有限公司，并保留一切权利。

安全信息本设备为交流220V弱电设备，但在现场安装、维护时，附近有危险电压！本设备不能替代可见断开点，工作时应遵循所有当地批准的安全规程；否则，将因触高压导致严重人身伤亡。

本说明书并不能概括设备的安装、运行、维护等等的所有细节，如有问题请与江苏德菲勒智能科技有限公司联系。

接收、验货及存储每台控制器在出厂前都经过了完整的装配、测试及检验，并进行了精心的校核、调整，运输前已经处于良好的状态。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

提供索引
读者对象
WCDMA系统工程师
WCDMA维护工程师
版本更新说明
产品版本
资料版本
资料编号
更新说明
V3.07
20080301-R1.0
sjzl20080601
手册第一次发行
本书约定
介绍符号的约定、键盘操作约定、鼠标操作约定以及四类标志。
1．符号约定
带尖括号“＜＞”表示键名、按钮名以及操作员从终端输入的信息；带方括号“［］”表示人机界面、菜单条、数据表和字段名等，多级菜单用“→”隔开。如［文件→新建→文件夹］多级菜单表示［文件］菜单下的［新建］子菜单下的［文件夹］菜单项。
图13R8840的运行上下文
表11与R8840运行相关的设备
外部系统
接口
外部系统功能概述
UE
Uu接口
用户终端设备，通过无线接口Uu实现话音和数据业务的传输
BBU
基带射频接口
基带处理功能
级联RRU
级联基带射频接口
射频处理功能
用户设备
外部设备接口
环境监控设备等
天线
天馈接口
无线信号的收发
LMT
LMT接口
本地操作维护终端
1.2
R8840有多个子型号，支持不同的频段，如表12所示。（UMTS频段所对应的上下行频率范围请参见附录B。）
表12R8840产品型号
产品型号
支持的频段
ZXWRR884085A
UMTS 850
ZXWRR884090A
UMTS 900
ZXWRR884021A
UMTS 2100
1.3
大容量：系统最大支持4C1S。
2
LC2
BBU与RRU的接口/RRU级联接口
LC型光接口（IEC 874）
3
AISG
AISG设备接口
8芯航空插座（IEC 60130-9-ED）
4
Monitor
外部设备接口
37芯航空插座
5
PWR
电源接口
交流接口：
连接器XCE18T3K1P1-02+FJJP1-7.5
线缆截面积1 mm2
直流接口：
连接器XCG18T4K1P1-01+XC18FJJP1-10.5
资料名称
ZXWR R8840（V3.07）WCDMA室外型宏射频拉远用户手册
产品版本
V3.07
资料版本
20080301-R1.0
您单位安装该设备的时间
为了能够及时与您联系，请填写以下有关您的信息
姓名
单位名称
邮编
单位地址
电话
E-mail
您对本资料
的评价
好
较好
一般
较差
差
总体满意
工作指导
查阅方便
内容正确
内容完整
为了减小环境污染、保护地球，特声明由中兴通讯生产的ZXWR R8840（V3.07）WCDMA室外型宏射频拉远在以下物质含量方面符合中华人民共和国电子行业标准SJ/T11364-2006“电子信息产品污染控制标识要求”：
●铅（Pb）
●汞（Hg）
●镉（Cd）
●六价铬（Cr6+）
●多溴联苯（PBB）
●多溴二苯醚（PBDE）
3．鼠标操作约定
格式
意义
单击
快速按下并释放鼠标的左键
双击
连续两次快速按下并释放鼠标的左键
右击
快速按下并释放鼠标的右键
拖动
按住鼠标的左键不放，移动鼠标
4．标志
本书采用四个醒目标志来表示在操作过程中应该特别注意的地方。
注意、小心、警告、危险：提醒操作中应注意的事项。
第1章
摘要
本章介绍了R8840的系统背景、设备整体情况以及特点。
本产品符合关于环境保护和人身安全方面的设计要求，产品的存放、使用和弃置应遵照产品手册、相关合同或相关国法律、法规的要求进行。
如果本产品进行改进或技术变更，恕不另行专门通知。
当出现产品改进或者技术变更时，您可以通过中兴通讯技术支持网站查询有关信息。
产品有害物质含量状态说明
R8840系统的指示灯和按钮在设备正面左下，如图17所示，其含义如表14所示。
图17R8840的指示灯
表14R8840指示灯和按钮的含义
指示灯/按钮
指示灯状态
解释
RUN
常亮
单板处于复位状态
1 Hz闪烁
单板状态正常
5 Hz闪烁
单板处于BOOT启动过程
常灭
单板自检失败
ALM
常灭
设备运行无故障或正在复位、启动或者下载版本
电源
电源接口
给RRU系统供电
保护地
保护地接口
系统接地保护
R8840通过Uu接口完成UE的接入和无线链路传输功能，主要包括：射频处理、调制解调、测量及其上报、载波功率控制、接收分集、校正以及同步功能等。
通过光纤接口与BBU相连，通过光接口主要完成：IQ数据传输，上报测量信息，射频功能配置，时钟同步等功能。
同时支持交流/直流供电：兼容220V AC和-48V DC电源输入。
组网灵活：支持星型、链型和环型等多种组网方式。
节能环保：机顶40W输出功率时功放效率不小于30％。
支持AISG协议的RET电调天线，支持AISG接口的塔放。
支持接收分集，并柜方式下支持发射分集和4天线接收。
系统体积小，重量轻，便于工程安装和维护。
如果根据这两部分功能单独进行系统设计，可以实现分布式的基站系统（如图12所示），提供更为灵活的组网方式。中兴通讯根据这两部分功能，分别设计了BBU（基带单元）和RRU（远端射频单元），充分满足运营商的组网需求。
图12分布式基站系统结构
1.1.3
R8840的运行上下文如图13所示，与R8840运行相关的设备的功能以及接口如表11所示。
该声明基于我们目前所了解的知识。由于使用条件我们无法控制，中兴通讯对该信息的使用不做任何明示或默示的担保，并且不承担任何责任。
具体有害物质含量状态，请参见随机资料《中兴通讯产品有害物质含量状态说明表》。
意见反馈表
为提高中兴通讯用户资料的质量，更好地为您服务，希望您在百忙之中提出您的建议和意见，并请传真至：0755-26772236，或邮寄至：深圳市高新技术产业园科技南路中兴通讯大厦中兴通讯学院文档开发部收，邮编：518057，邮箱：doc@。对于有价值的建议和意见，我们将给予奖励。
结构合理
图表说明
通俗易懂
您对本资料的
改进建议
详细说明
内容结构
内容详细
内容深度
表达简洁
增加图形
增加实例
增加FAQ
其他
您对中兴通讯
用户资料的
其他建议
前言
手册说明
ZXWR第三代移动通信系统无线网络子系统包括无线网络控制器和无线基站，负责完成呼叫处理、无线资源分配管理、终端移动性管理、小区切换控制和无线接入的功能。
第3章安装
本章详细介绍R8840的安装方式和安装步骤
第4章维护
本章介绍了R8840的维护方法
附录A室外接头的防水密封
介绍室外接头防水密封方法
附录BUMTS频段
UMTS频段划分信息
附录CRRU与天馈系统的连接
介绍R8840与天馈的连接方案
附录D缩略语
详细列出了手册种出现的缩略语的英文全称和中文含义
附录E索引
1.4
1.4.1
R8840的外形如图14所示。
图14R8840的外形
1.4.2
R8840主要完成收发信功能，其原理如图15所示，系统由Transceiver、Duplexer和Power Amplifer三大模块组成。
Duplexer：分离和滤波发送/接收信号，并且集成了低噪放大功能。
Transceiver：上下行射频信号的频率转换、信号放大、滤波、A/D或者D/A转换。
●本节中的线缆图左侧为B端，右侧为A端。
1.4.4.1
【线缆用途】
天馈跳线是R8840与天馈系统的射频接口，用于射频信号的收发。
【线缆外观】
天馈跳线的B端为N型公50Ω连接器，A端接口视连接的设备的接口而定，馈线线径为1/2”，线缆外观如图18所示。
图18天馈跳线外观
【端口信号说明】
无。
【线缆接线关系】
2．键盘操作约定
格式
意义
加尖括号的字符
表示键名、按钮名。如＜Enter＞、＜Tab＞、＜Backspace＞、＜a＞等分别表示回车、制表、退格、小写字母a
＜键1+键2＞
表示在键盘上同时按下几个键。如＜Ctrl+Alt+A＞表示同时按下“Ctrl”、“Alt”、“A”这三个键
＜键1，键2＞
表示先按第一键，释放，再按第二键。如＜Alt，F＞表示先按＜Alt＞键，释放后，紧接着再按＜F＞键
RRU必须和BBU配合使用才能实现传统基站的功能。使用RRU+BBU的方式降低了对机房的要求，减少了馈线损耗，并且可以提供更为灵活的布站方式。
1.1.1
R8840遵照3GPP R6Jun 2006的规范要求进行开发。
1.1.2
一个Node B基站的功能基本可以划分为两大部分：
基带处理部分
射频处理部分
ZXWRR8840是中兴通讯WCDMA系列化基站中的一款室外型宏射频拉远单元。
本手册是R8840的用户手册，介绍R8840的工作原理、结构特点、组网方案以及配置说明，作为系统维护人员的参考。
内容介绍
章名
概要
第1章系统概述
本章介绍了R8840的系统背景、设备整体情况以及特点
第2章通用安全说明
本章介绍对ZXWR R8840设备进行安装或操作维护时应遵守的安全注意事项，同时说明各种安全符号的含义
