仪器确认 附件2 GC确认 中英文.doc
OMCL Network of the Council of Europe QUALITY ASSURANCE DOCUMENT 质量保证文件 PA/PH/OMCL (06) 86 DEF QUALIFICATION OF EQUIPMENT 仪器确认 ANNEX 2: QUALIFICATION OF GC EQUIPMENT 附件2：气相色谱仪的确认
Full document title and reference 文件全名和索引号
Qualification of Equipment Annex 2: Qualification of GC Equipment PA/PH/OMCL(06)86DEF Document type 文件类型 Guideline
Legislative basis 立法基础 The present document was also accepted by EA as
recommendation document to be used in the context of Quality Management System audits of OMCLs Date of first adoption 首次发行日期 May 2006
Date of original entry into force 首次执行日期 June 2007
Date of entry into force of revised document 修订后执行日期
October 2006
Previous titles/other references 原文件名/其它索引号 This document replaces part of document PA/PH/OMCL(06)46
DEF Custodian Organisation 保管机构 The present document was elaborated by the OMCL
Network/EDQM of the Council of Europe Concerned Network 相关网络 GEON
ANNEX 2 OF THE OMCL NETWORK GUIDELINE “QUALIFICATION OF EQUIPMENT” OMCL网络指南“仪器确认”附件2
QUALIFICATION OF GC EQUIPMENT
气相色谱仪的确认 Introduction 介绍 The present document is the second Annex of the core document “Qualification of Equipment”, and it should be used in combination with it when planning, performing and documenting the GC equipment qualification process.
本文件是核心文件“仪器确认”的第二个附件，在计划、实施和记录气相色谱仪的确认时，应将本文件与核心文件联合使用。
The core document contains the general introduction and the Level I and II of qualification, common to all type of instruments, and the present annex contains GC instrument-related recommendations on parameters to be checked and the corresponding typical acceptance limits, as well as practical examples on the methodology that can be used to carry out these checks.
核心文件包括了一般介绍和第一级与第二级确认，适用于所有类型的仪器，本附件包括了气相色谱仪相关的建议，包括哪些参数需要检查，相应的典型可接受标准，以及用来进行这些检查的实践方法学例子。
The tests proposed in the Level III and IV of qualification are based on an overall approach, in which several parameters are checked at the same time in a combined test procedure, to obtain information on the overall system performance (e.g. peak area precision, retention time precision, temperature programme reproducibility, etc).
在第三级和第四级确认所建议的检查是基于一种全面检查的方法，在其中同一个联合测试可以检查几个不同参数，得到全面的系统性能信息（例如峰面积精密度、保留时间精密度、温度程序重复性等）
Nevertheless, it should be noted that it is also acceptable to check these parameters individually by using other well-defined procedures.
另外，需要注意如果采用其它界定很好的程序对这些参数进行单独确认也是可以接受的。 TABLE III表3 Level III. Periodic and motivated instrument checks 第三级 周期主动仪器检查 Examples of requirements for GC instruments with FID 配备FID检测器的气相色谱仪的要求举例 Instrument module 仪器模块 Parameter to be checked 需要检查的参数 Typical tolerance limit 典型可接受限度
1 Inlet system 进样系统 1.1 Injector leak test 进样器泄漏检查 1.2 Pressure/flow accuracy and stability 压力/流速准确性和稳定性 1.3 Repeatability of injection (overall test 1) -- in split mode 分流模式 --In split less mode 分流较少模式 1.4 Injector temperature ands accuracy and stability 进样器温度 准确度和稳定性 1.5 Carry-over (overall test 3) 残留（全面检查3） Pressure drop≤15kPa Within 5 min 5分钟内压降≤15kPa Covered by overall test 1 包括在全面检查1中
RSD≤3.0% RSD≤3.0%
Covered by overall test 2 包括在全面检查2中 ≤0.2%
2. Oven 柱温箱 2.1 Repeatability of oven temperature characteristics 柱温箱温度重复性 Covered by overall test 2 包括在全面检查2中 3. FID detector FID检测器 3.1. Linearity (overall test 3) 线性（全面检查3） 3.2. Constant detector response 检测器响应恒定性 3.3 Noise噪声 3.3. Drift 漂移 r2≥0.999 covered by overall test 1 or 2 包括在全面检查1或2中 see annex 1 见附件1 See Annex 1 见附件2
TABLE IV 表四 Level IV. In-use instrument checks 第四级：在用仪器检查 Examples of requirements for GC instruments with FID 配置FID检测器的气相色谱仪为例 Parameter to be checked 需要检查的参数 Typical tolerance limits 典型可接受限度 1. System suitability check for the method 方法系统稳定性检查 According to Ph. Eur. Or MAH dossier or validated in-house method 根据EP或MAH相关文件，或内部已验证的方法 2. Peak area precision 峰面积精密度 RSD≤3.0% unless otherwise prescribed* 除另有规定外RSD≤3.0% 3. Retention time repeatability 保留时间重复性 RSD≤2.0%
4. Sensitivity (where relevant, e.g. for related substances tests) 灵敏度（如果相关，例如对于有关物质） According to Ph. Eur. or MAH dossier or validated in-house method 根据EP或MAH相关文件，或内部已验证的方法 * This is to be defined in conjunction with the target concentration of the analyte
这要与分析物的目的浓度联系起来确定。 All parameters given here should be checked when performing analyses under the working conditions for the actual sample determinations. Normally, the test and reference solutions to be prepared for this purpose are given as a part of the method.
这里给出的所有参数应在工作状态下进行实际样品检查分析时进行检查。一般来说，供试液和对照溶液应根据此目的作为方法的一部分进行准备。
欧盟OMCL仪器确认附件1-HPLC确认
OMCL Network of the Council of EuropeQUALITY MANAGEMENT DOCUMENTPA/PH/OMCL (11) 04QUALIFICATION OF EQUIPMENT仪器确认ANNEX 1: QUALIFICATION OF HPLC EQUIPMENT 附件1：HPLC仪器的确认ANNEX 1 OF THE OMCL NETWORK GUIDELINE“QUALIFICATION OF EQUIPMENT”OMCL网络指南“仪器的确认”之附件1QUALIFICATION OF HPLC EQUIPMENTHPLC仪器的确认Introduction 概述The present document is the first Annex of the core document “Qualification of Equipment”, and it should be used in combination with it when planning, performing and documenting the HPLC equipment qualification process.本文件是核心文件“仪器的确认”第1个附件，在计划、实施和记录HPLC仪器的确认过程时，应将本文件与核心文件一起使用。
The core document contains the general introduction and the Level I and II of qualification, common to all type of instruments, and the present annex contains HPLC instrument-related recommendations on parameters to be checked and the corresponding typical acceptance Limits, as well as practical examples on the Methodology that can be used to carry out these checks.核心文件包括了第一级和第二级确认的通用介绍，适用于所有类型的仪器，本附件包括了HPLC仪器相关的需要检查的参数和相应典型的可接受标准的推荐，以及可用于进行这此检查的实用方法学举例。
检验仪器检验方法验证或确认
HPLC校准项目及周期示例
校准项目 波长准确度 （低波段，咖啡因溶液） 波长准确度 （高波段，钬玻璃） 基线噪音和基线漂移
线性测试 进样精密度
国家检定 主要项目：泵流速的准确度与稳定性， 定性、定量重复性，基线噪音，基线漂 移，最小检测浓度，和柱温箱温度的准 确度。
•
第九十四条 不得使用未经校准、超过校准有效期、失准的衡器、量具、
仪表以及用于记录和控制的设备、仪器。
• 第二百二十一条 质量控制实验室应当至少有下列详细文件……7.仪器校准 和设备使用、清洁、维护的操作规程及记录。
第8讲第2部分检验仪器检验方法验 证或确认
关注点——仪器的校准与维护
• 用于实验分析的设备、仪器，测量仪表都应该进行校准，包 括简单的测量仪器如温度计，密度计，熔点仪，和复杂的分 析仪器如HPLC，TOC等，关键的设备和仪器应有预防性维 护计划。
第8讲第2部分检验仪器检验方法验 证或确认
• 性能确认（performance qualification, P Q ) • 目的是确认仪器能够按照用户需求持续运
行。在安装确认和运行确认完成后，通过 性能Байду номын сангаас认证明仪器的在正常操作环境中的 适用性。
第8讲第2部分检验仪器检验方法验 证或确认
• 性能测试： • 根据用户的使用要求，设计一个或多个测
第8讲第2部分检验仪器检验方法验 证或确认
• 系统适用性试验是液相和气相色谱 法必须的组成部分。
• 证明色谱系统在使用时满足预期的 实验要求，是对仪器性能，分析操 作，色谱柱条件及被测试样品的综 合评价。
第8讲第2部分检验仪器检验方法验 证或确认
• 主要评价指标包括：分离度（R ) ，系统精 密度（R S D ) ,托尾因—f ( T ) 等。评价指 标的标准通常来自方法确认的规定，所以 这种系统适用性试验认为是基于实验方法 的系统适用性试验，是实验方法的必要组 成。
仪器设备校准确认报告 GCMS
±0.3 u
-0.3 u
符合
≤10 %
1.1 %
符合
定量重复性:22 %
定性重复性：2.5 %
确认结论
校准结果可满足检测方法要求
确认人：
审核人：
仪器设备校准确认报告
仪器设备名称及型号 计量校准机构名称 计量校准机构授权证书号 证书编号 本次校准日期
校准证书有效性
校准依据 项目
分辨力 质量范围 信噪比 质量准确度 测量重复性 检测方法要求
ห้องสมุดไป่ตู้
气相色谱-质谱联用仪 G7000C 编号 YQ-012
北京市计量检测科学研究院
（国）法计（2012）01037 号
HA17Z-SQ010114
2017 年 5 月 25 日
计量校准机构资质在有效期内，该校准仪器在检验检测能力
范围内，此证书有效
JJF 1164-2006 台式气相色谱质谱连用仪校准规范
标准值
校准值
单项结论
W1/2＜1 u
W1/2=0.7u
符合
＞600 u
＞600 u
符合
EI:m/z=272 处 S/N＞10 EI:m/z=272 处 S/N=11 符合
检验仪器确认与验证管理规程(含表格)
文件制修订记录1.目的：确保检验结果的准确性。
2.适用范围：检测仪器、计量仪器、检验方法。
3.职责：验证小组所有成员。
4.控制要求：4.1负责部门4.1.1验证方案由验证小组负责起草。
4.1.2仪器校正由计量人员负责。
4.1.3 新仪器适用性由质量管理部负责。
4.2仪器的分类A类：不具备测量功能，通常只需校准，供应商的技术可以作为用户需求。
例如：超声波清洗机、离心机等。
B类：此类仪器具有测量功能，并且仪器控制的物理参数（如温度、压力或流速等）需要校准，用户需求一般与供应商功能标准和操作限度相同。
例如：熔点仪、分析天平、PH计、折射仪、滴定仪、干燥箱、培养箱等。
此类仪器或设备通常需要进行安装确认和运行确认，并制定相关操作、校验及维护的标准规程。
C类：此类仪器通常包括仪器硬件和其控制系统（固件或软件）用户需要对仪器的功能要求、操作参数要求、系统配置、要求等详细描述。
例如：紫外、高效液相色谱仪、气相色谱仪。
此类仪器和设备需要安装确认、运行确认、专门的性能确认，并制定相关操作、校验和维护的操作规程。
4.3验证方案验证方案由有关部门提出，质量管理部会签。
根据质量标准草案确定检查和试验范围，拟定具体的操作步骤，审批实验。
4.4仪器验证4.1 A类仪器由公司计量人员根据产品说明书进行校准，即可投入使用。
4.2 B类仪器请外部检定部门出具计量合格证书，公司内部需要进行安装确认和运行确认，旧仪器只进行运行确认即可投入使用。
4.3 C类需要外检，并出具计量合格证书，公司内部需要进行安装确认、运行确认、专门的性能确认。
4.5再验证仪器在使用一段时间后，要根据仪器类别和使用情况进行再验证、校正，已经验证的旧仪器应通过功能试验。
5.规定：仪器必须经过验证或确认后才能投入使用。
6.记录：计量器具检定申请校正记录校正记录（瓶）校正温度：水的密度：校正人：复核人：校正日期：允许值：。

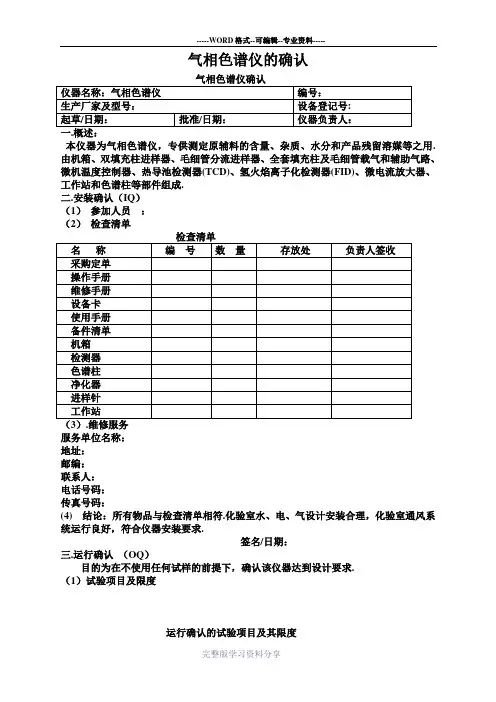

气相色谱仪的确认(3Q)
