虚拟路由冗余协议(vrrp)简介
HSRP和VRRP的区别
HSRP和VRRP的区别- -1.在功能上,VRRP和HSRP非常相似,但是就安全而言,VRRP对HSRP的一个主要优势:它允许参与VR RP组的设备间建立认证机制.并且,不像HSRP那样要求虚拟路由器不能是其中一个路由器的ip地址,但是V RRP允许这种情况发生(如果”拥有”虚拟路由器地址的路由器被建立并且正在运行,那么应该总是由这个虚拟路由器管理—等价于HSRP中的活动路由器),但是为了确保万一失效发生的时候终端主机不必重新学习MAC地址,它指定使用的MAC地址00-00-5e-00-01-VRID,这里的VRID是虚拟路由器的ID(等价于一个HS RP的组标识符).2.另外一个不同是VRRP不使用HSRP中的政变或者一个等价消息,VRRP的状态机比HSRP的要简单, HSRP有6个状态(初始(Initial)状态，学习(Learn)状态，监听(Listen)状态，对话(Speak)状态，备份(Stand by)状态，活动(Active)状态)和8个事件, VRRP只有3个状态(初始状态(Initialize)、主状态(Master)、备份状态(Backup))和5个事件.3. HSRP有三种报文，而且有三种状态可以发送报文呼叫(Hello)报文，告辞(Resign)报文，突变(Coup)报文VRRP有一种报文VRRP广播报文：由主路由器定时发出来通告它的存在，使用这些报文可以检测虚拟路由器各种参数，还可以用于主路由器的选举。
4. HSRP将报文承载在UDP报文上，而VRRP承载在TCP报文上(HSRP 使用UDP 1985端口，向组播地址224.0.0.2 发送hello消息。
)5.VRRP的安全:VRRP协议包括三种主要的认证方式:无认证,简单的明文密码和使用MD5 HMAC ip 认证的强认证.强认证方法使用IP认证头(AH)协议.AH是与用在IPSEC中相同的协议,AH为认证VRRP分组中的内容和分组头提供了一个方法. MD5 HMAC 的使用表明使用一个共享的密钥用于产生hash值.路由器发送一个VRRP分组产生MD5 hash值,并将它置于要发送的通告中,在接收时,接受方使用相同的密钥和MD5值,重新计算分组内容和分组头的hash值,如果结果相同,这个消息就是真正来自于一个可信赖的主机,如果不相同,它必须丢弃,这可以防止攻击者通过访问LAN而发出能影响选择过程的通告消息或者其他一些方法中断网络.另外,VRRP包括一个保护VRRP分组不会被另外一个远程网络添加内容的机制(设置TTL值=255,并在接受时检查),这限制了可以进行本地攻击的大部分缺陷.而另一方面,HSRP在它的消息中使用的TTL值是1.6.VRRP的崩溃间隔时间:3*通告间隔+时滞时间(skew-time)虚拟路由器冗余协议虚拟路由器冗余协议（VRRP：Virtual Router Redundancy Protocol）虚拟路由器冗余协议（VRRP）是一种选择协议，它可以把一个虚拟路由器的责任动态分配到局域网上的VRRP 路由器中的一台。
VRRP配置实例
VRRP配置及多备份VRRP配置实例中兴通讯数据用服部钱月玫1 VRRP概念介绍VRRP全称是虚拟路由器冗余协议（Virtual Router Redundancy Protocol）。
为了理解VRRP，首先需要确定下列术语：●VRRP路由器：运行VRRP协议的路由器。
该路由器可以是一个或多个虚拟路由器。
●虚拟路由器：一个由VRRP协议管理的抽象对象，作为一个共享LAN内主机的缺省路由器。
它由一个虚拟路由器标识符（VRID）和同一LAN中一组关联IP地址组成。
一个VRRP路由器可以备份一个或多个虚拟路由器。
●IP地址所有者：将局域网的接口地址作为虚拟路由器的IP地址的路由器。
当运行时，该路由器将响应寻址到该IP地址的数据包。
●主虚拟路由器：该VRRP路由器将承担下列任务：转发那些寻址到与虚拟路由器关联的IP地址的数据包，应答对该IP地址的ARP请求。
注意，如果存在IP地址所有者，那么该所有者总是主虚拟路由器。
●备份虚拟路由器：一组可用的VRRP路由器，当主虚拟路由器失效后将承担主虚拟路由器的转发功能。
2 VRRP的工作机制VRRP把在同一个广播域中的多个路由器接口编为一组，形成一个虚拟路由器，并为其分配一个IP地址，作为虚拟路由器的接口地址。
虚拟路由器的接口地址既可以是其中一个路由器接口的地址，也可以是第三方地址。
如果使用路由器的接口地址作为VRRP虚拟地址，则拥有这个IP地址的路由器作为主用路由器，其他路由器作为备份。
如果采用第三方地址，则优先级高的路由器成为主用路由器；如果两路由器优先级相同，则谁先发VRRP 报文，谁就成为主用。
如图1所示，在这个广播域中的主机中，把虚拟路由器的IP地址设为网关。
当主用路由器发生故障时，将在备用路由器中选择优先级最高的路由器接替它的工作，这对于域中的主机来说没有任何影响。
只有当这个VRRP组中所有的路由器都不能正常工作时，该域中的主机才不能与外界通信。
但是，又有这样一个问题出现，如果VRRP组中主用路由器的上行链路断开，它的状态是不会改变的，还是Master，此时该域中的主机路由还是走此路由器，但因为其上行链路断开，导致该域的主机无法正常与外界通信。
VRRP的原理和运用
VRRP的原理和运用虚拟路由器冗余协议（VRRP）是一种用于提高网络中设备冗余性和可靠性的协议。
本文将介绍VRRP的原理和运用。
VRRP的原理VRRP将多个路由器组成一个虚拟路由器组（VRG），VRG中有一个设备被指定为虚拟路由器（Virtual Router，VR），其余设备为备份路由器（Backup Router，BR）。
VR和BR均被赋予一个虚拟IP地址，VR会监视虚拟IP地址状态，当其无法提供服务时，备份路由器将自动接管虚拟IP地址提供服务，从而保证网络的连通性。
VRRP运行流程1.一个Virtual Router ID（VRID）被定义并分配给VRG，其值为0~255，同一VRG内的VR和BR共享同一个VRID。
2.VR和BR通过互相发送VRRP报文，确定VR和BR所在的VRG，并协商谁扮演VR的角色。
3.当VR和BR成功协商后，VR将发送一个VRRP组播报文，其中包含VR的MAC地址和虚拟IP地址。
4.路由表中指向VR的所有路由器都将被通知使用VR的MAC地址。
5.备份路由器会定期发送VRRP报文，以检查VR的状态，当VR无法回应时，备份路由器会接管虚拟IP地址，成为新的主机。
VRRP的优点使用VRRP的好处包括：1.提高网络的可靠性和冗余性，当VR无法提供服务时，备份路由器将自动接管虚拟IP地址提供服务，避免了单点故障。
2.自动故障检测和恢复，当VR故障或离线时，备份路由器会自动接管虚拟IP地址，从而避免了手动干预和网络中断的风险。
VRRP的运用VRRP可以应用于各种场景，比如：提高路由器可用性在一个企业网络中，路由器是网络核心设备，其可用性非常关键。
使用VRRP可以提高路由器的可用性和冗余性，从而避免了单点故障的风险。
提高服务器可用性在一个大型网站或应用程序中，服务器是承载业务的关键设备。
如果服务器出现故障，将导致用户无法访问网站或应用程序，从而对用户造成损失。
使用VRRP 可以将多个服务器组成一个虚拟服务器集群，提高服务器的可用性和冗余性。
自己做的关于vrrp,mst功能

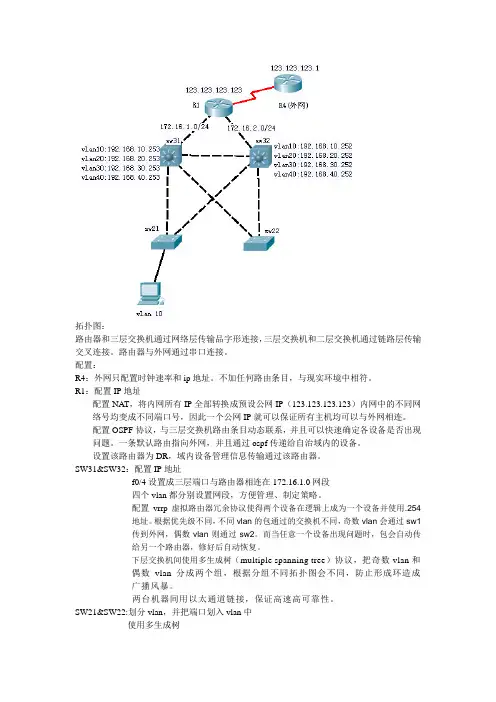

拓扑图：路由器和三层交换机通过网络层传输品字形连接，三层交换机和二层交换机通过链路层传输交叉连接。
路由器与外网通过串口连接。
配置：R4：外网只配置时钟速率和ip地址。
不加任何路由条目，与现实环境中相符。
R1：配置IP地址配置NAT，将内网所有IP全部转换成预设公网IP（123.123.123.123）内网中的不同网络号均变成不同端口号，因此一个公网IP就可以保证所有主机均可以与外网相连。
配置OSPF协议，与三层交换机路由条目动态联系，并且可以快速确定各设备是否出现问题。
一条默认路由指向外网，并且通过ospf传递给自治域内的设备。
设置该路由器为DR，域内设备管理信息传输通过该路由器。
SW31&SW32：配置IP地址f0/4设置成三层端口与路由器相连在172.16.1.0网段四个vlan都分别设置网段，方便管理、制定策略。
配置vrrp虚拟路由器冗余协议使得两个设备在逻辑上成为一个设备并使用.254地址。
根据优先级不同，不同vlan的包通过的交换机不同，奇数vlan会通过sw1传到外网，偶数vlan则通过sw2。
而当任意一个设备出现问题时，包会自动传给另一个路由器，修好后自动恢复。
下层交换机间使用多生成树（multiple spanning tree）协议，把奇数vlan和偶数vlan分成两个组，根据分组不同拓扑图会不同，防止形成环造成广播风暴。
两台机器间用以太通道链接，保证高速高可靠性。
SW21&SW22:划分vlan，并把端口划入vlan中使用多生成树功能介绍:这个拓扑中比较复杂的技术为:vrrp，MST，NA T。
1．VRRP功能介绍：虚拟路由器冗余协议（VRRP）是一种选择协议，它可以把一个虚拟路由器的责任动态分配到局域网上的VRRP 路由器中的一台。
控制虚拟路由器IP 地址的VRRP 路由器称为主路由器，它负责转发数据包到这些虚拟IP 地址。
一旦主路由器不可用，这种选择过程就提供了动态的故障转移机制，这就允许虚拟路由器的IP 地址可以作为终端主机的默认第一跳路由器。
vrrp6工作原理
vrrp6工作原理

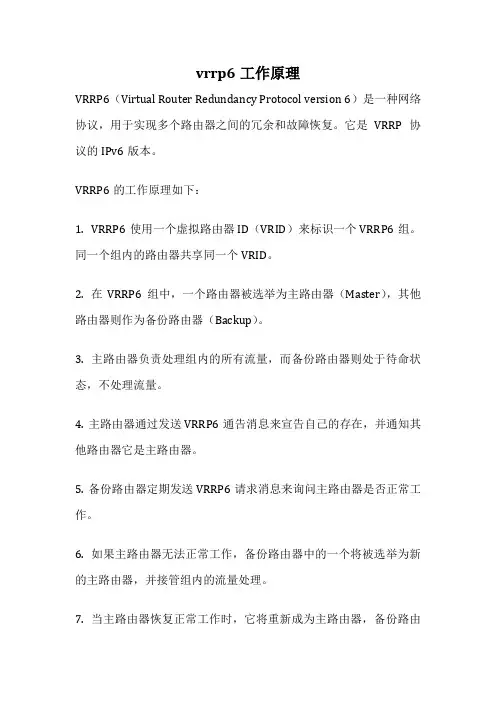

VRRP6（Virtual Router Redundancy Protocol version 6）是一种网络协议，用于实现多个路由器之间的冗余和故障恢复。
它是VRRP协议的IPv6版本。
VRRP6的工作原理如下：
1. VRRP6使用一个虚拟路由器ID（VRID）来标识一个VRRP6组。
同一个组内的路由器共享同一个VRID。
2. 在VRRP6组中，一个路由器被选举为主路由器（Master），其他路由器则作为备份路由器（Backup）。
3. 主路由器负责处理组内的所有流量，而备份路由器则处于待命状态，不处理流量。
4. 主路由器通过发送VRRP6通告消息来宣告自己的存在，并通知其他路由器它是主路由器。
5. 备份路由器定期发送VRRP6请求消息来询问主路由器是否正常工作。
6. 如果主路由器无法正常工作，备份路由器中的一个将被选举为新的主路由器，并接管组内的流量处理。
7. 当主路由器恢复正常工作时，它将重新成为主路由器，备份路由
器则返回待命状态。
通过VRRP6，网络中的设备可以实现冗余和故障恢复，提高网络的可靠性和可用性。
当主路由器出现问题时，备份路由器能够自动接管流量处理，确保网络的正常运行。
H3C_VRRP配置举例
[S9500-A-Vlan-interface2] vrrp vrid 1 virtual-ip 2.1.1.3 [S9500-A-Vlan-interface2] interface vlan 3
2 适用版本
软件版本：S9500-CMW310-R1628版本及以后升级版本（R2126及以上版本不支 持） 硬件版本：S9500交换机全系列硬件版本
3 注意事项
z 同一 VRRP 备份组多个备份的路由器之间，VRRP 组握手时间必须一致，否 则 VRRP 组状态会异常；
z 同一 VRRP 备份组之间 VRRP 的工作方式必须相同，都为抢占模式，或者都 为非抢占模式；
第1页, 共12页
VRRP配置举例
图1-2 虚拟路由器示意图
虚拟的交换机拥有自己的IP地址10.100.10.1（这个IP地址可以和备份组内的某个 交换机的接口地址相同），备份组内的交换机也有自己的IP地址（如Master的IP地 址为10.100.10.2，Backup的IP地址为10.100.10.3）。局域网内的主机仅仅知道这 个虚拟路由器的IP地址10.100.10.1（通常被称为备份组的虚拟IP地址），而不知 道 具 体 的 Master 交 换 机 的 IP 地 址 10.100.10.2 以 及 Backup 交 换 机 的 IP 地 址 10.100.10.3。局域网内的主机将自己的缺省路由下一跳设置为该虚拟路由器的IP 地址10.100.10.1。于是，网络内的主机就通过这个虚拟的交换机与其它网络进行 通信。当备份组内的Master交换机不能正常工作时，备份组内的其它Backup交换 机将接替不能正常工作的Master交换机成为新的Master交换机，继续向网络内的主 机提供路由服务，从而实现网络内的主机不间断地与外部网络进行通信。
vrrp实验报告原理
vrrp实验报告原理
VRRP实验报告原理
一、实验目的
本实验旨在通过实际操作，加深对VRRP（虚拟路由冗余协议）原理的理解，掌握VRRP协议的配置和使用方法，以及实现路由器冗余备份的功能。
二、实验原理
VRRP是一种用于提高路由器可靠性和可用性的协议，它允许多台路由器共享同一个虚拟IP地址和虚拟MAC地址，其中一台路由器作为主路由器，其他路由
器作为备份路由器。
主路由器负责转发数据流量，备份路由器则处于待命状态，一旦主路由器出现故障，备份路由器会立即接管主路由器的工作，实现无缝切换，确保网络的连续性和稳定性。
三、实验步骤
1. 配置VRRP组：在路由器上创建VRRP组，指定虚拟IP地址和优先级。
2. 配置VRRP路由器：设置主备份路由器，指定VRRP组的角色和优先级。
3. 验证VRRP功能：检查VRRP路由器的状态和切换情况，验证VRRP协议是否正常工作。
四、实验结果
通过实验操作，我们成功配置了VRRP组，并设置了主备份路由器，指定了虚
拟IP地址和优先级。
在验证过程中，我们模拟了主路由器故障的情况，观察到
备份路由器能够迅速接管主路由器的工作，实现了路由器冗余备份的功能，确
保了网络的连续性和稳定性。
五、实验总结
VRRP协议是一种有效的路由器冗余备份解决方案，通过实验我们深入了解了VRRP协议的原理和工作机制，掌握了VRRP协议的配置和使用方法。
在实际网络中，合理使用VRRP协议能够提高网络的可靠性和可用性，确保网络的正常运行。
希望通过本次实验，能够加深对VRRP协议的理解，为今后的网络管理和维护工作提供参考。
应用说明书：虚拟路由冗余协议（VRRP）和VRRP+
Application Note 31 Virtual Router Redundancy Protocol (VRRP) andVRRP+September 20161Introduction (3)1.1Outline (3)1.2VRRP Concepts (3)1.3VRRP Definitions (4)1.4VRRP Operation (4)1.5VRRP Interoperability (4)1.6Assumptions (5)1.7Corrections (5)1.8Version and Revision History (5)2VRRP Implementation (6)2.1Using a Single VRRP IP Address (6)2.2Using a Dedicated VRRP IP Address (Hub mode or single eth port) (6)2.3Using a Dedicated VRRP IP Address (VLAN mode on multi-port) (7)3VRRP Configuration (8)3.1Configuring a Single VRRP Address (8)3.2Configuring a Dedicated VRRP IP Address (10)4VRRP+ Implementation (11)4.1Using VRRP+ (11)5VRRP+ Configuration (13)5.1Configuring the Primary (DSL) Router (13)5.2Configuring the Secondary Router (15)5.3Note about VRRP and IPsec SAs (20)6Testing (21)6.1VRRP Testing (21)6.2VRRP+ Testing (21)7Configuration Files (23)7.1Digi TransPort Configuration Files (23)7.2Digi TransPort Firmware Versions (23)1.1OutlineThis document contains information about using VRRP to achieve physical redundancy, and VRRP+ to achieve logical redundancy, with Digi TransPort Devices.1.2VRRP Concepts1.2.1VRRPVRRP is an internet standard defined by RFC2338 (/rfcs/rfc2338.html) and to quote the RFC:“VRRP specifies an election protocol that dynamically assigns responsibil ity for a virtual router to one of the VRRP routers on a LAN. The VRRP router controlling the IP address(es) associated witha virtual router is called the Master, and forwards packets sent to these IP addresses. The electionprocess provides dynamic fail over in the forwarding responsibility should the Master becomeunavailable. This allows any of the virtual router IP addresses on the LAN to be used as the default first hop router by end-hosts. The advantage gained from using VRRP is a higher availability default path without requiring configuration of dynamic routing or router discovery protocols on every end-host.”To paraphrase, VRRP works by setting up a Virtual Router - a 'floating' IP Address that clients can use as their default gateway/next hop which transparently swaps between devices in case of failure.In this case, ‘failure’ refers to the loss of the complete unit i.e. physical redundancy; it does not take into account the status of the connections behind the router.1.2.2VRRP+VRRP+ is an extension to VRRP developed by Sarian Systems Ltd before becoming part of Digi International. It allows other devices to be monitored and alter the priorities of the VRRP routers. For example, if a host becomes unreachable on the far end of a network link then the default router can be changed by adjusting the VRRP priority of the router connected to that failing link.In this case we are able to achieve logical redundancy in addition to the physical redundancy provided by basic VRRP and fail over based on the status of connections behind the router.1.3VRRP DefinitionsAs defined in RFC2338:Digi TransPort Parameters:For a full explanation of the VRRP and VRRP+ parameters please refer to the Digi TransPort Reference Manual.1.4VRRP OperationVRRP routers are organised into groups which are identified with a Group ID, all VRRP routers within the group should be able to provide the same routing and hence act as fallbacks to each other.In VRRP, routers do not communicate with each other – they only need to be aware of failures in the virtual master router. To achieve this, the virtual master router sends out multicast 'I am alive' announcements which are listened to by the virtual router backup devices in the same VRRP group.If an announcement is not received by the virtual router backup within an allotted time (usually 1 second) then it will assume control and start announcing itself as the virtual master router. If there are multiple virtual router backups then the one with the highest priority will take over.VRRP routers have a priority of which the highest number will become the virtual master router. This ranges from 1 to 255 and usual settings are to use 255 for the highest priority and 100 for the backup priority. If the current virtual master router receives an announcement from a group member with a higher priority then it will pre-empt that device and become the virtual master router.1.5VRRP InteroperabilityThe Digi TransPort VRRP implementation is fully RFC complaint and will work with other vendors’ VRRP implementations providing they are also RFC compliant.1.6AssumptionsThis guide has been written for use by technically competent personnel with a good understanding of the communications technologies used in the product, and of the requirements for their specific application. This application note applies to;Models shown: Digi TransPort WR21 (primary router) and WR44 (secondary router)Other Compatible Models: All Digi TransPort productsFirmware versions: 5.123 or later.1.7CorrectionsRequests for corrections or amendments to this application note are welcome and should be addressed to: *********************Requests for new application notes can be sent to the same address.1.8Version and Revision HistoryYou can implement VRRP on the Digi TransPort units in a number of different ways depending on requirements.2.1Using a Single VRRP IP AddressHere is an example of using a single Virtual IP address shared between two units.This will mean that the IP Address 10.1.4.254 is not assigned to any one unit, but floats between them depending on which is the VRRP master router. If both ETH0 interfaces are connected to a hub/switch along with a client, then the client will be able to always see a router at the 10.1.4.254 address.Unit_1 has a priority of 110 so should become the VRRP master router over Unit_2 which has a lower priority of 100.This is the simplest configuration but it is not generally adopted, as it means that you can only connect to the unit that is the VRRP master at any one time, which is no good for administration and monitoring of both the units.2.2Using a Dedicated VRRP IP Address (Hub mode or single eth port)A more common solution would be to have an IP address for each unit and then a third address for VRRP. Depending on the Digi TransPort model, VRRP can be implemented in different ways. If the unit has a single LAN port (e.g. WR21) then use ETH0 and ETH1 in this configuration.So as before the 10.1.4.254 VRRP address floats between the two routers on ETH1 and can be used by the clients as a default gateway, but the routers can also be reached on their own IP addresses on ETH0.If the unit has multiple ports (e.g. WR44) and is in ‘Hub m ode’ then the same applies.2.3Using a Dedicated VRRP IP Address (VLAN mode on multi-port)If a multi-port unit in ‘VLAN mode’ is used, a second uplink cable for the VRRP-addressed port will be required:NOTE:Do not try this configuration in ‘Hub mo de’ otherwise a network loop will form with undesirable consequences.This may not be practical, so an alternative solution would be to keep the unit in Hub mode and use the Group feature to make each port a member of a different hub group, but have the ETH0 and ETH1 ports in the same group for VRRP. This would require 1 uplink cable for the VRRP group.3.1Configuring a Single VRRP AddressThis section shows a single VRRP address configuration from section 2.1.For the Primary router, under Configuration - Network > Interfaces > Ethernet > ETH 0 enter the IP address and Mask to be used for VRRP.Click the Apply button.Under the VRRP sub-menu, tick ‘Enable VRRP on this interface’ and enter the VRRP Group ID and VRRP Priority.Click the Apply button and then Save.CLI commands to achieve the above:eth 0 ipaddr 10.1.41.254eth 0 mask 255.255.0.0eth 0 vrrpid 1eth 0 vrrpprio 110For the Secondary router, enter the same parameters as above, but change the VRRP Priority to 100.Go to Management - Event Log to observe VRRP starting.For example, on the Primary router you will see the following as it becomes the Virtual Router Master:15:19:53, 19 Oct 2011,ETH 0 Available,Ethernet15:19:53, 19 Oct 2011,ETH 0 VRRP BACKUP -> MASTERThe Secondary router will come up as a Virtual Router Backup:15:19:47, 19 Oct 2011,ETH 0 Out Of Service,Ethernet15:19:47, 19 Oct 2011,ETH 0 VRRP INIT -> BACKUP3.2Configuring a Dedicated VRRP IP AddressThis section shows a dedicated VRRP IP address configuration from section 2.2.Configure the same VRRP IP address and VRRP parameters as above on each unit, but for ETH1 rather than ETH0, leaving each unit’s ETH0 IP address unique to itself.NOTE: Both the ETH0 IP addresses and the ETH1 VRRP IP address should be members of the same subnet.Also, in both routers, go to Configuration - Network > Interfaces > Ethernet > ETH 0 > Advanced Make sure the device is in Port Isolate mode (click the Switch to Port Isolate if in Hub Mode).Click the Apply button and then Save.See section 6.1 for testing this setup.4.1Using VRRP+VRRP+ was developed by Sarian Systems Ltd before becoming part of Digi International. It allows VRRP to be extended to provide intelligent fail over scenarios.For example, if you have two routers that connect to the internet, a DSL router and a cellular or ISDN router that you want to use as backup.In addition to the backup router taking over if the DSL router fails completely, it is also desirable to swap over if the DSL line fails or the DSL ISP has some kind of fault which prevents access to the hosted services. To achieve this the Digi TransPort backup router is set to use VRRP+ probing to send ICMP (ping) packets to the network monitoring server.In the event of a failure of a ping, the VRRP Priority on the Digi TransPort backup router will be incremented by 20, giving it a VRRP priority of 120. This makes it higher than the priority of the primary virtual router and will cause the backup virtual router to become the VRRP Master Router and take all the traffic bound for the internet.Whilst the DSL router is unable to route traffic, the backup router will still try to ping the network monitoring server to detect when the main route becomes available again. When the VRRP+ probing routerreceives ICMP replies from the network monitoring server, the VRRP priority on the backup router is decreased by 20 returning it to 100. Network traffic then uses the main DSL router as its gateway.If the network monitoring server is behind a firewall and cannot be configured to respond to ICMP (ping) requests, this can be overcome by setting the router to probe an alternative port such as 80 (HTTP/Web) on a web server instead.In the event of VRRP+ detecting a routing failure, the traffic flow should be altered as shown:This shows the VRRP+ configuration from section 4.1. This example shows the configuration of the VRRP+ operation and does not cover the configuration of the DSL/GPRS/ISDN portion.5.1Configuring the Primary (DSL) RouterGo to Configuration - Network > Interfaces > Ethernet > ETH 0Enter the IP address and Mask to be used for Primary Router address.NOTE: There are no VRRP parameters for this interface.Click the Apply button.Go to Configuration - Network > Interfaces > Ethernet > ETH 0 > AdvancedMake sure the device is in Port Isolate mode (click the Switch to Port Isolate if in Hub Mode).Click the Apply button.Go to Configuration - Network > Interfaces > Ethernet > ETH 1 Enter the IP address and Mask to be used for VRRP:Click the Apply button.Under the VRRP sub-menu, tick ‘Enable VRRP on this interface’ and enter the VRRP Group ID and VRRP Priority, then click Apply.Click the Apply button and then save.CLI commands to achieve the above:eth 0 ipaddr 10.1.41.1eth 0 mask 255.255.0.0eth 1 ipaddr 10.1.41.254eth 1 mask 255.255.0.0eth 1 vrrpid 1eth 1 vrrpprio 1105.2Configuring the Secondary RouterGo to Configuration - Network > Interfaces > Ethernet > ETH 0Enter the IP address and Mask to be used for Primary Router address.NOTE: There are no VRRP parameters for this interface.Click the Apply button.Make sure the device is in Port Isolate mode (click the Switch to Port Isolate if in Hub Mode).Click the Apply button.Go to Configuration - Network > Interfaces > Ethernet > ETH 1Enter the IP address and Mask to be used for VRRP:Click the Apply button.Under the VRRP sub-menu, tick ‘Enable VRRP on this interface’ and enter the VRRP Group ID and VRRP Priority.Tick ‘Enable VRRP+ Probing’ and enter the following details for the ETH 1 VRRP Probe.CLI commands to achieve the above: eth 0 ipaddr 10.1.41.2eth 0 mask 255.255.0.0eth 1 ipaddr 10.1.41.254eth 1 mask 255.255.0.0eth 1 vrrpid 1eth 1 vrrpprio 100eth 1 vprobemode icmpeth 1 vprobeip 166.241.38.77 eth 1 vprobebackint 1eth 1 vprobemastint 1eth 1 vprobefailcnt 3eth 1 vprobesuccesscnt 1eth 1 vprobeadj 20eth 1 vprobeadjup ONeth 1 vprobeent eth** This should ideally be an IP address that you own and have control of. The IP address is usually a WAN address at the Head Office network.Go to Configuration - Network > IP Routing/Forwarding > Static Routes > Routes 0 - 9 > Route 0 Enter a static route to the VRRP+ probed IP address, this is required so the probing does not follow the default route.Finally, click Apply then save the configuration as power up profile 0.CLI commands to achieve the above:route 0 IPaddr 166.241.38.77route 0 mask 255.255.255.255route 0 gateway 10.1.41.1route 0 ll_ent ethSee section 6.2 for testing this setup.5.3Note about VRRP and IPsec SAsIt is quite common that the secondary router will use IPsec to create a secure tunnel into the head office network when the primary route (the red path shown above) is out of service.When the primary route is working correctly, the left router will become VRRP master again. When this happens, it is usually desirable to drop the IPsec VPN on the backup router (right) and remove the SAs associated with that tunnel.To configure removal of IPsec SAs (on the backup router) when the backup router is not VRRP master, browse to Configuration - Network > Virtual Private Networking (VPN) > IPsec > IPsec Tunnels > IPsec 0 > Advanced and put a tick in the box as shown (but for the relevant IPsec VPN):Click the Apply button and save.6.1VRRP TestingThe testing of VRRP is very simple. Start a ping going to the VRRP IP address and then disconnect the Ethernet cable from the primary router. This will cause the backup router to become the master. The following will be shown in the eventlog of the backup router (Management - Event Log):15:38:41, 19 Oct 2011,ETH 1 Available,Ethernet15:38:41, 19 Oct 2011,ETH 1 VRRP BACKUP -> MASTERWhen you reconnect the Ethernet cable back to the primary router, the backup router demotes back to being the backup and puts eth 1 out of service:15:38:56, 19 Oct 2011,ETH 1 Out Of Service,Ethernet15:38:56, 19 Oct 2011,ETH 1 VRRP MASTER -> BACKUP6.2VRRP+ TestingVRRP+ testing is a little more complicated, in this example a WR21 with an ADSL connection is the primary link and a WR44 with cellular as the backup link. Once the units are configured as above the primary router becomes the VRRP master:15:50:30, 19 Oct 2011,ETH 1 Available,Ethernet15:50:30, 19 Oct 2011,ETH 1 VRRP BACKUP -> MASTERAnd the backup router becomes the VRRP backup:15:50:32, 19 Oct 2011,ETH 1 Out Of Service,Ethernet15:50:32, 19 Oct 2011,ETH 1 VRRP MASTER -> BACKUPIn this state all internet traffic is routed to the VRRP gateway (the WR21); as with VRRP if the WR21 should fail then the WR44 becomes the VRRP master:15:52:09, 19 Oct 2011,ETH 1 Available,Ethernet15:52:09, 19 Oct 2011,ETH 1 VRRP BACKUP -> MASTERVRRP+ also tests the link to the internet; in this example ICMP is used to test the connection to a known public IP address. VRRP+ can be tested by removing the ADSL cable from the WR21 to simulate ADSL failure.WR21:15:53:37, 19 Oct 2011,PPP 1 Out Of Service,Activation15:53:37, 19 Oct 2011,PPP 1 down,LL disconnect15:53:37, 19 Oct 2011,ATM PVC 0 down,Lower layer down15:53:37, 19 Oct 2011,ADSL 0 down15:53:37, 19 Oct 2011,ADSL line: Idle15:53:37, 19 Oct 2011,ETH 1 Out Of Service,Ethernet15:53:37, 19 Oct 2011,ETH 1 VRRP MASTER -> BACKUPWR44:15:53:39, 19 Oct 2011,ETH 1 Available,Ethernet15:53:39, 19 Oct 2011,ETH 1 VRRP BACKUP -> MASTERAs you can see from this from this example as soon as VRRP Probing detects that that the known public IP address is no longer available via the WR21 it promotes the WR44 to VRRP Master and demotes the WR21 to VRRP backup. The WR44 then routes all internet traffic. As soon as the ADSL line is available and VRRP Probing can reach the public IP address it demotes the WR44 back to backup and the WR21 is master again:WR21:15:56:23, 19 Oct 2011,ETH 1 Available,Ethernet15:56:23, 19 Oct 2011,ETH 1 VRRP BACKUP -> MASTER15:56:14, 19 Oct 2011,Default Route 0 Available,Activation15:56:14, 19 Oct 2011,PPP 1 Available,Activation15:56:14, 19 Oct 2011,PPP 1 up7.1Digi TransPort Configuration FilesThis is the configuration file from the primary router – WR21:eth 0 IPaddr "10.1.41.1"eth 0 mask "255.255.0.0"eth 1 IPaddr "10.1.41.254"eth 1 mask "255.255.0.0"eth 1 vrrpid 1eth 1 vrrpprio 110def_route 0 ll_ent "ppp"def_route 0 ll_add 1This is the configuration file from the secondary router – WR44:eth 0 IPaddr "10.1.41.2"eth 0 mask "255.255.0.0"eth 1 IPaddr "10.1.41.254"eth 1 mask "255.255.0.0"eth 1 vrrpid 1eth 1 vrrpprio 100eth 1 vprobemode "ICMP"eth 1 vprobeip "166.241.38.77"eth 1 vprobebackint 1eth 1 vprobemastint 1eth 1 vprobefailcnt 1eth 1 vprobesuccesscnt 1eth 1 vprobeadj 20eth 1 vprobeadjup ONeth 1 vprobeent "ETH"route 0 IPaddr "192.32.42.133"route 0 mask "255.255.255.255"route 0 gateway "10.1.41.1"route 0 ll_ent "ETH"def_route 0 ll_ent "ppp"def_route 0 ll_add 17.2Digi TransPort Firmware VersionsThis is the firmware / hardware information from the primary router – WR21: Digi TransPort WR21-L52A-DE1-XX Ser#:293824 HW Revision: 1201a Software Build Ver5.2.15.6. Aug 17 2016 17:42:08 WWARM Bios Ver 7.56u v43 454MHz B987-M995-F80-O0,0 MAC:00042d047bc0 Power Up Profile: 0Async Driver Revision: 1.19 Int clkWi-Fi Revision: 2.0Ethernet Port Isolate Driver Revision: 1.11Firewall Revision: 1.0EventEdit Revision: 1.0Timer Module Revision: 1.1AAL Revision: 1.0ADSL Revision: 1.0(B)USBHOST Revision: 1.0L2TP Revision: 1.10PPTP Revision: 1.00TACPLUS Revision: 1.00PAD Revision: 1.4X25 Switch Revision: 1.7V120 Revision: 1.16TPAD Interface Revision: 1.12SCRIBATSK Revision: 1.0BASTSK Revision: 1.0ARM Sync Driver Revision: 1.18TCP (HASH mode) Revision: 1.14TCP Utils Revision: 1.13PPP Revision: 1.19WEB Revision: 1.5SMTP Revision: 1.1FTP Client Revision: 1.5FTP Revision: 1.4IKE Revision: 1.0PollANS Revision: 1.2PPPOE Revision: 1.0BRIDGE Revision: 1.1MODEM CC (Siemens MC75) Revision: 1.4FLASH Write Revision: 1.2Command Interpreter Revision: 1.38SSLCLI Revision: 1.0OSPF Revision: 1.0BGP Revision: 1.0QOS Revision: 1.0RADIUS Client Revision: 1.0SSH Server Revision: 1.0SCP Revision: 1.0CERT Revision: 1.0LowPrio Revision: 1.0Tunnel Revision: 1.2OVPN Revision: 1.2TEMPLOG Revision: 1.0iDigi Revision: 2.0OKThis is the firmware / hardware information from the secondary router – WR44: Digi TransPort WR44-HXT1-WE1-XX Ser#:160601 HW Revision: 7902a Software Build Ver5.2.15.6. Aug 17 2016 17:42:08 SWARM Bios Ver 6.32 v39 400MHz B512-M512-F80-O0,0 MAC:00042d027359 Power Up Profile: 0Async Driver Revision: 1.19 Int clkWi-Fi Revision: 2.0IX Revision: 1.0Ethernet Port Isolate Driver Revision: 1.11Firewall Revision: 1.0EventEdit Revision: 1.0Timer Module Revision: 1.1(B)USBHOST Revision: 1.0L2TP Revision: 1.10PPTP Revision: 1.00TACPLUS Revision: 1.00MODBUS Revision: 0.00MySQL Revision: 0.01PAD Revision: 1.4 X25 Switch Revision: 1.7 V120 Revision: 1.16 TPAD Interface Revision: 1.12 GPS Revision: 1.0 SCRIBATSK Revision: 1.0 BASTSK Revision: 1.0 PYTHON Revision: 1.0 ARM Sync Driver Revision: 1.18 TCP (HASH mode) Revision: 1.14 TCP Utils Revision: 1.13 PPP Revision: 1.19 WEB Revision: 1.5 SMTP Revision: 1.1 FTP Client Revision: 1.5 FTP Revision: 1.4 IKE Revision: 1.0 PollANS Revision: 1.2 PPPOE Revision: 1.0 BRIDGE Revision: 1.1 MODEM CC (Ericsson 3G) Revision: 1.4 FLASH Write Revision: 1.2 Command Interpreter Revision: 1.38 SSLCLI Revision: 1.0 OSPF Revision: 1.0 BGP Revision: 1.0 QOS Revision: 1.0 RADIUS Client Revision: 1.0 SSH Server Revision: 1.0 SCP Revision: 1.0 CERT Revision: 1.0 LowPrio Revision: 1.0 Tunnel Revision: 1.2 OVPN Revision: 1.2 QDL Revision: 1.0 WiMax Revision: 1.0 iDigi Revision: 2.0 OK。
