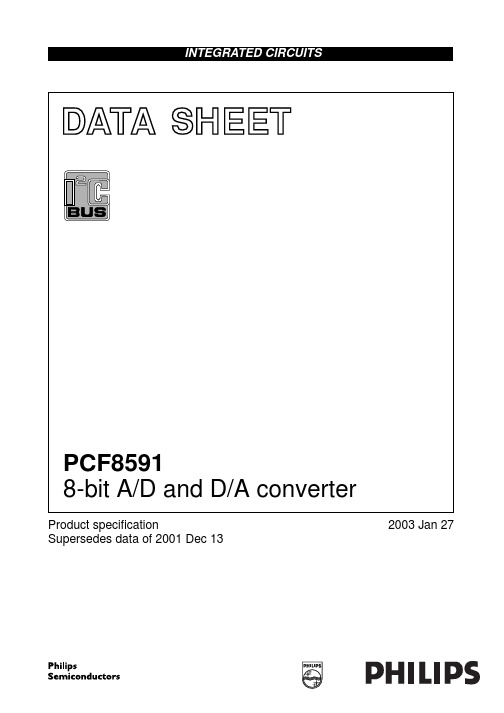

INTEGRATED CIRCUITS
DATA SHEET
PCF8591 8-bit A/D and D/A converter
Product specification Supersedes data of 2001 Dec 13 2003 Jan 27
Philips Semiconductors
The PCF8591 is a single-chip, single-supply low power 8-bit CMOS data acquisition device with four analog inputs, one analog output and a serial I2C-bus interface. Three address pins A0, A1 and A2 are used for programming the hardware address, allowing the use of up to eight devices connected to the I2C-bus without additional hardware. Address, control and data to and from the device are transferred serially via the two-line bidirectional I2C-bus. The functions of the device include analog input multiplexing, on-chip track and hold function, 8-bit analog-to-digital conversion and an 8-bit digital-to-analog conversion. The maximum conversion rate is given by the maximum speed of the I2C-bus.
材料暂定品牌选用情况表
材料暂定品牌选用情况表一、综合布线系统7吸顶扬声器额定功率:60W(RMS)；单元:6.5″同轴单元；最大声压级(1M):92dB(计算值)；阻抗:16Ω；频率响应：10Hz-20KHz(-10dB)；吸顶嵌入式，考虑兼容性，扬声器，功放，音频处理为同一品牌。
只公信瑞杰迪士普8专业功放4Ω负载: 450W×2;8Ω负载: 300W×2;8Ω桥接负载: 900W;频率响应: 20Hz-20KHz ±0.1dB;信噪比: ≥100dB;总谐波失真: <0.01%;阻尼系数: >300;输入阻抗: 10KΩ不平衡,20KΩ平衡;输入接口: XLR/TRS;输出接口: NeutrikSpeakon;考虑兼容性，扬声器，功放，音频处理为同一品牌。
台公信瑞杰迪士普9专业音箱(含配套支架)频率响应:65Hz~18KHz(±3dB)/55Hz~20KHz(-10dB)；灵敏度：92dB；标称阻抗：8 ohms；额定功率：200W(AKS),800W(PEAK)；单元组成：LF:1x8"/HF:1x1"；覆盖角度：90°(H)x 50°(V)；最大压声级：cont.@114dB / peak@122dB；壁挂式(含配套支架)考虑兼容性，扬声器，功放，音频处理为同一品牌。
只公信瑞杰迪士普10数字音频处理器高性能浮点DSP处理芯片；8通道平衡话筒/线路电平输入凤凰插头所有输入通道支持MIC输入，具有48V幻象供电软开关；所有输入通道带增益控制、噪声门、自动反馈抑制器、高低通滤波器、16段参量均衡器、压限器、延时器、输入编组控制；8个平衡线路电平输出，凤凰插头所有输入通道带高低通滤波器、16段参量均衡器、压限器、延时器、输出编组控制；8通道自动混音动态范围:114dB，ADC, DAC；内置信号发生器：正弦波信号、粉红噪声、白噪声、支持RS-232、TCP/IP协议，可实现第三方控制具有摄像跟踪代码输出，便于通过第三方中控实现摄像联动功能支持32组场景预设功能，可通过TCP/IP、RS-232协议调用可选配支持AEC回声消除功能；可通过以太网连接的直观Windows界面.考虑兼容性，扬声器，功放，音频处理为同一品牌。
先锋高保真DVD机dv-525电路图纸维修手册
Device under test
Reading should
Leakage current
not be above 0.5mA
tester
Test all exposed metal surfaces
Also test with plug reversed (Using AC adapter plug as required)
Earth ground
ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER.
Region No.
Remarks
KU
AC120V
1
KC
AC120V
1
WV
AC220 - 240V
2
WY
AC220 - 240V
2
WY/SP
AC220 - 240V
2
CONTENTS
1. SAFETY INFORMATION ....................................... 2 2. EXPLODED VIEWS AND PARTS LIST ................. 4 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM .. 12 4. PCB CONNECTION DIAGRAM ........................... 35 5. PCB PARTS LIST ................................................ 45 6. ADJUSTMENT ..................................................... 52
SCHRACK继电器价格SCHRACK继电器批发
SCHRACK继电器价格SCHRACK继电器批发Schrack公司成立于1920年。
公司致力于周密产品的研发和生产.产品广泛用于周密机械,航空电子,钢铁,石油等行业要紧型号：MT78740,PT22A048B,PT900001,PTF20T30,RE030024,RP28800,RPMLO 024,RPMLO 730RT314024,RT78625,RX16016,RX314024,RX424024C,RX78602,RX78625,PX78702,V2 3061-B1005-A401, 上海航欧机电设备有限公司专业从事进口机电设备、仪器外表等疑难备品备件的销售，是经营世界各地进口设备机电配件的现代化企业。
上海航欧公司与众多知名品牌电子元件供应商建立有极其良好的合作关系，在欧美、日本等地势成了稳固、高效的供应网络，专业的询价渠道和多年的行业体会，更使我们在价格及货期上有专门大优势。
经销产品供应的行业涉及冶金、钢铁、石化、能源、航天、集装箱码头、汽车、水利、造纸、电厂、纺织、注塑、橡胶、医疗、食品包装等。
我们热忱地期望尽我们最大的努力，力争最优待的产品价格，供货周期以及服务质量，能够为您决进口备件方面的咨询题。
优势进口产品要紧有：传感器，测速电机，接近开关，电子尺，编码器，操纵器、分析仪，光纤，光栅，插装阀，电缆，拖链，分配器，马达，减速机，继电器、缓冲器和进口五金等编码器IMG58B-500/50/1-ABC-PT-51编码器IMG58B-1000-ABN-PT-35 IMG60B-1000-ABN-PT-35编码器CEV65M-01460浮球液位开关A-01-04振动器NCB2振动器NCB3振动器NCB5振动器NCB10 振动器NCB20 振动器NCR3振动器NCR10 振动器NCR22 振动器NCR120 振动器NCT1振动器NCT2振动器NCT3振动器NCT4振动器NCT5振动器NCT10 振动器NCT29 振动器NTK8AL 振动器NTK18AL 振动器NTK25AL 振动器NTK25 振动器NTK40AL振动器NTS120HF振动器NTS180HF振动器NTS180NF振动器NTS250HF振动器NTS250NF振动器NTS350NF风速仪420传感器SK-1-M5-b-VA/PTFE BCSM05T4C-XXS10C-EP02-GZ01-002传感器SK-1.5-M8-b-VA/PTFE(BCS M08T4C-XXS15C-EP02-GZ01-002)传感器SK-4-10-b-VA/PTFE BCSG10T4B-XXS40C-EP02-GZ01-002开关NG1FO-510-M开关SN03R08-552-M开关SN02R08-552-M开关NB01R556-M开关SN03R12-502-M开关TP4-4121C024M压力开关M0132A-033-BAO MANOCOMB-IP65/2KA/VA pressure range：0-250bar压力开关M0031A-020-AAO MANOCOMB-IP65/2KA prssure range:0-1bar 压力开关M0131A-031-AAO MANOCOMB-IP65/2KA prssure range:0-100bar压力开关M0131A-026-AAO MANOCOMB-IP65/2KA prssure range:0-10bar压力开关M0131A-027-AAO MANOCOMB-IP65/2KA prssure range:0-16bar电磁阀线圈EVI 7/9 24VAC 5VA 100%ED电磁阀线圈EVI 7/9 220VAC 8.5VA 100%ED电磁阀线圈EVI 7/9 24VDC 6.5W 100%ED电磁阀线圈EVI 7/9 24VDC 3W 100%ED电磁阀线圈EVI 7/9 220VAC 6VA 100%ED传感器SK-4-M12-b-VA/PTFE BCSM12T4D-XXS40C-EP02-GZ01-002(BCS0018) 传感器SK-8-M12-nb-VA/PTFE BCSM12T4D1-XXS80G-EP02-GZ01-002传感器SK-5-18/4-b-VA/PTFE传感器SK-10-22/10-B-VA/PTFE BCSD22T408-XXS10C-EP02-GZ01-002编码器PU10 491-00004传感器S5-5-L2-92传感器FQ08K电缆VCT222 16C*0.75SQ接近传感器QE-022-PS-11L接近传感器QE-022-PS-02L PNP空气锤PKL220/6HT步进马达6600R045(6600-30-2-0.37)传感器KSS 400 P3K-TSSL传感器HMFB-VT V=200mm T=70℃传感器GYcAT-370-BRN-G0.3编码器ZE65M 171-01052压力开关M0031A-028-AAO MANOCOMB-IP65/2KA prssure range:0-25bar温度开关KFL-E/B/O/O/S/N-930-870-790-180编码器HS35-1500-83346分配器VPA-C/6/0/D/N/90/90/90/P振动器NEA5020继电器CWD4850P安全开关NZ1VZ-538E-MC1233电子尺LWH500电缆FANC-110SBZ-5电机81C5AD2/1接触器11BF0910A安全开关TZ2RE024SR6电源模块TR2-230VAC传感器DCC 30 M 20 AIK-IBS联轴器弹性胶块3J联轴器弹性胶块4J联轴器弹性胶块5J联轴器弹性胶块7J联轴器弹性胶块8JE联轴器弹性胶块9J联轴器弹性胶块10J联轴器弹性胶块3JS联轴器弹性胶块6JS联轴器弹性胶块8JS联轴器弹性胶块10JS联轴器弹性胶块7E EPDM 联轴器弹性胶块8E EPDM 联轴器弹性胶块10联轴器弹性胶块11E EPDM 联轴器弹性胶块12E EPDM 联轴器弹性胶块13E联轴器弹性胶块8N联轴器弹性胶块11N联轴器弹性胶块6H联轴器弹性胶块7H联轴器弹性胶块8H联轴器弹性胶块9H联轴器弹性胶块10H联轴器弹性胶块12H联轴器弹性胶块6HS联轴器弹性胶块8HS联轴器弹性胶块9HS联轴器弹性胶块10HS联轴器弹性胶块11HS联轴器弹性胶块12HS联轴器弹性胶块5SMPB联轴器法兰6SMPBHASKEL 51351-5HASKEL 568117-7HASKEL 86441HASKEL 568212-7HASKEL 28119HASKEL 28081-3HASKEL 28083-1膨胀节AS-1 DN65 PN16 length125mm flange1.4571膨胀节Ai-1 DN250 PN10 length182 flange1.4571高压水泵EP200 3000PSI,36.9KW,98L/MIN,50.3HP,100RPM 编码器519243-01卡轨4382 IN /3M变压器KD0，075 18A/1528MH电源滤波器RSAN-2006编码器h11k3Z/1024压差指示器 4.36.2（P=0.5)触摸屏幕EA7-T10C+13529B052阀芯AMOT 1096*160/71 element 68-78C 阀芯AMOT 1096*120/49 element 43-54 C 气缸25/25UDC联轴器25100.0006压力传感器VPRQ-A3-20K-4激光数字传感器OHDK14P5101/S14减速机M0612602V7E002压力开关DCMV63-406温湿度传感器SRH13PW2CT2N 12-30VDC 传感器CHT3-476P-H/TG-SR活塞R32-180-3互感器SCHNAPPBEF. ASK 31.4隔膜蓄能器ELM 0.75-210/00/AF 01125液压阀HRV-M03-A-25-21液压阀HRV-M03-B-25-21电机M100A4 3TFRM-B5Gutekunst RZ-042BX衬套CJE20E25-16Gutekunst RZ-042HX带通滤波器86-350编码器861007955 9-30VDC 1024PPR联轴器ROTEX 75Gg 92sha 1/1 60H7-60H7阀门器SR1986-BIDS7EAANA接头938-3870/03微量氧分析仪原料电池C6689-L2C联轴器ROTEX 42Gg 1/1a 92Sha 38H7-50H7联轴器ROTEX 42Gg 1/1a 92Sha 40H7-45H7辅助触点C320KGD5固态继电器WYFM3G3C150Z4，OUTPUT 3相240VAC,150A，50/60HZ，4-32VDC隔离开关KG126 T106*J-0003TM指示灯K30LRXXPQP指示灯K30LBXXPQP触摸屏PPC-125T-BARE-TE夹紧环18341夹紧环18343法兰18441法兰18446法兰18447法兰18448法兰18445直角阀215325电气测试探针GKS112-305-064A-1502M 电磁阀E106BN35/521电机ZGA32RA79.6i电机ZGA32RA191继电器LS07-10E AC220V碟簧DISC SPRING 31.5*16.3*2.0亮度计MAVO-MONITOR-USB滤波器FMBB-0124-1210转速表E244-01AG0-2000RPM频率表HX-72 380V/E244-41SG流量计FA-3314-8-400自动充电刷板BLS 20-2-01自动充电刷板BLS200-2-01电磁阀GO1103770进料操纵器FC1000-230电缆11700013电磁阀135207管夹10303780换向阀DS08FE3SNT风机TSK II 315L执行器W 05.008T (5.8T,ROT.90,20BAR)可控硅TT106N18KOF电压表252-PVSW直流伺服电机E644A-MGB-K-DC-Servomotor DC-644-T-A09202 U型密封10256385 103069517 DN300拉环12203383 DN250线轴SD300 K电机DM1-HE 160MX2联轴器PSMR29-10-10-SS编码器CEV84M121304SC10C2真空阀VAH025-A PN:253-300编码器通讯模块PU10 SN:2265轴承B7026-C-T-P4S-UL真空计HPM4/5/6的配套电缆（带接头）CB-HPM 4/5/6电磁阀AA-0211 DC24V二通道调剂阀CVSS1A二通球阀7122G4Y限制开关199190293汽缸DA45 F03-F05气缸16/50 UDC监控继电器G2IM5AL20阀MFP 3/8光纤传感器FAR-P-A1.0-1,5-1200-67度氧传感器3000TA配套氧传感器L-2C压力传感器MBS3050-3611-5GB04压力开关PMM10C18K压力开关PMM10A18K机械隔膜计量泵DC2C3PTMBS ASK31.4 300/1A 5VA K1.1钻套33-041-12-8，00-16可编程称重操纵器720i+A-B远程I/O模块旋转接头480630C同步马达3202－017气动泵（含消音器）7786-A5螺旋升降机CM-2500-12 倒置的传感器VZ6FC3-20KG吊环DSR M16模块BSM181A风量开关LPS-1100P模块EP163氩弧焊丝T-2000直径2.0mm长1000mm变送器CMB M563-4121-11LED管1516135W3 24VAC/DC 7*21 BA7S 1400mcd集电器碳刷接地KDS 2/40 PE-VP电磁铁7405 015/1码器158-Y-500ZNF28R减速电机FRT40/B3 L25059900147 1/56液位浮球开关LS-2050气缸AB-32-15-CB-HRHUB 31852 Hub,906910 5H40-1键槽8953 KEY,RECTplate 10284 PLATE,BACKING,5H40GRACO 563478阀456B-1传感器FHDM12P5001传感器PT100460240/10传感器PT100460260/10传感器PT100460290/09传感器PT100460290/10光电开关S50-PA-2-C01-PP PNP阀BVG 3R G24泵MKF1-KW2-10001+428 0.1L/min 36bar 230V 50/60HZ压力开关NO288 7000 2092 DS-W 20-2 Pn 20bar Pmax 45bar DS-W 20-4 碳刷021901161安装螺钉535568-02电流变送器TM3I230温度开关B06401113接近开关FT18M-CR-90 FT18-SM CR 90 联轴器9401 10/10mm K401 10/10mm离合器BW 16MM BORE,PILOT MT,MTRC,SPCL 单向阀阀芯009801.02050单向阀弹簧009801.05025O型圈100029单向阀阀芯034001.02050O型圈100080压环012501.03050弹簧012501.04050流量阀TFM09VL150/PSWILKERSON GPA-96-601 1/4" NPT伺服电机TYP-C/1FK6081伺服电机TYP-D/KK4EY伺服电机TYP-E/1FK6032压力调剂阀00.05865.0093 00.05865.0139薄膜气缸00.06428.0014薄膜04.02727.0007GLYD环 04.00731.0722支撑环04.00737.1003电缆For GYCAT-1180-BR-M(单位M)超越离合器FSO-600/42mm气囊41189-000分配器VPBM-3-003F二极管RC3/4KW-PA575V电机WU-DF225SN-H 37KW 1475RPM 轴承BRF 06-00-502轴承BRM 06-00-502轴承BRF 06-00-501轴承BRM 06-00-501脚踏阀121153/B充液阀111127/A电磁阀BEX32041a-G24/T4-S1788LEINE&LINDE 861007355-2048LEINE&LINDE 861007456-2048电阻FZG600X65-82离合器316-17-056线槽LLK16.016打拔压力调剂器C34N-O-PU F34N-O NEMIC-LAMBDA FS-600A-5 HWS600-5 编码器RSI503 392783-06电磁阀540961传感器MLP-25自动充电刷快BLK200-2-01自动充电刷块BLK 25-2-01niedax LER16.016快速接头HUF10110001快速接头HZD10001001操纵器CBC-100-2, 6003-448-103继电器vital 1轴承BF 3502滤芯UHD-SR70外表96X96mm （0-250 degree）0-2000A电流表E244-02A-G-LW-C7-SM 0-200A电流表E244-02A-G-LW-C7-SM 0-300A电流表E244-02A-G-LW-C7-SM 0-400A电流表E244-02A-G-LW-C7-SM 0-600A外表96X96mm （0-250 degree）0-800V电流表E244-02A-G-LW-C7-SM 0-2500A外表96X96mm （0-250 degree）45-55HZ变压器STU1000/2*115 1000/2650VA电磁阀DG4V-3-2N-M-P2-V-7-54滤波器FN258L-7-07PLC卡SPCP-C600-S7/416-PB-OS3-k 789-00032编码器21-212B1/60电磁阀9710505.4200.02400编码器EM1-0-500-I数显计数器G60-214绕组温度计AKM35-40112 TD111-8.0M感应器IL-100单向阀CIT-10-04-50单向阀CXCD-XAV阀1788B（2.76-7.58bar）传感器TM 016-001-414-22-0油温度计AKM34-40112 TD111-8.0M编码器HC62530000241接线盒B040404CH编码器HS35102484467 HS35R10248497编码器21-212B0/60超声波传感器dbk+4/Sender/M18/K1超声波传感器dbk+4/Empf/3CDD/M18接头（含电缆）TM0704-05执行器05 RDB40火焰放大器G601 Flame amplifier 3001调压阀10212U高压油流量变送器SW600K-RS4-S5/2/S/4/HP截止阀BD25 PN25 RF DN15截止阀BD25 PN25 RF DN32截止阀BD25 PN25 RF DN80截止阀BD25 PN25 RF DN100截止阀BD25 PN25 RF DN25过滤器F32BG04A减压阀R32RG04拉绳VF F05-35开关FP 1878‐M2扭绳链VF AF‐MR5开关VF AF‐TR8缓冲块1060410872气动马达63-018 F03/W75UF1光电编码开关RE25-NS25C16RA油雾器L32LG04旋转整流器Diode D950N-18T轴承FK92-316阀NCCB-KCN接头NSAB-KXN-BT防爆限位开关2007NBY2B2M0200412U 接线盒B060404CH电磁阀M194C-24V滤芯MF0301A25HB气动抱闸MR+K(PART NO.6780413+7200654）气动抱闸MR25 MR25光电开关FAL4/BP-0E电磁换向阀SV10-20-0-N-230AG电磁换向阀SV10-21-0-N-230AG气动隔膜泵P8/AAAPP/TNU/TF/ATF0014水阀5281A 13.G1/2 24VDC防爆器V200EX-D1-90-B-C1-LB时刻继电器KT1\KT2\KT3行程开关BF12安全继电器364097刹车线圈5-66-6601-33流量计VKM7106DR0447安全传感器153V6202电磁阀6610 24V/50ASCON TLZ12HRRB16S波浪管NFB 45电磁阀线圈018F6732热力膨胀阀阀体067B4009热力膨胀阀流口组件067B2789热力膨胀阀流口组件067B2790热力膨胀阀热力感温元件067B3278电磁阀032F1217压力操纵器KP15 060-1264水压开关KP2 060-1120压力操纵器KP5 060-1171电磁阀21EN2K0V105 E2U29-00V光电转换器#61211,DC24V电源线带连接头1640-0030-10AC气动马达LZB22A022-12泵头4KHH9卡PCI\2 PORT RS232/485hahn 10_33149100编码器RHI503 Part number: 531888-01开关2004NFC2A2M0400编码器AI25-1213-2-B-2-2-D线缆G1-565-329开关DXLW1B2-3M DXLW1A2-3MMF公制细牙手用丝锥板牙组套 41550810MF公制细牙手用丝锥板牙组套 41550731温湿度传感器EE23-PFTC6105D03/AB6-T11-M12 丝锥SL M10x1.5 S2丝锥SL M12x1.75 S2法兰止回阀149B2281阀BKA启动套件SUPPLY CORD Europe L=2M编码器HEV58S-00025操纵器PWM110FMBS ASK 63.6 1600/5A 15VA cl.1滤芯PI73025 DN PS VST10阀芯CDAB-XBN剪刀1DHD3 19T045线材2ABK9线材2ABK2开关电源XCSD50C XCSD70C传感器VPRNP-A6-5KT-4C/KD(0-5) VPRNP-A6-5KT-4 传感器接头R141.075.000W100A集电器碳刷 310993压缩弹簧C-090-125-0500-A开关2649ABYNPCJPV01编码器IE58 219-00583减速机 A 30 2 US P100弹簧D-257Beuchner EKS-A-IUXA-G01-ST01/04真空发生器DF 7-6 CHROME气体调剂器1063位置条形编码器LMP30/2000 ANAL0G滤芯PI8311DRG40传感器AQ20 C3 SH 10e链轮60B17U张紧器SM油流继电器DAL-042-60接头MC3B-1016-303电磁阀P/N:12033383,0.5-10bar,10-30V DC自动润滑油泵P40191401110电机71/4 IP55 CLF HZ50/60开关SIA30-CE NPN NO+NC R轴承座1056-050-00导向轴1001-050-11, 1200 mm导套1702-450-20滚珠丝杆螺母1512-4-7013风机SCE-FA44过滤器SCE-FLT43安装盘SCE-72P72热风机操纵SCE-FA1010空气过滤器SCE-FLT812功率因数表0.5cap...1...0.5ind 110v sec.5A 240 scale变压器50-0500-059变压器50-0750-059单向阀CXHA-XCN-DKD压力传感器BLH015PGBG传感器608.8153.002真空泵MOA-P108-FD联轴器ROTEX GS28 98SHA 2.6-DIA28/2.6-DIA28发信器86DG拔刀器EXTRACTOR2000开闭传感器304-200-00-V传感器671-262-NUO-10M拔刀器夹头(标准型) WWPULLERJAW -standard 与EXTRACTOR2000拔刀器配套（宽0.375 英寸约10MM）按对订货电磁阀6511B-322-PM-871DA电机底座BDR 34BA3000SP活塞泵KFA1-M-W-S5+924传感器mic+340/IU/TC模式开关DPN01-0-10N-16R可控硅T718N16TOCmod 13R0高压显示器DM3420/S1（90-253VAC）安全阀IAF压力开关F20B传感器INHE5215接线盒B060604CH振动速度变送器VEL/GDC-86DT305301阀PPHB-KWN阀RPGC-KCN丝锥SL M4 X 0.7 S2丝锥SL M5 X 0.8 S2丝锥SL M6 X 1.0 S2丝锥SL M8 X 1.25 S2编码器MP700-100AQ5-12*12 SCT2传感器UW-2100汽缸160/350XL/M BMC同步带32T10-1350-DL-Bfx测速电机TD 3 A4 KA RM衬套SDSX1-7/16编码器HS35F-62-R1-SS-1024-ABZC-4469-SM18 XHS35F-62-R1-SS-1024-ABZC-28V/V-SM18 编码器CEV58M-00131减速马达144328平稳阀CWIA-LHN-QCQ/T压力开关PN7001计量泵SG-0535-G0O计量泵SG-0525-G0O电缆C000-0026滤芯F12-010P-BBELIMO NM230A+S2A电磁阀AF-2520BERNSTEIN 260.0444.076电磁阀AB-0829BERNSTEIN 269.0000.005汽缸WS0320019ABERNSTEIN 269.6899.015汽缸KS0400108AM温湿度传感器HMT120 3米压缩弹簧D-206D-02压缩弹簧D-232M压缩弹簧D-271电磁阀6610 G1/4 DN4.0 AC230V/50编码器D-37269 ITD21H00 1024 T NI S21SG8 E 14 IP65 丝杆151147700 800mm（已加工）流量表DM3600A/00/S1（90-253VAC）隔离传送器POD-3000/03 4-20MA换向阀ZKW050-15-B DC24V R1/2电流表E244-01W-G-PK-PK-C7-SM 0-100V门把手VF AP-S13AP-301安全门开关FD993CENTURY SPRING 72135CENTURY SPRING 71843CENTURY SPRING 12451编码器RI58-D/2500AF, 41RB-A3-S接近开关BES M18MI-PSC80B-S04G灯管X-1800涨紧套DSM 19*32涨紧套DSM 35*52编码器755A-16-S-2500-R-HV-1-S-S/3-CE电流变压器13051-200/5A电流变压器13054-250/5A电流变压器16055-400/5A接头423980胶机圆形吸嘴B40电磁阀6213 A 30.0 NBR M5 G3/8 PNO-10BAR 221598 编码器2205003010Classic SF01 加油器SF01 01.001.001 120cm3开关阀8450200.0000直流电机G /IP44 24V 64W n=3000直流调速器KBPI 240D(4028B)开关护屏22944016同步带316 XL 10水泵JL 32P2-50.4 F水泵JL 40P2-50.75 F水泵JL 50R2-53.7 F带防护罩压缩弹簧D263F导轨DEF-28-290减压阀MZE4-1/58-24 MZE4/58-24 跑偏开关MAS001跑偏开关SBW002小型接线端子端板264-368小型接线端子264-711弓形卸扣3/8", G2130, 1T弓形卸扣1/2", G209, 2T弓形卸扣5/8", G2130, 3.25T弓形卸扣3/4", G2130, 4.75T弓形卸扣7/8", G2130, 6.5T弓形卸扣1", G209, 8.5T流量开关VKM-3108-R0-R20流量开关VKM-3110-R0-R25转换器7212-05-29-A-F转换器7212-15-29-A-F传感器GYCAT-1600-50/70-M-M2P-CN-BR 传感器GYCAT-2600-50/70-M-M2P-CN-BR 传感器GYCAT-620-50/70-N-M2P-CN-BR-MO 传感器GYCAT-215-50/70-N-M2P-CN-BR-MO 传感器GYCAT-1900-50/70-M-M2P-CN-BR 编码器AWi58S-102R081-1000编码器AWi58S-102R081-2500电池PS-12750B马达101 1130 009马达101 1699 009铠装热电偶411 D=256mm-5/16″X=290mm 手轮687619-02闪耀灯20189 Infor: 闪耀灯Z45/Z34锁扣83-7-1201支撑83-7-9003主体81-7-1001转轮81-7-2135O型圈81-7-9002扳手81-7-4113热风筒HL-2018E燃烧机5514-8-AL4/X1310传感器SP1 10989振动电机MVB 2500/15-FLC 220/380V 50HZ COMMAND EMDV-12-V-C2-06BS-24DG过滤器VL02/035/102-250阀CXID-XCN传感器VPRF-100KW接线盒CBX800行程开关3349ABYNGCXEGV-01连接电缆CAB-S02调压阀TGMC-3-PT-GW-50凸轮编码器COV58M-00019传感器GYSE-Q-1650-S/S-M2PN-CN-D4D传感器GYSE-Q-500-S/S-M2PN-CN-D4D温度变送器M5TS-24-R/K开关1DM401主机RS100电流互感器ASK 41.4 600/5A 15VA Kl.1压力调剂器VPRH-D-100MPa-2S(HL)-4U阀位反馈器9479SBY2B2M0600U脉冲计数器BHF16.24K10-E2-9温控器EW7220减速机带电机CB-SF950-100LIDI R-3-SC按钮开关8008/2-002管道阀8618按钮开关8008/2-1149传感器OHSP-017编码器HUBDISK-2-2048-984-IE读数头EM1-2-2048-I滤芯PI 5205 PS VST 6马达101 1512 009伺服器M23-23D-6306Z负压开关604.9010030 604.9010000编码器576218-01传感器SSP/AP 1H传感器CF/CB1-20电机3SKG90L-2PC 3.0KW B5 230/400V, 50HZ, IE2 电流互感器ASK 31.4 300/5A 10VA Kl.1 DANFOSS OMSS 200电磁阀线圈DA-0002靶式流量操纵器FS4-3J电流变送器P41000D1电机T2A90S-4 IMB14电机T2AR 132S1-2 B3电池SB 5-12L RT1250电机576A6200000(立式）1.5kw温度传感器EE220-P6A1/T24HBC QA108600/QD108300传感器CR4220S-10传感器CR4220S-15传感器CR4220S-20传感器CR4220S-50密封件修理包WG01032密封件修理包KG01040/DTIMMER PNEUMATIK F-VM-2-VA端子5910开关115-8Y-06Kmurr 867285接头CFSM890325电机KPER 56 G2/3272传感器CHT3-151P-41A/ST接触器LS132K.22 线圈电压AC230V不锈钢过滤调剂器2FRMSV082A模块31E018002插座适配器盒38777ASSURED AUTOMATION VNC-20006-E3B 涡轮蜗杆升降装置M1802-11-B气控阀44B-AAA-GDCA-1BALEAG TFM 243-01-DCD电磁阀MVS-2203YS AC100V开关CH10-WAA246-600-E-F004应急泵MPA646S31A20编码器I/E6-200-1828-BZ-U-CV-05发泡水冷却器TT 5500E电位计H060360013平稳阀223.2461.000EUCHNER MGB-L1-AR-AB9A1-S1-L-109895 MGB-L1-ARA-AK1A1-S1-L-121039 液压电磁阀HDD3-2WD-BCA-2-06B-WYR4-565模块INFO-SAM 330M接触器CE15BN3T1B 24VDC塑料柱塞导向8-082-553-00接线端子3452-16气动隔膜阀810.0255BERNSTEIN 188.SU1Z温度传感器TR2432风扇4WT44A按钮盒8040/1180X-10L07BA05螺纹接头SO 21121-10-1/4马达NHM 6-400气缸SQF-221X1/2插头PT02E8-3P插头PT06E8-3S插头PT02E12-3P插头PT06E12-3S插头PT02E14-5P插头PT06E14-5S安全阀652mFK DN15 1-16bar 材质:铜，介质：液体，内螺纹垫圈NBR 合闸闭锁线圈H32-F-HS3025/1 220VDC防尘圈26975液位开关1702-S-A-N25-01-0-1-0-G-3-2-0高压熔丝15CLPT-5E传感器HES200HR编码器AWI40X-008-120修理包用于101 1130 009马达修理包用于101 1699 009马达修理包用于101 1512 009马达继电器7805D制动电阻ERBM240R200W限位开关QX2HR03SXA-9PBF1限位开关QX2HK03HDM限位开关QX2GK02HDN 2×1/2"NPT限位开关QX4HK03HDN 3×1/2"NPT风速传感器EE66-VB5限位开关QX2GK03HDM红色按钮PC-5E-RD绿色按钮PC-5E-GN接触器CE15HN3 24VDCBERARMA 02-PVS3-63-F-H-R-M传感器PKW4M-2行程开关Z4V7H335-11z-RVA转换开关CA20 F-8861称重传感器1009902修理组件RKBC215 SK84修理组件RKBC215 SK50位移传感器LPS-X A50白色带灯按钮开关QXJT+T25FWS+BSQXU+ATL2+T5.5K-24V 绿色带灯按钮开关QXJT+T25FGN+BSQXU+ATL2+T5.5K-24V 继电器V2306-A1007-A302-X089 24V V2306-A1007-A302 两位置选择开关QXJWA+AT弹簧D-263U红色带灯按钮开关QXJT+T25FRT+BSQXU+ATL2+T5.5K-24V 转速计LFM42-A电缆式浮球液位开关CFS-2-ONBPN-20继电器R12-220 230VAC校准规管DB-16D压力变送器PTS11-21 24VDC 0-1.0MPa 4-20mA IFM E43910IFM E43001喇叭DPI MODEL 60B液压马达OMSU 125伺服电机073304配件ZR-0320配件ZR-0402配件ZR-0322配件ZR-0403传感器PTX610编码器H23204802253F接板81-7-9001钢丝绳/rope/3mm 1103003线圈63911500949Y 0838，115VDC电弧抑制模块962501100 230VDC测温仪BS-30T螺母MSR 40*1.5操纵器FM157E/C风扇7506X-TP 100V 50/60HZ,43/40W编码器25-20KW7.30/1000接触器PLMU11 200-480VAC,50/60HZ,10A加强型镀铝反光镜45336传感器VF05MP 5MPA可调电阻滤波器3VNF200/400-50-AA Freudenberg EPDM 70减压阀DRV 424-1"减压阀DRV 408-1/2″气缸GD30-F04齿轮泵SNP2NN/8,0RN01BAP1F4F4NNNN/NNNNN 电机C4T17NC46A轴向柱塞泵PVH131Q1C-RSM-1S-10-C25-31 EUCHNER EGT12A5000泵PVM045ER05CS02AAA07000000AOA消音器44AW56 04-3510-99硬内膜08-1010-55模块61E026559模块61E026555编码器725ISS1000QHV1SNSYNN互感器ASK61.4 19073-800/5A 15VA K1.1压缩空气加热器A39FTH钻头010316滤芯PI 23100 RNSMX 10 PI 23100 RN PS10滤芯PI 8411 DRG 60滤芯852 243 SMX 10 NBR滤芯PI 3111 PS 10压差传感器TPE-1475-24位置传感器RHM0150MF051A01 RHM0150MH051A01 螺母MSR 105*2压力变送器TPT4636-10M-12/18调速器ER340ILV60接近开关9962-5600温度显示外表DS13-NA31/WOR-03联轴器R42.55-22.22F电机S9I180GT-ECE(带刹车）弹性体配BOWEX M65 prebore (Φ21mm)使用护目镜F14.T5H04.5000接线盒D9041阀NCCD-LCN编码器1H740.1000A63.01033.SLI1监控软件117000010磁致伸缩位移传感器RHM1350MD531P102波段开关DPN02 003N20RCB波段开关DPN02 020H20RCB过滤袋PE-50-P02H-30L PE-50-P02H-301电磁阀8615NN020S08BDF 230/50/60称重传感器MOD350/300kg减速机DZ 23-3FABC隔膜泵AOD.5-PBBP-N修理包配7786-A5油脂泵滤芯PI 1030 KS MIC 25/K197双阀压力操纵器PCD-100PSIG-D-PVC10/5P,5IN 电源Y030HX400皮带32.5*13*990皮带32.5*13*1650传感器AC184-1ACABUR XRF1024D DC24V冷凝器清洗球22RS15MO正齿轮SS5-42滤芯φ55x430L/NL6/PE编码器8.5020.0841.2048.0022位移传感器950MD－12A－0.5B-0.5C－C2－X 气缸MOD DA 75气缸气缸MOD DA 63气缸气缸MOD DA 85气缸气缸MOD DA 100气缸传感器OT24410 OT 18 K 30 P3-B4无杆气缸LS10-SK84 PN2 SL2放大器GYDC-051-D2D-RS-2100-Z75-T144-BD/WB1R67-24S润滑系统70.517.2踏板PED 502 M夹钳891-M 891法兰614260270电机EIS-160-5OM-3AMO-LO-44电机EIS-190-5OD-3BMO-LO轴承座R159122530马达158-3712-001 24486卸载电磁阀RD233DTW 1~50Bar 线圈：7S51 R2018 205VDC 14w 编码器0566795FLEX-CABLE FC-XXFDS-S-9931-E045FLEX-CABLE FC-XXuFMFPS-9930-H065-007-012FLEX-CABLE FC-XXUFMFPT-S-9787-H065-07-12FLEX-CABLE FLXFC-UXFDFN-S-9792-E045FLEX-CABLE FLXFC-XXFDPN-16S-E045FLEX-CABLE FLXFC-XXFDT-S-9791-E045信号转换器2255B2气动振打器MLT-250流量计TP-HC30G-S1-B20-03编码器TS5220N510编码器690100050二级管DD171N16K离合器61044400螺纹接头SO21121-6-1/4螺纹接头SO21121-6-1/8螺纹接头SO21021-10螺纹接头SO21021-6螺纹接头SO22421-6-1/8螺纹接头SO22421-6-1/4螺纹接头SO22421-10-3/8螺纹接头SO22421-10-1/4锁紧圈SO20001-6锁紧圈SO20001-10堵头SO20002-6堵头SO20002-10气缸0822341002档位旋钮DPP01-0-10-N-16RCB 玻璃防夹仪电池90159齿轮泵TOP-203HBSANKYO SOB 708540 JOYNER MH 511121 G1/2 24V DC电磁阀DSG-01-3C9-A120-N1-70减压阀RCG-10-C-22电磁阀DSG-01-2B2-A120-N1-50-L液压阀LD-25-20-S-2-Z108-12液压阀LD-25-20-S-1-X10-12液压阀LD-16-20-4-Z108-12电磁阀DSG-03-2D2-A120-N1-50电磁阀DSG-01-2D2-A120-N1-70比例换向阀EDFHG-04-140-3C40-XY-31阀UBGR-06-W-20液压阀CPDG-10-E-35-50电磁阀DSG-01-3C4-D24-N1-70传感器CHT3-151P-41/TG-SR膨胀节AS-1 DN200 PN16K&N CG8 D-U154*01FT1/G251温度传感器TE-631AM-1K&N DH10-1 A-G925-603*KN1+S1 M470/A1A6 K&N DH10-1 A-G926-603*KN1+S1 M470/A1A 滤芯MTP-95-521气缸1827001291护目镜R10.T5K02.5000电机KMT063F07传感器VOS312-100继电器SH04 22E AC230V 6A SH0422-50 阀DRBR-CNN阀DRBR-LENJM Concept AK3102 A 900J XALIS9000U1 耐高温密封胶水5399-310ml限位开关BN-M1820N-C21P2-S夹钳207-ULB阀门器YT-1000L SM111SO电源QS20.481滑块MRB65-g2v2过滤器PI 41004-015模拟转换器CWAA7-0538滑块MRD65-g2v2垫圈GN 184-32垫圈GN 184-22地脚螺栓M16 x 240/125/145 255856电缆夹211-60079离心泵Y-2951.0182阀ZA67-ED63阀ZAD10028阀EDV2063丝杠 A.1134.0059轴承 A.1007.7884轴承 A.1018.8014螺母 A.1092.8033轴台 A.1023.7948过滤器ifz010开关907流量计VOR-015GM0080双电源开关ATYSM6S-125A/4PSOCOMEC 13094006帽子SHUNTPRO M12油封254025液位计LMK307(含4米电缆4-20毫安）阀HD3-2WD-B0A-025A-WDD2(078210) H D3-2WD-BCA-025B-WYD2 润滑泵组件MKF2-KW3-20016+428编码器H2203601002C3凸轮杆ZR-0308 POS NO.71偏心轴ZR-0309 POS NO.72圆头机螺钉ZR-0061 POS NO.70开槽销ZR-0028 POS NO.83编码器IN96-AE2S-E5AO-0150弹簧T-19565R弹簧T-19565L传感器TP1-0250-101-423-102传感器TP1-0550-101-423-102二极管FRS300BA50可控硅SSA500AA160开关TS-4-160-N-B 1-16MPa 250VAC泵R95/900 FL-Z-W-DN132-R火焰探测器 2.0GT节流阀FT251-5-S-14恒压变量泵PVH131QIC-RSF-13S-10-C25-31 软管PUN-12*2-S-2-BL软管PUN-12*2-S-6-BL压力调剂器R30-08-000变压器TB81309迷你制动钳DB-3005A流量计SWK1218电机（含齿轮箱）Part NO. 507-01-132A 数据收集器124030000接线端子fedr 61接线端子DR4/6-1ROLLON NT28-88ROLLON TLV28 1680MM扩展器124030002电缆124080003电源130010004编码器E2-4000-394-IE-H-3-3 编码器E2-1024-394-IE-D-3-3 连接器CA-C5-SH-NC-3电机63 0.18KW 1400rpm 操纵器EPL 10201电压表RQ 72E电压表RQ 96E继电器02.03.226报器YL5 AXL05电机MOT.3-TFC71B-2电机MOT3-TFCP132M-4 开关K3M160/32电压表RQ 96E电压表RQ 96E电压表RQ 96E电压表RQ 72E电压表RQ 72E电压表RQ 96E电机AG80ZBA4烧录器PL-USB-BLASTER-RCN交换机HP2524-J4813A J9782A HP 2530-24SWITCH电磁阀EH22H7DCCML 24DFESTO DGPL-32-500-PPV-A-KF-B压力开关LM2 CTA = 390 SC气压缸（膜片式）7200773 10BAR减速箱A102UH25P90模块TD162N16KOF线性变送器951A-C1-1320-X-X-C10 953A-C4-1320-N1.5-D2.25-C10 电磁安全开关AZM170-02ZRKA 24VDC气动抱轴装置MKR-2500-A隔膜阀690 25D 7 1141 1/N 0101+0324真空传感器VHR3-A3-199.9hPa(abs)N-4传感器060-3587-03电机BL58-50W 24V可控硅T1989N16TOF3123V2塑料胶管DIN73372 ：6*1.5 PA12HL 071991227滤芯HP0372A25AN气动泵9911-H1传感器CPP-45B 5KΩ润滑泵PEK-A-1-3.0-0-B-0-S-V电源E-TOP 18 Power-supply 5V电源E-TOP 60 Power-supply 24V电源E-TOP 240 Power-supply 24V模块PM-8200继电器SUW1001 AC 230V 50-60HZ连接模块BICCON BX13电磁阀420 120 5060编码器HA62525000340氧分仪3300TA-EU称重传感器CF85 100.40MA EVO电磁阀8223G023 220VElfin 050F20ELFIN 050F02气动执行器DA60-F04；P.MAX=8.4BAR,T.MAX=+80度串口线CAB-327VIPA LM 331-7BF70-VIPABruel&Kjaer UA-0254Bruel&Kjaer UA-0469传感器STM32A软件PROscan Active Basic LizenzSMW AUTOBLOK LPS-XS A16排气滤芯E0860EFFINE AUTOMATION FDBSS3S240650电磁水阀UR3K-020GM085-SR电源装置FLEX50048A 115-230VAC/48VDC油杯M120 S032转位锁销CL_22018_TIP转位锁销CL_22032_TIPB阀CBEA-LHN-ZNV/T氧气传感器TX6373.03.12.46.257 TX6373.03.12.257.25 开关CAD11.A214-603E马达C21-H-175X流量计TP-HP40G-S1-B30-04选择开关DH10-1 A-G925-603*KN1+S1M470/A1A6 油流监测仪OMNI-F-008HK028S滤芯PI 4215 PS VST 25 77680531位移传感器DCTH200AG压力开关B12CN压力开关B01C变送器M105-DV1 IN:0-60mVDC OUT:4-20mADC电机3-MOT BN63B4便携式密度测定仪DMA35 EX网关IBH LINK S7++直流驱动器4KS-M240/20 240VDC编码器DATA：11I8，SERIE:4006,IMP:50离合器附件5103-101-002连接器KPT06A14-5P阀SQE-1离心泵TF40-85/15330 (1.5KW)传感器支架（带传感器）82M-000040C8传感器支架（带传感器）82M-000000C8开关DH200+DHK32050轴承座64652020模块323-1BL00 DI16/DO16*DC24V滑块MRW45-D-G0-V3-R1-CN-S91-S99-LN DAYTON 3FRF5编码器模块DNDS 1EGV7C输出模块DNDS PMG光电开关S50-ML-5-G00-XG光电开关S50-MH-5-C01-PP光电开关S50-ML-5-F01-PP水导油槽测温RTD S57PA376Z6水导瓦测温RTD S57PA226Z6开关CG4 A214-600FS1主轴密封测温RTD S57PA63Z6电源接头620001289输入输出接头620001293拉力传感器LD 1-A1-200 KG液位信号器FDBSS3S230600端板和隔板769-321超声波传感器dbk+4/Sender/M12/K12线/1针基础接线端子769-2572线/1针基础接线端子769-251绝缘止动件769-470WMB标记793-504操作工具210-490开关KG80 K900-600 VE+K2 M510A2CA-B+K2 H010/A22-VE+K2 M160/3+S1 M280D/A23SMURR 7000-9MURR 7000-8MURR 7000-1MURR 7000-1MURR 7000-1MURR 7000-1MURR 7000-1MURR 7000-0MURR 7000-1MURR 7000-4MURR 7000-4。
宇视监控LIST
IPC-S214-IR IPC-S214-IR IPC-S214-IR IPC-HIC2621DE-CZIR-U-UV IPC-HIC2621DE-CZIR5-U-UV IPC-HIC2621 IPC-HIC2521DE-LZIR-U-UV IPC-HIC2521DE-LZIR5-U-UV IPC-HIC2521HX22-LIR-U IPC-HIC2521H-LZIR-U-UV IPC-HIC2521EX04-IR-UV IPC-HIC2521EX04-LIR-UV IPC-HIC2521HX22-CIR-UV IPC-HIC2521HX22-LIR-UV IPC-HIC2521H-CZIR-UV IPC-HIC2421DE-CIR-UV IPC-HIC2421DE-CIR5-UV IPC-HIC2321DE-IR-UV IPC-HIC2321DE-ZIR-UV IPC-HIC2321E-CF36DIR-UV IPC-HIC2321E-CF60DIR-UV IPC-HIC2321E-CF120DIR-UV IPC-HIC2321ES-DIR-UV IPC-HIC2221DE-CF36IR-UV IPC-HIC2221DE-CF60IR-UV IPC-HIC2221DE-CF120IR-UV IPC742T-IR9-P-DT IPC742S-IR9-DT IPC-HIC2601DE-CZIR-U-UV IPC-HIC2601DE-CZIR5-U-UV IPC-HIC2401DE-CIR-UV IPC-HIC2401DE-CIR5-UV IPC-HIC2201E-CF36IR-UV IPC-HIC2201E-CF60IR-UV IPC-HIC2201E-CF120IR-UV
34级宽动态电动变焦筒型网络摄像机电源适配器需另配1080p星光级宽动态电动变焦筒型网络摄像机电源适配器需另配1080p星光级宽动态电动变焦筒型网络摄像机电口光口光模块电源适配器需另配1080p星光级宽动态电动变焦筒型网络摄像机电口光口光模块电源适配器需另配1080p星光级红外电动变焦筒型网络摄像机光口光模块电源适配器需另配1080p星光级宽动态电动变焦筒型网络摄像机电口光口光模块电源适配器需另配1080p红外电动变焦筒型网络摄像机电口电源适配器需另配1080p红外电动变焦筒型网络摄像机光口光模块电源适配器需另配1080p星光级红外电动变焦筒
配件库进价
仓库：0001序号仓库配件代码配件名称车型单位销售价100015000234FF-KW左踏板装饰条（黑色）80.00 200016305040DF1上尾门锁机带连杆陆风个35.00 30001CNIC15 8A080AB座椅扶手全顺个0.00 40001MSG5E-1701118D滚针轴承（大号）宝典,五十铃个32.00 50001MSG5E-1701068D滚针轴承（小号）宝典个32.00 60001JYKTGBD加油口铁管宝典个60.00 70001XDP小灯泡五十铃个 1.00 800010UB4-A5半轴套320.00 90001HQZCD后桥轴承垫五十铃 5.00 100001374103D前雨刮臂宝典个30.00 110001MD317679风扇离合器（1308200BB）个210.00 120001A84-018北斗星发动机罩撑杆北斗星 4.00 130001CHTBQ昌河一二档同步器80.00 140001YHMBL右后门玻璃全顺块140.00只 1.00 150001TDH铜垫宝典,宝威,全顺160001LSS螺丝宝典 2.00 1700011101200CA箍带总成（运霸）只8.00套8.00 180001DWDZ瓦垫子双长,单长,双标个 1.00 190001BXP1保险片10宝典,宝威,凯运个 1.00 200001BXP2保险片15A宝典,宝威,运霸210001JZQG加装前杠400.00 220001JZHG加装后杠陆风450.00根0.00 2300011109400SZ第三缸高压油管(长期欧II)双长,单长,五十24000196VW BO18B40AA风栅（上通风口）全顺个60.00 25000195VB V04291AFYYCF中部风栅（灰色）全顺个280.00 26000195vb 7k576ab-2离合器踏板弹簧全顺个18.00 27000186vb v23500bc前门挡块（右）全顺块115.00 280001BSGFCZN变速杆防尘罩五十铃个13.00 290001YZQG一轴前盖宝典个130.00 300001BLJH玻璃胶黑宝典,五十铃个50.00 3100012803102-B01风格栅（中网）风尚0.00 3200013773010-B01组合尾灯总成（左）风尚0.00 330001XHNJD厢货内顶灯五十铃只60.00 340001L38-8200后雨刮刮臂和刮片总成利亚纳45.00 350001EZLM二轴螺母8.00 360001HDFBL后挡风玻璃宝典块150.00 370001QTLM球头螺母宝典个8.00 380001CPKK车牌卡扣宝典,五十铃个 5.00 390001L23-8200C离合器分泵总成利亚纳个260.00 400001ALKQG奥铃空气格五十铃只35.00 410001NC50 17021.00选换档摇臂座总成630.00 420001CFKGB出风口盖板130.00 4300015216104D前风窗右侧嵌条宝典60.00 44000195VB V24185AD前门拉手盖（左）全顺个40.00 4500016100101DG前门上减震块陆风 3.00460001FDJJQB发动机加强板五十铃0.00 470001PQGZC排气管总成220.00 480001FXKK方形卡扣0.00 490001ZHCBLD左后窗玻璃(大)500.00 500001MAXX5W-30(3.5L)机油390.00 51000154RCT3421F0离合器分离轴承(江齿)陆风个100.00 5200013550040-B01ABS执行机构总成风尚个1800.00 530001YQMK右前门框（全顺）480.00 540001HMJL后门铰链(上)75.00 550001HMHY后门铰链（下）75.00 560001PSL/1016灯泡 1.00 570001FSL/1141灯泡 1.00 580001ALKL奥铃空滤25.00 5900013000227车厢后轮挡泥铁板（单排）320.00 6000013000291车厢防撞块 4.00 6100011201100HW消声器总成龙腾540.00 620001DP（N）顶棚（五十铃）双标个620.00 6300013502105A左后制动底板五十铃66.00 640001KTPDGZ空调皮带改装五十铃55.00 650001BS/FO1R00R006 81W电动燃油泵380.00 66000186VB-1130BD轮圈盖全顺70.00 670001QBXGNZJ前保险杠内支架全顺165.00 680001ZDDDP制动灯灯泡（双位高低角）一汽498,一汽4 3.00 690001QZHYF(YQ)曲轴后油封一汽48520.00 7000013414070-B01安全气囊控制器（ECU）风尚732.16 7100018410101LC发动机罩前密封条陆风X820.00V348个180.00 720001ZQCWNSB左前侧围内饰板（9座豪华舱专用）7300017C19-1508BA-00轮胎（205，漂移）V348个920.00 740001DLQL垫子（庆铃）42.00 750001WDDBC五倒档拨叉宝典30.00 760001CXHDB2车厢后挡板窄体凯锐2200.00 770001JJZFYF急件自付运费0.00 780001640-1012210-937机油滤芯（玉柴）凯威80.00 790001QZGFKZ-GLDA秋装工服裤子-管理（180）0.00 800001QZGFKZ-WXDA秋装工服裤子-维修（180）0.00 810001SAW发电机0.00 8200014110.14.10机油滤清器总成凯威个220.00 8300011012160-1机油滤芯-135.00 840001CBBDYJ侧边板电泳件宽体凯锐2800.00 850001TLGLM推力杆螺母通用 5.00 860001G901-1104200AC粗滤(发动机上)新动力客车154.00 870001G901-1104210AC粗滤（大梁上）新动力客车78.00 880001M37-054发动机线束总成（6390BLE/BLE3/福瑞达120.00 890001M37-405车架线束总成（6390BLE福瑞达740.00 9000014102AZL.06.20油轨总成（朝柴）凯威1670.00 910001LMJSDDC龙门架顺达单长顺达2100.00 920001YQMNSB右前门内饰板187.00930001ZQMKY左前门凯运546.00 9400017C19-1508CA-00轮胎（215，漂移）V348800.00 95000110-3101离合器压盘（4D47）凯威580.00 960001SMW251190节气门传感器450.00 970001CXCBBKY车厢侧边板（铁板）新款凯运双长2200.00 980001CXHDBJKY车厢后挡板（铁板）新款1900.00 990001ZQSCTBZC左前上车踏板总成凯运200.00 1000001X9P2-3A713AB助力油管驭胜60.00桶120.00 1010001WSS-M97B44-D防冻液全顺，V348,N31020001X1111300SA高压油泵(长期II)杰克塞尔7370五十铃个7809.00 1030001XC1R 7M002AA1二轴二档齿（41齿）全顺个445.00 1040001XCN6C15 4826AA中间轴承(传动轴支架)全顺，V348292.00 1050001SMW299934节气门位置传感器（汽油机）宝典个270.00 1060001SK401-5止回阀全顺个24.00 1070001SMD115976正时齿带B张紧器(平衡轴皮带轮)宝典个123.00 1080001W700914 S303-5螺栓全顺个8.00 1090001SMD189752机油滤清器支架汽油全顺只202.00 1100001SMD331250正时齿带前下盖宝典,全顺235.00 1110001SMD361614飞轮总成（三菱电控）宝典个399.00 1120001SMS632220真空软管组件根8.00 1130001SMW250019机油尺杆组件汽油全顺39.00 1140001SMW250112一缸电缆宝典（汽油）根56.00 1150001SMW250113二缸电缆宝典(汽油）只59.00 1160001JX493ZQ3发动机总成(快欧II)全顺35035.00 1170001JX493ZQ4A-47发动机总成五十铃30508.00 1180001KF3320-3000空气滤芯（汽油机）全顺只156.00 1190001MN/SC2驾驶室空壳（白99款双长,双标11530.00 1200001NC05-1809010B后输出齿轮轴总成宝典，宝威910.00 1210001P205/70R14轮胎总成（豪华型）条425.00 1220001P23-P4524-001曲轴后油封压入工具五十铃1513.00 1230001P92VB V410K39AA-78左D柱内下板全顺221.00 1240001P95VB V50200BA-78顶盖总成（中顶）短轴距全顺块3570.00 1250001Q1420616组合螺栓-S通用 1.00 1260001F2UZ 1522800A铰链687.00 1270001CN5C15 B600B61AAW三人折叠座椅(06款物流车)全顺只4260.00 1280001CN5C15 V20938AAW右前门镶条全顺81.00 1290001CN6920004塑钉(04款浅色)（扁形）全顺 3.00 1300001CNYC15 1130AA轮圈盖 6973979全顺套148.00 1310001CNYC15 14405CA左后灯线束122.00 1320001CNYC15 17K819AAW前保险杠（老）（杠灯）全顺套341.00 1330001CN3C15 16K059BA前翼子板右下隔热垫全顺150.00 1340001CN3C15 18808AA扬声器(06款)全顺142.00全顺根269.00 1350001CN3C15 19A705CB蒸发器出管(欧II)（蒸发箱--储液1360001CN3C15 19N609CAW通风管-左全顺507.00全顺架547.00 1370001CN3C15 5560BB后钢板（6、7、8、9座普通。
TCH4301_V3-1原理图
2 Block-Diagram 1 Explanation Sheets ListRevision HistoryV1.0 Establish the first edition.GPIOX(PIN NO/NAME)IoH （mA ）IoL （mA ）上电状态used in the module Diagram of the GPIO's stateATJ2259B_CUD_4301V1.53 MCU4 ANALOG5 MEMERYV1.1 1.耳机座改用5脚耳机座2.增加U3X,兼容200W sensor OV26403.RGB 屏CLK 和数据线加电阻电容，延缓上升沿，减少辐射GPIOA8SofeKey In GPIOB22SofeKey Out GPIOA9GPIOA10GPIOA11GPIOA12GPIOA13GPIOB20Matrix Key Matrix Key Matrix Key Matrix Key Matrix Key Matrix Key GPIOB26TVIN Power DownSIRQ0(GPIOA31)TVIN ResetGPIOB16Camera Sensor Power DownGPIOX(PIN NO/NAME)IoH （mA ）IoL （mA ）上电状态used in the module PA Enable IR OUT SIRQ1(GPIOA31)LED TFT displaySDRA12(GPIOA26)UART1RX(GPIOB15)DRVVBUS(GPIOA15)2mA 2mA 12mA 2mA 12mA 2mA 12mA 2mA 12mA 2mA Z 2mA 2mA Z 2mA 2mA Z 2mA 2mA Z 16mA 16mA Z 2mA 2mA Z 8mA8mA8mA 8mA 0(open)8mA 8mA Z 8mA 8mA 02mA2mAZV1.2 1. 增加部分模块应用注释2. Sensor Reset 串联电阻R5X 改为2K2V1.3 1.晶振反馈电阻R1Z 由20M 改为3M2. R98K 串连到Q6K 的基极,阻值由10K 改为47K3. 外部DC-DC 增加ATJ2259A 和ATJ2259B 的使用说明3. 删除M16V 、M17V ，JP2V 1脚和5脚直接接地V1.4 1. U1P EN 端，加分压电阻R12P,R14P3. 增加肖特基二极管、MOS 管、SDRAM 的参数注释2. 修改软开关参数C90K 、R91K 、R92K 、R93K4. Sensor 模块增加电容C27X 、C28X 、L1X ，改善OV2640的效果增加电容C78X 、R4X 兼容复位有效电平为高的模组V1.5 1. 增加跳线电阻，以支持Intel 的Flash2. 2片Flash 都支持24bit ecc ；V1.543015Sheet name:CBA D 2010-8-6Size:A3Approved By:Checked By:Drawn By:Drawing No:Version:Date:Date:Date:Sheet:2123456654321chenwei File name:ABCDBLOCK-DIAGRAM ATJ2259B_CUD_4301of R/B#GPIOA12SDRDQM1A[11:0]I2CSCL NAND FLASHFMINL I2CSDAVMIC NF_CEB[3:0]FMINL L X V D D SDRDQM0SDRA[11:0]LCD_HSYNC NF_ALE VMIC NF_CLECK NF_D[7:0]AOUTL AOUTRC L KG P O A 16CE[3:0]#O V C CPanel DisplayCKE FMD A T 30BA USBDP L X V C C CS#FMINR USBDMTFTAOUTRN F _C L ELCD_DE RAS#RD#ALE S D _C L KWR#SDRCK CAS#LDRD[23:19],LDRD[15:10],LDRD[7:3]USBDP WRB DQ[15:0]SDRCKE SDRDQ[15:0]MICINCLE WE#USB SDRCSB SpeakerUDQM FMINR S D _D 30I2CSCL NF_RB SDRRASB LDQM MICINVSYNCD[7:0]SDRAMI2CSDARDBMICLCD_VSYNCR[7:3];G[7:2];B[7:3]HSYNC RESETSDRCASB ButtonLDRDEAOUTL Block DiagramK S O U T 01 K S N 13 K S N 6SDRWEB EARPHONEC MD USBDMO V D DENS D R A 12Matrix KEYBL_NDRBacklightD e e c SD CARDPMUDC to DCB A TL X V D DO V C C L X V C C B A TD C 5VB A TD C 5V Charge32.768KHZ 20ppmR T C V D DL O S C L O S C O H O S C H O S C O 24MHZRTCRTCVDDBTD[0:7]BTPCLK BTHSYNC BTVSYNC BTMCLK DATA[0:7]PCLKHSYNC VSYNC SCLK G P O B 162S C L 2S D A 2S C L 2S D ASENSOR & TVINVBUS VBUS SDRBA[0:1]GPIOA26Audio AmplifierC a m e r a P WD N T V O U T T V RE FTVOUTTVREF TVOUTATJ2259BG P O B 26T V N P W D NK S N 0 K S O U T 2Soft KeyX 12Y 12Soft Key。
SDS9-6CNCH1D数控系统规格说明书20111216
规格说明书 specification
广州市诺信数字测控设备有限公司 LOK SHUN CNC EQUIPMENT LTD.
广州市诺信数字测控设备有限公司
系统简介
SDS9‐6CNCH1D 数控系统以 32 位微处理嵌入式 芯片作为系统主控模块的核心，其功能强大、内置 资源丰富，配以 1024x768 分辨率的液晶彩屏用于 用户加工交互操作显示；以高精度浮点 DSP 和 CPLD 作为加工插补模块的核心；综合运用了实时嵌入式 系统技术、DSP 技术、CPLD 技术、高速高精度光栅 尺测量技术、以太网传输技术等。本产品可配套雕 刻机、雕铣机，主要应用于中端数控机床市场。
第 1 位：（信号类型）
符号
规格
A
脉冲型
第 2 位：（液晶屏）
符号
规格
C
12.1 寸彩色液晶屏
第 3 位：（按键键盘类型）
符号
规格
B
通用编辑功能一体化键盘
第 4 位：（I/O 控制盒类型）
符号
规格
B
支持 36 路输入，36 路输出接口
第 5 位：（系统箱类型）
符号
规格
0
不带控制器箱体
A
LokShun(9-6CNCH)控制器箱体
自动对刀仪
自动对刀长度补偿
△
自动对刀半径补偿
△
语言
中文
○
英文
○
插补周期(ms)
0.5ms（最小）
轨迹前瞻（条）
100
高速断点
条号断点和刀号断点
○（5000 条/s）
2
广州市诺信数字测控设备有限公司
目录文件管理系统 子程序调用 宏程序调用 单节功能 程序预演功能 程序 MDI 功能 程序手工编辑功能 暂停功能 孔加工循环 主轴任意点定位 刀具补偿
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
M8915
非隔离降压型有源PFCLED驱动芯片
M8915CN-V1.0www.mjic.hk
1
概述：
M8915是一款带有源功率因数校正的高精度非隔离降压型LED恒流控制芯片，M8915集成有源功率因数
校正电路，可以实现很高的功率因数和很低的总谐波失真。由于工作在电感电流临界连续模式，功率MOS
管处于零电流开通状态，开关损耗得以减小，同时电感的利用率也较高。M8915内部集成500V功率
MOSFET,只需要很少的外围器件，即可实现优异的恒流特性。M8915采用专利的浮地构架，对电感电流进
行全周期采样，可实现高精度输出恒流控制，并达到优异的线电压调整率和负载调整率。另外，M8915具
有过热调节功能，在驱动电源过热时减小输出电流，以提高系统的可靠性。
特点：应用：
■内置有源功率因数校正■GU10/E27LED球泡灯、射灯
■电感电流临界连续模式■LEDPAR灯
■高性能的线电压调整率和负载调整率■LED日光灯
■±3%输出电流精度■其它
■内置500V功率MOSFET
■启动电流
■高达95%的系统效率
■多重保护功能
LED开路/短路保护
电流采样电阻开路保护
逐周期原边电流限流
芯片供电过压/欠压保护
自动重启功能
过热调节功能
■采用SOP-8封装
典型应用：
图1M8915典型应用图
M8915
非隔离降压型有源PFCLED驱动芯片
M8915CN-V1.0www.mjic.hk
2
管脚排列图:
图2M8915管脚排列图
管脚描述：
管脚名称管脚号管脚描述
COMP1环路补偿点
GND2芯片信号和功率地
VDD3芯片供电
INV4反馈信号采样端
DRAIN5,6内部高压MOSFET的漏极
SEN7,8电流采样端，接采样电阻到地
M8915
非隔离降压型有源PFCLED驱动芯片
M8915CN-V1.0www.mjic.hk
3
极限参数：
符号名称参数范围单位
VDS内部高压MOSFET漏极到源极的峰值电压-0.3~500V
IDD_MAXVDD引脚最大钳位电流10mA
COMP环路补偿点-0.3~6V
INV辅助绕组的反馈端-0.3~6V
SEN电流采样端-0.3~6V
PDMAX功耗(注2)0.45W
θJAPN结到环境的热阻145℃/W
TJ工作结温范围-40to150℃
TSTG储存温度范围-55to150℃
ESD(注3)2KV
M8915
非隔离降压型有源PFCLED驱动芯片
M8915CN-V1.0www.mjic.hk
4
电气参数：Tc=25℃
符号参数描述条件最小值典型值最大值单位
电源电压
VDD_ONVDD启动电压VDD上升18.5V
VDD_UVLOVDD欠压保护阈值VDD下降7V
VDD_CLAMPVDD钳位电压24.5V
IDD_UVLOVDD关断电流VDD上升VDD=VDD_ON-1V320uA
IDDVDD工作电流750uA
INV反馈
V
INV_OVP
INV过压保护阈值1.6V
TON_MAX最大导通时间20uS
TOFF_MIN最小关断时间3uS
TOFF_MAX最大关断时间100uS
电流采样
VSEN_LIMITSEN峰值电压限制1.0V
TLEB_SEN电路采样前沿消隐时间350ns
TDELAY
芯片关断延迟200ns
环路补偿
VREF内部基准电压0.1940.2000.206V
Vcomp_LOCOMP下钳位电压1.5V
VCOMPCOMP线性工作范围1.53.5V
VCOMP_OVPCOMP保护电压3.8V
M8915
非隔离降压型有源PFCLED驱动芯片
M8915CN-V1.0www.mjic.hk
5
功率MOSFET
RDS_ON功率MOSFET导通电阻VGS=10V/IDS=0.5A5.5Ω
BVDSS功率MOSFET击穿电压VGS=0V/IDS=250uA500V
IDSS功率MOSFET漏电流VGS=0V/VDS=500V1uA
过热调节
TREG过热调节温度150℃
注4：典型参数值为25˚C下测得的参数标准。
注5：规格书的最小、最大规范范围由测试保证，典型值由设计、测试或统计分析保证。
M8915
非隔离降压型有源PFCLED驱动芯片
M8915CN-V1.0www.mjic.hk
6
芯片内部结构框图：
图3M8915内部框图
应用信息
M8915是一款非隔离式、有源功率因数校正LED恒流控制芯片，工作在电感电流临界连续模式，芯片可
以实现很高的功率因数和高效率。
启动
系统上电后，经过整流后的电压通过启动电阻给VDD引脚的电容充电，当VDD电压上升到启动阈值电压
后，芯片内部控制电路开始工作，COMP电压被上拉到1.7V，M8915开始输出脉冲信号，COMP电压从
1.7V开始逐渐上升，原边峰值电流随之上升，从而实现输出LED电流的软启动，有效防止输出电流过冲。
当输出电压建立之后，VDD通过二极管供电，从而降低系统功耗。
反馈网络
M8915通过INV来检测输出电流过零的状态。INV引脚也可以用来探测输出过压保护（OVP），阈值为1.6V。
INV的上下分压电阻比例可以设置为：
其中，
RINVL：反馈网络的下分压电阻
M8915
非隔离降压型有源PFCLED驱动芯片
M8915CN-V1.0www.mjic.hk
7
RINVH：反馈网络的上分压电阻
VOVP_INV：输出电压过压保护设定点
推荐INV下分压电阻可以设置在5KΩ--10KΩ左右。
恒流控制，输出电流设置
M8915输出电流计算方法：
VREF：内部基准电压
RSEN：电流采样电阻的值
保护功能
M8915内置多重保护功能，保障了系统可靠性。LED开路时，输出电压逐渐上升，INV引脚在功率
管关断时检测到输出电压，当INV电压升高到OVP阈值时，触发保护逻辑并停止开关工作。
当LED短路时，系统工作在10kHz低频。由于输出电压很低，无法通过二极管给VDD供电，所以
VDD电压逐渐下降直到欠压保护阈值。系统进入保护状态后，VDD电压开始下降，当VDD到达欠压保
护阈值时，系统将重启。同时系统不断的检测系统状态，当故障解除，系统会重新开始工作。
当输出短路或者电感饱和时，SEN峰值电压将会比较高。当SEN电压上升到内部限制值（1V）时，
该开关周期马上停止。此逐周期限流功能可以保护功率MOS管、功率电感器和输出续流二极管。
过温调节功能
M8915具有过热调节功能，在驱动电源过热时逐渐减小输出电流，从而控制输出功率和温升，使电源
温度保持在设定值，以提高系统的可靠性。芯片内部设定过热调节温度点为150℃。
PCB设计注意事项
旁路电容VDD的旁路电容需要紧靠芯片VDD和GND引脚。地线电流采样电阻的功率地线尽可能粗，
且要离芯片的地(Pin2)尽量近，以保证电流采样的准确性，否则可能会影响输出电流的调整率。
另外，信号地需要单独连接到芯片的地引脚。功率环路的面积减小大电流环路的面积，如功率电感、
功率管及输入电容的环路面积，以及功率电感、续流二极管、输出电容的环路面积，以减小EMI辐射。
INV引脚接到INV的分压电阻必须靠近INV引脚，且节点要远离功率电感的动点（DRAIN引脚走线），
否则系统噪声容易误触发INVOVP保护功能。
DRAIN引脚适当增加DRAIN引脚的铺铜面积以提高芯片散热。
M8915
非隔离降压型有源PFCLED驱动芯片
M8915CN-V1.0www.mjic.hk
8
SOP8
封装外形尺寸图
丝印描述
型号封装描述
M8915DRSOP82500PCS/盘，盘装
