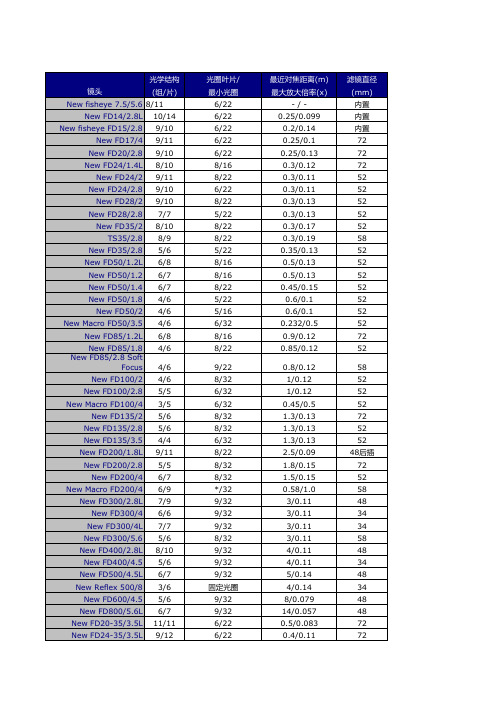

nfd镜头参数
光圈叶片/ 最小光圈 6/22 6/22 6/22 6/22 6/22 8/16 8/22 6/22 8/22 5/22 8/22 8/22 5/22 8/16 8/16 8/22 5/22 5/16 6/32 8/16 8/22 9/22 8/32 6/32 6/32 8/32 8/32 6/32 8/22 8/32 8/32 */32 9/32 9/32 9/32 8/32/32 6/22 6/22
9/10 10/10 11/13 10/10 8/9 8/8 8/8 13-15 11/14 12/16 13-16 9/12 9/12 8/11 11/15 12/14 5/8 11/15 9/14 10/15 15/19
8/22 5/22 8/22 8/22 8/22 6/22 6/22 5/22 5/22 8/32 8/32 6/32 8/32 6/32 8/32 8/32 6/32 8/32 8/32 8/32 9/32
滤镜直径 (mm) 内置 内置 内置 72 72 72 52 52 52 52 52 58 52 52 52 52 52 52 52 72 52 58 52 52 52 72 52 52 48后插 72 52 58 48 34 34 58 48 34 48 34 48 48 72 72
New FD28-50/3.5 New FD28-55/3.5-4.5 New FD28-85/4 New FD35-70/2.8-3.5 New FD35-70/3.5-4.5 New FD35-70/4 New FD35-70/4 AF New FD35-105/3.5 New FD35-105/3.5-4.5 New FD50-135/3.5 New FD50-300/4.5L New FD70-150/4.5 New FD70-210/4 New FD75-200/4.5 New FD80-200/4 New FD80-200/4L New FD100-200/5.6 New FD85-300/4.5 New FD100-300/5.6 New FD100-300/5.6L New FD150-600/5.6L
FLIR菲力尔-红外热像仪
红外成像
探测器类型
非制冷焦平面阵列
非制冷焦平面阵列
非制冷焦平面阵列
红外热像像素
320x240
320x240
320*240
红外波长范围
7.5~13μm
7.5~13μm
7.5~13μm
热灵敏度NETD
＜0.05℃＜0.05℃＜源自.05℃视场角/最小测试距离
25x19/0.4m
25x19/0.4m
LED显示
可选配置
可选镜头
6°长焦镜头、15°长焦镜头、45°广角镜头、90°超广角镜头；100um微距镜、50um微距镜、25um微距镜
6°长焦镜头、15°长焦镜头、45°广角镜头、90°超广角镜头；100um微距镜、50um微距镜、25um微距镜
红外镜头f=30mm,15°（含镜头套）；红外镜头f=10mm,45°（含镜头套）
质保期
1年
册登记后，质保期延至2年
1年
106×201×125mm
246×97×184mm
重量
880克
880克
825克
EMC防护
电源
电池类型
可充电锂电池
可充电锂电池
可充电锂离子电池
工作时间
大于4小时
大于4小时
约4小时
交流电源
AC适配器：90~260VAC输入，12V输出
AC适配器：90~260VAC输入，12V输出
交流适配器
充电时间
LED显示
IP54，IEC360
IP54，IEC360
IP43(IEC 60529)
冲击
25G，IEC 68-2-29
25G，IEC 68-2-29
技术参数
主要设备要求和参数一、进出口车牌机部分防护罩一体化卡口抓拍单元外壳防护等级IP66★彩色：≤0.005lx（AGC ON 能分辨反射式视频矩阵测试卡中彩色色块）★黑白：≤0.0005lx（AGC ON能分辨反射式视频矩阵测试卡中圆形轮廓）★电源电压在AC(90~300)V范围内变化时，能正常工作1、★图片上可叠加OSD黑边，OSD像素0~1024Pixel可调2、★支持四码流输出，可同时输出主码流、辅码流、辅码流1和辅码流2四种码流，辅码流、辅码流1和辅码流2的分辨率可设3、支持三快门（视频快门、图片快门、抓拍快门）4、★支持自动区分机动车（不含摩托车）、二轮车（摩托车、自行车，电动二轮车）、三轮车和行人，类型区分准确率不低于90%，非机动车、行人捕获率白天、晚上不低于99%5、★支持黄网格区域内违停检测，捕获率不低于95%6、支持禁左、禁右、禁止掉头违章抓拍功能7、★支持违章卡口分时段抓拍功能8、★支持按时间段定义车道方向功能9、★抓拍图片应具有EXIF信息10、★支持前排人脸增透功能11、★支持加塞检测功能12、支持对驾驶员在行驶中使用移动电话的状态检测13、支持危险品车辆检测14、支持黄标车检测15、支持250种车标识别功能16、支持2100种车辆子品牌识别功能17、★支持异常车牌（遮挡、污损）识别功能18、支持倾斜车牌识别功能19、支持强光抑制功能20、★支持对车牌的顺光、逆光亮度补偿功能21、支持视频防抖功能1. 图像传感器≥1/1.8"2. 图片分辨率≥2048×15363. ★全分辨率下视频帧率1~25fps可调4. 摄像机快门速度1/25~1/1000005. ★支持双千兆网口6. ★支持双USB接口7. ★IO输入接口≥8个8. ★闪光灯接口≥7个9. ★RS232接口≥4个10. ★RS485接口≥2个11. ★分辨力≥1200TVL；12. ★亮度鉴别等级≥12级13. ★支持P-Iris自动光圈镜头14. 支持双快门，可独立配置视频快门和抓拍快门15. 支持双码流功能，主辅码流均大于1600*120016. 支持雨刷控制功能17. ★摄像机支持内置偏振镜18. 支持远程重启功能19. 支持自动维护重启功能20. 外部频率源同步输入接口1个21. 支持摄像机前端SD卡存储22. 支持图片视频水印防篡改功能23. ★工作温度-40℃~+80℃24. 网络升级保护：支持网络升级断电自动恢复，供重新升级带★内容要求提供公安部权威检测机构出具的检测报告。
UltraCam系列航空摄影测量相机介绍
概述.................................................................................................................................................... 25 UltraCamL 特性 ................................................................................................................................ 26 UltraCamL 技术参数......................................................................................................................... 26 UltraCamL 影像产品展示................................................................................................................. 29
UltraCamXp WA (wide-angle) 广角大幅面数码航摄仪 .................................................................. 20
概述.................................................................................................................................................... 20 UltraCamXp WA ............................................................................................................................... 21 特性.................................................................................................................................................... 21 UltraCamXp WA 技术参数............................................................................................................... 21 UltraCamXp WA 影像产品展示....................................................................................................... 24
Fluke Ti40FT和Ti45FT红外热像仪相机说明书
Fluke Ti40FT and Ti45FT Infrared IR FlexCam Thermal Imager Cameras with IR-Fusion TechnologyThe Fluke Ti4x models feature everything needed for virtually every thermography task. With a 160 x 120 detector and a temperature sensitivity down to 0.08°C (80mK) (NETD) they deliver high resolution images where even the smallest temperature differences can be seen. The units are extremely easy to use through the Windows CE menu structure and offer an extended troubleshooting feature set to allow on the spot analysis in the field.The FT models feature the innovative IR-Fusion technology. IR-Fusion captures a visible light image in addition to the infrared image and takes the mystery out of IR image analysis. It helps to better identify and report suspect components and enable the repair to be done right the first time. To find out more select IR-Fusion on the side navigation of this page.7.5 Hz models are available in some geographies. Check with your Fluke sales representative for additional information.Typical applications:•Predictive maintenance – Identify electrical and mechanical problems before they cause failure•Industrial maintenance – Check whether repairs have been performed successfully•Quality control – Examine prototypes and refine thermal management designs•Process monitoring – Real-time observation to ensure efficient and safe operationModel Name DescriptionFlukeTi40FT-20 IR Infrared FlexCam Thermal Imager with IR-Fusion & 20 mm Germanium lens All models include:•20 mm Germanium lens•Heavy duty carrying case• 2 rechargeable battery packs•Battery charger•AC adapter (for Ti45 model only)•Video cable•512 MB compact flash card•Compact flash card reader and USB cable•Neck strap•SmartView reporting and analysis software on CD•User manual on CD•Calibration certificateFlukeTi45FT-20IR Infrared FlexCam Thermal Imager with IR-Fusion & 20 mm Germanium lens Available OptionsUse the Product Selector Tool button from Fluke to view the entire range of possiblities.Lens 10.5mm, 20mm, and 54mm lenses are available within the Ti4X series. Use the Configurator to view the possible combinations.High temperature Some models in the Ti4X series can include the high temperature option allowing readings up to 1200 °C (2192 °F).Ti40FT and Ti45FT SpecificationsImaging performance ThermalField of view (FOV)20 mm lens 23 ° x 17 ° FOV10.5 mm lens 42 ° x 32 °54 mm lens 9° x 6°Spatial resolution(IFOV)2.60 mradMin focus distance 0.15 mThermal sensitivity(NETD)Ti45: ≤0.08 °C(80 mK) at 30 °CTi40: ≤0.09 °C (90 mK) at 30 °CDetector dataacquisition / Imagefrequency30 Hz/60 HzFocus SmartFocus; one finger continuous focus IR digital zoom Ti40: 1x - Ti45: 2xDetector type160 x 120 Focal Plane Array, VanadiumOxide (VOx) Uncooled Microbolometer Spectral band 8 µm to 14 µmDigital imageenhancementAutomatic full-time enhancedOn-camera operatingmodesTi40: Full thermal or full visual light.Merge thermal-visual images inSmartView software. Picture-in-PictureTi45: Full thermal, full visual light ormerged thermal-visual images. Picture-in-PictureVisible light camera 1280 x 1024 pixels, full color Visible light digitalzoomTi40: 1x - Ti45: 2xTemperature measurement CalibratedtemperaturerangeTi40: -20 ˚C to 350 ˚C (-4 to 662 ºF) in 2 rangesTi45: -20 ˚C to 600 ˚C (-4 to 1112 ºF) in 3rangesRange 1Ti40: -20 ˚C to 100 ˚C (-4 to 212 ºF)Ti45: -20 ˚C to 100 ˚C (-4 to 212 ºF)Range 2Ti40: -20 ˚C to 350 ˚C (-4 to 662 ºF)Ti45: -20 ˚C to 350 ˚C (-4 to 662 ºF)Range 3Ti40: -Ti45: 250 ˚C to 600 ˚C (482 to 1112 ºF)Optional - HightemperatureTi40: -Ti45: Up to 1200 ˚C (2192 ºF)Range 4Ti40: -Ti45: 500 ˚C to 1200 ˚C (932 to 2192 ºF) Accuracy ±2°C or 2 % (whichever is greater)MeasurementmodesTi40: Centerpoint, center box (area min/max,average)Ti45: Centerpoint, center box (area min/max,average), moveable spots/boxes, user definedfield/text annotations, isotherms, automatic hotand cold point detection, visible color alarmabove and belowEmissivitycorrection0.1 to 1.0 (0.01 increments)Image presentation Digitaldisplay5" large high-resolution digital displayLCDbacklightSunlight readable color LCDVideooutputRS170 EIA/NTSC or CCIR/PAL composite videoPalettes Grayscale, grayscale inverted, blue red, high contrast, hot metal, ironbow, amber, amber invertedOptional lenses (only available at time of original purchase)54 mm Telephoto lens High precision Germanium lens Field of view (FOV)9º horizontal x 6º vertical Spatial resolution (IFOV)0.94 mradMin focus distance0.6 m10.5 mm wide angle lens High precision Germanium lens Field of view (FOV)42 º horizontal x 32 º vertical Spatial resolution (IFOV) 4.9 mradMin focus distance0.3 mImage and data storage Storage mediumCompact flash card stores over 1000 IR images(512 MB card standard)File formatssupported14 bit measurement data included. ExportableJPEG, BMP, PNG, GIF, TIFF.Interfaces and softwareInterface Compact flash card reader includedSoftware SmartView; Full analysis and reporting software includedLaser Classification Class IILasertargetingLaser dot visible on screen when blending thermaland visible imageControls and adjustments Set-up controlsDate/time, temperature units C/F, language, scale,LCD intensity (high/normal/low)Image controls Level, span, auto adjust (continuous/manual)On-screenindicatorsBattery status, target emissivity, backgroundtemperature and real time clockPower, battery life Battery type Li-Ion smart battery, rechargeable, field-replaceableBattery operating time 3 hours continuous operation (2 hours with IR-Fusion engaged)Battery charging 2 bay intelligent charger powered via AC outlet AC operation AC adapter 110/220 VAC, 50/60 Hz (Ti45 only)Power saving Automatic shutdown and sleep modes (user specified)Environmental and mechanical design Operating temperature-10 °C to +50 °C (14 °F to 122 °F) Storage temperature-40 °C to +70 °C (-40 °F to 158 °F) Relative humidityOperating and storage 10% to 95%, non-condensingWater and dust resistant IP54Weight (includingbatteries)1.95 kg (4.3 lbs)Camera size (HxWxD)162 x 262 x 101 mm (6.5" x 10.5" x 4.0")。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
45～180 4倍连续变焦热像仪
技术规格书
云南北方驰宏光电有限公司
45～180mm技术参数
性能 指标
焦距 45～180mm
F# 1.0
平均透过率（8∼12μm） ＞80%
视场角 7.3°×5.5°～1.8°×1.4°
探测器类型 非致冷 Vox
分辨率 336×256
像元大小 17μm
最小分可辨温差 ≤70mk@F=1
帧频 25
工作波段 8～12μm
观测距离 10m～∞
调焦方式 电动
视频接口 PAL制
控制接口 RS485
控制协议
PELCO-D/P协议，协议可切换，地址可调
外部供电 DC12V
重量 <7.5Kg
外形尺寸(mm) 200×340×200
工作温度 -40℃∼+60℃
存储温度 -50℃∼+70℃
其它功能 伪彩/电子放大
防护等级 IP66
出厂状态 内部充氮/PELCO-D 19200 地址38
