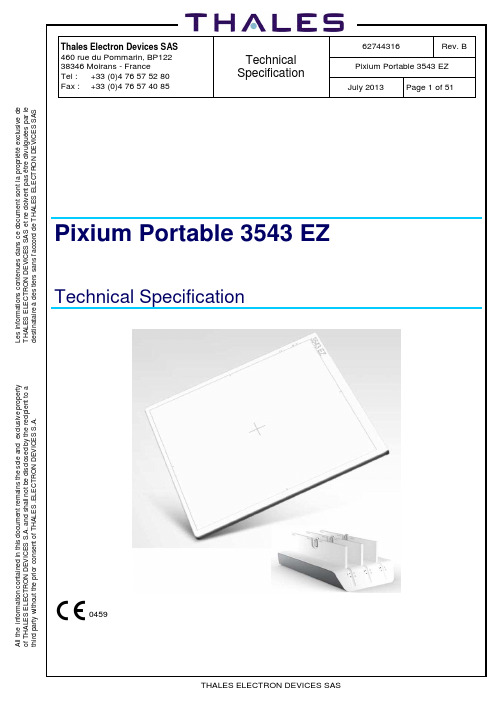

Pixium Portable 3543EZ_Technical Specification(技术说明)_62744316B

All the information contained in this document remains the sole and exclusive property of THALES ELECTRON DEVICES S.A. and shall not be disclosed by the recipient to a third party without the prior consent of THALES .ELECTRON DEVICES S.A.Les informations contenues dans ce document sont la propriété exclusive de THALES ELECTRON DEVICES SAS et ne doivent pas être divulguées par le destinataire à des tiers sans l’accord de THALES ELECTRON DEVICES SASThales Electron Devices SAS 460 rue du Pommarin, BP122 38346 Moirans - France Tel : +33 (0)4 76 57 52 80 Fax : +33 (0)4 76 57 40 85Technical SpecificationPixium Portable 3543 EZ0459Technical SpecificationTHALES ELECTRON DEVICES SASJuly 2013 Page 1 of 5162744316 Rev. BPixium Portable 3543 EZThales Electron Devices SAS 460 rue du Pommarin, BP122 38346 Moirans - France Tel : +33 (0)4 76 57 52 80 Fax : +33 (0)4 76 57 40 85Les informations contenues dans ce document sont la propriété exclusive de THALES ELECTRON DEVICES SAS et ne doivent pas être divulguées par le destinataire à des tiers sans l’accord de THALES ELECTRON DEVICES SAS62744316Rev. BTechnical SpecificationPixium Portable 3543 EZ July 2013 Page 2 of 51DOCUMENT PROPERTYFunction Document Property Written by Verified by Verified by Approved by Customer Technical Support Customer Technical Support System Engineer Marketing Quality Engineer Name Pascal Joffre Pascal Joffre Monteil Benoit Patrick Lejeune Frederic HonnoreDOCUMENT HISTORYRevision Status Preliminary Release Release Date July 2012 November 2012 July 2013 Add advanced features Modification Initial version for prototypeAll the information contained in this document remains the sole and exclusive property of THALES ELECTRON DEVICES S.A. and shall not be disclosed by the recipient to a third party without the prior consent of THALES .ELECTRON DEVICES S.A.A BTHALES ELECTRON DEVICES SASThales Electron Devices SAS 460 rue du Pommarin, BP122 38346 Moirans - France Tel : +33 (0)4 76 57 52 80 Fax : +33 (0)4 76 57 40 85Les informations contenues dans ce document sont la propriété exclusive de THALES ELECTRON DEVICES SAS et ne doivent pas être divulguées par le destinataire à des tiers sans l’accord de THALES ELECTRON DEVICES SAS62744316Rev. BTechnical SpecificationPixium Portable 3543 EZ July 2013 Page 3 of 51TABLE OF CONTENTSDocument Property .................................................................................................................................................. 2 Document History ..................................................................................................................................................... 2 Table of Contents ..................................................................................................................................................... 3 1. General .............................................................................................................................................................. 6 1.1 Product Scope ........................................................................................................................................... 6 1.2 Reference Documents .............................................................................................................................. 6 1.3 Product Names.......................................................................................................................................... 6 2. Regulations and Standards ............................................................................................................................ 7 2.1 Imposed Regulations and Legal Conditions ............................................................................................. 7 2.2 Marking ...................................................................................................................................................... 8 2.3 Product Classification ................................................................................................................................ 8 2.3.1 Electrical Safety Classification .............................................................................................................. 8 2.3.2 Classification According to 93/42/EEC Directive .................................................................................. 8 2.3.3 Ingress Protection ................................................................................................................................. 8 2.4 Wifi Certification ........................................................................................................................................ 8 3. Pixium Portable 3543 EZ Technical Description .......................................................................................... 9 3.1 Delivered Items ......................................................................................................................................... 9 3.1.1 The Pixium 3543EZ .............................................................................................................................. 9 3.1.2 The Pixium 3543EZ Battery .................................................................................................................. 9 3.1.3 The Pixium 3543EZ Back-Up Cable ..................................................................................................... 9 3.1.4 The Battery Charger ............................................................................................................................. 9 3.2 Accessories ............................................................................................................................................. 10 3.2.1 Grid Frame .......................................................................................................................................... 10 3.2.2 Magnetic Connector ............................................................................................................................ 10 3.3 Pixium Portable 3543 EZ Main Characteristics ....................................................................................... 10 3.4 Supported Configurations ....................................................................................................................... 11 3.5 Spatial Relationship ................................................................................................................................ 11 4. Technical Specification ................................................................................................................................. 12 4.1 Targeted Platform.................................................................................................................................... 12 4.2 Elements of the Pixrad Software Package .............................................................................................. 12 4.2.1 Pixrad Library ...................................................................................................................................... 12 4.2.2 Demonstration Software ..................................................................................................................... 12 4.2.3 IP Address Configurator...................................................................................................................... 12 4.2.4 Host PC Requirements ....................................................................................................................... 12 4.3 Pixrad Features ....................................................................................................................................... 13 4.3.1 Installation of the System .................................................................................................................... 13 4.3.2 Acquisition Mode Definition ................................................................................................................ 13 4.3.3 RAD Dual Mode Acquisition Timing Diagram ..................................................................................... 14 4.3.4 RAD Single Mode Acquisition Timing Diagram .................................................................................. 15 4.3.5 Positioning Mode Timing Diagram ...................................................................................................... 16 4.3.6 Auto-Triggered RAD Dual Mode Timing Diagram .............................................................................. 17 4.3.7 Auto-Triggered RAD Single Mode Timing Diagram ............................................................................ 18 4.3.8 Configurations Of Acquisition (Application / Operating Modes) ......................................................... 19 4.3.9 Detector Modes ................................................................................................................................... 19 4.3.10 Initialization File .............................................................................................................................. 20 4.3.11 System States ................................................................................................................................ 21 4.3.12 Detector States ............................................................................................................................... 22 4.3.13 Initialization of the System (Pixrad) ................................................................................................ 22 4.3.14 Image Acquisition ........................................................................................................................... 23 4.3.15 Image Recovering .......................................................................................................................... 23 4.3.16 Preview Image ................................................................................................................................ 23 4.3.17 Image Correction ............................................................................................................................ 24All the information contained in this document remains the sole and exclusive property of THALES ELECTRON DEVICES S.A. and shall not be disclosed by the recipient to a third party without the prior consent of THALES .ELECTRON DEVICES S.A.THALES ELECTRON DEVICES SASThales Electron Devices SAS 460 rue du Pommarin, BP122 38346 Moirans - France Tel : +33 (0)4 76 57 52 80 Fax : +33 (0)4 76 57 40 85Les informations contenues dans ce document sont la propriété exclusive de THALES ELECTRON DEVICES SAS et ne doivent pas être divulguées par le destinataire à des tiers sans l’accord de THALES ELECTRON DEVICES SAS62744316Rev. BTechnical SpecificationPixium Portable 3543 EZ July 2013 Page 4 of 514.3.18 Correction Dependencies ............................................................................................................... 24 4.3.19 Pattern Images ............................................................................................................................... 24 4.3.20 Calibration....................................................................................................................................... 25 4.3.21 Calibration Checks ......................................................................................................................... 26 4.3.22 Countdown ..................................................................................................................................... 26 4.3.23 Load Reference Files ..................................................................................................................... 27 4.3.24 Detector Control ............................................................................................................................. 28 4.3.25 Set MetaData .................................................................................................................................. 28 4.3.26 Detector Memory ............................................................................................................................ 28 4.3.27 Diagnostic / Information Functions ................................................................................................. 29 4.3.28 Infrared Features ............................................................................................................................ 31 4.3.29 Setting the Active Detector ............................................................................................................. 32 4.3.30 Connection ..................................................................................................................................... 32 4.3.31 Disconnection ................................................................................................................................. 32 4.3.32 Detector Scanning .......................................................................................................................... 32 4.3.33 Detector SSID Setting .................................................................................................................... 32 4.3.34 Detector Reset ................................................................................................................................ 32 4.3.35 Switching Detector State ................................................................................................................ 33 4.3.36 Logfile ............................................................................................................................................. 34 4.3.37 Asynchronous Events ..................................................................................................................... 34 5. Performance ................................................................................................................................................... 35 5.1 Pixrad Performance................................................................................................................................. 35 5.1.1 Startup Duration .................................................................................................................................. 35 5.1.2 Acquisition And Processing Durations ................................................................................................ 35 5.1.3 Load References ................................................................................................................................. 36 5.1.4 X-Ray Calibration ................................................................................................................................ 36 5.2 Battery Autonomy .................................................................................................................................... 37 5.3 Image Geometry Characteristics............................................................................................................. 37 5.4 Doses ...................................................................................................................................................... 37 5.5 X-Ray Performance ................................................................................................................................. 38 5.6 Sensitivity ................................................................................................................................................ 38 5.6.1 Rad Modes Sensitivity ........................................................................................................................ 38 5.6.2 Positioning Sensitivity ......................................................................................................................... 38 5.7 Noise and Signal Electronic Noise Ratio ................................................................................................ 38 5.8 Correlated Noise ..................................................................................................................................... 39 5.9 Dose Field Flatness Differential Uniformity ............................................................................................. 39 5.10 Effective Cluster Value (ECV) ................................................................................................................. 39 5.11 Source to Image Distance (SID) ............................................................................................................. 39 5.12 Service and Reliability ............................................................................................................................. 39 6. Conditions of Use .......................................................................................................................................... 40 6.1 Dark Calibration....................................................................................................................................... 40 6.2 X-Ray Calibration .................................................................................................................................... 40 6.3 Environmental Conditions ....................................................................................................................... 40 6.3.1 Storage and Transport Conditions ...................................................................................................... 40 6.3.2 Functional Operating Conditions ........................................................................................................ 41 6.3.3 Performance Operating Conditions .................................................................................................... 41 7. Electrical Interface ......................................................................................................................................... 42 7.1 Overall Description .................................................................................................................................. 42 7.2 Back-Up Cable Interface ......................................................................................................................... 43 7.3 Back-Up Cable ........................................................................................................................................ 44 7.3.1 Overall Description.............................................................................................................................. 44 7.3.2 Detector Connector ............................................................................................................................. 44 7.3.3 Ethernet Connector ............................................................................................................................. 45 7.3.4 Power Supply Connector .................................................................................................................... 45 7.3.5 Hot-Plug Functionality ......................................................................................................................... 46 7.4 Power Supply .......................................................................................................................................... 46 7.5 Insulation Diagram .................................................................................................................................. 47 THALES ELECTRON DEVICES SASAll the information contained in this document remains the sole and exclusive property of THALES ELECTRON DEVICES S.A. and shall not be disclosed by the recipient to a third party without the prior consent of THALES .ELECTRON DEVICES S.A.Thales Electron Devices SAS 460 rue du Pommarin, BP122 38346 Moirans - France Tel : +33 (0)4 76 57 52 80 Fax : +33 (0)4 76 57 40 85Les informations contenues dans ce document sont la propriété exclusive de THALES ELECTRON DEVICES SAS et ne doivent pas être divulguées par le destinataire à des tiers sans l’accord de THALES ELECTRON DEVICES SAS62744316Rev. BTechnical SpecificationPixium Portable 3543 EZ July 2013 Page 5 of 517.6 Push Button Interface .............................................................................................................................. 47 7.7 Communication Link ................................................................................................................................ 47 7.8 Wifi Interface ........................................................................................................................................... 47 7.9 Infrared Interface ..................................................................................................................................... 48 7.9.1 Physical Layer ..................................................................................................................................... 48 7.9.2 Link Layer ........................................................................................................................................... 49 7.10 LEDs Indicators Description .................................................................................................................... 49 7.11 Battery Charger ....................................................................................................................................... 50 7.11.1 Power Supply Input ........................................................................................................................ 50 7.11.2 AC/DC Converter Characteristics ................................................................................................... 50 7.11.3 Power Supply Connector Pinout .................................................................................................... 50 8. Mechanical Specification .............................................................................................................................. 51 8.1 Geometry Characteristics ........................................................................................................................ 51 8.2 Lead Shielding......................................................................................................................................... 51 End of Document .................................................................................................................................................... 51All the information contained in this document remains the sole and exclusive property of THALES ELECTRON DEVICES S.A. and shall not be disclosed by the recipient to a third party without the prior consent of THALES .ELECTRON DEVICES S.A.THALES ELECTRON DEVICES SASThales Electron Devices SAS 460 rue du Pommarin, BP122 38346 Moirans - France Tel : +33 (0)4 76 57 52 80 Fax : +33 (0)4 76 57 40 85Les informations contenues dans ce document sont la propriété exclusive de THALES ELECTRON DEVICES SAS et ne doivent pas être divulguées par le destinataire à des tiers sans l’accord de THALES ELECTRON DEVICES SAS62744316Rev. BTechnical SpecificationPixium Portable 3543 EZ July 2013 Page 6 of 511. GENERAL1.1 Product ScopeThe Thales Pixium Portable 3543 EZ is a device that converts static radiological images into digital clean images. The Thales Pixium Portable 3543 EZ includes: • an X-ray flat panel detector called Pixium 3543EZ which allows acquiring raw X-ray images; • an image pre-processing software called Pixrad that converts the detector raw images in a clean images ready to be used by the OEM system for further processing. The Pixium Portable 3543 EZ has been designed for use in medical radiography applications and is a part of a digital image acquisition chain in an overall Radiography System.1.2Ref 1 2 3 4 5 6Reference DocumentsDocument Name Pixium Portable 3543 EZ Technical Specification (this document) Pixium Portable EZ User's Manual Pixrad Software Interface Specification Pixium 3543EZ Outline drawing Pixium EZ General Caution and standard prescriptions Pixium EZ Storage and Handling instructions Code 62744316 62744317 62744318 62416721 62415402 62742955All the information contained in this document remains the sole and exclusive property of THALES ELECTRON DEVICES S.A. and shall not be disclosed by the recipient to a third party without the prior consent of THALES .ELECTRON DEVICES S.A.1.3Product NamesName Definition Name of the standard Thales Application Programming Interface suitable for all the static Pixium flat panel detectors proposed by Thales. This API provides functionalities to the OEM system such as control of the detectors, acquisition of images, calibration of the system, image pre-processing and service information. Patented generic name for all Thales flat panel digital detectors (manufactured by Trixell). Refers to the 24 x 30 mm X-ray flat panel detector alone. Refers to the 35 x 43 mm X-ray flat panel detector alone. Refers to both detectors Pixium 2430EZ and Pixium 3543EZ.PixradPixium Pixium 2430EZ Pixium 3543EZ Pixium EZPixium Portable 2430 EZ Refers to the package including the Pixrad API and a Pixium 2430EZ. Pixium Portable 3543 EZ Refers to the package including the Pixrad API and a Pixium 3543EZ. Pixium Portable EZ Refers to both packages Pixium Portable 2430 EZ and Pixium Portable 3543 EZ.THALES ELECTRON DEVICES SASThales Electron Devices SAS 460 rue du Pommarin, BP122 38346 Moirans - France Tel : +33 (0)4 76 57 52 80 Fax : +33 (0)4 76 57 40 85Les informations contenues dans ce document sont la propriété exclusive de THALES ELECTRON DEVICES SAS et ne doivent pas être divulguées par le destinataire à des tiers sans l’accord de THALES ELECTRON DEVICES SAS62744316Rev. BTechnical SpecificationPixium Portable 3543 EZ July 2013 Page 7 of 512. REGULATIONS AND STANDARDS2.1 Imposed Regulations and Legal ConditionsCompliance with MDD: Medical Devices Directive (93/42/EEC) RoHS: Restriction of Hazardous Substances (2011/65/EU). An exception is done for the XRay protection by lead. DEEE 2012/19/EU EN ISO 14971 (2012), "Dispositifs médicaux - Application de la gestion des risques aux dispositifs médicaux". IEC 60601-1 2nd edition (1988), including amendment nr. 1(1991) and amendment nr. 2(1995) + corrigendum of June 2002 "Medical electrical equipment. Part 1: General requirements for safety". IEC 60601-1 3rd Ed (2005), "Medical electrical equipment - Part 1: General requirements for basic safety and essential performance". IEC 60601-1-2 3rd Ed (2007), "Medical electrical equipment - Part 1-2: Electromagnetic compatibility". IEC 60601-1-3 3rd Ed (2008), "Medical electrical equipment - Part 1-3: Radiation protection in diagnostic X-ray equipment".All the information contained in this document remains the sole and exclusive property of THALES ELECTRON DEVICES S.A. and shall not be disclosed by the recipient to a third party without the prior consent of THALES .ELECTRON DEVICES S.A.IEC 60601-1-4 edition 1.1 (April 2000), "Medical electrical equipment - Part 4 - Collateral standard : Programmable Electrical Medical Systems" IEC 60601-1-6 (2006), "Appareils électromédicaux Partie 1-6: Règles générales de sécurité Norme collatérale: Aptitude à l'utilisation". IEC 62304 (2006), "Medical device software - Software lifecycle processes" EN ISO 10993 (2009), "Biological evaluation of medical devices". Applicable parts : EN ISO 10993-1, evaluation and trials. EN ISO 10993-5, cytotoxicity. EN ISO 10993-10 irritation and skin sensitization. EN ISO 10993-11, systematic toxicity. EN 980 (2008), "Symbols for use in the labeling of medical devices". EN 1041 (2008), "Information supplied by the manufacturer of medical devices". USA: UL 60601-1 "Medical electrical equipment. Part 1 : General requirements for safety"; 1st edition, dated April 25, 2003 Canada: CAN/CSA-C22.2 No. 601-1-M90 "Medical electrical equipments for safety", November 1990 American Code Federal Regulation CFR 21 (FDA) for following sections:THALES ELECTRON DEVICES SAS。

新航展显示-NHD-7.0-800480FT-CTXL-CTP 产品说明书

Product SpeciﬁcationNHD-7.0-800480FT-CTXL-CTPDocument Revision History (2)Mechanical Drawing (3)Schematic (4)Pin Description (5)Controller Information (5)Display Information (5)Arduino Application (5)Electrical Characteristics (6)Optical Characteristics (6)Capacitive Touch Panel Material Characteristics (6)Backlight Driver Configuration (6)FT81x Block Diagram (7)Serial Host Interface (7)TFT Timing Characteristics (8)Graphics Engine (8)Touch-Screen Engine (9)Audio Engine (9)Additional Information/Resources (11)Quality Information (12)Additional Resources➢Support Forum: https:///hc/en-us/community/topics➢GitHub: https:///newhavendisplay➢Example Code: https:///hc/en-us/categories/4409527834135-Example-Code/➢Knowledge Center: https:///knowledge_center.html➢Quality Center: https:///quality_center.html➢Precautions for using LCDs/LCMs: https:///specs/precautions.pdf➢Warranty / Terms & Conditions: https:///terms.htmlDocument Revision HistoryPin DescriptionCN2: FFC Connector - 20-Pin, 1.0mm pitch, Top-contact.NOTICE: It is not recommended to apply power to the board without a display connected. Doing so may result in a damaged LED driver circuit. Newhaven Display does not assume responsibility for failures due to this damage. Controller InformationThis EVE2 TFT Module is powered by the FTDI/Bridgetek FT813 Embedded Video Engine (EVE2).To view the full FT81x specification, please download it by accessing the link below:https:///hc/en-us/articles/6963170802839-FT81xDisplay InformationThis product consists of the above TFT display assembled with a PCB which supports all the features of this module. For more details on the TFT display itself, please download the specification at:/specs/NHD-7.0-800480EF-ATXL-CTP.pdfArduino ApplicationIf using or prototyping this EVE2 TFT Module with the low-cost, widely popular Arduino platform we highly recommend using our Arduino shield, the NHD-FT81x-SHIELD. Not only does the NHD-FT81x-SHIELD provide seamless connectivity and direct software compatibility for the user, but it also comes with the following useful features on-board: •logic level shifters to allow the 5V Arduino to communicate with the 3.3V FT81x•regulators to allow the Arduino to output more current to the EVE2 TFT Module•audio filter/amplifier circuit to utilize the EVE2 TFT Module’s audio output signal•microSD card slot, which allows expandable storage for data such as images, video, and audio to be stored. Please visit the NHD-FT81x-SHIELD product webpage for more info.Electrical CharacteristicsOptical CharacteristicsCapacitive Touch Panel Material CharacteristicsBacklight Driver ConfigurationThe Backlight Driver Enable signal is connected to the FT81x backlight control pin. This signal is controlled by two registers: REG_PWM_HZ and REG_PWM_DUTY. REG_PWM_HZ specifies the PWM output frequency – the range available on the FT81x is 250 to 10KHz and the on-board backlight driver’s PWM frequency is 800 to 100KHz. Therefore, for proper use of the PWM function available on this module, the PWM frequency should not go below 800 or exceed 10KHz.REG_PWM_DUTY specifies the duty cycle – the range is 0 to 128. A value of 0 turns the backlight completely off, while a value of 128 provides maximum backlight brightness.For the above register definitions, please refer to pages 80-81 of the official FT81x Series Programmers Guide:/Support/Documents/ProgramGuides/FT81X_Series_Programmer_Guide.pdfFT81x Block DiagramFT81x with EVE (Embedded Video Engine) technology simplifies the system architecture for advanced Human Machine Interfaces (HMIs) by providing support for display, touch, and audio as well as an object oriented architecture approach that extends from display creation to the rendering of the graphics.Serial Host InterfaceBy default the SPI slave operates in the SINGLE channel mode with MOSI as input from the master and MISO as output to the master. DUAL and QUAD channel modes can be configured through the SPI slave itself. To change the channel modes, write to register REG_SPI_WIDTH. Please refer to the table below:For more details on the FT81x SPI interface, please refer to pages 13-15 of the official FT81x Datasheet:https:///hc/en-us/articles/6963170802839-FT81xFor the REG_SPI_WIDTH register definition, please refer to page 87 of the official FT81x Series Programmers Guide: /Support/Documents/ProgramGuides/FT81X_Series_Programmer_Guide.pdfTFT Timing CharacteristicsShown below are the FT81x registers that control the TFT’s timing (clock and sync signals), along with the values recommended to use for this EVE2 TFT Module:Graphics EngineThe graphics engine executes the display list once for every horizontal line. It executes the primitive objects in the display list and constructs the display line buffer. The horizontal pixel content in the line buffer is updated if the object is visible at the horizontal line.Main features of the graphics engine are:•The primitive objects supported by the graphics processor are: lines, points, rectangles, bitmaps (comprehensive set of formats), text display, plotting bar graph, edge strips, and line strips, etc.•Operations such as stencil test, alpha blending and masking are useful for creating a rich set of effects such as shadows, transitions, reveals, fades and wipes.•Anti-aliasing of the primitive objects (except bitmaps) gives a smoothing effect to the viewer.•Bitmap transformations enable operations such as translate, scale and rotate.•Display pixels are plotted with 1/16th pixel precision.•Four levels of graphics states•Tag buffer detectionThe graphics engine also supports customized built-in widgets and functionalities such as jpeg decode, screen saver, calibration etc. The graphics engine interprets commands from the MPU host via a 4 Kbyte FIFO in the FT81x memory at RAM_CMD. The MPU/MCU writes commands into the FIFO, and the graphics engine reads and executes the commands. The MPU/MCU updates the register REG_CMD_WRITE to indicate that there are new commands in the FIFO, and the graphics engine updates REG_CMD_READ after commands have been executed.Main features supported are:•Drawing of widgets such as buttons, clock, keys, gauges, text displays, progress bars, sliders, toggle switches, dials, gradients, etc.•JPEG and motion-JPEG decode•Inflate functionality (zlib inflate is supported)•Timed interrupt (generate an interrupt to the host processor after a specified number of milliseconds)•In-built animated functionalities such as displaying logo, calibration, spinner, screen saver and sketch•Snapshot feature to capture the current graphics displayFor a complete list of graphics engine display commands and widgets, please refer to Chapter 4 of the officialFT81x Series Programmers Guide:/Support/Documents/ProgramGuides/FT81X_Series_Programmer_Guide.pdfTouch-Screen EngineThe Capacitive Touch Screen Engine (CTSE) of the FT813 communicates with the external Capacitive Touch Panel Module (CTPM) through an I2C interface. The CTPM will assert its interrupt line when there is a touch detected. Upon detecting CTP_INT_N line active, the FT813 will read the touch data through I2C. Up to 5 touches can be reported and stored in FT813 registers.For more details on the FT813 Touch-Screen Engine, please refer to pages 32-35 of the official FT81x Datasheet: https:///hc/en-us/articles/6963170802839-FT81xAudio EngineThe FT81x provides mono audio output through a PWM output pin, AUDIO_L. It outputs two audio sources, the sound synthesizer and audio file playback.This pin is designed to be passed into a simple filter circuit and then passed to an amplifier for best results. Please refer to the example schematic in the Audio Filter and Amplifier Reference Circuit section on the next page.Sound SynthesizerA sound processor, AUDIO ENGINE, generates the sound effects from a small ROM library of waves table. To play a sound effect listed in Table 4.3, load the REG_SOUND register with a code value and write 1 to the REG_PLAY register. The REG_PLAY register reads 1 while the effect is playing and returns a ‘0’ when the effect ends. Some sound effects play continuously until interrupted or instructed to play the next sound effect. To interrupt an effect, write a new value to REG_SOUND and REG_PLAY registers; e.g. write 0 (Silence) to REG_SOUND and 1 to PEG_PLAY to stop the sound effect.The sound volume is controlled by register REG_VOL_SOUND. The 16-bit REG_SOUND register takes an 8-bit sound in the low byte. For some sounds, marked "pitch adjust" in the table below, the high 8 bits contain a MIDI note value. For these sounds, a note value of zero indicates middle C. For other sounds the high byte of REG_SOUND is ignored. Audio PlaybackThe FT81x can play back recorded sound through its audio output. To do this, load the original sound data into theFT81x’s RAM, and set r egisters to start the playback. The registers controlling audio playback are:REG_PLAYBACK_START: The start address of the audio data.REG_PLAYBACK_LENGTH: The length of the audio data, in bytes.REG_PLAYBACK_FREQ: The playback sampling frequency, in Hz.REG_PLAYBACK_FORMAT: The playback format, one of LINEAR SAMPLES, uLAW SAMPLES, orADPCM SAMPLES.REG_PLAYBACK_LOOP: If ‘0’, the sample is played once. If ‘1’, the sample is repeated indefinitely.REG_PLAYBACK_PLAY: A write to this location triggers the start of audio playback, regardless ofwriting ‘0’ or ‘1’. Read back ‘1’ when pl ayback is ongoing, and ‘0’ whenplayback finishes.REG_VOL_PB: Playback volume, 0-255.The mono audio formats supported are 8-bits PCM, 8-bits uLAW and 4-bits IMA-ADPCM. For ADPCM_SAMPLES, each sample is 4 bits, so two samples are packed per byte, the first sample is in bits 0-3 and the second is in bits 4-7.The current audio playback read pointer can be queried by reading the REG_PLAYBACK_READPTR. Using a large sample buffer, looping, and this read pointer, the host MPU/MCU can supply a continuous stream of audio.For more details on the FT81x Audio Engine, please refer to pages 30-32 of the official FT81x Datasheet:https:///hc/en-us/articles/6963170802839-FT81xAdditional Information/ResourcesFT81x Datasheet:FTDI/Bridgetek FT81x Embedded Video Engine (EVE2)https:///hc/en-us/articles/6963170802839-FT81xProgrammers Guide:FT81x Series Programmers Guide/Support/Documents/ProgramGuides/FT81X_Series_Programmer_Guide.pdfNHD GitHub Page:NHD EVE2 TFT Module Example Projectshttps:///NewhavenDisplay/EVE2-TFT-ModulesEVE2 Software Examples:FT81x Example Projects/Support/SoftwareExamples/FT800_Projects.htmFTDI/Bridgetek Utilities:Screen Designer/Support/Utilities.htm#ESD3Image Converters/Support/Utilities.htm#EVEImageConvertersAudio Converter/Support/Utilities.htm#EVEAudioConverterFont Converter/Support/Utilities.htm#EVEFontConverterFT80x to FT81x Migration Guide:FT80x to FT81x Migration Guide/Support/Documents/AppNotes/AN_390%20FT80x%20To%20FT81x%20Migration%20Guide.pdf11Quality InformationNote 2: Conducted after 4 hours of storage at 25⁰C, 0%RH.Note 3:Test performed on product itself, not inside a container.12。

Arducam B035 8 产品说明书

ArducamDatasheet AR0230 4mm Manual Focus USB Camera ModuleB03581. PurposeIn order to fully describe the technical specifications referred to in technical cooperation, it usually needs to be expressed by a complete set of documents. As part of this, this datasheet specifies the specific technical specifications that a camera module should meet and is binding on this model.2. EfficacityThis datasheet shall prevail if this it’s inconsistent with the specifications in the general technical specifications of such goods.3. Technical Parameters4. Camera Board Dimension DiagramUnit: mm5. Lens DiagramUnit: mm6. Imaging7. Camera Parameters Interface- Video Proc Amp - Camera Control- Video Capture Pin8. Function Inspection Criteria8.1 Function definition:Camera module electrical performance and image quality.8.2 Inspection methods⚫Staff: Visual inspection personnel need to be trained and have normal color recognition ability. Their vision should be above 1.0 (or more than 1.0 after correction is acceptable), and their colordiscrimination ability can pass standard tests.⚫Tool: Connect the computer, inspect images with Amcap software.⚫Distance and TimeObservation distance: 30~55cmObservation time for each surface: 3~5seconds⚫Inspection condition: Visual inspection should be performed under unobtrusive fluorescent lamps, and its minimum illumination should be above 100 feet of candlelight, or 60W fluorescent lamps, inspected at 1.5m distance.8.3 Accept criteria⚫The image has no mess, color screen and discoloration.⚫There is no white spot, black spot, dirt or dark angle in the image.⚫The image is same clear on all corners9. Visual Inspection Criteria9.1 The definition of the appearanceCamera module appearance.9.2 Test methods⚫Staff: Visual inspection personnel need to be trained and have normal color recognition ability. Their vision should be above 1.0 (or more than 1.0 after correction is acceptable), and their colordiscrimination ability can pass standard tests.⚫Distance and TimeObservation distance: 50~75cm,Observation time for each surface: 3~5seconds⚫Inspection condition: Visual inspection should be performed under unobtrusive fluorescent lamps, and its minimum illumination should be above 100 feet of candlelight, or 60W fluorescent lamps, inspected at 1.5m distance.⚫Observation angle: Observation angle between 40°~50°.9.3 Accept criteria⚫Cleanliness: Parts must be free of stains, dust, grease, and other stains. Smudges due to transportation materials are acceptable if they can be blown away or wiped off.⚫Assembly surface: The parts to be assembled should avoid scratches, gouges, dents, bends, cracks, indentations, abrasions or other defects caused by improper assembly.10. Reliability Test11. Packing Request⚫Products should be strictly based on product characteristics to develop corresponding packaging standards and follow the implementation to ensure that the product is used within the specified use and storage period, to achieve anti-static, moisture-proof, shock-proof, mildew-proof, anti-barbaric handling and other signs and related warranty requirements. Product packaging should be marked: Supply-side name / logo, Product Model specifications, containing the number, production date / batch number and order number.⚫The product's outer packaging should be marked with: supplier name / sign, product model specification, built-in quantity, production date / batch number and order number.⚫The packing and packing scheme are based on the customer's requirements, and the two parties will negotiate the specific details. The sealed samples shall prevail.12. Others⚫Changes to this acknowledgement need to be confirmed by both parties, and any modification by either party is invalid.⚫This acknowledgment must be signed and returned within seven working days of receipt by the client, late regarded as the default.。

MX-E 系列机器视觉处理器快速参考指南说明书

MX-E Processor with PNP (sourcing) I/OQUICK REFERENCE GUIDEDESCRIPTIONThis guide covers MX-E processor models that contain the letter “P.” For example MX-E20-2-P-1. These models provide PNP (sourcing) inputs and outputs.The MX-E series machine vision processors offer the most powerful and flexible way to solve even complex machine vision applications. • Rugged IP20 housing • Low Maintenance• 16 Inputs and Outputs • Up to 4 GigE cameras• Easily Accessed connectorsSYSTEM SPECIFICATIONSProcessorsMX-E20: Intel Celeron 1.4 GHz; MX-E40: Intel Celeron 2.2 GHz ; MX-E80: Intel Core i7 2.3 GHz StorageMX-E20 and MX-E40: 4 GB RAM - 60 GB SSD; MX-E80: 8 GB RAM - 128 GB SSDGigE camera portsMX-E20: 2; MX-E40 and MX-E80: 2 or 4All MX-E processors have the following specifications: • HD graphics (1920x1200)• 2 x 10/100/1000 Mbps Base-T Network Interface• Ethernet/IP, Modbus TCP, OPC communications are supported • 1 x RS232 port• 16 x Optically Isolated Digital In + 16 x Optically Isolated Digital Out • Microsoft Windows OEM Embedded Standard 7 64-bitSUPPLY VOLTAGE CONNECTIONPower Connector + 24VDC Supply Plus GND Functional Ground* - 24VDC Supply Minus*Connect to ground using a conductor with minimum 2.5 mm² cross-sectionSTATUS LEDS AND BUTTONS1. Power, green2. HDD, Yellow3. Link, Yellow4. Run, Green5.Power Button 6.Reset ButtonBehind Front CoverPower Button: Press and release to turn on the unit or shut down the OS and switch off the unit. Press and hold to switch off without OS shutdown. Reset Button: Triggers a hardware and PCI reset. The unit is restarted.HASP KEY USB PORT1. Reset Button2. USB Port for Hasp KeyTo enable cameras and licenses, insert the provided Hasp key in the USB port (labeled CONNECTORS1. USB 3.02. Ethernet 23. Ethernet 14. RS232 (COM 1)5. Display Port6. DVI for Monitor7. Supply Voltage8. 37 pin D-Sub Digital I/O9. M-Series or E-Series Camera(CAM1-CAM4) Cable 606-0677-xx 10. USB 2.0 – Keyboard/MouseDisplay PortTop ViewDIGITAL I/O CABLES TERMINALS AND CONNECTIONSCablePart Number Digital I/O 37-pin to Terminal Block 248-0110 606-0675-xx Digital I/O 37-pin to pigtail (remove one end)606-0675-xxBlue/BlackFemale ConnectorDIGITAL I/O SPECIFICATIONSCOMMUNICATIONSCamera communication uses Cat6 Ethernet cable and provides POE for M1xx and E1xx cameras. Use only Datalogic provided cables.I/O CONFIGURATIONVision Program Manager (VPM) software installed on the processor is used to create vision programs and configure input and output response. Refer to the Impact Reference Guide for programming details.MECHANICAL DIMENSIONSCAMERA CABLES, TERMINALS, AND CONFIGURATIONCamera trigger and strobe output are provided by an external 6-pin I/O cable with no connection to the processor. Use cable 606-0672-xx (unterminated) orEXAMPLE I/O CIRCUIT DIAGRAMSTECHNICAL DATASupply voltage (Vs) 24 VDC ± 25% Nominal Current Draw 5.5 A at 24 VDC Inputs16 opto-isolated Input currentON: 2.0 mA or more Off: 0.16 mA or lessOutputs16 opto-isolated current sinkingOutput Voltage 35 VDC (max)Output current100 mA max per outputOutput saturation voltage < 1 VNetwork interface 10/100/1000 Mbps Ethernet x 2 Camera interface GigE (x 2 or 4 depending on model)Dimensions 130 × 270 × 254.75 mm Data retention Non-volatile SSD memory TemperatureOperating: 0 °C to 55 °C Storage: -20 °C to 60 °C Relative Humidity (30 °C) Operating: 10 to 90% Storage: 5 to 95%Vibrations(EN60068-2-6) 2 to 8 Hz: 1.75 mm amplitude /9 to 200 Hz: 0.5 gShock resistance (EN60068-2-27) 11 MS (15 G) Housing materialGalvanized plate, plasticMechanical protection (EN 60529) IP20 Weight2050 gCOMPLIANCEOnly connect Ethernet and dataport connections to a network which has routing only within the plant or building and no routing outside the plant or building. CE COMPLIANCEWarning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. FCC COMPLIANCEModifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use the equipment.This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. DECLARATION OF CONFORMITYWe DATALOGIC AUTOMATION declare under our sole responsibility that these products are conform to the 2004/108/CE and successive amendments.WARRANTY DATALOGIC AUTOMATION warrants its products to be free from defects.DATALOGIC AUTOMATION will repair or replace, free of charge, any product found to be defective during the warranty period of 24 months from the manufacturing date.This warranty does not cover damage or liability deriving from the improper application of DATALOGIC AUTOMATION products.DATALOGIC AUTOMATIONVia Lavino 265 - 40050 Monte S.Pietro - Bologna – Italy Tel: +39 051 6765611 - Fax: +39 051 6759324e-mail:********************************DATALOGIC AUTOMATION cares for the environment: 100% recycled paper.DATALOGIC AUTOMATION reserves the right to make modifications and improvements without prior notification.Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries,including the U.S.A. and the E.U.821004221 (Rev A) © Copyright Datalogic 2016Inputs SpecificationFormat Opto-coupler isolated input Resistance 4.7k ΩOn current 2.0 mA or more Off current0.16 mA or less Response Time Within 200 µsecOutputs SpecificationFormatOpto-coupler isolated open collector output Output voltage 35 VDC (max)Output current 100mA (per channel max)Residual voltage output on0.5V or less (Output current≤50mA), 1.0V or less (Output current≤100mA) Response TimeWithin 200 µsecPower 24 VDCMM-+Supplied Power PlugInput Connection (Sourcing)Output Connection (Sourcing)MX-E Processor with NPN (sinking) I/OQUICK REFERENCE GUIDEDESCRIPTIONThis guide covers MX-E processor models that contain the letter “N.” For example MX-E20-2-N-1. These models provide NPN (sinking) inputs and outputs.The MX-E Series machine vision processors offer the most powerful and flexible way to solve even complex machine vision applications. • Rugged IP20 housing • Low Maintenance • 16 Inputs and Outputs • Up to 4 GigE cameras• Easily Accessed connectorsSYSTEM SPECIFICATIONSProcessorsMX-E20: Intel Celeron 1.4 GHz; MX-E40: Intel Celeron 2.2 GHz ; MX-E80: Intel Core i7 2.3 GHz StorageMX-E20 and MX-E40: 4 GB RAM - 60 GB SSD; MX-E80: 8 GB RAM - 128 GB SSDGigE camera portsMX-E20: 2; MX-E40 and MX-E80: 2 or 4All MX-E processors have the following specifications: • HD graphics (1920x1200)• 2 x 10/100/1000 Mbps Base-T Network Interface• Ethernet/IP, Modbus TCP, OPC communications are supported • 1 x RS232 port• 16 x Optically Isolated Digital In + 16 x Optically Isolated Digital Out • Microsoft Windows OEM Embedded Standard 7 64-bitSUPPLY VOLTAGE CONNECTIONPower Connector + 24VDC Supply Plus GND Functional Ground* - 24VDC Supply Minus*Connect to ground using a conductor with minimum 2.5 mm² cross-sectionSTATUS LEDS AND BUTTONS1. Power, green2. HDD, Yellow3. Link, Yellow4. Run, Green5.Power Button 6.Reset ButtonBehind Front CoverPower Button: Press and release to turn on the unit or shut down the OS and switch off the unit. Press and hold to switch off without OS shutdown. Reset Button: Triggers a hardware and PCI reset. The unit is restarted.HASP KEY USB PORT1. Reset Button2. USB Port for Hasp KeyTo enable cameras and licenses, insert the provided Hasp key in the USB port (labeled CONNECTORS1. USB 3.02. Ethernet 23. Ethernet 14. RS232 (COM 1)5. Display Port6. DVI for Monitor7. Supply Voltage8. 37 pin D-Sub Digital I/O9. M-Series or E-Series Camera(CAM1-CAM4) Cable 606-0677-xx 10. USB 2.0 – Keyboard/MouseDisplay PortTop ViewDIGITAL I/O CABLES TERMINALS AND CONNECTIONSCablePart Number Digital I/O 37-pin to Terminal Block 248-0110 606-0675-xx Digital I/O 37-pin to pigtail (remove one end)606-0675-xxBlue/BlackFemale ConnectorDIGITAL I/O SPECIFICATIONSCOMMUNICATIONSCamera communication uses Cat6 Ethernet cable and provides POE for M1xx and E1xx cameras. Use only Datalogic provided cables.I/O CONFIGURATIONVision Program Manager (VPM) software installed on the processor is used to create vision programs and configure input and output response. Refer to the Impact Reference Guide for programming details.MECHANICAL DIMENSIONSCAMERA CABLES, TERMINALS, AND CONFIGURATIONCamera trigger and strobe output are provided by an external 6-pin I/O cable with no connection to the processor. Use cable 606-0672-xx (unterminated) or EXAMPLE I/O CIRCUIT DIAGRAMSTECHNICAL DATASupply voltage (Vs) 24 VDC ± 25% Nominal Current Draw 5.5 A at 24 VDC Inputs16 opto-isolated Input currentON: 2.0 mA or more Off: 0.16 mA or lessOutputs16 opto-isolated current sinkingOutput Voltage 35 VDC (max)Output current100 mA max per outputOutput saturation voltage < 1 VNetwork interface 10/100/1000 Mbps Ethernet x 2 Camera interface GigE (x 2 or 4 depending on model)Dimensions 130 × 270 × 254.75 mm Data retention Non-volatile SSD memory TemperatureOperating: 0 °C to 55 °C Storage: -20 °C to 60 °C Relative Humidity (30 °C) Operating: 10 to 90% Storage: 5 to 95%Vibrations(EN60068-2-6) 2 to 8 Hz: 1.75 mm amplitude /9 to 200 Hz: 0.5 gShock resistance (EN60068-2-27) 11 MS (15 G) Housing materialGalvanized plate, plasticMechanical protection (EN 60529) IP20 Weight2050 gCOMPLIANCEOnly connect Ethernet and dataport connections to a network which has routing only within the plant or building and no routing outside the plant or building. CE COMPLIANCEWarning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. FCC COMPLIANCEModifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use the equipment.This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. DECLARATION OF CONFORMITYWe DATALOGIC AUTOMATION declare under our sole responsibility that these products are conform to the 2004/108/CE and successive amendments.WARRANTY DATALOGIC AUTOMATION warrants its products to be free from defects.DATALOGIC AUTOMATION will repair or replace, free of charge, any product found to be defective during the warranty period of 24 months from the manufacturing date.This warranty does not cover damage or liability deriving from the improper application of DATALOGIC AUTOMATION products.DATALOGIC AUTOMATIONVia Lavino 265 - 40050 Monte S.Pietro - Bologna – Italy Tel: +39 051 6765611 - Fax: +39 051 6759324e-mail:********************************DATALOGIC AUTOMATION cares for the environment: 100% recycled paper.DATALOGIC AUTOMATION reserves the right to make modifications and improvements without prior notification. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries,including the U.S.A. and the E.U.821004221 (Rev A) © Copyright Datalogic 2016Inputs SpecificationFormat Opto-coupler isolated input Resistance 4.7k ΩOn current 2.0 mA or more Off current0.16 mA or less Response Time Within 200 µsecOutputs SpecificationFormatOpto-coupler isolated open collector output Output voltage 35 VDC (max)Output current 100mA (per channel max)Residual voltage output on0.5V or less (Output current≤50mA), 1.0V or less (Output current≤100mA) Response TimeWithin 200 µsecPower 24 VDCMMInput Connection (Sinking)Output Connection (Sinking) -+Supplied Power Plug。

Ad-159零件手册

NOTE1.Indicate parts number and machine model when placing an order.eg.Parts Number Parts Name Machine Model Cycle Quantity 2BV04012FRONT COVER AD-159 60Hz12.Service calls and freight will be charged separately.3.Symbols in the "Parts Number" column.• Parts with "'" indicates the service parts and the parts without "'" can not be supplied.• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.eg.Parts Number Parts Name Parts Number Parts Name2AV01030 POWER INLET ASS'Y•L0023070ROUND TYPE TYERMINAL, 173636-1•2AV27350INLET, POWER SOURCE4.See the last page of this parts list for the classification of the screws in the illustrations.FIG. 1 EXTERIOR COVERS (2)FIG. 2 FRAMES (4)FIG. 3 CASSETTE (6)FIG. 4 P APER FEED-IN SECTION (8)FIG. 5 P APER CONVEYING SECTION (10)FIG. 6 ORIGINAL HOLDER (12)FIG. 7 OPTICAL SECTION (14)FIG. 8 LASER SCANNER UNIT (16)FIG. 9 IMAGING UNIT (18)FIG. 10 FIXING SECTION (22)FIG. 11 DRIVING SECTION (24)FIG. 12 ELECTRICAL COMPONENTS (26)FIG. 13 OPERATION UNIT (28)FIG. 14 ACCESSORIES & OPTION (30)• INDEX (32)– 1 –2BV– 2 –FIG. 1 EXTERIOR COVERS– 3 –• Parts with "•" are component parts or sub-assemblies of theassembly appearing immediately above them.• Parts with "'" indicates the Service parts.SPPart. No.Description230V 240VQuantity Ref.No.FIG. 1 EXTERIOR COVERS12AV02120MOUNT HINGE 22'22AV02140FRONT HINGE,COVER 22'32BV04060COVER,FRONT 11'4 2B V 25070 HOLDER SAFETY SWITCH 1 1'52AV04030UPPER FRONT COVER 11'62AV04040FRONT LEFT COVER 11'72AV04050UPPER LEFT COVER 11'82AV04060LEFT COVER,MIDDLE 11'92AV04070LOWER LEFT COVER 11'102AV04080REAR LEFT COVER 11'112AV04090RIGHT COVER 11'122AV04100REAR COVER SCANNER 11'132AV04160UPPER COVER,EJECT 11'142AV04170COVER,TRAY 11'152AV04190REAR COVER 11'162AV04210REAR COVER,TRAY 11'172AV04220UPPER REAR COVER,TRAY 11'182AV04260LID RIGHT COVER 11'192AV05050LABEL,CONVEYING JAM 11202AC05130LABEL,SUPPLY(EUR)112148128107PIN,CLEANING BLADE 112235904240AUXILIARY PLATE,CONVEYING UNIT 1123 2BV25080 MAGNET,LOWER FRONT COVER 2 2242BV04050UPPER REAR SEAL 112BV– 4 –FIG. 2 FRAMES– 5 –2BV• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.• Parts with "'" indicates the Service parts.SPPart. No.Description230V 240VQuantity Ref.No.SPPart. No.Description230V 240VQuantity Ref.No.12AV02010BASE,MACHINE1122AV02020UPPER FRAME,MACHINE 1132AV02030FRONT FRAME 1142AV02040REAR FRAME1152AV02050RIGHT SUPPORT PLATE,SCANNER 1162AV02060LEFT SUPPORT PLATE,SCANNER 1172AV02070FRONT STAY1182AV02080TOP REINFORCEMENT1192AV02090LOWER FRONT REINFORCEMENT 11102AV02100RIGHT REINFORCEMENT 11112AV02110MOUNT,SHAFT HANDLE 11122AV02150FRONT RETAINER,SCANNER 11132AV02160RIGHT RETAINER,SCANNER 11'142AV02170SHAFT,HANDLE 22'152AV04180COVER DUCT11162AV06080LEFT RAIL,CASSETTE11172AV06100RIGHT MOUNT,SIZE DETECTION 11182AV15010MOVING BASE,CARTRIDGE DRIVE 11192AV15020MOUNT,CARTRIDGE DRIVE 11202AV15050GEAR C,TONER SUPPLY 11212AV15060GEAR D,TONER SUPPLY 11222AV26250GROUND PLATE,LSU11232AR10080MOUNT BASE,CLEANING LAMP 11242AR15020MOVING BASE,CARTRIDGE11252AR15060COVER,CARTRIDGE MOUNT BASE 11262AR15080LEVER,CARTRIDGE MOVING 112745727502GEAR,TONER MOTOR 112849628105RECEIVER,MAGNET 11'2933915190TONER MOTOR 11'3035927420SWITCH,SIZE11'3166260030BASE RUBBER,SORTER 223271821390IDLE GEAR 48113373818100SPRING, BLADE THRUST 22'3477906200CASSETTE CATCHER1135J0455020CASE,DF3-2EP-2A(HIROSE)1136M2104350EDGING,EDS-0607M(KITAGAWA)1137M2109010WIRE SADDLE,WS-2NS33382AV06240RIGHT FRONT GUIDE FILM,REGISTRATION 66392AV06250GUIDE FILM,RAIL CASSETTE 11402AV06330SHEET B,BYPASS44FIG. 2 FRAMES412AV06340FRONT FILM,BYPASS PAD 44422AV06390PLATE SPRING,BYPASS TABLE 11432AV06400SPONGE,BYPASS TABLE 22442AV26280GROUND PLATE A,HANDLE 114548129208PIN,TENSION11462AV26300GROUND PLATE STAY112BV– 6 –FIG. 3 CASSETTE1423132352712164261887246252022111615917191010211HATHATHDIHDI– 7 –• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.• Parts with "'" indicates the Service parts.SPPart. No.Description230V 240VQuantity Ref.No.'12AV05090SHEET,CASSETTE SIZE INDICATION(METRIC)1122AV07010CASSETTE,PAPER FEED 11'32AV07020COVER,CASSETTE 11'42AV07030SHEET,CASSETTE1152AV07040GROUND PLATE,CASSETTE 1162AV07050FRONT CURSOR,CASSETTE 1172AV07060REAR CURSOR,CASSETTE 1182AV07070WORK PLATE,CASSETTE 1192AV05280LABEL,CASSETTE11102AV06410SPONGE,PAPER GUIDE 22112AV07190FRONT CLAW A,CASSETTE 11122AV07200REAR CLAW A,CASSETTE11'1319507050LEVER,CASSETTE BASE RELEASE 11142AR05200LABEL,PAPER UPPER LIMIT 11'1534907060LEVER,CURSOR RETAINING 111634907070PIN,CLAW CASSETTE 221734907141GEAR 18,CASSETTE 111834907380SPRING,CASSETTE22'1935907091CURSOR,PAPER TRAILING EDGE 11202AV06420FILM,CLAW CASSETTE11'2135907171MOUNT BASE,TRAILING EDGE CURSOR 112268802070SPRING A,LIFT UP112376508130SPRING BELT GUIDE ROLLER 11'2477906210CASSETTE STOPPER11252AV06350FRONT SPACER A,CLAW CASSETTE 11262AV06430FILM,SHEET CASSETTE11272BV07010PROJECTION,CASSETTE SIZE DETECTION11FIG. 3 CASSETTE2BV– 8 –FIG. 4 PAPER FEED-IN SECTION– 9 –2BV• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.• Parts with "'" indicates the Service parts.SPPart. No.Description230V 240VQuantity Ref.No.SPPart. No.Description230V 240VQuantity Ref.No.12AV02180GROUND PLATE,REGISTRATION ROLLER 11'22AV05110LABEL,BYPASS SIZE INDICATION(METRIC)11'32AV06010PULLEY,PAPER FEED 2242AV06020SHAFT,PAPER FEED 11'52AV06030COLLAR,PAPER FEED2262AV06040MOUNT,REGISTRATION SWITCH 1172AV06380REINFORCEMENT,BYPASS 11'82AV06060RIGHT ROLLER,REGISTRATION 1192AV06090MOUNT,PAPER EMPTY SWITCH 11102AV06110SHAFT,BYPASS 11112AV06120CAM,BYPASS11122AV06130LIFT PLATE,BYPASS 11132AV06140STOPPER,BYPASS11142AV06150MOUNT BASE,BYPASS PAD 11'152AV06160SHEET,BYPASS 11162AV06171COVER,BYPASS11172AV06180COLLAR A,BYPASS PAPER FEED 11182AV06190COLLAR B,BYPASS PAPER FEED 11192AV06200COLLAR C,BYPASS PAPER FEED 22'202AV06210SHEET,BYPASS LIFT 11212AV06220SPRING,BYPASS LIFT 11222AV06230SPRING,BYPASS PAD 11'232AV07100UPPER TABLE,BYPASS 11'242AV07110COVER,BYPASS TABLE 11252AV07120FRONT CURSOR,BYPASS 11262AV07130REAR CURSOR,BYPASS 11272AV07140FRONT RACK,BYPASS 11282AV07150REAR RACK,BYPASS 11'292AV07160SUPPORT PLATE,BYPASS 11302AV27180WIRE,BYPASS TRAY 11'312AV27260SWITCH,REGISTRATION11322AV27270JUNCTION WIRING,PAPER EMPTY SWITCH 11'3349028101BUSH 8553433907110TERMINAL,PAPER SIZE PCB 11'3533928111SIZE DETECTION PCB 113634806150STOPPER 511'3735906090GEAR 15,REGISTRATION 11'3865027360SWITCH,EMPTY113965914120GEAR 18,IDLE DEVELOPING 11'4073210450BUSH, 622FIG. 4 P APER FEED-IN SECTION412AV06450SPACER,BYPASS PAD 22'422AV06320PULLEY,PAPER FEED11432AV06300FILM,BYPASS STOPPER TAPE11'442AV93020PARTS,ASS’Y RIGHT REGISTRATION CLEANER,SP 1145•2AV06050MOUNT,REGISTRATION CLEANER 1146•34806331UPPER CLEANER,REGISTRATION 11472AV06460SPACER,BYPASS PULLEY112BV– 10 –FIG. 5 P APER CONVEYING SECTION– 11 –• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.• Parts with "'" indicates the Service parts.SPPart. No.Description230V 240VQuantity Ref.No.'12AV04110UPPER COVER,CONVEYING 11'22AV04120COVER,CONVEYING1132AV04130SHAFT,CONVEYING HANDLE 1142AV04140FULCRUM PIN,CONVEYING UNIT 11'52AV04150HANDLE,CONVEYING UNIT 11'62AV06070LEFT ROLLER,REGISTRATION 1172AV16010GUIDE,TRANSFER1182AV16020STATIC ELIMINATION PLATE,CONVEYING 1192AV16030TERMINAL,TRANSFER11102AV16070GROUND PLATE,CONVEYING UNIT 11'112AV16080HOLDER,REGISTRATION221233906640RIGHT SPRING,FEED RELEASE11132AR16130MOUNT BASE,TRANSFER ROLLER BUSHING22142AR17030FRONT BUSHING,TRANSFER ROLLER PRESSURE 11152AR17040REAR BUSHING,TRANSFER ROLLER PRESSURE 11162AR17070TERMINAL,TRANSFER PRESSURE 111720305090LABEL,HIGH VOLTAGE CAUTION 111829705100CAUTION LABEL,DRUM 111929814340GEAR 18,DEVELOPER UNIT 112033906670RIGHT HOOK,FEED RELEASE 22'2134821100STATIC ELIMINATOR,EJECT11222AV06271LEFT FRONT FILM,REGISTRATION 22'2360606101BUSHING FEED BACK ROLLER 222468802160SPRING,RETAINING66'252AV93010PARTS,ASS ’Y LEFT REGISTRATION CLEANER,SP 11'262AV93030PARTS,ASS ’Y TRANSFER ROLLER,SP 1127•2AV16100ROLLER,TRANSFER1128•2AR17080COLLAR,TRANSFER ROLLER 2229•2AR17090CLEANER,TRANSFER1130•2AR17120PULLEY,TRANSFER ROLLER 22'31•73210370GEAR 18,LOOP11'32•76202270LEFT BUSHING FULCRUM SHAFT 22332AV16120FRONT SHEET,TRANSFER GUIDE 11342AV06260GUIDE,REGISTRATION22FIG. 5 P APER CONVEYING SECTION2BV– 12 –FIG. 6 ORIGINAL HOLDER– 13 –• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.• Parts with "'" indicates the Service parts.SPPart. No.Description230V 240VQuantity Ref.No.'12BV04010COVER,ORIGINAL 11'22BV04020POCKET,ORIGINAL11'32BV12030HINGE,ORIGINAL HOLDER 22'42BV12020MAT,ORIGINAL HOLDER 11'579904140ORIGINAL HOLDER SPACER 22FIG. 6 ORIGINAL HOLDER2BV– 14 –FIG. 7 OPTICAL SECTION– 15 –2BV• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.• Parts with "'" indicates the Service parts.SPPart. No.Description230V 240VQuantity Ref.No.SPPart. No.Description230V 240VQuantity Ref.No.12AV00010SCANNER FRAME ASS ’Y 1122AV12080GUIDE FFC11132AV12091MIRROR FRAME A 11'42AV12100LAMP,SCANNER1152AV12110REFLECTOR,SCANNER 1162AV12120LIGHT SHIELD,PI 1172AV12130MIRROR FRAME B1182AV12140ADJUSTING PLATE B,MIRROR FRAME 11'92AV12150MIRROR A 11'102AV12160MIRROR B22112AV12170MOUNT,SCANNER PI 11122AV12180PULLY,SCANNER88'132AV12190FRONT WIRE,SCANNER 11'142AV12200REAR WIRE,SCANNER 11152AV12210SHAFT,SCANNER DRIVE11'162AV93050PARTS,MOTOR SCANNER(SP)11172AV12230GEAR 44/1611182AV12240GEAR 2611192BV12010LEFT COVER,ORIGINAL SIZE INDICATOR 11202AV12260MOUNT BASE,DF HINGE 22212AV12270MOUNT,SCANNER MOTOR11222BV12040LEFT SHEET,ORIGINAL SIZE INDICATOR 11232BV12050LEFT SPONGE,SCANNER 11242AV12320FILM A,MIRROR FRAME11252AV12340MOUNT,ORIGINAL DETECTION SENSOR 11262AV12430LOWER SEAL,SCANNER 22'272AV12450SLIDER,SCANNER88'282AV12460REAR ORIGINAL SIZE INDICATOR(METRIC)11'292AV12480LABEL,ORIGINAL SIZE INDICATOR(METRIC)11302AV12520COVER,ISU113172914480REAR BUSHING,DEVELOPING ROLLER (B)22322AV12350STOPPER,WIRE22332AV26230MOUNT,DF CONNECTOR 11342BV12060RIGHT SPONGE,SCANNER 113518512340GUIDE,SCANNER WIRE 22362AC12300HOLDER FFC 11372BV04030REAR LID1138M2104210EDGING,EDS-22239M2104220EDGING,EDS-1717U22402AC27800WIRE,SCANNER INVERTER 11FIG. 7 OPTICAL SECTION412AR12200FILM,FFC11'422A305070LEFT ORIGINAL SIZE INDICATOR 11'432A105180LABEL,CAUTION CONTACT GLASS 11'4429812291CUSHION,CONTACT GLASS 66452BV27070CORE 11-16X1211'4635912010CONTACT GLASS11'4735912060PULLEY,SCANNER DRUM 224835912200STANDARD PLATE,SHADING 114935912210SPRING,MIRROR HOLDER 665035912360GUIDE FFC211'5135912490FRONT ORIGINAL SIZE INDICATOR 11'5235912531SPONGE,ORIGINAL SIZE INDICATOR 11532AR27720CORE 8-18X1311'5472127100PI SWITCH,OPTICAL SECTION 11552AV12310COVER,OPERATION UNIT WIRE 11562AV27130WIRE,OPERATION UNIT 11572BV27030WIRE,SWITCH JUNCTION 11582AV27150WIRE,SCANNER HOME 11'592AV28080INVERTER PCB11602AV12500SPRING,SCANNER TENSION 226165027470CORE,7-15X18116234918200SPRING,THRUST112BV– 16 –FIG. 8 LASER SCANNER UNIT– 17 –• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.• Parts with "'" indicates the Service parts.SPPart. No.Description230V 240VQuantity Ref.No.'12AV13010UNIT,LSU 1122AV13020SPACER,LSU1132AV13030SPONGE,LASER DIODE 1142AV13040SPONGE,POLYGON 1152AV13050RIGHT SPACER,LSU1162AV27090WIRE,MAIN HIGH VOLTAGE 1172AV27100WIRE,GRID1182AV27310JUNCTION WIRING,POLYGON 1192AV27320JUNCTION WIRING,LASER DIODE 11102AR10060TERMINAL BASE,MAIN CHARGER11112AR10070SHEET,MAIN CHARGER TERMINAL BASE 11'122AR27031LAMP,CLEANING LAMP111363516160SPRING,TRANSFORMER TERMINAL 22142AV13060FILM,LSU11152AV13070UNDER SPACER,LSU 11FIG. 8 LASER SCANNER UNIT2BV– 18 –FIG. 9 IMAGING UNIT– 19 –2BV• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.• Parts with "'" indicates the Service parts.SPPart. No.Description230V 240VQuantity Ref.No.SPPart. No.Description230V 240VQuantity Ref.No.'12AV82010SET,DRUM1122AV09010FRONT FRAME,IMAGE FORMATION 1132AV09020REAR FRAME,IMAGE FORMATION 1142AV09030FRONT COVER,IMAGE FORMATION 1152AV16040RIGHT GUIDE,TRANSFER 11'62AV93060PARTS,BLADE CLEANING(SP)1172AV18050SPRING,BLADE2282AV27080WIRE,IMAGE FORMATION 11919514270REAR BUSHING,AGITATION 111072919050GEAR 12/15,RECYCLE SECTION 11112AV18010HOUSING,DISPOSAL11'122AR93420PARTS,MAIN CHARGER ASS ’Y A(SP)1113•2AR10020GRID,SHIELD1114•2AR10030TERMINAL,MAIN CHARGER 1115•2AR10040FRONT LID,MAIN CHARGER 1116•2AR10050REAR LID,MAIN CHARGER 1117•2AR10090SEAL,MAIN CHARGER3318•2AR10130SLIDER,MAIN CHARGER CLEANER 1119•2AR10160WIRE,MAIN CHARGER 1120•48527200SPRING,CHARGER 1121•33910230PIN CHARGER11222AR05160LABEL,IMAGE FORMATION 11232AR08030SHAFT,DRUM11242AR09040REAR BUSHING,DRUM SHAFT 11252AR09060FILM,LIGHT SHIELD11262AR09140FRONT BUSHING,DEVELOPING 11272AR09150REAR BUSHING,DEVELOPING 11282AR09170RAIL MAIN CHARGER A 11292AR09200MOUNT M3A 22302AR09210MOUNT M3B 88312AR09220MOUNT M3C22322AR09230FRONT BUSHING,DRUM SHAFT 11332AR09240MOUNT M3D11342AR14010MAGNET,DEVELOPING 11352AR14030PADDLE,DEVELOPING 77362AR14040LEFT SPIRAL,DEVELOPING 11372AR14050RIGHT SPIRAL,DEVELOPING11382AR14091FRONT BUSHING,MAGNET ROLLER 11392AR14100RETAINER,MAGNET ROLLER 11402AR14110GEAR 16,MAGNET ROLLER 11FIG. 9 IMAGING UNIT412AR14130FRONT SPONGE B,LID DEVELOPING 11422AR14140FRONT SPONGE C,LID DEVELOPING 11432AR14160SPACER,TONER SENSOR 11442AR14170FRONT LID,DEVELOPING11452AR14200FRONT SPONGE,DEVELOPING 11462AR14211RIGHT SPONGE,DEVELOPING 11472AR14240SEAL,MAGNET ROLLER 22482AR14250SEAL,DEVELOPING22492AR14290RIGHT FILM,DEVELOPING 11502AR14300LOWER FILM,DEVELOPING 33512AR14310GEAR 19,PADDLE11522AR14330LEFT SPONGE,DEVELOPING 11532AR14340SHAFT,PADDLE11542AR14350FRONT SPONGE E,LID DEVELOPING 11552AR14380REAR BUSHING,AGITATION33562AR14411RIGHT FRONT SPONGE,DEVELOPING 11572AR14490FRONT SPONGE F,LID DEVELOPING 11582AR14500FRONT SPONGE G,LID DEVELOPING 11592AR14510FRONT SPONGE H,LID DEVELOPING 11602AR14520FRONT SPONGE I,LID DEVELOPING 11612AR14540LOWER FRONT FILM,LID DEVELOPING 11622AR14551HOUSING A,DEVELOPING 11632AR14560MOUNT A,DOCTOR BLADE 11642AR14640REAR SPONGE,LID11652AR14580DOCTOR BLADE A,DEVELOPING 11662AR14590UPPER LID A,DEVELOPING11672AR14600UPPER SPONGE A,LID DEVELOPING 11682AR14610SPONGE,DEVELOPING HOUSING22692AR14620FRONT SPONGE,DEVELOPING HOUSING 11'702AR93400PARTS,COVER A DOCTOR BLADE ASS ’Y(SP)1171•2AR14570COVER A,DOCTOR BLADE1172•2AR14650SPONGE,COVER DOCTOR BLADE 11732AR14660FILM A,DEVELOPING22742AR14670FILM A,COVER DOCTOR BLADE 11752AR18050SPIRAL,CLEANING 11762AR18080SPACER,DRUM 11772AR18090SHAFT,THRUST 11782AR18100GEAR 21,THRUST 11792AR18110GEAR 17,SPIRAL 11802AR18120BUSHING,THRUST222BV– 20 –FIG. 9 IMAGE UNIT– 21 –2BV• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.• Parts with "'" indicates the Service parts.SPPart. No.Description230V 240VQuantity Ref.No.SPPart. No.Description230V 240VQuantity Ref.No.812AR18151FRONT SPONGE A,CLEANING 11822AR18160REAR SPONGE A,CLEANING 11832AR18170INNER SPONGE,CLEANING 11842AR18191LOWER SPONGE,CLEANING 11852AR18200FRONT SPONGE,CLEANING 11862AR18211FRONT SEAL A,CLEANING 11872AR18221REAR SEAL A,CLEANING 11882AV18070INNER FILM,CLEANING 11892AR18341SPONGE,MOUNT BLADE 22902AR18371SPONGE,CLEANING 22912AR18380BUSHING,CLEANING 22922AR18400HOUSING A,CLEANING 11932AR18410MOUNT A,BLADE11'942AR93410PARTS,SEAL CLEANING LOWER A(SP)11952AR18430LEVER A,PRESSURE RELEASE 22962AR18450GUIDE,SPIRAL11972AR18460FRONT SPONGE C,CLEANING 11982AR18470REAR SPONGE C,CLEANING 11992AR18480LOWER SPONGE A,CLEANING 221002AR27620DIODE,DEVELOPING SEAL 1110149028113BUSHING 6-19,DEV.UNIT 2210233302080MOUNT M32210333914190TONER SENSOR1110434909050FRONT GROUND PLATE,DRUM DRIVE 1110534918200SPRING,THRUST1110634922570GEAR 23,DEVELOPING 2210735914820BEARING,DEVELOPING 1110863814060GEAR 20,AGITATION1110963818250REAR BUSHING,TONER DISPOSAL ROLLER 2211072320210LOWER GEAR, EJECT IDLE 11'1112AR00400SEPARATION CLAW ASS ’Y 33112•2AR18240CLAW,SEPARATION33113•2AR18250MOUNT BASE,CLAW SEPARATION 33114•2AR18260PULLEY,CLAW SEPARATION 33115•2AR18280SPRING,CLAW SEPARATION 3311619518240GEAR 12,RECYCLE 111172AR18070SPIRAL,RECYCLE1111835322020GEAR 20,PAPER FEED DRIVE 111192AR10150PAD,MAIN CHARGER CLEANER 111202AR10120HOUSING A,MAIN CHARGER11FIG. 9 IMAGE UNIT1212AR10140HOLDER,MAIN CHARGER CLEANER111222AV16060REAR POSITIONING PLATE,TRANSFER ROLLER 111232AV16130RIGHT SPONGE,GUIDE111242AV16050FRONT POSITIONING PLATE,TRANSFER ROLLER 111252AV18020SHUTTER,DISPOSAL 11'1262AV18040SEAL,SHUTTER111273AH07060SPRING,BYPASS STOPPER 11'12835927420SWITCH,SIZE 1112963505130LABEL,RAIL111302AV18060FILM,MOUNT BLADE221312AV16110FRONT FILM,TRANSFER GUIDE111322AR14630REAR SPONGE,DEVELOPING HOUSING 111332AV18080GUIDE,SEPARATION 331342AV18090SEAL B,SHUTTER 221352AV18100SPONGE,SHUTTER112BV– 22 –FIG. 10 FIXING SECTION– 23 –2BV• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.• Parts with "'" indicates the Service parts.SPPart. No.Description230V 240VQuantity Ref.No.SPPart. No.Description230V 240VQuantity Ref.No.FIG. 10 FIXING SECTION12AV05130LEFT LABEL,GUIDE EJECT2222AV05170LABEL,HIGH TEMPERATURE CAUTION 1132AV20010FRONT FRAME,FIXING 1142AV20020REAR FRAME,FIXING 1152AV20030UPPER HOUSING,FIXING 1162AV20040LOWER HOUSING,FIXING 1172AV20051FRONT GUIDE,FIXING1182AV20060FRONT PRESSING PLATE,FIXING 1192AV20070REAR PRESSING PLATE,FIXING 11102AV20080FRONT MOUNT,FIXING HEATER 11112AV20090REAR MOUNT,FIXING HEATER 11'122AV93071PARTS,ROLLER HEAT(SP)11'132AV93100PARTS,HEATER FIXING 230(SP)11'142AV20150ROLLER,EJECT 11'152AV20160PULLEY,EJECT22162AV20170SHAFT,EJECT PULLEY 11172AV20180GUIDE,EJECT11182AV20190GUIDE,FEED SHIFT11'192AV20200ACTUATOR,EJECT SWITCH 11'202AV20210SPRING,EJECT ACTUATOR 11212AV20220LEFT GUIDE,EJECT 11222AV20230MOUNT,THERMOSTAT 11232AV20240MOUNT,THERMISTOR 11'242AV20250THERMISTOR,FIXING 11252AV27060WIRE,FIXING11262AV27120JUNCTION WIRING,THERMOSTAT 112718314060COLLAR,PARTITION JOINT 11'282AB93040PARTS,ROLLER PRESSURE,SP 11'2928220071SPRING,FIXING UNIT CLAW 113048528216SPRING,PAPER GUIDE 11'3129717230BUSHING 6,FEED BACK 11'3229806810BUSHING,6 REGISTRATION 113329820190CRESCENTIC STOPPER 22342AV20270PIN,FIXING RETAINING(M3)223534806150STOPPER 544'3635327400SWITCH,FEED11'3735920130BEARING,PRESSURE 22'3835920140SPRING,PRESSURE 22'3935920150CLAW,SEPARATION 55'4035920240GEAR 35,HEAT ROLLER 11'4135920350BUSHING,HEAT ROLLER224263706260SPRING,STACK BYPASS GEAR 55'4363720211THERMOSTAT,FIXING 11'4466022190GEAR,21 DEVELOPING 114568814720SPRING B,DOCTOR BLADE 11'4673922250IDLE GEAR A,PF SECTION 11472AV20260HOLDER,FIXING WIRE 11482AV20290RIGHT SHEET,FIXING112BV– 24 –FIG. 11 DRIVING SECTION– 25 –2BV• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.• Parts with "'" indicates the Service parts.SPPart. No.Description230V 240VQuantity Ref.No.SPPart. No.Description230V 240VQuantity Ref.No.FIG. 11 DRIVING SECTION12AV22010FRONT FRAME,DRIVE UNIT 1122AV22020REAR FRAME,DRIVE UNIT 1132AV22031POSITIONING PLATE,DRUM 1142AV22040SHAFT,COUPLING1152AV22050SHAFT,DEVELOPING DRIVE 1162AV22060SHAFT,CLEANING DRIVE 1172AV22320GEAR A,58/301182AV22330GEAR A,48/271192AV22340GEAR A,60 DRUM 11102AV22100GEAR,52/3011112AV22110GEAR,30 DEVELOPING 11122AV22120GEAR,26/1411132AV22130GEAR,2022142AV22160GEAR,15CL 11152AV22170GEAR,2911162AV22200GEAR,1611172AV22230SPRING,FIXING JOINT 11'1868822330BEARING,DRIVE 22192AV22280GEAR,34/2311202AV22290GEAR,2411212AV22300GEAR,32/1622222AV22310GEAR,16 IDLE11232AV26030LEFT WORK PLATE,SAFETY SWITCH 11242AV26270LEFT PIN,SAFETY SWITCH 11'252AV93120PARTS,MOTOR MAIN(SP)11'262AV93130PARTS,CLUTCH REGISTRATION(SP)11'272AV27330CLUTCH,PAPER FEED 11'282AV27340CLUTCH,BYPASS11'2918522430COUPLER,TONER SUPPLY 11302AR22030COUPLING,DRUM11312AR22570SPRING,DEVELOPING DRIVE 113245729401GEAR 20,S.B 333334806150STOPPER 5333434922590SPRING,DRUM DRIVE 11'3573210450BUSH, 611362AV22180GEAR 19,FIXING1137M2104350EDGING,EDS-0607M(KITAGAWA)1138M2105730MINIATURE CLAMP,UAMS-07-01139M2109010WIRE SADDLE,WS-2NS 11402AV22350FILM,DRIVE 11412AV22360SHEET,COUPLING112BV– 26 –FIG. 12 ELECTRICAL COMPONENTS– 27 –2BV• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.• Parts with "'" indicates the Service parts.SPPart. No.Description230V 240VQuantity Ref.No.SPPart. No.Description230V 240VQuantity Ref.No.FIG. 12 ELECTRICAL COMPONENTS'12BV01010MAIN PCB ASS ’Y1122AV26040LEFT MOUNT,SAFETY SWITCH 11'32AV01030POWER INLET ASS ’Y114•J0074010POSITIVE CONNECTOR,#250,172076-1225•J0074910POSITIVE CONTACTOR,#250,170334-1226•L0023070ROUND TYPE TERMINAL,173636-1117•M2407010BINDING BAND SK,SKB-100228•2AV27350INLET,POWER SOURCE 11965027480CORE,9-20X3211102AV23020LOWER DUCT,COOLING 11112AV26010FRAME,SHIELD11122AV26020MOUNT,HIGH VOLTAGE PCB 11132AV26060MOUNT,SUB POWER SOURCE 11142AV26080MOUNT,BYPASS WIRE 11152AV26090RIGHT COVER,SHIELD 11162AV26100LEFT COVER,SHIELD 11172AV26110MOUNT,INLET 11182BV04040RIGHT LID11192BV04070COVER,TOTAL COUNTER 11202AV26150GUIDE C,PCB 11212AV26160GUIDE D,PCB11222BV27050WIRE,CASSETTE DETECTION 1123M2109000WIRE SADDLE,WS-1NS332435327300GROUND WIRE,CLEANING BRUSH 11252AV23010UPPER DUCT,COOLING 1126M2105400CLAMP,K-103G22272AV26260GROUND PLATE,HIGH VOLTAGE11282BV27060WIRE,POWER SOURCE PRIMARY(200)11292BV27020WIRE,POWER SOURCE SECONDARY 11302BV27010UPPER WIRE 11312AV27040LOWER WIRE11322AV27070WIRE,MAIN SWITCH11332AV27110WIRE,TRANSFER HIGH VOLTAGE 1134M2109010WIRE SADDLE,WS-2NS 11'352AV27290SWITCH,MAIN11362AV27370SWITCH,INTERLOCK11'372AV93140PARTS,PCB HIGH VOLTAGE(SP)11'382AV93161PARTS,PCB POWER SOURCE 200(SP)1139M2104200EDGING EDS-11140M2104220EDGING,EDS-1717U33'412AR27040SWITCH,INTERLOCK 11422AR27710CORE 15-26X1311432AR27800POWER CORD(230)144J0110020PLUG 2P,MINI MATENLOCK,VO,172165-111'452A327010SENSOR,HUMIDITY 114629927231POWER CODE AS(240)1'4735911720GROUND PLATE,PAPER FEED ADF 11'4835923010FAN,COOLING2249M1658010FUSE,218008(LITTEL-FUSE)2250M5554020FUSE,SS1-250V-4A(SOC)1151M2107240BAND,KI-100(KITAGAWA)1152M2105730MINIATURE CLAMP,UAMS-07-03353M2104350EDGING,EDS-0607M(KITAGAWA)22542AV28090COIL,PCB11552AV27380WIRE,COIL (200)1156M2108700SPACER,KGLS-8RF442BV– 28 –184195132021912116615111410287173HBACGDHCBHBAHBABHIBHIFIG. 13 OPERATION UNIT– 29 –• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.• Parts with "'" indicates the Service parts.SPPart. No.Description230V 240VQuantity Ref.No.FIG. 13 OPERATION UNIT12AV23030MOUNT,FAN11'22BV28020OPERATION UNIT PCB 11'335923010FAN,COOLING11'42BV25030CCOVER,OPERATION UNIT 11'52AV25020KEY,OPERATION UNIT 1011'62AV25070KEY,PAPER SELECT3372AV04240LEFT MOUNT BASE OPERATION UNIT 1182AV04250RIGHT MOUNT BASE OPERATION UNIT 11'92BV25010LEFT SHEET,OPERATION UNIT(METRIC)1'92BV25020LEFT SHEET,OPERATION UNIT(MAP)1102AV25260RIGHT SPACER OPERATION UNIT 11112AV25270LEFT SPACER OPEARTION UNIT 11'122AV25100RIGHT COVER,OPERATION UNIT 11'132AV25110LENS,PRINT KEY11'142AV25120RIGHT SHEET,DUST SHIELD 11'152AV25130LEFT SHEET,DUST SHIELD11'162AV25190CENTER SHEET,OPERATION UNIT(INCH)1'162AV25240CENTER SHEET,OPERATION UNIT(METRIC)1'172AV04230LOWER COVER OPERATION UNIT 11'182AV25170KEY,ZOOM(INCH)11'192AV25140KEY,PRINT(INCH)1'192AV25200KEY,PRINT(METRIC)1'202AV25150KEY,STOP CLEAR(INCH)1'202AV25210KEY,STOP CLEAR(METRIC)1'212AV25160KEY,RESET(INCH)1'212AV25220KEY,RESET(METRIC)12BV– 30 –FIG. 14 ACCESSORIES & OPTION– 31 –• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.• Parts with "'" indicates the Service parts.SPPart. No.Description230V 240VQuantity Ref.No.FIG. 14 ACCESSORIES & OPTION12AV60020DISPOSAL TANK ASS ’Y112•36505111LABEL,TONER DISPOSAL TANK 11319527290TOTAL COUNTER11435927290SENSOR,ORIGINAL DETECTION 11'52BV68010IC,ROM MAIN 1 SP 11665907480SLIDER,CASSETTE 22733906630STOPPER 5,RING 22834806480STOPPER 6119M2109340WIRE SADDLE,YMC-05-0(KITAGAWA)2210M2105740MINIATURE CLAMP,UAMS-05S-22211M2109010WIRE SADDLE,WS-2NS11'122AV68030SPECIAL TOOL MEMORY PCB 11'13NAS09010BACKUP RAM M48Z35Y-70PC 11143A105020SEAL ON/OFF 11– 32 –2BV• Parts with "'" indicates the Service parts.Part. No.SPDescriptionFig. No.Quantity 230V 240VPart. No.SP DescriptionFig. No.Quantity 230V 240V18314060 COLLAR,PARTITION JOINT 111018512340 GUIDE,SCANNER WIRE 227'18522430 COUPLER,TONER SUPPLY1111'19507050 LEVER,CASSETTE BASE RELEASE 11319514270 REAR BUSHING,AGITATION 11919518240 GEAR 12,RECYCLE 11919527290 TOTAL COUNTER1114'2AB93040 PARTS,ROLLER PRESSURE,SP 11102AC05130 LABEL,SUPPLY(EUR)1112AC12300 HOLDER FFC1172AC27800 WIRE,SCANNER INVERTER 117'2AR00400 SEPARATION CLAW ASS ’Y 3392AR05160 LABEL,IMAGE FORMATION 1192AR05200 LABEL,PAPER UPPER LIMIT 1132AR08030 SHAFT,DRUM1192AR09040 REAR BUSHING,DRUM SHAFT 1192AR09060 FILM,LIGHT SHIELD1192AR09140 FRONT BUSHING,DEVELOPING 1192AR09150 REAR BUSHING,DEVELOPING 1192AR09170 RAIL MAIN CHARGER A 1192AR09200 MOUNT M3A 2292AR09210 MOUNT M3B 8892AR09220 MOUNT M3C2292AR09230 FRONT BUSHING,DRUM SHAFT 1192AR09240 MOUNT M3D 1192AR10020 GRID,SHIELD1192AR10030 TERMINAL,MAIN CHARGER 1192AR10040 FRONT LID,MAIN CHARGER 1192AR10050 REAR LID,MAIN CHARGER1192AR10060 TERMINAL BASE,MAIN CHARGER1182AR10070 SHEET,MAIN CHARGER TERMINAL BASE 1182AR10080 MOUNT BASE,CLEANING LAMP 1122AR10090 SEAL,MAIN CHARGER3392AR10120 HOUSING A,MAIN CHARGER1192AR10130 SLIDER,MAIN CHARGER CLEANER 1192AR10140 HOLDER,MAIN CHARGER CLEANER 1192AR10150 PAD,MAIN CHARGER CLEANER 1192AR10160 WIRE,MAIN CHARGER 1192AR12200 FILM,FFC1172AR14010 MAGNET,DEVELOPING119INDEX2AR14030 PADDLE,DEVELOPING 7792AR14040 LEFT SPIRAL,DEVELOPING 1192AR14050 RIGHT SPIRAL,DEVELOPING1192AR14091 FRONT BUSHING,MAGNET ROLLER 1192AR14100 RETAINER,MAGNET ROLLER 1192AR14110 GEAR 16,MAGNET ROLLER1192AR14130 FRONT SPONGE B,LID DEVELOPING 1192AR14140 FRONT SPONGE C,LID DEVELOPING 1192AR14160 SPACER,TONER SENSOR 1192AR14170 FRONT LID,DEVELOPING1192AR14200 FRONT SPONGE,DEVELOPING 1192AR14211 RIGHT SPONGE,DEVELOPING 1192AR14240 SEAL,MAGNET ROLLER 2292AR14250 SEAL,DEVELOPING2292AR14290 RIGHT FILM,DEVELOPING 1192AR14300 LOWER FILM,DEVELOPING 3392AR14310 GEAR 19,PADDLE1192AR14330 LEFT SPONGE,DEVELOPING 1192AR14340 SHAFT,PADDLE1192AR14350 FRONT SPONGE E,LID DEVELOPING 1192AR14380 REAR BUSHING,AGITATION3392AR14411 RIGHT FRONT SPONGE,DEVELOPING 1192AR14490 FRONT SPONGE F,LID DEVELOPING 1192AR14500 FRONT SPONGE G,LID DEVELOPING 1192AR14510 FRONT SPONGE H,LID DEVELOPING 1192AR14520 FRONT SPONGE I,LID DEVELOPING 1192AR14540 LOWER FRONT FILM,LID DEVELOPING 1192AR14551 HOUSING A,DEVELOPING 1192AR14560 MOUNT A,DOCTOR BLADE 1192AR14570 COVER A,DOCTOR BLADE1192AR14580 DOCTOR BLADE A,DEVELOPING 1192AR14590 UPPER LID A,DEVELOPING1192AR14600 UPPER SPONGE A,LID DEVELOPING 1192AR14610 SPONGE,DEVELOPING HOUSING2292AR14620 FRONT SPONGE,DEVELOPING HOUSING 1192AR14630 REAR SPONGE,DEVELOPING HOUSING 1192AR14640 REAR SPONGE,LID1192AR14650 SPONGE,COVER DOCTOR BLADE 1192AR14660 FILM A,DEVELOPING2292AR14670 FILM A,COVER DOCTOR BLADE 119。

泰特电子2T2000-200M中带手持无线电机器人双频选频器说明书

123456789A B C D E F G H I J K L M N O P Q R S T U V W123456789A B C D E F G H I JK L M N O P Q R STUV WREV/ISS AMENDMENTS DATE APVD D.O.CHKD DRAWN TAIT ELECTRONICS2.SC.12T2000-200 MID-BAND MOBILE RADIOWITH DUAL-BAND OPTION120211A 220-01202-1115/06/98A T2000RPS 5AMODS TO NOISE-BLANKER & CHANGED BBY40 DIODES TO BB249J.F.J.F.M.L.18/9/926A ADDED NOISE-BLANKER. ADDED R420A & R421A.J.F.J.F.M.L.28/10/926B CHANGED NOISE BLANKER VARIANTS.J.F.J.F.M.L.26/11/92LOCK=5V UNLOCK=0VRX-FREQ66MHZ 88MHZCONTROL-VOLTS3V77V0FREQ66MHZ 88MHZTYP:********************7A MODS TO IMPROVE MANUFACTURABILITY.MC KB DEMB 24/7/93RX=4V2TX=5V97DCAD-WANG.MC8A ADDED PROGRAMMABLE BAND-WIDTH CCTRY.J.F.J.F.29/8/94TX=0V7RX=0VTYP:***********************1V.P-P.TYP @.60%-MOD’CONTROL-VOLTSTX4V610V66V.P-P.MAXRX7V414V0RX-FREQ66MHZ 88MHZTX:12V0CNTRL-VOLTS5V812V8’*BANDNARROW MID WIDE DUAL-BAND*R133---3K9S*R135---220KS*R139---10KS*R1513K3S 3K3S 3K3S’1K5S*R152390KS 390KS 390KS 220KS*R154---22KS*R1620S 0S 0S 18KS*R1630S 0S 0S 3K3STX:8V0*R164---470KS*R165---560KS*R166---22KS*R167---10KS*R168---6K8S*R170---2K2S*R1940S 0S 0S 390KS*C120---47UFI16A*C189470PS 470PS 470PS 150PS*C190470PS 470PS 470PS 150PS0V.AT.REST9A CREATED A VARIANT TABLE FOR DUAL BAND.YH 25/5/95*Q119---BC848*Q118---BC848*Q117---BC848*Q116---BFR3110A ADDED CAPS FOR EMCDBH 8V0.AT.RESTTYP:3V1.DC @-70DBM.INPUT11A DIODE,COPPER,FUSE UPDATES RPS 27/05/98*C12047U*C189470P*C190470PDS G *Q116BFR31*Q117BC848*Q118BC848*Q119BC848*R1333K9*R135220K*R13910K*R1513K3*R152390K*R15422K*R1620 *R1630 *R164470K*R165560K*R16622K*R16710K *R1686K8*R1702K2*R1940C11N0C10010NC10156P C102180PC10310NC104100NC10510PC1061N0C107100PC1081N0C10927PC110270PC1111N0C11233PC113270PC1141N0C11527P C1161N0C121100PC1221N0C12310NC12422PC12512PC12622P C12739PC12810NC12910NC13010NC13439PC135180PC1365P6 C137180PC13810NC14010NC14139PC14210NC145100PC146270PC14710NC14847PC14910NC150100P C151100NC152100PC152A 10NC1534U7C153A 100PC15410NC155100PC1560C157100NC15810N C17447UC175100NC176100NC17910NC18047NC18147NC18510N C18610NC1871N0C188100PC1911N0 C19233PC1934U7C1941N0C1951N0C197100NC198220PC1991N0C21N0C20010NC2011N0 C20247UC2034U7C2051N0C206100NC20710NC21347UC2141N0C2154U7C21610NC21747UC2184U7C21947UC22015NC2211U0 C222100NC2231N0C2241N0C2251N0C2261P8C2271N0 C2281N0C22947UC23010NC2314P7C23215PC2344U7C23910NC2401N0C24110NC2431N0C24518PC24610NC24810NC25718P C31N0C3004U7 C3011N0C30227PC303100N C3041N0C305120PC306120PC307100NC308100NC3091N0C3104N7C31147PC312120PC313680PC3151N0 C3161N0C3171N0C3181N0C319100N C3201N0C321100NC32247PC323270PC325680PC32647N C327680PC3281N0C329150P C330120P C33356PC33439PC33668P C3371N0C33822PC33922P C34056PC34182PC34210PC3432N2C34447P C3451N0C34615P C34727PC3481N0C3491N0C35082PC3531N0C3561N0C357100NC360150PC403470PC 4104U 7C411100NC41247U C413100NC414470UC4151000UC4161N0 C419100NC420100NC42356UC4244U7C4254U7C4264N7C4274U7C4284U7C4291N0C43056UC4511N0C4551N0D118VD10112D101A BB419 12D10212D102A BB419 12D10312D103A BB419 12BAT17DSD11031 BAT17DS D11023BAT17DS D11123BAT17DS D11131BAT18D140A 23 BAV99D20023BAV99D20031 BAV70D20223D203BB41912D204BB419 12D205BB41912D206BB419 12BAT18D20823 BAT18D20923D3011SS97D303UM9401 D304UM9401 D305BA482 BAV70D40113BAV70D40123ININ OUT PD OUTRVSYNTHESISERIC201145158-2F 8DATA 10CLK9EN11GND6F 13F 3OSC 1OSC 2REF 14MC 12+V 4LD 7OUT5PR 16PV 15DIVIDERMC12016IC203IN5BP 6MOD 1GND4VCC 8REG 7VCC22OUT3VREGIC4037808ACT VIN1GND2VOUT 3VREGIC4047805ACT VIN1GND2VOUT 3L1#4S3BL1018.5T/4.5L104#669L105#669L106#669L107RF BALUN32146L108RF BALUN32146L10968NH L114#662L116#662L119#655 23614L120M21BL200M21B L2053U3L206#1009L2073U3L2085.5T/4.0L2108.5T/4.0L300L3015.5T/3.0 L3023.5T/4.5L3033U3L3042.5T/3.5 L3058.5T/3.0L306M21BL3073.5T/2.5 L308L309#4S3BL3103.5T/4.0L3112.5T/3.0L312330NHL3137.5T/3.0 L3148.5T/4.5 L315#18 (3B BEAD)L3163.5T/4.0L317#18 (3B BEAD)L3182.5T/3.0L3193U3L3205.5T/4.0 L3218.5T/4.5 L3224.5T/4.5L3235.5T/3.0 L324#18 (3B BEAD)L3251.5T/3.0L3268.5T/4.5L3271.5T/2.5L3285.5T/3.5 L3291.5T/3.5L3303.5T/2.5L331M21BL3321.5T/2.0L401#650 23614PAD-1D SG Q100BFR31Q101951 Q102BC857Q103951Q104BSS83GD B S Q105951Q106BC848Q107BFS17 Q108BFS17 Q109BF824Q115BC848Q203BC848Q204BC848Q205BC857Q206BC848Q207BC857Q208BC848Q209BC857DS G Q210BFR31D S G Q212BF512Q213BC848Q214BFS17Q215BFS17Q301951Q302MRF386667142358Q303BC848Q304BD234Q305BFQ43 Q306MRF1946AQ307BC807Q308BC807Q309BC848Q401BC857Q402BC817CWRV15347K231CW RV22247K 231CWRV324470K231R100470 R1013K9R102560R1032K2R10482R10518R106100KR107100KR108100KR1090 R1101M0R1111M0R11218R1134R7 R114820R11512KR1164R7R11710R118100R11910R120820R121180R122100KR123100K R124100K R12510K R12610KR12710KR128150R12947R131270R132150R13410R1364R7R1374R7R138100KR14068KR140A 33KR1411K5R14227KR142A 100KR14333KR143A 33KR14468K R144A 120KR1451K5R145A 33K R14622 R147220 R148560 R1490805 R150100KR1531K0R155100KR156100R15710KR1581K0R15947R16010R1611K0R19568KR196100R197100R1982K2R199100R2133K9R2141K8R2153K9R21647R21747R22322KR2248K2R22522K R2268K2R2278K2R2283K3R22922R230390 R231180R2322K2R233680R234270R235330 R23647R237100R2388K2R23922K R240100KR2411K8R24222R2432K2R24422R24522R246100R24747R248100KR24910R2502K2R251150R2521K2R253680R25422 R25510 R2561K8R25710 R259270R26027R26110R26910 R27010R271180R272180R27310R2743K9R27510R278100KR28410KR28539K R28615K R28782KR288120K R30068 R301330R3021K0R3031K0R30447R30510 R30610R307470R30810 R308A10 R30910 R31010R311820R312680 R313180R31410R31518R31622R3171R0 R317A 1R0 R317B 1R0 R317C1R0R318180 R319180R32015KR321390 R321A 390 R32210R32310 R32510 R326220KR3271K0 R328150R32947KR330220KR332100R3332K2R33456KR33510KR336220R3370 R338680R339270KR340220K R341220R3421K8R35010 R418680R42039K R420A 3K3R42139KR421A 3K3 R42222R4251K0R4264R7R4274R7R42822R42927KR4306K8R431100KR43210R433100R43447R4371K0S4IC1013371D 1011OUT IN IC1013371DLIM 5GND 15VCC 4DEC 6DEC 7QUAD 8AF 9RSSI13IC1013371D1214+-IC20233078D321+-IC20233078D567+-IC20434002D321+-IC20434002D 5671020IC402+6GND 9SUB1SB 5VCC3BS 4O/P2#D203BB43912#D204BB43912#D205BB43912#D206BB43912BAV70D20213C354NPOLY#D103BB43912#D102BB43912#D101BB43912#D101A BB439 12#D102A BB439 12#D103A BB439 12P1+5V15P1+8V10P1+8V-SYNTH9P1AF-SIG8P1BUSY3P1CLK 12P1DATA 13P1DET-AF5P1ENABLE14P1GND4P1GND16P1GND1P1LCK-DET11P1LF-SIG6P1MOD 7P1RSSI2P2+13.8V 8P2+13.8V-US6P2+13V-ECON 5P2+5-VOLTS7P2+8V-OUT 9P2+8VTX 10P2AUDIO-PA1P2EXTRNL3P2GND2P2IGN4P2PWR-CNTRL12P2PWR-SENSE 11P3AUDIO4P3EXTRNL 1P3GND 5P3GND 3P3IGN 7P3SPKR 2P313.8V-UNSW6P5+8VOLTS 7P5AF-OUT 10P5CMPRTR-OUT6P5DETECT-AUDIO8P5FILTER3P5GND2P5MIXER4P5NSE-DET5P5QUAD-COIL1P5455-OUT9P6+8V-SYNTH10P6+8V-SYNTH4P6AF-SIG 9P6GND3P6GND2P6LF-SIG 7P6MOD 6P6REF-MOD5P6TCXO 1P6TX-AF8P7INT 2P7SPKR 1+13.8V+13.8V+13.8V-UNSW+13.8V-UNSW+13.8V-UNSW+13V-ECON+13V-ECON +30V+30V+5-VOLTS +5-VOLTS+5V+5V+5V+8-VOLTS+8-VOLTS+8-VOLTS+8-VOLTS+8-VOLTS+8-VOLTS+8-VOLTS+8V+8V+8V+8V+8V+8V-OUT+8V-OUT +8V-SYNTH+8V-SYNTH+8V-SYNTH+8V-SYNTHSYNTHESISERNOISE BLANKERTCXO84DELAY LINE+8V-TXRX-TUNE VOLTAGE1ST MIXERPDL16MPDL12M P1 TO CONTROL PCBP2 TO CNTRL PCBPRESCALER32161PIN SWITCHTO LOOM CONNECTOR P2PIN-7REF-MOD ADJCOUPLERTO CNTRL-PCB ONLY, VIA P2 PIN-9(FROM +8V REGULATOR)P R I N T E DPWR-CNTRLUNDER-WALL DECOUPLING4S34S34S34S34S3***DUAL SMALL 4S3 BEADSL300, L308, L309*RF-PALOOP FILTER+8V TX DELAYEDTO LOOP-FILTER IC202, PIN-887AUDIO PA(VIA R1)TO LOOM CONNECTOR P2 PIN-6& RF POWER-AMPTRACK-FUSEPCB-GND INTERNAL SPKRPL2USPKRGNDSK7HMCHC U T F O R E X T R N L S P K RGNDFROM CNTRL PCB +13.8V-ECONOMY VIA P2-PIN 5IF PCB(IPN:220-01384-XX)(IPN:220-01201-XX)FROM +8V REGULATOR ON CNTRL-PCB, VIA P1 PIN-948TX-AUDIO PCB(IPN:220-01389-XX)&AMENDMENTS DRAWN CHKD D.O.APVD DATEREV/ISS 1V87V087V143V40V76V27V85V754V04V04V54V04V02V70V64V5C322C323C325C326Q306R315R31945L J 211109816D C G AH 3E KF 7B TAIT ELECTRONICST2000-200 PCB LAYOUT - BOTTOM SIDEIPN:ISS:ID:DATE:220-01202-1111B2.BA 9 Jul 1998SMD BOT SLOT 200 5325SMD BOT REF HOLE 5100 5325IPN 220-01202-11 ISS: B REPEAT DATA 1 0 1 0SMD TOP SLOT 4900 5325SMD TOP REF HOLE 0 5325T2000-200 MAIN BOARD#D 101#D 102#D 102A#D 103#D 103A#D203#D204#D205#D206*C120*C 189*C190*Q116*Q 117*Q118*Q119*R 133*R135*R139*R151*R152*R154*R 162*R163*R 164*R165*R166*R167*R168*R170*R194C1C100C 101C102C103C104C 105C106C 107C 108C109C110C 111C112C113C 114C115C116C121C 122C123C124C125C126C 127C128C129C 130C134C 135C136C 137C 138C140C141C142C145C 146C 147C148C 149C150C151C152C 152AC153C 153AC 154C155C156C157C158C 175C176C179C180C181C185C186C 187C 188C191C 192C193C194C195C197C198C199C2C 200C201C202C203C 205C206C 207C214C215C 216C217C218C219C220C221C222C 223C224C225C226C 227C228C229C230C 231C 232C234C239C240C241C 243C245C 246C248C257C3C300C301C302C 303C304C305C 306C 307C 308C309C310C311C312C313C 315C 316C317C 318C 319C320C321C327C 328C329C330C333C334C336C 337C338C339C340C341C 342C 343C344C345C 346C 347C 348C 349C350C 353C354C 356C 357C 360C 403C410C 411C412C 413C414C415C 416C 419C 420C423C424C425C426C427C428C429C430C 451C455D1D110D111D140AD200D202D208D209D 301D 303D 304D401IC101IC201IC202IC203IC204I C 402I C 403L101L104L105L106L107L108L109L114L116L119L120L 200L 205L206L207L208L210L 300L301L302L303L 304L305L306L307L308L 310L311L313L314L315L 316L317L 318L319L320L321L 322L323L324L325L326L327L328L330L331L332L401P1P2P3P5P6P7PAD-1Q100Q101Q102Q103Q104Q105Q106Q107Q108Q109Q115Q203Q204Q205Q206Q207Q208Q209Q210Q212Q213Q214Q215Q301Q302Q303Q 304Q305Q307Q308Q309Q401Q402R 100R101R102R103R104R105R106R 107R108R109R 110R 111R 112R 113R 114R115R 116R 117R 118R119R120R121R 122R 123R124R125R 126R127R128R129R 131R132R 134R136R137R138R140R 140AR 141R 142R142AR 143R 143AR144R144AR145R145AR146R147R148R 149R150R 153R 155R 156R 157R 158R159R160R 161R195R196R197R 198R199R213R214R215R 216R 217R 223R224R225R226R227R228R229R230R231R232R233R 234R235R236R 237R238R239R240R241R 242R 243R244R245R 246R 247R248R 249R250R251R 252R 253R254R255R256R257R 259R 260R261R269R270R271R272R273R274R275R278R284R285R286R 287R 288R 300R301R 302R303R304R305R306R307R 308R 308AR 309R 310R311R312R313R 314R 316R 318R320R 321R 321AR 322R 326R327R 328R329R 330R332R333R 334R 335R 336R337R 338R 339R 340R 341R 342R418R420R 420AR 421R 421AR 422R 425R426R427R 428R429R430R 431R432R 433R434R 437RV153RV222RV324S4TOPFIDA11085H73EB 6D 11GLC 942FJ K A TAIT ELECTRONICST2000-200 PCB LAYOUT - TOP SIDEIPN:ISS:ID:DATE:220-01202-1111B 1.TA 9 Jul 1998H /S I N KD203D204D205D206TOPFIDBR317A R317BR317R317CSHIELDD 101AD 101#D 101AD 102A D 102D 103A D 103L1R323L309R 325R 350D 305L329I C 404L 312C213C1740123456789123456789AB C D E F G H J K L M N P Q RREV/ISS AMENDMENTS DATEAPVD D.O.CHKD DRAWN NO.SHEETS:FILE NAME:TAIT ELECTRONICSIPN:FILE DATE:ISSUE:ID:.2.SC.PROJECT:DESIGNER:22T2000-200 MID-BAND MOBILE RADIO POWER PINS, CONNECTORS ETC.120211A 220-01202-1115/06/98A T2000RPS H/SINKA4M2524 HEATSINKIC20233078D V-4V+8IC20434002D V-4V+8P116 WAY PADDLE CONNECTORP212 WAY PADDLE CONNECTORP37WAY SIDE ENTRY SKTP52X5 WAY TOP ENTRY PLUGP62X5 WAY TOP ENTRY PLUGP72 WAY PLUGSHIELDA3M2594 RX SHIELDTOPFIDA FIDUCIALTOPFIDB FIDUCIALMIXEROSCIC1013371DIN16IN 1OUT2OUT3+1020IC40287+8-VOLTSNOT334NOT567NOT867NOT965。

迪文科技 DMG48320C035 3.5英寸显示屏数据手册说明书

DMG48320C035_03WTR DMG48320C035_03WN基于T5L ASIC 的3.5英寸，320×480像素点阵，16.7M 色，IPS 屏，电阻触摸屏，标准指令集（TA ）/ DGUS Ⅱ系统Based on T5L ASIC 3.5 Inches, 320×RGBx480, 16.7M Colors, IPS screen,RTP , Standard instruction set (TA) / DGUS Ⅱ system修订记录Record of Revision日期Revise Date 描述 Content 2019-03-27 首次发布 First Edition 2020-05-25 更新存储器特性 Update Memory2020-06-10 重新修订，液晶屏物料由TN 换为IPSRevise, LCD type is replace from TN to IPS 2020-09-18 更新实物图Update physical drawing 2020-10-26更新液晶类型Update panel type●显示性能参数Display参数Item数据Parameter说明Description颜色Color16.7M（16777216）colors 24 bit color 8R8G8B液晶类型Panel Type IPSIPS工艺TFT显示屏，宽视角IPS TFT LCM ,wide viewing angle可视角度Viewing Angle 85/85/85/85 (L/R/U/D)最佳视角：上下左右对称Best View:symmetrical显示尺寸Active Area (A.A.)49.0mm (W)×73.4mm (H) 320×480 视域尺寸View Area (V.A.)49.7mm (W)×74.1mm (H) 320×480分辨率Resolution 320×480可以设置成0°/90°/180°/270°显示模式Support 0°/90°/180°/270°rotated display背光模式Backlight LED不低于20000H（以最高亮度连续工作，亮度减半时间）≥20000H(Continuous working with maximumbrightness, time of the brightness decays to 50%)亮度Brightness DMG48320C035_03WTR: 250nitDMG48320C035_03WN: 300nit可进行100级亮度调节（当亮度调节至最高亮度的1%~30%时，可能出现闪烁现象，不建议在此范围使用）。

PROJECTION DEVICE FOR PROJECTING AN IMAGE

专利名称：PROJECTION DEVICE FOR PROJECTING AN IMAGE发明人：DE VAAN, Adrianus, J., S., M.申请号：EP03797423.5申请日：20030808公开号：EP1574075A2公开日：20050914专利内容由知识产权出版社提供摘要：The present invention relates to a kind of projection devices for projected image, it includes that lighting device (1) has entrance (13), for inputting the light from light source, the light for the first polarized component of color component that light to the display panel (4) and reflection the second component (43) return lighting device (1) and display panel (4) that polarization-selective mirror (3) sends the first polarizer (42) is selected is projected in projection means (7). The display panel includes that the color component of the first polarizer (42) and steerable retroreflective formula means of dichroic filter means (5) filtering color component to the filtering color component of the polarization state of the people information (6) in the game depending on control signal and for filtering is reflected back polarization-selective mirror (3). All-round light, that is, polarization-selective mirror (3) are reflected back from reflection dichroic filter means (5) and controllable means (6), it is had not been changed with polarization state, to be returned to lighting device (1). It is that reflection is used to project to projection means (7) that the reflected light, which has polarization state change,.申请人：Koninklijke Philips Electronics N.V.地址：Groenewoudseweg 1 5621 BA Eindhoven NL国籍：NL代理机构：Raap, Adriaan Yde 更多信息请下载全文后查看。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

Printed by Jouve, 75001 PARIS (FR)(19)EP3 540 371A1TEPZZ¥54Z¥7_A_T

(11)EP3 540 371A1(12)EUROPEAN PATENT APPLICATION(43)Date of publication: 18.09.2019Bulletin2019/38(21)Application number: 19162085.5(22)Date of filing: 12.03.2019(51)Int Cl.:

G01B11/25(2006.01)G02B7/02(2006.01)H04M1/02(2006.01)H04N5/225(2006.01)G06T7/50(2017.01)G01S17/46(2006.01)G01S17/89(2006.01)G01S7/481(2006.01)G01S7/497(2006.01)G02B27/09(2006.01)G03B21/14(2006.01)H01S5/022(2006.01)H01S5/024(2006.01)H01S5/062(2006.01)H01S5/0683(2006.01)H04N13/271(2018.01)

(84)Designated Contracting States: AL AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HR HU IE IS IT LI LT LU LV MC MK MT NL NO PL PT RO RS SE SI SK SM TRDesignated Extension States: BA MEDesignated Validation States: KH MA MD TN(30)Priority:12.03.2018CN 201810202118(71)Applicant: Guangdong Oppo Mobile

Telecommunications Corp., LtdDongguan, Guangdong 523860 (CN)

(72)Inventor: ZHOU, Qiqun

Dongguan, Guangdong 523860 (CN)

(74)Representative: Manitz Finsterwald

Patent- und Rechtsanwaltspartnerschaft mbBMartin-Greif-Strasse 180336 München (DE)

(54)LASER PROJECTION MODULE, DEPTH CAMERA AND ELECTRONIC DEVICE(57)A laser projection module, a depth camera and

an electronic device are provided. The laser projectionmodule includes a laser emitter configured to emit laser;a reflection element arranged in a laser emission direc-tion of the laser emitter and configured to reflect the laseremitted from the laser emitter; a diffractive optical ele-

ment arranged in a light exiting direction of the reflectionelement and configured to diffract the laser reflected bythe reflection element; and an optical detector arrangedbetween the laser emitter and the reflection element, andconfigured to receive the laser and detect an intensity ofa non-zero order beam of the laser.EP3 540 371A1

2510152025303540455055

DescriptionFIELD[0001]The present disclosure relates to a field of im-aging technology, and particularly to a laser projectionmodule, a depth camera and an electronic device.

BACKGROUND[0002]When the laser emitter emits laser, the laser willscatter. After the scattering, beams superimposed andconcentrated at a center of the light-emitting surface ofthe laser emitter become into a zero order beam, andbeams transmitted towards the surrounding of the light-emitting surface of the laser emitter are non-zero orderbeams. When the intensity of the zero order beam is toolarge, the zero order beam cannot be completely diffract-ed when transmitted to the diffractive optical element,thus resulting in that the zero order beam emitted by thediffractive optical element has a large intensity, whichmay harm the user’s eyes.

SUMMARY[0003]Embodiments of the present disclosure providea laser projection module, a depth camera and an elec-tronic device.[0004]The laser projection module according to em-bodiments of the present disclosure includes a laser emit-ter, a reflection element, a diffractive optical element andan optical detector. The laser emitter is configured to emitlaser. The reflection element is arranged in a laser emis-sion direction of the laser emitter and configured to reflectthe laser emitted from the laser emitter. The diffractiveoptical element is arranged in a light exiting direction ofthe reflection element and configured to diffract the laserreflected by the reflection element. The optical detectoris arranged between the laser emitter and the reflectionelement, and configured to detect an intensity of a non-zero beam of the laser.[0005]In the laser projection module according to em-bodiments of the present disclosure, the optical detectoris arranged between the laser emitter and the reflectionelement, and is used to detect the intensity of the non-zero order beam. When the non-zero order beam has alow intensity, it can be determined that the energy of thezero order beam may be too high, and thus actions forreducing the emission power of the laser emitter are ex-ecuted immediately, so as to avoid the problem that theuser’s eyes may be injured when the zero order beamhas excess energy, and hence to improve the safety ofusing the laser projection module.[0006]In some embodiments, the laser projectionmodule further includes a collimation element, the colli-mation element is arranged between the laser emitterand the reflection element; or/and the collimation elementis arranged between the reflection element and the dif-

fractive optical element.[0007]In some embodiments, the laser projectionmodule further includes: a substrate assembly includinga substrate and a circuit board carried on the substrate,the laser emitter being carried on the circuit board; anda lens barrel including a side wall, the side wall beingdisposed on the circuit board and defining an accommo-dating chamber together with the circuit board, and theaccommodating chamber accommodating the laseremitter, the reflection element, the collimation element,the diffractive optical element and the optical detectortherein.[0008]In some embodiments, the reflection elementis disposed on the circuit board, and the laser emissiondirection of the laser emitter is perpendicular to an opticalaxis of the laser reflected by the reflection element.[0009]In some embodiments, the optical detector in-cludes a light-receiving surface. The light-receiving sur-face is parallel to the circuit board; or the light receivingsurface is perpendicular to the circuit board; or the lightreceiving surface is inclined at an angle with respect tothe circuit board.[0010]In some embodiments, the side wall defines agroove therein, the laser emitter is an edge-emitting laserand the edge-emitting laser is partially accommodatedin the groove.[0011]In some embodiments, the edge-emitting laseris adhered in the groove by a sealant, and the sealant isa thermal conductive glue.[0012]In some embodiments, the edge-emitting laserhas a light-emitting surface facing the reflection element.[0013]In some embodiments, the substrate has aheat-dissipation hole, and the heat-dissipation hole isfilled with thermal conductive materials.[0014]In some embodiments, a position of the heat-dissipation hole is opposite to a position of at least oneof the laser emitter and the optical detector on the circuitboard.[0015]In some embodiments, the lens barrel includesa bearing stage extending from the side wall, and thediffractive optical element is arranged on the bearingstage.[0016]In some embodiments, the laser emitter in-cludes a vertical-cavity surface-emitting laser and/or anedge-emitting laser.[0017]The depth camera according to embodimentsof the present disclosure includes a laser projection mod-ule according to any one of the above embodiments, animage collector and a processor. The optical detector isfurther configured to output an electrical signal accordingto the intensity of the non-zero beam of the laser. Theimage collector is configured to acquire a laser patternprojected by the laser projection module into a targetspace. The processor is configured to determine the in-tensity of the non-zero beam of the laser according tothe electrical signal, to decrease the emission power ofthe laser emitter when the intensity of the non-zero beamis less than a predetermined intensity and to process the
