IPC 网络摄像机快速操作手册
IPC(A6)使用说明

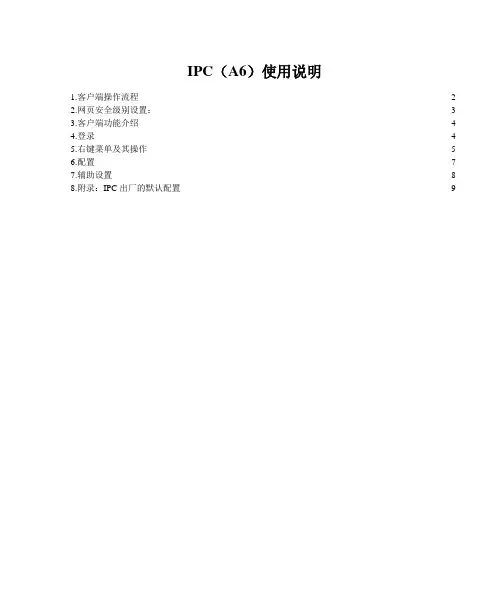

IPC（A6）使用说明1.客户端操作流程 --------------------------------------------------------------------------------------------------- 22.网页安全级别设置：---------------------------------------------------------------------------------------------- 33.客户端功能介绍 --------------------------------------------------------------------------------------------------- 44.登录 ----------------------------------------------------------------------------------------------------------------- 45.右键菜单及其操作 ------------------------------------------------------------------------------------------------ 56.配置 ----------------------------------------------------------------------------------------------------------------- 77.辅助设置------------------------------------------------------------------------------------------------------------ 88.附录：IPC出厂的默认配置-------------------------------------------------------------------------------------- 91.客户端操作流程本摄像机初次操作需进行如下操作流程（流程图供参考）：2.网页安全级别设置：由于网页的安全限制可能下载控件不成功，需要对IE配置作如下改动：IE浏览器【工具】菜单→【Internet 选项】，在打开的窗口中选择标签页【安全】后，选择【本地Intranet】。
(仅供参考)IPC-网络摄像机使用手册(通用版)
网络摄像机（Network Camera）2012-3用户手册注意事项：请勿将重物至于本设备上；请勿让任何固体或液体，掉入或渗入设备内；请定期用刷子对电路板、接插件等进行除尘，在进行机体清洁工作前，请关闭电源并拔掉电源；请勿自行对本设备进行拆卸、维修或更换零件。
使用环境：请在温度-10℃~60℃,湿度小于90%的环境中放置和使用本产品；请勿将本设备暴露在多烟、多尘的环境；避免强烈的碰撞，请勿摔落机器；请保持本产品的水平安装，安装在稳定的场所，注意防止本产品坠落；请安装在通风良好的场所；仅可在额定输入输出范围内使用。
适用产品：本说明书适用于本公司各种网络摄像机系列产品，包括室内枪机系列、红外防水系列、海螺系列、半球系列、家用机器人系列等。
特别声明：本手册所涵盖的内容均参考此使用手册编写时最新的消息，当涉及的内容发生改变时，恕不另行通知。
如果您有什么疑问或需要请随时联系我们。
目录第一章产品介绍1.1 产品概述本设备是专为安防领域设计的一款优秀的数字监控产品。
采用嵌入式LINUX操作系统，使系统运行更稳定；采用标准的H.264视频压缩算法，实现了高画质、低码率的同步音视频监控；采用TCP/IP等网络技术，具有强大的网络数据传输能力和远程操控能力。
本设备可以通过网络组成一个强大的安全监控网，配合专业网络视频监控设备和平台软件，充分体现出其强大的组网和远程监控能力。
同时本品也可以本地独立工作。
适合需要网络远程监控的各种场合，如：取款机、银行柜员、超市、工厂等的网络监控。
看护所、幼儿园、学校提供远程监控服务。
智能化门禁系统。
智能化大厦、智能小区管理系统。
电力电站、电信基站的无人值守系统。
户外设备监控管理桥梁、隧道、路口交通状况监控系统。
流水线监控，仓库监管。
对道路交通24小时监察。
森林、水源、河流资源的远程监控。
机场、火车站、公共汽车站等。
1.2 产品主要功能实时监视·具备模拟输出接口可通过监视器或DVR等监控设备实现监视功能存储功能·最大支持32G TF卡(部分产品支持)，实现录像抓图文件本地存放·通过客户端软件或监控平台，实现录像抓图文件远程存放·存储数据采用专用格式，无法篡改数据，保证数据安全压缩方式·音视频信号由独立硬件实时压缩，实现声音与图像保持稳定同步备份功能·客户端电脑可通过网络下载TF卡上的文件进行备份录像回放功能·实现独立全实时录像，还可同时实现检索、网络监视、录像查询、下载等·支持快放、慢放等多种回放模式·可选择画面任意区域进行局部放大网络操作功能·可通过网络(包括手机)进行远程实时监视·远程云台控制·远程录像查询及实时回放报警联动功能·报警联动录像、抓图、邮件等通讯接口·具备RS485接口，实现云台控制·具备标准以太网接口，实现网络远程访问功能及远程升级维护功能。
HD IP 摄像头快速入门指南说明书

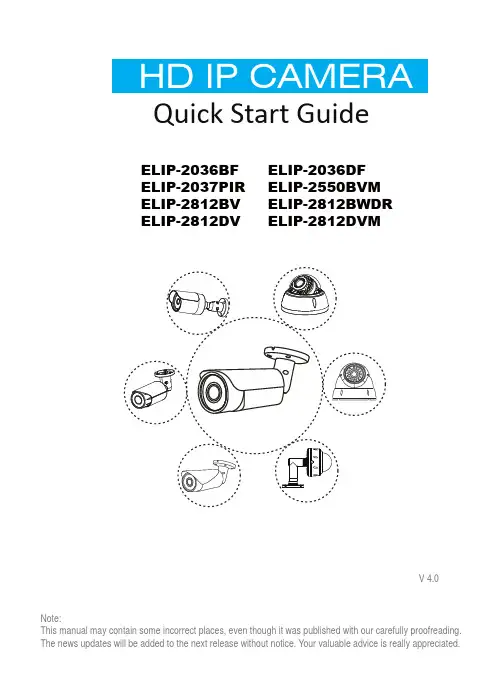

Quick Start GuideNote:This manual may contain some incorrect places, even though it was published with our carefully proofreading. The news updates will be added to the next release without notice. Your valuable advice is really appreciated.V 4.0ELIP-2036BFELIP-2036DF ELIP-2037PIRELIP-2550BVM ELIP-2812BVELIP-2812BWDR ELIP-2812DV ELIP-2812DVMNote:1. The camera should be connected to an OPTIONAL 12 volt power supply if you do not use PoE (Power over Ethernet).2. A Windows computer is more convenient to setup and troubleshooting.Figure 1: Working With POE SwitchFigure 2: Working With POE NVRNote ：Y ou can also find out the LAN configuration via Windows GUINow you can get all thelocal network information.IPv4 Address: 192.168.1.?Subnet Mask: 255.255.255.0Default gateway: 192.168.1.1DNS Servers: 192.168.1.1Default: IP address: 192.168.0.123 , Username: admin, Password: 123456( We strongly recommend modifying the default password for your security).Each IP camera has the same default IP address after leaving the factory. In order to guarantee network connectivity and access the live video, it is essential to change the camera’s IP address to unique via computer before using. To quickly configure the IP camera, download t he device search tool from the Internet: -> Support -> Downloads .Before modifying the IP address you’d better confirm the IP network planning and avoidIP address conflict.Steps on Local Area Windows 10 PC : Search Windows -> cmd -> ipconfig /allRight-click on the Network icon and select open Network and Sharing Center.If the camera is installed to work with the local switch or router directly, the camera IP range should be 192.168.1.x (x=2-254). To void IP conflict, you should test and select an unoccupied IP like this:Command Prompt ping testOnly when reply unreachablethat means the IP address is noconflict and available, otherwisewhen you see time reply do notuse this IP address.There are three methods tomodify the camera IP configuration,Search tool,UC Client softwareand Internet Explorer.a.Click Start Search and all your cameras inthe LAN will be listed. Modify IP address to suitthe LAN’s IP scheme. There are two modifyingmethods available: 1) Right click on the desiredcamera and choose “Modify IP address”. 2) Clickthe ALLcheck-box then click “IP Batch Setting”.b.You can also enable the camera DHCP function ifthere is a DHCP server available in the LAN.Most router has DHCP server built-in. (IP address in DHCP setting may change after device restart. We do not recommend leaving the IP camera on DHCP).Tips:Reset Password -> Restore default settings;Video full-screen -> double-click video;Firmware upgrade -> Select the check-box, click Browse then click File Upgrade.QR code for Danale APP(Default user name: admin, Password: 123456)1. Go to the Devices Config and click Start search, all the camera in the LANwill be listed. Highlighting one of the camera will populate the filed above. Change the parameter listed in the field and click on “Modify IP” to modify the camera’s IP address. Please modify the default IP address to match your LAN’s IP scheme. Note: Be careful when setting up IP addresses to not have duplicated IP as other devices in LAN.2. After changing all the IP cameras’ IP address, you can search again and add them all to the UC client. Once the cameras are added, go to the tab Video View and drag the camera into the split windows to start previewing the cameras.To access the camera’s web interface, type in the IP camera’s IP address in InternetExplorer’s URL bar to gain access to the login page. Please modify IP address to the same subnet if login page can not load.(Default user name: admin, Password: 123456); only IE is supported.From the login page, select your familiar language, then log in with the username and password.Install Web Plug-in when red line characters prompted. You may have to download WEBConfig.exe and run it as administrator. After installation, restart or refresh your web browser and access the IP again. The live video will start automatically after login successfully.Note: Only the Motorized Auto Focus cameras can Zoom In and Zoom Out. Keeping pressing on live video and dragging for Digital Zoom.If there is a delay in video response when accessing remotely, please switch to Sub Stream instead. To learn the function of each button, just put the mouse on, it will show screen tips.1) Power System frequency configuration (50Hz/60Hz )To avoid the video flicker, the camera should be set to right working frequency to suit the country electric system. The countries that use 60Hz have USA, Canada,Japan, Korea, Taiwan, Brazil, Philippines, Mexico. Other countries apply 50Hz.Configuration > Camera > Image > Power FrequencyConfiguration > Camera > Image > OSD > Title Message2) To modify the camera Title name and Time & DateConfiguration > System > Time setupThere are two time update modes available, Manual and NTP.a.Select your Time Zone, and click PC Sync. Set up your DST (Daylight SavingsTime) if needed , click Save. (Time and date will be set 2000-01-01 if thecamera is reset.)b.If the camera is connected to the Internet, you can set up a NTP server for thecamera to sync the time and date automatically.3) To enable Motion Detection AlarmConfiguration > Event > Video DetectionWhen Motion is detected，there is a small alarm light pup up beside the Alarm menu. You can also setup an email address or FTP storage server to receive the motion snapshot. (Trigger recording will work only if memory card or NFS NAS connected. )4) To find the device Cloud ID and QR code for p2p remote accessConfiguration > Network > P2PUsing the P2P ID and QR code, you can access the camera remotely anywhere via smart phone with Internet access. Please register an account via mobile phone after installing the Danale APP from APP Store or Google Play Market, then log in and add your camera to start previewing.Or you can go to the website / to register if you need PC remote access. You can download APP from the website to find out more.Tips: if the Login Status shows Offline, please check your network connection and IP camera TCP/IP Network configurations. Please make sure to use a valid DNS server IP in the TCP/IP Network setting.Visit the Apple App Store or the Google Play Store to download the Danale app for iOS or Android devices. (For transferring the file manually to your smart device, please refer to your smart device’s manual). After installation, tap the icon to launch the Danale app. For first time use, please create a new account by following the steps below:Note: I f you cannot connect the camera, please check your Internet connection and verify the IP address, gateway, and DNS setting in the camera. The Cloud loginstatus should be online, which means the camera has registered to the cloud server. You may also want to connect your phone to WiFi for better performance.1. For new users, please tap CREATE NEW ACCOUNT to register an account.2.Type in your mobile phone number or email address, then tap NEXT .3. Check your SMS or Email for the verification code, then tap NEXT .4. Tap to Add devices5. Tap QR Code to add to get into the scan camera QR code page, or click NEXT to discover the connected local LAN IP camera.6. Put the IP camera QR code in the app effective scan area, and then give a nickname for the recognized camera.7. Tap the camera list to start live video.a.Tap to check your account profile and configure settings .b.To share your camera with your friends or another user, click “ ” iconand type in or scan his/her Danale account.Tips:The app is offered free of charge by a third party; it is not covered by the warranty of MONACOR International. Charges may apply for some of the Cloud services avail-able as options in the app! If problems occur, please contact the provider of the app.The IP camera supports standard ONVIF protocol and it can be added to third-party video recorder. Some of the models support both H.264 and H.265 encode mode. The H.265 encode cameras can compress the video data to a very low bit rates which allows more video data storage than normal H.264 camera. Only configure the camera to H.265 mode when your NVR supports H.265 modeNote: Some of the PoE NVR supports Plug & play, which allows you to get video without manually search and add. if Plug & play feature is not available or not compatible, please follow the NVR manual steps and select ONVIF protocol as the paring protocol. (camera default password: 123456)If the POE NVR can not discover the connected camera or can not display the camera video , please check it’s internal POE interface IP configuration and make sure all connected cameras and NVR POE interface are in the same subnet schema.For more help please contact the both NVR and IP camera suppliers for technical assistance.Before pairing cameras to the NVR, make sure the NVR and cameras have valid and matching IP scheme.1. Why can’t I open the default IP address 192.168.0.123 via web browser?Check your computer’s IP address before accessing the camera. If the IP addressdoes not match the 192.168.0.x scheme, please download the device search tool from the Internet ( -> Support -> Downloads) to modify the camera’s IP address. Make sure the IP address of the camera matches the LAN IP scheme. For example, if the LAN is 192.168.1.xxx, then set the IP camera to 192.168.1.123 and so on. Only IE windows computer is supported by the camera.2. How to reset the password?The default Username: admin, Password: 123456. If you lost the password orwould to reset the camera’s setting, please install the search tool to search thecamera IP and click Reset factory button.3. How to upgrade the IP camera?1) Ask the supplier for the suitable firmware2) you can use the web browser, search tool, or PC client to upgrade the camera3) go to the Configuration > System > update, click browse and select the firmware, thenclick Upgrade button and wait for the operation to complete.4. How to fetch the RTSP video stream and http snapshot?1) Main Stream: rtsp://IP:554/h264?username=admin&password=1234562) Sub Stream: rtsp://IP:554/h264cif?username=admin&password=1234563)L ow resolution snapshot: http://IP/cgi-bin/snapshot.cgi?stream=14) HD snapshot : http://IP/cgi-bin/snapshot.cgi?stream=05. Why does the NVR not show image after adding your IP camera?1) Make sure you selected the right protocol and enter the correct username and passwordwhen adding the cameras,2) Make sure the NVR and IP camera are the same IP scheme.(eg. NVR:192.168.1.x, and IPcamera:192.168.1.y),3) try changing the camera encode mode to H.264 if the NVR can’t support H.265.(Configuration -> Camera -> Video > Encode mode: H.264)6. How to make the NVR record in motion detection mode?1) Enable the IP camera motion detection function via web browser or Search configure tool,2)activate the record mode for motion detection in the schedule of the recorder,3) check the NVR screen MD icon and try playback. Please refer to your NVR manual for NVRmotion record option.7. Where can I control the motorized auto focus lens zoom?1) Using the camera’s web interface;2) Control by PC client software UC;3) Roll the mouse wheel at the search tool preview window;4)Find the PTZ menu in your NVR to control lens zoom.。
海康威视网络摄像机快速操作手册
网络摄像机快速操作手册V4.0.5 UD.6L0101C0130A01杭州海康威视数字技术股份有限公司技术热线：400-700-5998非常感谢您购买我公司的产品，如果您有什么疑问或需要请随时联系我们。
本手册适用于以下型号的的网络摄像机：枪型Ⅰ：DS-2CD886BF-E、DS-2CD886MF-E、DS-2CD877BF、DS-2CD876BF、DS-2CD876MF枪型Ⅱ：DS-2CD883F-E(W)、DS-2CD855F-E、DS-2CD854F-E(W)、DS-2CD854FWD-E(W)、DS-2CD853F-E(W)、DS-2CD864FWD-E(W)、DS-2CD864F-E(W)、iDS-2CD864FWD-E(W)/F、iDS-2CD864FWD-E(W)/B、DS-2CD863PF(NF)-E(W)、iDS-2CD893PF-E(W)、DS-2CD893PF-E(W)、DS-2CD893PFWD-E(W)、DS-2CD833F-E(W)半球型Ⅰ：DS-2CD783F-E(I)(Z)、DS-2CD764FWD-E(I)(Z)、DS-2CD764F-E(I) (Z)、DS-2CD755F-E(I) (Z)、DS-2CD754F-E(I) (Z)、DS-2CD754FWD-E(I)(Z)、DS-2CD753F-E(I)(Z)、DS-2CD763PF(NF)-E(I)(Z)、DS-2CD793PF-E(I) (Z)、DS-2CD793PFWD-E(I)(Z)、DS-2CD733F-E(I)(Z)半球型Ⅱ：DS-2CD7233F-E(I)Z(H)(S)、DS-2CD7253F-E(I)Z(H)(S)、DS-2CD7254F-E(I)Z(H)(S)、DS-2CD7254FWD-E(I)Z(H)(S)、DS-2CD7255F-E(I)Z(H)(S)、DS-2CD7263PF(NF)-E(I)Z(H)(S)、DS-2CD7264FWD-E(I)Z(H)(S)、DS-2CD7264F-E(I)Z(H)(S)、DS-2CD7283F-E(I)Z(H)(S)、DS-2CD7293PF(NF)-E(I)Z(H)(S)、DS-2CD7293PFWD(NFWD)-E(I)Z(H)(S)筒型Ⅰ：DS-2CD8283F-E(I) (Z)(S)、DS-2CD8264F-E(I)(Z)(S)、DS-2CD8264FWD-E(I)(Z)(S)、DS-2CD8254FWD-E(I)(Z)(S)、DS-2CD8254F-E(I) (Z)(S)、DS-2CD8255F-E(I) (Z)(S)、DS-2CD8253F-E(I)(Z)(S)、DS-2CD8233F-E(I)(Z)(S)筒型Ⅱ：DS-2CD864-EI3、DS-2CD855-EI3筒型Ⅲ：DS-2CD2012-I卡片型Ⅰ：DS-2CD8153F-E(I)(W)、DS-2CD8133F-E(I)(W)卡片型Ⅱ：DS-2CD8433F-E(I)、DS-2CD8464F-E(I)迷你半球型：DS-2CD7164-E、DS-2CD7153-E、DS-2CD7133-E本手册可能包含技术上不准确的地方、或与产品功能及操作不相符的地方、或印刷错误。
IPCAMERA使用手册
网络摄像机产品使用说明书前言感谢您使用本公司网络摄像机系列，该系列是针对网络视频监控而开发的一体化网络摄像机，包括存储网络枪机、无线存储网络枪机、网络红外半球机、网络红外防水机、网络高速球等。
采用高性能、单片SOC芯片实现集音视频采集、压缩、传输于一体的媒体处理器，标准的H.264编码算法确保了更清晰、更流畅的视频传输效果。
内嵌Web Server允许用户通过IE浏览器方便地实现对前端摄像机的实时监看和远程控制。
该系列网络摄像机适用于中小企业或家庭，以及需要运用到远程网络视频传输及监控的各种场合，本产品易于安装，操作简便。
在安装网络摄像机之前，请检查您的产品配件是否齐全。
如果包装配件有漏失，请您及时联络经销商。
物品清单:1.网络摄像机 ――――1台2.WI-FI USB网卡（选配） ――――1块3.DC12V电源适配器 ――――1件4.光盘 ――――1张说明：◆文中提到的IP Camera即网络摄像机，包括存储网络枪机、无线存储网络枪机、网络红外半球机、网络红外防水机、网络高速球等。
◆单击：指用鼠标左键点击◆双击：指用鼠标左键双击◆IP CAMERA出厂的默认管理员的用户名和密码都为admin（小写）◆默认Web端口：80（TCP），默认通讯端口：4000（TCP、UDP）声明：◆本手册所描述的内容可能与您现使用的版本有区别，如果您按照本手册使用时遇到有无法解决的问题，请与本公司的技术支持部或产品供应商联系。
◆本手册内容将不定期更新，公司有保留不另行通知的权利。
目录产品概述1、 (4)应用领域简介1.1 (4)产品简介1.2 (4)产品特性1.3 (5)产品规格1.4 (5)使用环境1.5 (6)外观和安装2、 (7)外观一览2.1. (7)存储/无线存储网络摄像机后面板连接图2.2. (7)设备安装2.3. (8)设备操作说明3. (10)搜索设备及修改网络参数3.1. (10)检查连接3.2. (12)控件安装和系统登录3.3. (12)操作指南4. (14)操作按键一览4.1. (14)配置说明4.2. (14)系统参数4.3. (15)网络参数4.4. (15)用户参数4.5. (19)音/视频参数4.6. (19)视频叠加4.7. (21)移动报警4.8. (22)探头参数4.9. (22)报警器参数4.10. (23)磁盘参数4.11. (24)录像参数4.12. (25)定时录像4.13. (26)终端参数（仅当使用枪机IP CAMERA时显示）4.14. (27)报警信息4.15. (28)系统维护4.16. (29)本地设置4.17. (30)附加说明5. (31)常用动态域名设置5.1. (31)常用路由器端口映射设置5.2. (33)常见问题解答6. (34)1、产品概述1.1应用领域简介网络摄像机通常可以应用在大型商场、超市、学校、工厂、车间等一系列公共场所，因其强大的图像处理能力，网络摄像机也可以应用于像银行、交通路口等对图像清晰度要求较高的环境里。
网络摄像机快速操作手册7p
步骤二：将包装盒中的光盘取出，放置光驱，找到【客户端】软件双击并安装，待安装完成
步骤三：在电脑桌面，找到 图标，双击打开
用户名：admin
密码: 123456
点击【配置管理】-【设备管理】-【开始搜索】
如，可根据要求修改摄像机的IP地址。
步骤四：打开【IE】-【IE工具】-【Internet选项】-【安全】（下图）
网络摄像机快速操作手册

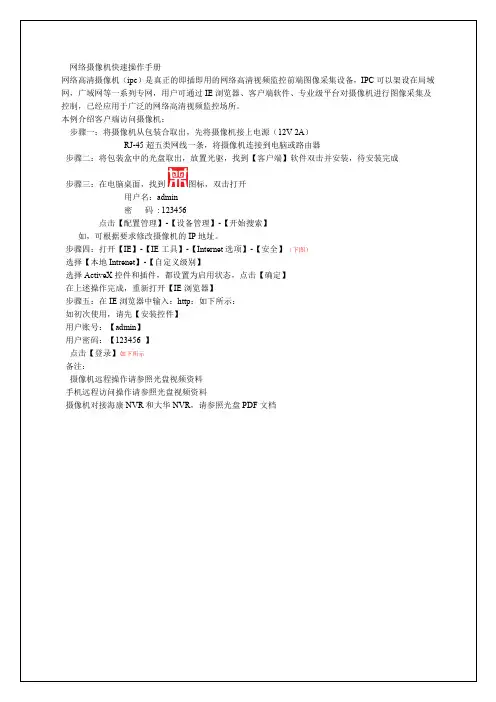

网络高清摄像机（ipc）是真正的即插即用的网络高清视频监控前端图像采集设备，IPC可以架设在局域网，广域网等一系列专网，用户可通过IE浏览器、客户端软件、专业级平台对摄像机进行图像采集及控制，已经应用于广泛的网络高清视频监控场所。
本例ቤተ መጻሕፍቲ ባይዱ绍客户端访问摄像机：
步骤一：将摄像机从包装合取出，先将摄像机接上电源（12V 2A）
手机远程访问操作请参照光盘视频资料
摄像机对接海康NVR和大华NVR，请参照光盘PDF文档
选择【本地Intrenet】-【自定义级别】
选择ActiveX控件和插件，都设置为启用状态，点击【确定】
在上述操作完成，重新打开【IE浏览器】
步骤五：在IE浏览器中输入：http：如下所示：
如初次使用，请先【安装控件】
用户账号：【admin】
用户密码：【123456】
点击【登录】如下所示
备注：
摄像机远程操作请参照光盘视频资料
海康威视威视IP网络摄像头用户手册说明书
Pneumatics Fluid & Gas Handling Hydraulics Process Control Sealing & Shielding Key Products Accumulators Cartridge valves Electrohydraulic actuators Human machine interfaces Hybrid drives Hydraulic cylindersHydraulic motors & pumps Hydraulic systems Hydraulic valves & controls Hydrostatic steering Integrated hydraulic circuits Power take-offs Power units Key Markets Aerospace Conveyor & material handling Factory automation Life science & medical Machine tools Packaging machinery T ransportation & automotive Key Products Air preparation Brass fittings & valves Manifolds Pneumatic accessories Pneumatic actuators & grippers Pneumatic valves & controls Quick disconnects Rotary actuators Rubber & thermoplastic hose & couplings Structural extrusions Thermoplastic tubing & fittings Vacuum generators,cups & sensors Key Markets Aerial lift Agriculture Bulk chemical handling Construction machinery Food & beverage Fuel & gas delivery Industrial machinery Life sciences Marine Mining Mobile Oil & gas Renewable energy T ransportation Key Products Check valves Connectors for low pressure fluid conveyance Deep sea umbilicals Diagnostic equipment Hose couplings Industrial hose Mooring systems &power cables PTFE hose & tubing Quick couplings Rubber & thermoplastic hose T ube fittings & adapters Key Markets Aerial lift Agriculture Alternative energy Construction machinery Forestry Industrial machinery Machine tools Marine Material handling Mining Oil & gas Power generation Refuse vehicles Renewable energy T ruck hydraulics T urf equipmentKey Markets Alternative fuels Biopharmaceuticals Chemical & refining Food & beverage Marine & shipbuilding Medical & dental Microelectronics Nuclear Power Offshore oil exploration Oil & gas Pharmaceuticals Power generation Pulp & paper Steel Water/wastewater Key Products Analytical Instruments Analytical sample conditioning products & systems Chemical injection fittings & valves Fluoropolymer chemical delivery fittings,valves & pumps High purity gas delivery fittings,valves,regulators & digital flow controllers Industrial mass flow meters/controllers Permanent no-weld tube fittings Precision industrial regulators Key Markets Aerospace Chemical processing Consumer Fluid power General industrial Information technology Life sciences Microelectronics Military Oil & gas Power generation Renewable energy T elecommunications T ransportation Key Products Dynamic seals Elastomeric o-rings Electro-medical instrument design & assembly EMI shielding Extruded & precision-cut,fabricated elastomeric seals High temperature metal seals Homogeneous & inserted elastomeric shapes Medical device fabrication & assembly Metal & plastic retainedAerospace Key Markets Aftermarket services Commercial transports Engines General & business aviation Helicopters Launch vehicles Military aircraft Missiles Power generation Regional transports Unmanned aerial vehicles Key Products Control systems & actuation products Engine systems & components Fluid conveyance systems & components Fluid metering, delivery & atomization devices Fuel systems & components Fuel tank inserting systems Hydraulic systems & components Thermal management Wheels & brakes Electromechanical Key Markets Aerospace Factory automation Life science & medical Machine tools Packaging machinery Paper machinery Plastics machinery & converting Primary metals Semiconductor & electronics T extile Wire & cable Key Products AC/DC drives & systems Electric actuators, gantry robots & slides Electrohydrostatic actuation systems Electromechanical actuation systems Human machine interface Linear motors Stepper motors,servo motors,drives & controlsStructural extrusions Parker’s Motion & Control TechnologiesAt Parker, we’re guidedby a relentless drive tohelp our customersbecome moreproductive and achievehigher levels ofprofitability byengineering thebest systems for theirrequirements. It meanslooking at customerapplications frommany angles to findnew ways to createvalue. What ever themotion and controltechnology need,Parker has theexperience, breadthof product and global reach to consistentlydeliver. No companyknows more about motionand control technologythan Parker. For further infocall 1 800 C-Parker(180****7537)Climate Control Key Markets Agriculture Air conditioning Construction Machinery Food & beverage Industrial machinery Life sciences Oil & gas Precision cooling Process Refrigeration T ransportation Key Products Accumulators Advanced actuators Co controls Electronic controllers Filter driers Hand shut-off valves Heat exchangers Hose & fittings Pressure regulating valves Refrigerant distributors Safety relief valves Smart pumps Solenoid valves Thermostatic expansion valves Filtration Key Markets Aerospace Food & beverage Industrial plant & equipment Life sciences Marine Mobile equipment Oil & gas Power generation & renewable energy Process T ransportation Water Purification Key Products Analytical gas generators Compressed air filters & dryers Engine air, coollant, fuel & oil filtration system Fluid condition monitoring systems Hydraulic & lubrication filters Hydrogen,nitrogen & zero air generators Instrumentation filters Membrane & fiber filters Micro filtration Sterile air filtration Water desalination & purification filters & systemsViking LiteDirectional control valves The Viking Lite valve range is robust, versatile and combines high performance with compact installation dimensions. Large flow capacity, short change-over times and low change-over pressure are important characteristics of this valve range.Designed to operate with pressures up to 10 bar intemperatures -10C to + 50C.Zinc plated Viking Lite ...cover screwsrobust, versatile high performance with long service lifeViking Lite rangeP2LAZ, G1/8 - Cv = 0,6P2LBZ, G1/4 - Cv = 1,5P2LCZ, G3/8 - Cv = 2,5Solenoid operatedWear compensating systemThe Viking Lite valve range is robust, versatile and combines high performance with compact installation dimensions. The choice of G1/8, G14 or G3/8 port sizes provide large flow capacity, short change-over times. Low change-over pressure is also an important characteristic of this valve range.Viking Lite valves are fitted with dynamic bi-directional spool seals suitable for pressures up to 10 bar, inO O ambient temperatures -10C to + 50C. Under pressure radial expansion of the seal occurs to maintain sealing contact with the valve bore.This sealing method reduces friction gives lower pilotpressures, providing fast response and less wear. Valves do not require lubrication in operation but they can also be installed in systems that are lubricated.IP65 and RoHSPort sizes & port types (BSP , NPT , 1/8, 1/4, 3/8)Directional control valvesSolenoid operated directional control valvesInternal supply to solenoid valve(s) via port 1.5/2 valves, internal air, standard temperature3/2 valves, internal air, standard temperature(bar) actua./return 5/3 valves, internal air, standard temperatureSymb ol Size ActuationMinChangeover Weight Order code Order code Operating time (ms) Kg Without coil With 24V DC Pressure at 6 bar @20C (22mm coil)Symb olSizeActuationReturnMinChangeover Weight Order code Order code Operating time (ms) Kg Without coil With 24V DC Pressure at 6 bar @20C (22mm coil)(bar) actua./returnSymb ol Size ActuationReturnMinChangeover Weight Order code Order codeOperating time (ms) Kg Without coil With 24V DC Pressure at 6 bar @20C (22mm coil)(bar) actua./return Viking LiteMPS-V32N-PGMPS-V32N-PCCatalog 0802-5FeaturesMounting Bracket MPS-ACCK1 Included withSensors.Pressure SensorsMPS-322-Color Panel MountMPS-32RedFeaturesVacuum Pressure...............0to -30inHg Positive Pressure.................0to 145PSI2 NPNor PNP Open CollectorTransistor Output, 30VDC, 125mA Optional Analog Output, 4 to 20mA Optional Analog Output, 1 to5VDCMode(mmHg, -bar, -kPa, inHg)(kgf/cm 2,PSI,bar,kPa)MillisecondsOrdering Information,SpecificationsPressure SensorsMPS-322-Color Panel Mount SpecificationsPressure RangeVacuum(V)Positive(P)Units of Measure Display Resolution (with unit-switching function)bar:kPa:mmHg:inHg:0.0010.110.1bar:MPa:kgf/cm 2:PSI:0.010.0010.011ProofPressure-101 to 0kPa0 to 1MPaMediaAir & Non-Corrosive Gases PressurePort (N) 1/8" NPSF OperatingTemperature 32 to 122°F (0 to 50°C)StorageTemperature 14 to140°F (-10 to60°C)Humidity35 to 85% RHElectrical Connection (C) 4-Pin, M8 Connector, (G) Grommet Open LeadPowerSupply12 to 24VDC +10% or less, Ripple(Vp-p) 10% orless Display 3 + 1/2 Digit, 2 Color, 7-SegmentLED DisplayRefresh.1 to3.0 Seconds, Variable (Factoryset at0.1)Control Output NPN (Sinking), PNP (Sourcing),OpenCollector, max 125mA, 2Output Switch OutputOutput Signal, NPN or PNP , NormallyOpen orClosed,LEDIndicatorOutput Modes Hysteresis or WindowComparator Response Time2ms or less,(Variable 32, 128, 1024ms)Repeatability± 0.2% of F .S.± 1digit or less± 03% of F .S. ± 1 digit or lessAnalogOutputVoltageOutput 1 to 5VDC (1 + 0.04V , 5 + 0.04V); Outout Impedance 1kΩ; Linearity 0.5% of F .S.;Response Time 2ms or lessCurrent Output4 to 20mA; Linearity ±0.5% of F .S. or less; Maximum Load Impedance 300Ωwith Power Supply Voltage of 12V; 600Ω with Power Supply Voltage of 12V;Minimum Load Impedance50ΩThermal Error32 to 122°F (0 to 50°C) 25°C (77°C) + 2% of F .S. or less at range of 32 to 122°F (0 to50°C)GeneralProtection IP50, CE Marked, EMC-EN61000-6-2: 2001CurrentConsumption <80mA Vibration Resistance 10to 150Hz,Double Amplitude 1.5mm,XYZ,2hrs.Shock Resistance 10G,XYZMaterialHousing:ABS (gray),Pressure Port:Zinc Die-cast,Diaphragm:Silicone Mass1.7oz.(45g)(Not including cable)MPS-32Ordering NumbersPressure RangePort SizeOutputCircuit Electrical ConnectorPartNumber 0to -30inHg1/8 NPSF*PNPSourcing4 Pin,M8MPS-V32N-PC 2M LeadWire MPS-V32N-PG NPN Sinking4Pin, M8MPS-V32N-NC 2MLead Wire MPS-V32N-NG 0to 145PSI1/8NPSF*PNPSourcing4 Pin, M8MPS-P32N-PC 2M Lead Wire MPS-P32N-PG NPNSinking4Pin, M8MPS-P32N-NC 2MLeadWire MPS-P32N-NG PNP Sourcing with4-20ma4 Pin,M8MPS-P32N-PCI*Mounting BracketIncluded(Bold Items are Most Popular)Products for Automotive IndustryNBH/PBH/LE2 - Introduction• N BH allows for increased power similar to that achieved using hydraulics • Convert air pressure to high oil pressure using a booster• Patent Pending• High output from 0.15 4.5tons• Adjust air pressure using air regulator• Accurate force using oil pressure• Typical flow – manual ~ pneumatic ~ hydraulic or electric• NBH – Uses direct air pressure – high output and speed, uses consitent air pressure, used for short stroke.• PBH – Uses an accumulator – for long strokeHigh Power SystemsPneumerlock Clamping Element• P ressure booster combined with clamp cylindersenables high output of 1.5 to 44.1kN.• E ither direct-pressure or preload-pressureboosters can be selected to provide a wide range ofmotions of actuator from short to long.SpecificationOutput oil pressure : 10.8~17.5 MPaOperating air pressure: 0.2~1 MPaOutput oil capacity : 77~304 cm3Direct Pressure Type BoosterNBH seriesDirect pressure type booster configurationSuitable for operations requiring highoutput throughout the stroke.SpecificationPre-Pressure Type Booster PBH, PBE SeriesExample of circuit for referenceSuitable for operations requiring highoutput throughout the stroke.Locating pin cylinderRigid mounting blocks and tight rod tolerance give the accurate position of locating pins on welding jigs.Wide variety of actuator shapes on customer’srequests.Pin clamp cylinderLocating pins are equipped to cylinders.Both vertical and horizontal shape with many different diameters/ shapes of locating pins oncustomer’s requests. Clamp UnclampVertical typeHorizontal typeJig lifting cylinderRigid lift cylinder which gives theaccurate clamping positions to the clamp units.On lift & carry conveyance or multi product lines, usuallyinstalled on the base welding machines.10F-1/2Flat shape cylinder with thin width bodies 20mm for bore 25mm 25mm for bore 32mm 39mm for bore 50mmNon rotating with oval pistonSpecificationPressure: 0.1 to 1MPa O Temperature: -10 to +60 C Bore: 25/ 32/ 50mm Standard stroke: 50-200mm 10F-1 5-50mm 10F-2FlangeDescription Type Order code P1C-4NMBFlangeMF1/MF2Water retract actuator (WRA-series)Note: For reliable operation of WRA, air pressure has to exceed water pressure, pressure difference recommended 1 barFoot bracketDescription Type Order code P1C-4NMFFoot bracketMS1Water retract actuator (WRA-series)Water retract actuator designed to reduce water pressure during automatic tip change operation• Based on standard components, utilizing Parker P1P global actuator series, VikingLite valve technology, sealing, hose and fitting technologies • Reduces downtime• Protection of expensive weld equipment, automatic tip changer • Easy installation, easily integrated into existing water system • Corrosive protection against cooling water medium • Cost effective design• Optimized design to fit car manufacturer specifications,new program or retooling programWater retract actuator (Order code)Pneumatic Actuator Air Motor- TAM4 : Compact, economical air motor with grease mounted system <Specifications>Nominal output : 9.81-19.6 kNOperating pressure range : 0.15-0.7MPaRadial Piston Type Air MotorTAM4 seriesPneumatic ActuatorHigh-Power System- All in one construction combining pressure booster and clamp cylinder - Compact, Lightweight design<Specifications>Port size : G1/8, G1/4Operating air pressure range : 0.15-0.9MPa at air pressure as 0.6 MPaClamping Element LE2 seriesPneumatic Actuator High-Power System- Space-saving pneumatic press- 1/10 The volume of conventional presses<Specifications>Rated pressure : 0.5MPaMaximum output : 73.5-228W Torque : 0.64-2.91 NmPneumatic Toggle PressTPH series。
IPC121 高清网络摄像机说明书
3) 设备重启后，可直接在 IPCSearch 中点击
登录 web 客户端。
如果已配置过 IP，可以直接在 IE 地址栏中输入设备的 IP 地址，连接 web 客户端。 4) 在登录界面输入默认管理员用户名与密码，均为 admin，操作员用户名 和密码，均为 guest。
【说明】 首次运行 web 客户端时，请先下载并安装视频控件。 • 如果下载控件不成功，请进行如下操作 : 1) 点击 IE 工具栏 "Internet 选项 > 安全页签 "。
3
4
5
6
分配 IP 地址。若 IPC 设备所接入的网络有 DHCP 服务，DHCP 服务器将自动给 IPC 分配 IP 地址。
2) 运行 IPCSearch，搜索并选中需要配置，填写以太网参数。完成 IP 配 置后，设备将自动重启，重启时间约为 60 秒。
四 支架安装说明
将摄像机安装在吊装支架上时，需要先安装支架转接器，如下图。
图9
五 外罩安装说明
当摄像机位于室外时，需要装配在防水外罩中，说明如下： 【说明】 将摄像机安装在防水外罩中时请勿使用支架转接器。 1. 旋开卡扣如图，打开护罩上盖。 2. 使用螺丝刀拧松固定板螺钉，将固定板向后拉，对准孔位取下固定板。 【说明】 4 颗固定板螺钉拧松即可，无需拧下。 3. 穿好线缆并拧紧 PG 头。 4. 将固定板装配在摄像机底部。
三 安装步骤
1. 揭掉保护膜，安装镜头。安装 C 型镜头前，请先装配转接环，如图。
图1 2. 连接线缆，上电。
图2 【说明】 RUN 灯：运行指示灯，绿色，正常上电后快闪（1 秒亮、1 秒灭），断电后灯灭。
LINK 灯：网络状态灯，绿色，正常上电且网络物理连通后灯亮，断电或网络物理中断时灯灭。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
网络摄像机快速操作手册
网络摄像机（IPC）是真正的即插即用纯网络视频监控前端设备，IPC可以部署在局域网，
何地方对摄像机视频进行显示及控制，
大规模视频监控系统中，也可以独立分散应用在如商店、学校、家庭的分布式、需要远程视频监控应用。
第一部分接口简介
图1 高清枪击网络摄像机接口
图2 图3
红外防水网络摄像机H.264机器人摄像机接口
电源接口：12V直流电源输入，电源用错会造成摄像机的永久损坏
状态指示灯：
本地录像为绿色闪烁，触发报警为红色闪烁
报警输入：开关量输入。
常开常闭可以在客户端中配置，默认为常开输入报警输出：开关量输出，用于报警时联动输出
RS485输出：用于连接云台或其它485设备
RESET按钮：用于恢复出厂默认，持续按键5秒恢复出厂默认设置，包括网络IP地址设置
音频输入：音频线性输入，一般与拾音器线性输出相连，用于监听现场声音音频输出：音频线性输出，可外接带功放喇叭进行对讲
视频输出：用于图像预览输出，方便调试调焦
接收天线：用于WIFI天线或3G模块天线等
第二部分WEB浏览
步骤一：网线将电脑和摄像机直连（若成功，网卡灯黄色常亮，绿色闪动）;
步骤二：【光盘资料】>【中文】>【配套工具】找到UpgradeTool并安装;
步骤三：打开UpgradeTool，点击IP搜索，若搜索到,在列表中显示设备IP;
步骤四：选中列表中的IP点击【设置设备】，在设置界面修改设备的IP，把IP设置为需要使用的路由器网段内
骤）如图3:
设置IP界面
图4
出厂默认设置为：
IP地址：192.168.1.10 掩码：255.255.255.0 网关：192.168.1.1
用户名：admin 密码为空
图5 本地模拟输出界面
注：设备本地模拟视频输出功能方便镜头调试，网络相关配置信息通用模拟视频输出也可以方便获得，如图5所示（显示30秒后自动关闭）
步骤五：打开IE，输入IP地址，在登陆界面输入用户名密码登入，如图6。
图6 WEB操控界面
登录成功后，显示如图7所示的界面。
图7 第三部分WEB登录成功界面基本远程操控
回放:进入回放模块，可支持多通道同时回放；
日志: 显示日志信息；
客户端配置:设置设备端报警，启动远程网络客户端的联动功能；
设备端配置: 远程对设备端进行相应参数配置。
可对设备端进行参数配置，配置参数将同步到本地设备，包括:录像功能、报警功能、系统设置、管理工具、系统信息等，（注：设备必须连接成功后才可以进行设备端配置）。
通道操控：
打开视频：选中左边一视频窗口，在右边选择视频通道，单击打开视频
关闭视频：选择左边栏的相应通道，单击左键，关闭相应通道视频，也可选择关闭所有窗口来关闭所有打开的视频窗口。
说明：。
