条码枪设置步骤M131
80pcs寺冈电子条码称操作步骤.doc
80pcs、L寺冈电子条码称操作步骤一、置141，142的步骤（一）设置141的步骤：用方式键选择到z模式下，按住置零键不放+141显示SP000；（80L: 按住置零键不放+141显示SP000）1、SP000（条码格式）：按4键—按*打印键显示SP001。
2、SP001（条码方式）：按1键—按*打印键—按3键—按x键显示SP003。
3、SP003（标志位F1F2）：按22键—按*打印键—按24键—按x键显示P024。
4、SP024（条码缺省格式）：按16键—按*打印键—42键—按X键显示SP0425、SP042（是否允许变价）：按0键—按*打印键—按49键—按x键显示SP0496、SP049（网络连接类型）按2键—按*打印键—按50键—按x键显示SP0507、SP050（客户服务机）：按1键—按*打印键—按64键—按X键显示SP0648、SP064（密码模式）：按1键—按*打印键—按135键—按X键显示SP1359、SP135（端口号）按称号—按*打印键10、按项目键保存—按方式键两次退出。
（80L:按M键两次退出）（二）设置142的步骤：用方式键选择到Z模式下，按住置零键不放+3752后放开，再按置零键不放+142后放开显示SP600；（80L：按住置零键不放+3752后放开，再按置零键不放+142后放开显示SP600）1、SP600：按629键—按*打印键（80L:按X键）—显示SP626.2、SP629：按4键—按*打印键—按项目间保存—按方式键两次退出（3：四设五入、4：保留分）。
（80L:按M M键两次退出）3、SP628:按2键4、四次方式置零不放3752 置零不放142 628X 2 * 0 * 项目代码二、标签格式的设置步骤：（一）12X的设置（30*37空白打印纸）按方式键选择到S模式下：(80L:按M 键—按置零键—按M键—按12键—按X键—按1键—按*键（显示Y_Cn_t）)1、输入12—按*打印键—按1键—按*打印键—输入56—按*打印键—输入37—按*打印键三次，显示S 12.5 PIU.1F1EM；(80L:按去皮键—输入56—按*打印键—输入37—按*打印键—按0键（显示P12.6no 1FrEE0）)(二)、11X文本格式设置：按方式键选择在S模式下(80L: 按M 键—按置零键—按M键)1、按11键—按*打印键—按1键—按*打印键。
MI和安全气囊检测仪条码枪设置方法
MI系统及气囊检测仪条码枪设置方法设备维修档案系列技术资料一．确认接口设置并连接条码枪：1．在主画面菜单选择“Maintenance（维护）”-“4.Constants（常数）”- “1.Codename Registration（代码名注册）” -“6.System（系统）”命令。
2．选择“Setting of RS232C（RS232接口设定）”，确认如下参数：Device Name（设备名）： Bar-code/QR code （条码/QR码）Port No（端口号）：0Baud rate (波特率)： 9600Data bit (数据位数)： 8Start bit (启动位)： 1Stop bit (停止位)： 1Parity (奇偶校验)： 0Buffer size (缓冲尺寸)： 10243．把条码枪连接到此接口：PC背面标有“BARCODE（条码）”的接口（RS232）：图1：条码枪接口（RS232）二．用条码枪读入测试号和VIN信息的设置方法：测试号通过条码枪读入信息的方法来决定。
1．在主画面菜单选择“Maintenance（维护）”-“4.Constants（常数）”- “1.Codename Registration（代码名注册）” -“7.Other（其它）”。
进入图2界面。
把 "Vehicle ID Method（车辆ID方法）"设置为“1”。
图2：其它项目注册2．选择菜单命令“4.Constants（常数）”- “1.Codename Registration（代码名注册）” -“5.Schedule File Information（表文件信息）”。
进入S/F信息界面（图3）。
图3：S/F信息“TestNo（测试号）”数值在条码枪扫描信息时被设置。
如果条码枪的读入结果是：“123LFPH4ABCX68A01710I”，且测试号是红字符部分。
则“figure（图）” 为“1” ，“the number of figure（图号）”为3。
条形码扫描枪的正确使用方法及注意事项
条形码扫描枪的正确使用方法及注意事项一、正确使用方法：1.准备工作a.接通电源：条形码扫描枪一般采用有线或无线两种方式，有线扫描枪需要将扫描枪与电脑或终端设备进行连接，无线扫描枪则需要接收器与设备进行配对。
b.安装驱动程序或配置系统设置：根据实际情况安装扫描枪驱动程序或进行系统设置，以确保扫描枪与设备正常通信。
2.准备条形码准备需要扫描的条形码，确保条码清晰可读，无污损或破损，避免阻碍扫描枪的读取。
3.扫描操作a.扫描枪与条形码的角度：将扫描枪的红外线窗口对准待扫描的条形码，保持与条码平行，适当角度有利于光线和影像的传感，提高扫描成功率。
b.扫描枪与条形码的距离：保持适当距离，一般在3-10厘米之间，过远或过近都可能导致读取失败。
c.扫描枪的速度：以稳定而连续的速度滑过条形码，避免过快或过慢。
d.扫描成功反馈：通常，条形码扫描枪会发出嗡嗡声或闪烁LED等反馈，以确认扫描成功。
4.扫描结果处理a.扫描自动存储：根据扫描枪的设置，扫描结果可自动存储到缓存区或电脑中，方便后续处理。
b.扫描结果解码：通过扫描枪的解码功能可以将条码转换成数字或文字信息，或者连接到计算机系统中进行解析。
二、注意事项：1.避免扫描枪与其他电子设备或电磁干扰源过近，可能会导致读取错误或干扰。
2.注意扫描枪与条形码的角度和距离，确保扫描范围合适。
3.定期清洁扫描枪的红外线窗口，保持清洁无灰尘或指纹，以保证正常读取。
4.如果使用无线扫描枪，确保扫描枪与接收器处于有效通信距离内。
5.了解扫描枪的电池寿命，并及时更换电池或充电，以确保工作连续性。
6.细长或特殊形状的条形码可能需要额外的注意和调整扫描枪的角度。
正确使用条形码扫描枪可以提高工作效率，减少误读和错误，但仍需根据实际情况进行设置和操作。
熟悉和掌握扫描枪的功能和性能，以及正确的使用方法和注意事项，有助于更好地利用条形码扫描枪的优势，提高工作效率和质量。
打印条码操作步骤
打印条码操作步骤
一、准备条码标签纸和条码打印机
在开始打印之前，需要准备足够的条码标签纸和一台可靠的条码打印机。
确保标签纸的大小和规格符合打印需求，同时选择一台与电脑兼容的条码打印机。
二、安装条码打印机和标签纸
按照条码打印机的说明书，将打印机正确安装在稳定的位置，并装入准备好的条码标签纸。
确保标签纸的卷轴和打印头位置正确，并调整打印机的标签纸感应器。
三、连接打印机与电脑
使用合适的线缆将条码打印机与电脑连接起来，确保连接稳定可靠。
在电脑上安装打印机的驱动程序，以便能够正确识别和控制打印机。
四、设计条码标签
打开条码打印软件或使用在线条码生成器，根据需要设计和创建条码标签。
输入相应的文本、数字或扫描码等内容，选择合适的条码类型（如Code 128、EAN等），并调整标签的布局、字体和大小等样式。
五、打印条码标签
在完成标签设计后，选择打印设置，如纸张大小、标签数量、打印份数等。
点击“打印”按钮，将条码标签发送到打印机进行打印。
六、检查打印效果
打印完成后，仔细检查打印的条码标签，确保标签清晰、完整且易于扫描。
如果发现打印问题，如模糊、错位或无法扫描等，需要根据问题调整打印参数或重新设计标签。
七、调整打印参数
根据实际打印效果，可以调整打印参数，如打印速度、温度、墨带张力等，以提高打印质量和效率。
在调整参数时，建议先进行小批量测试，确保参数调整合适后再进行大规模打印。
条码枪设置条码说明书
METROLOGIC INSTRUMENTS, INC.Area Imaging Bar Code Supplemental Configuration GuideCopyright© 2007 by Metrologic Instruments, Inc. All rights reserved. No part of this work may be reproduced, transmitted, or stored in any form or by any means without prior written consent, except by reviewer, who may quote brief passages in a review, or provided for in the Copyright Act of 1976.TrademarksMetrologic is a registered trademark of Metrologic Instruments, Inc. Products identified in this document are hereby acknowledged as trademarks, registered or otherwise, of Metrologic Instruments, Inc. or their respective companies.S CANNER O PERATIONPresentation and Trigger ModesIn-Stand (1)Out-of-Stand (2)Out-of-Stand / In-Stand Mode Match (2)Omnidirectional and/or Linear Scanner Modes (3)Aiming and Illumination (5)Data Output (6)Character Suppression (7)Same Symbol Timeouts (9)S CANNER O PERATION –MS1633S PECIFICPower Save Modes (10)RangeGate Mode (11)Bluetooth Firmware and Address (12)Inventory Mode (13)C ODE T YPES AND D ECODE R ULESData Matrix (18)QR Code (21)MaxiCode (21)Aztec (22)Postal (24)Codablock Options (27)PDF Options (27)RS232Software Handshaking (28)Multifunctional USB/IBM Interface (28)I NTERFACESAdditional Interfaces (29)E NTER/E XIT C ONFIGURATION M ODE B AR C ODE (31)Presentation and Trigger ModesThere are four configurable modes for scanning: the presentation mode, the multi-try trigger mode, the continuous trigger mode, and the single-trigger mode. These modes can be configured separately for in-stand and out-of-stand scanner operation.In-Stand* Presentation Mode In-Stand Multi-Try Trigger Mode In-StandContinuous Trigger Mode In-Stand Single Trigger Mode In-Stand*Factory Default ConfigurationPresentation and Trigger ModesOut-of-Stand♦ Presentation Mode Out-of-Stand* Multi-Try Trigger ModeOut-of-StandContinuous Trigger Mode Out-of-Stand Single Trigger ModeOut-of-StandIn-Stand/Out-of-Stand Mode MatchSet In-Stand Mode to Match Out-of-Stand Mode* Factory Default Configuration for the MS1690, MS1890 and the MS1633♦ Factory Default Configuration for the IS1650Omnidirectional and/or Linear Scanner ModesThe unit can be configured to operate as an omnidirectional scanner, or a linear scanner, or a combination of both. Trigger and presentation operations can be configured separately for Omnidirectional and Linear scan modes.•When configured to operate as an omnidirectional scanner, all 1D and 2D barcodes are scanned omnidirectionally (except Code 128 scannerconfiguration labels, which have to be linearly aligned for successfulscanning).•When configured to operate as a linear scanner, the 1D barcodes have to be linearly aligned for successful scanning while the 2D barcodescannot be scanned.•When configured to operate as both the linear and omnidirectional scanner, the 1D barcodes have to be linearly aligned for successfulscanning while the 2D barcodes are scanned omnidirectionally.By default, the scanner is configured to omnidirectional scanning for trigger and presentation operations.Enable Linear Only in Trigger Operations Disable Linear Only in Trigger OperationsEnable 1D Linear Only in Trigger Operations Disable 1D Linear Only in Trigger Operations* Factory Default ConfigurationOmnidirectional and/or Linear Scanner ModesEnable Linear Onlyin Presentation Operations Disable Linear Onlyin Presentation OperationsEnable 1D Linear Onlyin Presentation Operations Disable 1D Linear Only in Presentation Operations* Factory Default ConfigurationAiming and IlluminationTrigger and presentation operations can be configured separately to use the unit’s linear illumination as an aiming instrument.* Enable Aiming in Trigger Operations Disable Aiming in Trigger Operations* Enable Aiming in Presentation Operations Disable Aiming in Presentation Operations* EnableAuto Illumination DisableAuto Illumination* Factory Default ConfigurationAiming and Illumination* Enable Auto Gain Disable Auto GainData Output* Enable Data Output Disable Data Output* Factory Default ConfigurationCharacter SuppressionEnable theSuppression of 1 Character * Disable theSuppression of 1 CharacterTo suppress 1 character:1. Scan the Enter/Exit Configuration Mode bar code, on page 31.2. Scan the Enable the Suppression of 1 Character bar code.3. Scan the Character 1 bar code (below left).4. Scan the three code bytes that represent the character to besuppressed, on page 8.5. Scan the Enter/Exit Configuration Mode bar code, on page 31.Enable theSuppression of 2 Characters * Disable theSuppression of 2 CharactersTo suppress 2 characters:1. Scan the Enter/Exit Configuration Mode bar code, on page 31.2. Scan the Enable the Suppression of 2 Character bar code above.3. Scan the Character 1 bar code (below left).4. Scan the three code bytes, on page 8, that represent the1st character to be suppressed.5. Scan the Character 2 bar code (below right).6. Scan the three code bytes, on page 8, that represent the2nd character to be suppressed.7. Scan the Enter/Exit Configuration Mode bar code, on page 31. Character 1 Character 2* Factory Default ConfigurationCharacter Suppression ( Code Bytes 0 – 9 )For additional information on Code Bytes, refer to the Code Bytes Usage section of the MetroSelect Configuration Guide (MLPN 00-02544).Code Byte 0Code Byte 1Code Byte 2Code Byte 3Code Byte 4Code Byte 5Code Byte 6Code Byte 7Code Byte 8Code Byte 9Same Symbol TimeoutsRetain Same Symbol Timeout on Trigger* Reset Same SymbolTimeout on TriggerThe same-symbol timeout is not restarted when thetrigger is pulled.The same-symbol timeout is restarted when the trigger is pulled.* Factory Default ConfigurationPower Save Modes††* DisableEnableTrigger Power-SaveTrigger Power-SaveWhen enabled, theMS1633 will enter sleepmode after the trigger isheld for 10 seconds.DisableEnableIR Power-SaveIR Power-SaveWhen enabled, theMS1633 will enter sleepmode after the IR hasbeen activated 5 timeswithout a successfuldecode.* Factory Default Configuration†† These features are not for use with the MS1690, MS1890 or the IS1650.RangeGate ® Mode ††Enable RangeGateDisableRangeGateMS1633 will store scanned bar codes into non-volatile memory if the Bluetooth connection has beeninterrupted.RangeGate and Inventory Mode are mutually exclusive. If both are enabled, Inventory mode takes priority.RangeGate Delay = 1 sec.RangeGate Delay = 500 msThe MS1633 will pause 1 sec. between transmitting individual barcodes inRangeGate mode.The MS1633 will pause500 ms. between transmitting individual barcodes in RangeGate mode.The MS1633 will not pause between transmitting individual barcodes in RangeGate mode.†† These features are not for use with the MS1690, MS1890 or the IS1650.Bluetooth Firmware and Address††Transmit the BluetoothFirmware VersionTransmit the BluetoothAddress of the Scanner†† These features are not for use with the MS1690, MS1890 or the IS1650.Inventory Mode ††In Inventory mode, there is a quantity field associated with each barcode. When an item’s barcode is scanned, the MS1633 automatically stores the bar code data in its non-volatile memory with a quantity field set to 1. The quantity field can then be modified using the quantity barcodes on page 14 . The bar code data is not automatically transmitted to the host. To transmit the stored data, the Transmit All Records bar code (below ) must be scanned.Enable Inventory Mode * DisableInventory ModeRangeGate and Inventory Mode are mutually-exclusive.If both are enabled, Inventory mode takes priority.Transmit Quantity Field* Do Not TransmitQuantity FieldThe item’s bar code data will be stored and transmitted once with a user selectable numerical quantity added to the end of the data string. See page 14 for information on quantity input . If a quantity is not entered, thequantity will default to 1.The item’s bar code data will be stored and transmitted as many times as the quantity indicates.If a quantity is not entered, the quantity will default to 1.Transmit All RecordsTransmits all stored data records.†† These features are not for use with the MS1690, MS1890 or the IS1650.Inventory Mode††The following bar codes enable the user to enter a quantity for the last item scanned. The item’s bar code data will be stored and transmitted as many times as the quantity indicates. If the Transmit Quantity Field feature (on page 15) has been enabled then the bar code data will be stored and transmitted once with a numerical quantity added to the end of the data string.If a quantity is not entered, a value of 1 will be entered as the default.The quantity maximum value is 9999. Quantity digits are shifted from right to left so if a 5th digit is scanned the 1st digit scanned will be discarded and the 2nd, 3rd and 4th digits will be moved to the left to accommodate the new digit.For example, if the Quantity 5 barcode is scanned after the quantity has been set to 1234 then the 1 will be dropped and the quantity will become 2345.ExamplesTo add a quantity of 51. Scan the item’s bar codetheQuantity 5 bar code (on page 15)2. ScanTo add a quantity of 1,5001. Scan the item’s bar codeQuantity 1 bar code (on page 15)2. ScantheQuantity 5 bar code (on page 15)the3. ScanQuantity 0 bar code (on page 15)4. ScantheQuantity 0 bar code (on page 15)the5. ScanTo correct an incorrect quantity using the quantity codes, scan the Quantity 0 bar code to replace the incorrect digits then scan the correct Quantity bar codes located on page 15.ExampleTo change a quantity of 103 to 10 using the quantity codesQuantity 0 bar code to change the quantity to 10301. ScantheQuantity 0 bar code to change the quantity to 03002. ScantheQuantity 1 bar code to change the quantity to 3001the3. ScanQuantity 0 bar code to change the quantity to 0010the4. ScanThe Delete Last Record bar code, on page 17, can also be used to delete the incorrect record and quantity. Just re-scan the bar code with the correct quantity after using the Delete Last Record bar code.†† These features are not for use with the MS1690, MS1890 or the IS1650.Inventory Mode††Quantity 0 Quantity 5Quantity 1 Quantity 6Quantity 2 Quantity 7Quantity 3 Quantity 8Quantity 4 Quantity 9†† These features are not for use with the MS1690, MS1890 or the IS1650.Inventory Mode ††Transmit Entry Counter* Do NotTransmit Entry CounterOptional field transmitted with the bar code data that is a count of the number of transmissions used to transmit the entire buffer.TransmitNumber of RecordsWill transmit the number of records and the number of bar codes currently stored as a 5-digit number separated by a space.TransmitInventory Records LIFO * TransmitInventory Records FIFOData is transmitted on alast-in, first-out basis.Data is transmitted on a first-in, first out basis.†† These features are not for use with the MS1690, MS1890 or the IS1650.S CANNER O PERATION –MS1633S PECIFICInventory Mode††Disable Inventory BeepEnable Inventory Beep *When enabled MS1633 willbeep after transmitting eachinventory record.Delete Last RecordClear Inventory RecordsWhen scanned, this bar code will clear all stored bar code data in memory. †† These features are not for use with the MS1690, MS1890 or the IS1650.Data MatrixEnable Normal Color Data Matrix DecodingEnable Inverse ColorData Matrix DecodingEnable Normal and Inverse Color Data Matrix Decoding * DisableData Matrix DecoderEnable Rectangular Data Matrix Symbol Decoding * Disable Rectangular Data Matrix SymbolDecoding* Factory Default ConfigurationData MatrixEnable Low-Contrast* Disable Low-Contrast Data Matrix Decoding†Data Matrix DecodingImproves decoding oflow-contrast DataMatrix symbols.Enable Data Matrix* Disable Data MatrixNon-Square ModulesNon-Square Modules†Improves decoding ofData Matrix symbolswhen individual modulesin the symbol are non-square.* Disable Data Matrix Enable Data MatrixShifted TilesShifted Tiles†Improves decoding of DataMatrix symbols when theupper tiles in the symbol areshifted in the symbolrelative to the bottom tiles.* Factory Default Configuration†Enabling these options will increase decoding time for all bar codes.Data Matrix* Enable Data Matrix,Normal SizeThe following bar codes improve decoding of Data Matrix symbols when the length of a symbol size is small. To disable either of these options scan the Enable Data Matrix Normal Size bar code above.Enable Data Matrix, Small Size†Enable Data Matrix Very Small Size†* Factory Default Configuration†Enabling these options will increase decoding time for all bar codes.QR CodeEnable Normal Video QR Code Enable Inverse Video QR CodeEnableNormal and Inverse QR Code * Disable QR CodeMaxiCodeEnable MaxiCode * Disable MaxiCode* Factory Default ConfigurationAztecEnable NormalVideo Aztec Decoding * Disable Normal Video Aztec DecodingEnable Inverse Video Aztec Decoding * Disable Inverse Video Aztec Decoding* Factory Default ConfigurationAztecEnable Aztec Structure Append Decoding * Disable Aztec Structure Append DecodingWhen this feature is enabled, Aztec barcodes with a structured append header will be stored in the scanner’s memory buffer. The scanner will transmit the concatenated message once every component of the structured append barcode has been read. Up to 16 components can be stored.If this feature is disabled, Aztec barcodes with structured append header will be read as normal Aztec barcodes. However, in this case, the structured append header will be sent as part of the barcode data.Code Select and structured append features cannot be usedconcurrently. If both CodeSelect and structured append are enabled,CodeSelect feature will not work.The CodeSelect timeout setting determines how much time will beallowed between individual components of the same barcode(similar to CodeSelect operation).By default, the scanner will emit an intermediate beep when each component is scanned. When only one scan buffer is enabled, the user will be required to release the trigger after reading each barcode component.* Enable Intermediate Beep Disable Intermediate BeepIf the “intermediate beep” is disabled and the number of scan buffers is increased (compare buffers in MetroSet®) – all components of astructured append barcode can be read with a single trigger activation,and only one audible beep will be produced, as if a regular barcode was scanned.* Factory Default ConfigurationPostalEnable Australia Post * Disable Australia PostEnable Japan Post * Disable Japan PostEnable KIX Code * Disable KIX Code* Factory Default ConfigurationPostalEnable PLANET Code * Disable PLANET CodeEnable POSTNET Code * Disable POSTNET PostEnable B & B’ Fielded POSTNET * Disable B & B’ Fielded POSTNET* Factory Default ConfigurationPostalEnableUPU Decoding * DisableUPU DecodingEnableRoyal Mail 4 Code * DisableRoyal Mail 4 CodeEnableZero-FCC Australia Post * DisableZero-FCC Australia Post* Factory Default ConfigurationC ODE T YPES AND D ECODE R ULESCodablock OptionsEnableCodablock A* DisableCodablock AEnableCodablock F * DisableCodablock FPDF OptionsEnableTransmit \ as \* EnableTransmit \ as \\* Factory Default ConfigurationRS232Software HandshakingDisable Enable]V Handshaking]V HandshakingAn “]V” response fromthe host indicatesreception of scanner data.Multifunctional USB/IBM Interface†Dual Interface Defaults†† This feature is not for use with the MS1633.Additional Interfaces †Enable BeeperON/OFF Commands* Disable BeeperON/OFF CommandsEnables beeper on/off commands with internalUSB and IBM interfaces.3rd Generation IBM 46xx DefaultsFor this feature tofunction properly, scan IBM Reserved Code #2 after scanning the 3rd Generation IBM 46xx Default bar code.IBM Reserved Code #2Scan IBM Reserve bar code above after scanning the 3rdGeneration IBM 46xx Default bar code.* Factory Default Configuration† These features are not for use with the MS1633.Additional Interfaces †IBM 46xx-SIOC RS485 Interface Send 30H for Last Block Label Identifier 4680* Send 00 for Last BlockLabel Identifier 4680For PDFcodes only.For PDF codes only.IBM-OEM USB InterfaceSend 30H for Last Block Label Identifier USB* Send 00 for Last BlockLabel Identifier USBFor PDFcodes only. For PDF codes only.Full Speed USB Keyboard InterfaceEnable Full Speed USB Keyboard Interface Defaults* Factory Default Configuration† These features are not for use with the MS1633.E NTER/E XIT C ONFIGURATION M ODE B AR C ODEEnter Exit Configuration ModeJune 2007 Printed in the USA。
条码枪功能键使用示意图
条码枪功能键使用示意图

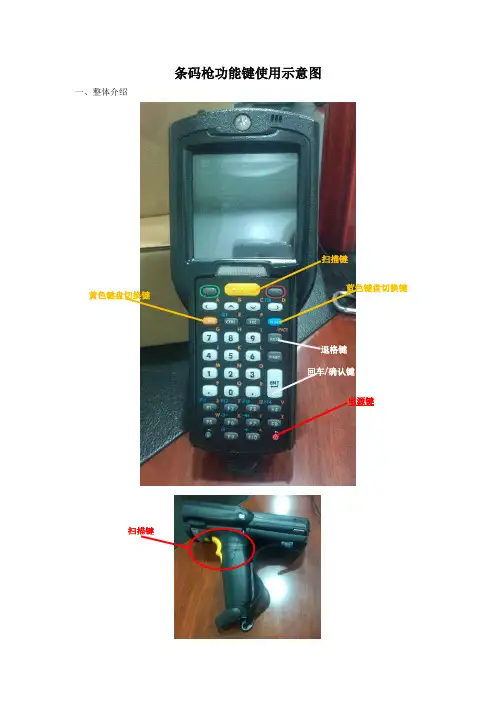

一、整体介绍 电源键 蓝色键盘切换键 黄色键盘切换键
回车退格键扫描键
扫描键
二、主屏幕
正常主屏幕下，可输入键盘按键上所显示的内容（如：上、下、左、右键及数字键等）
屏幕键盘
三、功能键效果图说明
（一）ALPHA 黄色键盘切换键：按下此键后，屏幕出现如图ALP 标识，功能启用后，可输入键盘上所有黄颜色标示内容（如：字母键ABCDE……和“★”号键）
例：ALPHA功能键打开，输入字母；ALPHA功能键关闭，输入数字。
（二）FUNC 蓝色键盘切换键：按下此键后，屏幕出现如图蓝色圆圈的标识，功能启用后，可输入键盘上所有蓝颜色标示内容（如：TAB、ALT、F11、F12、F13、F14）及
使用蓝色键功能（如：屏幕亮度加、减；音量加减等）。
打码机的操作方法
打码机的操作方法打码机是一种用于打印文字、图案或条形码的设备，广泛应用于各种行业中。
正确的操作方法能够提高工作效率，保证打印质量。
下面将介绍打码机的操作方法，帮助您更好地使用这一设备。
首先，准备工作。
在开始操作打码机之前，需要确保设备已经连接电源，并且墨盒或墨带已经安装好。
同时，还需要准备好需要打印的物品，比如纸张、包装盒等。
接下来，设置打印内容。
根据需要，选择合适的字体、大小和样式，输入需要打印的文字或图案。
在设置文字时，要注意字体清晰、大小适中，以保证打印效果。
如果需要打印条形码，还需要输入相应的条形码内容。
然后，调整打码机参数。
根据需要，调整打码机的参数，比如打印速度、打印位置等。
不同的物品可能需要不同的参数设置，需要根据实际情况进行调整。
接着，进行打印测试。
在正式打印之前，可以先进行一次打印测试，检查打印效果。
如果发现打印效果不理想，可以及时调整参数或者更换墨盒、墨带。
最后，开始正式打印。
当一切准备就绪后，可以开始正式打印。
在打印过程中，要注意观察打印效果，确保文字清晰、图案完整。
如果发现打印效果不理想，可以随时停止打印并进行调整。
在操作打码机时，还需要注意一些安全事项。
比如，在更换墨盒、墨带时要注意避免沾染墨水，避免弄脏衣物或皮肤。
另外，在清洁打码机时，也要注意避免触电或者损坏设备。
总的来说，正确的操作方法能够提高打码机的使用效率，保证打印质量。
希望以上介绍能够帮助您更好地使用打码机，如果有任何疑问或者需要进一步的帮助，请随时联系我们的客服人员。
条码扫描仪的使用方法
条码扫描仪的使用方法条码扫描仪的使用方法条形码扫描枪怎么用光学成像部件对于扫描枪来说是一个重要的组成部分。
在使用过程中，要注意保持光学部件的清洁，避免灰尘对扫描枪的工作性能造成影响，降低扫描质量。
在清洗的时候，不要擅自拆修，因为光电转换设置中的各个光学部件对位置要求非常高，改变光学部件的位置，会影响到条码扫描枪成像时的效果。
所以，在清洗的时候，先用清洁剂擦洗，让后用干抹布擦干净即可。
条码扫描枪不像普通的电器那么容易安装，不同的接口型号有不同的安装方法，在安装之前要检查电脑是否能够正常配置相关的条码设备，然后植入相应的驱动程序，有的还需要进入BIOS设置进行属性修改，所以，在安装条码扫描枪的时候要根据不同的型号做好不同的处理。
多种条码扫描器使用方法1、最基本的就是商品条形码（也就是一维码）扫描功能了，拿个包装上有条形码的商品。
点击扫描按钮，出现扫描窗口后，把框框对准条形码。
再点击开始扫描按钮就可以扫描了。
这么做是为了省电。
许多扫描软件一上来就扫描。
其实扫描的运算是很费电的，加了这个按钮可以控制真正扫描的开始结束，节省电量。
还有就是扫描框里的那条线，其他扫描软件都是只有装饰作用，我们这里却有含义：绿色代表系统空闲，红色代表忙碌，也就是正在扫描。
还有就是底部的提示信息，如果扫描不成功，请调节手机和物品的距离。
注意，手机扫一维码，一定要有自动对焦功能，所以HTC TATOO就不行了。
2、关于扫描二维码（目前支持QRCode），先要在设置里面选择条码类型。
然后就是一样的扫了。
有的用户要求让系统自动识别条码类型，免去设置的麻烦。
其实这样做很简单，许多其他扫描软件也是这么做的。
我不采取这种方式的原因还是为了给您省电。
这就要说说扫描的原理了，再扫描时，如果不限定条码类型，当一次扫描失败后，系统会尝试所有条码类型。
也就是说，你不指定类型，系统先假设所扫描的是一维码，失败了，尝试二维码，要知道最起码有十几种类型呢。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
一將無線掃描槍與基座邦定：
1.1掃描“Restore Dragon M131 Default”條碼；*$+$**
1.2掃描“Enterconfiguration”條碼；*$+*
1.3掃描“SetDate”條碼；*IA*
1.4跟据當前的日期掃描的數字條碼(DDMMYY)；
1.5掃描“SetTime”條碼；*IB*
1.6跟据當前的時間掃描數字條碼(HHMM)；
1.7掃描“SetRadioAddress”條碼；*RA0RF* 1.8跟据當前需要設置槍號
1.9掃描“ExitandSaveconfiguration”條碼；*$-*
1.10掃描“Bind”條碼；*$+RN0$-*
1.11此時掃描槍應該亮綠燈，把掃描槍插入要邦定的基座內，聽到嘀的一聲邦定成功；
1.12如果要綁定第二把槍, 就不需要掃描''Bind''條碼, 而直接掃
描''Join'',再重復1.11.
*$+RN1$-*
二設置無線掃描槍的返回時間：
1.1掃描“Enterconfiguration”條碼；*$+*
1.2掃描“RadioTimeout”條碼；*HH*
1.3掃描數字條碼，將返回時間設置成０００；
1.4掃描“ExitandSaveconfiguration”條碼*$-*
三設置條碼前面顯示槍號或刪除槍號的功能：
1.1掃描“Enterconfiguration”條碼*$+*
1.2掃描“CradleAddressStampingenabled”條碼*RU1*
1.3掃描“CradleAddressStampingdisabled”條碼*RU0*
1.4掃描“Exit&Saveconfiguration”條碼*$-*
0 1 2 3 4
*0**1**2**3**4*
5 6 7 8 9
*5**6**7**8**9*
三:設置PC端口:
RS232 INTERFACE
Wedge IBM AT or PS/2 PCs *
有線掃描槍設置步驟
一掃描“SETDEFAULTS”條碼*91*
二掃描“IBMPC/ATandIBMPCCOMPATIBLES”條碼*SXAAH200004*三掃描“SCANOPTIONS”條碼*B1210*
四掃描“<DATA><SUFFIX>”條碼*6A13071*
五掃描“ENTER”條碼*14*
無線掃描槍設置步驟(M131)。
