program_model
Other Models:
• Message-Passing: similar to the tasks and channels model. • Shared-memory:
foundry
bridge
storage
• Data parallel:
A+B, 2*A, ...
• Other models:
• One or more tasks which could execute concurrently. • A task encapsulates a sequential program, local memory and interface to its environment (inports and out-ports). • Four additional function of a task: send and receive messages, create new tasks and terminate. • Channels: message queues connecting in-port/out-port pairs. • The mapping (tasks to physical processors) does not affect the semantics of a program.
Asynchronous Communication:
Communication Design hecklist:
• Do all tasks perform about the same number of communication? • Does each task communication only with a small number of neighbors? • Are communication operations able to proceed concurrently? • Is the computation associated with different tasks able to proceed concurrently?
(7)
(6)
(5)
(4)
(3)
(2)
(1)
Global Communication:(2)
• Divide and conquer:
2n −1
∑
i =0
=
2n −1 −1
∑
i =0
+
2n −1 i =2n −1
∑
Unstructured and Dynamic Communication:
• Finite element method with irregular mesh: different vertices have varying number of neighbors. • Finite element method with adaptive mesh: mesh is refined as the simulation evolves.
Increasing Granularity:
• Surface-to-volume effects: The communication requirements of a task are proportional to the surface of the subdomain while the computation requirements are proportional to the subdomain’s volume. • Replicating computation: We can trade off replicated computation for reduced communication and/or execution time. • Avoiding communication: A set of tasks that can not execute concurrently can be agglomerated.
Mapping:
Mapping problem is NPcomplete. Strategies:
Partition:
• Objective:
– Define a large number of small tasks (fine-grained decomposition). – Divide both computation and data.
• Techniques:
– Domain decomposition – Functional decomposition
Reducing software Engineering costs:
• Less code change. • Less data redistribution.
Agglomeration Design Checklist:
If the agglomeration • reduces the communication costs by increasing locality? • replicates computation? • replicates data? • yields tasks with similar computation and communication? • eliminates opportunities for concurrent execution? Does the number of tasks still scale with problem size? Can the number of tasks be reduced still further? Have you considered the cost of the modifications required to the sequential code?
Communication Patterns:
• Local/global: each task communicates with small/large set of other tasks. • Structured/unstructured: communication pattern is regular/irregular. • Static/dynamic: identity of communication partners is fixed/changed over time. • Synchronous/asynchronous: communication with/without cooperation of the partner.
– Dynamic creation of tasks and channels.
• Parameter study
– Embarrassingly parallel problem
Parallel Algorithm Design Methodology--PCAM
• Partition: to explore the opportunities for parallel execution. • Communication: to determine the communication required to coordinate task execution. • Agglomerate: to evaluate the structure defined by first two stages w.r.t. Performance and cost. And to the necessary adjustment. • Mapping: To assign each task to a processor.
Example 1.1 (DBPP)
• Bridge construction: A bridge is to be assembled from girders being constructed at a foundry.
foundry (a)
bridge
foundry
bridge
(b)
Tasks and channels:
Preserving Flexibility:
The ability to create a varying number of tasks is critical to:
– Portability and scalability – Overlapping computation and communication. – To provide greater scope for mapping strategies.
Programming Models:
• Sequential programming:
– Sequences of instructions.
• Arithmetic operations • address of datum and instruction
– Memory space
• Parallel programming:
Partition Design Checklist:
• Is the number of tasks defined greater than the number of processors? • Does your partition avoid redundant computation and storage requirements? • Are tasks of comparable size? • Does the number of tasks scale with problem size? • Have you identified several alternative partitions?
NVIDIA 动态并行ISM文档说明书
Introduction to Dynamic Parallelism Stephen JonesNVIDIA CorporationImproving ProgrammabilityDynamic Parallelism Occupancy Simplify CPU/GPU Divide Library Calls from Kernels Batching to Help Fill GPU Dynamic Load Balancing Data-Dependent ExecutionRecursive Parallel AlgorithmsWhat is Dynamic Parallelism?The ability to launch new grids from the GPUDynamicallySimultaneouslyIndependentlyCPU GPU CPU GPU Fermi: Only CPU can generate GPU work Kepler: GPU can generate work for itselfWhat Does It Mean?CPU GPU CPU GPU GPU as Co-ProcessorAutonomous, Dynamic ParallelismData-Dependent ParallelismComputationalPower allocated toregions of interestCUDA Today CUDA on KeplerDynamic Work GenerationInitial GridStatically assign conservativeworst-case gridDynamically assign performancewhere accuracy is requiredFixed GridCPU-Controlled Work Batching CPU programs limited by singlepoint of controlCan run at most 10s of threadsCPU is fully consumed withcontrolling launchesCPU Control Threaddgetf2 dgetf2 dgetf2CPU Control Threaddswap dswap dswap dtrsm dtrsm dtrsmdgemm dgemm dgemmCPU Control ThreadMultiple LU-Decomposition, Pre-KeplerCPU Control ThreadCPU Control ThreadBatching via Dynamic ParallelismMove top-level loops to GPURun thousands of independent tasksRelease CPU for other workCPU Control ThreadCPU Control ThreadGPU Control Threaddgetf2 dswap dtrsm dgemm GPU Control Thread dgetf2 dswap dtrsm dgemm GPU Control Threaddgetf2dswapdtrsmdgemmBatched LU-Decomposition, Kepler__device__ float buf[1024];__global__ void dynamic(float *data) {int tid = threadIdx.x; if(tid % 2)buf[tid/2] = data[tid]+data[tid+1]; __syncthreads();if(tid == 0) {launch<<< 128, 256 >>>(buf); cudaDeviceSynchronize(); }__syncthreads();cudaMemcpyAsync(data, buf, 1024); cudaDeviceSynchronize(); }Programming Model BasicsCode ExampleCUDA Runtime syntax & semantics__device__ float buf[1024];__global__ void dynamic(float *data) {int tid = threadIdx.x; if(tid % 2)buf[tid/2] = data[tid]+data[tid+1]; __syncthreads();if(tid == 0) {launch<<< 128, 256 >>>(buf); cudaDeviceSynchronize(); }__syncthreads();cudaMemcpyAsync(data, buf, 1024); cudaDeviceSynchronize(); }Code ExampleCUDA Runtime syntax & semanticsLaunch is per-thread__device__ float buf[1024];__global__ void dynamic(float *data) {int tid = threadIdx.x; if(tid % 2)buf[tid/2] = data[tid]+data[tid+1]; __syncthreads();if(tid == 0) {launch<<< 128, 256 >>>(buf); cudaDeviceSynchronize(); }__syncthreads();cudaMemcpyAsync(data, buf, 1024); cudaDeviceSynchronize(); }Code ExampleCUDA Runtime syntax & semanticsLaunch is per-threadSync includes all launches by any thread in the block__device__ float buf[1024];__global__ void dynamic(float *data) {int tid = threadIdx.x; if(tid % 2)buf[tid/2] = data[tid]+data[tid+1]; __syncthreads();if(tid == 0) {launch<<< 128, 256 >>>(buf); cudaDeviceSynchronize(); }__syncthreads();cudaMemcpyAsync(data, buf, 1024); cudaDeviceSynchronize(); }CUDA Runtime syntax & semanticsLaunch is per-threadSync includes all launches by any thread in the blockcudaDeviceSynchronize() does not imply syncthreadsCode Example__device__ float buf[1024];__global__ void dynamic(float *data) {int tid = threadIdx.x; if(tid % 2)buf[tid/2] = data[tid]+data[tid+1]; __syncthreads();if(tid == 0) {launch<<< 128, 256 >>>(buf); cudaDeviceSynchronize(); }__syncthreads();cudaMemcpyAsync(data, buf, 1024); cudaDeviceSynchronize(); }Code ExampleCUDA Runtime syntax & semanticsLaunch is per-threadSync includes all launches by any thread in the blockcudaDeviceSynchronize() does not imply syncthreadsAsynchronous launches only__device__ float buf[1024];__global__ void dynamic(float *data) {int tid = threadIdx.x; if(tid % 2)buf[tid/2] = data[tid]+data[tid+1]; __syncthreads();if(tid == 0) {launch<<< 128, 256 >>>(buf); cudaDeviceSynchronize(); }__syncthreads();cudaMemcpyAsync(data, buf, 1024); cudaDeviceSynchronize(); }Code ExampleCUDA Runtime syntax & semanticsLaunch is per-threadSync includes all launches by any thread in the blockcudaDeviceSynchronize() does not imply syncthreadsAsynchronous launches only(note bug in program, here!)__global__ void libraryCall(float *a,float *b, float *c) {// All threads generate datacreateData(a, b);__syncthreads();// Only one thread calls library if(threadIdx.x == 0) {cublasDgemm(a, b, c);cudaDeviceSynchronize();}// All threads wait for dtrsm__syncthreads();// Now continueconsumeData(c);} CPU launcheskernelPer-block datagenerationCall of 3rd partylibrary3rd party libraryexecutes launchParallel useof resultSimple example: QuicksortTypical divide-and-conquer algorithmRecursively partition-and-sort dataEntirely data-dependent executionNotoriously hard to do efficiently on Fermi3 2 6 3 9 14 25 1 8 7 9 2 58 3 2 6 3 9 1 4 2 5 1 8 7 9 2 58 2 1 2 1 2 36 3 94 5 8 7 9 5 8 3 6 3 4 5 8 7 58 1 2 2 2 3 3 4 1 5 6 7 8 8 9 95 eventually...Select pivot valueFor each element: retrieve valueRecurse sort into right-handsubsetStore left if value < pivotStore right if value >= pivotall done?Recurse sort into left-hand subset NoYes__global__ void qsort(int *data, int l, int r) {int pivot = data[0];int *lptr = data+l, *rptr = data+r;// Partition data around pivot valuepartition(data, l, r, lptr, rptr, pivot);// Launch next stage recursively if(l < (rptr-data))qsort<<< ... >>>(data, l, rptr-data); if(r > (lptr-data))qsort<<< ... >>>(data, lptr-data, r); }。

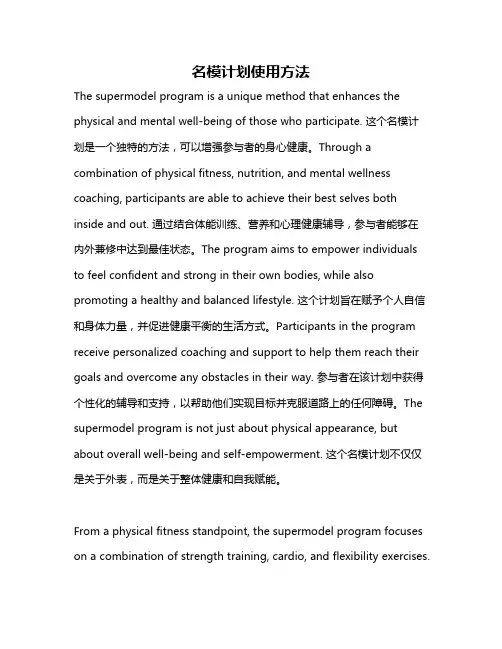

名模计划使用方法
名模计划使用方法The supermodel program is a unique method that enhances the physical and mental well-being of those who participate. 这个名模计划是一个独特的方法，可以增强参与者的身心健康。
Through a combination of physical fitness, nutrition, and mental wellness coaching, participants are able to achieve their best selves both inside and out. 通过结合体能训练、营养和心理健康辅导，参与者能够在内外兼修中达到最佳状态。
The program aims to empower individuals to feel confident and strong in their own bodies, while also promoting a healthy and balanced lifestyle. 这个计划旨在赋予个人自信和身体力量，并促进健康平衡的生活方式。
Participants in the program receive personalized coaching and support to help them reach their goals and overcome any obstacles in their way. 参与者在该计划中获得个性化的辅导和支持，以帮助他们实现目标并克服道路上的任何障碍。
The supermodel program is not just about physical appearance, but about overall well-being and self-empowerment. 这个名模计划不仅仅是关于外表，而是关于整体健康和自我赋能。

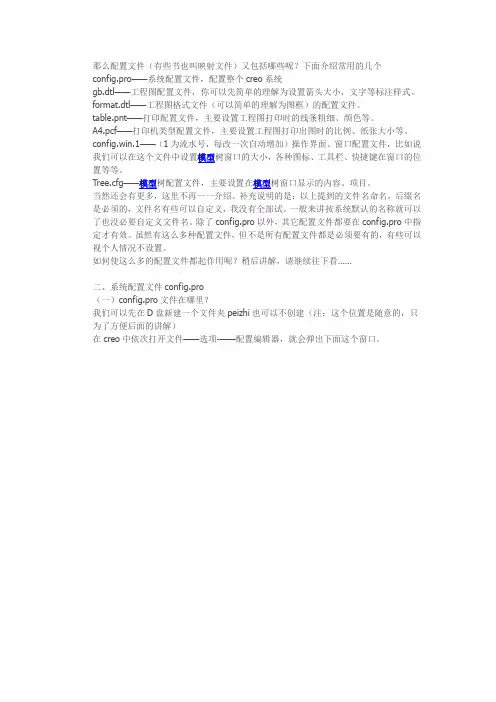

Creo配置文件
那么配置文件（有些书也叫映射文件）又包括哪些呢？下面介绍常用的几个config.pro——系统配置文件，配置整个creo系统gb.dtl——工程图配置文件，你可以先简单的理解为设置箭头大小，文字等标注样式。
format.dtl——工程图格式文件（可以简单的理解为图框）的配置文件。
table.pnt——打印配置文件，主要设置工程图打印时的线条粗细、颜色等。
A4.pcf——打印机类型配置文件，主要设置工程图打印出图时的比例、纸张大小等。
config.win.1——（1为流水号，每改一次自动增加）操作界面、窗口配置文件，比如说我们可以在这个文件中设置模型树窗口的大小，各种图标、工具栏、快捷键在窗口的位置等等。
Tree.cfg——模型树配置文件，主要设置在模型树窗口显示的内容、项目。
当然还会有更多，这里不再一一介绍。
补充说明的是：以上提到的文件名命名，后缀名是必须的，文件名有些可以自定义，我没有全部试。
一般来讲按系统默认的名称就可以了也没必要自定义文件名。
除了config.pro以外，其它配置文件都要在config.pro中指定才有效。
虽然有这么多种配置文件，但不是所有配置文件都是必须要有的，有些可以视个人情况不设置。
如何使这么多的配置文件都起作用呢？稍后讲解，请继续往下看……二、系统配置文件config.pro（一）config.pro文件在哪里？我们可以先在D盘新建一个文件夹peizhi也可以不创建（注：这个位置是随意的，只为了方便后面的讲解）在creo中依次打开文件——选项-——配置编辑器，就会弹出下面这个窗口。
2012-8-30 10:01 上传下载附件(64.19 KB)第一次打开时,这个窗口内可能是空的！然后点击“添加”填入menu_translation值填入both，如图2012-8-30 10:13 上传下载附件(37.38 KB)点确定，这时窗口中就会多了一行。
再点右下角“导入/导出”——将所有选项导出到配置文件，如下图所示2012-8-30 10:30 上传下载附件(42.37 KB)将文件保存在桌面或peizhi，点OK，再“确定”关闭选项设置窗口，我们就会看到一个config.pro文件。
WRFV3.1用户手册之中文版(非常难得之翻译版)
Chapter 1: Overview翻译:by 澳洲的牛牛 laiwf由于译者水平有限,其中一定存在翻译不妥的地方,希望大家能帮忙指正IntroductionThe Advanced Research WRF (ARW) modeling system has been in development for the past few years. The current release is Version 3, available since April 2008. The ARW is designed to be a flexible, state-of-the-art atmospheric simulation system that is portable and efficient on available parallel computing platforms. The ARW is suitable for use in a broad range of applications across scales ranging from meters to thousands of kilometers, including:•Idealized simulations (e.g. LES, convection, baroclinic waves)•Parameterization research•Data assimilation research•Forecast research•Real-time NWP•Coupled-model applications•Teaching简介Advanced Research WRF (ARW)模式系统在过去的数年中得到了发展。
最近公布了第三版，从2008年4月开始可供使用。
ARW是灵活的，最先进的大气模拟系统，它易移植，并且有效的应用于各种操作系统。

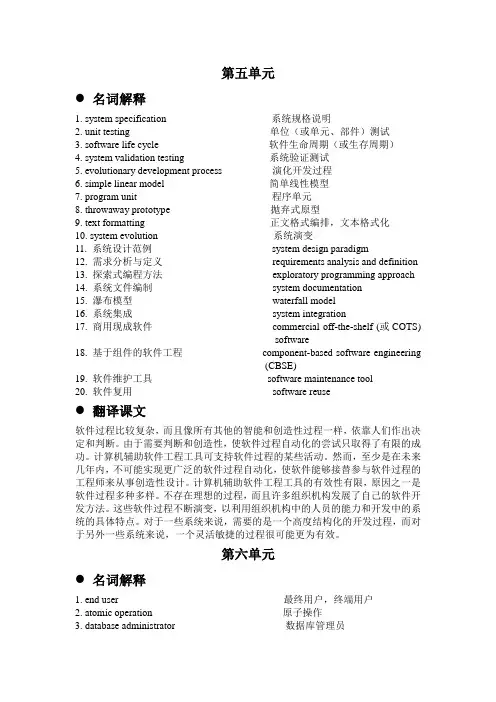

英语答案
