GEOSOFT Oasis montaj各模块详细介绍

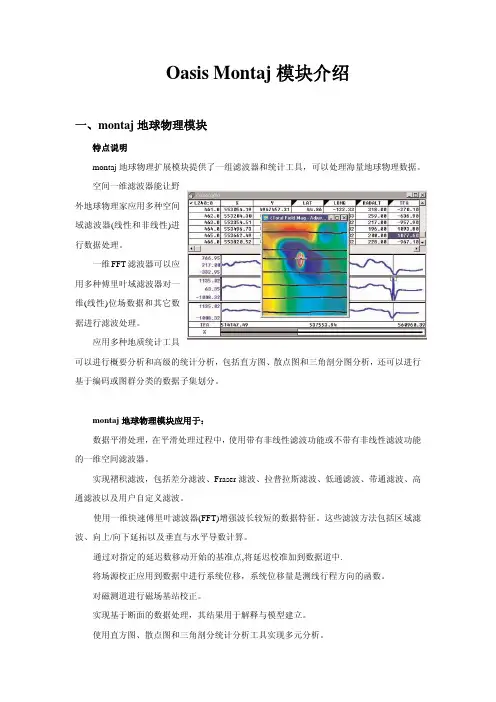

Oasis montaj软件各模块详细介绍Geosoft公司北京办事处目录一、 montaj地球物理模块 (1)二、 montaj地球化学模块 (7)三、 montaj钻孔成图模块 (12)四、 montaj航测遥感数据质量控制模块 (16)五、 montaj地球物理水准校正模块 (19)六、 montaj UX(未爆炸物)检测模块 (23)七、 montaj MAGMAP滤波模块 (28)八、 montaj 栅格图缝合模块 (31)九、 montaj重力/磁法解释模块 (33)十、 montaj 激发极化模块 (38)十一、 montaj 256道放射性测量数据处理模块 (41)十二、 montaj重力和地形校正模块 (43)十三、合作伙伴开发的montaj扩展模块 (46)Oasis montaj模块介绍一、montaj地球物理模块特点说明montaj地球物理扩展模块提供了一组滤波器和统计工具，可以处理海量地球物理数据。

空间一维滤波器能让野域滤波器(线性和非线性)进行数据处理。

一维FFT滤波器可以应用多种傅里叶域滤波器对一维(线性)位场数据和其它数据进行滤波处理。

应用多种地质统计工具可以进行概要分析和高级的统计分析，包括直方图、散点图和三角剖分图分析，还可以进行基于编码或图群分类的数据子集划分。

montaj地球物理模块应用于：数据平滑处理，在平滑处理过程中，使用带有非线性滤波功能或不带有非线性滤波功能的一维空间滤波器。

实现褶积滤波，包括差分滤波、Fraser滤波、拉普拉斯滤波、低通滤波、带通滤波、高通滤波以及用户自定义滤波。

使用一维快速傅里叶滤波器(FFT)增强波长较短的数据特征。

这些滤波方法包括区域滤波、向上/向下延拓以及垂直与水平导数计算。

通过对指定的延迟数移动开始的基准点,将延迟校准加到数据道中.将场源校正应用到数据中进行系统位移，系统位移量是测线行程方向的函数。

对磁测道进行磁场基站校正。
