华为企业级全系列交换机介绍

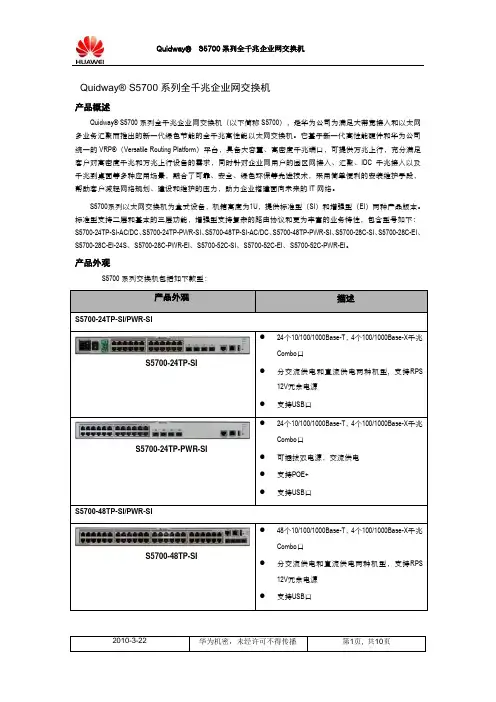

Quidway_S5700_系列交换机介绍
Quidway® S5700系列全千兆企业网交换机产品概述Quidway® S5700系列全千兆企业网交换机（以下简称S5700），是华为公司为满足大带宽接入和以太网多业务汇聚而推出的新一代绿色节能的全千兆高性能以太网交换机。
它基于新一代高性能硬件和华为公司统一的VRP®（Versatile Routing Platform）平台，具备大容量、高密度千兆端口，可提供万兆上行，充分满足客户对高密度千兆和万兆上行设备的需求，同时针对企业网用户的园区网接入、汇聚、IDC千兆接入以及千兆到桌面等多种应用场景，融合了可靠、安全、绿色环保等先进技术，采用简单便利的安装维护手段，帮助客户减轻网络规划、建设和维护的压力，助力企业搭建面向未来的IT网络。
S5700系列以太网交换机为盒式设备，机箱高度为1U，提供标准型（SI）和增强型（EI）两种产品版本。
标准型支持二层和基本的三层功能，增强型支持复杂的路由协议和更为丰富的业务特性，包含型号如下：S5700-24TP-SI-AC/DC、S5700-24TP-PWR-SI、S5700-48TP-SI-AC/DC、S5700-48TP-PWR-SI、S5700-28C-SI、S5700-28C-EI、S5700-28C-EI-24S、S5700-28C-PWR-EI、S5700-52C-SI、S5700-52C-EI、S5700-52C-PWR-EI。
产品外观S5700系列交换机包括如下款型：S5700-52C-EI产品特点●强大的多业务支持能力S5700支持IGMP v1/v2/v3 Snooping/Filter/Fast Leave/Proxy等协议。
S5700支持线速的跨VLAN组播复制功能，支持捆绑端口的组播负载分担，支持可控组播，可以充分满足IPTV和其他组播业务的需求。
S5700支持MCE 功能，实现了不同VPN用户在同一台设备的隔离，有效解决用户数据安全问题，同时降低用户投资成本。
华为企业级交换机配置指南-S5700

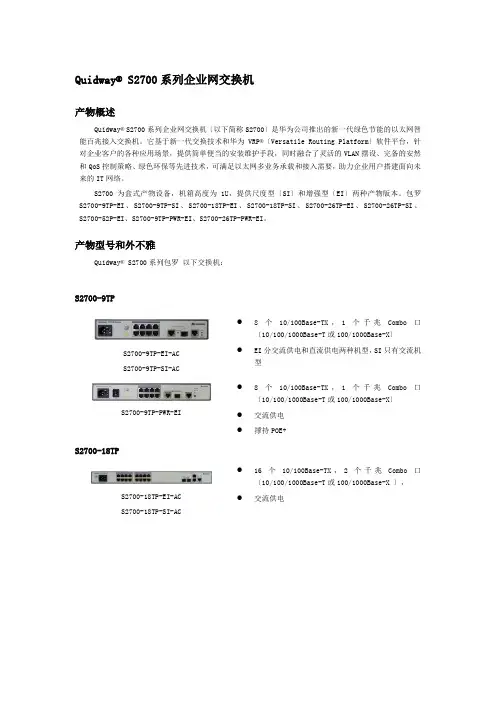

QuidwayS2700系列企业网交换机介绍
Quidway® S2700系列企业网交换机产物概述Quidway® S2700系列企业网交换机〔以下简称S2700〕是华为公司推出的新一代绿色节能的以太网智能百兆接入交换机。
它基于新一代交换技术和华为VRP®〔Versatile Routing Platform〕软件平台，针对企业客户的各种应用场景，提供简单便当的安装维护手段，同时融合了灵活的VLAN摆设、完备的安然和QoS控制策略、绿色环保等先进技术，可满足以太网多业务承载和接入需要，助力企业用户搭建面向未来的IT网络。
S2700为盒式产物设备，机箱高度为1U，提供尺度型〔SI〕和增强型〔EI〕两种产物版本。
包罗S2700-9TP-EI、S2700-9TP-SI、S2700-18TP-EI、S2700-18TP-SI、S2700-26TP-EI、S2700-26TP-SI、S2700-52P-EI、S2700-9TP-PWR-EI、S2700-26TP-PWR-EI。
产物型号和外不雅Quidway® S2700系列包罗以下交换机：S2700-9TPS2700-9TP-EI-AC S2700-9TP-SI-AC ●8个10/100Base-TX，1个千兆Combo口〔10/100/1000Base-T或100/1000Base-X〕●EI分交流供电和直流供电两种机型，SI只有交流机型S2700-9TP-PWR-EI ●8个10/100Base-TX，1个千兆Combo口〔10/100/1000Base-T或100/1000Base-X〕●交流供电●撑持POE+S2700-18TPS2700-18TP-EI-AC S2700-18TP-SI-AC ●16个10/100Base-TX，2个千兆Combo口〔10/100/1000Base-T或100/1000Base-X 〕，●交流供电S2700-26TPS2700-26TP-EI-AC S2700-26TP-SI-AC ●24个10/100Base-TX，2个千兆Combo 口〔10/100/1000Base-T或100/1000Base-X〕●EI分交流供电和直流供电两种机型，SI只有交流机型S2700-26TP-PWR-EI ●24个10/100Base-TX，2个千兆Combo 口〔10/100/1000Base-T或100/1000Base-X〕●交流供电●撑持POE+S2700-52PS2700-52P-EI-AC ●48个10/100Base-TX，2个100/1000Base-X SFP，2个1000Base-X SFP，●交流供电产物特性和优势●免维护，易摆设，易办理S2700撑持自动配置，智能式即插即用，大大降低初始安装成本；采用全新交换ASIC技术，整机无电扇设计，减少机械故障点的同时免除凝露腐蚀和尘土侵害，能有效降低主机53%维护率。

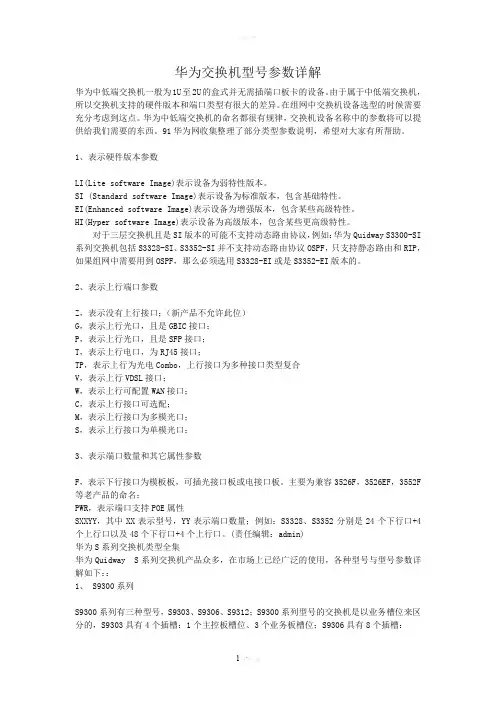

华为交换机型号参数详解
华为交换机型号参数详解华为中低端交换机一般为1U至2U的盒式并无需插端口板卡的设备。
由于属于中低端交换机，所以交换机支持的硬件版本和端口类型有很大的差异。
在组网中交换机设备选型的时候需要充分考虑到这点。
华为中低端交换机的命名都很有规律，交换机设备名称中的参数将可以提供给我们需要的东西。
91华为网收集整理了部分类型参数说明，希望对大家有所帮助。
1、表示硬件版本参数LI(Lite software Image)表示设备为弱特性版本。
SI (Standard software Image)表示设备为标准版本，包含基础特性。
EI(Enhanced software Image)表示设备为增强版本，包含某些高级特性。
HI(Hyper software Image)表示设备为高级版本，包含某些更高级特性。
对于三层交换机且是SI版本的可能不支持动态路由协议，例如：华为Quidway S3300-SI 系列交换机包括S3328-SI、S3352-SI并不支持动态路由协议OSPF，只支持静态路由和RIP，如果组网中需要用到OSPF，那么必须选用S3328-EI或是S3352-EI版本的。
2、表示上行端口参数Z，表示没有上行接口；（新产品不允许此位）G，表示上行光口，且是GBIC接口；P，表示上行光口，且是SFP接口；T，表示上行电口，为RJ45接口；TP，表示上行为光电Combo，上行接口为多种接口类型复合V，表示上行VDSL接口；W，表示上行可配置WAN接口；C，表示上行接口可选配；M，表示上行接口为多模光口；S，表示上行接口为单模光口；3、表示端口数量和其它属性参数F，表示下行接口为模板板，可插光接口板或电接口板。
主要为兼容3526F，3526EF，3552F 等老产品的命名；PWR，表示端口支持POE属性SXXYY，其中XX表示型号，YY表示端口数量；例如：S3328、S3352分别是24个下行口+4个上行口以及48个下行口+4个上行口。
华为S2720-EI系列企业交换机说明书
DataSheetIntroductionBuilding on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), the S2720-EI supports intelligent stack (iStack), flexible Ethernet networking, and diversified security control. It provides customers with a green, easy-to-manage, easy-to-expand, and cost-effective 100M to the desktop solution.Product OverviewModels and AppearanceModel DescriptionS2720-12TP-EI ● 4 × Ethernet 10/100 Base-Tx ports, 4 × Ethernet 10/100/1000 Base-T ports, 2 ×Gig SFP ports, 2 ×combo Gig ports● AC power supply● Forwarding performance: 12.6Mpps● Switching capacity: 68GbpsS2720-12TP-PWR-EI ● 4 × Ethernet 10/100 Base-Tx ports, 4 × Ethernet 10/100/1000 Base-T ports, 2 ×Gig SFP ports, 2 ×combo Gig ports● AC power supply● PoE+● Forwarding performance: 12.6Mpps● Switching capacity: 68GbpsS2720-28TP-PWR-EI-L ● 16 × Ethernet 10/100 Base-Tx ports, 8 × Ethernet 10/100/1000 Base-T ports, 2 ×Gig SFP ports, 2 ×combo Gig ports● 8 ×PoE+ ports● AC power supply● Forwarding performance: 20.4Mpps● Switching capacity: 68GbpsS2720-28TP-EI ● 16 × Ethernet 10/100 Base-Tx ports, 8 × Ethernet 10/100/1000 Base-T ports, 2 ×Gig SFP ports, 2 ×combo Gig ports●AC power supply●Forwarding performance: 20.4Mpps●Switching capacity: 68GbpsS2720-28TP-PWR-EI●16 × Ethernet 10/100 Base-Tx ports, 8 × Ethernet 10/100/1000 Base-T ports, 2 ×Gig SFP ports, 2 ×combo Gig ports●AC power supply●PoE+●Forwarding performance: 20.4Mpps●Switching capacity: 68GbpsS2720-52TP-EI●32 × Ethernet 10/100 Base-Tx ports, 16 × Ethernet 10/100/1000 Base-T ports, 4 ×Gig SFP ports●AC power supply●Forwarding performance: 34.8Mpps●Switching capacity: 336GbpsS2720-52TP-PWR-EI●32 × Ethernet 10/100 Base-Tx ports, 16 × Ethernet 10/100/1000 Base-T ports, 4 ×Gig SFP ports●AC power supply●PoE+●Forwarding performance: 34.8Mpps●Switching capacity: 336GbpsPower SupplyPoE Power Supply ConfigurationThe S2720-EI series PoE switches, including S2720-12TP-PWR-EI, S2720-28TP-PWR-EI-L, S2720-28TP-PWR-EI, S2720-52TP-PWR-EI, have built-in PoE power modules.The S2720-12TP-PWR-EI and S2720-28TP-PWR-EI-L has a built-in power module and does not support pluggable power modules. The built-in power module can provide 124 W PoE power, which ensures full PoE power on 8 ports in compliance in 802.3af or on 4 ports in compliance with 802.3at. The switch cannot connect to an RPS power supply.The S2720-28TP-PWR-EI and S2720-52TP-PWR-EI has a built-in power module and does not support pluggable power modules. The built-in power module can provide 370 W PoE power, which ensures full PoE power on 24 ports in compliance in 802.3af or on 12 ports in compliance with 802.3at. The switch cannot connect to an RPS power supply.Non-PoE Power Supply ConfigurationThe S2720-EI series non-PoE switches have a single internal power module and do not support pluggable power modules. Product Features and HighlightsFlexible Ethernet Networking●In addition to traditional Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP), the S2720-EI supports Huawei-developed Smart Ethernet Protection (SEP) technology and the latest Ethernet Ring Protection Switching (ERPS) standard. SEP is a ring protection protocol specific to the Ethernet link layer, and applies to various ring network topologies, such as open ring topology, closed ring topology, and cascading ring topology. This protocol is reliable, easy to maintain, and implements fast protection switching within 50 ms. ERPS is defined in ITU-T G.8032. It implements millisecond-level protection switching based on traditional Ethernet MAC and bridging functions.●The S2720-EI supports Smart Link, which implements backup of uplinks. One S2720-EI switch can connect to multiple aggregation switches through multiple links, significantly improving reliability of access devices.●The S2720-EI supports Ethernet OAM (IEEE 802.3ah/802.1ag) to fast-detect link faults.Diversified security control●The S2720-EI supports 802.1x authentication, MAC address authentication, and combined authentication on a per port basis and implements dynamic policy delivery (VLAN, QoS, and ACL) to users.●The S2720-EI collects and maintains information about access users, such as IP addresses, MAC addresses, IP address leases, VLAN IDs, and interface numbers in a DHCP snooping binding table. In this way, IP addresses and access interfaces of DHCP users can be tracked. You can specify DHCP snooping trusted and untrusted ports to ensure that users connect only to the authorized DHCP server.●The S2720-EI supports strict ARP learning. This feature prevents ARP spoofing attackers from exhausting ARP entries so that users can connect to the Internet normally.Easy maintenance●The S2720-EI can be managed and maintained using Simple Network Management Protocol (SNMP) V1, V2, and V3, Command Line Interface (CLI), web-based network management system, or Secure Shell (SSH) V2.0.●The S2720-EI supports Super Virtual Fabric (SVF), which virtualizes the "Core/aggregation + Access switch + AP" structure into a logical device. The S2720-EI enables the simplest network management solution in the industry. It allows plug-and-play access switches and APs. In addition, the S2720-EI supports service configuration templates. The templates are configured on core devices and automatically delivered to access devices, enabling centralized control, simplified service configuration, and flexible configuration modification. The S2720-EI functions as a client in an SVF system●The S2720-EI can use the GARP VLAN Registration Protocol (GVRP) to implement dynamic distribution, registration, and propagation of VLAN attributes. GVRP reduces manual configuration workload and ensures correct configuration. Additionally, the S2720-EI supports MUX VLAN, which involves a principal VLAN and multiple subordinate VLANs. Subordinate VLANs are classified into group VLANs and separate VLANs. Ports in the principal VLAN can communicate with ports in subordinate VLANs. Ports in a subordinate group VLAN can communicate with each other, whereas ports in a subordinate separate VLAN can communicate only with ports in the principal VLAN. The S2720-EI also supports VLAN Central Management Protocol (VCMP) and VLAN-Based Spanning Tree (VBST) protocol.iStack●The S2720-EI supports intelligent stack (iStack). This technology combines multiple switches into a logical switch. Member switches in a stack implement redundancy backup to improve device reliability and use inter-device link aggregation to improve link reliability. iStack provides high network scalability. You can increase ports, bandwidth, and processing capacity of a stack by simply adding member switches to the stack. iStack also simplifies device configuration and management. After a stack is set up, multiple physical switches are virtualized into one logical device. You can log in to any member switch in the stack to manage all the member switches in the stack.Excellent network traffic analysis●The S2720-EI supports the sFlow function. It uses a method defined in the sFlow standard to sample traffic passing through it and sends sampled traffic to the collector in real time. The collected traffic statistics are used to generate statistical reports, helping enterprises maintain their networks.Product SpecificationsFunctions and FeaturesThe following table lists the functions and features available on the S2720-EI.MAC address table 16K MAC address entriesMAC address learning and agingStatic, dynamic, and blackhole MAC address entriesInterface-based MAC learning limitingVLAN 4K active VLANsGuest VLAN and voice VLANGVRPMUX VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces1:1 and N:1 VLAN mappingEthernet loop protection RRPP ring topology and RRPP multi-instanceSmart Link tree topology and Smart Link multi-instance, providing millisecond-level protectionswitchoverSEPERPS (G.8032)STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)Reliability EFM OAM (802.3ah)CFM OAM (802.1ag)ITU-Y.1731DLDPLACPIP routing Static route, RIP, RIPng, OSPFIPv6 Neighbor Discovery (ND)Path MTU (PMTU)IPv6 ping, IPv6 tracert, and IPv6 TelnetMulticast IGMPv1/v2/v3 snoopingControllable multicastInterface-based multicast traffic statisticsMLDv1/v2 snooping (Multicast Listener Discovery snooping)QoS/ACL Rate limiting by an interfaceEight queues on each interfaceWRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithmsRe-marking of the 802.1p priority and DSCP priorityRate limiting in each queue and traffic shaping on interfacesSecurity Port isolation, port security, and sticky MACMFFBlackhole MAC address entriesLimit on the number of learned MAC addressesIEEE 802.1x authentication and limit on the number of users on an interfaceAAA authentication, RADIUS authentication, HWTACACS authentication, and NACSSH V2.0Hypertext Transfer Protocol Secure (HTTPS)CPU defenseBlacklist and whitelistDHCP relay, DHCP server, DHCP snoopingDHCPv6 relay, DHCPv6 server, DHCPv6 snoopingSuper Virtual Fabric (SVF) Working as an SVF client that is plug-and-play with zero configurationAutomatically loading the system software package and patches of clients One-clickand automatic delivery of service configurationsSupports independent running clientManagement and maintenance iStackVirtual Cable Test (VCT)Remote configuration and maintenance using Telnet SNMPv1/v2c/v3RMONeSight and web-based NMSHTTPSLLDP/LLDP-MEDSystem logs and multi-level alarms802.3az EEEInteroperability Supports VBST (Compatible with PVST/PVST+/RPVST)Supports LNP (Similar to DTP)Supports VCMP (Similar to VTP)Hardware SpecificationsThe following table lists the S2720-EI hardware specifications.Memory (RAM) 512 MBFlash memory Hardware 512MB, customer available 240MB Switching capacity 52-Port: 336 Gbps, others: 68 Gbps Forwarding performance ●S2720-12TP-EI: 12.6Mpps●S2720-12TP-PWR-EI: 12.6Mpps●S2720-28TP-PWR-EI-L: 20.4Mpps●S2720-28TP-EI: 20.4Mpps●S2720-28TP-PWR-EI: 20.4Mpps●S2720-52TP-EI: 34.8Mpps●S2720-52TP-PWR-EI: 34.8MppsMean Time Between Failures (MTBF), years ●S2720-12TP-EI: 23.8●S2720-12TP-PWR-EI: 23.8●S2720-28TP-PWR-EI-L: 42●S2720-28TP-EI: 49●S2720-28TP-PWR-EI: 40●S2720-52TP-EI: 31●S2720-52TP-PWR-EI: 38Mean Time To Repair (MTTR), hours 2Availability > 0.99999Surge protection Service port protection Common mode: ±7 kVPower supply port protection ●DC: ±1 kV in differential mode; ±2 kV in common mode●AC: ±6 kV in differential mode; ±6 kV in common mode Dimensions (W x D x H) ●S2720-12TP-EI: 250 mm * 180 mm * 43.6 mm●S2720-12TP-PWR-EI: 320 mm * 220 mm * 43.6 mm●S2720-28TP-PWR-EI: 442 mm * 310 mm * 43.6 mm●S2720-28TP-EI/S2720-28TP-PWR-EI-L: 442 mm * 220 mm *43.6 mm●S2720-52TP-EI: 442 mm * 220 mm * 43.6 mm●S2720-52TP-PWR-EI: 442 mm * 310 mm * 43.6 mmWeight ●S2720-12TP-EI: ≤ 2 kg●S2720-12TP-PWR-EI/ S2720-52TP-EI/ S2720-28TP-EI /S2720-28TP-PWR-EI-L: ≤ 5 kg●S2720-28TP-PWR-EI/ S2720-52TP-PWR-EI: ≤ 6 kgAC input voltage Rated voltage range 100V AC to 240V AC; 50/60 HzMaximum voltage range 90V AC to 264V AC; 47 Hz to 63 HzMaximum power consumption (100% throughput, full speed of fans) ●S2720-12TP-EI: 12.85W●S2720-12TP-PWR-EI: without PD: 15.61W; with PD: 160.5W(PoE: 123.2W)●S2720-28TP-PWR-EI: without PD: 37.8W; with PD: 444.9W(PoE: 370W)●S2720-28TP-EI: 20.1W●S2720-28TP-PWR-EI-L: without PD: 24.8W; with PD: 167W(PoE: 123.2W)●S2720-52TP-EI: 40.3W●S2720-52TP-PWR-EI: without PD: 53.7W; with PD: 435W (PoE:370W)Temperature Operating temperature Operating temperature:●0m to 1,800m: 0°C to 45°C●1,800m to 5,000m (decreases 1°C for every 220m increase inaltitude)Storage temperature -40°C to +70°CNoise under normal temperature (27°C, sound power) ●S2720-12TP-EI: Noise-free (no fans)●S2720-12TP-PWR-EI: Noise-free (no fans)●S2720-28TP-PWR-EI-L: Noise-free (no fans)●S2720-28TP-EI: Noise-free (no fans)●S2720-28TP-PWR-EI: less than 48.6 dBA●S2720-52TP-EI: less than 44.5 dBA●S2720-52TP-PWR-EI: less than 48.3 dBARelative humidity 5%RH to 95%RH, noncondensingOperating altitude 0 m to 5000 mNetworking and ApplicationsThe S2720-EI provides 100M desktop access functions for a high performance network, such as voice VLAN, NAC and so on.Ordering InformationProduct Description1 S2720-12TP-EI (4 × Ethernet 10/100 Base-Tx ports, 4 × Ethernet 10/100/1000 Base-T ports,2 × Gig SFP ports, 2×combo Gig ports, AC 110/220V)2 S2720-12TP-PWR-EI (4 × Ethernet 10/100 Base-Tx ports, 4 × Ethernet 10/100/1000 Base-T ports, 2 × Gig SFPports, 2 ×combo Gig ports,124W PoE AC 110/220V)3 S2720-28TP-PWR-EI (16 × Ethernet 10/100 Base-Tx ports, 8 × Ethernet 10/100/1000 Base-T ports, 2 × Gig SFPports, 2 ×combo Gig ports,370W PoE AC 110/220V)4 S2720-28TP-PWR-EI-L (16 × Ethernet 10/100 Base-Tx ports, 8 × Ethernet 10/100/1000 Base-T ports, 2 × Gig SFPports, 2 ×combo Gig ports, 8 ports PoE+, 124W PoE AC 110/220V)5 S2720-28TP-EI (16 × Ethernet 10/100 Base-Tx ports, 8 × Ethernet 10/100/1000 Base-T ports, 2 × Gig SFP ports, 2×combo Gig ports, AC 110/220V)6 S2720-52TP-EI (32 × Ethernet 10/100 Base-Tx ports, 16 × Ethernet 10/100/1000 Base-T ports, 4 × Gig SFP ports,AC 110/220V)7 S2720-52TP-PWR-EI (32 × Ethernet 10/100 Base-Tx ports, 16 × Ethernet 10/100/1000 Base-T ports, 4 × Gig SFPports, 370W PoE AC 110/220V)More InformationFor more information about Huawei Campus Switches, visit or contact us in the following ways:●Global service hotline: /en/service-hotline●Logging in to the Huawei Enterprise technical support website: /enterprise/●Sending an email to the customer service mailbox: ********************Copyright © Huawei Technologies Co., Ltd. 2018. All rights reserved.No part of this document may be reproduced or transmitted in any form or by any means without prior writtenconsent of Huawei Technologies Co., Ltd.Trademarks and Permissionsand other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.All other trademarks and trade names mentioned in this document are the property of their respective holders.NoticeThe purchased products, services and features are stipulated by the contract made between Huawei and thecustomer. All or part of the products, services and features described in this document may not be within thepurchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, andrecommendations in this document are provided "AS IS" without warranties, guarantees or representations ofany kind, either express or implied.The information in this document is subject to change without notice. Every effort has been made in thepreparation of this document to ensure accuracy of the contents, but all statements, information, andrecommendations in this document do not constitute a warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address:Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website:。
华为系列交换机产品
S6506
12
S6506R路由交换机
产品定位: 产品定位:
中型网络LAN 中型网络LAN骨干路由交换机 LAN骨干路由交换机 大型网络的汇聚层交换机 高密度LAN LAN的用户接入交换机 高密度LAN的用户接入交换机
模块化、分布式处理 模块化、 8个槽位， 6个通用I/O槽 I/O槽 个槽位， 个通用I/O 最大支持 48GE 或 288FE 提供2 提供2＋1个电源冗余备份 支持所有单板在线热插拔 支持Salience 支持Salience™ 系列 路由引擎 Salience™ 支持华为VRP 3.x网络操作系统 支持华为VRP™ 3.x网络操作系统 VRP™
S8016
Data Server
S8016
Email, FTP, Proxy Cache Servers
Radius Servers
10
S6500系列千兆核心多层交换机
S6503 S6506 S6506R
64G备板容量 备板容量 32G 交换容量 4个槽位 个槽位 144FE/28GE iSalience™ I路由引擎 路由引擎
8
S8016丰富的业务特性
129.9.188.2
S8016
N A T
4S8016内置 内置NAT业务板以 业务板以NAPT方式支持公网和 内置 业务板以 方式支持公网和 私网地址的转换，有效解决 地址紧缺的问题 私网地址的转换，有效解决IP地址紧缺的问题 4NAT策略可以支持城域网公网 私网地址混合规划， 策略可以支持城域网公网/私网地址混合规划 策略可以支持城域网公网 私网地址混合规划， 解决外置式NAT无法支持的混合策略 无法支持的混合策略 解决外置式
5
S8016丰富的业务特性
华为全系列交换机
S8502
S8505
S8508
S8508V
S8512
S8502、S8505、S8508、S8508V、S8512 均提供主控冗余能力，在主控冗余 配置下，分别提供 2 个、5 个、8 个、8 个、12 个业务接口槽位；
S8508V 为垂直插槽布局，S8502、S8505、S8508、S8512 为横向插槽布局。
3.1.4 产品规格
项目 S8502 S8505 S8508 S8508V S8512
交换 (bps)
容
量
240G
引擎 I 300G 引擎 I 480G 引擎 I 480G 引擎 I 720G
引擎 II 600G
引擎
II
960G
引擎
II
960G
引擎 1.44T
II
背板 (bps)
容
量
450G
包转 (pps)
发能力。
Quidway® S5600 系 列 全千兆智能弹性 交换机
S5600 系列包含 S5624P、S5624P-PWR、S5648P、 S5648P-PWR 、S5624F 等型号，具有 192G/240G 交 换容量和 66M/pps102Mpps 转发能力。
Quidway® S3500-EA S3500-EA 系列 S3528P-EA、S3528F-EA、S3552P-EA、 系列
S8500 采用的最长匹配、逐包转发方式，能够有效地抗击网络“红色代码”、 “冲击波”等病毒的攻击，更加适合大规模、多业务，复杂流量访问的网络。 l 支持完善 QinQ 特性
S8500 支持灵活 QinQ 功能，可以根据内层 VLAN tag 灵活标记外层 VLAN tag， 满足城域接入网一般建设需求。
华为主流路由器交换机简介和规格
华为网络产品一、路由器1、AR G3系列企业路由器i.AR3200 系列企业路由器产品简介：AR3200系列企业路由器是华为公司推出的新一代网络产品，其秉承了华为在数据通信、无线通信、PON接入及软交换领域的深厚积累，并依托于自主知识产权的VRP平台，提供包括有线和无线的Internet接入、专线接入，PBX、融合通信及安全等功能，广泛部署于大中型园区网出口、大中型企业总部或分支等场景。
产品规格;ii.AR2200 系列企业路由器产品简介：AR2200系列企业路由器是华为公司推出的面向中型企业总部或大中型企业分支等以宽带、专线接入、语音和安全场景为主的路由器产品，采用多核CPU、独立分布式交换网可满足不同企业用户的的业务需求。
产品规格：2、AR系列工业路由器：i.AR530系列工业路由交换一体机产品简介：AR530系列工业路由交换一体机是专为工业环境设计的网关设备，可以满足在恶劣的温度、湿度、电磁干扰等环境下的网络通信需求。
AR530系列是集路由、交换、安全和采集功能于一体的新一代工业网关路由设备，具有强大的行业应用扩展能力。
产品规格：3、NE系列高端路由器：i.Huawei NetEngine5000E 集群路由器产品简介：NetEngine 5000E集群路由器(以下简称NE5000E)是华为公司面向互联网骨干节点、城域网核心节点、数据互联中心节点以及Internet承载节点推出的超级核心路由器产品。
NE5000E采用自研的Solar系列芯片，先进的光背板设计和分布式可扩展软件平台，可提供海量交换容量和超高转发性能，全面满足新一代互联网对带宽性能、服务质量、业务能力的需要。
NE5000E 硬件上包括两部分，集群中央框CCC（Cluster Central Chassis）和转发线卡框CLC（Cluster Line Chassis）。
CLC应用于用户和业务的高速接入，可工作在单框模式和多框集群模式，CCC应用于集群系统，主要用于连接各线卡框的控制平面和数据平面，使多台CLC在逻辑上连接，实现系统的统一管理和控制。
