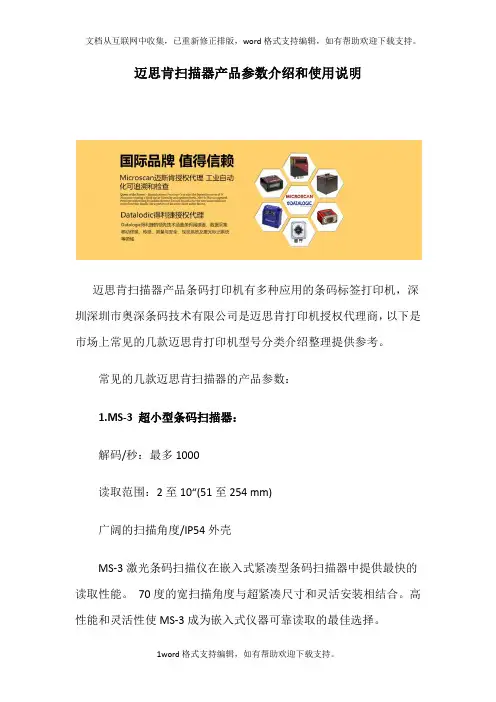

迈思肯扫描器品参数介绍和使用说明
迈思肯扫描器产品参数介绍和使用说明迈思肯扫描器产品条码打印机有多种应用的条码标签打印机，深圳深圳市奥深条码技术有限公司是迈思肯打印机授权代理商，以下是市场上常见的几款迈思肯打印机型号分类介绍整理提供参考。
常见的几款迈思肯扫描器的产品参数：1.MS-3 超小型条码扫描器：解码/秒：最多1000读取范围：2至10“(51至254 mm)广阔的扫描角度/IP54外壳MS-3激光条码扫描仪在嵌入式紧凑型条码扫描器中提供最快的读取性能。
70度的宽扫描角度与超紧凑尺寸和灵活安装相结合。
高性能和灵活性使MS-3成为嵌入式仪器可靠读取的最佳选择。
紧凑轻巧：1.75英寸(44.5毫米)方形，85英寸(21.6毫米)高的扫描仪重量只有2盎司(57克)，便于安装在机器人设备或狭小的空间。
高扫描速度：可调节扫描速度从每秒300到1000个解码，Microscan 世界级的解码算法确保每次都能准确读取。
扫描角度宽：超过70度的宽扫描角度和工厂定制的焦点加起来可以节省系统内的空间，从而允许更大的灵活性定位。
可见指示灯：扫描仪顶部的照明LED提供对扫描仪性能的视觉确认。
实时控制：输入包括触发信号，“新主控”输入和用于复位计数器或释放输出的可编程输入。
输出可以被配置为在包括匹配码和诊断操作的各种条件下激活。
2.QX-870 工业光栅激光扫描器：每秒扫描次数：300 至1400 次读取范围：1 至30"(25 mm 至762 mm)可选的嵌入式以太网TCP/IP 和EtherNet/IP 协议/IP65 封装QX-870 激光扫描器配有最新的条形码读取技术，并可连接至易于使用的条形码追踪、跟踪和控制应用程序解决方案。
其特点是易于安装和部署的可编程扫描光栅，可以读取各种位置上的多种条码，即使条码已受损或未对齐。
凭借即插即用设置及最具效率的编码算法，QX-870 成为所有工业应用的理想激光扫描器。
快速连接系统：M12 Ultra-Lock™ 连接器和线缆套件，即插即用设置一台或多台扫描器解决方案X-Mode 技术:解码受损、印刷不良或未对齐的码，确保高读取率和扫描量高性能:高效的解码能力，能以长达10"(25.4 cm)的光束宽度可靠读取长达30"(762 cm)的条码。
MEI
信息源：公司概况：60年代推出第一款硬币处理设备，之后推出纸币处理设备，并慢慢发展其他自动支付设备。
总部设在美国，MEI曾是Mars，Inc 旗下的公司，与2006年6月独立。
每周有20亿次的交易量。
产品范围：主营自动交易设备，包括纸币和硬币处理，及其他自助支付设备产品型号和特点：品牌产品有CASHFLOW®，Conlux®，MEI®，GEO ®，SODECO，VTI Conlux为日本的公司，2003年被收购。
主要客户和行业：游戏博彩、自动售货、零售和运输赌场分额比较大，在拉斯维加斯和伊利诺斯维修有维修点，已知有HAPP公司在做维修和售后。
（该公司还做JCM，Cashcode纸币识别器维修）代理公司：东南亚唯一总代理深圳市凯得自动付款系统有限公司，独家特许经营商，除销售外还负责售后服务的维修、技术支持在北京、上海、深圳、广州设有办事处销售地区：按地域不同划分大区，亚太区总部在北京销售方式上采用的是按区域划分，由销售经理促进销售的销售策略。
发展动向：SODECO系列产品为复杂多功能纸币识别模块（大模块），主要应用于零售业和交通业，其主要市场方向为高额产品销售设备；目前只在轨道系统有案例。
技术人员称其产品已经达到金融系统技术要求，但成功案例不多。
产品主要集中在小模块：MEI®系列纸币识别模块（小模块）和CASHFLOW®系列硬币处理模块。
用于游戏博彩、自动售货产品多功能支付是发展趋势产品分析：MEI按照地域不同，根据市场推出不同的产品1.在中国分为4块：售货机，博彩，零售，交通1.1售货机推广模块分为硬币管理器与纸币接收器硬币主推MEI CASHFLOW® 7000系列、Conlux CCM5G特点：5条钱管集合硬币接收，找零实时读取数量交易数据记录，诊断功能纸币接收为MEI VN2600特点：可靠，低阻塞率，较少售后服务定期升级容量500张的钞箱防钓现Coupon application？支持RMB1，5，10，20暂存一张1.2博彩市场模块分为纸币接收器，硬币接收，支持工具纸币接收为CASHFLOW® SC系列和GEOGEO专供casino and amusement，无须堆叠，是MEI提供技术，与另一家公司合作的品牌SC83特点：•Widely deployed in casinos throughout the Americas, Europe and Asia•Highest first-time bill acceptance rates in the industry with unsurpassed counterfeit detection technology maximizes uptime and customer throughput•Proven market leading in-field jam performance ensures highest reliability levels •Secure cash storage within advanced polymer alloy cassette designed to withstand frequent and rough handling•Lowest jam rate ensures market leading uptime results, and maximizes operator profitability•Lockable removable cashbox ensures high security•Rapid fraud response through online or local updates•Multi-Width banknote acceptance up to 85mm suitable for most global currencies •Extended range of consumer interfaces available, including EBDS, Netplex, and USB硬币主推MEI CASHFLOW® 9500支持工具STS/PPM"Portable Programming Module" and "Support Tool Suite"1.3零售市场模块分为纸币接收器，硬币找零，硬币接收纸币接收器：CASHFLOW® SC系列，SODECO系列产品特点硬币找零模块为CASHFLOW® 7900系列MEI CASHFLOW 690产品特点：690的双色硬币识别技术4个钱管handling dual coin sets？硬币找零模块为CASHFLOW® 9500产品特点5" coin acceptor ideal for self service kiosks where footprint and ease of integration are the priority. Widely deployed within self checkout and kiosk applications globally.•Widely deployed global coin acceptor - ideal for Self Checkout, kiosk Self Service and other demanding environments•Remote download capability ensures easy software upgrades for new coins•Superior sensing technology ensures highest level of security including discrimination of bicolor coin technology•Accepts up to 22 coin denominations•Multiple interface, voltage and mounting options•Available alone, or with 4 and 8 way separation options•Automatic coin population adjustment•Lowest cost of ownership with quick and easy product configuration using iButton and MEI CPM (Cashflow Programming Module)1.4交通市场模块分为大规模运输纸币接收器，大规模运输硬币产品，停车场纸币接收器，停车场硬币设备大规模运输纸币接收器：SODECO系列产品特点大规模运输硬币产品：MEI CASHFLOW® 7000系列、CASHFLOW® 9500产品特点停车场纸币接收器：CASHFLOW® SC系列，SODECO系列停车场硬币设备：MEI CASHFLOW® 7000系列、CASHFLOW® 950 还需要分析其他地域的产品产品特点:•可靠，低阻塞率，结构坚固可用于户外•流通币高识别率•高防伪•支持远程下载和诊断•全球服务，价格便宜美洲地区:售货机,赌场,零售,交通,娱乐1．售货机: Bill Validators&Coin Mechs，Cashless2．赌场业：纸币模块，支持工具，没有硬币型号同国内3．零售业：市场方向为三个，源自网站的产品调查：/global/americas/retail/retail_products/recommend_a_product/?region=/ usa/1）．自服设备如自助支付设备，自动拍照机，命令输入支付终端，高级A TM，自动存款系统，水泵支付系统等。
Metrix数字趋近式系统(DPS) MX8031 延长电缆说明书
MX8031延长电缆是标准的双屏蔽电缆和VibeLock™5 接头。
MX2031电缆是标准的同轴电缆和圆形，滚花接头。
MX8031 和MX2031 延长电缆都兼容MX8030和MX2030 5mm/8mm 探头和BN4 3300 和 3300XL 5mm/8mm 探头。
提供各种长度选择以及可选的铠装防护电缆。
MX8031 & MX2031 延伸电缆Datasheet0598C USMX8030 和 MX2030探头系列由5mm and 8mm 顶端直径构成。
MX8030 带有标准的双屏蔽电缆和VibeLock™5 接头。
MX2030 带有标准的同轴电缆和圆形，滚花接头。
两种探头都提供满量程80 mil (2mm) 线性范围，并且设计去完全满足670 规格当与一个匹配的 MX8031 或 MX2031 延长电缆和MX2033 前置器或MX2034 变送器。
MX8030 和 MX2030 探头可与Bently Nevada (BN)4, 3300 和 3300XL 5mm/8mm 探头完全互换。
MX8030 & MX2030 探头系列注释: 上述部件可以提供螺丝端子或者压接端子。
选择前置器或者变送器，取决于信号输出类型：MX2033 3-线制前置器监测系统，而MX2034 4-20mA 变送器用于控制系统。
这些型号完全兼容Metrix ，BN 和其他厂家的各种各样的探头和延伸电缆。
MX2033 3-线制探头前置器动态电压输出(mV/μm or m V/mil)MX2033信号输出兼容API670制定格式的工业标准持续振动监测系统它使用-24Vdc 供电并且提供mV/um 信号输出。
典型的7.87mv/um (200 mv/mil).MX2034 4-20 mA 变送器 静态电流输出(mA/µm or mA/mil)MX2034 s 信号输出提供振动，轴向位移或转速信号， 可以直接连接到 PLCs, DCSs, SCADA 系统， 或其他可接收标准4-20mA 信号的仪表，不需要使用独立的监测系统。
得利捷POWERSCAN
POWERSCAN™ PM9501aladdin特性• 高性能液态透镜增强了景深，可高效读取标准条码、宽条码和高密度条码• 高速全向读取性能• 直观的瞄准系统• 柔和白光照明• 提供可选显示器以及4键或16键键盘• 高速433 MHz和910 MHz无线电通信• 点对点和多点传输• 组网和无缝漫游• 多接口可供选择• 以太网连接（标准及工业）• 在三秒钟内即可更换锂离子电池！• Datalogic Motionix™移动感应技术• 人体工程学设计• Datalogic3绿光（3GL™）技术和响亮的蜂鸣声可提供良好的读取反馈• 防水防尘的防护等级：IP65• 可现场更换的窗口和支架触点• EASEOFCARE年保服务计划提供一系列的服务级别，以保障您投资无忧，• 并实现生产效率和投资回报率最大化瞄准、触发、解码：易如反掌！PowerScan™ 9501系列产品希望为用户提供一种直观、轻松的扫描体验。
它结合了全向读取性能和卓越的光学特性。
扫描枪可以读取任何形式的条码，无论从哪个方向读取，根据条码的分辨率，扫描距离近到接触距离，远到1米/3.3英尺，此外，Datalogic得利捷最新型的解码软件可在任何环境下确保瞬时扫描。
可移动，更高效专为窄带无线通信而开发的Datalogic得利捷STAR CordlessSystem™，旨在最大程度地提高手持式扫描枪数据采集应用的效率和可靠性。
PowerScan PM9501机型配备了新一代STAR系统，可进一步改善其原本出色的多功能性、易用性和无线电范围。
PM9501系列可提供两种显示选项：4个可配置键和全套16键键盘。
这可提高主机和用户之间的互动，允许双向信息交流，从而获得更加可靠有效的通信。
BC9180底座/充电器还包括在一模型中两种不同的以太网连接：标准以太网和工业以太网协议，如以太网IP和Modbus。
人性化设计无论是流线型的手柄外形，完美平衡的产品重量还是方便直观的瞄准系统，PowerScan 9501的设计符合人体工程学，不仅拥有超高的首次扫描通过率，同时减少了不自然的腕部转动以实现更高的用户舒适度。
福禄克用户手册
®
Fluke 123/124 Industrial ScopeMeter
CH 2002 年 9 月 Rev. 4, 09/2009Байду номын сангаас
© 2002, 2005, 2007, 2008, 2009 Fluke Corporation. 版权所有。 所有产品名称均为其所属公司的商标。
用户手册
有限保修及义务范围
在正常使用与维修情况下，Fluke 保证每一个产品无质地及工艺问题。自发货之日算起，测试工具保修期为三年，附件保修期为一年。零配件及产品修理与维护的 保修期为 90 天。此保修只限于原始购买者和 Fluke 指定经销商的产品使用客户保修不适用于保险丝和普通电池，亦不适用于任何 Fluke 认为因错误使用、改装、 疏忽或因事故或非正常条件下操作或处置而导致损坏之产品。在 90 天内，Fluke 保证软件运转符合功能规范，且保证软件正确录制于完好无损的介质上。Fluke 不保证软件毫无差错或无操作中断情况。
或者与下列任何电话联系： 在美国与加拿大：+1-888-993-5853
在欧洲：+31-402-675-200 从其它国家：+1-425-446-5500
美格尔新产品：DC电阻捕捉仪MIT515、MIT525、MIT1025和MIT1525说明书
DESCRIPTIONMegger’s new range of DC insulation testers MIT515, MIT525,MIT1025 and MIT1525 are targeted at original equipment manufacturers and industrial companies. The top of the rangeMIT1525 performs insulation resistance tests up to 15 kV with a30 TΩ maximum resistance and an accuracy of ±5 % from 1 MΩup to 3 TΩ. The MIT515 offers IR, DAR and PI functions but has no memory functionality. MIT525, MIT1025 and MIT1525 have a full suite of test modes as well as on-board memory and the ability to stream data/download data to a PC/laptop. Instrument productivity is a focus of the new MIT range which offers rapid charge batteries and operation from an AC source if the batteries are flat. Rapid charge batteries enable > 60 minutes testing after a 30 minute charge.MIT515: 5 kV IRT with PI and DAR but no memoryMIT525: 5 kV IRT with all test modes including a ramp test plus advanced memory functions with recall to screen, RTC for time/dat stamp of results and USB cable interface to PC/PowerDBMIT1025: 10 kV IRT with all test modes including a ramp test plus advanced memory functions with recall to screen, RTC for time/dat stamp of results and USB cable interface to PC/PowerDBMIT1525: 15 kV IRT with all test modes including a ramp test plus advanced memory functions with recall to screen, RTC for time/dat stamp of results and USB cable interface to PC/PowerDBSafety rating is not compromised on the MIT range with all terminals safety rated to CAT IV 600 V to 3000 m (5 kV, 10 kV) or CAT IV 1000 V to 3000 m (15 kV). A range of 5 kV and 10 kV test leads are available plus dedicated 15 kV test leads which are double insulated with clips designed for 15 kV creepage paths. The 15 kV leads are supplied in a holdall. Suitably rated HV gloves and other personal protection equipment are required to be worn when testing.The MIT range share dual case design which includes a tough outer case to protect the tester from knocks/drops and an inner fire retardant case. The IP rating is IP 65 case closed eliminating moisture and dust ingress.An intuitive user interface ensures no lost time remembering how to use the tester. Simplicity of operation is achieved with two rotary switches and the large backlight display which enables multiple results to be displayed simultaneously. A graphical quick start guide is provided inside the lid to assist first time users.Five preset voltage ranges are provided in insulation test mode, plus a user settable lock voltage range. Preconfigured diagnostic tests include Polarisation Index (PI), Dielectric Absorption Ratio (DAR), dielectric discharge (DD), Stepped Voltage (SV) and ramp test. Advanced memory storage includes time/date stamping of results, logging of data and recall of results to screen. A fully isolatedUSB interface is used for safe transfer of data to Megger’s asset management software; PowerDB Pro, Advanced and Lite packages.Test leads are double insulated t with clamps rated at 3 kV t equivalent to 6 kV single insulation for the medium clip leadset and 5 kV t equivalent to 10 kV single insulation for the large clip. The 15k V leadset is insulated to 15 kV.Advanced memory storage includes time/date stamping of results, logging of data and recall of results to screen. A fully isolated USBMIT515, MIT525, MIT1025, MIT15255 kV, 10 kV, 15 kV DC Insulation Resistance TestersMIT515, MIT525, MIT1025, MIT15255 kV, 10 kV, 15 kV DC Insulationresistance testers■■Measures up to 30 TΩ■■Safety rated up to CAT IV 1000 V to 3000 m■■Unique dual-case design - additional userprotection■■Operates from battery or AC mains supply■■Rapid charge Li-ion battery■■Advanced memory with time/date stampdevice interface (type B) is used for safe transfer of data to Megger’s PowerDB / Pro, Advanced and Lite asset management software. (MIT525, MIT1025 nd MIT1525 only)APPLICATIONThe Insulation Resistance (IR) test is a quantitative test which indicates the effectiveness of a product’s electrical insulation. Applications include cables, transformers, motors/generators, circuit breakers and bushings. Common insulation tests are the “spot test”, a 1 minute IR test and a 10 minute Polarisation Index (PI) test, where PI is the ratio R10min / R1min and is temperature independent.FEATURES AND BENEFITS■■Insulation resistance up to 30 TΩ @ 15 kV , 20 TΩ @ 10kV , 10 TΩ@ 5 kV■■IR, Timed IR, DAR, PI, DD, SV and ramp diagnostic tests ■■High current – 3 mA short circuit current■■High noise immunity – 3 mA (5 kV and 10 kV) 6 mA (15 kV) ofnoise rejection■■Li-ion battery – up to 6 hrs continuous testing @ 5 kV with a100M load, battery meets IEC 2133■■Safety rating: CAT IV 600 V to 3000 m (5 kV , 10 kV) CAT IV 1000V to 3000 m (15 kV)■■Large LCD display with backlight■■Dedicated voltmeter function (30 V to 660 V)■■Advanced memory, on screen recall and real time clock for date/time stamped results (MIT525, MIT1025 and MIT1525 only)■■Download of on-board results via USB interface (MIT525,MIT1025 and MIT1525 only)■■Recorded temperature (measured by independent instruments)can be saved with test result (MIT525, MIT1025 and MIT1525 only)■■PowerDB Lite asset management software supplied (MIT525,MIT1025 and MIT1525 only)■■MIT515, MIT525 and MIT1025 safety rated at CAT IV 600 V(maintained to 3000 m altitude)■■MIT1525 safety rated at CAT IV 1000 V (maintained to 3000 maltitude)SPECIFICATIONSAC voltage (auto-ranging)5 kV , 10 kV: 90-264 V rms, 47- 63 Hz 100 VA15 kV: 90-264 V rms, 47- 63 Hz 200 VABattery charge time 2.5 hours deep discharge, 2 hours normal dischargeBattery life11.1 V , 5.2Ah Li-ion batteries, meet IEC 62133:2003, MIT1525 has 2 battery packsBattery life MIT515, MIT525: 6 hours (typical) continuous testing at 5 kV with a 100 MΩ load Battery life MIT1025: 4.5 hours (typical) continuoust esting at 10 kV with a 100 MΩ load Battery life MIT1525: 4.5 hours (typical) continuous t esting at 15 kV with a 100 MΩ load Test voltageMIT515, MIT525:250 V , 500 V , 1000 V , 2500 V , 5000 V , V L MIT1025:500 V , 1000 V , 2500 V , 5000 V , 10000 V , V L MIT1525:1000 V , 2500 V , 5000 V , 10000 V , 15000 V , V L Lock test voltage100 V L to 1 kV in 10 V steps, 1 kV to 5 kV in 25 V steps, 5 kV to 15 kV in 25 V steps Test voltage accuracy+4%, -0%, ±10 V nominal test voltage at 1 GΩ load (0°C to 30°C)Resistance range10 kΩ to 15 TΩ @ 5 kV , 10 kΩ to 20 TΩ @ 10 kV , 10 kΩ to 30 TΩ @ 15 kVAccuracyMIT515, MIT525 accuracy (23 °C) 5000 V 2500 V 1000 V 500 V250 V±5% from 1MΩ to 1 TΩ 500 GΩ 200 GΩ 100 GΩ 50 GΩ ±20% from 1MΩ to 10 TΩ 5 TΩ 2 TΩ 1 TΩ 500 GΩ MIT1025 accuracy (23 ºC) 10 kV 5000 V 2500 V 1000 V500 V±5% from 1MΩ to 2 TΩ 1 TΩ 500 GΩ 200 GΩ 100 GΩ±20% from 1MΩ to 20 TΩ 10 TΩ 5 TΩ 2 TΩ1 TΩMIT1525 accuracy (23 ºC) 15 kV 10 kV 5000 V 2500 V 1000 V ±5% from 1MΩ to 3 TΩ 2 TΩ 1 TΩ 500 GΩ 200 GΩ±20% from 1MΩ to 30 TΩ20 TΩ10 TΩ5 TΩ2 TΩGuard terminal performanceGuards out parallel leakageresistance down to 250 kΩ with a maximum additional resistance error of 1% with a 100 MΩ load DisplayAnalogue : 100 kΩ to 10 TΩDigital: 10 kΩ to max a above Short circuit/charge current 3 mA @ 5 kV , 10 kV , 15 kV Insulation testAlarm: 100 kΩ to 10 GΩTEST LEADS SUPPLIEDThe MIT515. MIT525, MIT1025 and the MIT1525 are all supplied with test leads that are compliant with the requirements ofIEC61010-031:2008. The 5 kV models are supplied with one 3m lead-set with medium sized clips. The 10 kV models are supplied with two 3m lead-sets, one with medium sized clips and the other with large clips with insulation suited to 10 kV use and the 15 kV models supplied with a 3m lead-set, with large clips with insulation suited to 15 kV use.These leads are designed based on Megger’s extensive knowledge of insulation testing using the latest technology. The leads are in compliance with IEC61010-31:2008 which requires a fully insulated clip design.MEDIUM INSULATED TEST CLIP 3 M X 3 LEADSET - 5 KV AND 10 KVThese test leads are supplied as standard on MIT515, MIT525 and the MIT1025.These clips are designed for clamping on larger diameter test pieces but where space is at a premium.The insulation is designed only to protect the user from the output of Megger 5 kV and 10 kV (set below 6 kV) insulation resistance testers. The clips cannot in any circumstance be relied on to protect the user from live ac systems above 600 V a.c., r.m.s. in an CAT IV environment.Cable insulation rating: 12 kV dc (marked on cable)Cable type: flexible dual insulated silicon (inner insulation layer coloured white tohighlight damageCapacitor chargeMIT515, MIT525 <3 s/μF at 3 mA to 5 kV MIT1025 <5 s/μF at 3 mA to 10 kV MIT1525 <7.5 s/μF at 3 mA to 15 kV Capacitor discharge<120 ms/μF to discharge from 5000 V to 50 V (MIT515 and MIT525)<250 ms/μF to discharge from 10000 V to 50 V (MIT1025)<3500 ms/μF to discharge from 15000 V to 50 V (MIT1525)Capacitance range With test voltage set above 500 VMIT515, MIT525 MIT1025: 10 nF to 25 μF MIT1525: 10 nF to 50 μFCapacitance measurement accuracy ±10% ±5 nF Current range 0.01 nA to 6 mACurrent accuracy ±5% ±0.2 nA at all voltages (23 °C)InterferenceMIT515, MIT525: 3 mA from 450 V to 5 kV MIT1025: 3 mA from 960 V to 10 kV MIT1525: 6 mA from 2100 V to 15 kV Voltmeter range 30 V to 660 V ac or dc, 45Hz – 65Hz Voltmeter accuracy ±3%, ±3VTimer range Up to 99 minutes 59 seconds, 15 second minimum setting Memory capacity5.5 hours logging @ 5 sec intervals(MIT525, MIT1025 and MIT1525 only)Test modesMIT515: IR, IR(t), DAR, PIMIT525, MIT1025 and MIT1525: IR, IR(t), DAR, PI, SV , DD, ramp testInterfaceUSB type B (device)(MIT525, MIT1025 and MIT1525 only)Real time output1 Hz output readings (V , I, R) (MIT525, MIT1025 and MIT1525 only)ENVIRONMENTAL Maximum altitude3000 m (5 kV , 10 kV)3000 m (15 kV)Operating temperature range -20 °C to 50 °C Storage temperature range -25 °C to 65 °CHumidity 90% RH non-condensing at 40 °C IP rating IP65 (lid closed), IP40 (lid open)SAFETYMIT515, MIT525 MIT1025: CAT IV 600 V to 3000 m altitude MIT1525: CAT IV 1000 V to 3000 m altitude Meets the requirements of IEC 61010-1,TEST LEADS SUPPLIED CONT.MEDIUM INSULATED TEST CLIP 3 M X 3 LEADSET - 15 KVThese test leads are supplied as an option on the MIT1525.These clips are designed for clamping on larger diameter test pieces but where space is at a premium.The insulation is designed only to protect the user from the output of Megger 15 kV (set below 6 kV) insulation resistance testers.The clips cannot in any circumstance be relied on to protectthe user from live ac systems above 1000 V a.c., r.m.s. in an CAT IV environment.Cable insulationrating: 15 kV dc(marked on cable)Cable type: flexibledual insulated silicon(inner insulation layercoloured white tohighlight damage These test leads may also be supplied in none standard lengths to suit a particular application.Please contact Megger for a quotation. Minimum order quantities may apply.LARGE INSULATED TEST CLIP 3 M X 3 LEADSET These test leads are supplied as standard on MIT1025 and MIT1525 Models (different leadset dependant on model)These clips are designed for clamping on larger diameter test pieces. The insulation is designed only to protect the user from the output of Megger 5 kV, 10 kV and 15 kV insulation resistance testers.The clips cannot in any circumstance be relied on to protect the user from live ac systems above 600 V a.c., r.m.s. in an CAT IV environment.10 kV lead setCable insulation rating:12 kV dc (marked on cable)Cable type: flexible dualinsulated silicon (innerinsulation layer colouredwhite to highlight damage)15 kV lead setCable insulation rating:18 kV dc (marked on cable)Cable type: flexible dualinsulated silicon (innerinsulation layer colouredwhite to highlight damage) The design of the lead sets is intended to facilitate connectionto a variety of de-energized systems for the purpose of making insulation resistance measurements. In all cases it is the responsibility of the user to employ safe working practices and verify that the system is safe before connection. Even isolated systems may exhibit significant capacitance which will become highly charged during the application of the insulation test. This charge can be lethal and connections, including the leads and clips, should never be touched during the test. The system must be safely discharged before touching connections.DESIGNED FOR EVERYDAY USETest leads are a key component of any precision instrument and that safety, long life, and the ability to provide reliable connections to a variety of test pieces found in everyday applications are of the utmost importance. Megger design test leads for both safety and practical operation.LOCKING HV INSULATED PLUGS/NON-REMOVABLE TEST CLIPSAll Megger 5 kV, 10 kV and 15 kV insulation testing test leads are fitted with unique locking HV plugs and non-removable test clips. This reduces the likelihood of a plug or clip inadvertently losing electrical connection and the capacitance of a long cable remaining lethally charged.With the arrows on the plug finger guard horizontal on the instrument as shown to lock. Twist 90º to to unlock. In addition,for the same reason, the test clips are not removable from the test lead.PRACTICAL INSULATION DESIGNMoving jaw fingers maintain the clips touch proof safety when clip is closed but flex back to allow metal teeth of the clip to contact test piece unimpeded when in use.Megger clip beingtested with IECstandard testfinger for creepageand clearance.PRACTICAL JAW DESIGNCurved jaws allow reliable connection around test piecesand flat jaw tips provide excellent connection and grippingof individual wires.OPTIONAL TEST LEADSMEDIUM AND LARGE TEST CLIPSTest leads above with medium and large size insulated clips are available supplied as an option in 5m, 8m, 10m and 15m lengths. These are listed in the ordering information panel at the endof this data sheet. These test leads may also be suppliedin non-standard lengths to suit a particular application/ requirement. Please contact Megger for a quotation, minimum order quantities may apply.Versions available for all MIT modelsCOMPACT TEST CLIP LEADSThese clips are designed for clamping on test pieces where access is limited. There is no insulation on these clips.Extreme caremust be taken toavoid electric shockwhen connecting/disconnecting dueto the bare metallicclips.Cable insulationrating: 12 kV dc(marked on cable) Cable type: flexible dual insulated silicon (inner insulation layer coloured white to highlight damage)Fits: MIT515, MIT525 and MIT1025COMPACT TEST CLIP WITH 5 OR 10 KV SCREENED CABLEThe clips are designed for clamping on test pieces where access is limited. There is no insulation on these clips. Extreme care must be taken to avoid electric shock when connecting/ disconnecting due to the bare metallic clips.The screened test lead set consists of:■■A black/negative test lead that has been screened.■■A red/positive test lead that is not screened.Cable insulation rating: 5 kV or 10 kV dcCable type: flexible screened PVCNote: Screened test leadsare an important accessoryfor those working in highnoise environments, and/or locations where testlead leakage could be aproblem.Fits: MIT515, MIT525 andMIT1025LARGE TEST CLIP WITH 15 KV SCREENED CABLE Relative motion between unshielded long leads for a D.C. test causes a variation in capacitance between them. This in turn causes very low frequency currents to flow, creating interference with the D.C. being measured. In addition induced current from nearby cables or radiated noise from corona around HV bushings can interfere with measurements causing unstable readings. This can be greatly reduced by using a screened lead set.The screened test lead set consists of:■■A black/negative test lead that has been screened.■■A red/positive test lead that is not screened.Cable insulation rating: 15 kV dcCable type: flexiblescreened PVCNote: Screened test leadsare an important accessoryfor those working in highnoise environments, and/or locations where test leadleakage could be a problem.Fits: MIT1525CONTROL CIRCUIT TEST LEAD SETSThis probe and clip leadset is designed for testing low voltage circuits with test voltages up to 1 kV.The insulation is designed only to protect the user from the outputof Megger 5 kV, 10 kV and 15 kVinsulation resistance testers setto a maximum output voltage of1 kV. Do not use this leadset atvoltages above 1 kV.Cable insulation rating: 1 kV dcFUSED TEST PROBE AND CLIP LEAD SETThis fused probe and clip leadset is designed for testing low voltage circuits with test voltages up to 1 kV. The leadset is GS38 compliant, fitted with FF500mA 50 kA fuses, which allows voltage measurements to be made in safety when using the user selectable voltage measuring range on the MIT515, MIT525, MIT1025 and MIT1525 instruments.The insulation is designed only toprotect the user from the output ofMegger 5 kV and 10 kV insulationresistance testers set to a maximumoutput voltage of 1 kV. Do not usethis leadset at voltages above 1 kV.Cable insulation rating: 1 kVMore detailed information can be found on the 5 kV, 10 kV and 15 kV insulation tester lead sets application note. This document can be downloadedfrom: UKArchcliffe Road Dover CT17 9EN EnglandT +44 (0) 1304 502101 F +44 (0) 1304 207342 ******************UNITED STATES4271 Bronze WayDallas TX 75237-1019 USAT 800 723 2861 (USA only)T +1 214 333 3201F +1 214 331 7399******************OTHER TECHNICAL SALES OFFICESValley Forge USA, College Station USA,Sydney AUSTRALIA, Danderyd SWEDEN,Ontario CANADA, Trappes FRANCE,Oberursel GERMANY, Aargau SWITZERLAND,Kingdom of BAHRAIN, Mumbai INDIA,Johannesburg SOUTH AFRICA, Chonburi THAILANDCERTIFICATION ISORegistered to ISO 9001:2000 Cert. no. Q 09290MIT515--MIT525--MIT1025--MIT1525_DS_en_V06Megger is a registered trademarkDescription Order Code Description Order CodeMIT515-UK 1001-935 MIT515-US 1001-936 MIT515-EU 1001-937 MIT515-AU 1001-938 MIT525-UK 1001-939 MIT525-US 1001-940 MIT525-EU 1001-941 MIT525-AU 1001-942 MIT1025-UK 1001-943 MIT1025-US 1001-944 MIT1025-EU 1001-945 MIT1025-AU 1001-946 MIT1525 UK 1002-907 MIT1525 US 1002-909 MIT1525 EU 1002-908 MIT1525 AU 1002-910Included AccessoriesPower leadUSB cablePowerDB Lite softwareProduct information CDIncluded accessories (5 kV, 10 kV, 15kV)3 m lead set, medium size insulated clips(MIT515 and MIT525 only) 1002-531 3 m leadset x 3, large insulated clips(MIT1025 only) 1002-534 3m leadset x 3, large 15 kV insulated clips(MIT1525 only) 1002-949Optional Accessories 1 kV test lead sets(MIT515, MIT525, MIT1025 only)Fused test probe and clip lead set 1002-913 CONTROL CIRCUIT TEST SET 6220-822Optional accessories – 1 kV test lead sets(MIT1525 only)Fused test lead set with probes and clips(2 x leads, 1.25m) 1005-265 Control circuit test lead set (2 x leads, 3m) 1005-264HV test leads sest (MIT515, MIT525, MIT1025 only)* These test leads may also be supplied in non-standard lengths to suit a particular application / requirement. Please contact Megger for a quotation, minimum order quantities may apply.3 x 5 m with large insulated clips 1002-6453 x 8 with large insulated clips 1002-6463 x 10 m with large insulated clips 1002-6473 x 15 m with large insulated clips 1002-6483 x 5 m with medium insulated clips 1002-6413 x 8 m with medium insulated clips 1002-6423 x 10 m with medium insulated clips 1002-6433 x 15 m with medium insulated clips 1002-644 COMPACT, BARE TEST CLIP: Lead length: 3 m 8101-181 COMPACT, BARE TEST CLIP: Lead length:5 m 8101-182 COMPACT, BARE TEST CLIP: Lead length: 15 m 8101-183HV test lead sets (MIT1525 only)5 m lead set, large size insulated clips (3 x leads) 1005-25910 m lead set, large size insulated clips (3 x leads) 1005-26015 m lead set, large size insulated clips (3 x leads) 1005-2613 m lead set, medium size insulated clips (3 x leads) 1005-26210 m lead set, medium size insulated clips (3 x leads) 1005-263Screened - HV test lead sets(MIT515, MIT525, MIT1025 only)1 x 3 m, wtih 5 kV screened un-insulatedsmall clips 6220-8351 x 15 m, with 5 kV screened un-insulatedsmall clips 6311-0803 m, 10 kV screened un-insulated small clips 6220-83410 m, 10 kV screened un-insulated small clips 6220-86115 m, 10 kV screened un-insulated small clips 6220-833Screened HV test lead sets (MIT1525 only)3 m, 15 kV screened, large size insulated clips,supplied in carry holdall 1005-26610 m, 15 kV screened, large size insulated clips,supplied in carry holdall 1005-26715 m, 15 kV screened, large size insulated clips,supplied in carry holdall 1005-26820 m, 15 kV screened, large size insulated clips,supplied in carry holdall 1005-269OtherCB101; 5 kV Calibration Box 6311-077 Calibration certificate - CB101 1000-113 UKAS calibration certificate CB101 1000-047。
ZEBEX 激光扫描枪 Z-3051HS Z-3021 Z-3001 说明书
Z-3051HS 扫描枪状态显示及故障排除
1．LED指示灯
扫描枪的顶部有三种指示灯颜色（蓝色、红色和绿色），这 三种指示灯颜色可以反映扫描枪的各种状态信息。
Full ASCII ---Y Full ASCII ---回车
Full ASCII ---Z Full ASCII ---空格
目录
感谢信 _________________________________________
扫描枪状态显示及故障排除……… 1 接口模式设置……………………… 5 扫描模式设置……………………… 6 声音调节…………………………… 7 条码开放设置……………………… 8 读码长度范围设定………………… 8 相同条码扫描时间间隔………… 9 条码标识符………………………… 9 各种接口模式下的数据处理………10
绿灯亮 蓝灯闪烁 绿灯 一直亮
红绿灯 一直亮
蓝灯 持续闪烁
成功解码
* 解码成功但商品还没有从扫描窗口 移开 * 扫描枪处于条码设置模式 这表明扫描枪的马达或激光头出现故 障。当马达有故障时，会发出哔哔的声 音。请将机器送修。 当扫描枪置于支架上时，将条码放在扫 描区域中，激光会打开并自动解码传 输。
祝您万事如意！ ZEBEX 巨普致上
波特率与校验位…………………12
EAN/ UPC 条码设定……………13
加载前后缀/ 截除前后字符………13
ASCII Table………………………… 14
感谢信……………………………… 17
开始设定
Full ASCII ---W
任何设定,首先扫描“开始 设定”,最后扫描“结束设定”
Full ASCII ---TAB
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
MJ-2030-2.4G
无线扫描枪
功能及使用说明
1.功能特点:
a:RF采用2.4G双向无线数传模块.接收器为迷你USB模块，美观且不占用空间
b:自动跳频,抗干扰能力强.
c:250K的无线传输速率，传输速度极快。
d:200米有效空旷距离,超出有效距离或数据上传不成功会短鸣三声提示.
e:独立的机械ID，使每条枪拥有唯一的身份识别，确保多套产品同时工作不会相互串扰.
f:可自定义的用户ID，方便用户清晰区分数据来源。
g:配对方式简单,一次配对,长期使用,也可重复配对.
h:三种工作模式(无线、盘点、安全）,盘点模式在可存储5000条的条码信息(超过5000条需要定制). i:自动休眠,休眠电流小于10UA,大大延长电池待机时间.
j:电池低电压保护，在电池电压到3.5V时，每次开机或扫描会长鸣一声提示充电.
k:专用充电电路确保充电安全.
L; 接上线材不仅可以充电，可以自动切换有线模式，充电传输两不误。
M: 电池容量1800毫安，一次充电后每天扫描5000次，可以连续工作10天。
性能参数
光源类型： CCD
触发模式：手动（长按开关可关机）
扫描速度：每秒100±2次
解析度：≥4mil
印刷对比度：最低30％的反射差。
误码率： 1/5000万
充电输电压：直流5VDC±0.25伏
功率：100毫瓦（工作）：500毫瓦（瞬间最大）
电流：20毫安（工作）：100毫安（瞬间最大）
电池容量：1800毫安
待机电流：＜20uA
受光强度： 3000-12000Lux
景深：5mm-630mm
扫描角度：±60°±65°±42°（左右、前后、转动）
解码能力： UPC/EAN/JAN、UPC/EAN with Supplementals、UCC/EAN 128、Code 39、MSI、Code11
Code 39 Full ASCII、Code 39 TriOptic、Code 128、Code 128Full ASCII
Codabar、Code93、Discrete2of5、IATA、RSSvariants、Codabar、Chinese2of5、Inteleaved2/5、Interleaved2of5、中邮政码等国际通用—维条形码
提式方式：蜂鸣器，LED指示灯。
接收接口：长*宽*高:158mm*68mm*96mm
重量： 200g
充电接口类型： RJ-45水晶头，长1米（配5V充电器，红灯时正在充电，绿灯时电池充满）
外壳材质： ABS+PC
温度： 0℃至50℃（工作）：-40℃至60℃（存储）
设置方式：手动（依次扫描设置条码）
EMC 电磁兼容性： EN55022,EN55024
电气安全： EN60950-1
封装等级： IP52
抗震能力：多次从2米高度跌落至混凝土地面的冲击后仍能正常工作。
