CAD LISP 程序
LISP经典程序

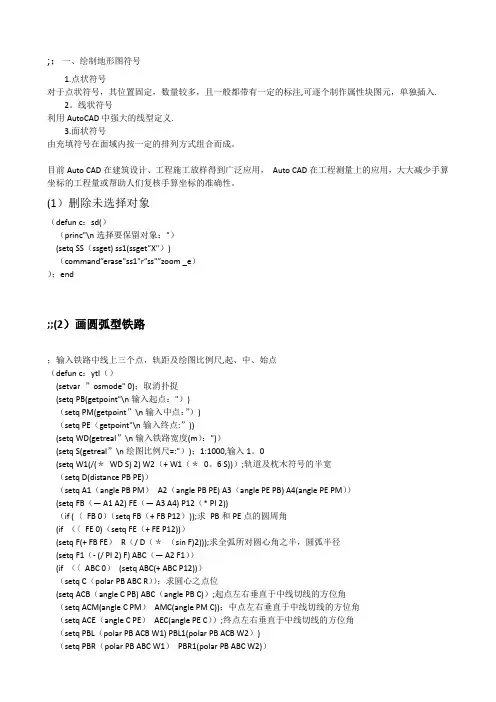

;；一、绘制地形图符号1.点状符号对于点状符号，其位置固定，数量较多，且一般都带有一定的标注,可逐个制作属性块图元，单独插入.2。
线状符号利用AutoCAD中强大的线型定义.3.面状符号由充填符号在面域内按一定的排列方式组合而成。
目前Auto CAD在建筑设计、工程施工放样得到广泛应用，Auto CAD在工程测量上的应用，大大减少手算坐标的工程量或帮助人们复核手算坐标的准确性。
(1）删除未选择对象（defun c：sd(）（princ"\n选择要保留对象："）(setq SS（ssget) ss1(ssget”X"）)（command”erase"ss1"r”ss"”zoom _e））；end;;(2）画圆弧型铁路；输入铁路中线上三个点，轨距及绘图比例尺,起、中、始点（defun c：ytl（）(setvar ”osmode" 0)；取消扑捉(setq PB(getpoint"\n输入起点："）)（setq PM(getpoint”\n输入中点：”）)（setq PE（getpoint"\n输入终点:”))(setq WD(getreal”\n输入铁路宽度(m）：")）(setq S(getreal”\n绘图比例尺=:"）)；1:1000,输入1。
0(setq W1(/(＊WD S) 2) W2（+ W1（＊0。
6 S))）;轨道及枕木符号的半宽（setq D(distance PB PE)）（setq A1（angle PB PM）A2（angle PB PE) A3（angle PE PB) A4(angle PE PM））(setq FB（— A1 A2) FE（— A3 A4) P12（* PI 2))（if (〈FB 0）（setq FB（+ FB P12）));求PB和PE点的圆周角(if （〈FE 0)（setq FE（+ FE P12))）(setq F(+ FB FE）R（/ D（＊（sin F)2)));求全弧所对圆心角之半，圆弧半径(setq F1（- (/ PI 2) F) ABC（— A2 F1））(if （〈ABC 0）(setq ABC(+ ABC P12))）（setq C（polar PB ABC R））；求圆心之点位(setq ACB（angle C PB) ABC（angle PB C)）;起点左右垂直于中线切线的方位角（setq ACM(angle C PM）AMC(angle PM C))；中点左右垂直于中线切线的方位角（setq ACE（angle C PE）AEC(angle PE C））;终点左右垂直于中线切线的方位角（setq PBL（polar PB ACB W1) PBL1(polar PB ACB W2）)（setq PBR（polar PB ABC W1）PBR1(polar PB ABC W2)）（setq PML（polar PM ACM W1) PMR(polar PM AMC W1）)（setq PEL（polar PE ACE W1）PER（polar PE AEC W1）)（setq S2(* 0。
CAD LISP 程序教学内容
C AD L I S P程序1.计算所有线段总长度(加载后只需框选所有线段便可得出这些线段的总长度) (defun c:LL ()(setvar "cmdecho" 1)(setq en (ssget (list '(0 . "spline,arc,line,ellipse,LWPOLYLINE"))))(setq i 0)(setq ll 0)(repeat (sslength en)(setq ss (ssname en i))(setq endata (entget ss))(command "lengthen" ss "")(setq dd (getvar "perimeter"))(setq ll (+ dd ll))(setq i (1+ i)))(princ "所选线条总长为：")(princ ll)(princ))2.标注所有线段(加载后只需框选所有线段便可得标注这些线段)(defun c:LLL ()(COMMAND "UCS" "")(setvar "cmdecho" 1)(SETVAR "OSMODE" 0)(setq AcadObject (vlax-get-acad-object)AcadDocument (vla-get-ActiveDocument Acadobject)mSpace (vla-get-ModelSpace Acaddocument));;选取需要测量的样条曲线、圆弧、直线、椭圆(setq en (ssget (list '(0 . "spline,arc,line,ellipse,LWPOLYLINE")))) (setq i 0);;获取系统参数textsize(setq shh (getvar "textsize"))(setq str_hh (strcat "\n文字高度<" (rtos shh 2) ">: "))(setq hh (getdist str_hh))(while hh(setvar "textsize" hh)(setq hh nil));;输入标注文字高度;;循环开始(repeat (sslength en)(setq ss (ssname en i))(setq endata (entget ss))(command "lengthen" ss "")(setq dd (getvar "perimeter"))(princ (strcat "\n长度=" (rtos dd 2)));;寻找代表图层的字符串(setq aa (assoc 0 endata));;获取图层名称(setq aa1 (cdr aa));;判断线条种类(cond((= aa1 "SPLINE");;如果是spline(progn(setq arcObj (VLAX-ENAME->VLA-OBJECT ss)) (setq startPnt1 (vla-get-ControlPoints arcObj))(setq p1(vlax-safearray->list (vlax-variant-value startPnt1)) )(setq x1 (car p1))(setq y1 (cadr p1))(setq z1 (caddr p1))(setq pp1 (list x1 y1 z1))(repeat (- (/ (length p1) 3) 1);;循环，寻找最后一个控制点(setq p1 (cdddr p1))(setq x2 (car p1))(setq y2 (cadr p1))(setq z2 (caddr p1)))(setq pp2 (list x2 y2 z2))))((= aa1 "LWPOLYLINE");;如果是LWPOLYLINE(progn(setq arcObj (VLAX-ENAME->VLA-OBJECT ss)) (setq startPnt1 (vla-get-Coordinates arcObj))(setq p1(vlax-safearray->list (vlax-variant-value startPnt1)) )(setq x1 (car p1))(setq y1 (cadr p1))(setq z1 (caddr p1))(setq pp1 (list x1 y1 z1))(repeat (- (/ (length p1) 3) 1);;循环，寻找最后一个控制点(setq p1 (cdddr p1))(setq x2 (car p1))(setq y2 (cadr p1))(setq z2 (caddr p1)))(setq pp2 (list x2 y2 z2))))(t;;如果是其他种类线条(progn(setq arcObj (VLAX-ENAME->VLA-OBJECT ss))(setq startPnt1 (vla-get-StartPoint arcObj));;获取起点(setq endPnt1 (vla-get-EndPoint arcObj));;获取终点(setq pp1(vlax-safearray->list (vlax-variant-value startPnt1)))(setqpp2 (vlax-safearray->list (vlax-variant-value endPnt1)) ))))(setq x1 (car pp1))(setq y1 (cadr pp1))(setq z1 (caddr pp1))(setq x2 (car pp2))(setq y2 (cadr pp2))(setq z2 (caddr pp2))(setq x (/ (+ x1 x2) 2))(setq y (/ (+ y1 y2) 2))(setq z (/ (+ z1 z2) 2))(setq pt (list x y z));;取得线段两端的中点(setq ang (angle pp1 pp2));;获取角度(if (> (* (/ ang pi) 180) 180) (setq ang (+ ang pi)))(command "text""j""bc"pt""(* (/ ang pi) 180)(strcat "" (rtos dd 2))"")(setq i (1+ i)))(prin1))(prompt "\n <>在图中直接写出长度") (prin1)3.连续打断程序(defun c:br1 ()(command "break" pause "f" pause "@") )4.将CAD文字导入Excel表格(defun c:Q2()(setq ffn (getfiled "写出文件" "" "xls" 1))(princ "\n选取文字...")(setq ss (ssget))(setq ff (open ffn "w"))(setq i 0)(repeat (sslength ss)(setq ssn (ssname ss i))(setq ssdata (entget ssn))(setq sstyp (cdr (assoc 0 ssdata)))(if (or (= sstyp "TEXT") (= sstyp "MTEXT")) (progn(setq txt (cdr (assoc 1 ssdata)))(princ txt ff)(princ "\n" ff)))(setq i (1+ i)))(close ff)(princ (strcat "\n写出文件: " ffn))(prin1))5删除带颜色图元以下程序在别人的贴子里贴过.为了说明问题,今天再贴一次. 改颜色的LISP程序(defun c:c1()(ssget)(command "chprop" "p" "" "c" "1" "") (princ)) (defun c:c2()(ssget)(command "chprop" "p" "" "c" "2" "") (princ)) (defun c:c3()(ssget)(command "chprop" "p" "" "c" "3" "") (princ)) (defun c:c4()(ssget)(command "chprop" "p" "" "c" "4" "") (princ)) (defun c:c5()(ssget)(command "chprop" "p" "" "c" "5" "") (princ)) (defun c:c6()(ssget)(command "chprop" "p" "" "c" "6" "") (princ)) (defun c:c7()(ssget)(command "chprop" "p" "" "c" "7" "") (princ)) (defun c:c8()(ssget)(command "chprop" "p" "" "c" "8" "") (princ))你用C1 命令就可以将图元改为红色了.其余类似.删除红色图元(defun C:D1 (/ m A M)(setq m:err *error* *error* *merr*)(setvar "cmdecho" 0)(command "UNDO" "G")(prompt "选择图形")(setq A (ssget '((62 . 1)) ))(if (/= A nil)(progn(setq M (sslength A))(command "erase" A "")(princ "\n共删除红色图元<")(princ M)(princ ">个") ))(command "UNDO" "E")(princ) )这样,键入 D1 命令,就可以删除红色的图元了.。
CAD中自动画管线图的LISP程序
(defun c:brel(/myosmode horv p p1 p2 p3)
(setq myosmode (getvar "OSMODE"))
(setvar "OSMODE" 0)
(setq p (getpoint "\nSelect point to break:"))
(initget 1P程序
画一些管路原理图时，当代表不同管路的直线在图中相交时，需将在交点处的某一直线断开，再用一半圆连接两断点，使用下面这个LISP编写的程序，只用键入"brel"的命令，其它的就由电脑去完成了。
程序中使用"break"命令截断需要被断开的管线，再用"arc"命令画一半圆连接两断点。变量p读取管线交点；p1、p2为点p的左右或上下两点；p3为连接p1、p2半圆的中点。由于使用"break"命令时若AUTOCAD环境处于对象捕捉方式（OSMODE≠0），则"break"命令截断的p1、p2两点可能为变为p1、p2附近的捕捉点。所以程序开始时用变量myosmode记录系统变量OSMODE，而后设置OSMODE为0，程序结束后再设置还原OSMODE。变量horn判断用户需要断开的是水平线还是垂直线。
(setq p3 (list (car p) (+ (cadr p) 1.5)))
)
(progn
(setq p1 (list (car p) (- (cadr p) 1.5)))
(setq p2 (list (car p) (+ (cadr p) 1.5)))
(setq p3 (list (+ (car p) 1.5) (cadr p)))
CAD画渐开线lisp程序
) ;(princ (> p ja)) ;(princ (= p ja)) ;(princ (< p ja))
)
;(redraw) ;对象捕捉 (setvar "osmode" dx) ;控制undo (if (/= ud 0)
(command "undo" "e") )
)
第三步：将文档名称改为“渐开线.lsp”，注意，文件后缀同时由“.txt” 改为“.lsp”。 （如果，你的电脑不显示文件后缀，请先做如下设置，去掉对钩）
* 适用于Auto CAD各版本，适用于室内装潢、机械设计等
输入命令：jkx
鼠标选取或输入圆心 位置
输入基圆半径
输入基圆半径
输入角度
第一步：在桌面建立一个文本文档
第二步：打开文档，将以下lisp代码复制到文档内，并保存关闭
(defun c:jkx(/ jo jr ja p ls p2 x y ud dx) (graphscr) (setvar "cmdecho" 0) ;(setvar "comdecho" 0) (setq jo(getpoint"\n请输入圆心位置:")) (setq jr(getdist"\n请输入基圆半径:")) (setq ja(getreal"\n请输入渐开线(10进制)角度:")) (setq p 0) (setq ls (list (+ jr (car jo)) (cadr jo))) ;控制undo (if (/=(getvar "undoctl") 0) (command "undo" "be") (setq ud 0) ) ;对象捕捉 (setq dx (getvar "osmode")) (setvar "osmode" 0) ;(command "pline" ) (while (<= p (- ja 0.5)) (setq p (+ 0.5 p)) (setq p2 (* (/ p 180) pi)) (setq x (+ (car jo) (+ (* jr (cos p2)) (* pi jr (/ p 180) (cos (- p2 (/ pi 2))))))) (setq y (+ (cadr jo) (+ (* jr (sin p2)) (* pi jr (/ p 180) (sin (- p2 (/ pi 2))))))) ;(command "point" (list x y))
CADLISP程序
1.计算所有线段总长度(加载后只需框选所有线段便可得出这些线段的总长度)(d e f u n c:L L() (s e t v a r"c m d e c h o"1) (setq en (ssge t(list '(0 . "spline,a rc,line,ellipse,LW POLYLIN E")))) (s e t q i0) (s e t q l l0) (r e p e a t(s s l e n g t h e n) (s e t q s s(s s n a m e e n i)) (s e t q e n d a t a(e n t g e t s s))(c o m m a n d"l e n g t h e n"s s"")(s e t q d d(g e t v a r"p e r i m e t e r")) (s e t q l l(+d d l l)) (s e t q i(1+i)))(p r i n c"所选线条总长为：")(p r i n c l l)(p r i n c))2.标注所有线段(加载后只需框选所有线段便可得标注这些线段)(d e f u n c:L L L() (C O M M A N D"U C S""") (s e t v a r"c m d e c h o"1) (S E T V A R"O S M O D E"0) (s e t q A c a d O b j e c t(v l a x-g e t-a c a d-o b j e c t)A c a d D o c u m e n t(v l a-g e t-A c t i v e D o c u m e n t A c a d o b j e c t)m S p a c e(v l a-g e t-M o d e l S p a c e A c a d d o c u m e n t));;选取需要测量的样条曲线、圆弧、直线、椭圆(setq en (ssge t(list '(0 . "spline,a rc,line,ellipse,LW POLYLIN E")))) (s e t q i0) ;;获取系统参数t e x t s i z e (s e t q s h h(g e t v a r"t e x t s i z e")) (s e t q s t r_h h(s t r c a t"\n文字高度<"(r t o s s h h2)">:"))(s e t q h h(g e t d i s t s t r_h h)) (w h i l e h h (s e t v a r"t e x t s i z e"h h) (s e t q h h n i l)) ;;输入标注文字高度;;循环开始(r e p e a t(s s l e n g t h e n) (s e t q s s(s s n a m e e n i)) (s e t q e n d a t a(e n t g e t s s))(c o m m a n d"l e n g t h e n"s s"")(s e t q d d(g e t v a r"p e r i m e t e r")) (p r i n c(s t r c a t"\n长度="(r t o s d d2))) ;;寻找代表图层的字符串(s e t q a a(a s s o c0e n d a t a)) ;;获取图层名称(s e t q a a1(c d r a a));;判断线条种类(c o n d((=a a1"S P L I N E") ;;如果是s p l i n e(p r o g n (s e t q a r c O b j(V L A X-E N A M E->V L A-O B J E C T s s)) (s e t q s t a r t P n t1(v l a-g e t-C o n t r o l P o i n t s a r c O b j))(s e t q p 1 (v l a x-s a f e a r r a y->l i s t(v l a x-v a r i a n t-v a l u e s t a r t P n t1))) (s e t q x1(c a r p1))(s e t q y1(c a d r p1)) (s e t q z1(c a d d r p1)) (s e t q p p1(l i s t x1y1z1)) (r e p e a t(-(/(l e n g t h p1)3)1) ;;循环，寻找最后一个控制点(s e t q x2(c a r p1))(s e t q y2(c a d r p1))(s e t q z2(c a d d r p1))) (s e t q p p2(l i s t x2y2z2)))) ((=a a1"L W P O L Y L I N E") ;;如果是L W P O L Y L I N E(p r o g n (s e t q a r c O b j(V L A X-E N A M E->V L A-O B J E C T s s)) (s e t q s t a r t P n t1(v l a-g e t-C o o r d i n a t e s a r c O b j)) (s e t q p 1 (v l a x-s a f e a r r a y->l i s t(v l a x-v a r i a n t-v a l u e s t a r t P n t1)))(s e t q y1(c a d r p1)) (s e t q z1(c a d d r p1)) (s e t q p p1(l i s t x1y1z1)) (r e p e a t(-(/(l e n g t h p1)3)1) ;;循环，寻找最后一个控制点(s e t q p1(c d d d r p1))(s e t q x2(c a r p1))(s e t q y2(c a d r p1))(s e t q z2(c a d d r p1))) (s e t q p p2(l i s t x2y2z2))))(t ;;如果是其他种类线条(p r o g n (s e t q a r c O b j(V L A X-E N A M E->V L A-O B J E C T s s)) (s e t q s t a r t P n t1(v l a-g e t-S t a r t P o i n t a r c O b j));;获取起点(s e t q e n d P n t1(v l a-g e t-E n d P o i n t a r c O b j));;获取终点(s e t q p p 1 (v l a x-s a f e a r r a y->l i s t(v l a x-v a r i a n t-v a l u e s t a r t P n t1)))(s e t q p p2(v l a x-s a f e a r r a y->l i s t(v l a x-v a r i a n t-v a l u e e n d P n t1)))))) (s e t q x1(c a r p p1))(s e t q y1(c a d r p p1)) (s e t q z1(c a d d r p p1)) (s e t q x2(c a r p p2)) (s e t q y2(c a d r p p2)) (s e t q z2(c a d d r p p2)) (s e t q x(/(+x1x2)2)) (s e t q y(/(+y1y2)2)) (s e t q z(/(+z1z2)2)) (s e t q p t(l i s t x y z)) ;;取得线段两端的中点(s e t q a n g(a n g l e p p1p p2)) ;;获取角度(i f(>(*(/a n g p i)180)180)(s e t q a n g(+a n g p i)))(c o m m a n d"t e x t""j""b c"p t""(*(/a n g p i)180) (s t r c a t""(r t o s d d2))"") (s e t q i(1+i)))(p r i n1))(p r o m p t"\n<>在图中直接写出长度") (p r i n1)3.连续打断程序(d e f u n c:b r1()(c o m m a n d"b r e a k"p a u s e"f"p a u s e"@"))4.将C A D文字导入E x c e l表格(d e f u n c:Q2() (s e t q f f n(g e t f i l e d"写出文件""""x l s"1)) (p r i n c"\n选取文字...") (s e t q s s(s s g e t)) (s e t q f f(o p e n f f n"w")) (s e t q i0) (r e p e a t(s s l e n g t h s s) (s e t q s s n(s s n a m e s s i)) (s e t q s s d a t a(e n t g e t s s n)) (s e t q s s t y p(c d r(a s s o c0s s d a t a))) (i f(o r(=s s t y p"T E X T")(=s s t y p"M T E X T"))(p r o g n (s e t q t x t(c d r(a s s o c1s s d a t a))) (p r i n c t x t f f) (p r i n c"\n"f f)))(s e t q i(1+i)))(c l o s e f f) (p r i n c(s t r c a t"\n写出文件:"f f n)) (p r i n1) )5删除带颜色图元以下程序在别人的贴子里贴过.为了说明问题,今天再贴一次.改颜色的LISP程序(defun c:c1()(ssget)(command "chprop" "p" "" "c" "1" "") (princ))(defun c:c2()(ssget)(command "chprop" "p" "" "c" "2" "") (princ)) (defun c:c3()(ssget)(command "chprop" "p" "" "c" "3" "") (princ)) (defun c:c4()(ssget)(command "chprop" "p" "" "c" "4" "") (princ)) (defun c:c5()(ssget)(command "chprop" "p" "" "c" "5" "") (princ)) (defun c:c6()(ssget)(command "chprop" "p" "" "c" "6" "") (princ)) (defun c:c7()(ssget)(command "chprop" "p" "" "c" "7" "") (princ)) (defun c:c8()(ssget)(command "chprop" "p" "" "c" "8" "") (princ))你用C1 命令就可以将图元改为红色了.其余类似.删除红色图元(defun C:D1 (/ m A M)(setq m:err *error* *error* *merr*)(setvar "cmdecho" 0)(command "UNDO" "G")(prompt "选择图形")(setq A (ssget '((62 . 1)) ))(if (/= A nil)(progn(setq M (sslength A))(command "erase" A "")(princ "\n共删除红色图元<")(princ M)(princ ">个")))(command "UNDO" "E")(princ) )这样,键入D1 命令,就可以删除红色的图元了.。
超经典CAD_lisp程序集锦、CAD快捷键大全
超经典CAD lisp程序集锦如果您使用 AutoCAD,下面的内容对您一定有帮助。
在某些方面能大大提高您的工作效率。
下面的程序均以源程序方式给出，您可以使用、参考、修改它。
bg.lsp --- 表格自动生成asc.lsp --- 将文本文件内容写入图中，字符是单个的wf.lsp --- 将图中字符写入磁盘exstr.lsp --- 将字符串分解成单字pgtxt.lsp --- 将字符合成字符串pb.lsp --- 通过给出长度将字符串分成两个串cht.lsp --- 直接修改文字内容或块属性ct.lsp --- 对数字串进行加减chh.lsp --- 直接修改文字高度chhw.lsp --- 直接修改文字高宽比(针对PKPM软件将字符定位点改为左下角) chst.lsp --- 直接修改文字字体txt.shx --- 修改后的标准txt.shx文件。
(kuozhan.sld为增强的内容幻灯片)tiao.lsp --- 配合修改过的标准字体文件，将中文字符调大tiao1.lsp --- 配合修改过的标准字体文件，将英文字符调小untiao.lsp --- 上两个程序的复原sht.lsp --- 在图中查找字符串zhuang.lsp --- 桩点及钎探号绘制（勘测图）dim.lsp --- 配合JT.DWG将尺寸标注调成适合建筑结构设计(1:1)dimm.lsp --- 配合JT.DWG将尺寸标注调成适合建筑结构设计(1:100)di1.lsp～di8.lsp --- 直接连续标注尺寸(用于1:1的图)di100.lsp～di800.lsp --- 直接连续标注尺寸(用于1:100的图)详细内容及附件下载请浏览北纬服务论坛/thread-2724-1-1.html该程序实现的功能如图中所示，只要选择矩形，便可将穿过矩形的直线剪切（以前是一条一条的选择），由于水平有限，程序的语句可能太繁琐，但功能对我面言很实用（以前我下载了一个，但效果不好，连矩形外也剪掉了），请各位高手优化！源程序如下：代码:p1 (car l1)) (command "erase" e0 "") (setq count 0) (repeat 3 (setq count (+ count 1)) (setq pt (nth count l1)) (command "trim" rect "" "f" p1 pt """") ) (setq p1 (cadr l1)) (command "erase" e0 "") (setq count 1) (repeat 2 (setq count (+ count 1)) (setq pt (nth count l1)) (command "trim" rect "" "f" p1 pt """") ) (setvar "osmode" 687))你的程序在实际使用中，有时将矩形的边或矩形外的线剪切掉了，我的程序参照你的程序重新编了一下，不好意思，借用了你的思路.(朋友多，互相学习)有些语句实际上重复了，昨天我又改了下，源程序如下：(defun c:mytrim(/ rect e0 e1 pt x ptx pty l1 i p1 p2 p1x p1y point count)(setvar "osmode" 0)(setq l1 nil)(setq i 0)(setq rect (car (entsel "\n请选择需剪切的矩形:")))(setq e0 (entget rect))(while (setq x (nth i e0))(if(= (car x) 10)(progn(setq ptx (nth 1 x))(setq pty (nth 2 x))(setq x (list ptx pty))(setq l1 (cons x l1))))(setq i (1+ i)))(reverse l1)(setq p1 (car l1))(setq p1x (nth 0 p1))(setq p1y (nth 1 p1))(setq count 0)(repeat 3(setq count (+ count 1))(setq pt (nth count l1))(setq ptx (nth 0 pt))(setq pty (nth 1 pt))(setq point (mapcar '+ p1 pt))(setq point (mapcar '/ point '(2.0 2.0 2.0))) (if(and (/= (nth 0 point) p1x)(/= (nth 0 point) ptx)(/= (nth 1 point) p1y)(/= (nth 1 point) pty))(setq p point)))(setq l1 nil)(command "offset" 5 rect p "")(setq e0 (entlast))(setq e1 (entget e0))(princ e1)(setq i 0)(while (setq x (nth i e1))(if(= (car x) 10)(progn(setq ptx (nth 1 x))(setq pty (nth 2 x))(setq x (list ptx pty))(setq l1 (cons x l1))))(setq i (1+ i)))(reverse l1)(setq p1 (car l1))(setq p2 p1)(command "erase" e0 "")(setq count 0)(repeat 3(setq count (+ count 1))(setq pt (nth count l1)) (command "trim" rect "" "f" p1 pt "" "") (setq p1 pt))(command "trim" rect "" "f" p1 p2 "" "")(setvar "osmode" 687))画箍筋的lisp程序画剪力墙暗柱很实用。
五个实用的AutoCAD的lisp程序
五个实用的AutoCAD的lisp程序1、计算CAD图形中所有线段总长度(加载后只需框选所有线段便可得出这些线段的总长度)(defun c:LL ()(setvar "cmdecho" 1)(setq en (ssget (list '(0 . "spline,arc,line,ellipse,LWPOLYLINE"))))(setq i 0)(setq ll 0)(repeat (sslength en)(setq ss (ssname en i))(setq endata (entget ss))(command "lengthen" ss "")(setq dd (getvar "perimeter"))(setq ll (+ dd ll))(setq i (1+ i)))(princ "所选线条总长为：")(princ ll)(princ))2、标注CAD图形中所有线段(加载后只需框选所有线段便可得标注这些线段)(defun c:LLL ()(COMMAND "UCS" "")(setvar "cmdecho" 1)(SETVAR "OSMODE" 0)(setq AcadObject (vlax-get-acad-object)AcadDocument (vla-get-ActiveDocument Acadobject)mSpace (vla-get-ModelSpace Acaddocument));;选取需要测量的样条曲线、圆弧、直线、椭圆(setq en (ssget (list '(0 . "spline,arc,line,ellipse,LWPOLYLINE"))))(setq i 0);;获取系统参数textsize(setq shh (getvar "textsize"))(setq str_hh (strcat "\n文字高度 <" (rtos shh 2) ">: "))(setq hh (getdist str_hh))(while hh(setvar "textsize" hh)(setq hh nil));;输入标注文字高度;;循环开始(repeat (sslength en)(setq ss (ssname en i))(setq endata (entget ss))(command "lengthen" ss "")(setq dd (getvar "perimeter"))(princ (strcat "\n长度=" (rtos dd 2)));;寻找代表图层的字符串(setq aa (assoc 0 endata));;获取图层名称(setq aa1 (cdr aa));;判断线条种类(cond((= aa1 "SPLINE");;如果是spline(progn(setq arcObj (VLAX-ENAME->VLA-OBJECT ss))(setq startPnt1 (vla-get-ControlPoints arcObj))(setq p1(vlax-safearray->list (vlax-variant-value startPnt1)) )(setq x1 (car p1))(setq y1 (cadr p1))(setq z1 (caddr p1))(setq pp1 (list x1 y1 z1))(repeat (- (/ (length p1) 3) 1);;循环，寻找最后一个控制点(setq p1 (cdddr p1))(setq x2 (car p1))(setq y2 (cadr p1))(setq z2 (caddr p1)))(setq pp2 (list x2 y2 z2))))((= aa1 "LWPOLYLINE");;如果是LWPOLYLINE(progn(setq arcObj (VLAX-ENAME->VLA-OBJECT ss)) (setq startPnt1 (vla-get-Coordinates arcObj)) (setq p1(vlax-safearray->list (vlax-variant-value startPnt1)) )(setq x1 (car p1))(setq y1 (cadr p1))(setq z1 (caddr p1))(setq pp1 (list x1 y1 z1))(repeat (- (/ (length p1) 3) 1);;循环，寻找最后一个控制点(setq p1 (cdddr p1))(setq x2 (car p1))(setq y2 (cadr p1))(setq z2 (caddr p1)))(setq pp2 (list x2 y2 z2))))(t;;如果是其他种类线条(progn(setq arcObj (VLAX-ENAME->VLA-OBJECT ss)) (setq startPnt1 (vla-get-StartPoint arcObj));;获取起点(setq endPnt1 (vla-get-EndPoint arcObj));;获取终点(setq pp1(vlax-safearray->list (vlax-variant-value startPnt1)))(setqpp2 (vlax-safearray->list (vlax-variant-value endPnt1)) ))))(setq x1 (car pp1))(setq y1 (cadr pp1))(setq z1 (caddr pp1))(setq x2 (car pp2))(setq y2 (cadr pp2))(setq z2 (caddr pp2))(setq x (/ (+ x1 x2) 2))(setq y (/ (+ y1 y2) 2))(setq z (/ (+ z1 z2) 2))(setq pt (list x y z));;取得线段两端的中点(setq ang (angle pp1 pp2));;获取角度(if (> (* (/ ang pi) 180) 180)(setq ang (+ ang pi)))(command "text""j""bc"pt""(* (/ ang pi) 180)(strcat "" (rtos dd 2))"")(setq i (1+ i)))(prin1))(prompt "\n <>在图中直接写出长度") (prin1)3、连续打断程序(defun c:br1 ()(command "break" pause "f" pause "@"))4、将CAD文字导入Excel表格(defun c:Q2()(setq ffn (getfiled "写出文件" "" "xls" 1))(princ "\n选取文字...")(setq ss (ssget))(setq ff (open ffn "w"))(setq i 0)(repeat (sslength ss)(setq ssn (ssname ss i))(setq ssdata (entget ssn))(setq sstyp (cdr (assoc 0 ssdata)))(if (or (= sstyp "TEXT") (= sstyp "MTEXT"))(progn(setq txt (cdr (assoc 1 ssdata)))(princ txt ff)(princ "\n" ff)))(setq i (1+ i)))(close ff)(princ (strcat "\n写出文件: " ffn))(prin1))5、删除带颜色图元以下程序在别人的贴子里贴过.为了说明问题,今天再贴一次。
CAD中LISP程序使用方法
CAD中LISP程序使用方法2007-08-06 19:13:32| 分类：学习园地 |字号订阅1. 对于提供附件下载的，把附件下载就可以了2. 对于提供的源LISP代码，把代码拷贝、粘贴到一个文件，自己起个名或者若程序里面注释推荐了文件名，就用推荐的，然后保存成扩展名是LSP的文件即可了。
LISP程序使用方法：加载LISP1. 可以使用APPLOAD命令，然后去找到要加载的LISP文件，加载即可。
2. 可以自己从文件管理器把LISP文件拖动到ACAD的图形窗口，也可以加载3. 在命令行后用，(load "c:\\temp\\xxx.lsp")也可以加载，路径名请输入实际的路径。
另：对于一个LSP程序，(defun 后面的既是命令或者函数，一般程序应该有提示，若没有，标志符c:后面的单词是可以在ACAD下使用的命令，既可以在COMMAND:后面直接输入，即可执行。
CAD快速切换图层LISP代码（方法2）给楼主发一个图层更改的lisp程序，按对应数字键就可以切换到相应的图层。
很方便。
0————01————OBJ2————6t3————SCETR。
8————BORDER如果这些不是你想要的图层，将lisp用笔记本打开，把里边的OBJ，6t等图层名改为你想要的就可以了。
以后要切换图层时，按相应的数字键即可。
(defun YH_chlayer (YH_layer / YH_S)(if (null (tblsearch "LAYER" YH_layer))(entmake (list'(0 . "LAYER")'(100 . "AcDbSymbolTableRecord")'(100 . "AcDbLayerTableRecord")(cons 2 YH_layer) ;图层名称'(70 . 0) ;图层状态'(62 . 7) ;图层颜色'(6 . "bylayer") ;图层线型)))(setq YH_S (cadr (ssgetfirst)))(if YH_S(command "CHPROP" YH_S "" "la" YH_layer "c" "bylayer" "")(setvar "clayer" YH_layer))(princ))(defun c:0 ()(YH_chlayer "0"))(defun c:1 ()(YH_chlayer "OBJ"))(defun c:2 ()(YH_chlayer "6t"))(defun c:3 ()(YH_chlayer "SCETR"))(defun c:4 ()(YH_chlayer "HIDD"))(defun c:5 ()(YH_chlayer "DIM"))(defun c:6 ()(YH_chlayer "DASH"))(defun c:7 ()(YH_chlayer "TEXT"))(defun c:8 ()(YH_chlayer "BORDER"))#Cad到上面一行为址，保存为lsp格式。
