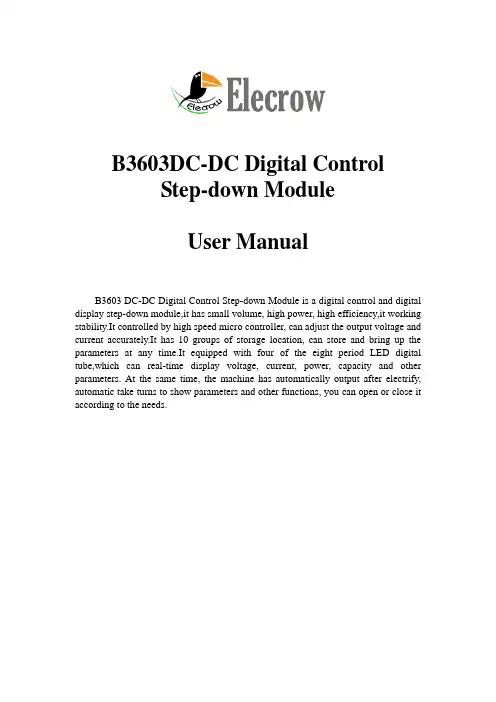

B3603DC-DC Digital Control Step-down Module User M
B3603DC-DC Digital ControlStep-down ModuleUser ManualB3603 DC-DC Digital Control Step-down Module is a digital control and digital display step-down module,it has small volume, high power, high efficiency,it working stability.It controlled by high speed micro controller, can adjust the output voltage and current accurately.It has 10 groups of storage location, can store and bring up the parameters at any time.It equipped with four of the eight period LED digital tube,which can real-time display voltage, current, power, capacity and other parameters. At the same time, the machine has automatically output after electrify, automatic take turns to show parameters and other functions, you can open or close it according to the needs.Main features:Digital display, convenient and easy to useConstant voltage and constant current stateOUT,CV and CC indicator lightAdjust output voltage and current value accuratelyAutomatic/manual switch voltage, current, power, capacity and other parameters displayIt can be set whether automatically output or not after electrifyIt can be set whether take turns to show voltage, current, power and capacity or not after output10 groups of storage location, free storage and bring upOne key to save voltage and current valueTechnical parameters:Input voltage: 6V ~ 40VOutput voltage: 0 ~ 36VOutput current: 0 ~ 3AV oltage regulation/display resolution: 0.01 VCurrent regulation/display resolution: 0.001 AThe minimum display resolution of power: 0.001 WThe minimum display resolution of capacity: 0.001 AHConversion efficiency: up to 92%The output ripple: ≦50 mVWorking temperature: - 40℃~ + 85 ℃Working frequency:150 KHzShort circuit protection:Constant currentInput reverse connect protection:No, if necessary please install diodeConnection mode: TerminalsSize (mm):66 (long)* 50 (wide) * 21 (high)Weight: 43 gUsage:This module has two kinds of usage: one is simple usage,another is fully functional usage.Simple usage:1、Properly connect input,output,and guarantee the input voltage in the range of requirements.It is forbidden to reverse connection, or it will be burn out.2、Setting the voltage and current value,the setting method as follows:After electrify, the LED default display the voltage value,the format of voltage display is "00.00", press "SET" button to switch to the current value,the format of current value display is "0.000". Press the button increase the value ,press the button reduce the value, short press the button can accurate r egulation, long press the button can quickly regulate.If the voltage or current value has been changed, press the "SET" button the LED display the "----"said that the voltage or the current has been saved . If there is no change of voltage or current value, press "SET" key to switch to the current or voltage value.3、After finish setting, press the "OK" button to output.4、In the output state, press the button can increase the output voltage value and press the button can reduce the output voltage value when the LED display the voltage value,press the button can increase the current value and press the button can reduce the current value when the LED display the current value,short press the button can accurate r egulation, long press the button can quickly regulate. In the output state, short press "OK" button can switch display parameters such as voltage, current, power, capacity, long press for 3 seconds will automatically take turns to show, long press"OK"button again can cancel the take turns to show.In the outputstate,the and button is invalid5、In the output state, press the "SET" button to close the output.Fully functional usage:This module has three special functions, the default is closed, if necessary, you can open them.Function 0:After electricity,it will automatically output.Function 1: Save and bring up the parameters, display the power and capacity. Function 2: Automatic take turns to show parameters after outputOpen/close method:Long press the"OK" button, then to the module electricity, the LED will take turns to show in "--0-"~"--2-" , when display "--0-" ,release the"OK" button will open or close function 0, when display "--1-" ,release the"OK" button will open or closefunction 1, when display "--2-" ,release the"OK" button will open or close function 2. After releasing the "OK" button the digital tube display "--y-" said already open the current function, the display "--n-" said it already close the current function.1、Enable the function 0 it will automatically output after electricity.2、Enable the function 1, in the condition of no output, press "SET" button will take turns to show among voltage "00.00", current "0.000", bring up the parameters "Lo.- 0" and save the parameters "SA.- 0". Below illustrate this function:For example:we need store10V, 1.5 A in the storage location 1 and bring up the parameter from storage location 1.① Press "SET" button to switch to the voltage value, setting voltage value of10.00 V, press "SET" button to save the voltage value.② Press "SET" button to switch to the current value, setting current value of1.500 A, press "SET" button to save the current value.③ Press "SET" button to switch to the "SA.-0", press the or button to select the storage location, here need to adjust to "SA.-1", press "OK" button to store the "10 V, 1.5 A" in the storage location 1.④ Press "SET" button to switch to "Lo.-0", press the or button to select the storage location which the parameter need to bring up, here need to adjust to "Lo.-1", then press the "OK" button to bring up the parameters of storage location 1.⑤ This module has total of 0 ~ 9 common 10 groups of storage location, the storage location can be set arbitrary voltage and current value.3、Enable the function 2,after output,it will automatically take turns to display the parameters such as voltage, current, power and capacity.Note:1、Properly connect input and output, it is forbidden to reverse connection, or it will be burn out.2、This module is a step-down module, input voltage need over output voltage more than 1.5 V.3、Output under 2A natural cooling, output above 2A shall strengthen heat dissipation. Display:00.00: voltage value ,00.00 ~ 36.00 V0.000: current value, 0.000 ~ 3.000 AP. 000, P0.00, P00.0, P000. : power value, unit W, the position of the decimal point as the power to change the position. For example: P. 123 said 0.123 W, P1.23 said 1.23 W, P12.3 said 12.3 W, P102. said 102 WC. 000, C0.00, C00.0 and C000. : capacity value, unit AH, the position of the decimal point as the volume change the position. For example: C.123 said 0.123AH, C1.23 said 1.23 AH, C12.3 said 12.3 AH, C123. said 123 AH--0-、--1-、--2-:special function0, 1, 2,--y-: open special functions--y-: close the special functionSA. - * (*:0 ~ 9) : save the parameters to the store location 0 ~ 9Lo. - * (* :0 ~ 9): bring up the parameters from storage location 0 ~ 9 ----:s ave the parameters。
DC中文简易说明书
SET键确认保存并进入下一参数设置。
三级菜单
生波动。当11=0时，微分关闭
一、
技术指标:
1、基本误差：土
%±1个字
2、冷端补偿误差
:<±C
采样周期:秒
3、控制周期:继电器输出时的控制周期为2~120秒可调，其它为2秒.o|
4、继电器触点输出：AC250V/5（阻性负载）或AC250V/（感性负载）
5、外型尺寸（mm）:96X96X95
幵孔尺寸（mrj）：92X92
6、电源：AC85V〜242V（幵关电源）
AL3:第三组报警指示灯（红色）
Man输出百分比手动调整时，MAN丁会亮（绿色）
pRO程序执行中（Program）（绿色）只适用于PTB型号
SET设定键（写入设定值或切换式）
A/M:自动/手动切换键
自动：输出百分比由控制器内部演算决定 手动：输出百分比由手动调整OUTL（范围0〜100）
移位键（移动设定位数）
,50/60HZ，或其它特殊定货
7、工作环境：温度0〜C，相对湿度不大于85%的无腐蚀性气体及无强电磁干 扰的场所
三、 面板说明：pv：测量值显示窗
SP:设定值显示窗
0UT1第一组输出指示灯（绿色0UT2第二组输出指示灯（绿色AT：自动演算指示灯（绿色）—
AL1:第一组报警指示灯（红色）
AL2:第二组报警指示灯（红色）
▼、▲键调整参数值，设置完成后按SET键保存退出。—
3.2二级菜单
参数称
参数名
设置范
说明
出厂 值
号
称
围
AT
自动演
Y ES/NL

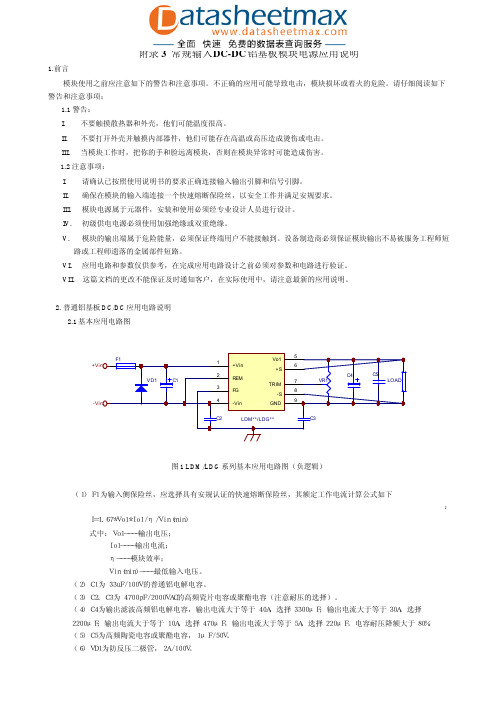

常规输入DC-DC铝基板模块电源应用说明
附录3 常规输入DC-DC铝基板模块电源应用说明1.前言 模块使用之前应注意如下的警告和注意事项。
不正确的应用可能导致电击，模块损坏或着火的危险。
请仔细阅读如下警告和注意事项：1.1警告：I. 不要触摸散热器和外壳，他们可能温度很高。
II. 不要打开外壳并触摸内部器件，他们可能存在高温或高压造成烫伤或电击。
III. 当模块工作时，把你的手和脸远离模块，否则在模块异常时可能造成伤害。
1.2注意事项：I. 请确认已按照使用说明书的要求正确连接输入输出引脚和信号引脚。
II. 确保在模块的输入端连接一个快速熔断保险丝，以安全工作并满足安规要求。
III. 模块电源属于元器件，安装和使用必须经专业设计人员进行设计。
IV. 初级供电电源必须使用加强绝缘或双重绝缘。
V. 模块的输出端属于危险能量，必须保证终端用户不能接触到。
设备制造商必须保证模块输出不易被服务工程师短路或工程师遗落的金属部件短路。
VI. 应用电路和参数仅供参考，在完成应用电路设计之前必须对参数和电路进行验证。
VII. 这篇文档的更改不能保证及时通知客户，在实际使用中，请注意最新的应用说明。
2. 普通铝基板DC/DC应用电路说明 2.1基本应用电路图图1 LDM/LDG系列基本应用电路图（负逻辑）（１）Ｆ１为输入侧保险丝，应选择具有安规认证的快速熔断保险丝，其额定工作电流计算公式如下（警告，保险丝取得太大则不起保护，并容易引起由于一个电源输入短路使全部电源供电中断的事故；太小则会引起误熔断。
）： Ｉ＝１．６７＊Ｖｏ１＊Ｉｏ１／η／Ｖｉｎ（ｍｉｎ） 式中：Ｖｏ１－－－－输出电压； Ｉｏ１－－－－输出电流； η－－－－模块效率； Ｖｉｎ（ｍｉｎ）－－－－最低输入电压。
（２）Ｃ１为３３ｕＦ／１００Ｖ的普通铝电解电容。
（３）Ｃ２、Ｃ３为４７００ｐＦ／２０００ＶＡＣ的高频瓷片电容或聚酯电容（注意耐压的选择）。
（４）Ｃ４为输出滤波高频铝电解电容，输出电流大于等于４０Ａ，选择３３００μＦ；输出电流大于等于３０Ａ，选择２２００μＦ；输出电流大于等于１０Ａ，选择４７０μＦ，输出电流大于等于５Ａ，选择２２０μＦ。
DC-DC模块电源应用手册
DC/DC 模块电源 应用手册广州德励电子科技有限公司二零零七年三月二十二日目 录一、基本术语解释 (1)输入电压范围（Input Voltage Range） (1)负载电压调整率（Load Voltage Regulation） (1)输入（线性）电压调整率（Line Voltage Regulation） (1)输出电压精度（Ouput Voltage Accuracy） (1)输入和输出波纹电压（Input and Output Ripple） (1)输入与输出隔离电压（Input to Output Isolation） (1)绝缘阻抗（Insulation Resistance） (1)全负载效率（Efficiency at Full Load） (1)温度漂移(Temperature Drift) (1)温升（Temperature above Ambient） (1)开关频率（Switching Frequency） (1)空载功耗（No Load Power consumption） (1)隔离电容（Isolation Capacitance） (1)平均无故障时间（Mean Time Between Failure）[MTBF] (1)躁声(Noise) (1)工作温度范围（Operating temperature range） (2)二、电源的设计及选用 (3)确定电源规格 (3)系统配电设计 (4)三、电源的测试 (7)开尔文四端测试法 (7)模块的性能 (7)四、电源的应用 (11)隔离（Isolation） (11)串联使用（Connecting DC/DC Converters in Series） (11)并联使用（Connecting DC/DC Converters in Parallel） (11)模块并联使用的推荐值 (12)滤波（Filtering） (12)输出滤波计算 (12)限制涌浪电流（Limiting Inrush Current） (13)容性负载 (13)隔离电容和漏电流 (13)过载保护 (14)输入欠压保护 (15)无负载过压上锁 (15)输入短路保护 (15)EIA-232接口 (16)隔离数据采集系统 (16)远距离传输 (16)减小噪声 (17)电磁兼容 (17)一、 基本术语解释输入电压范围（Input Voltage Range）指产品维持正常工作性能所能容忍的输入电压波动范围。
DC-DC降压模块 KIS-3R33S
DC-DC降压模块KIS-3R33S 可调电压KIS-3R33S DC-DC电源模块内部主要由MP2307DN单片同步降压稳压器构成。
该器件集成可调MOSFET，能够提供3A 的持续负载电流超过了广泛的输入电压4.75V至23VMP2307DN电流模式控制提供快速瞬态响应和逐周期电流限制。
一种可调软启动可防止浪涌电流开通和关断模式时，MP2307DN电源电流低于1μA 。
该电源模块用途广泛，能用于LED，车载MP3、MP4等领域。
尺寸21mm*22mm*7mm。
用法简单，有电压输入和电压输出，外接可调电阻还可做成可调电源。
再啰嗦一下：可用于：太阳板、LED、手机充电；效率95% 当作稳压器使用、电路稍作改动可作为直流可调压稳压器用!改制方法如下：以下数据为官方数据：每只脚在背部均有标示功能，收到货就可以使用。
输入电压：官方数据为4.75v~23v。
有客人测试过最高为30v，江湖传闻只做参考。
输出电流：3A，峰值4A。
输出电压：0.925~20v，实验证明，输出最低可以达到0v，也就是0~20v输出，这个可能不是江湖传闻。
我看过许多实验报告。
效率：96%有软启动过程。
开关频率340k。
体积：21mm*22mm*7mm内阻：100mΩ在输出端Vout与地Gnd之间，接可调电阻50k，输出到Vadj 这只脚，构成可调电源，输出范围为0.925v~20v之间。
可以大量并联，提高输出能力。
拆件前的电路板上，就是两只并联，输出3.3v 6A厚度只有7.5mm用法简单，有电压输入和电压输出，外接可调电阻还可做成可调电源。
可以要自己改过可改成0.98V-20V可调恒流电源一、降压模式线路接法：Vin 与 GND 输入，Vout 与 GND 输出（脚的定义见上图）输出电压 = 0.925V * (R3 + R2) / R2；默认输出3.3V ~= 0.925V * (51K//51K + 10K) / 10K改变R3就可以调节输出电压第二种负压模式：实测输出19.5V1A线路接法：Vin 与 Vout 输入，Vin 与 GND 输出，Vadj 接Vin，去除R3 （脚的定义见图）例如： R1换成 200K，Vin 与 Vout 输入 5V，那么Vin 与GND 就输出 19.5V输出电压 = 0.925V * (R1 + R2) / R2； R1设为 200K，输出19.5V ~= 0.925V * (200K + 10K) / 10K改变R1就可以调节输出电压第三种负压模式 - 隔离电源（第一种负压模式变形）：使用高频磁环，也就是传说中的铁硅铝磁环 77120A7。
AC DC电源模块类应用指南说明书
AC/DC电源（模块类）应用指南--2022版目录1.前言 (3)1.1警告 (3)1.2注意事项 (3)2.电源模块选型指导 (4)3.AC-DC模块电源应用说明 (6)3.1基本测试电路连接 (6)3.2产品典型应用电路 (6)3.3EMC推荐电路 (7)3.4多路输出的负载要求 (7)4.基本性能测试 (8)4.1输出电压精度 (8)4.2线性电压调节率 (8)4.3负载调节率 (8)4.4转换效率 (9)4.5纹波噪声 (9)4.6隔离及绝缘特性 (11)5.常见疑问 (11)5.1接地----输入和输出 (11)5.2浪涌电流 (12)5.3漏电流 (12)5.4交直流输入 (12)5.5I类、II类设备和保护地FG的关系 (12)5.6输入瞬变 (12)5.7输出空载使用 (12)5.8工作温度 (13)5.9产品外壳电压丝印标示 (13)5.10防辐射干扰 (13)5.11EMC外围推荐电路 (13)5.12电源时序要求 (13)6.AC-DC模块电源应用安全设计 (14)6.1标志要求 (14)6.2材料要求 (14)6.3电气间隙和爬电距离 (14)6.4输入端电容 (14)7.电源模块应用的热设计 (14)7.1采用自然风冷 (14)7.2加强制性散热器 (15)1.前言在使用模块电源前，需特别注意以下警告及注意事项，不正确的安装操作、使用产品可能会发生电击、模块损坏或者着火等危险情况，请仔细阅读并确认相关警告及注意事项。
1.1警告（1）模块电源需轻拿轻放，避免撞击或跌落造成产品损坏；（2）禁止打开产品外壳或触摸电源内部器件，以避免产品遭受静电、器件应力等易损坏的情况；（3）禁止掰弯产品的引脚，以避免内部PCB断裂造成电气连接断路，产品工作异常；（4）当模块电源工作时，不要靠近模块或触摸散热器和外壳，避免在模块异常时可能对身体造成伤害。
1.2注意事项（1）在产品上电之前，请确认已按照产品技术手册中的“设计参考”和“外观尺寸图”，正确连接产品的输入、输出和信号引脚，以及必要的外围器件；（2）AC-DC电源模块属于一次电源，在应用时需确认符合相应的安全规范要求；（3）使用时为了满足安规要求，需在输入端L线(火线)上接入保险丝，保险丝选型请参考对应技术手册；（4）模块电源的输入端有高压危险，必须保证终端用户无法接触到，设备制造商还必须保证模块输入、输出不易被操作人员短路或被遗落的金属部件短路；（5）相关应用电路和参数仅供参考，在完成应用电路设计之前必须对参数和电路进行验证；（6）如模块电源（或者使用AC-DC电源模块的设备）存储或者不工作超过半年以上，建议客户每半年空载老化1小时，以保证产品的使用寿命和应用可靠性；（7）常规AC-DC产品不适合长期工作在高温环境下，如必须这样使用，建议每一、两年定期更换新品。
REM3 DC-DC 转换器产品说明书
3 Watt 2:1 & 4:1DIP24Single and DualOutputREM3DC/DC Converter2MOPP250VACE314885IEC/EN60601-1 certifiedCSA/CAN C22.2 60601-01 certified ANSI/AAMI ES60601-1 certified EN55011 certifiedDescriptionThe REM3 series of medical grade regulated DC/DC converters features reinforced 5kVAC/1 minute isolation with low 2µA leakage and are 60601-1 3rd Ed. certified for 250VAC continuous working. The compact DIP24 package offers tightly regulated single and dual outputs, even under no-load condi-tions. The outputs are short circuit and overload protected. The converters are available in two different pinning options and optionally with an external control pin for standby consumption as low as 12.5mW. The converters are fully certified to CB, IEC/EN and ANSI/AAMI standards and carry the UL mark.“CTRL Option (4) “Pinning (3)Input Type (2)Output Power Input Voltage (1)Output Voltage S ingle or D ualModel NumberingREM 3- __ __ __ __ / __ __Notes: Note1: for 4:1 Input Voltage Type add “W”, see Note 2.2:1 nom. Vin 4:1 “W” nom. Vin xx= 4.5-9 Vin = “05” xx= 9-36Vin = “24” xx= 9-18Vin = “12” xx= 18-75Vin = “48” xx= 18-36Vin = “24” xx= 36-75Vin = “48”Note2: Blank for Standard 2:1 Input Voltage Range; …W“ suffix for 4:1 Input Voltage RangeNote3: …A“ suffix for A pinning; …C“ suffix for C pinning, for more details refer to Package Style and PinningNote4: …CTRL“ suffix for control pin option, for A pinning only, for C pinning not availableExamples:REM3-0512D/A = 2:1 Input, 4.5-9Vin, ±12Vout, pinout …A“, without control pin REM3-1215S/C= 2:1 Input, 9-18Vin, 15Vout, pinout …C“, without control pin REM3-4815SW/A/CTRL = 4:1 Input, 36-75Vin, 15Vout, pinout …A“ with control pin REM3-243.3SW/C=4:1 Input,9-36Vin,3.3Vout,pinout …C“,without control pinSelection GuidePart nom. Input Output OutputEfficiency Max. CapacitiveNumber Voltage (1)Voltage Current typ. Load [VDC] [VDC] [mA] [%] [µF]REM3-xx3.3S/ (3,4) 5 / 12 / 24 / 48 3.3 1000 81 /82 /82 / 811050 REM3-xx05S/ (3,4) 5 / 12 / 24 / 48 5 600 84.5 / 84.5 / 84.5 / 84 780REM3-xx12S/ (3,4) 5 / 12 / 24 / 48 12 250 85.5 / 87 / 87 / 87 130REM3-xx15S/ (3,4) 5 / 12 / 24 / 48 15 200 87.5 / 87 / 87 / 86.5 100REM3-xx24S/ (3,4) 5 / 12 / 24 / 48 24 125 85.5 / 87 / 87 / 86.5 39REM3-xx05D/ (3,4) 5 / 12 / 24 / 48 ±5 ±300 83 / 83.5 / 83 / 83 ±430REM3-xx12D/ (3,4) 5 / 12 / 24 / 48 ±12 ±125 86 / 87.5 / 86 / 86 ±75REM3-xx15D/ (3,4)5 / 12 / 24 / 48 ±15 ±100 86 / 86.5 / 86 / 86±56 REM3-xx3.3SW/ (3,4) 24 / 48 3.3 1000 82 /81 1050REM3-xx05SW/ (3,4) 24 / 48 5 600 84.5 / 84 750REM3-xx12SW/ (3,4) 24 / 48 12 250 87 / 87 130REM3-xx15SW/ (3,4) 24 / 48 15 200 87 / 86.5 100REM3-xx24SW/ (3,4) 24 / 48 24 125 87 / 86.5 39REM3-xx05DW/ (3,4) 24 / 48 ±5 ±300 83 / 83 ±430REM3-xx12DW/ (3,4) 24 / 48 ±12 ±125 87 / 86 ±75REM3-xx15DW/ (3,4)24 / 48±15±10086 / 86±56Specifications (measured @ Ta= 25°C, nominal input voltage, full load and after warm-up)BASIC CHARACTERISTICSParameterConditionMin.Typ.Max.Absolute Maximum Input Voltage ( 3sec max.)2:1 input5Vin nom.12Vin nom.24Vin nom.48Vin nom.16VDC 25VDC 50VDC 100VDC 4:1 input24Vin nom.48Vin nom.50VDC 100VDC Under Voltage Lockout2:1 input5Vin nom.12Vin nom.24Vin nom.48Vin nom.4VDC 8VDC 16VDC 33VDC 4.5VDC 9VDC 18VDC 36VDC 4:1 input24Vin nom.48Vin nom.8VDC 16VDC9VDC 18VDCStart-up Time constant resistive load, Power up or Remote ON/OFF30msRemote ON/OFF(referenced to -Vin Pin)DC-DC ON DC-DC OFFOpen or 0-1.2VDC2.2-12VDCCurrent of CTRL Pin -0.5mA1mARemote OFF Input Current 2.5mAInternal Operating Frequency 135kHz150kHz 165kHzOutput Ripple and Noise (20MHz BW limited)10µF/25V X7R MLCC for 3.3, 5Vout 10µF/25V X7R MLCC for 12, 15Vout 4.7µF/50V X7R MLCC for 24Vout30mVp-p 40mVp-p 50mVp-pREGULATIONSParameterConditionTypeValueOutput Accuracy ±1.0%Line Regulation low line to high line Single Dual ±0.2%±0.5%Load Regulation no load to full load Single Dual 0.2%1.0%Cross Regulation asymmetrical load 25% / Full Loadonly Dual Output±5.0%Transient Response25% load step change250µs102030405060708090100Load [%]E f f i c i e n c y [%]5040302010060708090100Efficiency vs. LoadSpecifications (measured @ Ta= 25°C, nominal input voltage, full load and after warm-up) Notes:Note5: This Power module is not internally fused. A input line fuse must be always used.Recomended Fuse:2:1 Input Voltage Fuse (slow blow) 5V T1.25A12V T0.63A24V T0.315A48V T0.315A 4:1 Input Voltage Fuse (slow blow) 24V T0.63A48V T0.315APROTECTIONSParameter Condition Type Value Short Circuit Protection (SCP)continuous, auto-recovery Over Load Protection (OLP)% of Iout rated Hiccup mode, 150% typ.Output Over Voltage Protection (OVP) 3.3Vout5VoutSingle 12Vout15Vout24Vout3.7VDC min. / 5VDC max.5.6VDC min. / 7VDC max.13.5VDC min. / 16VDC max.18.3VDC min. / 22VDC max.29.1VDC min. / 34.5VDC max. 5VoutDual 12Vout15Vout5.6VDC min. / 7VDC max.13.5VDC min. / 18.2VDC max.17VDC min. / 22VDC max.Isolation Voltage I/P to O/Pworking voltage5kVAC / 1 minute 250VAC / continuousIsolation Capacitance12pF typ. / 17pF max. Leakage Current240VAC, 60Hz2µA Insulation Grade reinforced Means of Protection2MOPP Medical Device Classification built-in power supply Internal Clearance and Creepage I/P to O/P≥8mmExternal Clearance and Creepage I/P to O/P “C” Pinning“A” Pinning>19.72mm>14.64mmENVIRONMENTALParameter Condition ValueMaximum Case Temperature Range Maximum Ambient Temperature Range-40°C to +105°C see “Thermal Calculation” belowTemperature Coefficient0.02%/K typ. Thermal Impedance natural convection 0.1m/s18K/W Operating Altitude5000m Operating Humidity non-condensing5% - 95% RH max. Pollution Degree PD2 MTBF according to MIL-HDBK-217F, G.B.+25°C6444 x 103 hours Thermal Shock according to MIL-STD-810F standard Vibration according to MIL-STD-810F standardcontinued on next pageSpecifications (measured @ Ta= 25°C, nominal input voltage, full load and after warm-up)SAFETY AND CERTIFICATIONSCertificate Type (Safety)Report / File NumberStandard Medical Electric Equipment, General Requirements for Safety and Essential Perfor-manceE314885-A6-CB-1CAN/CSA-C22.2 No. 60601-1:08ANSI/AAMI ES60601-1:2005Medical Electric Equipment, General Requirements for Safety and Essential Perfor-mance (CB Scheme)E314885-A6-CB-1IEC60601-1:2005 + C2:2007 3rd EditionEN60601-1:2006EAC RU-AT.49.09571TP TC 004/2011 TP TC 004/2011RoHS2+RoHS-2011/65/EU + AM-2015/863continued on next pageThermal CalculationP diss =P out set- P out seth setP diss =1.5- 1.5 =0.25W0.856Efficiency Factor vs. LoadEfficiency Crosstable (%) @ full LoadLoad [%]E f f i c i e n c yF a c t o r [ ]10020304050607080901000.00.20.40.60.81.21.0Input Voltage 512244824W 48W O u t p u t V o l t a g e3.3S 81828281828105S 84.584.584.58484.58412S 85.5878787878715S 87.5878786.58786.524S 85.5878786.58786.505D 8383.58383838312D 8687.58686878615D8686.586868686T amb =T case - T overh set =87.5 x 0.9885.75%T over =R th x P diss T amb =105 - 4.5 =+100.5°CT over =18 x 0.25 = +4.5°C Practical Example:T case= 105°C P out nom. = 3WP out set = 3 x 0.5 = 1.5W R th= 18K/Wh full load= 87.5% (Crosstable) f h= 0.98 (Graph)h set =h full load x f h T case = baseplate temperature [°C]T over = temperature losses [°C]T amb = ambient temperature [°C]P out nom. = nom. output power [W]P out set = output power set [W]P diss = internal losses [W]R th= thermal impedance [K/W]h set = efficiency set [%]h full load= efficiency @ full load [%]f h= efficiency factor[ ]Take the REM3-1212D with 12V Input Voltage, 50% load.What is the maximum ambient operating temperature?Specifications (measured @ Ta= 25°C, nominal input voltage, full load and after warm-up)DIMENSION and PHYSICAL CHARACTERISTICSParameter Type ValueMaterialcasePCBpottingnon-conductive black plastic (UL94-V2)FR4 (UL94-V1)silicone (UL94-V0)Dimension (LxWxH)31.80 x 20.30 x 10.40mm Weight14gcontinued on next pageSpecifications (measured @ Ta= 25°C, nominal input voltage, full load and after warm-up)Pin ConnectionsSingle DualSpecifications (measured @ Ta= 25°C, nominal input voltage, full load and after warm-up)The product information and specifications may be subject to changes even without prior written notice.The product has been designed for various applications; its suitability lies in the responsibility of each customer. The products are not authorized for use in safety-critical applications without RECOM’s explicit written consent. A safety-critical application is an application where a failure may reasonably be expected to endanger or cause loss of life, inflict bodily harm or damage property. The applicant shall indemnify and hold harmless RECOM, its affiliated companies and its representatives against any damage claims in connection with the unauthorizeduse of RECOM products in such safety-critical applications.。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
B3603DC-DC 数控降压模块
用
户
手
册
郑州明禾电子科技有限公司
B3603DC-DC数控降压模块是一款全数字显示的数控降压模块，体积小，功率大，效率高，工作稳定。
加入了高速微控制器的精密测量计算，可以精确调节输出电压电流大小，内置10组存储位置，可随时存储、调出参数，方便使用。
配有四位八段LED数码管，可以实时显示电压、电流、功率、容量等参数。
同时，本机具有上电后自动输出，自动轮显参数等功能，可根据使用的需要开启或者关闭。
主要特点：
全数字显示，方便易用
恒压，恒流状态
输出OUT，恒压CV，恒流CC指示灯
数控精确调节输出电压电流值
自动/手动切换显示电压、电流、功率、容量等参数
可设定上电后是否自动输出
可设定输出后是否轮显电压、电流、功率、容量等参数
10组存储位置，可自由存储、调出
一键保存当前设定的电压电流值
技术参数：
输入电压：6V~40V
输出电压：0~36V
输出电流：0~3A
电压调节/显示分辨率：0.01V
电流调节/显示分辨率：0.001A
功率显示最小分辨率：0.001W
容量显示最小分辨率：0.001AH
转换效率：最高92%
输出纹波：≤50mV
工作温度：﹣40℃~+85℃
工作频率：150KHz
短路保护：恒流
输入反接保护：无，如有需要请加装二极管
接线方式：接线端子
产品尺寸（mm）：66(长)*50（宽）*21（高）
重量：43g
使用方法：
本模块有两种工作模式：简约模式和全功能模式，出厂默认是简约模式，如果需要使用全功能模式，可自行开启。
简约模式使用方法：
1、正确连接输入、输出，保证输入电压在要求的范围内，严禁反接。
2、设定所需的电压电流值，设定电压电流值的方法如下：
上电后默认显示的是电压设定值，电压值显示的格式是“00.00”，按下“SET”按键可以切换到电流设定值，电流值显示的格式是“0.000”，按下按键增大设定值，按下按键减小设定值，短按精确设定，长按可以快速设定。
电压或者电流值发生变化后，按下“SET”键后会显示“----”，表示保存了当前设定的电压或者电流值。
若没有改变电压或者电流值，按“SET”键会切换到电流或者电压值。
3、设定完成后按下“OK”按键就可以输出了。
4、输出状态下，在显示电压值时按下按键可以增大输出电压，按下按键可以减小输出电压，在显示电流值时按下按键可以增大电流设定值，按下按键可以减小电流设定值，短按精确设定，长按可以快速设定。
输出状态下短按“OK”按键可以切换显示电压、电流、功率、容量等参数，长按3秒可以自动轮显，再次长按可以取消轮显。
在轮显状态下，按按键无效。
5、输出状态下，按下“SET”按键可以关闭输出。
全功能模式使用方法：
本模块有三项特殊功能，默认都处于关闭状态，如有需要，可自行开启。
功能0：上电后自动输出
功能1：保存与调出设定的参数，显示功率和容量
功能2：输出后自动轮显参数
开启/关闭方法：
长按“OK”按键，然后给模块通电，数码管会在“--0-”~“--2-”之间循环显示，在显示“--0-”时松开“OK”按键会开启或者关闭功能0，在显示“--1-”时松开“OK”按键会开启或者关闭功能1，在显示“--2-”时松开“OK”按键会开启或者关闭功能2。
若松开“OK”按键后数码管显示“--y-”表示已开启当前的功能，显示“--n-”表示已关闭当前的功能。
1、启用功能0后上电之后会自动输出。
2、启用功能1之后，在未输出状态下，按下“SET”按键可以在电压“00.00”，电流“0.000”，调出参数“Lo.-0”和保存参数“SA.-0”之间循环切换。
下面举例说明该功能：
例如需要把10V，1.5A保存在存储位置1并且调出存储位置1的参数。
1按下“SET”按键切换到电压值，设定电压值为10.00V，按下“SET”按键保存当前设定的电压值。
2按下“SET”按键切换到电流值，设定电流值调为1.500A，按下“SET”按键保存当前的电流值。
3按下“SET”按键切换到“SA.-0”，按按键选择存储位置，这里需要调整到“SA.-1”，按下“OK”按键就可以把设定的“10V，1.5A”保存在存储位置1。
4按“SET”按键调整到“Lo.-0”，按按键选择需要调出的存储位置的参数，这里需要调整到“Lo.-1”，按下“OK”按键就可以调出存储位置1的参数。
5本机共有0~9共10组存储位置，每组存储位置都可以任意设定电压电流值，各个存储位置互相独立，互不影响。
3、启用功能2后在输出时会自动轮显电压、电流、功率、容量等参数。
注意事项：
1、正确连接输入输出，严禁反接，反接会烧坏模块。
2、本模块是降压模块，输入要高于输出1.5V以上。
3、输出2A以下自然散热即可，输出2A以上须加强散热。
显示说明：
00.00：电压值，单位V，00.00~36.00V
0.000：电流值，单位A,0.000~3.000A
P.000、P0.00、P00.0、P000.：功率值，单位W，小数点的位置随着功率的变化而改变位置。
例如：P.123表示0.123W,P1.23表示1.23W，P12.3表示12.3W, P102.表示102W
C.000、C0.00、C00.0、C000.：容量值，单位AH，小数点的位置随着容量的变化而改变位置。
例如：C.123表示0.123AH，C1.23表示1.23AH，C12.3表示12.3AH、C123.表示123AH
--0-、--1-、--2-：特殊功能0、1、2
--y-：开启特殊功能
--n-：关闭特殊功能
SA.-*（*表示0~9）：保存参数到存储位置0~9中的某个存储位置
Lo.-*（*表示0~9）：调出存储位置0~9中的某一组参数
----：成功保存电压或者电流值。
