二维键盘说明书(中文)
雷蛇猎魂光蛛 V2键盘说明书
.高级用户指南如果速度可以为你带来压倒性优势，请即刻以极快的操控响应武装自己。
隆重推出 Razer Huntsman V2 雷蛇猎魂光蛛 V2。
这款光学游戏键盘具有接近于零的输入延迟，并提供其他高端功能，完全是你的理想装备。
目录1. 内含物品 (3)2. 要求 (4)3. 简要介绍 (4)4. 技术规格 (5)5. 设置 RAZER HUNTSMAN V2 (6)6. 使用你的 RAZER HUNTSMAN V2 (7)7. 通过 RAZER SYNAPSE 雷云配置 HUNTSMAN V2 (9)8. 安全与维护 (20)9. 法律声明 (22)1. 内含物品▪Razer Huntsman V2飞敏宏录制按键游戏模式按键背光控制按键睡眠模式按键媒体控制按键多功能数字旋钮指示灯人体工程学设计腕托▪重要产品信息指南2. 要求产品要求▪具有一个可用 USB Type A 端口的电脑RAZER SYNAPSE 雷云要求▪Windows® 10 64 位（或更高版本）▪互联网连接，用于软件安装3. 简要介绍你现在拥有了一台非常棒的设备，并且附带两年的有限保修。
即刻通过在线注册，充分发挥设备的所有功能，并获得 Razer 雷蛇的独家福利。
产品的序列号位于此处。
如果遇到问题，请通过向 Razer 雷蛇支持团队提出问题。
4. 技术规格技术规格▪™雷蛇光轴▪约亿次的按键敲击寿命▪™雷蛇技术，可达到真正的轮询率▪个多媒体按键及多功能数字旋钮▪具有约万种可自定义颜色选项的™雷蛇幻彩灯光效果▪雷蛇双色注塑键帽▪舒适的人造皮革腕托▪混合板载内存—最多可保存个按键绑定配置文件▪带有飞敏宏录制功能的完全可编程按键▪键无冲▪游戏模式选项▪编织纤维线缆▪铝制磨砂顶部面板5. 设置 RAZER HUNTSMAN V21.将 Razer 雷蛇设备连接到电脑的 USB 端口。
2.将腕托放置在键盘下方并滑入。
3.使用 Razer Synapse 雷云应用程序自定义键盘的灯光效果，或甚至根据不同的游戏风格，打造不同的配置文件。
手里键Saizo 80%静电容V2机械键盘说明书
手里键Saizo 80%静电容V2机械键盘说明书Shurikey Saizo 80% EC V2 Mechanical Keyboard Manual布局图 Layout0102左边旋钮控制背光：轻按旋钮开启或关闭背光。
顺时针旋转增强亮度，逆时针旋转降低亮度。
The left knob is to adjust the backlight. Press the knob to switch on/off the backlight. Turn clockwise to increase the brightness and counterclockwise to decrease.右边旋钮控制音量：轻按旋钮开启或关闭声音。
顺时针旋转增大音量，逆时针旋转减小音量。
The right knob is the volume control. Press the knob to switch on/off media sound. Turn clockwise for volume up and counterclockwise for volume down.03指示灯说明 Indicator Lights左侧灯为 Caps Lock 指示灯：大写时亮白灯，小写时灯熄灭。
The left one is the Caps Lock indicator. It lights up in white for uppercase input mode; lights off for lowercase input mode.右侧灯为 Scroll Lock 指示灯： 锁定时亮白灯，不锁定时灯熄灭。
The right one is the Scroll Lock indicator. It lights up in white when Scroll Lock is locked while lights off when unlock.04蓝牙开机 Turn on the Bluetooth2 秒内轻敲3 下空格键，键盘开机。
kb2046二维键盘使用说明
四维键盘使用说明书1概述 (2)2功能特点 (2)3系统连接 (2)4常规操作 (3)4.1普通云台控制 (3)4.1.1选择摄像机 (3)4.1.2云台方向操作 (3)4.1.3云台自动开启操作 (3)4.1.4云台自动停止操作 (3)4.1.5镜头操作 (3)4.2高速球操作 (3)4.2.1预置位操作 (3)4.3矩阵控制 (4)4.3.1选择监视器（矩阵输出通道） (4)4.3.2图像手动切换 (4)4.3.3图像自动切换 (4)4.3.4分组手动切换 (4)4.3.5分组自动切换 (4)5键盘设置 (4)5.1菜单设置操作说明 (4)5.2 云台设置 (5)5.2.1云台协议 (5)5.2.2波特率设置 (5)5.2.3控制权限 (5)5.3 矩阵设置 (5)5.3.1矩阵协议（暂支持SYYT矩阵协议-沈阳安防协议）。
(5)5.3.2波特率 (5)5.3.3通道数量 (5)5.3.4摄像机数 (6)5.3.5矩阵台数 (6)5.3.6矩阵机号 (6)5.3.7切换时间 (6)5.3.8矩阵输出权限 (6)5.3.9矩阵输入范围 (7)5.3.10矩阵输入权限 (7)5.3.11设置矩阵分组 (7)5.4 DVR设置（暂不支持控制DVR） (8)5.5系统设置 (8)5.5.1屏幕设置 (8)5.5.2密码设置 (8)5.5.3键盘类别 (8)5.5.4键盘编号 (8)5.5.5出厂设置 (8)6技术参数 (8)1概述欢迎使用我公司控制键盘产品。
本键盘是监控系统专用设备，主要实现矩阵、云台（高速球）、DVR等设备的控制。
此键盘配置一个专业四维摇杆，仅通过摇杆就能够完成云台（高速球）旋转、云台自动旋转、摄像机镜头焦距控制，使用非常方便；采用256*64点阵的高档中文液晶显示屏作操作及设置显示；半双工的RS485接口兼容性更好。
2功能特点□精美外观设计，超大中文液晶屏；□专业四维摇杆，实现高速球；□控制云台、高速球、矩阵等；□支持多种云台控制协议：SYYT、PELCO D、PELCO P等；□支持多种通信波特率：2400bps、4800bps、9600bps、19200bps；□RS485半双工通信接口，兼容性更好；3系统连接4常规操作4.1普通云台控制4.1.1选择摄像机方法1：按数字键+“CAM”键；方法2：按“上翻”、“下翻”键；4.1.2云台方向操作操作摇杆向左、向右、向上、向下，对应实现控制当前云台向左、向右、向上、向下动作；4.1.3云台自动开启操作方法1：按下摇杆顶面的圆形按键，当前云台自动旋转，同时液晶屏提示“云台自动开启”；方法2：按“云台自动”键+“开启”键，当前云台自动旋转，同时液晶屏提示“云台自动开启”；4.1.4云台自动停止操作方法1：在云台自动状态下，按下摇杆顶面的圆形按键，当前云台自动旋转，同时液晶屏提示“云台自动关闭”；方法2：按“云台自动”键+“关闭”键，当前云台自动旋转，同时液晶屏提示“云台自动关闭”；4.1.5镜头操作焦距操作方法1：顺时针旋转摇杆，拉远；逆时针旋转摇杆，当前摄像机拉近；方法2：按“焦距+”键，当前摄像机拉远；按“焦距-”键，当前摄像机拉近；聚焦操作按“聚焦+”键，当前摄像机聚焦近；按“聚焦-”键，当前摄像机聚焦远；光圈操作按“光圈+”键，当前摄像机光圈变大；按“光圈-”键，当前摄像机光圈变小；雨刷操作按“雨刷“键+“开启”键，当前雨刷开启；按“雨刷”键+“关闭”键，当前雨刷关闭；灯光操作按“灯光“键+”开启“键；对应输入的灯光开启；按“灯光“键+”关闭“键；对应输入的灯光关闭；4.2高速球操作4.2.1预置位操作预置位设置：将摄像机通过摇杆旋转到设置位置，按下“设置”键+数字键+“预置”键；则摄像机对应位置设置为对应数值的预置位；预置位调用：按下数字键+“预置位”键则摄像机旋转到所设置的位置；4.3矩阵控制4.3.1选择监视器（矩阵输出通道）按“数字”键+“MON”键4.3.2图像手动切换在当前监视器状态下，方法1：按数字键+“CAM”键；方法2：按“上翻”、“下翻”键；4.3.3图像自动切换方法1：按数字键+“自动切换”键+“开启”键，数字对应的输出通道自动切换图像；方法2：按“自动切换”键+“开启”键，当前输出通道自动切换图像；4.3.4分组手动切换按数字键+“分组切换”键+“开启”键，调用数字对应的已编程分组图像；4.3.5分组自动切换按“全部”键+“分组切换”键+“开启”键，自动顺序调用已编程的分组图像；5键盘设置键盘设置包括了控制云台参数设置、控制矩阵参数设置、控制DVR参数设置、键盘系统设置等4大项。

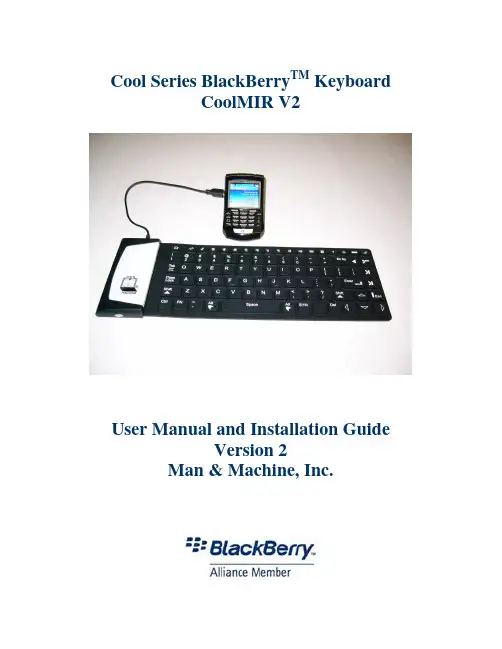

黑莓TM CoolMIR V2键盘用户手册和安装指南说明书
Cool Series BlackBerry TM KeyboardCoolMIR V2User Manual and Installation GuideVersion 2Man & Machine, Inc.CoolMIR V2 User ManualFeaturing an ergonomic thin design with full tactilefeedback, this good-to-the-touch keyboard is made to thehighest standards and is easy to use and clean. This flexiblekeyboard can be loosely rolled and carried with you in ahandy carrying pouch (supplied). The keyboard works withRIM OS version 4.0 or higher RIM BlackBerry TM6210,6220, 6230, 6280, 6510, 7100g, 7100r, 7100t, 7100v,7100x, 7100i, 7105t, 7130e, 7210, 7230, 7270, 7280, 7290,7510, 7520, 8700r and 8700c. Currently NOT compatiblewith7700 series including7730,7750 and 7780and doesNOT work with6700/5700series including5790, 6710,6720 and 6750.How to charge the batteryPLEASE CHARGE THE COOLMIR KEYBOARD BATTERY FOR AT LEAST TWO HOURS BEFORE USE. CoolMIR uses the same charger cable as the BlackBerry TM. To charge the battery, plug the USB cable B-mini connector to the Mini USB Input Port on the CoolMIR and the A connector of the USB cable to your PC or AC adaptor (see Figure 12). The keyboard can be used while it is charging if the charger cable is connected to an AC adaptor. The CoolMIR will have 15 hours continuous usable battery life when it is fully charged. Red light on the left side of the keyboard means the keyboard is charging. Yellow light means the keyboard has less than 20% battery life. Green light means the keyboard has more than 20% battery life.How to Turn CoolMIR Keyboard On and OffPress and Hold the “ON/OFF Button” for one second to turn CoolMIR keyboard on and for three seconds to turn it off. The keyboard turns itself off to save battery power if it is unused for more than three minutes. To disable the software on the BlackBerry TM, open CoolMIR as shown in step 9 and select “Turn off”.For BalckBerry TM Enterprise Server (BES) UsersCoolMIR software must be given permission by the BES administrator. For instruction on how to allow the CoolMIR driver on BES 4.0 or higher please refer to the “CoolMir BES Setup Guide” at the end of thismanual. For instructions provided by RIM BlackBerry visit /knowledgecenterpublic (Search for “KB-04219”). The keyboard program doesn’t work on BlackBerrys that are on BES version 3.6 or less. The BES must be upgraded to 4.0 or higher to support the keyboard program.How to Carry and Clean the KeyboardDO NOT FOLD THE KEYBOARD, doing so could damage the unit. When placing the CoolMIR in it’s carrying pouch make certain to roll it loosely from left to right. The one-year warranty does not cover damage due to folding or misuse. The rubber of CoolMIR can be cleaned with water, soap, alcohol, 10% bleach solutions, and a variety of chemical disinfectants. DO NOT USE PETROLEUM BASED CLEANERS OR SOLVENTS.Technical Specifications of the KeyboardWeight:Approximately 170 g (0.4 lb.) Dimensions:330 mm x 114 mm x 13 mm 13” x 4.5” x 0.5”Cable length:Approximately 0.3 m (12”) Storage temperature:-20 °C - 70 °C-4 ° F - 158 °FOperating temperature:0 °C - 70 °C32 °F – 158 ° FPower:Rechargeable Battery Powered. Guaranteed period:One year limited warranty Composition:100% Silicone RubberPVC CableLatex free keyboardSystem requirements:Operating system 4.0 or higher BlackBerry TM6210, 6220, 6230, 6280, 6510, 7100g, 7100r, 7100t, 7100v, 7100x, 7100i, 7105t 7130e, 7210, 7230, 7270, 7280, 7290, 7510, 7520, 8700r and 8700c. Currently NOT compatible with7700 series including7730,7750 and 7780and does NOT work with6700/5700series including5790,6710,6720,6750. Number of keys:72 US Layout keys with 18 shortcut keys to your favorite programs including Calendar, Search, Phone, Email, Internet, Menu, Escape, etc…DO NOT FOLD THE KEYBOARD, doing so could damage the unit. When placing the CoolMIR in it’s carrying pouch make certain to roll it loosely. The one-year warranty does not cover damage due to folding or misuse.Installation GuideYou will need to have your BlackBerry software and the BlackBerry Desktop Manager loaded on your PC. You will need to download software to your BlackBerry using the RIM Desktop Manager in order to enable the CoolMIR keyboard1. Before installing the software on your handheld, save any important information from the handheld to thePC using the Backup and Restore tool. (Open the Desktop Manager. Connect your handheld to your PC.Double-click “Backup and Restore” in the Desktop Manager. To backup everything on your handheld, click the “Backup” button. In the “Select File for Full Backup” window, select the name and location of the file as desired and click “Save”.)2. In the Desktop Manager, double-click “Application Loader”.Figure 1. Blackberry Desktop Manager.The “Welcome to Application Wizard” window appears. The handheld must be connected before you can load new software.Figure 2. Welcome to the Application Loader Wizard Window.3. Click “Next” to start the process of loading new software onto your handheld. A “Retrieving HandheldConfiguration” window appears on your PC to indicate that the Application Loader is connecting to your handheld and is reading your handheld’s configuration. Wait until initialization is complete and the dialogbox disappears. The “Handheld Application Selection” window appears, displaying the applications that you can choose to download to your handheld.Figure 3. Handheld Application Selection WindowClick on the “ADD” button. Drop down the “LOOK IN BOX” and select the floppy drive (A:) or thefolder where the CoolMIR program is located and Double-click on the file “CoolMIR.ALX”.Figure 4. Open Window.4. Select the check boxes next to the names of the applications you want to load and click “Next”.Any applications that do not have a checkmark beside them will be erased from the handheld (even if you have them currently loaded).5. The “Completing The Application Loader Wizard” window appears, displaying the application that will bedownloaded to your handheld. Verify that the information is correct and click “Finish”.Figure 5. Completing the Application Loader Wizard Window6. The “Load Progress” dialog box appears and the new files are added to your handheld.7. When loading is complete, the “Loading Operation Was Successful” box will indicate whether loading wassuccessful. Click “Close” to return to the Desktop Manager. If loading was not successful, make sure that your handheld is in the cradle and the cradle is connected to your PC properly. Then, repeat the above steps.Figure 6. The Loading Operation was successful Window8. Go to your Blackberry unplug the Mini USB cable from the handheld.9. To enable the CoolMIR software select the icon for the CoolMIR driver using the roller then click.Figure 7. BlackBerry Home PageThe CoolMIR page will come up.Figure 8. CoolMIR Home PageClick the roller and select “Turn On” from the menu then click the roller to turn on the software.Figure 9. CoolMIR Menu.10. Plug the CoolMIR keyboard Mini USB cable into your handheld and turn the keyboard on by pressing thebutton on the left bottom of the keyboard. You will see a green light on the keyboard when the keyboard is turned on.Figure 10. CoolMIR When the Software is On.11. You can now use your CoolMIR keyboard.Figure 11. CoolMIR in Use.Mini USBInput PortON/OFF ButtonFigure 12. CoolMIR ON and OFF Button and Mini USB Input Port Positions. For technical support and questions:*********************Visit /coolmir once a month for software updates.CoolMIR Symbols and European Key CombinationsAlt + 1 2 3 4 5 6 8 9 0 - = Character § é £ € « » Ø Ç ă^ °SYM + Q W E R T Y U I O P Character [ < { << ~ = _ “ ^ %SYM + A S D F G H J K LCharacter ] > } >> \ ; ¬ “ &SYM + Z X C V B N MCharacter $ € ¥ £ · | §Table 1. Key CombinationsCoolMIR Application IconsFN+PTable 2. Application IconsTroubleshooting your CoolMIR1. CoolMIR green light is on but nothing shows up when I type.1.1 Check to see if your CoolMIR software is loaded. If not follow the Installation Guide.1.2 Make sure your software is turned on as shown in Step 9 of the Installation Guide.1.3 Make sure CoolMIR Mini USB cable is connected to the Blackberry.1.4 If you still have a problem, turn off the CoolMIR keyboard and turn it back on.2. I can’t turn CoolMIR keyboard on.2.1 Make sure your CoolMIR battery is charged. Plug the Mini USB charger cable andturn the CoolMIR keyboard on by pressing the ON/OFF Button for 1 second.2.2 If you still have a problem, go to the back of the CoolMIR keyboard and push the“RESET” button using a thin pen. The reset button is inside a very small hole at theback of the CoolMIR keyboard on the left upper side of the right middle screw.3. I can’t turn CoolMIR keyboard off.3.1 Press and hold the ON/OFF Button for 3 second.3.2 If you still have a problem, go to the back of the CoolMIR keyboard and push the“RESET” button using a thin pen. The reset button is inside a very small hole at theback of the CoolMIR keyboard on the left upper side of the right middle screw.All specifications are subject to change without notice.BlackBerry is a registered trademark of Research In Motion Limited.CoolMir BES Setup GuideThird party applications are restricted from use of certain low-level application interface programs and drivers because of the high security features of the BlackBerry handheld. Therefore to enable the CoolMIR keyboarddriver on a BlackBerry that is activated by BlackBerry Enterprise Server (BES), the BES administrator should perform the following.Note to the BES Administrator :• Research In Motion (RIM) BlackBerry requires a third party application that uses Controlled APIssuch as Event Injector API to be given permission by the BES administrator.• This Controlled API must be signed with a key, or signature, provided by RIM before the application.cod files can be loaded onto the BlackBerry Wireless Handheld. CoolMIR driver uses this EventInjector API and is signed by RIM BlackBerry.• Man & Machine, Inc. is a BlackBerry Alliance Member. You can verify this by going tohttps:///ThirdParty/searchProduct.jsp?compID=1000813&productID=1028441.•************************************************************************(301) 341-4900.BlackBerry Enterprise Server for Microsoft Exchange version 4.0 Handheld Management Guide/knowledgecenterpublic/livelink.exe/fetch/2000/8067/645045/7963/7965/729294/729295/Ha anagement_Guide.pdf?nodeid=729296&vernum=0Setup third-party applications (Wireless connection)Complete all prior steps before starting this procedure.1. Create an applications folder in Program Files\Common Files\Research In Motion\Shared\2. Create a subfolder under the Program Files\Common Files\Research In Motion\Shared\applications\directory for each third-party application. Copy the handheld installation files (.ALX & .COD) files tothis directory.3. Index the applications by specifying the loader /index command from the command prompt. [Seecommand below: ]Go to: C:\Program Files\Common Files\Research In Motion\ApploaderType the command: Loader.exe /IndexShare Handheld Software and upgrade tools1.Verify that the handheld upgrade software is installed in <drive:>\Program Files\Common Files\ResearchIn Motion as described above.2. Share <drive:>\Program Files\Common Files\Research In Motion.3. Set the permission attributes to Read-only.NEXT:a) Open the BlackBerry Handheld Configuration Tool.b) Click the Configuration tab.c) Click Add New Configuratrion.d) Fill out the Handheld Software Configuration Screen.i) Enter a name for the new configurationii) Optionally fill in a configuration descriptioniii) Enter the Handheld Software Location in standard UNC format:(1) You could use something like: \localhost\Research In Motion (if the files are installed locally onthe server)(2) You can press the “Change” button to browse to the location of the files.If you use this “browse” method, be sure to point to “My Network Places,” then Entire Network, drill down to the shared \Program Files\Common Files\Research In Motion.Figure 13. Research In Motion Folder Directorye) Expand Application Software, and you see your third-party applications.f) As shown below, for each third-party application change the Delivery column to Wireless or Wireline.g) Click on the Policy column drop-down tab to specify your new software policy.h) From the Application Control Policy window, change the Event Injection setting from Not Allowed toAllowed.i) Click OK to accept the changes.Frigure 14. Handheld Software Configuration ScreenAssign a software configuration to a user1.In the Handheld Configuration Tool, in the left pane, click Handhelds.2.In the User Name list, click the user to assign the software configuration to.3.Click Assign Software Configuration.4.Click the software configuration to assign.5.Click OKFigure 14. Application Control Policy ScreenManage application control policiesWhen an application control policy is changed, the application control policy is resent automatically to the handheld wirelessly.1.In the Handheld Configuration Tool, in the left pane, click Software Configurations.2.Click Manage Application Policies.3.Perform one of the following actions:Action ProcedureAdd an application control policy.See “Deploying handhelds using the administration computer” on page 16 for more information.Modify an application control policy.1.Click the application policy.2.Click Properties.3.Modify the application control policy properties.4.Click OK.Remove an application control policy. 1.Click the application policy.2.Click Remove.Figure 15 Handheld Configuration Tool.Federal Communications Commission (FCC) StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Man & Machine, Inc. is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user's authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Responsible Party:Man & Machine, Inc3706 West St.Landover, MD 20785Telephone: 1-301-341-4900/Copyright Man & Machine, Inc. 2005。
ET8260智能控制键盘使用说明书
概
述
ET8260 控制键盘是与变速智能球机、解码器等终端接收器配套的产品。控制键盘与接收器之间采用 EIA/RS-485 电气接口，在不加总线驱动的情况下，一台键盘最多可控制 32 台球机或解码器，键盘与接收器的最大通信距离 达 1.2Km。利用控制键盘可方便地对变速智能球机进行控制和设置，控制键盘还可直接控制终端解码器，实现对 云台、镜头、灯光、雨刮等前端设备的控制。
14、ENTER 未用。
15、CLEAR 清零键。按一下 CLEAR 键，数字输入区清零显示。
16、CALL 预置位调用键。通过数字输入区输入要调用的预置位号，按一下 CALL 键调用预置位，若调用预置位成功， 则数字输入区数字自动清零。预置位号范围（1-32）（34-66）。
17、MUX-C 未用。
波特率 工作温度
ET8260 DC9V ±10%
＜3W 16 路，扩展后 256 路
RS-485 1200、2400、4800、9600 可选
-10℃-50℃
面板介绍
1、后面板
D
C BA
图 1 后面板
A. 电源输入端：由此端连接外部稳压电源输入 DC9V 直流电压。 B. RS485-1 连接变速智能球机、解码器等终端接收器配套的产品。 C. RS485-2 未用。 D. RS232 接口用于和嘉杰的硬盘录像相连。
技术参数
双模键盘说明书
cProduct Functions
chCheck if the keyboard is switched to the right mode (Windows / ccmacOS mode) depending on the system of your device.
chRed colored light indicator will blink when keyboard is in low ccpower. Please charge.
USB Charging Port Function Keys
US 1-3 Power Switch
c
Hardware Installation
cRF2.4G Connection (Connect to one device) c1. Power on the computer and plug USB receiver into a USB port on ccyour computer. c2. Turn on the power of keyboard and make sure battery has ccenough power. c3. Press Fn+1 to switch to RF 2.4G connection mode. c4. Your computer will automatically detect the receiver and connect ccwith the keyboard. c5. Switch the keyboard to specific mode depending on your system. ccPress Fn+S for Windows and Fn+A for macOS.
智能控制键盘使用手册
智能控制键盘使用手册Intelligence ControllerOperating Instructions智能控制键盘使用手册在使用智能球键盘控制器之前，敬请您仔细阅读本使用手册目录一、注意事项及配置清单 (3)二、产品概述 (4)三、主要功能 (4)四、技术指标 (4)五、键盘面板介绍 (5)1.正面面板 (5)2.后面面板 (7)六、键盘的操作使用 (8)七、故障排除指导 (12)八、English Version (14)本手册的内容将做不定期的更新，对于本产品功能上的提升，我们会在新的版本中加入，恕不另行通知。
本操作手册以英文显示三维控制键盘为蓝本，二维键盘和中文键盘的操作方法与此相同。
注意事项：1．使用键盘之前，请详细阅读本使用说明书。
2．本说明书主要针对PELCO协议的各项操作使用。
对于不同的协议，其操作方式上可能略有差异。
3．请不要将键盘置于雨中或潮湿的环境之中，以免发生短路或电击的危险，键盘内部属精密电子器件，请勿随意打开外壳，以免发生故障。
4．请严格按照本手册的连线方式连接，该键盘集成了多种协议，使用前请选择正确的协议、波特率；键盘上电时液晶显示屏第一屏显示所选择的协议、波特率，请注意留意。
5．摇杆为易损体，操作时切勿用力过猛，液晶显示屏为易损体，切勿挤压，或长时间在强光下直射。
名词解释：PTZ：Pan Tilt Zoom云台水平垂直变焦主要动作，泛指解码器或快球。
DVR：Digital Video Recorder数字硬盘录象机。
设备配置清单：一、产品概述：球形摄像机控制键盘是与变速智能球机、解码器等终端接收器配套的产品。
控制键盘与接收器之间采用EIA/RS -485电气接口，在不加总线驱动的情况下，一台键盘最多可控制64台球机或解码器，键盘与接收器的最大通信距离达1.2Km。
利用控制键盘可方便地对变速球型摄像机进行控制和设置。
二、主要功能：控制键盘具有下列主要功能：1设定球形摄像机或解码器的地址范围：0～255。
海康二维控制键盘用户手册
海康二维控制键盘用户手册控制键盘用户手册1 性能介绍1.1概述控制键盘是配合DVR主机、嵌入式硬盘录像机等前端设备来控制高速智能球机、解码器、恒速球等设备的产品。
控制键盘与接收器之间采用EIA/RS - 485电气接口，在不加总线驱动的情况下，一台键盘最多可控制128个终端设备，键盘与终端设备的最大通信距离达1.5Km。
利用控制键盘可方便地对终端设备进行控制。
如果使用海康、大华、大力、视联、深傲嵌入式硬盘录像机，则可以通过控制键盘操作硬盘录像机。
1.2性能指标1.2.1电气参数供电电源：DC9V /500mA电源适配器：输入AC220V±10% 50/60HZ输出DC9V 500mA通信接口：与主机、终端设备连接采用RS-485总线控制方式波特率：1200bps、2400bps、4800bps、9600bps、19200bps1.2.2机械尺寸规格：270（长）×165（宽）×70（高）mm1.2.3环境参数温度：0℃~60℃湿度：90%RH2 主要功能介绍1. 控制键盘485接口采用光电隔离技术，抗干扰性强，传输距离远。
2. 控制恒/高速球摄像机或解码器的地址范围为1~128，并对其进行远程控制。
3. 可对高速球的云台进行变速操作。
4. 可对高速球进行预置点设置和调用。
5. 手动控制摄像机的聚焦﹑变焦﹑光圈。
6. 可实现与单台或多台（最多四台）嵌入式硬盘录像机联控。
与海康、大华嵌入式硬盘录像机配合使用，则可以控制多达14台。
7. 如果使用海康、大华、大力、视联、深傲嵌入式硬盘录像机，则可以通过控制键盘操作硬盘录像机。
3 控制键盘面板介绍以海康嵌入式硬盘录像机为例，设备外形见下图1。
3.1正面面板控制键盘正面面板上主要有控制摇杆，按键和LED数码管。
摇杆控制云台上、下、左、右动作，对于高速球，通过摇杆的倾斜度不同，可控制高速球动作的速度。
LED数码管显示系统状态及操作信息。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
键盘说明书
（中文版）
安装及使用本产品前，请详细阅读此说明书，并请妥善保存
目录
一、概述 (3)
二、主要功能 (3)
三、键盘面板介绍 (4)
四、键盘的操作使用 (5)
一概述：
球形摄像机控制键盘是与变速智能球机、解码器等终端接收器配套的产品。
控制键盘与接收器之间采用EIA/RS - 485电气接口，在不加总线驱动的情况下，一台键盘最多可控制32台球机或解码器，键盘与接收器的最大通信距离达1.2Km。
利用控制键盘可方便地对变速球型摄像机进行控制和设置。
二主要功能：
控制键盘具有下列主要功能：
1.设定球形摄像机或解码器的地址范围：0～255。
2.能直接控制摄像机的各项功能。
3.可对球形摄像机的内置云台进行变速操作。
4.可对球形摄像机进行预置点和巡视轨迹的设置和调用。
5.可对球形摄像机进行手动或自动控制，并可对特定摄像机通
过调用摄像机菜单更改摄像机出厂设置。
6. 手动控制摄像机的变倍﹑变焦﹑光圈。
7. 可控制多台球形摄像机。
8. 内置多协议可供选择。
三、键盘面板介绍：
1、正面面板
控制键盘正面面板上有变速控制摇杆，按键和LCD显示屏。
显示屏用于显示系统状态及操作信息。
摇杆控制云台上、下、左、右作变速运动及手动定点。
按键说明:
[CAM] 球机选择
[SHOT] 设置及调用轨迹
[SET] 预置点设置
[PRESET] 预置点调用
[ON] 功能开
[OFF] 功能关
[F1]，[F2]，[F3]，[F4]，[F5]，[F6]，[F7] 辅助功能键
[0] —[9] 数字键
[CLEAR] 清除键
[ENTER] 确认键
[AUTO] 云台自动水平扫描控制
[OPEN] 镜头光圈大
[CLOSE] 镜头光圈小
[WIDE] 镜头焦距短
[TELE] 镜头焦距长
[FAR] 镜头聚焦远
[NEAR] 镜头聚焦近
2、后面面板
A. 电源输入端：DC12V 500mA。
B. 通信口：PORT1，PORT2
四、键盘的操作使用
以下球机控制操作均对当前球机有效，在对不同球机进行操作前，必须先设定对应的球机号，键盘未操作时，显示屏提示：“ Cu r CamID: NNN ” NNN：表示当前操作的球机号
1、选择N号摄像机：[CAM] N [ENTER]
显示：Input Cam ID ：N N：摄像机号0 —255
2、设置N号预置点：[SET] N [ENTER]
显示：Preset No.：01
N：预置点号1 —255
3、调N号预置点：[PRESET] N [ENTER]
显示：Call Number：01
N：预置点号1 —255
4、N号预置点：[CALL] N [OFF]
显示：Call Number：01
N：预置点号1 —255
5、设置第N条轨迹：[SHOT] N [ON] (该功能只针对EyeView
协议)
显示：Input Tour No.：01
N：轨迹号1 —6
显示：Track=N1 Sum=N2（N1：轨迹号，N2：预置点总数）按[TELE]键，显示: No.001 Point 000
提示输入该条轨迹中第一点的预置点号（预置点号范围：1～255）按[TELE]键，显示: No.001 Speed 000
提示输入该条轨迹中第一点的速度（速度号范围：1～8）按[TELE]键，显示: No.001 Time 000
提示输入该条轨迹中第一点的滞留时间（时间范围：1～255秒）依此类推设置该条轨迹中16个点，[TELE]键向前翻页，[WIDE]键向后翻页，当其中第n点的预置点号设置为0号预置点时，则该条轨迹中第n点以前的预置点号是有效的，其后的预置点号、速度、时间值全部自动置为0。
速度设置时，1速最快，8速最慢，任何不在该范围内的速度值均默认为最快速，按OFF保存退出，拨动操纵杆时不保存退出。
6、调用第N条轨迹：[SHOT] N [ENTER] (该功能只针对EyeView 协议)
显示：Input Tour No.：001
N：轨迹号1 —6
7、自动线扫开：[AUTO] [ON]
按AUTO，显示：Input 1st No.: 000
按ON 启动线扫
一、自动线扫关：[AUTO] [OFF ]
按AUTO，显示：Input 1st No.: 000
按OFF ，恢复正常显示
二、设置自动线扫起始点与终点，并运行线扫(该功能只针对
EyeView协议)
按AUTO，显示：Input 1st No.: 000
输入线扫起始点号
按ON，显示：Input 2nd No.:000
输入线扫终点号
按OFF，如果起始点与终点是已设置的预置点则此时开始运行线扫
三、镜头变焦全景图像：[WIDE]
显示：*** Zoom Wide ***
四、镜头变焦特写图像：[TELE]
显示：*** Zoom Tele ***
五、调整镜头聚焦远：[FAR]
显示：*** Far ***
六、调整镜头聚焦近：[NEAR]
显示：*** Near ***
七、镜头光圈开：[OPEN]
显示：*** Open ***
八、镜头光圈关：[CLOSE]
显示：*** Close ***
8、辅助功能键[F1] 定义(该功能只针对EyeView协议)
9、对协议的操作:
(1)显示当前协议: [F1] + 61 + [ON]
(2)更改协议: 先显示当前协议,再按[WIDE]或[TELE]切换协议,选定协议后按[OFF]则将选定协议设为当前协议,如按其它键,则视为取消改动,协议不变;
10、主副控制操作:
按[F1] + 62 + [ON]则PORT2通讯口做为一般输出通讯口;
按[F1] + 62 + [OFF]则PORT2通讯口做为副控通讯输入口;也就是将副控设备的控制端口接到PORT2端口上,将本键盘做为主控制键盘,共同通过PORT1去控制终端设备;
11、更改键盘ID号(ID号只能为1—14间的数)
用F1+63+ON 显示 " KeyBoard ID:CCC" CCC为当前的ID号
输入需要的ID号DDD则显示" KeyBoard ID:DDD"
按OFF保存退出。
12、HB300键盘补充说明，本操作定义针对PELCO-D及PELCO-P 系列协议。
注：某些功能像机不支持。
