电动托盘搬运车简介
电动托盘搬运叉车适合于狭窄通道和有限空间内的作业，是仓库、超市、车间内装卸和搬运托盘化货物的理想工具。
外形
●采用圆弧、，曲面造型，整车小巧美观。
稳定性
●五支点低重心设计，整车具有良好的稳定性。
机动性
●驱动单元采用中位布置、弹簧支承、可左右旋转近90度，转向灵活轻便，即使在凹凸路面亦能行走自如。
舒适性
●根据人机工程设计的操纵手柄集加速、换向、嗽叭、制动、起升/下降、紧急反向等功能，为操作最大程度的舒适性，设置高效阻尼减振器，将由于路面不平引起的振动减最小。
可靠性
●电机控制器、起升电机、液压泵等主要部件均选用国际一流产品。
●采用国际一流品牌LED电量显示表，能在强振动环境和很宽的温度范围内精确工作。
先进性
●高频MOSFET集成控制器和SEM驱动电机组成的先进的SEM行走控制系统，调速性能优异，具有再生制动、反接制动等功能，使操作更加安全舒适、经济高效。
●采用组合式液压动力单元，体积紧凑、噪音低、压力损失小。
●非线性变速功能在加速开关在较大行程时，驱动电机仅以较小的转速运转，因而叉车起步更加平衡，便于在窄小的空间操作。
安全性
●智能延时制动功能在停止前进和后退操作时，自动动作电磁制动器制动叉车，使操作更加安全。
紧急断电开关作为标准配置，符合欧洲安全标准。
电动托盘搬运车技术参数表。

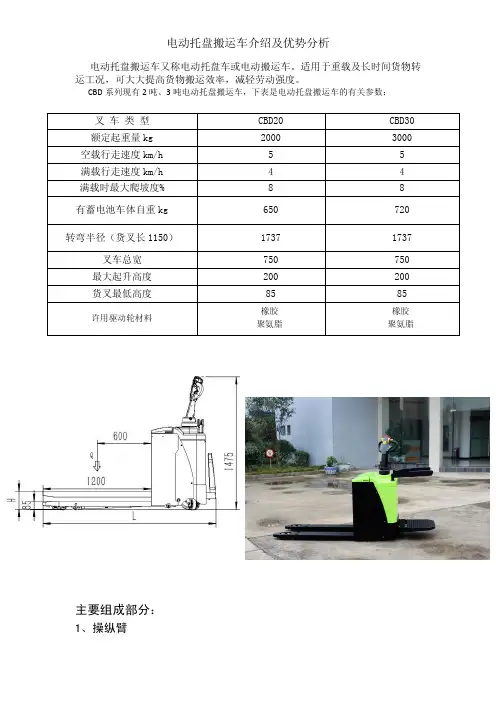

电动托盘搬运车介绍及优势分析
按下喇叭可以鸣音。
5、电源插座总成
以下情况下拔出电源插座切断电源。 ※ 事故 ※ 紧急、危险情况下 ※ 焊接时
注意！
在车身周围进行焊接时，蓄电池易受损，焊接电流如窜入蓄电池，会造成破 坏，这时必须拔出插座。
进行充电时，拔出电源插座，并将充电机插头与带有拉手的活动插座相连接， 充电完成后，将电源插座复位。
6、钥匙开关
此开关功能是控制电路的接通与断开。
7．电量表
当钥匙开关处于打开状态，电量表显示蓄电池余量，共十格，当最左二格二 极管交换闪烁时，表示电量不足，蓄电池需要充电。
驾驶操作： 1、启动
请按以下顺序依次进行，否则电动托盘搬运车不运行： (1) 确保电源插座插牢。 (2) 将钥匙开关打到开位。 (3)确保蓄电池组有足够的电量。
在 24V 电压下正常运行，通过电控调节速度。
10、万向支撑轮
左右两个万向轮支撑以确保车体稳定。
11、蓄电池
蓄电池固定在电池箱内，电压为 24V，标准电容量为 210Ah。
12、踏板
可拆卸，仅供电动托盘搬运车操作人员站立使用
控制装置： 1、起升控制
打开钥匙开关，按指示方向操作手柄，可起升或下降货叉。
4、停车
(1)松开方向选择开关。 (20 将货叉降到最低位，使液压系统内无系统压力。 (3)松开操纵臂，操纵臂将自动回到停车制动位置。 (4)将钥匙开关旋至关位。
当心！
不允许擅自开车。 人若离开，请将钥匙随身带走。
电动托盘搬运车电器原理图:
5、液压控制
车身面板上的上升、下降手柄控制上升、下降功能。
6、液压装置
装在一油箱内，紧凑地装有泵电机、泵及油箱体。
7、电源插座总成

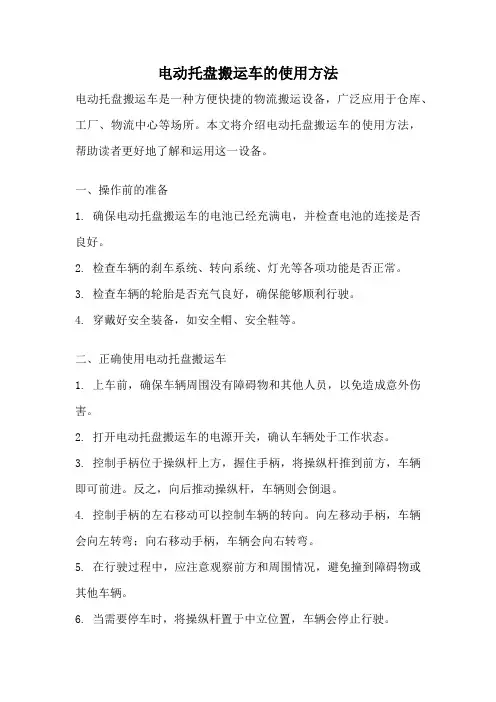

电动托盘搬运车的使用方法
电动托盘搬运车的使用方法电动托盘搬运车是一种方便快捷的物流搬运设备，广泛应用于仓库、工厂、物流中心等场所。
本文将介绍电动托盘搬运车的使用方法，帮助读者更好地了解和运用这一设备。
一、操作前的准备1. 确保电动托盘搬运车的电池已经充满电，并检查电池的连接是否良好。
2. 检查车辆的刹车系统、转向系统、灯光等各项功能是否正常。
3. 检查车辆的轮胎是否充气良好，确保能够顺利行驶。
4. 穿戴好安全装备，如安全帽、安全鞋等。
二、正确使用电动托盘搬运车1. 上车前，确保车辆周围没有障碍物和其他人员，以免造成意外伤害。
2. 打开电动托盘搬运车的电源开关，确认车辆处于工作状态。
3. 控制手柄位于操纵杆上方，握住手柄，将操纵杆推到前方，车辆即可前进。
反之，向后推动操纵杆，车辆则会倒退。
4. 控制手柄的左右移动可以控制车辆的转向。
向左移动手柄，车辆会向左转弯；向右移动手柄，车辆会向右转弯。
5. 在行驶过程中，应注意观察前方和周围情况，避免撞到障碍物或其他车辆。
6. 当需要停车时，将操纵杆置于中立位置，车辆会停止行驶。
7. 在上下坡道或转弯处，应减速慢行，确保安全。
8. 若需要提升货物，操纵杆上方配有升降按钮，按下升降按钮即可将货物提升到合适的高度。
9. 在搬运货物时，应保持货物平稳，避免晃动，以免影响安全。
10. 若需要长时间停车，应将电动托盘搬运车的电源开关关闭，以节约能源。
三、安全注意事项1. 在操作电动托盘搬运车时，应集中注意力，不要分散注意力。
2. 不得在车辆行驶过程中站立、行走或坐在车辆上。
3. 严禁超载行驶，应根据车辆的载重能力合理分配货物。
4. 不要将手或其他物体伸入车辆的运行部位，以免造成伤害。
5. 严禁在车辆行驶过程中使用手机或其他电子设备，以免分散注意力。
6. 若发现车辆有异常情况，应立即停车检查，不得继续使用。
7. 在使用过程中，如遇特殊情况或紧急情况，应立即切断电源，以确保人身安全。
通过本文的介绍，相信读者对电动托盘搬运车的使用方法有了更清晰的了解。
电动托盘电机型号与功能介绍说明书
A I R C H ALODESTAR XL 2 to 7 1/2 tonn n n n n n n XL AIR 2 to 7 1/2 ton n n n n n nE V E R S P E C I A LOW HEADROOM CHAIN 1 to 24 tonn n Upper Shipyard Hook Lower Shipyard HookSERIES 6331/2 to 5 ton n Frames connected by steel equalizer pin, secured by two nuts on each side n Rugged steel side plates formed to include bumpersCBT1/4 to 5 ton n nn Bridge Crane Kits n Jib Cranesn LodeRail™Systems n Chain Containersn Cord Reelsn Festooning Packagesn Bronze Wheels / Hooks n Zinc Plated Chain / Hooks n Variable Speed Control n Stainless Steel Chain n NEMA Push Button Stations n Infrared Remote Control n Cady Spreader Beams n Plate Clamps nBinders n Herc Alloy Chain Slings n Hooks n Shackles n Hammerloks n Hoist Rings ACCESSORIES & PRODUCTS © 2012 Columbus McKinnon Corporation. All Rights Reserved. Stock # CMPG-0212 SS 5M GK Phone: (800) 888.0985•(716) 689.5400•Fax: (716) 689.5644•In addition to the strong knowledge base exemplified by comprehensive training programs, Columbus McKinnon is one of the only manufacturers supplying complete lifting systems to satisfy unique material handling requirements of users in a variety of environments. From jib cranes and hoists to chain slings, clamps, and related attachments;systems include products that are matched specifically to the lifting needs of the application. Products may also be modified in order to ensure that the proper system is in place for the job.Whether your needs call for a single electric chain hoist or a completely engineered system to outfit your production facility, Columbus McKinnon provides the products and expertise to keep your workforce productive and safe.。
叉车主要型号与参数(精)
kg行驶速度.满/空载
km/h额定承载能力（载荷中心600mm
kg提升高度
mm车体宽度
mm车体长度
mm转弯半径
mm直角堆垛通道宽度800X200沿货叉
mm货叉尺寸
mm自重（包括电池
kg行驶速度.满/空载
km/s电池容量
V/Ah额定承载能力（载荷中心600mm
kg提升高度
mm车体长度（到货叉面
行驶速度•满/空载km/h
额定承载能力（载荷中心600mm kg
失载高度mm
车体长度（不含货叉mm
车体宽度mm
转弯半径mm
直角堆垛通道宽度800X200沿货叉mm
自重（包括电池kg
行驶速度•满/空载km/h型号
额定承载能力
kg载荷中心距
mm自重（含蓄电池
kg门架回缩高度
mm提升高度
mm辅助提升
mm驾驶室提升高度
满空载额定承载能力载荷中心600mm直角堆垛通道宽度8001200沿货叉站驾式电动托盘搬运车1620站驾式电动托盘搬运车20站驾式电动托盘搬运车20步行式电动托盘搬运车30步行式电动托盘堆垛车1014步行式电动托盘堆垛车1416站驾式电动托盘堆垛车1416宽支腿式电动托盘堆垛车1416kg263026802800kmh135135135r14sr16sr20skg140016002000失载高度mm729570007300mm125712611333车体宽度mm125012501250转弯半径mm154016401775mm278127852867kg289029403260kmh135135135窄通道叉车型号额定承载能力kg1000115013001500载荷中心距mm600600600600kg6122771584969211门架回缩高度mm2900390054005400提升高度mm3600520082008200辅助提升mm1675167516751675驾驶室提升高度mm4045564586458645mm564572451024510245车体长度含货叉mm3391354536353779车体宽度mm11601500116015001160155011601600货叉尺寸mm501201200501201200501201200501201200直角堆垛通道宽度mm1640164016701700最小转弯通道宽度mm3975412942194363kmh90901051051051051201200384004504704504704806004504504504504504504504503003003030303030045型号kg100013501350电压载荷中心距mm600600600自重含蓄电池kg511459856428门架回缩高度mm340039002900提升高度mm460052005050车体长度含货叉mm288430283160车体宽度mm125015001250150012501500货叉尺寸mm501201200501201200501201200通道宽度mm170017001700转弯半径mm182619702102最小转弯通道宽度mm334634903622kmh909090901051050500500510550520550550550550550550550300

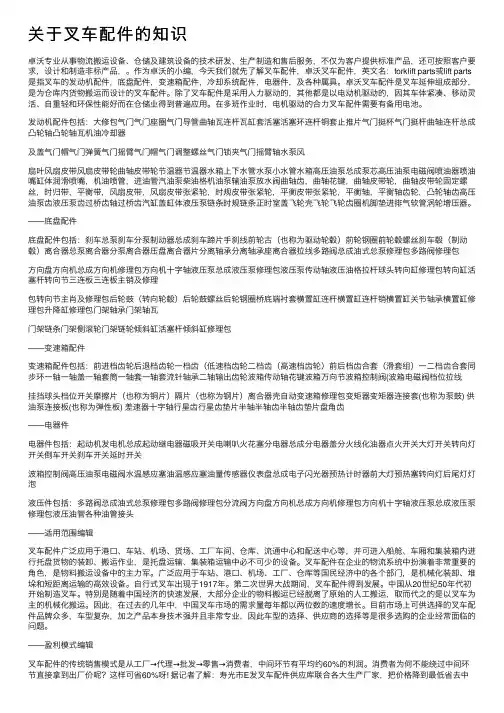

关于叉车配件的知识
