DPG8001系列通用数字压力计
安德森数字压力计与切换设备安装与启动指南说明书
Anderson Instrument Co., Inc.156 Auriesville Rd. ~ Fultonville, NY 12072Phone: 518-922-5315 ~ Fax: 518-922-8997Installation and Startup GuideDigital Pressure Gauge & SwitchVersion 1.4 Document 2052PRODUCT DESCRIPTIONThe Anderson Digital Pressure Gauge platform is designed specifically for monitoring critical pressures in sanitary applications. The product line was developed to addressseveral trends relative to performance, safety, and readability criteria of our core customers. The Anderson Digital Pressure Gauge provides a battery-powered, local display of pressure that is 6 times more accurate than its mechanical counter-part. Additionally, this product has 3 times the over-range capacity and 5-10 times the resolution of traditional mechanical pressure indicators. The switch version includes 2 fully adjustable switches with low-voltage relay outputs for simple control and/or alarming applications.SPECIFICATIONSPerformance Accuracy: ±0.2% of transducer URL (30, 100, 200, 300, 500 psi)±0.5% of transducer URL (5 psi)Complies with ASME B40.7-1998Repeatability: ±0.06% of transducer URL (30, 100, 200, 300, 500 psi)±0.2% of transducer URL (5 psi)Temperature stability: ±0.10 psi / 10ºF change in process orambient Over-range Capacity:2X URLOperationalProcess Temp Limits: -4º to 127ºC (25º to 260ºF) continuousAmbient Temp Limits: 4º to 49ºC (40º to 120ºF)Engineering Units: Programmable by user, see matrix for pound ranges: Full Vacuum to selected positive pressure. If set to “HG, display reads in “HG when in the vacuum range and PSIG when there is positive pressure.Min / Max Pressure: Captured and stored in non-volatile memory, may be cleared via tamper- resistant toggle.ElectricalPower: 2 “AA” replaceable batteries with one- year minimum expected life with industrial grade batteries (gauge only); 9-30 Volts external DC power (with switches) with battery back-up of non- volatile programmed values.Relay Outputs (Switch only): Two (2) independent, adjustable setpoint relays: One amp contact rating at 24 volts DC, SPST; Contacts open with no power to unit (failsafe) each programmable to close above or below setpoint.Mechanical Display: LCD, with 0.9” height Wetted Material: 316 “L” Stainless Steel, welded and polished to max R a = 8 microinches (0.2 microns) for EP aand max R a = 25 microinches for EN.Housing: 304 Stainless Steel, welded Lens: Polysulphone Approvals and DocumentationSanitary: Meet current ASME BPE-2002 standards; Authorized to display the 3-A Symbol, Third Party Verified.PED: Complies with the Pressure Equipment Directive relative to Sound Engineering Practices.Electrical: Tested to IEC 61326 Standard for Emissions and Immunity in Industrial locations.Enclosure: Meets or exceeds requirements for NEMA 4X.Hazardous Locations: UL for Intrinsically Safe requirements pending.Material, Conformance and Calibration: Certificates provided with product also available on-line using serial number (applies to EPonly).READ THIS FIRSTA three segment battery indicator allows the operator to monitor battery life of the DPG, and plan ahead for a battery change. When a low threshold is reached, the final indicator bar blinks on and off. Internal circuitry regulates battery voltages to ensure all factory specifications are met, even with a decrease in battery voltage. When an unacceptable level is reached, the DPG will shut down. Internal flash memory retains all prior calibration, and only replacement of the batteries is required to resume operation.RUN Mode(read values only)Normal Display: Pressure & UnitsAlarm Setpoint and ActionAlarm 1 Hysteresis Alarm 2 Setpoint and ActionAlarm 2 Hysteresis Low Range Limit Upper Range Limit Dampening FactorMaximum Captured Pressure Minimum Captured Pressure Calibration Offset Value Calibration Gain ValueSETPOINTS Mode (modify alarm values)Alarm 1 Setpoint ValueAlarm 1 Action Alarm Hysteresis Alarm 2 Setpoint ValueAlarm 2 Action Alarm 2 HysteresisCALIBRATE Mode(modify field calibration parameters)Calibration Offset Calibration GainPressure Units DisplayedDampening Factor Decimal Point Position Maximum Pressure Captured Minimum Pressure Captured Restore Factory ConfigurationBATTERY REPLACEMENTUSER DISPLAYVALUE Switch UP to increase DOWN to decrease MODE Switch UP for SETPOINTS DOWN for CALIBRATIONDigital Gauge shown with back removed to expose batteries and switches.MENU Switch UP for SCROLL FWD DOWN for SCROLL BACKPrimary Process Display Four digit 0.9” LED with adjustable decimal point position to indicate pressure value.Alarm 1 and 2 Indicators Flashes if setpoint tripped.Displays continuouslyduringsetpoint viewing or programming.Battery Status Indicator Three bars indicatebattery condition is good.Secondary Display Indicates pressure units or parameter information.ALARM SETPOINT PROGRAMMING(MODE Switch in the UP Position)CALIBRATION / CONFIGURATION PROGRAMMING(MODE Switch in the DOWN Position)PSI Gau, PSI ABS, in 2H 0, Kg/cm , mmHg, 2inHg, MP a, kP a, Bar Digital Filter settable from 0.0 to 10.0(no dampening = 0.0)Decimal point position.(Setting is not stored in non-volatile memory)Hold UP switch for 3seconds to reset.Hold UP switch for 3 seconds to reset.Hold UP switch for 3 seconds to reset all factory defaults.Span calibrationadjustment.Multiplies reading.Range: 0.90-1.10Offset calibrationadjustment.Adds to reading. Range: +/- 10% of SpanCalibration mode.MENU SCROLL BACK to proceed.(MODE Switch in the UP position)(MODE Switch in the DOWN position)Compound Ranges with units set to inHG, or mmHG will read PSIG if measuring positive pressure.Gauge (G, M, B, C) and Absolute(A) pressure units may not be interchanged, and must match original hardware configuration.Calibration mode.MENU SCROLL BACK to proceed.Offset calibration adjustment.Adds to reading.Range +/- 10% of Span Span calibration adjustment.Multiplies reading.Range: 0.90-1.10PSI Gau, PSI ABS, in H 20, Kg/cm 2, mmHg,inHg, MPa, kPa, Bar Compound Ranges withunits set to inHG, or mmHG will read PSIG if measuring positive pressure.Gauge (G, M, B, C) and Absolute (A) pressure units may not be interchanged, and must match original hardware configuration.Digital Filter settable from 0.0 to 10.0(no dampening = 0.0)Hold UP switch for 3seconds to reset.Hold UP switch for 3seconds to reset.Hold UP switch for 3seconds to reset all factory defaults.Decimal point position.(Setting is not stored in non-volatile memory)PSI Gau, PSI ABS, in 2H 0, Kg/cm , mmHg, 2inHg, MP a, kP a, Bar Digital Filter settable from 0.0 to 10.0(no dampening = 0.0)Decimal point position.(Setting is not stored in non-volatile memory)Hold UP switch for 3 seconds to reset.Hold UP switch for 3 seconds to reset.Hold UP switch for 3 seconds to reset all factory defaults.Span calibration adjustment.Multiplies reading.Range: 0.90-1.10Offset calibration adjustment.Adds to reading.Range: +/- 10% of Span Calibration mode.MENU SCROLL BACK to proceed.(MODE Switch in the UP position)(MODE Switch in the DOWN position)RELAY WIRING (DIGITAL PRESSURE SWITCH ONLY)DIMENSIONAL DRAWINGS9-30 VDC, 250 mA typical external power required toenergize relays.ConnectorRetaining RingConnector HousingSeal GrommetCompressionRingPressing ScrewConnector EndPin 3 - GREEN (Relay Common)Pin 2 - BLACK(-PWR)Pin 1 - RED(+ PWR 9-30 VDC)Pin 5 - WHITE (Relay 2 N.O.)Pin 4 - BLUE (Relay 1 N.O.)Normally Open relay contactsrated for 1 amp max. at 24VDC.(Not suitable for AC voltage)Digital Pressure Switch must be externally powered to utilize relays.CABLE REQUIREMENTS• 5 conductor, standard, 18-24 AWG,.•4-8 mm (0.16-0.31”) Cable Sheath ODConnector p/n: 42119A0000(Turck eurofast®, 5-wire, 5-pin, female)5.84.21.83.64.21.84.83.45。
主要计量器具清单
时间间隔校准
10ms 100ms 300ms 600ms
1s 10s 60s
46
相位表
SMG2000E
西安双英
显示位：31/2，米样速率3次/秒，电源单个9V,迭层电池，电源电流小于5mA
电压、电流、相位：U1/I2、
U2/I1
47
数字毫秒计
SY811
西安双英科技有限公司
测量范围：0.01ms——99999.9s;工频测量范围:1.000Hz——100.000Hz±
5〜30A精密恒流测试，50Hz/60Hz双频输
出；超上限预置，报警功能；分辨率0.1A,精度：±（3%X显示值+5个字）
电阻、电流
44
soE言号发生器
HS256
北京华箭英泰电子科技有限公司
主要技术条件：输出通道数：256（可扩展
至1024），接点特性：无极性光电隔离（100V50mA，触发方式：顺序触发、群
0.2%。
1、AC150V
2、AC150V
3、AC150V
4、AC900V
5、AC900V
6、AC900V
7、AC10A
8、AC10A
9、AC10A
10、AC2A
11、AC2A
12、AC2A
13、AC50mA
14、AC50mA
15、AC50mA
16、AC25mA
17、AC25mA
18、AC25mA
19、转速
CL-313
深圳科陆电子科技股份有限公司
直流测量范围：-10V〜0〜10V、-20mA〜0〜20mA频率范围：45Hz〜65Hz;交流测量电压量程：100V、220V、400V;电流测量：10A、
DPG100数字压力表
DPG100数字压力表,数字压力控制表品牌;APG型号系列：DPG100产品等级：工业1级DPG100数字压力表，压力控制表规格参数适用介质: 气体、液体接湿材料: 304,316 SS、有机硅传感器。
壳体表面: ABS塑料。
精度等级: ±1.0%、±0.5%的F.S. F.S.(可选)压力限制: 150%的规格的压力。
温度范围: -40到80°C。
面盘直径: 100毫米过程连接: M20 * 1.5;或是1/2,1/4“NPT,特殊规格(可订做)显示方式: 2.0” 4位LCD。
仪表电源: 4.5VDC或3 -1.5 V电池供电背光功能:蓝色背光显示单位：MPa ;kg/cm²; psi，可通过仪表调节显示量程选择：0~6MPA内分段选择触点容量：3A 220VDPG100系列数字压力表是嘉诺德公司推出以替代行业内电节点压力表的一款多适应性数显压力表，是传统指针式电节点压力表的换代产品，而且与传统的电节点压力表相比具有以下优点：1、寿命高。
DPG100系列数字压力表是微电脑数字化仪表，采用双稳态控制电路，无触点接触和机械摩擦，可连续工作十余万次。
避免传统电接点压力表在工作中易产生火花和频繁机械摩擦造成的损伤，延长压力控制表寿命;更好的是可以避免因为触点粘连而导致的设备损坏。
2、接线简单，成本低。
DPG100系列数字压力控制表只需一个接触器，无需各种保护装置，解决了接线难的问题；采用双稳态控制电路，接触器不会产生抖动，因而不容易损坏接触器和被控设备，同时还降低了成本。
而传统电接触点压力表必须采用两个接触器以及多个保护装置才能工作，不仅接线复杂，而且这些装置都是易损配件，需要经常更换，因此大大增加了使用成本。
3、耐震。
DPG100系列数字压力控制表能长时间在震动的环境下照常工作，并且显示直观不会造成视觉误差；应用领域：数字压力控制表数显压力控制表DPG100系列用途广泛应用于石油、化工、化纤、冶金、无负压供水设备、无塔供水。
Omega DPG101电子数字压力计说明书
AC/DC PoweredDigital Pressure GaugeDPG101M5702/1218DPG101 is an electronic digital pressure gauge used to monitor hydraulic fluids. It monitors thepressure via the resistance measured on an isolation membrane. T he output signal is amplified by ahigh-precision, low-temperature drift amplifier. T he signal is then fed into a high accuracy A/D converter for the microprocessor to process and then show on the LED display.This flexible, simple to operate digital pressure guage is safe, reliable, and easy to debug. T he DPG101 is widely used in hydro-power, water, petroleum, chemical, mechanical, hydraulic, and other industries.Features• High resolution, 4-digit LED display• 100mm standard gauge dial • Stainless steel structure• Parameter correction function (adjust instrument zero and error value)SpecificationsNote, if the fluid being measured exceeds 80ºC, select the high temperature accessory.•Measuring Range-0.1~0~100MPa•Accuracy Range±0.25% for gauge pressure >5psi±0.5% FS for all others including absolute, compound gauge, and Vacuum ranges •Overload Pressure 150%~200%•Pressure TypeG/A•Stability≤0.1% FS per year•Power Supply220VAC•Display4 digits0.56”LED•IP RatingIP65•Relative Humidity≤90%•Operating Temp-30ºC ~ 80ºC•Fluid Temp-40ºC ~150ºC •Thread Size1/4 NPT Male•Thread MaterialSS316DimensionsMechanical InstallationInstall directly on the hydraulic pipe line. Other size connectors can be ordered. In high vibration / shock environments, pressure pipe joints can be mechanically decoupled through the use of hoses.NOTE: Vertical installation is required when the measuring range is less than 100kPA.Notes to prevent Interference • Keep connection as short as possible• Use shielded wire• Avoid direct access to the wiring of the user’s device or devices causing interference.• When using mini hoses, ground the shell separately4-20mA wiring 1 (red): power+2 (Blue ): power-WARRANTY/DISCLAIMEROMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not limited to contact points, fuses, and triacs.OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the company will be as specified and free of defects. OMEGA MAKES NO OTHER W ARRANTIES OR REPRESENTATIONS OF ANY KIND W HATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED W ARRANTIES INCLUDING ANY W ARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY / DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damagewhatsoever arising out of the use of the Product(s) in such a manner.RETURN REQUESTS / INQUIRIESDirect all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DEL AYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.FOR WARRANTY RETURNS, please have the following information available BEFORE contacting OMEGA:1. P urchase Order number under which the product was PURCHASED,2. Model and serial number of the product under warranty, and 3. R epair instructions and/or specific problems relative to the product.FOR NON-WARRANTY REPAIRS, consult OMEGA for current repair charges. Have the following information available BEFORE contacting OMEGA:1.Purchase Order number to cover the COST of the repair,2. Model and serial number of the product, and3. R epair instructions and/or specific problems relative to the product.OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering. OMEGA is a trademark of OMEGA ENGINEERING, INC.© Copyright 2018 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.WARNING : These products are not designed for use in, and should not be used for, human applications.Servicing North America:U.S.A.Omega Engineering, Inc.Headquarters:Toll-Free: 1-800-826-6342 (USA & Canada only)Customer Service: 1-800-622-2378 (USA & Canada only) Engineering Service: 1-800-872-9436 (USA & Canada only) Tel: (203) 359-1660 Fax: (203) 359-7700 e-mail:**************For Other Locations Visit /worldwide***********************。

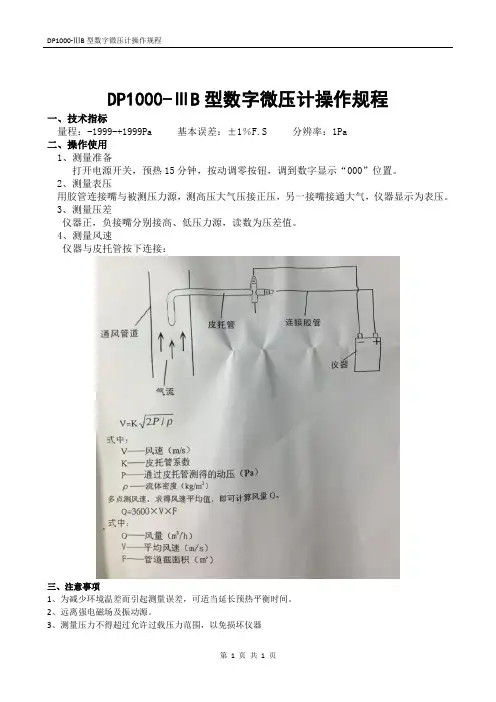

DP1000-ⅢB型数字微压计操作规程
DP1000-ⅢB型数字微压计操作规程
DP1000-ⅢB型数字微压计操作规程
一、技术指标
量程：-1999-+1999Pa 基本误差：±1％F.S 分辨率：1Pa
二、操作使用
1、测量准备
打开电源开关，预热15分钟，按动调零按钮，调到数字显示“000”位置。
2、测量表压
用胶管连接嘴与被测压力源，测高压大气压接正压，另一接嘴接通大气，仪器显示为表压。
3、测量压差
仪器正，负接嘴分别接高、低压力源，读数为压差值。
4、测量风速
仪器与皮托管按下连接：
三、注意事项
1、为减少环境温差而引起测量误差，可适当延长预热平衡时间。
2、远离强电磁场及振动源。
3、测量压力不得超过允许过载压力范围，以免损坏仪器
第1 页共1 页。
Omega DPG2001B数字压力计说明书
DIGITAL PRESSURE GAUGES WITh SELEcTAbLE EnGInEERInG UnITS AnD MEASUREMEnT MEMoRyDPG2001B-300G88888To OrderRANGE ABSOLUTE PRESSURE, VACUUM AND COMPOUND RANGES 15.00 to 0 psia 0 to 15.00 psiv ±15.00 psig 30.00 to 0 psia 100.0 to 0 psia -15.0 to 100.0 psig -15.0 to 200.0 psig GAUGE PRESSURE 0 to 3.000 psig 0 to 5.000 psig 0 to 15.00 psig 0 to 30.00 psig 0 to 60.00 psig 0 to 100.0 psig 0 to 200.0 psig 0 to 300.0 psig 0 to 500.0 psig 0 to 1000 psig 0 to 2000 psig 0 to 3000 psig 0 to 5000 psig OPTION S -BL DPG2004B-(range) -NIST DPG2001B-300G shown smaller than actual size with customerinstalled pipe fitting.NEMA 4X: ABS/Polycarbonate NEMA 4X case, rear gasket, polycarboinate labelPressure Connection: 1⁄4 NPT male fitting, 316L SS Media Compatibility: Liquids and gases compatible with 316L SSDimensions: 86 L x 73 H x 42 mm D (3.38 x 2.88 x 1.65")Weight: 250 g (8.8 oz)OPTIONSBacklighting: Add suffix “-BL” to standard battery powered model, add additional cost to priceNEMA 4X Case: Change model number to DPG2004, add additional cost to priceComes complete with operator’s manual and 2 “AA” batteries.* To order with optional backlighting add suffix “-BL” to model number and additional cost to the price; To order with optional 5-point NIST calibration “-NIST” to model number and additional cost to price.Ordering Examples: DPG2004B-15V15G, ±15 psig digital gauge in NEMA 4X case with selectable units and memory.DPG2001B-100G, 100 psig digital gauge in standard case with selectable units and memory.。
Omega DPGM409数字压力计说明书
U 5-PT NIST Traceable Calibration IncludedU High 0.08% AccuracyU E asy to Read 25 mm (1") Backlit LCD DisplayU H i and Lo Alarms StandardU MIN/MAX/AVG ReadingU U ser Selectable Analog Output 0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mAU I ncluded Setup and Service Software Allows for Fast Maintenance and Calibration via USB ConnectionU W ireless Transmitter OptionalU W ireless Models Include Data Logging Software for Remote Recording and ChartingU C E CertifiedU B attery Powered with Long Battery LifeU A nalog Output Standard Omega’s DPGM409 digital pressure gauge incorporates a rugged 316 SS enclosure designed for washdown and marine applications with a precision 0.08% accuracy pressure transducer with 316L SS wetted parts and body. The result is an extremely durable digital pressure gauge designed to survive harsh industrial environments. The large 25 mm (1") display is easy to read at a distance up to 11 m (36'). Models are available in Gauge, Sealed Gauge, Compound Gauge, Absolute, Vacuum and Barometric pressure ranges. Standard features include a highly stable silicon sensor, selectable MIN/MAX and AVG readings, Hi and LO alarms and an externally powered userselectable analog output. An optional wireless transmitter feature with software allows the signal to be transmitted to a remote location such as a PC for charting and data logging. Power is from an internal long life battery (included) or an externally supplied dc voltage source. Each unit is supplied with configuration software that allows the user to connect to a PC via a standard USB connection (cable included) and select a variety of user configurable features including sample interval, units, and backlight.Gauge Pressure: 0-25 mb to 0-345 bar Sealed Gauge: 0-7 bar to 0-345 bar Absolute Pressure: 0-350 mb to 0-345 bar Compound Gauge: ±25 mb to ±1 bar Vacuum (Negative Gauge): 0 to -25 mb to 0 to -1 bar Barometric: 0-1100 hPa to 880-1100 hPaDPGM409 SeriesStandard integral pressure sensor Magnetic stylus (included).NEMA 4X case.DPGM409-070BG, shown smaller than actual size.DIGITAL PRESSURE GAUGESWITH METRIC FITTINGS AND RANGES 0.08% ACCURACY WITH STAINLESS STEEL WETTED PARTS AND BODYF a s t D e l i v e r y – T y p i c a l l y S t o c k t o 2-W e e k s ! Note: Because of transmission frequency regulations, wireless models may only be used in the US, Canada and Europe.SPECIFICATIONSCE Compliant: Meets EN61326-1: 2006 for industrial locations with analog output cables less than 30 m (98') Accuracy (Combined Linearity, Hysteresis and Repeatability):±0.08% BSL (0.15% max in 10V/m RF field) (compound gauge calibrated in positive direction only) Temperature:S torage: -40 to 82°C (-40 to 180°F) Compensated: -18 to 66°C(0 to 150°F)Thermal Effects(Over Compensated Range):Zero Shift:R anges >350 mb: ±0.3% span Ranges ≤350 mb: ±0.5% span Span Shift:R anges >350 mb: ±0.3% span Ranges ≤350 mb psi: ±0.5% span Minimum Resistance BetweenTransducer Body and Any Wire:100MΩ @ 50 VdcPressure Cycles: 1 million minimum Long Term Stability (1-yr):±0.1% FS typicalAnalog Output: User selectable0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA (external 24 Vdc power supply required for all analog output types)Note: Compound gauge ranges have a unidirectional analog output equal to their full span; i.e. -350 to 350 mb = 0 to 10 Vdc. Analog Output:C able: 2.7 m (8.9')Accuracy: 0.08% typical Overpressure: Gauge/sealed gauge 25 mb: 10 times span70 mb: 6 times span170 mb to 100 bar: 4 times span 175 to 350 bar: 500 bar max Absolute/Barometric Ranges:350 mb to 100 bar: 4 times span 175 to 350 bar: To 500 bar abs Containment Pressure: Gauge and Sealed Gauge pressure25 to 350 mbar: To 70 bar1 to 70 bar: To 200 bar100 to 350 bar: To 700 bar Absolute/Barometric Pressure:350 mb to 70 bar: to 400 bar Display: 4-digit LCD with user selectable backlighting, (9999 count) 25 mm (1") character height Computer Interface: USB connection for set-up, cable includedUpdate Rate: User selectable from 0.25 to 10 sec. (preset to 1/sec)One 3.6V lithium 8.4 Ahcapacity (C cell) Included (two withwireless option) (replacement batteryBATT-C-3.6V)Battery Life (Typical): Up to 9 monthsEnclosure:M aterial: 316 Stainless Steel andABS center gasketFinish: Brushed 316 stainless steelEnvironmental Rating:Weatherproof, NEMA 4X (IP65)Sensor Wetted Parts:316L Stainless SteelPressure Connection: G1⁄4 maleDimensions:D isplay: 115 L x 89 W x 74 mm D(4.5 x 3.5 x 2.9")Sensor: 72 to 89 mm L (2.8 x 3.5")below displayWeight: 900 g (32 oz) Typicaldepending upon configurationFront Panel FunctionsBacklight: Manually turns backlight on/offMin/Max: Recalls min/max valuesZero/Clear: Zeros display or clears min/maxSoftware Settings (via USB)Update Rate: 4 options, 10, 5, 2, 1times per secondUnits: psi, inHg, inH2O, bar, mbar, hPaunits; must be specified at time of orderLock: Allows the lock-out offront panel functionsAlarms: User selectable “High” and“Low” alarm limits (open collector)Analog Output: User Selectable0 to 5 Vdc, 0 to 10 Vdc, or 4 to 20 mA(requires external 24 Vdc power)Backlight: On/off, 10 sec, 30 sec,1 min, 5 minWireless Transmitter (Optional):Channel number, transmission rate,alarms, sensor offset, chart recording,data loggingOverrange Indication: “_ _ _ _”Wireless Option SpecificationsTransmit Sample Rate: Userprogrammable from 1 sample/2 minto 1 sample/2 secRadio Frequency (RF) TransceiverCarrier: ISM 2.4 GHzRF Output: 10 dBm (10 mW)Range of RF Link:O utdoors (Line of Sight):Up to 120 m (400')Indoors/Urban: Up to 40 m (130')Included Software: Requires Windows®7 (32 bit); XP or VistaInternal Battery: Two 3.6V lithium8.4 Ah capacity (C-cell) included,(replacement battery BATT-C-3.6V)Data Transmission to Host: Pressurereading, ambient temperature reading,RF transmit strength and battery level New security feature usesmagnetic stylus (included)for keypad activation. Noaccidental button presses.Perfect for dirty hands or ifwearing gloves.2.7 m (8.9') analog output cable, one3.6V lithium C cell battery (two with wireless option), and 5-point NIST traceable calibration.To order wireless option add suffix “-W” to model number, for additional cost.To order sealed gauge models change suffix “G” to “SG”, available on gauge ranges ≥7 bar, no extra charge.Ordering Examples: DPGM409-070G-W, digital pressure gauge with 70 bar range, G 1⁄4 male fitting and wireless transmitter option, and UWTC-REC1, wireless USB receiver.DPGM409-025HV digital pressure gauge with 25 mb (hPa) vacuum range, G 1⁄4 male fitting.DPGM409-007SG digital pressure gauge with 7 bar, sealed gauge range, G 1⁄4 male fitting.Wireless Receivers (For Use with UWTC-REC2-D, 48-channel wireless receiver with analog output and display.“V2” for 0 to 10 Vdc, “TC” for Type K thermocouple, or “MA” for 4 to 20 mA.。
凯乐数字式压平眼压计（D-KAT）使用说明说明书
使用说明凯乐数字式压平眼压计(D-KAT)请点击目录直接翻到您所选择的部分或者使用右边的“下一页”和“返回”按钮导航到适宜的位置。
点击“首页”将会带您回到本页。
1. 引言感谢您选择凯乐数字式压平眼压计（D-KAT）。
在使用您的D-KAT前，请仔细阅读本手册。
这将确保患者的安全和测量结果的可信度。
本手册应妥善存放，以备日后查阅。
1.1 仪器简介凯乐压平眼压计依据“戈德曼（）法”工作，根据压平（扁平）角膜的一个恒定部位（3.06毫米）所需的力测量眼压。
安装一个消过毒的（或者一次性的）专门棱镜到眼压计头上，然后将棱镜置于角膜上。
检查人员使用10倍放大的裂隙灯生物显微镜借助蓝色滤镜查看两个发荧光的绿色半圆。
然后用转盘调整施加给眼压计头的力，直到这两个半圆的内边缘对准。
由于对角膜有物理接触，因此有必要对患者角膜使用局部麻醉剂。
1.2 仪器的拟定用途/目的凯乐数字式压平眼压计适用于测量眼压，以辅助筛查和诊断青光眼。
联邦法律规定该仪器仅限于内科医生或者执业医师购买或者根据其订单销售。
凯乐数字式压平眼压计（D-KAT）是大多数“照明台”型裂隙灯的附件。
因其良好的通用性，D-KAT眼压计可装到许多制造商生产的裂隙灯或者与其共同使用。
如果该仪器以任何方式被捣弄或日常维护被忽略或不按照制造商的指导进行，制造商拒绝任何和所有责任和质量保证内容。
裂隙灯上的R型（固定式）1. 引言1.3 如何测定眼压（IOP）眼压计探测臂组件末端环形支座上的丙烯酸测量棱镜压平角膜。
棱镜是平整的，带有光滑或者圆润的边缘，以防止对角膜造成任何损伤。
通过向前移动裂隙灯，使测量棱镜与患者的眼睛接触。
这时，转动测量鼓来提高眼睛上的压力，直到形成一个连续的整块的直径3.06毫米（面积7.354平方毫米）的被压平平面。
该双像棱镜将图像分开，呈现出两个相对的3.06毫米的半圆部分（参阅7.4.2节测量程序了解更多细节）。
1.4 戈德曼（）型眼压计的优点• 在使用裂隙灯的常规检查中就可以测量眼压。
