SENSOR CONNECTOR
专利名称：SENSOR CONNECTOR 发明人：HOTEA, Gheorghe,KOURIMSKY, Fritz, Josef,
Alois,GELTSCH, Hans-Otto,NEUHAUSERБайду номын сангаас Rober t ,BENEDIKT ,Wal t er ,KUESEL,Mat t hias 申请号：EP96901089.1 申请日：19960209 公开号：EP0808519B1 公开日：19981104
摘要：A sensor connector (2) comprises a conductive outer housing (4) within which is mounted a certain length of shielded cable connected to receptacle terminals (38) that receive pins of a sensor. A shield element (40, 140) extends across the inside of the outer housing (4) to provide a shield means between the sensor and the cable leads (18). In one embodiment the shield (140) is stamped and formed, and in the other the shield (40) is a printed circuit board with a ground plane on one side and surface mounted capacitors on the other side interconnected to the terminals for filtering the signal. Soldering of the filter elements to the ground planes, and soldering of the terminals to the filter elements provides a shock resistant connection that is necessary for such applications.
MEZZANINE CONNECTOR

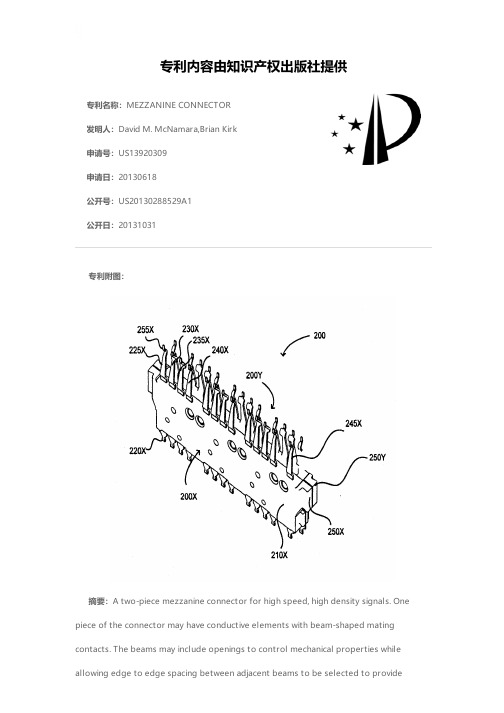

专利名称：MEZZANINE CONNECTOR发明人：David M. McNamara,Brian Kirk申请号：US13920309申请日：20130618公开号：US20130288529A1公开日：20131031专利内容由知识产权出版社提供专利附图：摘要：A two-piece mezzanine connector for high speed, high density signals. One piece of the connector may have conductive elements with beam-shaped mating contacts. The beams may include openings to control mechanical properties while allowing edge to edge spacing between adjacent beams to be selected to providedesired electrical properties. The openings may be teardrop shaped, with a larger width at a distal end of the beams. Beams associated with signal conductors may have openings that are shaped differently from openings of beams associated with ground conductors. For a first connector piece, mating contact regions of signal conductors may be wider than mating contact regions of ground conductors. For a second connector piece adapted to mate with the first connector piece, mating contact regions of signal conductors may be narrower than mating contact regions of ground conductors. These contact shapes may provide float while maintaining a high contact density.申请人：Amphenol Corporation地址：Wallingford Center CT US国籍：US更多信息请下载全文后查看。
Coaxial cable connector

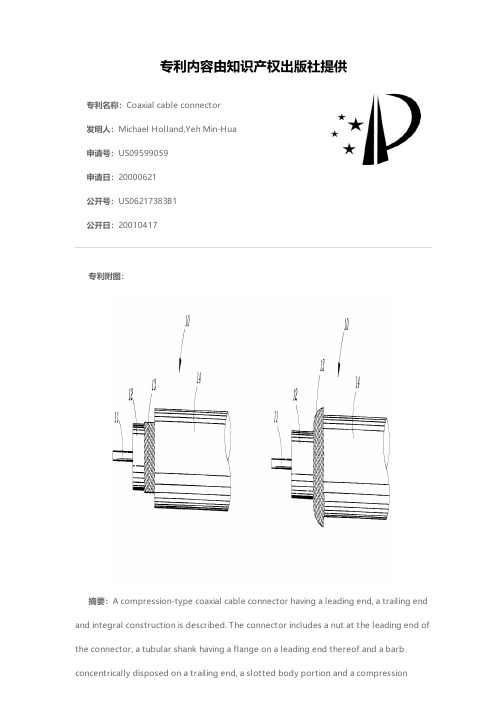

专利名称：Coaxial cable connector发明人：Michael Holland,Yeh Min-Hua申请号：US09599059申请日：20000621公开号：US06217383B1公开日：20010417专利内容由知识产权出版社提供专利附图：摘要：A compression-type coaxial cable connector having a leading end, a trailing end and integral construction is described. The connector includes a nut at the leading end of the connector, a tubular shank having a flange on a leading end thereof and a barb concentrically disposed on a trailing end, a slotted body portion and a compressionsleeve slidably attached to the body portion forming the trailing end of the connector. The connector, and each of the components associated therewith, has an axial conduit coextensive with the length thereof. When the prepared end of a coaxial cable is inserted into the trailing end of the connector conduit and advanced through the conduit into the body portion, the shank separates the outer protective jacket and conductive braid of the cable from the dielectric core and interposes the barbed portion of the tubular shank therebetween. Subsequent advancement of the compression sleeve over the body portion, with the assistance of a compression tool, compresses the cable jacket and braid in two locations providing secure attachment. Following compression, further advancement of the compression sleeve is stopped when an annular ridge within the compression sleeve engages a groove in the outer surface of the slotted body portion, thereby providing a stable mechanical connection between the cable and connector. A first “O” ring disposed between the tubular shank and the nut, and a second “O” ring disposed between the slotted body portion and compression sleeve, provide a moisture seal. The construction of the slotted body portion and the compression sleeve minimizes the possibility of installation errors.申请人：HOLLAND ELECTRONICS, LLC代理人：Michael G. Petit更多信息请下载全文后查看。
CONNECTOR CONNECTION-CONFIRMING CIRCUIT
更多信息请下载全文后查看
专利内容由知识产权出版社提供
专利名称：CONNECTOR MING CIRCUIT
发明人：TATEYAMA HIROMI 申请号：JP85991 申请日：19910109 公开号：J P H 04 24 8280A 公开日：19920903
摘要：PURPOSE:To confirm the electrical connection condition between the connector of a printed substrate and the connector of a cable by forming a regressive loop, and detecting the condition when a signal passing through the regressive loop is cut off on the way. CONSTITUTION:The terminal of a connector 105 at the unit side earthed in a unit 102 is connected to the signal line 108a of a cable 107 through a connector 106 at the cable side, and furthermore, connected to a specific terminal of a connector 103 at the unit side through a connector 104 at the cable side. This specific terminal is connected to the second specific terminal of the connector 103 in a unit 101, and this terminal is corresponding to the terminal connected to the signal line 108b of the connector 104. The signal line 108b is connected to the specific terminal of the connector 105 through the connector 106. As a result, a regressive loop is formed, and when a signal passing through the loop is cut off, it is detected so as to confirm the electrical connection condition between the connector of a printed substrate and the connector of the cable.
CONNECTOR
专利名称：CONNECTOR发明人：Nobuyuki NAKAJIMA,Ryoichi MANABE申请号：US17433544申请日：20200221公开号：US20220158374A1公开日：20220519专利内容由知识产权出版社提供专利附图：摘要：A connector () according to the present disclosure includes a holder () holding a cable () including a conductor () and an insulating coat () covering the conductor (), and a socket () with which the holder () is to be engaged and including a contact (). The holder ()includes a base portion () holding the cable () by being integrally molded with the cable ()and in which a portion of each of the insulating coat () and the conductor () of the cable () is embedded, and an extension portion () covering at least a portion of the conductor () and extending from the base portion () toward a side of connect with the socket (). The holder () exposes a part of the conductor () of the cable () in contact with the contact () in an engaged state in which the holder () and the socket () are engaged with each other.申请人：KYOCERA CORPORATION地址：Kyoto JP国籍：JP更多信息请下载全文后查看。
ELECTRICAL CONNECTOR FOR A CONTROLLER
专利名称：ELECTRICAL CONNECTOR FOR ACONTROLLER发明人：Michael Zheng,Ke Zhang,Haitao Li,YongMu,Kun Wang,Wei Guo,Yingjie Zhang,XinyanZheng申请号：US17519139申请日：20211104公开号：US20220059960A1公开日：20220224专利内容由知识产权出版社提供专利附图：摘要：An electronic device including a plurality of ports for electrically connecting thedevice to another device. The electronic device may include a housing including a front, a back and at least a first side and an opposing second side extending between the front and the back, a printed circuit board housed by the housing, and an electrical connector electrically connected to the printed circuit board. The electrical connector may include a first spring contact, a second spring contact, and an electrically conductive bridge mechanically and electrically connecting the first spring contact and the second spring contact. The electrically conductive bridge may be housed by the housing. The first and second spring contacts may extend outside of the housing and may be accessible from the first and second sides of the housing, respectively.申请人：Honeywell International Inc.地址：Charlotte NC US国籍：US更多信息请下载全文后查看。
ELECTRICAL CONNECTOR FOR A CONTROLLER
专利名称：ELECTRICAL CONNECTOR FOR ACONTROLLER发明人：Michael Zheng,Ke Zhang,Haitao Li,YongMu,Kun Wang,Wei Guo,Yingjie Zhang,XinyanZheng申请号：US17519139申请日：20211104公开号：US20220059960A1公开日：20220224专利内容由知识产权出版社提供专利附图：摘要：An electronic device including a plurality of ports for electrically connecting thedevice to another device. The electronic device may include a housing including a front, a back and at least a first side and an opposing second side extending between the front and the back, a printed circuit board housed by the housing, and an electrical connector electrically connected to the printed circuit board. The electrical connector may include a first spring contact, a second spring contact, and an electrically conductive bridge mechanically and electrically connecting the first spring contact and the second spring contact. The electrically conductive bridge may be housed by the housing. The first and second spring contacts may extend outside of the housing and may be accessible from the first and second sides of the housing, respectively.申请人：Honeywell International Inc.地址：Charlotte NC US国籍：US更多信息请下载全文后查看。
