防爆投光灯说明书
D1xB2X15爆炸防护闪光灯说明书
FeaturesFour flash rates: 1Hz, 1.3Hz, 1.5Hz & double flashAutomatic synchronisation on multi-beacon systemA4 316 Stainless Steel guard included as standardUV stable polycarbonate lens colour filter – field replaceable4 x side, 1 x pendant cable entries – stopping plugs includedCorrosion proof marine grade aluminium enclosureUL 1638 & CAN/ULC S526 signaling device for Fire Alarm Appro valsUL/cUL/ULC – File ref: E245313IECEx Certificate: IECEx ULD 19.0006XATEX Certificate: DEMKO 19 ATEX 2009XUKCA certificate: UL21UKEX2130XCCCEx certificate: 2022122309114969TR CU Ex EAC certificate: EAC RU C-GB.AA.71.B.00273/20PESO CCOE certified: P493433-1CSFM listing: 7300-2279:0508SIL1 & SIL2 compliant to IEC61508 (2010)Co dingNEC Class / ZoneClass I Zone 1 AEx db IIC T3 Ta -55°C to +80°C (AC: +65°C)Class I Zone 1 AEx db IIC T4 Ta -55°C to +65°CZone 21 AEx tb IIIC T132°C Ta -55°C to +80°C (AC: T153°C +70°C) CEC Class / ZoneEx db IIC T3 Ta -55°C to +80°C (AC: +70°C)Ex db IIC T4 Ta -55°C to +65°CEx tb IIIC T132°C Ta -55°C to +80°C (AC: T153°C +70°C)NEC / CEC Class / DivClass I Div 1 Group ABCD T3C Ta -55°C to +80°C (DC only)Class I Div 1 Group ABCD T4 Ta -55°C to +55°C (AC: T4A +55°C) Class II Div 1 Group EFG T4 Ta -55°C to +80°C (AC: +40°C)Class III Div 1 Ta -55°C to +80°C (AC: +40°C)IECEx / ATEXII 2G Ex db IIC T3 Gb Ta -55°C to +80°C (AC: +65°C)II 2G Ex db IIC T4 Gb Ta -55°C to +45°CII 2D Ex tb IIIC T146°C Db Ta -55°C to +80°C (AC: T139°C +70°C)Specificatio nSource:Xenon StrobeEnergy:15 Joules (15Ws)Flash rates:1Hz flash (60 fpm)1.3Hz flash (80 fpm)1.5Hz flash (90 fpm)Double flash (120 fpm)Eff. Intensity cd:98.61cd UL1638 Private mode fireEff. Intensity cd:731.71cd measured ref to I.E.SEff. Intensity cd:750 cd – calculated from energy (J)Peak Candela:1,500,000 cd – calculated from energy (J)Lens colours:Amber, Blue, Clear, Green, Magenta, Red & Yellow Voltage DC:24V dc (20-28Vdc), 48Vdc (42-54Vdc)Voltage AC:115Vac (110-120Vac), 230Vac (220-240Vac)In-rush:753mA within 6ms @ 24Vdc, 1958mA within 4.3ms @ 48VdcSafety Integrity Level:Product version A: SIL1 and SIL2 Route 2HProduct version S: SIL2 Route 1H with diagnostics SFF: >99% See install manual for reliability & functional safety dataIngress protection:IP rating per EN60529:IP66/67Type rating per UL50E/NEMA250:4/4X/3R/13Lens material:High impact Borosilicate glassEnclosurematerial:Marine grade LM6 aluminium alloyEnclosure colour:Red or Grey, custom colours available on request Enclosure finish:Chromate & powder coated finishCable entries:Side: 2 × 3/4"NPT & 2 x M20x1.5mmPendant: 1 × 3/4"NPTStopping plugs includedStopping plugs:Brass, Nickel Plated or Stainless SteelTerminals:0.5 – 2.5mm² (20-14AWG) – 12AWG solid core conductorDuplicated terminalsLine monitoring:Blocking diode includedEOL Min. 500 Ohm 2W, or 3k3 Ohm 0.5W resistoror diode (DC versions) can be fittedGround/Earthstud:M5Enclosure volume:<2 litresInstallation temp:-55 to +80°C [-67° to +176°F]Storage temp:-55 to +80°C [-67° to +176°F]Relative humidity:95% – Additional tropicalisation is recommended forapplications where both high relative humidity and highambient temperatures existMTBF DC:198.88 years / 1,742,161 hours – MIL 217MTBF AC:253.68 years / 2,222,223 hours – MIL 217Weight: 3.2kg/7.1Ibs*All candela data is representative of performance with clear lens at optimum voltage.Part Co desPar t Cod e:Id en ti fi er:Descr i p ti on:Product type:D1xB2Type:X15Xenon Strobe Beacon 15 JouleVoltage:DC024DC048AC115AC23024Vdc (20-28Vdc)48Vdc (42-54Vdc)115Vac (110-120Vac)230Vac (220-240Vac)Cable entries: [e]MBE2 × 3/4"NPT, 2 x M20, 1 × 3/4"NPT2 × 1/2"NPT – adaptors, 2 × 3/4"NPT, 1 ×3/4"NPT1 × 1/2"NPT – adaptors, 1 x M20,2 × 3/4"NPT,1 × 3/4"NPTStopping plug/adaptor material:[m]BNSBrassNickel plated brassStainless steelGuard material:[s]13A4 316 Stainless SteelA4 316 St/St with Equip. TagProduct version:[v]ASUL, cUL, ULC, IECEx, ATEXCCCEx, Ex EAC, PESO, CSFM – SIL1 & SIL2 Route2HUL, cUL, ULC, IECEx, ATEX,CCCEx, Ex EAC, PESO, CSFM (24Vdc only) – SIL2Route 1H with diagnostics SFF: >99% Product option:[o]1TXStandard productTropicalisationCustom configuration – contact E2S Enclosure colour:[x]RGSRedGreySpecial colour – contact E2SLens colour: [y]ABCGMRYAmberBlueClearGreenMagentaRedYellowA ccessor i es:SP77-0001-A4-RSP77-0001-A4-GSP65-0001-A4SP65-0003-A4Multi angle bracket A4 (316) for Red enclosureMulti angle bracket A4 (316) for Grey enclosurePole Mount Bracket Kit 2" St/St A4 (316)Sunshade – St/St A4 (316)Sp ar es:SP77-0002SP77-0015-RSP77-0015-GXenon flash tube assemblyPack of 2 x Mounting Lugs – Red enclosurePack of 2 x Mounting Lugs – Grey enclosureCurrent Co nsumptio nNom i n al Vol tage:Vol tager an ge:Nom i n alcu r r en t:M ax.cu r r en t:In-r u sh:24Vdc20-28Vdc853mA920mA753mA <6ms48Vdc42-54Vdc330mA360mA1958mA <4.3ms115Vac110-120Vac 50/60Hz310mA420mA-230Vac220-240Vac 50/60Hz170mA230mA-AssembliesThe D1xB2X15 is available as a plated assembly configured with a D1x type alarm horn sounder and additionalD1x type Xenon strobe or LED beacons with or without a D1xJ2 Ex d junction box. Contact E2S for further information.E2S Warning S ignals s ales@ No liability is accepted for any consequence of the use of this document. The technical specification of this unit is subject to chang e without notice due to our policy of continual product development. All dimensions are approximate. This unit is sold subject to our standard conditions of sale, a copy of which is available on request.9 Ju l 2023。
SPARTAN系列防爆灯具安装指南说明书
The SPARTAN series of explosion protected luminaires are specialist devices, certified for use in specific operating environments.The units must be installed in accordance with these instructions, must be correctly certified for the specific operating environment and must be installed by suitably qualified personnel.If you have any queries about the installation or the certification of the unit – please contact Raytec for immediate assistance and advice.Important information0920-D -00042-R e v DSPARTANLinear Range - Installation GuideSPX/SPZCML14ATEX3119 & IEC Ex CML 15.0001 & CML21UKEX3105 CML15ATEX4138 & IEC Ex CML15.0068 & CML21UKEX4104 CML16ATEX1130 & IEC Ex CML16.0052 & CML21UKEX1100This installation guide provides instructions for installing SPARTAN series of explosion protected linear luminaires.Text in italics is specific for emergency variants.Overview1Safety Instructions 2 Installation 3 Maintenance 4 T echnical Specification 5Declaration of ConformityUK / Europe T el: +44 (0) 1670 520055Americas T el: +1 613 270 99901. Safety instructions1. Read this leaflet carefully before commencing to install the SPARTAN unit and retain it for future use. Installation can only be carried out by suitably qualified personnel.2. Check the certification to ensure that the hazardous zone, mains supply, ambient temperature present and ‘T’ rating are is suitable for the environment the unit is being installed in.3. If the SPARTAN unit is to be installed in areas of high vibration, please consult with Raytec.4.Externally the SPARTAN unit housing is constructed from marine grade aluminium and polycarbonate outer optic, stainless steel brackets/fasteners and silicone gaskets, internally there are many non metallic components. The end user must ensure that these materials are suitable for the environment the SPARTAN unit will be installed in; Zone 1 or Zone 2 Hazardous areasPlastic components may be cleaned with water containing a small amount of detergent, followed by a clean water wash. Chemicals/ oils that come into contact with plastic parts may cause stress cracking and premature component failure.5.SPARTAN units are designed to withstand marine environments and are tested in accordance with IEC60068-2-52. However if the SPARTAN unit is to be installed in a very high corrosive environment such as coastal and offshore the following good practice should be followed:During installing ensure there are no scratches, chips or defects in external paint surface that would allow ingress of water to bare aluminium. If so touch up with suitable paintDuring installation apply an anti corrosive jointing compound to screw threads such as PSU cover and external earth points.During installation ensure exterior surface of the product is not in direct contact with a dissimilar metal such as galvanised steel. If so fit a nylon barrier to prevent galvanic corrosion.During maintenance regularly wash down external surface of fitting with clean, fresh water to remove any deposits of mineral salts on the exterior surface.5.Check certification nameplate on cover of luminaire to ascertain type of threaded cable entry on the luminaire. Select suitably certified ATEX/IEC Ex/ UKEX cable glands and stopper plugs, these must be parallel thread, have a minimum of 5 full thread engagement and be of a medium/fine tolerance to ISO965-1 and ISO965-3. The cable entry devices selected must maintain the IP rating of the luminaire7.The incoming mains cable should not exceed a temperature rise of 27C above the ambient conditions; select suitable cable.8. When the unit is installed correctly and in accordance with these installation instructions it will not harm humansor animals.9. Before installing emergency luminaires please check the last charge date of the battery. This is shown on theexternal product packaging and also on the battery label, alternatively consult date shown on the declaration at the back of this leaflet. If the last charge date was in excess of 3 months (if stored at 5°C to 25°C) or 1 month (if stored outside this range) from date of installation, please consult Raytec document 0010-D-00001 Battery3UK / Europe T el: +44 (0) 1670 520055Americas Tel: +1 613 270 99902. InstallationMounting SPARTAN Unit1. T o meet the requirements of certification a MINIMUM of 2 fixing points must be used,the fixing points must be suitable for the conditions of use.2. The rear of the unit has 3 blind sets of M8/M6 fixing points, a full range of mountingaccessories are available including a range of pole clamps, ceiling mount brackets, various wall mount brackets, outreach bracket and chain mount eyelets. Please consult for further details. The spigot mount version of the product is provided with a pole mount system and 2xM6 A4 SS Grub Screws for mounting onto 32-43mm diameter poles. Once mounted tighten grub screws to 15Nm.3. When installing the SPARTAN luminaire vertically where possible, the cable glandsshould be kept to the bottom of the luminaire.1370 FOR WL168 EMER400 FOR WL84700 FOR WL168/WL168-15004UK / Europe T el: +44 (0) 1670 520055Americas T el: +1 613 270 9990Wire the Mains cable into the terminal block. Provision has been made for this and identified as the E (Earth), L1 (Live switched), L2 (Live permanent) and N (Neutral) terminals. There are two pairs of contacts for each of these to facilitate a mains cable that can be looped in and out of the unit, an identical terminal block is also available at the other end of the luminaire to allow the unit to be through wired. The L2 terminals on a standard unit is not electrically connected but allows them to be used on the same circuits as emergency luminaires.Typical wiring diagram - WL168-HOTypical wiring diagram - Emergency Variants5 UK / Europe T el: +44 (0) 1670 520055Americas T el: +1 613 270 9990OperationThe light fitting will carry out the following function automatically after installation:• Commissioning Cycle • Function test •Self-testA tri-colour LED indicator displays the light fitting status. The indication colours are shown in table 1.a. Commissioning Cycle • Starts automatically after 24 hours of uninterrupted charging. If there is a mains failure in this time the count resets for another 24 hours.• 3 charge/discharge cycles to optimise battery’s full capacity.• Battery is charged for 24 hours before each discharge cycle.•No need for manual commissioningSpartan Intelligent Emergency Operation Guide4.Installer should earth the unit separately – an internal and external earth point are provided as standard at each end of the luminaire 5. Connect wires to mains supply.6. If the unit is opened for any reason, disconnect mains – On emergency luminairesthere may be more than one mains supply7. All SPARTAN luminaires have terminal blocks suitable for looping 4mm2 cable, onlyone cable should be connected to each terminal block connection8. The battery fuse is located in the compartment that contains the battery, the fuse isdisconnected after final manufacturing testing. When installing the linear the battery fuse will need to be reconnected and the unit charged for 24 hours and then discharged (repeated 3 times) to bring the battery up to peak capacity. (Unless an ‘EMX’ intelligent emergency variant – see notes below)9. If a 4 core cable is used on emergency luminaires – L1, L2, N and E the link cable at thefront of the terminal block between L1 and L2 should be removed10. During emergency operation the light output and duration will be determined by thevariant purchased11. Once wiring is complete replace terminal enclosure covers. Ensure gasket is located neatlyin channel and no wires are trapped between cover and body. Tighten screws to 3Nm12. If carrying out Insulation Resistance tests the normal method of insulation testing is toconnect Live and Neutral together and test between this point and Earth to prevent the risk of damage to the electronic control gear.6UK / Europe T el: +44 (0) 1670 520055Americas T el: +1 613 270 9990Notes• The luminaire will switch off momentarily (<0.5sec) during the transition between a test and normal operation.•If a test was interrupted by a mains failure, the test will be halted, and the unit will enter emergency mode. Once the mains supply is back, the unit will allow 24 hours to recharge the battery before continuing the tests.• The self-test is carried out at a random time to eliminate the possibility of having more than one unit undergoing the test at the same time.b. Function T est • Carried out every 7 days.• Checks the function of the battery, lamp and power supply.•Lasts for few minutes only.c. Self-test • Carried out at a random time every 3 months.• Checks the battery’s capacity and lamp’s condition.• Performs self-recovery for the battery if not at peak capacity.• Is carried out at 100% load•Discharges only 2/3 of the battery’s capacity.LED indication7UK / Europe T el: +44 (0) 1670 520055Americas T el: +1 613 270 99903. Maintenance1.It is essential that all SPARTAN units are maintained in accordance with the requirements of the EN60079-17 standard: (Electrical apparatus for explosive gas atmospheres – other than mines).2.IMPORTANT . No modifications are permitted to the unit, all spare parts must be purchased from the manufacturer, unauthorized modifications or spare parts will invalidate certification and make the equipment dangerous.3.Isolate the SPARTAN unit from the mains supply and allow to cool before carrying out any maintenance work.• For Emergency variants, battery must be isolated/ connected when a hazardous environment is NOT present prior to carrying out any maintenance work.4.In the unlikely event of a number of LED’s failing, the light engine assembly must be replaced. This is achieved by removing the outer polycarbonate cover and then releasing the M3 bolts that hold the LED assembly in place, disconnect the white and red/white cable to the power supply and pull the light engine PCB clear. Re fitting a light engine is a reversal of the above procedure.•For emergency variants, battery must be isolated/ connected when a hazardous environment is NOT present prior to carrying out any maintenance work.5.The unit has either 1 or 2 independent power supplies located in the terminal chamber covers, in the event that a power supply needs to be replaced the terminal chamber cover should be removed, the cables disconnected and the dog clip can then be detached from the cover. Fitting a new power supply is a reversal of the above procedure.6.Disposal of packaging, SPARTAN unit and old LED assemblies/power supplies should be carried out in accordance with national regulations.Protection ConceptsCML14ATEX3119 or IEC Ex CML15.0001 or CML21UKEX3105 CML15ATEX4138 or IEC Ex CML15.0068 or CML21UKEX4104CML16ATEX1130 or IEC Ex CML16.0052 or CML21UKEX1100Standard variantsII 2 GD Ex eb mb IIC T4 Gb Ex tb IIIC T80°C Db -40°C to +60°CStandard variantsII 3 GD Ex ec mc IIC T4 Gc Ex tc IIIC T80°C Dc -40°C to +60°CStandard variantsII 2 D Ex tb IIIC T80°C Db -40°C to +60°CEmergency variantsII 2 GD Ex eb mb IIC T4 Gb Ex tb IIIC T76°C Db -20°C to +50°CEmergency variantsII 3 GD Ex ec mc IIC T4 Gc Ex tc IIIC T75°C Dc -20°C to +50°CEmergency variantsII 2 D Ex tb IIIC T76°C Db -20°C to +50°CUK / Europe T el: +44 (0) 1670 520055Americas T el: +1 613 270 99904. Technical SpecificationInrush Current Typical Curve9 UK / Europe T el: +44 (0) 1670 520055Americas Tel: +1 613 270 9990UK / Europe T el: +44 (0) 1670 520055Americas T el: +1 613 270 9990ManufacturerRaytec LtdUnit 15, Wansbeck Business Park Rotary Parkway AshingtonNorthumberland NE63 8QWUnited KingdomDescription of EquipmentSpartan range of linear luminaires – standard and emergencyCertification BodyCMLNew Port Road Ellesmere Port CH65 4LZCertificate numbersCML14ATEX3119 & IECExCML15.0001 & CML21UKEX3105 CML15ATEX4138 & IEC Ex CML15.0068 & CML21UKEX4104 CML16ATEX1130 & IEC Ex CML16.0052 & CML21UKEX1100ATEX Quality Assurance Notification CSA BV (2813)UKCA Quality Assurance Notification CSA UK (0518)Declaration Of ConformityWith The Atex Directive 2014/34/EU& UK Directive SI 2016 No. 1107 (as amended)Raytec Ltd. declares under our sole responsibility that the product(s) listed below conform with the relevant provisions of directive 2014/34/EU of 20th April 2016 and UK Directive SI 2016 No. 1107 (as amended)CML14ATEX3119 or IEC Ex CML15.0001 or CML21UKEX3105 CML15ATEX4138 or IEC Ex CML15.0068 or CML21UKEX4104Standard variantsII 2 GD Ex eb mb IIC T4 Gb Ex tb IIIC T80°C Db -40°C to +60°CStandard variantsII 3 GD Ex ec mc IIC T4 Gc Ex tc IIIC T80°C Dc -40°C to +60°C Emergency variantsII 2 GD Ex eb mb IIC T4 Gb Ex tb IIIC T76°C Db -20°C to +50°CEmergency variantsII 3 GD Ex ec mc IIC T4 Gc Ex tc IIIC T75°C Dc -20°C to +50°C UK / Europe T el: +44 (0) 1670 520055Americas T el: +1 613 270 9990Compliance with the Essential Health and Safety Requirements has been assessed by reference to the following standards -EN 60079-0 : 2018 EN 60079-31 : 2014EN 60079-7: 2015+A1:2018 EN 60079-18:2015+A1:2017And also 2014/35/EU – Low Voltage Directive, 2014/30/EU – EMC DirectiveSignedName Barry ThompsonPosition DirectorDatedSerial numberCML16ATEX1130 or IEC Ex CML16.0052 or CML21UKEX1100Standard variants II 2 D Ex tb IIIC T80°C Db -40°C to +60°C Emergency variants II 2 D Ex tb IIIC T76°C Db -20°C to +50°CIP66 & IP67110V-254V AC or 18-48V AC/18-69V DCRaytec Global (excluding Americas)Tel: +44 (0) 1670 520055*******************Raytec Ltd.Unit 15 Wansbeck Business Park, Rotary Parkway Ashington, Northumberland, NE63 8QW, United Kingdom Raytec AmericasTel: +1 613 270 9990*********************Raytec Systems Inc.800-300 Terry Fox Drive, Ottawa, Ontario 2K 0E3, Canada。
led防爆说明书
led防爆说明书一、产品概述本产品是一种LED防爆灯，具有防爆、防火、节能环保等特点。
适用于石油、化工、制药等易燃易爆场所的照明需求。
本说明书旨在向用户提供正确的使用方法和注意事项，确保用户在使用过程中的安全性。
二、安全操作指南1. 产品安装(1) 在安装过程中，请确保断电，避免电击事故发生。
(2) 确保安装位置稳固，以防产品摇晃或倾斜。
(3) 请根据产品安装图纸正确安装灯具，确保电线无短路现象。
(4) 安装前，请检查产品及配件是否完好，若有损坏请及时更换。
2. 电气连接(1) 在电气连接之前，务必要切断电源，以免触电。
(2) 根据产品连接图正确进行接线，确保接线牢靠，并用绝缘胶带包好。
(3) 如需更换电源线，请选择符合国家标准的电线并由专业人员进行更换。
3. 使用注意(1) 产品仅适用于室内使用，禁止在水中或潮湿场所使用。
(2) 避免阳光直射，防止灯具过热，影响寿命。
(3) 非专业人员请勿拆卸产品，如需维修，请联系专业售后服务。
(4) 如发现产品出现漏电、异味或其他异常情况，请立即停止使用并联系售后服务。
4. 维护保养(1) 定期清洁产品及透明罩，保持灯具的光效。
(2) 检查产品外壳是否存在损坏，如有请及时更换。
(3) 不得使用尖锐物品敲击或碰撞产品，以避免产品损坏。
三、技术参数1. 防爆等级：Exd II CT62. 防护等级：IP653. 电源电压：AC100-240V4. 色温范围：5000-6000K5. 光通量：1000lm6. 使用寿命：50000小时四、故障排除故障现象：产品无法正常亮起。
故障排除方法：请检查电源连接是否正确，确保连接牢固无松动。
如仍无法解决故障，请联系售后服务。
故障现象：产品亮度降低。
故障排除方法：可能是灯珠老化，建议更换LED灯珠。
若更换后仍有问题，请联系售后服务。
故障现象：产品发出异味。
故障排除方法：请立即停止使用，并联系售后服务。
五、注意事项1. 本产品仅供专业人员安装和维修，非专业人员请勿私自拆卸。
矿用隔爆型照明灯说明书

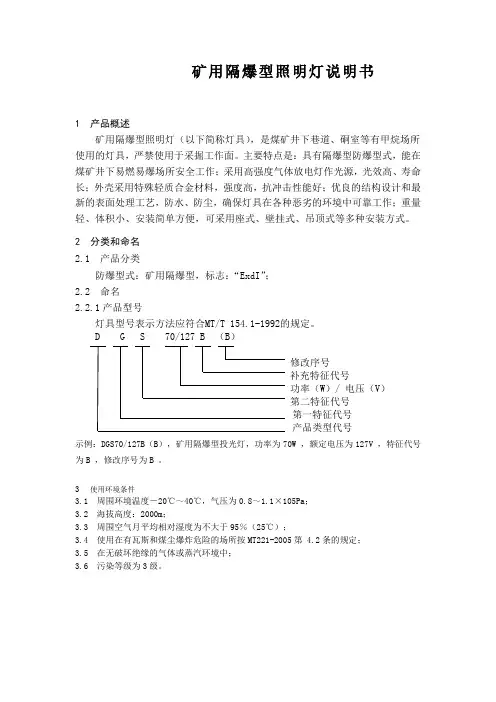

矿用隔爆型照明灯说明书1 产品概述矿用隔爆型照明灯（以下简称灯具），是煤矿井下巷道、硐室等有甲烷场所使用的灯具，严禁使用于采掘工作面。
主要特点是：具有隔爆型防爆型式，能在煤矿井下易燃易爆场所安全工作；采用高强度气体放电灯作光源，光效高、寿命长；外壳采用特殊轻质合金材料，强度高，抗冲击性能好；优良的结构设计和最新的表面处理工艺，防水、防尘，确保灯具在各种恶劣的环境中可靠工作；重量轻、体积小、安装简单方便，可采用座式、壁挂式、吊顶式等多种安装方式。
2 分类和命名2.1 产品分类防爆型式：矿用隔爆型，标志：“ExdI”；2.2命名2.2.1产品型号灯具型号表示方法应符合MT/T 154.1-1992的规定。
D G S 70/127 B （B）修改序号补充特征代号功率（W）/ 电压（V）第二特征代号第一特征代号产品类型代号示例：DGS70/127B（B），矿用隔爆型投光灯，功率为70W ，额定电压为127V ，特征代号为B ，修改序号为B 。
3使用环境条件3.1 周围环境温度－20℃～40℃，气压为0.8～1.1×105Pa；3.2 海拔高度：2000m；3.3 周围空气月平均相对湿度为不大于95％（25℃）；3.4 使用在有瓦斯和煤尘爆炸危险的场所按MT221-2005第4.2条的规定；3.5 在无破坏绝缘的气体或蒸汽环境中；3.6 污染等级为3级。
4 基本性能参数见表.4.5 结构特征和工作原理5.1 灯具的外壳为隔爆型外壳，能在煤矿易燃易爆场所安全工作；5.2 采用高效气体放电作为光源，光效高、寿命长；5.3 外壳采用特殊轻质合金材料（ADC12），强度高、抗冲击性能好；5.4 优良的结构设计和最新的表面处理工艺，防水、防尘，确保灯具在各种恶劣的环境中可靠工作；5.5 重量轻、体积小、安装简单方便，可采用座式、壁挂式、吊顶式等多种安装方式。
6 安装与调试6.1 首先根据工作现场的实际情况，确定灯具的安装位置和方式，再根据灯具到电源接点的距离，准备相应长度的φ8～φ10mm的三芯电缆线。
投光灯说明书
LED 投光灯说明书LED投光灯是本公司新开发的一种新型集光照明灯具，该灯采用铝合金压铸底壳，进口材料面罩，超高亮度LED光源，具有外观时尚，坚固可靠，防水防尘，亮度高，光线柔和，节能环保等特点。
灯具特点：灯具特点1、单色性好，光线柔和，发光效率高。
2、冷光源、无热幅射、无有害金属汞、绿色环保。
3、功率低、耗电小、寿命长、稳定性好、可靠性高。
4、消耗能量较同光效的白炽灯减少80%。
5、工作温度可达-30℃~40℃，低温启动正常，响应速度快。
6、灯体采用金属制成，抗冲击性好，面罩采用PC材料，光线均匀柔和，坚固耐用。
7、灯体设计新颖别致，典雅美观，具有现代照明灯具特点，安装简单，调节方便。
技术参数：技术参数光源组成：超高亮白色大功率LED输入电压：AC85~264V频率范围：47~63HZ额定亮度：>0.9发光亮度：≥53Lux(6m),≥30Lux(8m),≥18Lux(10m),≥13Lux(12m)安装高度：6~12米使用寿命：≥30.000小时工作温度：-30℃~40℃灯体与灯罩材质：铝合金和pc材料防护等级：IP65净重：2.5Kg使用说明：使用说明根据灯具的安装位置，预先埋好灯杆，将灯具安装到灯杆上，接好电源线即可。
造用场所：造用场所造合花园，小区，园林，道路等场所的照明。
大功率LED投光灯系列产品简介大功率LED投光灯系列产品主要规格有30W、50W、70W、100W、140W等，还可根据用户要求开发特殊规格的产品，该灯具还可用作高速公路隧道照明灯、广告牌射灯、厂矿照明灯、庭院灯和路灯。
该产品的主要特点有：发光强度高，，照射距离远1、发光强度高目前LED的发光效率已经达到120Lm/W，已远远超过高压钠灯（80 Lm/W）、日光灯（60 Lm/W）和其他光源，而且LED发光角度为160º~180º，所有光能量可以全部投射到被照物表面，其他光源的发光角度均为360º，所以通常只有一半光能量投射到被照物表面，因此在同样光效的情况下，LED灯的发光强度（单位角度内的光通量）比其他灯具要高一倍，因此LED灯的发光强度（即通常人们感知的灯光亮度）比其他光源高得多。
PAK-L83-250L-AD-LN户外投光灯
PAK-L83-250L-AD-LN户外投光灯(防爆) 销售电话133384443272 PAK-L83-250L-AD-LN户外投光灯(防爆)适用场所：本公司结合部队、铁路、电力、公安、工矿等企事业单位际,研制开发生产的新一代大功率泛光工作灯,广泛应用于夜间作业、维护抢修、抢险救灾等现场移动照明需要。
结构特性：逆变功能：在停电或无市电的工作现场,可为家用电器、电动工具、拍摄仪器和办公设备提供功率为500W的交流200V或110V应急工作电源(客户可根据实际需求选配此项功能)。
防水性能：全密封性工艺设计,可置于水中正常工作,特制合金外壳确保产品能经受强力碰撞和冲击。
高效性能：选用特殊气体放电光源,发光效率高,光通量为3200Lm,是同功率卤素灯泡的5倍,照度是100W卤素灯泡的3倍,灯泡寿命长10000小时;是普通卤素灯泡的5-10倍;在相同亮度指示下,所消耗的电量是普通卤素灯泡的50％,并有低压过放电保护,可靠的保护电池,延长电池使用寿命。
4、使用方便：独特的灯头结构设计,照明角度可任意调节。
如选购气压三脚支架,还能在1.2-3米高度范围内任意升降。
灯箱装有轮子方便移动,工作时简单、轻松。
技术参数：A(HID光源)额定电压：24V额定容量：20Ah特制灯泡工作电压：24V额定功率：35W光通量：3200lm使用寿命：10000h放电时间：＞11h充电时间：正常使用：12h电池耗尽：≥16h电池寿命：约1000次循环外形尺寸：270x228x600mm三角支架：3000mm重量：15Kg外壳防护等级:IP65PAK-L83-250L-AD-LN户外投光灯(防爆) 销售电话133384443272。
防爆移动照明说明书
BCS系列防爆手电筒适用范围◆适用于1区、2区危险场地。
◆适用于ⅡA、ⅡB、ⅡC类，温度组别为T1-T5的爆炸性气体环境。
技术参数■ 执行标准：GB3836.1-2000、GB3836.2-2000、GB3836.3-2000、GB3836.4-2000、IEC60079■ 防爆标志: Exeib ⅡCT6■ 防护等级：IP65■ 防腐等级：WF2产品特点■ 壳体采用铝合金压铸成型，表面高压静电喷塑；■ 高效的反光碗；■ 透光率好，抗冲击能力强；■ 具有调焦装置，可以进行散光和聚光调节；■ 内置式开关，有良好的防水防尘性能；■ 维修时需采用专用工具，以保护安全；■ 具有独特设计的弯筒式结构，并配有卡扣，便于携带，结构紧凑，外形美观。
BXD6016/JW7300/CBW6100微型防爆电筒一、概况本公司顺应市场对微型照明灯具的要求,采用最新型光源技术,开发生产出微型防爆电筒。
本产品可适用于警察,部队和工矿企业及各种野外工作现场做移动照明和信号指示。
二、性能特点1、安全性能：本产品经国家权威机构防爆认证,具有本安型防爆等级及优良的防静电效果。
2、工作性能：光源采用特制超高亮度白色LED,可视距离达5000米;具有照明、点动频闪和远距离信号指示功能,连续照明时间10小时,而充电时间仅要4.5小时。
3、配置科学：高能无记忆电池容量大,寿命长,自放电率低,经济环保;LED光源耗材能少,寿命长,使用寿命可达10万小时。
4、适用性强：精选用进口高硬度合金材料做外壳,确保产品抗强力冲击和碰撞;防水及耐高低温、高湿性能好,可在各种恶劣环境和气候条件下使用。
5、智能保护：电筒内配置有过放、过充及短路保护电路,可靠的保护电池,延长电筒使用寿命;智能型充电吕设有过充、短路保护及充电显示装置。
6、灵活方便：本产品结构精巧,轻盈美观,体积小,重量轻。
外壳尺寸Φ25x120mm,重量仅0.128Kg,可挎在腰间或放在口袋中，携带十分方便。
投光灯使用说明
使用说明1产品使用工作电压：AC100V~240V 50/60Hz。
勿超出工作电压。
2.储存环境温度-60℃~+50℃，工作温度：-30℃~+50℃，最佳工作环境温度-0℃~+30℃3.由于灯具有玻璃配件，在搬运，储存的时候请注意轻拿轻放，勿重压。
安装说明1.通过产品安装支架上的安装孔位可直接用螺丝固定与安装杆或者安装面上。
2.固定好产品后，可将调节角度螺丝调松，然后转换支架的角度，也就是相当于调节灯具的安装角度。
3.安装灯具时，接线与接线处封闭好，防漏电，外接电源时，必须采取相应的防水措施。
4.该灯具使用时不能违反任何防火法规，不能覆盖灯具表面。
5.安装请找专业的安装人员。
6.要定期对灯具表面进行清洁，清洁前请确定已经断电，清洁时不能用水或者腐蚀性强的溶剂进行清洁，最好用干抹布。
LED Flood light installation instructionsInstructions for use:1. Using working voltage:AC100V~240V 50/60Hz,do not exceed the operating voltage range.2.Storage environment temperature:-60 ℃ ~+50 ℃, the working temperature: -30 ℃ ~+50 ℃, the optimum temperature of working environment: -0 ℃~+30 ℃.3. As a result of the light with glass lamp fittings, when carry, please pay attention to handling gently, don't stressThe installation diagram1. Through the mounting hole on the mounting bracket to be directly fixed withscrews and the installation rod or mounting surface.2. After products fixed, to loose adjustable screw, then transform the bracket angle, which is to adjust the installation angle of the lamp.3. Installation of lamps, wiring and wiring goods sealing good to prevent leakage. Using external power must be take measures for waterproof.4. The lamp be used can’t violate for any of fire regulation, can’t cover the surface of the product.5. Please find professional installer to installation.6. Please regular cleaning of the lamp body surface, and please be sure the power is cut off before cleaning. Do not use water or strong corrosion of solvent to cleaning, preferably with a dry cloth.7.。
