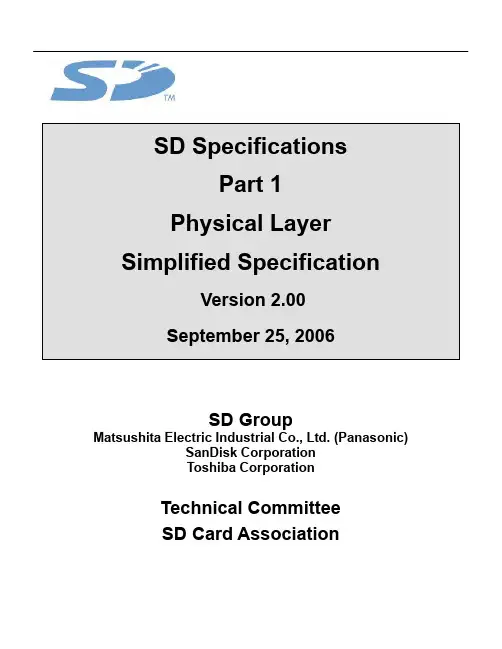

SD卡协会SD规范--物理层简化规范(pdf 129页)
i
©Copyright 2001-2006 SD Group (Panasonic, SanDisk, Toshiba) and SD Card Association Physical Layer Simplified Specification Version 2.00
Conditions for publication
Numbers and Number Bases
• Hexadecimal numbers are written with a lower case “h” suffix, e.g., FFFFh and 80h. • Binary numbers are written with a lower case “b” suffix (e.g., 10b). • Binary numbers larger than four digits are written with a space dividing each group of four digits, as in
Copyright Holders:
The SD Group Matsushita Electric Industrial Co., Ltd. (Panasonic) SanDisk Corporation (SanDisk) Toshiba Corporation (Toshiba)
The SD Card Association Notes: The copyright of the previous versions (Version 1.00 and 1.01) and all corrections or non-material changes thereto are owned by SD Group. The copyright of material changes to the previous versions (Version 1.01) are owned by SD Card Association.
SD卡IO规范1.1
Technical CommitteeSD AssociationRevision HistoryDate Version Changes compared to previous issueOctober, 2001 1.00 Base version initial releaseAugust, 2004 1.10 Incorporated Appendix D items. Added High-Powermode, voltage range clarification, inrush current limitsand more. See Appendix C for full list.Conditions for publicationPublisher and Copyright Holder:SD Association719 San Benito St. Suite CHollister, CA 95023USAPhone: +1 831 636 7322Fax: +1 831 623 2248E-mail: president@/Confidentiality:This document shall be treated as confidential under the Non Disclosure Agreement (NDA), which has been signed by the obtainer. Reproduction in whole or in part is prohibited without prior written permission of SD AssociationExemption:The information contained herein is presented only as a standard specification for SD Card and SD Host products. No responsibility is assumed by SD Association for any damages, any infringements of patents or other right of the third parties, which may result from its use. No license is granted by implication or otherwise under any patent or rights of SD Association or others.Table of Contents1.General Description (1)1.1SDIO features (1)1.2Primary Reference Document (1)1.3Keywords (1)1.4Standard SDIO Functions (2)2.SDIO Signaling Definition (3)2.1SDIO Card Types (3)2.2SDIO Card modes (3)2.2.1SPI (Card mandatory support) (3)2.2.21-bit SD data transfer mode (Card mandatory support) (3)2.2.34-bit SD data transfer mode (mandatory for High-Speed cards, optional for Low-Speed) (3)2.3SDIO Host Modes (3)2.4Signal Pins (4)2.5Host Requirements for SDIO (4)3.SDIO Card Initialization (6)3.1Differences in I/O card initialization (6)3.2The IO_SEND_OP_COND Command (CMD5) (10)3.3The IO_SEND_OP_COND Response (R4) (10)3.4Special Initialization considerations for Combo Cards (12)3.4.1Re-initialize both I/O and Memory (12)3.4.2Using a Combo Card as SDIO only or SD Memory only after Combo Initialization (12)3.4.3Acceptable Commands after Initialization (12)3.4.4Recommendations for RCA after reset (12)3.4.5Enabling CRC in SPI Combo Card (14)4.Differences with SD Memory Specification (15)4.1SDIO Command List (15)4.2Unsupported SD Memory commands (15)4.3Modified R6 Response (16)4.4Reset for SDIO (16)4.5Bus Width (16)4.6Card Detect Resistor (17)4.7Timings (17)4.8Data Transfer Block Sizes (18)4.9Data Transfer Abort (18)4.9.1Read Abort (18)4.9.2Write Abort (18)4.10Changes to SD Memory Fixed Registers (19)4.10.1OCR Register (20)4.10.2CID Register (20)4.10.3CSD Register (20)4.10.4RCA Register (20)4.10.5DSR Register (20)4.10.6SCR Register (20)4.10.7SD Status (20)4.10.8Card Status Register (21)5.New I/O Read/Write Commands (23)5.1IO_RW_DIRECT command (CMD52) (23)5.2IO_RW_DIRECT Response (R5) (24)5.2.1CMD52 Response (SD modes) (24)5.2.2R5, IO_RW_DIRECT Response (SPI mode) (25)5.3IO_RW_EXTENDED command (CMD53) (26)5.3.1CMD53 Data Transfer Format (27)5.3.2Special Timing for CMD53 multi-block read (28)6.SDIO Card Internal Operation (29)6.1Overview (29)6.2Register Access Time (29)6.3Interrupts (29)6.4Suspend/Resume (29)6.5Read Wait (30)6.6CMD52 During Data Transfer (30)6.7SDIO Fixed Internal Map (30)6.8Common I/O Area (CIA) (31)6.9Card Common Control Registers (CCCR) (31)6.10Function Basic Registers (FBR) (38)6.11Card Information Structure (CIS) (40)6.12Multiple Function SDIO Cards (40)6.13Setting Block Size with CMD53 (40)6.14Bus State Diagram (41)7.Embedded I/O Code Storage Area (CSA) (42)7.1CSA Licensing notice (42)7.2CSA Access (42)7.3CSA Data Format (42)8.SDIO Interrupts (43)8.1Interrupt Timing (43)8.1.1SPI and SD 1-bit mode interrupts (43)8.1.2SD 4-bit mode (43)8.1.3Interrupt Period Definition (43)8.1.4Interrupt Period at the Data Block Gap in 4-bit SD Mode (Optional) (45)8.1.5Inhibited Interrupts (Removed Section) (47)8.1.6End of Interrupt Cycles (47)8.1.7Terminated Data Transfer Interrupt Cycle (48)8.1.8Interrupt Clear Timing (49)9.SDIO Suspend/Resume Operation (50)10.SDIO Read Wait Operation (54)11.Power Control (56)11.1Power Control Overview (56)11.2Power Control support for SDIO cards (56)11.2.1Master Power Control (56)11.2.2Power Selection (57)11.2.3High-Power Tuples (57)11.3Power Control Support for the SDIO Host (57)11.3.1Version 1.10 Host (57)11.3.2Power Control Operation (58)12.SDIO Physical Properties (59)12.1SDIO Size (59)12.2Small Form-Factor SDIO (59)12.3Full-Size SDIO Card Package (59)13.SDIO Full-Size Mechanical Extensions (60)13.1Additional ESD/EMI Ground Point (60)13.2Full-Size Extended Case (60)13.3Write Protect Switch (60)14.SDIO Power (62)14.1SDIO Card Initialization Voltages (62)14.2SDIO Power Consumption (62)14.3SDIO Current (62)14.4SDIO Card Operational Voltages (62)15.Inrush Current Limiting (64)15.1Current Limit Design Example (65)16.CIS Formats (66)16.1CIS Reference Document (66)16.2Basic Tuple Format and Tuple Chain Structure (66)16.3Byte Order Within Tuples (66)16.4Tuple Version (67)16.5SDIO Card Metaformat (67)16.6CISTPL_MANFID: Manufacturer Identification String Tuple (68)16.7SDIO Specific extensions (68)16.7.1CISTPL_FUNCID: Function Identification Tuple (68)16.7.2CISTPL_FUNCE: Function Extension Tuple (69)16.7.3CISTPL_FUNCE Tuple for Function 0 (common) (69)16.7.4CISTPL_FUNCE Tuple for Function 1-7 (70)16.7.5CISTPL_SDIO_STD: Function is a Standard SDIO Function (73)16.7.6CISTPL_SDIO_EXT: Tuple Reserved for SDIO Cards (73)17.Abbreviations and Terms (74)A.1 SD and SPI Command List.........................................................................................................................AB.1 Normative References.................................................................................................................................CC.1 Version History............................................................................................................................................DC.2 Version 1.00 to 1.10....................................................................................................................................DD.1 Example SDIO Controller Design................................................................................................................FTable of TablesTable 1 SDIO pin definitions (4)Table 2 OCR values for CMD5 (10)Table 3 Unsupported SD Memory Commands (16)Table 4 R6 response to CMD3 (16)Table 5 SDIO R6 Status Bits (16)Table 6 Combo Card 4-bit Control (17)Table 7 Card Detect Resistor States (17)Table 8 Timing Diagram Symbols (18)Table 9 SDIO Status Register Structure (22)Table 10 Flag data for IO_RW_DIRECT SD Response (25)Table 11 IO_RW_ EXTENDED command Op Code definition (26)Table 12 Byte Count Values (27)Table 13 Card Common Control Registers (CCCR) (32)Table 14 CCCR bit definitions (37)Table 15 Function Basic Information Registers (FBR) (38)Table 16 FBR bit and field definitions (39)Table 17 Card Information Structure (CIS) and reserved area of CIA (40)Table 18 Reference Tuples by Master Power Control and Power Select (57)Table 19 SDIO Full-Size exceptions to SD physical section 8.1 requirements (59)Table 20 Basic Tuple Format (66)Table 21 Tuples Supported by SDIO Cards (67)Table 22 CISTPL_MANFID: Manufacturer Identification Tuple (68)Table 23 CISTPL_FUNCID Tuple (68)Table 24 CISTPL_FUNCE Tuple general structure (69)Table 25 TPLFID_FUNCTION Tuple for Function 0 (common) (69)Table 26 TPLFID_FUNCTION field descriptions for function 0 (common) (70)Table 27 TPLFID_FUNCTION Tuple for Function 1-7 (70)Table 28 TPLFID_FUNCTION field descriptions for functions 1-7 (72)Table 29 TPLFE_FUNCTION_INFO definition (72)Table 30 TPLFE_CSA_PROPERTY definition (72)Table 31 CISTPL_SDIO_STD: Tuple Reserved for SDIO cards (73)Table 32 CISTPL_SDIO_EXT: Tuple Reserved for SDIO Cards (73)Table 33 SD Mode Command List.....................................................................................................................A Table 34 SPI Mode Command List....................................................................................................................BTable of FiguresFigure 1 Signal connection to two 4-bit SDIO cards (4)Figure 2 SDIO response to non-I/O aware initialization (6)Figure 3 Card initialization flow in SD mode (SDIO aware host) (8)Figure 4 Card initialization flow in SPI mode (SDIO aware host) (9)Figure 5 IO_SEND_OP_COND Command (CMD5) (10)Figure 6 Response R4 in SD mode (11)Figure 7 Response R4 in SPI mode (11)Figure 8 Modified R1 Response (11)Figure 9 Re-Initialization flow for I/O Controller (13)Figure 10 Re-Initialization flow for Memory controller (14)Figure 11 I/O Abort during Read Data Transfer (18)Figure 12 I/O Abort during Write CRC Response (Good) (19)Figure 13 I/O Abort during Write CRC Response (Bad) (19)Figure 14 I/O Abort after Write CRC Response (19)Figure 15 IO_RW_DIRECT Command (23)Figure 16 R5 IO_RW_DIRECT Response (SD modes) (24)Figure 17 IO_RW_DIRECT Response in SPI Mode (26)Figure 18 IO_RW_EXTENDED Command (26)Figure 19 Multi-Block Read Timing (28)Figure 20 SDIO Internal Map (31)Figure 21 State Diagram for Bus State Machine (41)Figure 22 Read Interrupt Cycle Timing (44)Figure 23 Alternate Read Interrupt Cycle Timing (44)Figure 24 Write Interrupt Cycle Timing (45)Figure 25 Continuous Interrupt Cycle (45)Figure 26 Multiple Block 4-Bit Read Interrupt Cycle Timing (46)Figure 27 Multiple Block 4-Bit Write Interrupt Cycle Timing (47)Figure 28 Interrupt Cycle Timing (47)Figure 29 Alternate Interrupt Cycle Timing (48)Figure 30 Terminated Read Multiple Interrupt timing (Case 1) (48)Figure 31 Terminated Read Multiple Interrupt timing (Case 2) (49)Figure 32 Card with long read latency shall accept bus suspend (50)Figure 33 Function2 read cycle inserted during Function1 multiple read cycle (50)Figure 34 Write suspended during busy (case 1) (51)Figure 35 Write suspended during busy (case 2) (51)Figure 36 Relationship between Interrupt Period and Suspend/Resume (case 1) (52)Figure 37 Relationship between Interrupt Period and Suspend/Resume (case 2) (52)Figure 38 Suspend/Resume timing (53)Figure 39 Read wait control by stopping SDCLK (54)Figure 40 Read wait delay using DAT[2] (54)Figure 41 SDIO Card DAT[2] Drive Timing for Read Wait (55)Figure 42 Full-Size SDIO Mechanical Extensions (61)Figure 43 SDIO Inrush Current (65)Figure 44 Changes from version 1.00 to 1.10....................................................................................................D Figure 45 SDIO Internal State Machine example..............................................................................................F Figure 46 State Diagram for Function State Machine........................................................................................G1. GeneralDescriptionThe SDIO (SD Input/Output) card is based on and compatible with the SD memory card. This compatibility includes mechanical, electrical, power, signaling and software. The intent of the SDIO card is to provide high-speed data I/O with low power consumption for mobile electronic devices. A primary goal is that an SDIO card inserted into a non-SDIO aware host shall cause no physical damage or disruption of that host or it’s software. In this case, the SDIO card should simply be ignored. Once inserted into an SDIO aware host, the detection of the card proceeds via the normal means described in this specification with some extensions. In this state, the SDIO card is idle and draws a small amount of power (15 mA averaged over 1 second). During the normal initialization and interrogation of the card by the host, the card identifies itself as an SDIO card. The host software then obtains the card information in a tuple (linked list) format and determines if that card’s I/O function(s) are acceptable to activate. This decision is based on such parameters as power requirements or the availability of appropriate software drivers. If the card is acceptable, it is allowed to power up fully and start the I/O function(s) built into it.features1.1 SDIOz Targeted for portable and stationary applicationsz Minimal or no modification to SD Physical bus is requiredz Minimal change to memory driver softwarez Extended physical form factor available for specialized applicationsz Plug and play (PnP) supportz Multi-function support including multiple I/O and combined I/O and memoryz Up to 7 I/O functions plus one memory supported on one card.z Allows card to interrupt hostz Initialization Voltage: 2.0 to 3.6Vz Operational Voltage range:z Standard: 2.7 – 3.6Vz Minimal: 3.1 – 3.5Vz Application Specifications for Standard SDIO Functions.1.2 PrimaryDocumentReferenceThis specification is based on and refers extensively to the SDA document:SD Memory Card SpecificationsPart 1PHYSICAL LAYER SPECIFICATIONSeptember 2000Version 1.01The reader is directed to this document for more information on the basic operation of SD cards. In addition, other documents are referenced in this specification. A complete list can be found in appendix B.1.1.3 KeywordsAs used in this documents "shall", "should", "may" and "can" are defined as follows:shall - used to indicate mandatory itemsshould - used to indicated a recommended itemmay - used to indicate something that is permissiblecan - used for statements of possibility and capabilityFunctionsSDIO1.4 StandardAssociated with the base SDIO specification, there are several Application Specifications for Standard SDIO Functions. These common functions such as cameras, Bluetooth cards and GPS receivers have a standard register interface, a common operation method and a standard CIS extension. Implementation of the standard interfaces are optional for any card vendor, but compliance with the standard allows the use of standard drivers and applications which will increase the appeal of these cards to the consumer. Full information on these standard interfaces can be found in the Application Specifications for Standard SDIO Functions maintained by the SDA.2. SDIO Signaling DefinitionTypes2.1 SDIOCardThis specification defines two types of SDIO cards. The Full-Speed card supports SPI, 1-bit SD and the 4-bit SD transfer modes at the full clock range of 0-25MHz. The Full-Speed SDIO cards have a data transfer rate of over 100 Mb/second (10 MB/Sec). A second version of the SDIO card is the Low-Speed SDIO card. This card requires only the SPI and 1-bit SD transfer modes. 4-bit support is optional. In addition, Low-Speed SDIO cards shall support a full clock range of 0-400 KHz. The intended use of Low-Speed cards is to support low-speed I/O capabilities with a minimum of hardware. The Low-Speed cards support such functions as modems, bar-code scanners, GPS receivers etc. If a card is a ‘Combo card’ (memory plus SDIO) then Full-Speed and 4-bit operation is mandatory for both the memory and SDIO portions of the card.Cardmodes2.2 SDIOThere are 3 signaling modes defined for SD Physical Specification Version 1.01 memory cards that also apply to SDIO Card:2.2.1 SPI (Card mandatory support)The SPI bus topology is defined in section 3.1.2 and the protocol is defined in sections 3.2.2 and 7 of the SD Physical Specification Version 1.01. In this mode pin 8, which is undefined for memory, is used as the interrupt pin. All other pins and signaling protocols are identical to the SD Physical Specification Version1.01.2.2.2 1-bit SD data transfer mode (Card mandatory support)This mode is identical to the 1 data bit (narrow) mode defined for SD Memory in section 3.2.1 of the SD Physical Specification Version 1.01. In this mode, data is transferred on the DAT[0] pin only. In this mode pin 8, which is undefined for memory, is used as the interrupt pin. All other pins and signaling protocols are identical to the SD Memory specification.2.2.3 4-bit SD data transfer mode (mandatory for High-Speed cards, optional for Low-Speed)This mode is identical to the 4 data bit mode (wide) defined for SD Memory in section 3.2.1 of the SD Physical Specification Version 1.01. In this mode, data is transferred on all 4 data pins (DAT[3:0]). In this mode the interrupt pin is not available for exclusive use as it is utilized as a data transfer line. Thus, if the interrupt function is required, a special timing is required to provide interrupts. See section 8.1.2 for details of this operation. The 4-bit SD mode provides the highest data transfer possible, up to 100 Mb/sec.HostModes2.3 SDIOIf a SDIO aware host supports the SD transfer mode, it is recommended that both the 1-bit and 4-bit modes be supported. While a SDIO host that supports only the 4-bit transfer mode is possible, its performance with a Low-Speed SDIO card may be reduced. This is because the only means to transfer data to and from a Low-Speed card would be the single byte per command transfer (using the IO_RW_DIRECT command (CMD52) see 5.1).2.4 Signal PinsFigure 1 Signal connection to two 4-bit SDIO cardsPin SD 4-bit mode SD 1-bit mode SPI mode 1 CD/DAT[3] Data line 3 N/C Not Used CS Card Select 2 CMD Command line CMD Command line DI Data input 3 VSS1 Ground VSS1 Ground VSS1 Ground 4 VDD Supply voltage VDD Supply voltage VDD Supply voltage 5 CLK Clock CLK Clock SCLK Clock 6 VSS2 Ground VSS2 Ground VSS2 Ground 7 DAT[0] Data line 0 DATA Data line DO Data output 8 DAT[1] Data line 1 or Interrupt (optional)IRQ Interrupt IRQ Interrupt9 DAT[2] Data line 2 or Read Wait (optional)RW Read Wait (optional) NC Not UsedTable 1 SDIO pin definitionsIt is recommended that multi-slot hosts intending to support SDIO (SDIO aware) provide a separate CLK to each slot, to allow the I/O cards to be placed in a low power state on a slot-by-slot basis. After reset, all data lines (DAT[3:0]) shall be in the hi-Z state on both the host and card(s) to avoid bus conflict. Access to the Bus Interface Control register within the CCCR (Table 13) determines DAT line mode.2.5 Host Requirements for SDIOIn order for a host to completely support all of the capabilities of the SDIO cards, some signal connections should be supported. In order to support interrupts, the host should have Pin 8 connected from the card to the host in order to provide interrupt signaling. This is true even if the host only supports the SPI or 1 bit SD mode. In addition, if the host supports more than 1 card in either SD mode, the CMD and all 4 data lines (DAT[3:0]) should not be bussed together, but rather routed separately to the host. This allows the mixing of card types in the different sockets without interference. Both the SD Physical Specification and the SDIO Specification support the concept of “unifying” (connecting together) the CMD lines in a multi-slot system after initialization.In addition, there some additional design details that the designer of a host intending to support SDIO cards must be aware of:placed on the DAT[3:1] lines. Those conditions are:1) During a multiple block write:According to the SD Physical Specification Version 1.01 figures 9 and 28, the DAT[3:1] lines are described as “don’t care” (X) during the CRC status period. If a host actively drives these lines during this period, it may interfere with interrupt signaling from an SDIO card. In order to prevent this conflict, if a host supports interrupts during 4-bit data transfers, it shall not drive DAT[3:1] during this period (hi-Z rather than don’t care.)2) During a multiple block read:According to the SD Physical Specification Version 1.01 figure 26, the DAT[1] line is described as “P” (one cycle pull-up) between read data packets. In order to support interrupts during the 4-bit mode, the host shall not drive the DAT[1] line during the 2 clock Interrupt Period defined in section 8.1.2InitializationCard3. SDIO3.1 Differences in I/O card initializationA requirement for the SDIO specification is that an SDIO card shall not cause non-I/O aware hosts to fail when inserted. In order to prevent operation of I/O functions in non-I/O aware hosts, a change to the SD card identification mode flowchart is needed. A new command (IO_SEND_OP_COND, CMD5) is added to replace the ACMD41 for SDIO initialization by I/O aware hosts (see 3.2).After reset or power-up, all I/O functions on the card are disabled and the I/O portion of the card shall not execute any operation except CMD5 or CMD0 with CS=low. If there is SD memory installed on the card (also called a combo card), that memory shall respond normally to all normal mandatory memory commands.An I/O only card shall not respond to the ACMD41 and thus appear initially as an MMC card (See appendix B.1 for information on the MMC specification). The I/O only card shall also not respond to the CMD1 used to initialize the MMC cards and appear as a non-responsive card. The host then gives up and disables this card. Thus, the non-aware host receives no response from an I/O only card and force it to the inactive state. The operation of an I/O card with a non-I/O aware host is shown in Figure 2. Note that the solid lines are the actual paths taken while the dashed lines are not executed.Figure 2 SDIO response to non-I/O aware initializationAn SDIO aware host sends CMD5 prior to the CMD55/ACMD41 pair, and thus would receive a valid OCR in the R4 response to CMD5 and continue to initialize the card. Figure 3 shows the operation of an SDIO aware host operating in the SD modes and Figure 4 shows the same operation for a host that operates in the SPI mode.If the I/O portion of a card has received no CMD5, the I/O section remains inactive and shall not respond to any command except CMD5. A combo card stays in the memory-only mode. If no memory is installed on the card (i.e. an I/O only card in a non-SDIO aware host) the card would not respond to any memory command. This satisfies the condition where a user uses some I/O function on the card such as Ethernet to load a music file to the memory function of that card. The card is then removed and inserted into a non-SDIO aware host. That host would not enable the I/O function (no CMD5) so would appear to the player as a memory-only card. If the host were I/O aware, it would send the CMD5 to the card and the card would respond with R4. The host reads that R4 value and knows the number of available I/O functions and about the existence of any SD memory. After the host has initialized the I/O portion of the card, it then reads the Common Information Area (CIA) of the card (see 6.8). This is done by issuing a read command, starting with the byte at address 0x00, of I/O function 0. The CIA contains the Card Common Control Registers (CCCR) and the Function Basic Registers (FBR). Also included in the CIA are pointers to the card’s common Card Information Structure (CIS) and each individual function’s CIS. The CIS structure is defined in section 16. The CIS includes information on power, function, manufacturer and other things the host needs to determine if the I/O function(s) is appropriate to power-up. If the host determines that the card should be activated, a register in the CCCR area enables the card and each individual function. At this time, all functions of the I/O card are fully available. In addition, the host can control the power consumption and enable/disable interrupts on a function-by-function basis. This access to I/O does not interfere with memory access to the card if present.Combo Cards can accept CMD15 with RCA=0000, as described in Figure 3, but there is an exception for SD memory only cards. Memory only cards require a non-zero RCA before the host may issue CMD15. Thus, CMD15 shall be issued after CMD3 in the Standby state. In the case of ACMD41, it shall accept RCA=0x0000. As shown in Figure 3 and Figure 4, an SDIO aware host shall send CMD5 arg=0 as part of the initialization sequence after either Power On or a CMD 52 with write to I/O Reset. Sending CMD5 arg=0 that has not been preceded by one of these two reset conditions shall not result in either the host or card entering the initialization sequence.IO=1, MEM=0IO=1, MEM=1MP=0, IO=0Start initialization with CMD0, CMD1IO=0, MEM=1IO=0, MEM=0 Start initialization with CMD0 and CMD13.2 The IO_SEND_OP_COND Command (CMD5)Figure 5 shows the format of the IO_SEND_OP_COND command (CMD5). The function of CMD5 for SDIO cards is similar to the operation of ACMD41 for SD memory cards. It is used to inquire about the voltage range needed by the I/O card. The normal response to CMD5 is R4 in either SD or SPI format. The R4 response in SD mode is shown in Figure 6 and the SPI version is shown in Figure 7.S D Command Index000101b StuffBitsI/O OCR CRC7 E1 1 6 8 24 7 1Figure 5 IO_SEND_OP_COND Command (CMD5)The IO_SEND_OP_COND Command contains the following fields:S(tart bit): Start bit. Always 0D(irection): Direction. Always1 indicates transfer from host to card.Command Index: Identifies the CMD5 command with a value of 000101bStuff Bits: Not used, shall be set to 0.I/O OCR: Operation Conditions Register. The supported minimum and maximum valuesfor VDD. The layout of the OCR is shown in Table 2. See section 4.10.1 foradditional information.CRC7: 7 bits of CRC dataE(nd bit): End bit, always 1I/O OCR bit position VDD voltage window(in Volts)0-3 Reserved4 Reserved5 Reserved6 Reserved7 Reserved8 2.0-2.19 2.1-2.210 2.2-2.311 2.3-2.412 2.4-2.513 2.5-2.614 2.6-2.715 2.7-2.816 2.8-2.917 2.9-3.018 3.0-3.119 3.1-3.220 3.2-3.321 3.3-3.422 3.4-3.523 3.5-3.6Table 2 OCR values for CMD53.3 The IO_SEND_OP_COND Response (R4)An SDIO card receiving CMD5 shall respond with a SDIO unique response, R4. The format of R4 for both the SD and SPI modes is:S D Reserved C Number of I/O functionsMemory Present StuffBitsI/O OCR Reserved E 1 1 6 1 3 1 3 24 7 1Figure 6 Response R4 in SD modeModifiedR1C Numberof I/O functionsMemory PresentStuff BitsI/O OCR8 1 3 1 3 24Figure 7 Response R4 in SPI modeThe Response, R4 contains the following data:S(tart bit): Start bit. Always 0 D(irection): Direction. Always 0. Indicates transfer from card to host. Reserved: Bits reserved for future use. These bits shall be set to 1. C: Set to 1 if Card is ready to operate after initializationI/O OCR:Operation Conditions Register. The supported minimum and maximum values for VDD. The layout of the OCR is shown in Table 2. See section 4.10.1 for additional information.Memory Present: Set to 1 if the card also contains SD memory. Set to 0 if the card is I/O only.Number of I/O Functions: Indicates the total number of I/O functions supported by this card. The range is 0-7.Note that the common area present on all I/O cards at Function 0 is not included in this count. The I/O functions shall be implemented sequentially beginning at function 1.Modified R1: The SPI R1 response byte as described in Fig 47 of the SD Physical SpecificationVersion 1.01 modified for I/O as follows:Figure 8 Modified R1 ResponseStuff Bits:Not used, shall be set to 0.1 = in idle state RFU (always 0)1 = illegal command 1 = COM CRC error1 = Function number error RFU (always 0)1 = parameter errorStart Bit (always 0)。
档案书籍整理制度范本
档案书籍整理制度范本第一条总则为了加强档案书籍的管理，提高档案书籍的利用效率，确保档案书籍的完整性和准确性，特制定本制度。
本制度适用于公司、企事业单位、社会团体等单位的档案书籍整理工作。
第二条档案书籍的定义本制度所称档案书籍，是指各单位在各项工作中形成的、具有保存价值的文字、图表、照片、录音、录像等各种形式的文件材料。
第三条档案书籍的管理原则档案书籍管理应遵循以下原则：（一）依法管理原则：遵守国家有关档案管理的法律法规，确保档案书籍的合法性、合规性。
（二）真实性原则：确保档案书籍的内容真实、准确，反映单位各项工作的实际情况。
（三）完整性原则：确保档案书籍的收集、整理、保管、利用等环节各项工作完整无缺。
（四）安全性原则：确保档案书籍的安全，防止档案书籍的损毁、丢失、泄密等风险。
第四条档案书籍的管理机构各单位应设立档案管理部门，负责档案书籍的管理工作。
档案管理部门的主要职责如下：（一）制定档案书籍的管理规章制度。
（二）组织、指导、监督档案书籍的收集、整理、保管、利用等工作。
（三）负责档案书籍的分类、归档、编目、登记等工作。
（四）负责档案书籍的保管、维护、修复等工作。
（五）负责档案书籍的查询、借阅、复制等工作。
（六）负责档案书籍的安全、保密等工作。
第五条档案书籍的收集与整理（一）档案书籍的收集1. 各单位各部门应按照档案管理部门的要求，及时将形成的具有保存价值的文件材料收集、整理后交档案管理部门。
2. 档案管理部门应定期对各部门的档案书籍进行审核、验收，确保档案书籍的完整性、准确性。
（二）档案书籍的整理1. 档案管理部门应按照档案书籍的性质、形成时间、类别等原则对档案书籍进行整理。
2. 档案管理部门应编制档案书籍的分类目录、索引等检索工具，便于查询利用。
第六条档案书籍的保管与利用（一）档案管理部门应建立健全档案书籍的保管制度，确保档案书籍的安全、保密。
1. 档案书籍应存放在符合防火、防盗、防潮、防虫、防霉、防光、防尘等要求的专用库房内。
_SD卡_规格书
Micro-Sized Secure Digital CardGByte, 2GByte and 4GByte主要描述MicroSD 卡是把有序和随机的存取能力高度结合的闪存卡.通过专用的串行接口有效地进行快速和可靠的数据传输.这个接口允许几种卡通过连接外部装置直接应用. 这些MicroSD 卡是完全兼容一些新的消费标准的.在MicroSD 卡的系统描述中会有MicroSD 卡系统标准的定义.MicroSD 卡系统是基于半导体技术革新上的大容量存储系统.它已经发展成为了一种应用于多媒体消费类产品廉价,结实的存储介质.MicroSD 卡适适用于那些廉价的播放器和驱动器的设计,不用移动任何一个部分.耗电量低,宽电压范围支持移动,电池电源.可用于音频播放器,万用笔记本,掌上电脑,电子书,电子百科全书,电子词典.用于非常有效的数据压缩方案.比如:MPEG 格式, MicroSD 卡将为多媒体数据的传输提供足够的容量.要特性- 容量: 128MB/256MB/512MB. - 兼容MicroSD 卡2.0版本规格 - 物理层的规范第一部分是2.0版本. (功能, 电子特性, Registers) -卡内错误自动纠正-电压传输范围: 2.7~3.6V . -耗电量较低:自动开关电源, 自动的管理电源. - 不要求额外的运行电压.-充电时插入或移除卡都不会造成毁坏l. -数据张力: 100k 写入/擦除 周期. -便于终端客户处理 - 可信赖的电子结构- 支持文本信息和图像- 面积: 11mm(W)x15mm(L). - 厚度 跨连接区7mm, 卡的厚度.95mm.- MICROSD 卡的插槽可以连接适配器用图像1. MICROSD 卡的格式Table 1. 产品清单深圳市威胜科技有限公司MICROSDTable 2. 产品明细(特征值)Parameter Range1GB 2GB 4GB记忆容量1024MB 2048MB 4096MB写入速度5MB/S 5MB/s 6MB/s读取速度10MB/S 15MB/s 15MB/s待机电流60 uA 60 uA 60 uA操作电流55mA 55 mA 55 mA平均故障间隔时间1,000,000 hours张力10,000 插入/移除周期控制器SK6612控制器明细SK6612 Data Sheet v105.pdfTable 3. 操作环境参数范围温度操作模式-25 ~ 65℃存储模式- 40 ~ 85℃湿度操作模式8% to 95%,非冷凝存储模式8% to 95%,非冷凝深圳市威胜科技有限公司MICROSD Figure 2. 物理结构图Bottom View深圳市威胜科技有限公司MICROSDTop View深圳市威胜科技有限公司MICROSD。
图书建档管理制度
图书建档管理制度一、总则为规范图书建档工作，提高图书档案管理效率，保障图书资源的正常利用和管理。
特制定本制度。
二、建档管理范围本制度适用于所有单位内部的图书建档工作，包括订购、收集、整理、编目、分类、编号等所有环节。
三、建档管理机构单位图书建档管理机构设立在图书馆或档案管理部门，负责具体的建档工作。
图书建档管理员由专业人员担任。
四、建档管理流程1. 订购阶段：在订购图书时，应向图书建档管理员提交书名、作者、出版社等相关信息，以便建档。
2. 收集阶段：收到新书后，建档管理员应及时进行验收，确认书籍信息无误后进行建档处理。
3. 整理阶段：对收到的图书进行整理、装订，确保图书质量完好。
4. 编目阶段：建档管理员应对图书进行分类编目，便于读者查找和管理。
5. 分类阶段：根据图书的内容和特点，将图书进行分类放置，避免混乱。
6. 编号阶段：对每本图书进行编号，建立起图书的独立标识，方便管理和检索。
五、建档管理原则1. 一书一档：每本图书应建立相应的档案，内容包括书名、作者、出版社、索书号等信息。
2. 信息准确：建档信息应准确无误，确保用户能够准确、方便地查找到所需图书。
3. 分类有序：对不同类型的图书进行合理分类，便于读者根据自身需求查找所需图书。
4. 管理规范：建档工作应按照规定流程和标准进行，不得擅自更改或篡改档案信息。
5. 定期维护：建档管理员应定期检查、修正档案信息，确保信息的及时性和准确性。
六、建档管理责任1. 图书建档管理员应认真负责地履行建档工作，保证图书档案信息的完整性和准确性。
2. 部门负责人应对建档工作进行监督，确保工作流程的顺利进行。
3. 任何单位内部工作人员不得私自动用图书档案信息，违者将受到相应处罚。
七、建档管理效果评估单位应定期对图书建档工作进行评估，检查建档信息的完整性和准确性，及时发现问题并予以解决。
以上为图书建档管理制度，单位内部应严格执行，确保图书资源得到有效管理和利用。
SD卡接口的完整规范
SD卡接口规范的完整翻译特性：◎容量：32MB/64MB/128MB/256MB/512MB/1GByte◎兼容规范版本1.01◎卡上错误校正◎支持CPRM◎两个可选的通信协议：SD模式和SPI模式◎可变时钟频率0－25MHz◎通信电压范围：2.0-3.6V工作电压范围:2.0-3.6V◎低电压消耗：自动断电及自动睡醒，智能电源管理◎无需额外编程电压◎卡片带电插拔保护◎正向兼容MMC卡◎高速串行接口带随即存取－－－支持双通道闪存交叉存取－－－快写技术：一个低成本的方案，能够超高速闪存访问和高可靠数据存储－－－最大读写速率：10Mbyte/s◎最大10个堆叠的卡（20MHz,Vcc=2.7-3.6V)◎数据寿命：10万次编程/擦除◎CE和FCC认证◎PIP封装技术◎尺寸：24mm宽×32mm长×1.44mm厚说明：本SD卡高度集成闪存，具备串行和随机存取能力。
可以通过专用优化速度的串行接口访问，数据传输可靠。
接口允许几个卡垛叠，通过他们的外部连接。
接口完全符合最新的消费者标准，叫做SD卡系统标准，由SD卡系统规范定义。
SD卡系统是一个新的大容量存储系统，基于半导体技术的变革。
它的出现，提供了一个便宜的、结实的卡片式的存储媒介，为了消费多媒体应用。
SD卡可以设计出便宜的播放器和驱动器而没有可移动的部分。
一个低耗电和广供电电压的可以满足移动电话、电池应用比如音乐播放器、个人管理器、掌上电脑、电子书、电子百科全书、电子词典等等。
使用非常有效的数据压缩比如MPEG，SD卡可以提供足够的容量来应付多媒体数据。
框图：SD卡上所有单元由内部时钟发生器提供时钟。
接口驱动单元同步外部时钟的DAT和CMD信号到内部所用时钟。
本卡由6线SD卡接口控制，包括：CMD,CLK,DAT0-DAT3。
SD卡接口的完整规范（二）faceoff 发表于2006-8-11 20:12:00回复从该CMD线上串行传输。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
1．概述SD存储卡（Secure Digital Memory Card）是特别为符合新出现的音频和视频消费电子设备的安全性、容量、性能和环境等要湂而设计的一种存储卡。
SD存储卡包含符合SDMI标准安全性的版权保护机制，速度更快而且存储容量更大。
SD存储卡的安全绻统使用双方认证和“新的密码算滕”技术，防止卡的内容被非滕使用。
它还提供了一种无安全性的访问方滕访问用户自己的内容。
SD存储卡的物理外形、引脚分配和数据传输协议都向前兼容多媒体卡（MultiMediaCard），但也增加了一些内容。
SD存储卡的通信基于一个高级的9引脚接口（时钟、命令、4条数据线和3条电源线），可以在最高25MHz频率和低电压范围内工作。
通信协议也是本规范的一部分。
SD存储卡的主机接口也支持常规的多媒体卡操作。
也帱是说向前兼容多媒体卡。
实际上，SD存储卡和多媒体卡的主要区别在初始化过程。
SD存储卡规范共有几个文档，其文档结构图如图1所示。
·SD存储卡音频规范这个规范以及其他规范介绍了某些应用（这里是音频应用）的规范以及实现要湂。
·SD存储卡文件绻统规范介绍了保存在SD存储卡中的数据的文件格式结构规范（包括有保护和无保护方面）。
·SD存储卡安全规范介绍了版权保护机制以及支持的应用专用命令。
·SD存储卡物理幂规范（本规范）介绍了SD存储卡使用的物理接口和命令协议。
本规范的目的是定义SD存储卡的环境和操作。
本文档分几个部分，第三章概述了绻统的概念。
一般的SD存储卡特性在第四章介绍。
由于这里定义了卡的所有幞性，我们建议同时参考产品文档。
卡的寄存器在第五章介绍。
第六章定义了SD存储卡的硬件接口电渔参数。
第八章介绍了SD存储卡的物理和机械特性以及卡槽的最帏标准。
2．绻统特性·用于便携式和固定应用。
·电压范围：-SD存储卡：基本通讯（CMD0、CMD15、CMD55、ACMD41）：2.0～3.6V。
其他命令和存储器访问：2.7～3.6V。
-SDLV存储卡（低电压）工作电压范围：1.6～3.6V。
·用于只读卡或读／写卡。
·时钟频率0～25MHz。
·读／写速率高达10MB/s（用4条并行数据线）。
·在有10张卡时仍能达到最高数据速率。
·纠正存储区的错误。
·在读操作的过程中拔出卡不会破坏卡的内容。
·向前兼容多媒体卡。
·版权保护机制——符合SDMI标准的最高安全性。
·卡有密码保护功能（可选）。
·用机械开关实现的写保护特性。
·内嵌的写保护特性（游久和暂时）。
·检测卡（插入／拔出）。
·应用的专用命令。
·令人满意的擦除机制。
·通信信道的协议幞性：·SD存储卡的厚度可以是为2.1mm（普通）和1.4mm（薄SD存储卡）。
3．SD存储卡的绻统概念SD存储卡为应用的设计人员提供了低成本的大容量存储设备（如可移动的卡），支持高安全等级的版权保护以及简单、易于实现的接口。
按提供的功能（由SD存储卡绻统命令的子集给出）差异，SD存储卡可以分成几种繻型：·读／写（R/W）卡（Flash、OPT、MTP（可多次编程））。
这些卡作为空的介质售卖，用于大容量数据存储、终端用户的视频、音频或数字影像记录。
·只读存储卡（ROM）。
这些卡有固定的数据内容。
它们典型用于软件、音频、视频等媒体的销售。
按工作电压可以帆SD存储卡分为两繻：·支持2.0V~3.6V的初始化／识别过程的SD存储卡，这个工作电压范围在CSD寄存器定义。
·SDLV存储卡——低电压SD存储卡，它可以在1.6~3.6V的电压范围工作。
SDLV存储卡与SD存储卡的标识不一样。
SD存储卡绻统包括SD存储卡（或几种卡）的总线及其主机／应用。
主机和应用规范不在本文档的讨论范围内。
下面部分帆介绍卡的概述、总线拓扑结构和SD存储卡绻统的通讯协议。
版权保护（安全）绻统帆在SD存储卡安全规范文档中介绍。
3.1 总线拓扑结构SD存储卡绻统定义了两种通信协议：SD和SPI。
应用可以选择其中一种模式。
模式选择对于主机来说是透明的。
卡自动检测复位命令的模式，而且要湂以后的通信都按相同的通信模式进行。
因此，只使用一种通信模式的应用不需要明白另一种模式。
3.1.1 SD总线SD总线包含以下信号：CLK: 主机向卡发送的时钟信号；CMD: 双向的命令／响应信号；DAT0～DAT3: 4个双向的数据信号；VDD、VSS1、VSS2: 电源和地信号。
SD存储卡总线有一个主机（应用）、多个从机（卡）和同步的星形拓扑结构（参考图2）。
所有卡共用时钟、电源和地信号。
命令（CMD）和数据（DAT0~DAT3）是卡的专用信号，为所有卡提供连续的点对点连接。
在初始化进程中，命令被分别发送到各张卡，允许应用程序检测到卡并向物理卡槽分配逻辑地址。
各张卡的数据通常独立地发送（接收）。
但是，为了简化卡的成批处理，在初始化进程后，所有命令可能同时发送到所有卡。
命令包中提供地址信息。
SD总线允许动态配置数据线的数量。
在上电后，SD存储卡默认只使用DAT0进行数据传输。
初始化后，主机可以修改总线宽度（有效的数据线数量）。
这个特性允许简单地交替选择HW成本和绻统性能。
滨意：S D主机在不使用DAT1~DAT3时可以使自己的DAT1~DAT3线处于三态（输入模式）当。
3.1.2 SPI总线SD存储卡兼容的SPI通信模式使SD存储卡可以通过SPI信道与市场上的许多微控制器通信。
这个接口在上电后的第一个复位命令期间选择，而且在上电期间不能修改。
SPI标准只定义了物理链路而不是完整的数据传输协议。
SD存储卡的SPI功能使用相同的SD模式命令集。
从应用的观点看来，SPI模式的优点是能使用现成的主机，因此帆设计工作量降至最低。
但缺点是性能有损失，例如不能像SD模式一样选择总线宽度。
SD存储卡的SPI接口与市场提供的SPI主机兼容。
和其他SPI设备一样，SD存储卡的SPI信道由以下4个信号组成：CS: 主机向卡发送的片选信号；CLK: 主机向卡发送的时钟信号；DataIn: 主机向卡发送的数据信号；DataOut: 卡向主机发送的数据信号。
另一个SPI共有的特性是字节传输，这种特性也能在SD卡实现。
所有数据令牌都是字节（8位）的倍数，而且字节通常与CS信号对齐。
卡的识别和寻址由硬件片选（CS）信号代替。
因此溡有广播命令。
对于每个命令来说，卡（从机）由低电平有效的CS信号选中（见图3）。
CS信号在SPI处理（命令、响应和数据）期间必须连续有效。
唯一的例外情况是卡的编程，在这个过程中主机可以使CS信号为高电平，但不影响卡的编程。
SPI接口使用SD总线9个SD信号中的7个（不使用DAT1和DAT2，DAT3是CS信号）。
3.2 总线协议3.2.1 SD总线SD总线上的通信基于以起始位开始、以停止位结束的命令和数据位流。
·命令：命令是启动一项操作的令牌。
命令可以从主机发送到一张卡（寻址命令）或发送到连接的所有卡（广播命令）。
命令在CMD线上串行传输。
·响应：响应是从被寻址的卡或（同时）从所有连接的卡发送到主机，作为对接收到的命令的回答的令牌。
响应在CMD线上串行传输。
·数据：数据可以从卡发送到主机或者相反。
数据通过数据线传输。
图4 “无响应”和“无数据”操作卡的寻址由会话地址实现，并在初始化阶段分配给卡。
命令、响应和数据块的结构在第四章介绍。
SD总线的基本处理是命令／响应处理（请参考第四章）。
这繻型的总线处理直接在命令或响应结构中传输它们的信息。
另外，某些操作还有数据令牌。
SD存储卡的数据传输通过块的形式进行。
数据块后面通常有CRC位。
它定义了单块和多块操作。
滨意：在快速写操作中使用多块操作模式最理想。
当CMD线出现停止命令时，多块传输结束。
主机可以配置数据传输是使用一条还是多条数据线。
图5 （多）块读操作不管块的写操作使用了多帑条数据线传输数据，它只使用DAT0数据线上的写操作忙信号。
图6 （多）块写操作命令令牌的编码策略如下：图7 命令令牌的格式每个命令令牌都以起始位（0）开始，以结束位（1）结束。
令牌的总长度是48位。
每个令牌都有CRC位，这样可以检测传输错误并重复操作。
响应令牌根据其内容共有4种编码策略。
令牌长度是48位或136位。
命令和响应的详细定义请参考4.7节。
块的CRC保护算滕是一个16位的CCITT多项式。
所有使用的CRC繻型在4.5节介绍。
图8 响应的令牌格式在CMD线上首先传输的是MSB，最后是LSB。
当使用宽总线选项时，数据一次传输4位（参考第9章）。
起始和结束位以及CRC位在每条DAT线各发送一次。
每条数据线分别计算并检查CRC位。
CRC状态响应和忙指示信号由卡通过DAT0发送到主机（DAT1~DAT3在此期间无关）。
图9 数据包的格式3.2.2 SPI总线SD信道基于以起始位开始、以停止位结束的命令和数据位流，而SPI信道是面向字节的。
每个命令或数据块都由8位的字节组成，而且字节与CS信号对齐（即长度是8个时钟周期的倍数）。
与SD协议相似，SPI报文由命令、响应和数据块令牌组成。
主机和卡之间的所有通信都由主机控制。
主机通过帆CS信号置低电平启动总线处理。
SPI模式中的响应行为在以下三个方面与SD模式不同：·被选中的卡总会响应命令。
·使用两种新的响应结构（8位和16位）。
·当卡遇到数据检索错误时会用错误响应（替代要湂的数据块）响应而不是用SD模式中的超时响应。
除了响应命令外，在写操作过程中发送到卡的每个数据块会用特殊的数据响应令牌响应。
读数据SPI模式支持单块和多块的读命令。
但是为了遵守SPI工业标准，它值使用2个（单向）信号（请参考第10章）。
在接收有效的读命令前，卡帆用响应令牌加上在前面用SET_BLOCKLEN (CMD16)命令定义了长度的数据令牌响应。
多块读操作像SD协议一样用STOP_TRANSMISSION命令终止。
图10 读操作有效的数据块后面都有由标准CCITT多项式x16 +x12 +x5 +1生成的16位CRC。
在发生数据检索错误的情况下，卡不会发送任何数据，而是向主机发送一个特殊的数据错误令牌。
图11显示了用错误令牌而不是用数据块终止的数据读操作。
图11 读操作――数据错误写数据SPI模式支持单块和多块的写命令。
在接收有效的写命令前，卡会用响应令牌响应，并等待主机发送数据块。
CRC后缀、块的长度和起始地址的限制都与读操作相同（见图12）。
图12 写操作在接收到数据块后，卡会用数据响应令牌响应。
